AP&T AP-AB1207 User manual

AP&T
R
High Efficient Electroshock-proof
Intelligent Ion Bar
AP-AB1207
Shanghai Anping Static Technology Co.,Ltd
AP&T

Prevent adhesion of objects
Static removal Prevent uneven scattering
Control ink splashing
Prevent sticking
Widely used in printing, UV flatbed industry
Effectively solve the problem caused by static electricity

Safe
Static removal
High efficient

Ion balance/
ion output frequency adjustable
Intelligent Control
Positive high voltage amplitude
正高压幅值
Negative high voltage amplitude
time
The negative ion output increases with the
increase of negative high voltage amplitude
The negative ion output increases with the
decrease of negative high voltage amplitude

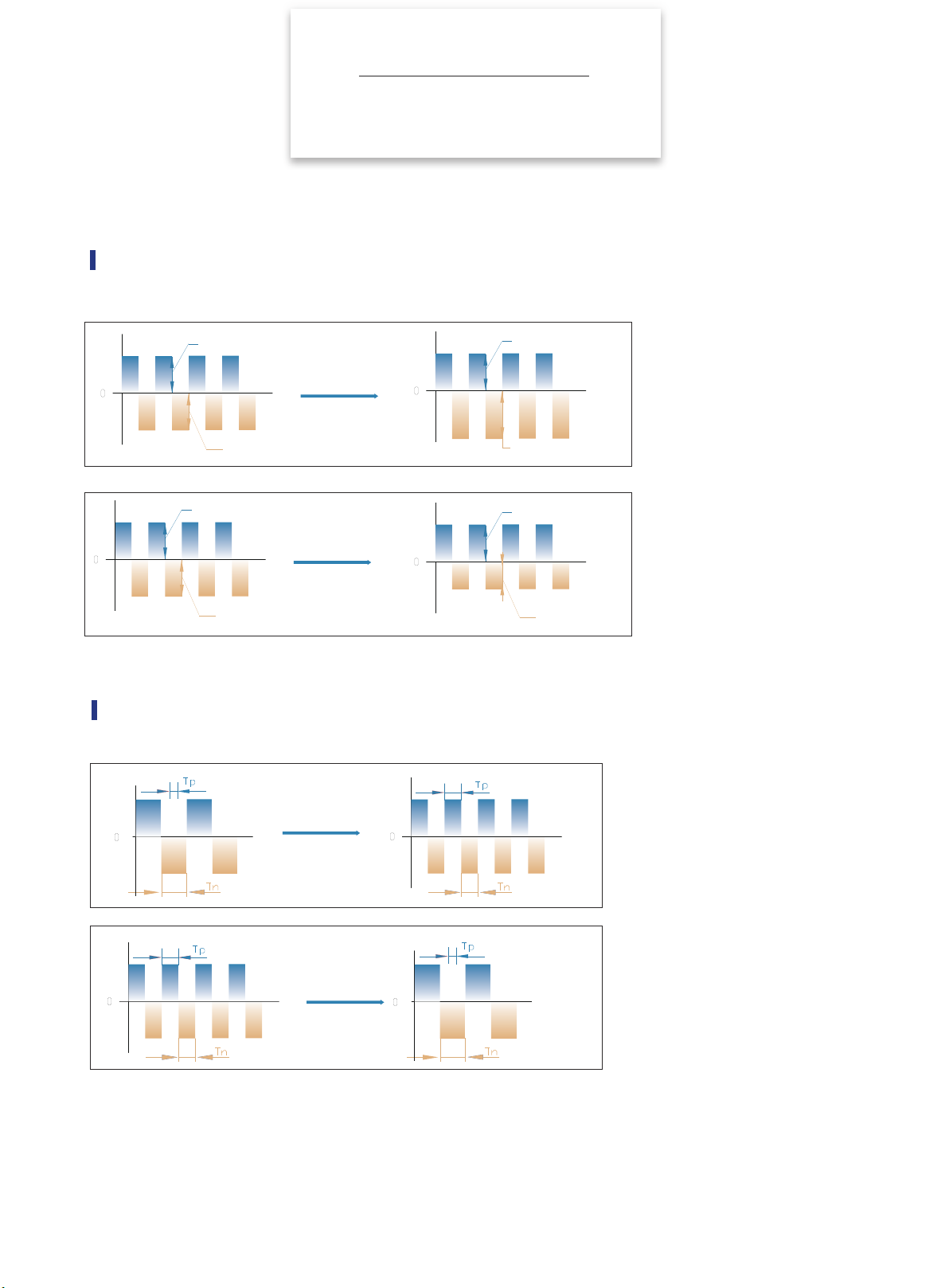

Adjust ion balance voltage
Vp
Vp Vp
Vp
Vn
Vn Vn
Vn
Adjust the output frequency of
positive and negative high voltage
The output frequency of positive and
negative ions increases
The output frequency of positive
and negative ions decreases
time
-HV
(Negative high voltage)
The output ratio of positive and negative ions is adjustable, which can be used to
adjust the ion balance voltage.The output frequency of positive and negative ions is adjustable, which can be
applied to different discharge distance to achieve faster discharge speed.
+HV
voltage)(Positive high
Positive voltage working time
Negative voltage working time
-HV
(Negative high voltage)
+HV
(Positive high voltage)
Positive voltage working time
Negative voltage working time
time
-HV
(Negative high voltage)
+HV
(Positive high voltage)
-HV
(Negative high voltage)
+HV
(Positive high voltage)
Positive voltage working time
Negative voltage working time
Positive voltage working time
Negative voltage working time
-HV
(Negative high voltage)
+HV
(Positive high voltage)
-HV
(Negative high voltage)
+HV
(Positive high voltage)
+HV
(Positive high voltage)
+HV
(Positive high voltage)
-HV
(Negative high voltage)
-HV
(Negative high voltage)
Positive high voltage amplitude
Positive high voltage amplitude
Negative high voltage amplitude
Negative high voltage amplitude
Negative high voltage amplitude
Adjust ion balance voltage
time
time time
Adjust the output frequency of
positive and negative high voltage
time time

Intelligent Control
Ion balance/
ion output frequency adjustable
Button function instructions
Function Symbol Operation instructions
Unlock Unlock before adjusting operating parameters.
Run / Pause Device starts running when power is on. Press "STOP" to standby and no high voltage
output. Press "RUN" again and the device will start working.
Adjust
cleaning cycle CTTH → +/-
Press CTTH first, then +/- to increase or decrease the cleaning cycle. The default cleaning
period is 15 days, and the adjustment range is 1-60 days. The cleaning function will alarm when
the countdown is 0 days. Power off and restart to restore the set time. The cleaning function
becomes invalid if the value is set to 0 days.
Adjust
frequency FREQ → +/- Press FREQ first，then press +/- to increase or decrease the frequency of positive and negative
ions output .
Note: this adjustment function can only be effective if the coding switch is in C or D position.
Adjust
ion balance voltage IBN → +/-
Press IBN first, then press + when the positive voltage on flat panel detector or discharge object
surface is high, press IBN first, then press - when the negative voltage on flat panel detector or
discharge object surface is high until the ion balance reaches the ideal status.
Confirm CAL → OK Note: Press CAL first, then press OK to confirm after adjusting the output parameter; otherwise,
false alarms are likely to occur.

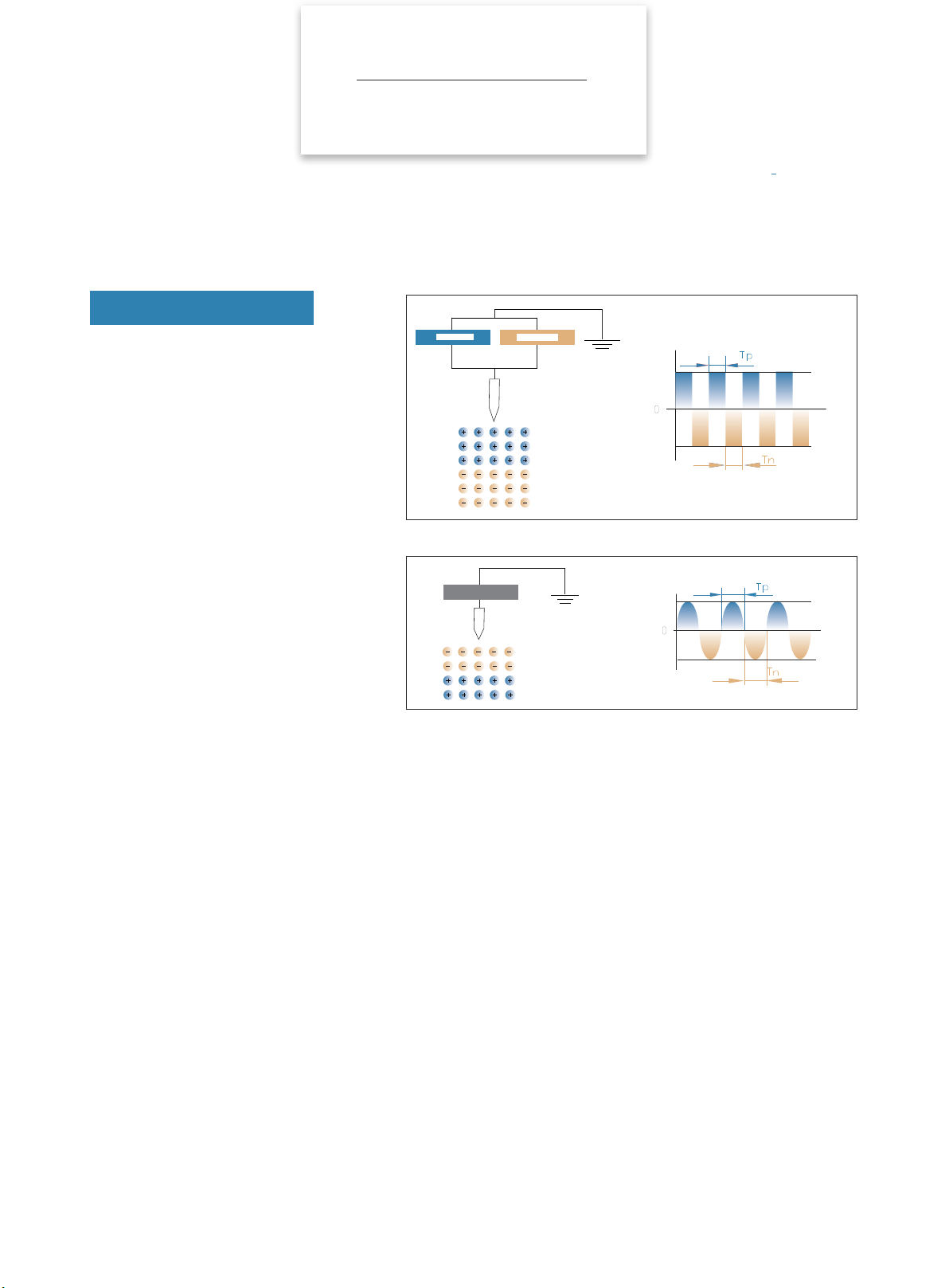

Pulse AC
Comparison with traditional AC
Traditional AC
Pulse AC
Positive pulse Negative pulse
T
Pulse AC Positive voltage working time
Negative voltage working time
+HV
(Positive high pressure)
-HV
(Negative high pressure)
AC
power supplyHigh voltage
Frequency AC
T
Positive voltage working time
Negative voltage working time
+HV
(Positive high pressure)
-HV
(Negative high pressure)
The pulsed AC method alternately applies "+" and "-"
high voltage to one electrode needle to generate two
polar ions.
Compared with the AC method, the ion generation
efficiency is higher.Electrostatic elmiination ability
can be fully plated on matter for short or long
distance.Beside,frequency adjustable so the working
distanceis extended.Positive and negative ion output
ratio adjustable so easy for intelligent control.
Pulse AC
The effect of static eliminating is better
compare to power frequency AC ion bar

30mm
150mm
0s
0s
0.1s
1.0s
1.7s
3.2s
3.1s
5.1s
2.8s
3.1s
2.3s
6.0s
150mm
50mm
70mm
100mm
0.5 1.0
150mm*150mm Flat tester
Test Conditions：
Ion bar length：410mm Working frequency：30Hz
Test standard: ANSI/ESD.STM3.1, SJ/T 11446—2013
Test instrument: Trek157 static tester
Test voltage: ±1000V → ±100V attenuation
Test environment: humidity 50±5%; temperature 23±3℃
The test data diagram is as follows (test distance: 100mm, ion bar length: 410mm, working frequency: 30Hz):
Test data under other conditionsare as follows
Ion bar length: 410mm, working frequency: 30Hz
Test distance (mm) Discharge speed
Positive discharge time
(S)
Negative discharge time
(S) Ion Balance voltage (V)
Vertical Level
30
-150 1.0 1.7 -13.5
0 0.0 0.0 -6.3
150 2.8 2.7 10.1
50
-150 1.4 3.2 -23.3
0 0.0 0.0 7.5
150 1.8 3.1 -15.8
70
-150 3.0 3.1 17
0 0.1 0.1 13.7
150 2.1 2.3 19.9
100
-150 5.1 4.2 2.75
0 0.5 1.0 9.9
150 6.0 5.4 21.3
Test diagram
Stay away static trouble &
for clean production environment
Efficiently static removal

No.1
No.2
No.4
No.3

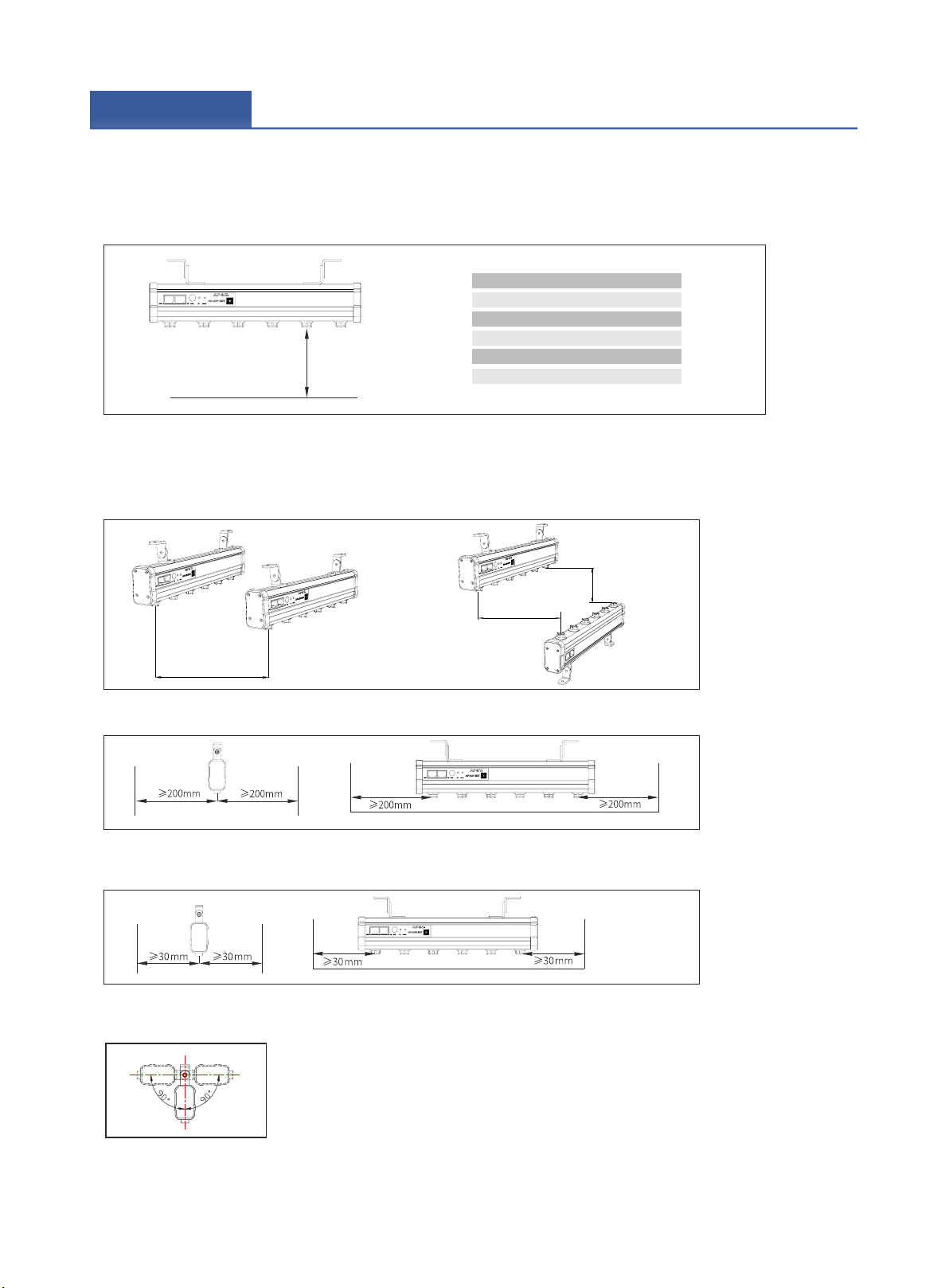

Easy installation
Provide stainless steel bracket and can adapt to
various installation environments.
Electroshock-proof
Protection against electroshock.
Working status visualization
Red light alarm when high voltage abnormal.
CE certification
It can effectively prevent the external
electromagnetic interference from affecting the
normal operation of the ion bar. This is a static
electricity eliminator with high safety and high
reliability.
Features
Safe / Easy to use / Durable

unit：mm
25
3
25
3
16
Φ5
34
25
34
DCREMF REQ

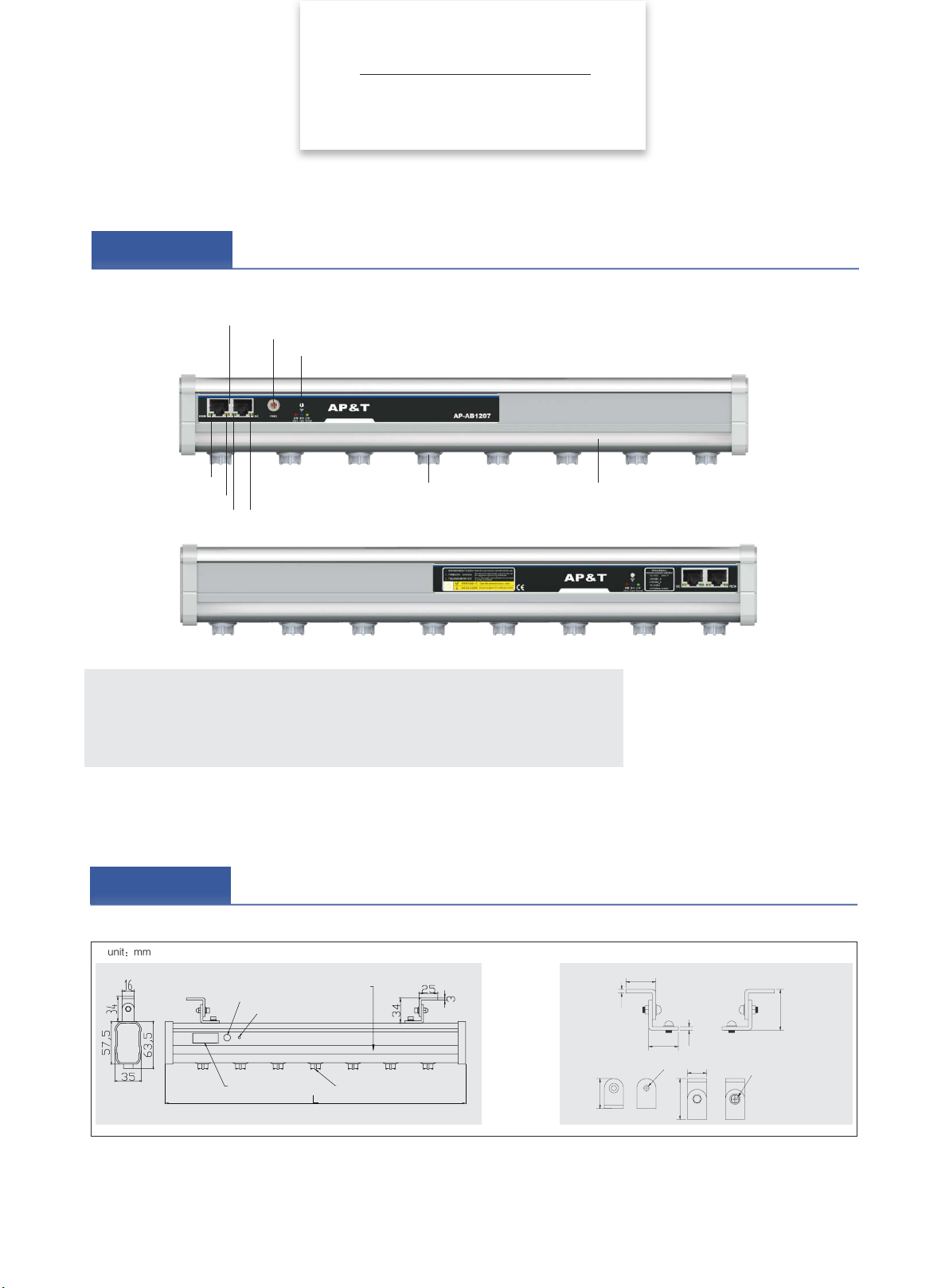

Product Details
Communication and DC24V power network port
Coding switch
Needle holder and
electrode needle
Communication and DC24V power network port
Working status indicator
Strip grounding electrode
Strip grounding electrode
Coding switch
Working status indicator
Needle holder and
electrode needle
L=400mm-3000mm(Needle spacing 50mm)
Ion bar size drawing Mounting bracket size drawing
304 stainless steel
three-combination M5
pan head cross bolt with
flat spring pad
Details / Parameter / Size
Specification
Product Size
Positive and negative high voltage indicator light (flashing alternately with frequency)
Power indicator
Communication connection instruction
RJ45 port on the front panel of ion bar:
Green light for power on and orange light for communication connection on the left port;
The orange light and the green light on the right port blink alternately with the working frequency;
The green light works at positive high pressure, and the orange light works at negative high pressure.

Model AP-AB1207
Input voltage DC 24V
Power 10W
Electrode pin voltage Vpp:8-12KV
Ion emission Pulse AC
Emitter electrode SUS
Discharge structure Resistance coupling
Output frequency 0.1,0.5,1,5,10,30,55,65,105Hz；(EX-Work setting: 30Hz)
Discharge range L*W*H：Bar Length*300*100mm
Installation distance 30→100mm
Ion balance ≤|±30V|（AV E ）
Discharge speed ≤1S (Test distance 100mm)
Status indicator Green light - normal，Blue light - standby，Blue light flashing—debugging /cleaning，Red light - Abnormal high voltage
Working temperature 0℃-50℃
Working humidity ＜70%
Dimensions(L*W*H) {400mm-300mm( Needle spacing 50mm)*35mm*63.5mm
Bar material Flame retardant PVC, AL, SUS

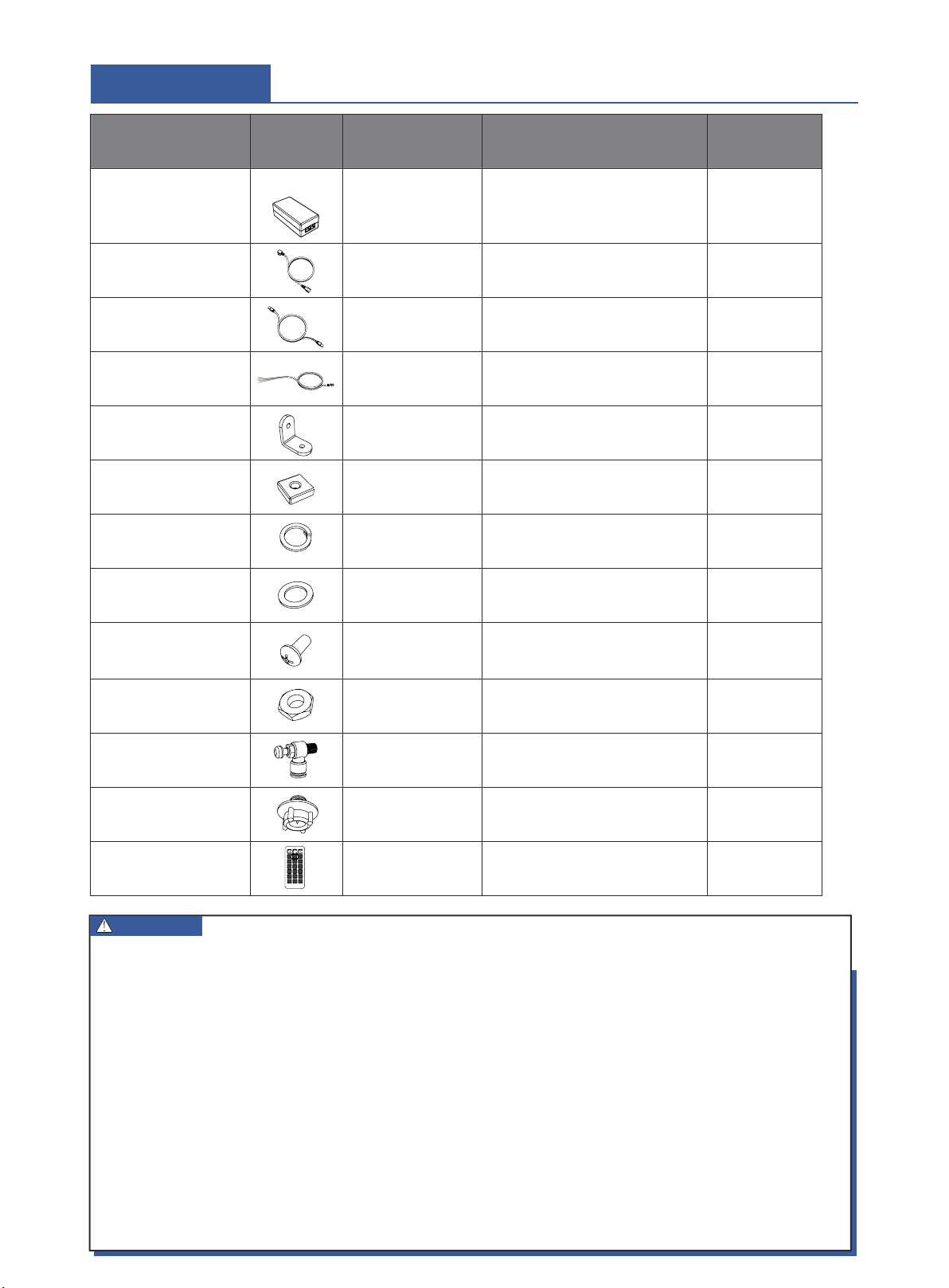

Packaging accessories 180°rotatable mounting angle
Power adapter
Power cord 2.5m
Product Parameter
Warranty 1 year
CE
GRT-240200：DC24V 2A dual network port output ；L*W*H：123*61*40.5mm
Certification
