AP&T AP-DB1217 User manual

Electroshock-proof High-power High-efficiency DC
Ion Bar AP-DB1217
Electroshock-proof High-power
High-efficiency DC Ion Bar
AP&T
R
Shanghai Anping Static Technology Co.,Ltd
AP&T

Suitable for plastic, film,
printing industries
Effectively solve the problems
caused by static electricity
Static Removal Prevent uneven scattering
Control ink splashing
Prevent adhesion of objects Prevent blockage of adhesion

High efficient
Safe
Static removal

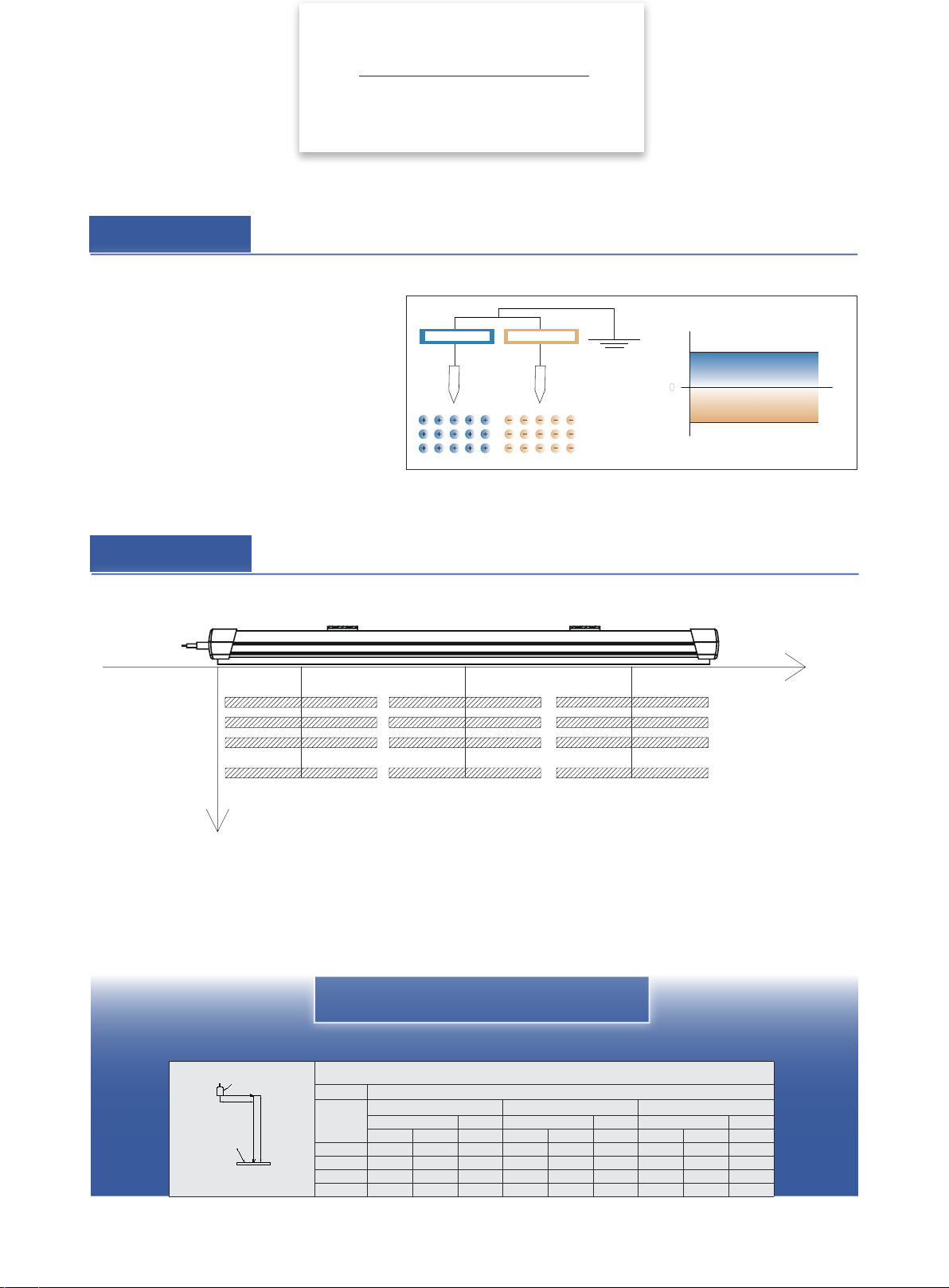

DC method generate ions with two polarity by
applying "+" and "-" high voltage alternately on
each electrode needles. High utilization rate of ion
generation, the external electromagnetic interference
and the pollution degree of the particulate matter in
the clean environment is small.
DC DC
Positive high voltage
T
Steady-state DC
+HV
（Positive high voltage）
-HV
（Negative high voltage）
Ion bar length：2200mm
Test distance(mm) Horizontal distance（mm）
Vertical distance
(mm)
L（200）M（1100）R（2000）
Discharge time Balance voltage Discharge time Balance voltage Discharge time Balance voltage
+ - AVG + - AVG + - AVG
30 1.5 2 -12.6 1.6 1.4 -12.1 1.6 1.6 -3.0
50 0.7 0.7 +3.0 0.8 0.5 -3.8 0.7 1 -31.4
70 0.1 0.1 -9.1 0.1 0.1 +22.7 0.1 0.1 -21.9
100 0.2 0.3 -21.0 0.3 0.3 -16.9 0.3 0.3 -20.6
Horizontal test distance
Vertical test distance
Ion bar
Plate tester
Z
X
Test bearing chart
200mm 2s
0.7s 0.8s 1s
0.1s0.1s
0.3s 0.3s
0.1s
0.3s
1.6s 1.6s
30mm
50mm
70mm
100mm
Z（mm）
X（mm）
01100mm 2000mm
High Efficiency Static Removal
Keep a clean production environment and stay
away from static electricity
Working way
Discharge ability
Negative high voltage
Test condition：Ion bar length 1000mm
Test standard：ANSI/ESD.STM3.1，SJ/T 11446—2013
Test instrument：Trek charge plate tester
Test voltage：±1000V → ±100V attenuation
Test environment：humidity 50±5%；temperature 23±3℃
Test data under other conditions are as follows

No.1
No.3
No.4
No.2
Standard tungsten electrode
needle
Longer life time compare to titanium and
silicon materials.
Easy installation
Put the 2-M4 mounting slider and M4*8
Phillips pan-head screw into the
special strip notch on the back of the
bar body which are removable and can
be easily installed in different
environments.
Features
Safe / Easy to use / Durable
Electroshock-proof
Protection against human electro-shock.
CE certification
It can effectively avoid external
electromagnetic interference affecting
the normal operation of the ion bar
which is a high-security and high-
reliability static eliminator.

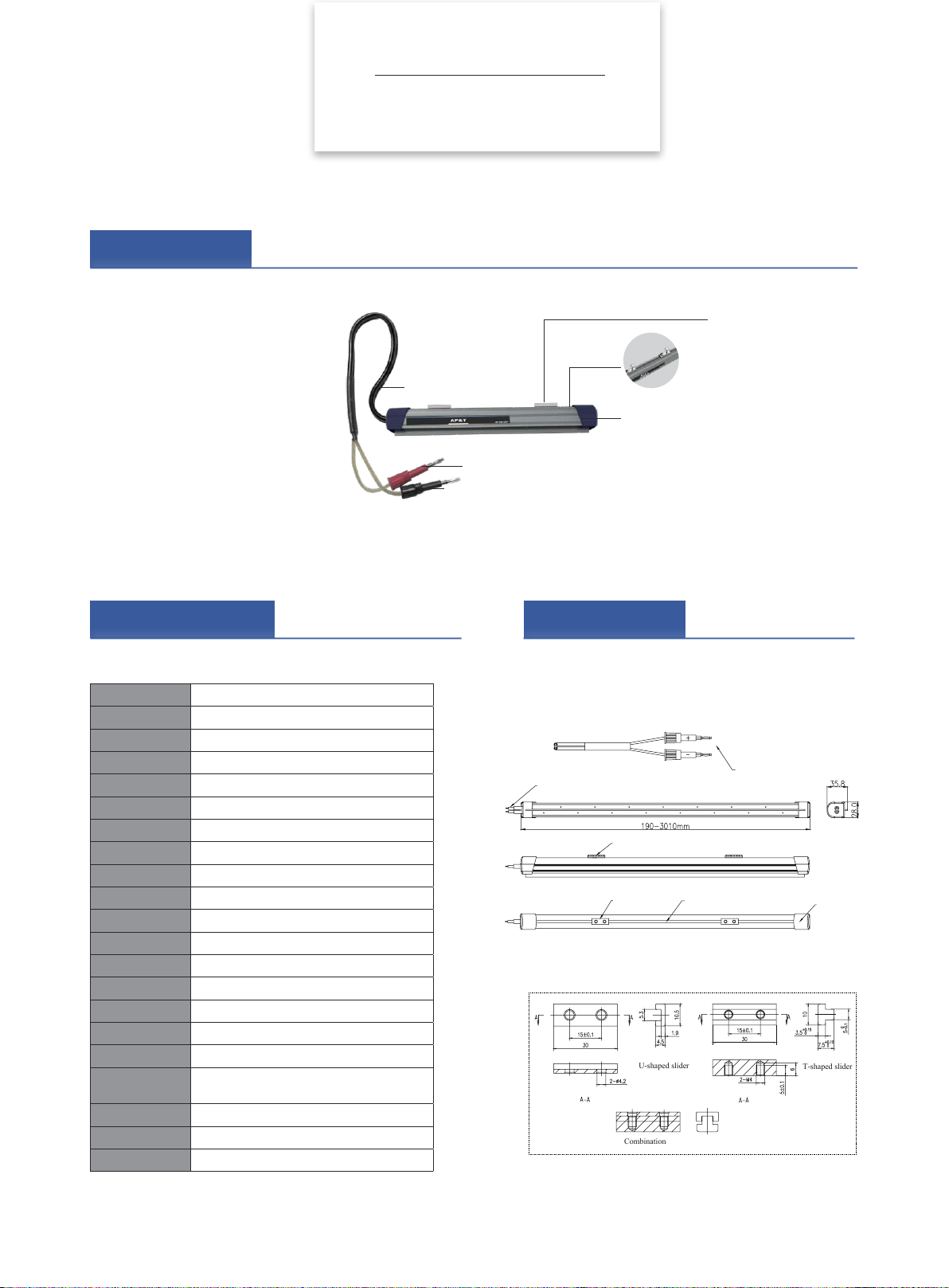

Positive high voltage connector
End cap
2-M4 mounting slider,M4*8 Phillips pan-head screw
Installation slot
Two-core high-voltage wire
Negative high voltage connector
Model AP-DB1217
Working voltage DC ±6000 → ±10000V
Input current ＜ 400μA
Power 10W
Ion emission DC
Emitter electrode Tungsten
Discharge structure Resistance coupling
Discharge range L*H：{190-3010mm}*100mm
Installation distance 30 → 100mm
Ion balance ≤ |±30V|
Discharge speed ≤ 1S
Working temperature 0℃ -50℃
Working humidity ＜ 70%RH
Dimensions L*W*H：{190-3010mm}*28*36mm
Bar material Flame retardant PVC
Bar length 190 → 3010mm
Packaging accessories 2-M4 mounting slider,M4*8 Phillips pan-head screw
Power cord 2.5m
Power supply AP-DC7201
Warranty 1Year
Certification CE
Two-core high-voltage wire
Positive and negative high voltage connector
2-M4 mounting slider
Installation slot End cap
2-M4 mounting slider
U-shaped slider T-shaped slider
Combination
Product specifications
Product details
Product size
Product specifications
Product details / Product specifications / Product size

(1) Select the best static discharge position and install the bar body and the supporting
power supply firmly.
(2) Insert the positive and negative high-voltage plugs of bar body into the positive and
negative high-voltage output sockets of the supporting high-voltage power supply
respectively.
(3) Turn on the power supply and indicator light on shows the power work. The
electrode pins will produce positive and negative ions to neutralize the surface static
electricity of the object.
Step of use
1. Select the best static discharge position after electrostatic detection of the working environment on site and install the bar body and the supporting
power supply firmly. (It's better to be about 30~100mm away from the surface of the static discharge object) The installation angle should be
perpendicular to the surface of the discharged body.
2. Ion bar is not allowed to be covered by other objects.
3. Two ion bars should be installed side by side with an interval of more than 150mm and should be staggered by more than 150mm if installed face-
to-face.
4. More than 200mm away from obstacles such as walls.
5. Ion bar should be at least 50mm away from the metal conductor and metal grounding body around the electrode. The DC high-voltage power
supply must be reliably connected to the ground wire and the grounding resistance should be less than 1 ohms.
Installation position
Installation distance 100-300mm
≥ 50mm ≥ 50mm ≥ 50mm ≥ 50mm
≥ 150mm
≥ 150mm
Nickel-plated Phillips
pan head screws IDPA0408N M4*8 4Galvanized Hexagon Bolt 1SL00520X M5*20 mounting bolt 4T-shaped slider AP8679003 30*10*7.5 2-M4 screw mounting hole 2U-shaped slider AP8679004 30*10.5*4.5 2-Φ4.2 2Packing accessories
Products Use
Step of use/Installation position/Packing accessories
Charged object
WALL
WALL
WALL
WALL
Metal conductor
Metal conductor
Metal conductor
Metal conductor
Part namePicturePart No.SpecificationQty

Safety warning
Trouble shooting
After-sales service
Maintenance
NO
1
2
3
4
Problems Reasons Solutions
The electrostatic removal
performance is
obviously reduced
Discharge needle is polluted and damaged Clean or replace the ion bar
Bearing set of ion bar is improper Confirm the best bearing set
The electrostatic removal
performance is reduced There are conductors or other ion bars around Remove conductors or other ion bars
Unable to discharge
High-voltage connecting wire is damaged Return to factory for maintenance
Ion bar insulation is damaged
Poor grounding/no grounding Check the electrical grounding of ion bar and plant equipment
Product burnout Ion bar insulation is damaged
Return to factory for maintenance
Return to factory for maintenance
1. The ion bar should be cleaned and maintained in time according to the use environment and the required electrostatic protection requirements
in order to ensure the good performance of the product. That is, gently remove the carbon deposits on the discharge electrode, and bar body
with electrostatic brush, dust-free cotton swab, dust-free cloth dipped in anhydrous alcohol, which will improve its performance significantly.
Note:
A. Operation must be done 10 minutes after power cut off.
B. It must be cleaned when dust or white stuff appear on the tip of the needle during use. Use dust-free cloth dipped in anhydrous alcohol to
clean when brush can not meet the cleaning requirements.
C. The ion bar must be powered on after alcohol is completely volatilized after cleaning. No other organic solvent can be used to clean the
ion bar.
2. If the ion bar is found to be burned, it should be stopped and repaired by professional maintenance personnel. It can be used only after the
electrical performance index is normal.
AP-DB1217 electroshock-proof high-power high-efficiency DC ion bar has undergone rigorous testing and aging treatment before
ex-work. Its performance has completely reached the relevant indicators marked in the usage instruction.
1. AP&T makes a commitment to the customer that any defective parts inspected by AP&T will be repaired or replaced free of charge
within one year from the date of purchase. However, this commitment does not apply to:
(1) The device is incorrectly used or installed.
(2) Damage caused by negligence or accident during use.
(3) Modified, disassembled or repaired by other service departments not authorized by Anping Company.
2. The alloy electrode is a consumable product which is not included in the scope of warranty and will be charged for replacement when
repairing.
3. AP&T shall not be liable for any incorrect use of the products except for repair or replacement of parts as specified above.
1. Read the operating instruction carefully before installing and using the device.
2. The whole equipment must be reliably grounded with a grounding resistance of less than 1 ohms during use; Otherwise, it is easy to
cause abnormal or even damage of ion bar.
3. Do not use the device when the humidity is higher than 70%.
4. Do not use the device in inflammable and explosive environment.
5. It is strictly forbidden to disassemble products without authorization. Internal maintenance and repair must be carried out by
professional personnel.
6. The product is strictly prohibited to touch liquid during use, otherwise there will be abnormal, resulting in electric shock or fire.
7. Power must be turned off during inspecting or replacing the product, otherwise it may cause electric shock or fire.
8. The product is specially designed for removing static electricity and is strictly prohibited for other purposes. Any abnormal use may
cause machine failure, electric shock, fire and other hidden dangers.
9. It is strictly forbidden to touch the electrode needles when power is on, otherwise it is easy to cause fault and electric shock accident.
10.Discharge needle is a sharp metal object, please use it with care.
11.Please check the specifications of the power supply before powering on the product. Any power supply that does not meet the
specifications may cause damage or even failure to the product.
12.Check the power cord regularly. If it is damaged, replace it immediately; otherwise, leakage and abnormal operation may occur.
