Apeks wtx series User manual

Literature PN 18413 Rev. 1/14
©2014 Apeks
CONTENTS: Two 80 inch sections of retractor tubing.
If you have any questions regarding the information found in this manual,please contact your
regional Apeks Dealer or Distributor. Distributor information is available on the Apeks website
at: www.apeks.co.uk

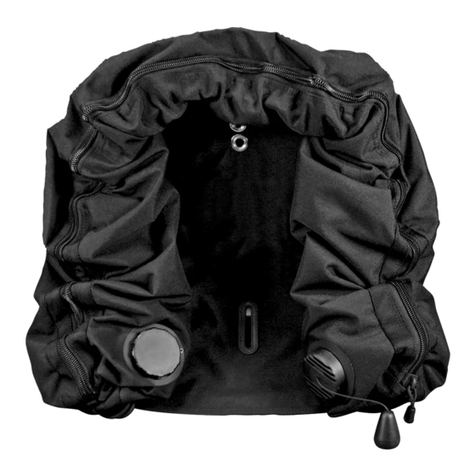

The WTX retractor kit (PN 388300) is an optional retraction system that may be added
to the WTX-D30 and WTX-D40 to streamline the buoyancy cell while diving (use of this
retractor system is optional) (Fig. 1). The retractor system is secured through a series
of internal loops sewn into the outer bag. The outer retractor (80 in.) runs through the
outer loops, through the grommet holes on the rear of the outer bag, where they are tied
off and secured. The inner retractor (80 in.) zig-zags through the inner loops, where it
is tied off and secured on both sides. The following instructions will guide you through
the optimal method of securing the internal retractor system for maximum effect. Please
note other methods of configuring the internal retractor system may be done according
to preference.
NOTE: WTX-D18 buoyancy cell cannot accommodate the retractor kit as there are no sewn in
loops attached to the outer bag.
Outer Loops
Inner Loops
(Upper)
Inner Loops
(Lower)
Inner Retractor
Outer Retractor
Grommet Holes
Fig. 1
8. Orally inate the buoyancy cell to be sure the
retractors are not too tight (Fig. 17). You should
be able to inate the buoyancy cell with little
effort. If you cannot orally inate the buoyancy
cell, re-adjust the tension of the retractor system.
Once the buoyancy cell has been ination tested
and the desired tension has been achieved, the
excess of the retractors can be trimmed below
the overhand knot.
Fig. 17
7. Inate and deate the buoyancy cell several times to allow the retractors to work into place.
Ensure the proper tension of the retractor system has been achieved (Figs 15 & 16).
Fig. 15 Fig. 16
6. Attach the inator to the buoyancy cell by screwing the collar at the base of the elbow
to the bladder connector (Fig. 13). Close the zipper on the outer bag (Fig. 14).
Fig. 13 Fig. 14
Installation Instructions for Retractor Kit to WTX- D Buoyancy Cell
WTX - D Retractor Kit
(PN 388300)
Assembly of the WTX retractor kit to the WTX-D buoyancy cell is now complete.

WTX Retractor Kit Installation Instructions WTX Retractor Kit Installation Instructions
2. Insert one end of the retractor into the grommet hole located on the bottom of the outer
bag (Fig. 4). Weave the retractor through the outer loops and out the grommet hole on the
opposite side (Fig. 5).
Fig. 4 Fig. 5
NOTE: Make sure the outer retractor is routed over the bladder when inserting and exiting the
grommet holes, this will streamline the bladder at the bottom.
3. Place the bladder back into the outer bag and align the oval cut out in bladder around the
plastic plate in the center (Fig. 6). Ensure the bladder connector is inserted through connector
hole in outer bag (Fig. 7).
Fig. 6 Fig. 7
PLASTIC PLATE
4. There are two sets of inner loops, upper and lower. Insert one end of the retractor into the
lower loop, closest to the grommet hole on the bottom of the outer bag (Fig. 8). Weave the
retractor in a zig zag pattern through the loops around the diameter of the outer bag (Fig. 9).
After exiting the last loop on the opposite side, pull the retractor tight until you see the outer
bag starting to compress. Tie an overhand knot to hold the inner retractor in place. Repeat
process for other side (Fig. 10).
LOWER LOOPGROMMET HOLE
Fig. 8 Fig. 9
Fig. 10
5. Place one hand over the grommet hole and grasp the retractor with the other hand (Fig.
11). Pull the retractor tight until you see the outer bag starting to compress. Tie a double
overhand knot in the retractor directly below the grommet hole (Fig. 12). Repeat process for
other side. Do not trim the excess of the retractors at this time as adjustment in the tension
might still be needed.
Fig. 11 Fig. 12
1. Lay the WTX-D buoyancy cell on a at surface to install the retractor kit. Remove the inator
from the buoyancy cell by unscrewing the collar at the base of the elbow assembly (Fig. 2).
Unzip the outer bag, push the bladder connector through and remove the bladder. Leave the
bladder attached to the at valve on the lower left side (Fig. 3). This will allow easier access to
the outer sewn in loops while installing the retractor kit.
Fig. 2 Fig. 3
2 3
OVERHAND
KNOT
