Apex Steam APX750 User manual
APX750
MULTI-PURPOSE STEAM CLEANING SYSTEM
SYSTÈME DE NETTOYAGE A VAPEUR
MULTIFONCTION LIMPIADOR A VAPOR MULTI-USO
INSTRUCTION MANUAL
GUIDE D’UTILISATION
MANUAL DE INSTRUCCIONES
Rev: 6/10/17-apx
APEX STEAM TECHNOLOGIES
30 INDEL AVENUE
RANCOCAS, NJ 08073
Phone: 678-392-3699
www.apexsteam.com
A DIVISION OF PEMBERTON FABRICATORS INC.
1
No part of this publication may be reproduced, stored in a
retrieval system or transmitted in any form or by any means
without prior written permission of the manufacturer. Pictures,
descriptions, references and technical data in this manual are
indicative and not binding. In pursuing a policy of constant
quality improvement, the manufacturer reserves the right to
effect changes at any time without undertaking to update this
manual every time.
© Copyright 2010 - All rights reserved.
SAFETY INSTRUCTIONS ..................................2-3
GENERAL INFORMATION ....................................... 3-5
.............................................. 5
...................................................................... 5
........................................................ 6
....................................... 7
..........................................................7
Symbols on the machine or accessories ........8
w/ Diagram.....................................8-9
Other Safety In....................................... 10
USAGE
.............................................. 11
........................................................ 11
....................................... 11
..................... 11
......................................... 12
the brushes .......................................................... 13
c ..............14
................................15
.................................15
......................... 16
...................... . 17
............................................................... 18
....................................... 18
................................. 19
............................ 20
................................. 22
................................ 22
Low Water .......................................................... 23
................................ 23
............................................................ 24
MAINTENANCE
•Maintenance ..........................................................24
................................................ 24
•Troubleshooting.................................................... 25
............................................ 25
................................................................ 25
Brushes, Accessories and Uses . ....................... 21
2
IMPORTANT SAFETY
INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
precautions should always be followed.
WARNING: To reduce the risk of fire, electric
shock, or injury:
1. Do not leave appliance when plugged in.
Unplug from outlet when not in use and
before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
4. Use only as described in this manual.
Use only manufacturer’s recommended
attachments.
5. Do not use with damaged cord or plug.
If appliance is not working,has been
dropped, damaged, leftoutdoors, or
dropped into water, returnit to a service
center.
6. Do not pull or carry by cord or use cord
asa handle, do not pinch cord, or pull
cord around sharp edges or corners. Do
not run appliance over cord. Keep cord
away from heated surfaces.
7. Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance withwet
hands.
9.
not use with any opening blocked; keep
free of dust, lint, hair, and anything that
may reduce air flow.
10.
all parts of body away from openings
and moving parts.
11. Turn off all controls before unplugging.
12. Use extra care when cleaning on stairs.
13. Do not use near flammable or
combustible liquids, such as gasoline,
or use in areas where they may be
present.
14.
and water tank. Do not use chemicals,
perfumes or other liquid.
15. The hose contains electrical wires. Do
not use when damaged, cut, or
punctured. Avoid sharp
16. Connect to a properly grounded outlet
17. This appliance is provided with
double insulation. Use only identical
replacement parts.
18. DO NOT use a flammable or
combustible liquid to clean a floor.
SAVE THESE
INSTRUCTIONS
3
GROUNDING INSTRUCTIONS
This appliance must be electrically
grounded. If it should malfunction or
breakdown, grounding provides a path of
least resistance for electric current to
reduce the risk of electric shock. This
appliance is equipped with a cord with-
grounding conductor and a grounding
plug. The plug must be inserted into an
appropriate outlet that is properly installed
and grounded in accordance with all local
codes and ordinances.
WARNING – Improper connection of the
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the outlet is properly
grounded. Do not modify the plug provided
with the appliance – if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician.
This appliance is for use on a circuit having
a nominal rating more than 120 volts and
cord and plug to permit connection to a
proper electric circuit. Make sure that the
appliance is connected to an outlet having
adaptor should be used with this appliance.
If the appliance must be reconnected for
use on a different type of electric circuit,
the
service personnel.
4
CONGRATULATIONS
We would like to thank you, and
congratulate you for purchasing the ultimate
steam from APEX STEAM TECHNOLOGIES
Dry vapor steam cleaning can deep
clean and sanitize your home safely and
effectively. Vapor steam is effective for killing
dust mites, bacteria and mildew. It’s ideal for
cleaning, sanitizing and deodorizing all the
rooms in your house, particularly bathrooms
and the kitchen. For family members with
chemical sensitivities, vapor steam cleaning is
a great way to keep the house clean without
using potentially harmful chemicals.
Birdcages, aquariums, and pet areas;
upholstery, drapery and bedding are all made
cleaner and safer for you, your family and
your pets when you clean with vapor steam.
For your safety and to fully enjoy the
advantages of this product, please take
a few minutes to read all the important
safeguards and care instructions. Keep this
manual handy and review the product
warranty card for your reference.
Note: your new steam cleaner may contain
small amounts of water as all machines are
factory tested prior to shipping.
CAUTION
ATTENTION
IMPORTANT
Carefully read this manual in order to
prevent improper use.
The Manufacturer accepts no
responsibility for damage to people or
things deriving from improper use of
the machine, incompetence, lack of
caution or negligence and from the lack
of compliance with the instructions
provided in this manual.
The pictures shown in this manual are
useful to better explain the running,
safety instructions and maintenance
operations of the machine.
The Manufacturer reserves the right to
make changes to its machines, as a result
of performance optimization.
CAUTION
ATTENTION
IMPORTANT
This manual is an integral part of the
machine kit. It must be carefully kept within
reach and consulted in case of doubt or
anytime the need arises. If the machine is
given to a third party, even only if it is lent
out, please provide the manual along with the
machine, specifying to the new user to
carefully read its content before operating
the machine.
INTRODUCTION
5
MACHINE DESCRIPTION
The machine has been designed to steam-
clean and sanitize household surfaces.
electrical heater which heats water and
produces steam. Using the accessories
devices of the machine, steam can be
directed towards the surface to be cleaned.
MODEL APX750
The machine is supplied with the basic
8
❑APEX APX750
RISK SYMBOLS USED
IN THIS MANUAL:
CAUTION
ATTENTION
IMPORTANT
Indicates a potentially hazardous situation
exists which, if not avoided, may result in
injury.
CAUTION
ATTENTION
IMPORTANT
Alerts of situations or troubles which can
affect the machine efficiency.
CAUTION
ATTENTION
IMPORTANT
Draws the attention to important information
which does not involve operators safety or the
machines efficiency.
GENERAL INFORMATION
6
TECHNICAL DATA
All components are built with high-quality
materials to ensure maximum safety and
reliability over time.
APX 750
BOILER
Max. volume lt 0,8
Capacity lt --
Max. steam pressure
psi 72.5
Cleaning autonomy h unlimited
Ironing autonomy h unlimited
TANK
Clean water tank capacity lt 1,5
120
Frequency 60
Boiler power 1700
12
x
x
x
Cap with safety valve
Overpressure valve x
Control pressure gauge x
DEGREE OF PROTECTION: IP24
GENERAL INFORMATION
MODEL
7
DIMENSIONS AND WEIGHTS
The machine and the accessories it is
equipped with are supplied in a practical and
sturdy cardboard package that may differ
from model to model.
IDENTIFICATION
The data plate of the machine with ETL
marking of conformity, is placed at the
bottom of the steam generator.
CAUTION
ATTENTION
IMPORTANT
When asking for information and/or technical
assistance, always specify the model and the
serial number stamped on the plate.
GENERAL INFORMATION
Shipping Dimensions (in box):
APX750
16
Length
In 21
In 17
LBs 28
What's in the Box: APX750
Steam generator 1
Flexible hose with gun handle 1
Extension wands 2 pieces
Swivel joint for brushes 1
Rectangular brush & pillow insert 1 of each
Cover for rectangular brush 1
Triangular brush & pillow insert
Window squeegee 1
Black brush Bronze 2.5" 1
Red brush with Nylon 2.5" 2
Red Nylon small brush 1" 2
Grey Bronze small brush 1" 2
GreySS 1" 2
Curved steam nozzles kit, 1-black, 1 Grey 2
Cloths and scrubbing pads (w/1 pad holder) 6 of each
Filling bottle 1
Use and maintenance manual 1
In
May change w/o notice
1 of each
8
SYMBOLS SHOWN ON THE MACHINE
AND/OR ON THE ACCESSORIES
There may be the following symbols on the
machine:

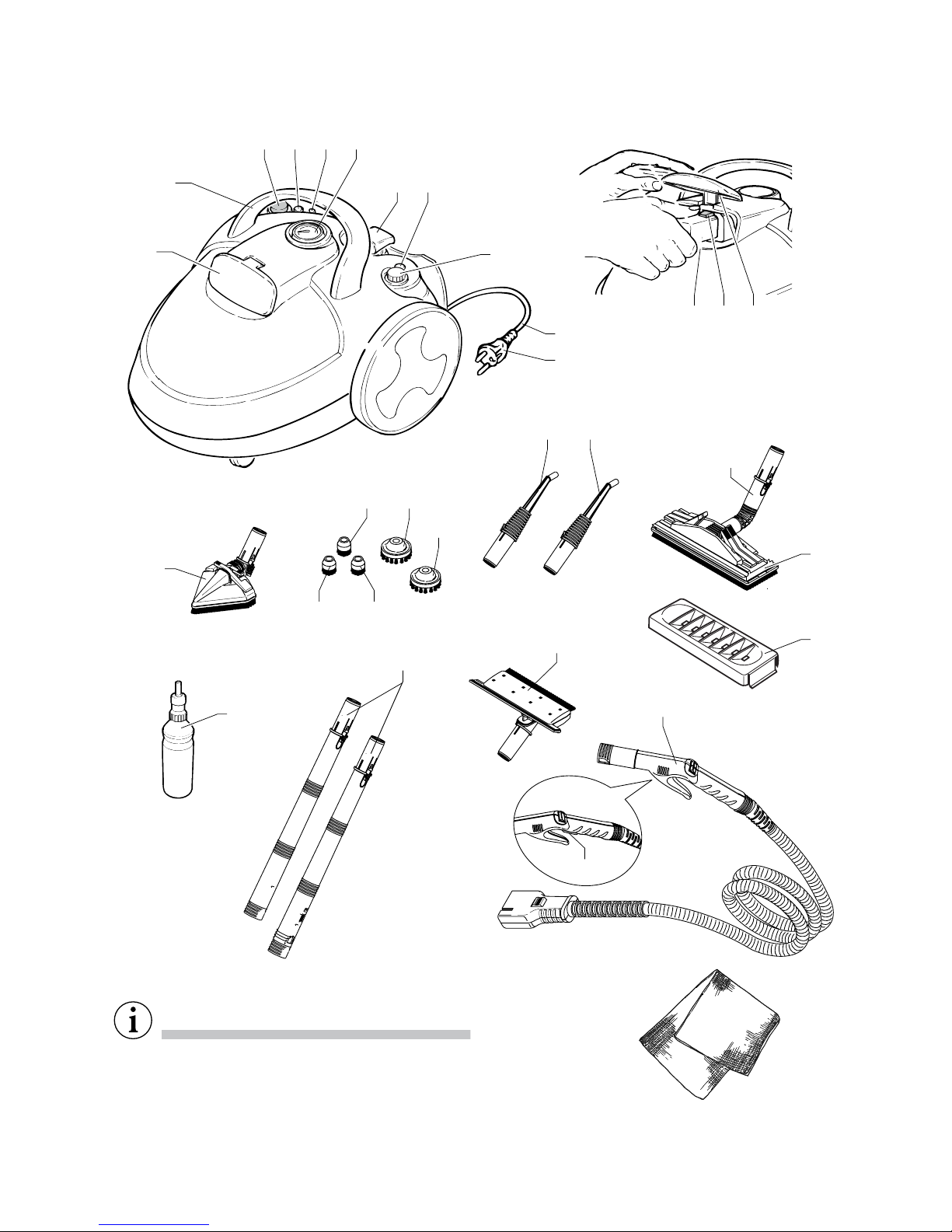

LIST OF THE PARTS
CAUTION
ATTENTION
CAUTION
ATTENTION
IMPORTANT
Standard and/or optional accessories are
extra features of the machine and they
increase it's potential uses. The proper
function of the machine is not related to
the availability or quantity of accessories
either supplied or sold separately.
MOD
EL:
Steam cleaner
1 Tank plug
6 Pressure gauge
7 Main switch
9 Protection flap
10 Plug
11 Power cord
15 Flexible hose with gun handle
Standard and/or optional accessories
20 Joint for brushes
21 Rectangular brush
22 Red brush with bristles 2.5"
23 Extension wand
26 Triangular brush
27 Grey curved steam nozzle
32 Black curved steam nozzle
42 Cotton cloth
43 Filling bottle
46 Nylon brush 1"
47 Bronze brush 1"
1"
49 Black small brush with bristles 2.5"
50 Cover for rectangular brush
Symbol Meaning
This symbol indicates a low
level in the clean water tank.
This symbol indicates
that there is no water in
the boiler. If the indicator
light bearing this symbol
comes on, read paragraph
GENERAL INFORMATION
APX750
This page's parts list
and the following
diagram on page 9 are for
identification of components only.
Parts and
accessories that are supplied
with your machine may differ. Please
refer to
page 7 for included items with
the APX750.
9
20
26
25
14 913
7841
15
6
2
3-9
10
11
49
22
46
2732
23
48
47
16
15
43
21
50
42
4
Fig. 2
CAUTION
ATTENTION
IMPORTANT
APX750**
Any accessory or part not supplied with the
machine can be purchased separately at:
WWW.APEXSTEAM.COM
GENERAL INFORMATION **Some items not shown
10
GENERAL SAFETY
INSTRUCTIONS
Thoroughly read and understand these
instructions before turning on the
machine.
Do not connect the machine to the
power source with wet or damp hands or
in the vicinity of wet surfaces or water.
Never submerge the machine into water
or other liquids.
Do not shift or move the machine by
pulling its power cord, hose or
accessories.
Do not leave the machine on
raised surfaces.
Before connecting the machine to the
power source, make sure the power cord
is not defective or damaged.
During use, make sure the power cord
does not come in contact with hot, sharp
or abrasive surfaces to avoid damage to
its protective sheathing.
Do not allow children to play with the
machine and do not use it for purposes
other than those specified in paragraph
“Use of the machine”.
If the power cord is not long enough,
use approved extensions. If you buy
coiled extension cables, always unwind
them completely before use.
Do not cover the machine when it
is running.
Do not reduce the steam passage in the
tubes with obstructions or kinks
in the hose.
Do not direct steam at appliances with
electrical parts.
Do not direct steam at persons,
animals, plants, hot or cold objects,
food and food containers.
Always unplug the machine from the
power source before storing it.
Do not attempt to open, repair or
modify the machine or its components.
Use the filling bottle provided to fill
the boiler.
Always check that the voltage of the
power supply match the voltage of the
machine.
Always make sure that the surfaces
being cleaned can withstand the
temperature given in paragraph
“Technical specifications” without
suffering damage. If in doubt, test on a
small less visible area.
11
STEAM HOSE WITH
QUICK-FIT COUPLING
Connecting the hose
This operation is necessary to connect the
cleaning accessories to the machine.
end of the steam hose and check that
the safety catch 14 is turned upwards
CAUTION
ATTENTION
IMPORTANT
If the catch is not locked, lift up the flap
again and push the quick-fit coupling firmly
into place.
USE OF THE MACHINE
The machine has been designed and
z
household surfaces;
Room temperature must be between
+5° and +40°.
IMPROPER USE
Any use other than those stated above shall
be considered improper.
In particular, it is forbidden to use the
potentially explosive.
CAUTION
ATTENTION
IMPORTANT
Conformity with the use and maintenance
instructions provided by the manufacturer is
essential for proper use.
Improper use of the machine voids any
warranties, third party liability and may shorten
the longevity of the machine.
UNPACKING THE MACHINE
Unpack the machine and make sure it is
in in good condition and damage free.
If you are in doubt about anything, do
not use the machine and address any
concerns with your dealer or the APEX
Technical Service Team.
Keep the all of the packaging for
returning the machine to the
manufacturer should any maintenance or
warranty repair be necessary.
Fig. 3
13 14 9
USE
12

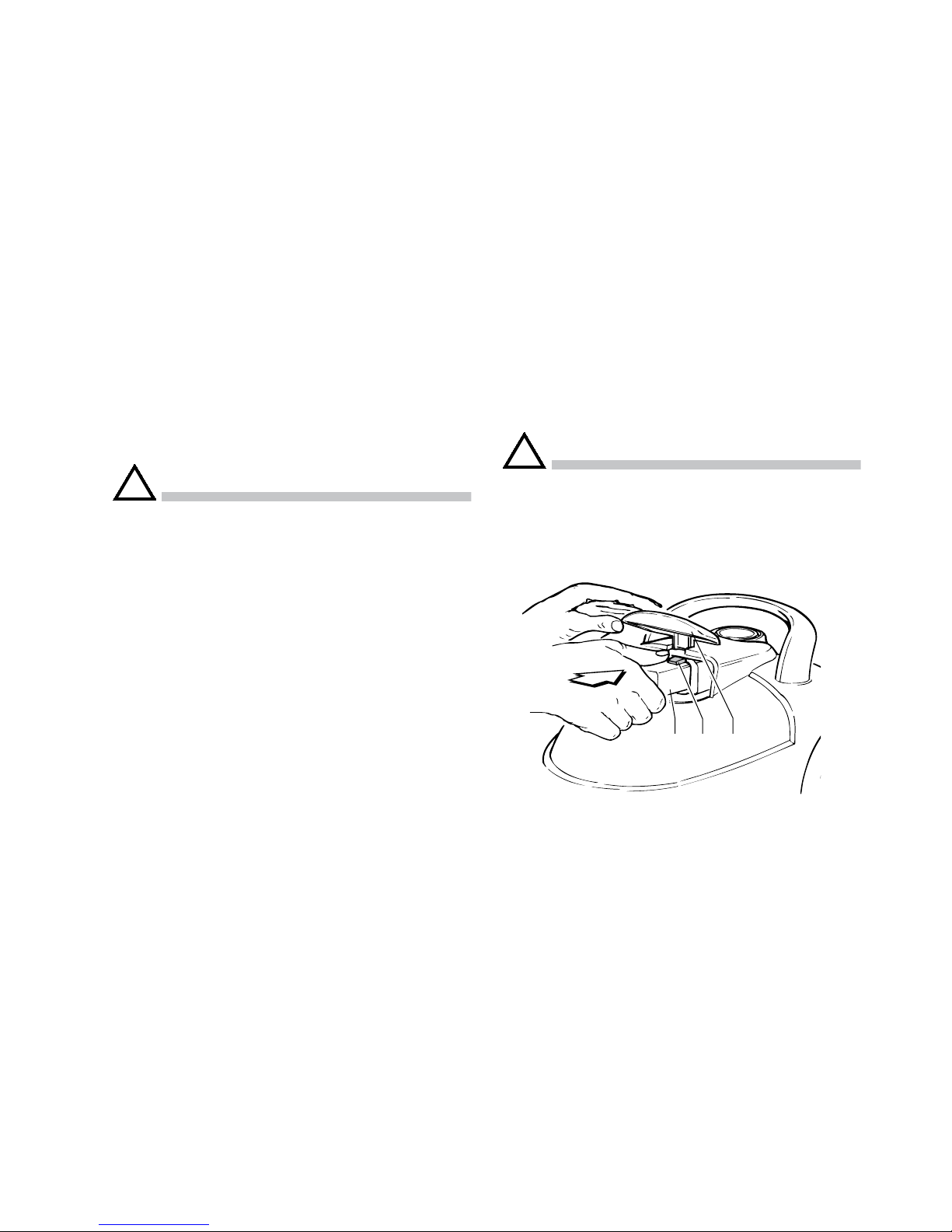

Disconnecting the hose
press on the safety catch 14 and pull
outwards to remove it.
CAUTION
ATTENTION
IMPORTANT
Do not carry out this operation if you have
wet hands. Also check that the protection flap
is placed correctly and is not blocked in the
open position.
Fig. 4
USING THE ACCESSORIES
CAUTION
ATTENTION
IMPORTANT
Do not carry out the following operations
if the accessories have just been used as
they may be hot.
ASSEMBLY
accessory B you wish to use the handle 15
DISMANTLING
To remove the accessory, hold the spring
button 24 pressed and pull out the
accessory.
13 14 9
Fig. 5
15 A
24 B
15 A
B
13

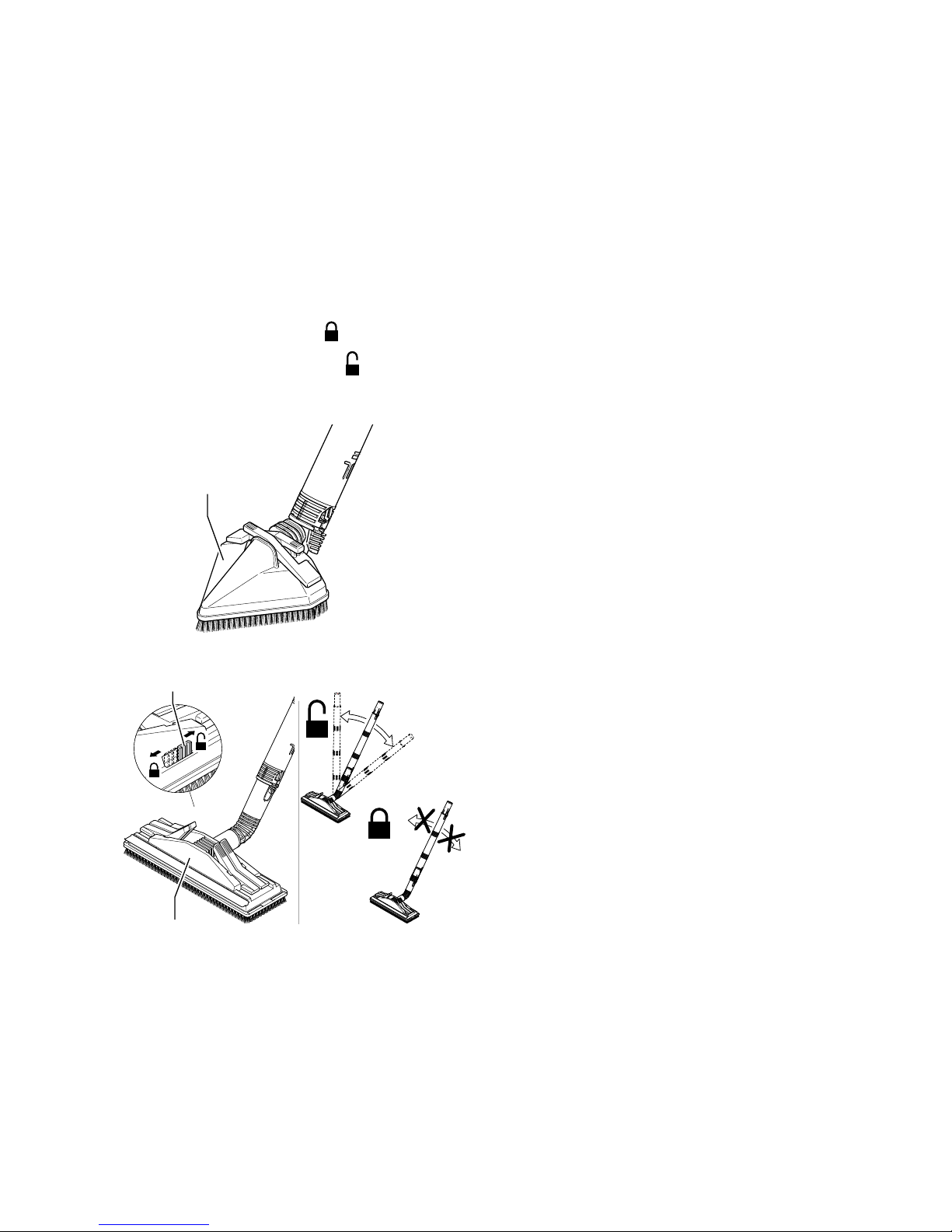

ASSEMBLING AND REMOVING THE
SWIVEL JOINT FOR THE BRUSHES
hose or the wands following the steps
described in the previous chapter.
which lets you turn the handle as shown
: handle locked;
: handle
unlocked and free to rotate right or left.
Fig. 6
26
C
21
14
Fig. 8
D

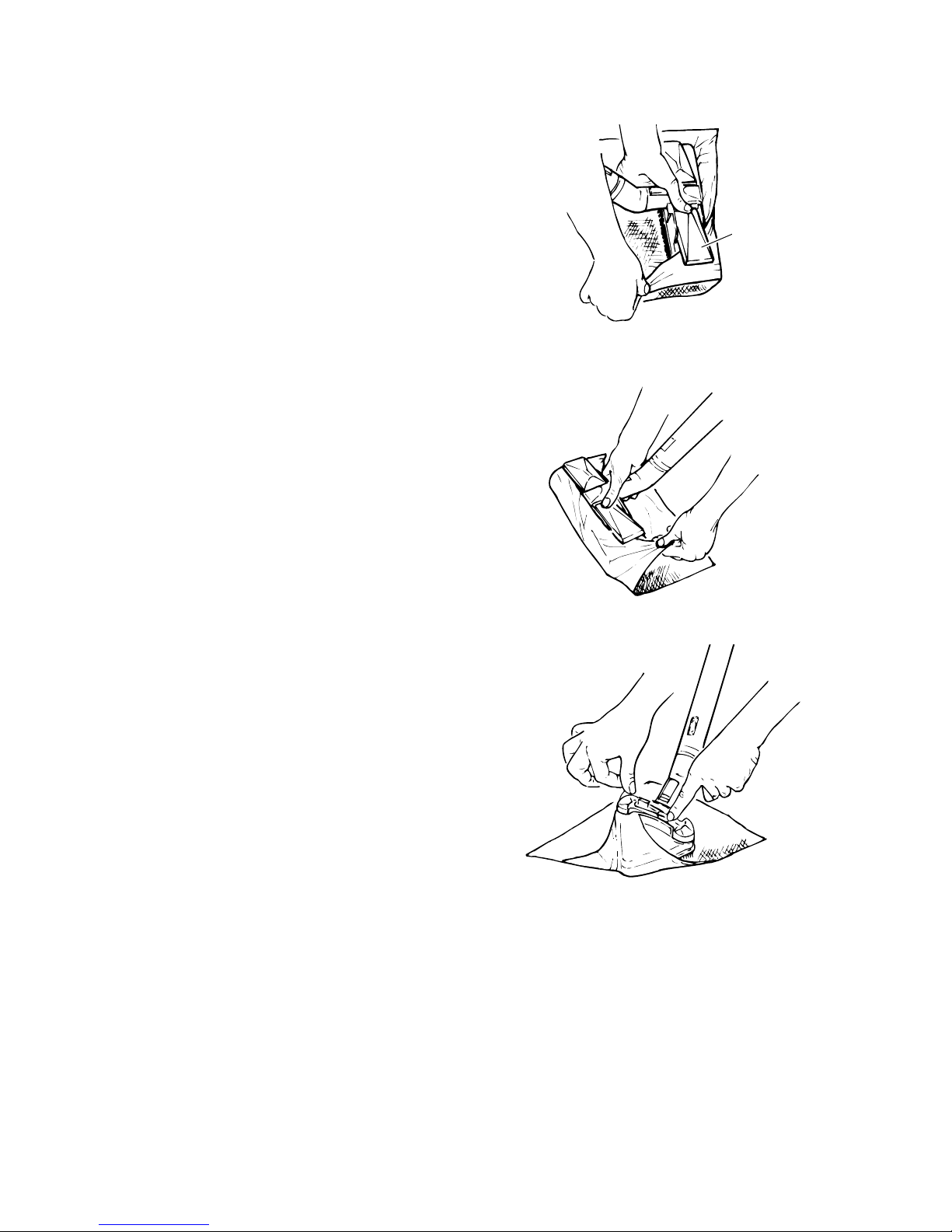

MOUNTING THE CLEANING CLOTHS
ON THE BRUSHES
The rectangular brush 21 and the
a holding device for the attachment of a
cleaning cloth.
brush right in the middle.
and rear edges of the cloth under the
holders. Once released, they will hold
To remove the cloth from the brush, press
the holders to lift them up.
To use a cloth on the triangular brush 26,
Fig. 7
Fig. 9
15
Fig. 10
M
OUNTING THE SMALL BRUSHES
To clean small or hard-to-reach surfaces,
we recommend using the small brushes
46-47-48-49, attached to the curved steam
nozzle 32.
The two reference marks on the brushes
and on the steam nozzle must line up, then
press the two components one against the
othertocouplethem(g.10).
To remove the brushes, grasp and pull
them out.
49
32
USE
WATER
FILLING THE TANk WITH
APX750
ATTENTION
Before filling the water tank, disconnect the
machine from the power source.
CAUTION
Your steam cleaner has been designed
for use with normal tap water. In order to
extend the life of this product, if the degree
of water hardness is very high in your area,
recommend using 50% tap water with
50% distilled water. Do not use other liquid
(chemical, fragances, etc...).
Then:
counter-clockwise and pour water up to
the max level.
For this operation, we recommend using the
USE
CONNECTION TO THE
POWER SOURCE
Before connecting the machine to the
power source ensure that:
machine stated on the data plate are
compatible with the electrical system.
machine will be plugged complies with
the local regulations and has a safety
switch for a fault current that does not
exceed a value of 30 mA.
machine must be plugged has a rating
of 16 A and is properly grounded
abrasions and is in perfect condition.
CAUTION
ATTENTION
IMPORTANT
Never connect the plug to the power supply if
it is wet or if you have wet or damp hands.
CAUTION
ATTENTION
IMPORTANT
Never pull the electrical cord to unplug unit
from the electrical outlet. Instead, take the
plug between fore
fi
nger and thumb and
pull slowly and
fi
rmly.
CAUTION
ATTENTION
IMPORTANT
Before putting the plug in the power
outlet, make sure the main power switch of
the machine is in the “0ff” position.
CAUTION
ATTENTION
IMPORTANT
If the power cord is damaged, it must be
replaced by the manufacturer or by
qualifed personnel in an authorized
technical service center.
16
17
Fig. 11
TURNING ON AND USING
THE MACHINE
After the connection to the power source,
attach the cleaning accessory of choice.
Press the main switch (7). After a few
minutes, the green light (5) comes on to
indicate that the machine is ready for use.
Press the steam control trigger (16) on the
handle to release and use steam.
CAUTION
ATTENTION
IMPORTANT
Do not use the machine in wet or damp
places, close to water or to showers,
wash-basins, bathtubs, etc.
Do not submerge the machine or its
accessories into water.
ATTENTION
IMPORTANT
5
7
Fig. 12
16
18
Fig. 13
20
21
23
23
CLEANING
CAUTION
ATTENTION
IMPORTANT
These instructions provide basic information
on the regulation of the steam flow. These
suggestions are given only as an example
and intended to offer a general method
of familiarization with the machine. When
cleaning a surface for the first time test-clean
on a small, less visible part of the surface
and wait until it dries. This test is required to
determine the most
compatible
steam flow
and to ensure that steam will not damage the
surface.
CAUTION
ATTENTION
IMPORTANT
Before you begin cleaning or when re-starting
your work after a pause of 2 minutes or
more, release the
condensed
steam into a
container or onto a cloth for about 5 seconds
to drain any water off the steam nozzle.
CLEANING LARGE SURFACES
Recommended accessories:
21 Rectangular brush
26 Triangular brush
CAUTION
ATTENTION
IMPORTANT
Heat may deform or discolour materials.
Obtain information on the appropriate cleaning
treatments or, if no information is available, do
a patch test on a small less visible part of the
surface to be treated. Wait until the surface
dries and check for any damage.
If you are unsure about anything, do not
proceed.
CAUTION
ATTENTION
IMPORTANT
The Manufacturer claims no responsibility for
any direct or indirect damage to persons or
things deriving from misuse or abuse of the
machine and from not adhering to principles
of basic common sense.
CAUTION
ATTENTION
IMPORTANT
After use, let the brush bristles cool down
before storing to prevent alteration to
the bristle structure as they may become
malleable from the heat.
Floor cleaning:
Join the wands 23 and attach the rectangu-
following positions:
CAUTION
ATTENTION
IMPORTANT
Brush 21 must be always used together
with a cloth.
19
Run the cloth evenly on the surface without
pushing down on it. Repeat on heavily soiled
areas. In case of ceramic floor, use the
brush without cloth to remove persistent
dirt. Always wipe the surface with a clean dry
cloth to remove the soiled steam residue.
Wax removal from ceramic floors:
Use the brush without cloth; then wipe
away the soiled steam residue with a clean
dry cloth.
Other large surfaces:
Use the triangular brush 26 or the
rectangular brush 21 with or without
extension wand.
This set is recommended for:
To clean these surfaces, please refer to the
instructions above.
CAUTION
ATTENTION
IMPORTANT
When cleaning vertical surfaces, always
remember that steam dissolves the dirt which
runs downward. Therefore, it is necessary to
be prepared to collect the dissolved dirt using
a clean dry cloth.
CAUTION
ATTENTION
IMPORTANT
With extended use or excessive pressure, the
brush bristles could pierce the cloth cover
and scratch the treated surface. Do not exert
undue pressure and regularly check that the
bristles are not poking through the cloth.
Correct cleaning depends on the steam
power rather than on the pressure exerted on
the brush.
CAUTION
ATTENTION
IMPORTANT
When cleaning delicate surfaces or hand-
painted tiles, always mount the cloth on the
brush. Always carry out a preliminary test by
spraying the steam on a small less visible
area of the surface and check the results
once dry.
CLEANING FURNITURE
Recommended accessories:
26 Triangular brush
Always mount the cloth supplied on the
triangular brush 26 and set the variable
steam control to an intermediate position
surfaces like antique, lacquered or
upholstered pieces of furniture; maximum: to
remove grease stains from kitchen elements
Run the cloth evenly on the whole surface
without pushing down on it. Repeat on
heavily soiled areas. If necessary, increase
the steam flow. Always, wipe the treated
surface with a clean dry cloth after cleaning.
Table of contents
Other Apex Steam Steam Cleaner manuals
