Aptiv 74T0 User manual

1
Note: Please read this manual for proper operation and keep it for future reference.
15W WIRELESS
CHARGER
USER MANUAL
Charger module
Model Number - 74T0

2
Note: Please read this manual for proper operation and keep it for future reference.
Charger module with Garnish, Antiskid Mat & Mounting clips

3
Note: Please read this manual for proper operation and keep it for future reference.
TABLE OF CONTENTS
15W WIRELESS CHARGER
Section
Title
Page
1.0
warning
4
2.0
Product Description
5
3.0
Connector Detail
7
4.0
User Instruction
10
5.0
Precaution
11
6.0
Notice
12
7.0
FCC Rule
13

4
Note: Please read this manual for proper operation and keep it for future reference.
SECTION 1.0
Warning
Observe the following precautions. Failure to do so may result in the
possibility of equipment failure or damage, or burns due to heat.
1. While charging, do not put any metallic object between the charging area and the
i. mobile phone.(Coin, ATM card, clip etc…)
2. Do not attach metallic objects, such as aluminum stickers, to the mobile phones
3. Do not cover the wireless charger with a cloth or other object while charging.
4. Do not attempt to charge mobile phones which are not compatible with the
i. Qi wireless charging standard.
5. Do not disassemble, modify or remove the wireless charger.
6. Do not apply force or impact to the wireless charger.

5
Note: Please read this manual for proper operation and keep it for future reference.
SECTION 2.0
Product Description
Mobile phones can be charged by just placing them on the charging area, if the
Mobile phone is compatible with the Qi wireless charging standard created by the
Wireless Power Consortium.
ELECTRICAL CHARACTERISTIC
Item
Specification
OPERATING VOLTAGE
RANGE
6V ~ 16V
Operation
OUTPUT POWER (AT
RECEIVER DEVICE)
5W AT 6V -9V
15W AT 9V - 16V
STANDBY CURRENT
~50mA
TYPICAL CURRENT (@12V)
~1.9A
MAX CURRENT
CONSUMPTION (@9V)
~2.6A
DARK CURRENT
LESS THAN 1mA
INRUSH CURRENT
4.5A FOR 5ms
OPERATING FREQUENCY
(PEAK)
127.7 ± 10 KHz
CHARGING EFFICIENCY
(AS PER Qi)
MIN 70%
ACC CURRENT
100mA(MAX)
Qi VERSION
1.2.4
Charging surface

6
Note: Please read this manual for proper operation and keep it for future reference.
TEMPERATURE CHARACTERISTIC
Item
Specification
RANGE OF STORAGE
TEMP
-40 ~ 85(˚C)
RANGE OF OPERATING
TEMP
-40 ~ 80(˚C)
GENERAL CHARACTERISTIC
Item
Specification
INGRESS PROTECTION
(MODULE TOP SURFACE)
IP 65
TOTAL WEIGHT
350g (MAX)
COMPATIBLE DEVICES
Qi COMPLIANT
RECEIVER DEVICES

7
Note: Please read this manual for proper operation and keep it for future reference.

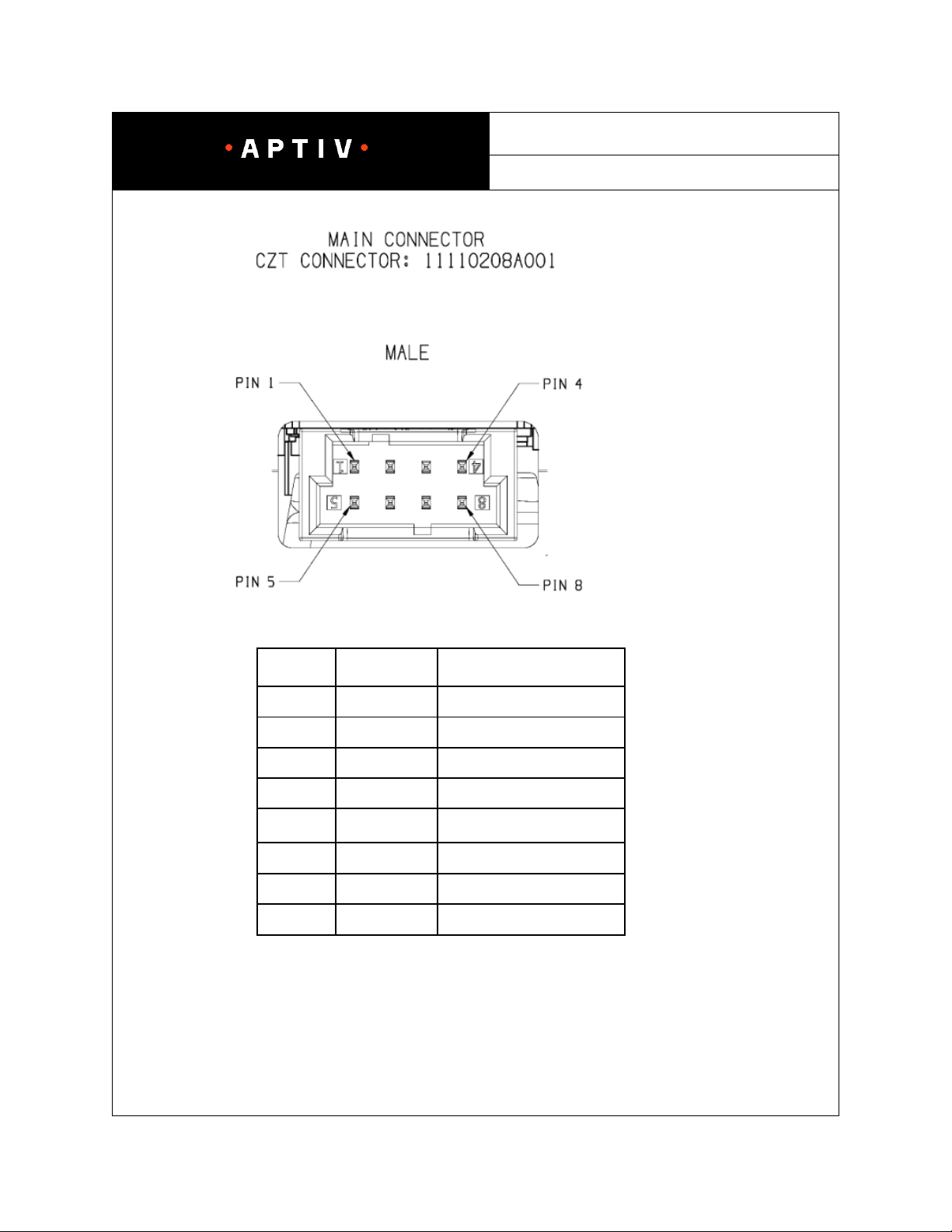

SECTION 3.0
Connector Details
PIN #
Terminal
Name
Connection
1
+B
Power source
2
ACC
ACC Input
3
CAN H
CAN HIGH
4
CAN L
CAN LOW
5
NC
Not connected
6
NC
Not connected
7
KLVC
LF Search Signal
8
GND
Power Ground

8
Note: Please read this manual for proper operation and keep it for future reference.
PIN #
Connections
1
5V
2
NC
3
NC
4
ON/OFF SWITCH
5
GND
6
LED_R
7
LED_G
8
LED_B
9
DEBUG_5V
10
CLK
11
DATA
12
GND
Note : PIN # 9 to 12 is meant for Debug

9
Note: Please read this manual for proper operation and keep it for future reference.

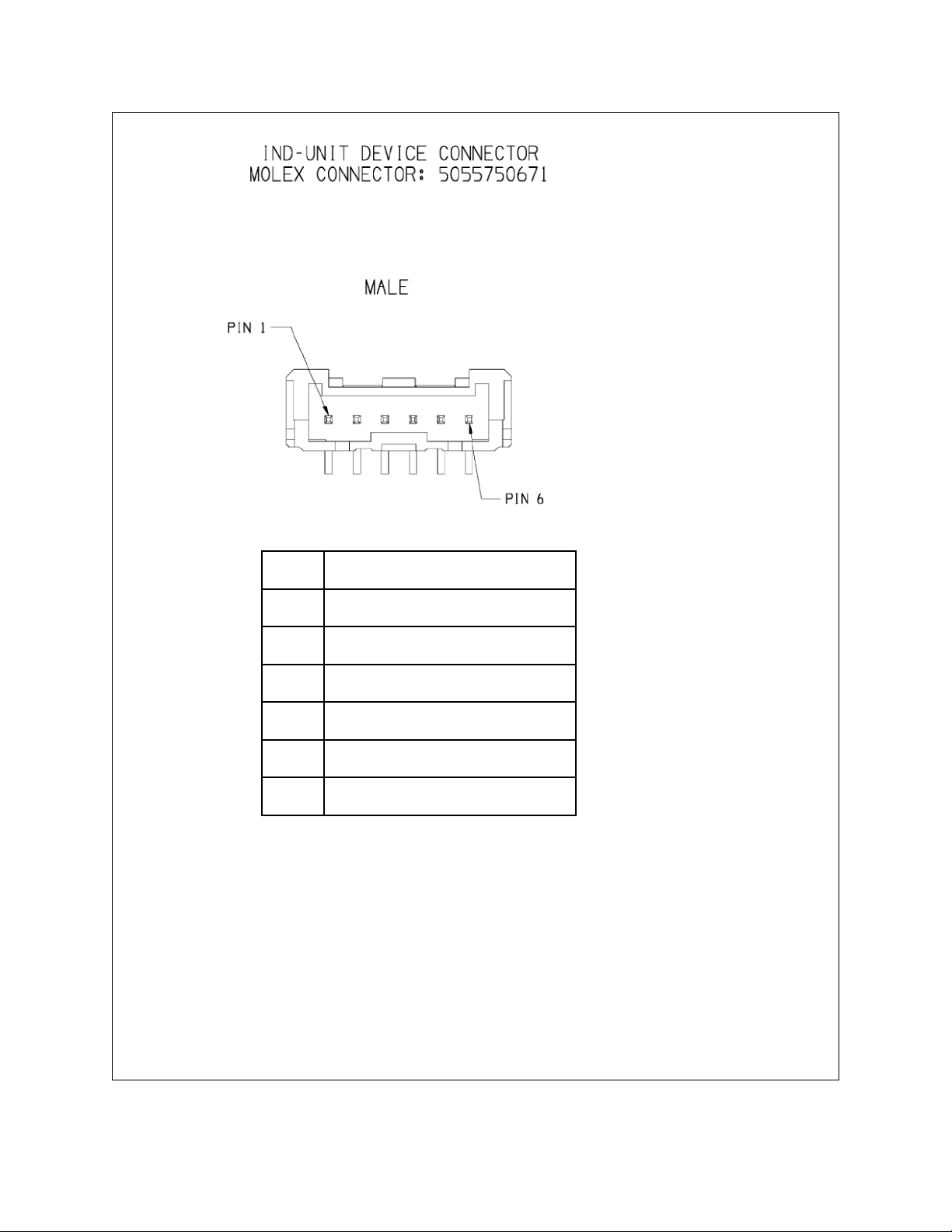

PIN#
Connections
1
LED_R
2
LED_G
3
LED_B
4
ON/OFF SWITCH (Reserved)
5
GND
6
NC

10
Note: Please read this manual for proper operation and keep it for future reference.
SECTION 4.0
User Instructions
1) The Wireless Charger will automatically turn ON after 4 seconds when the car ignition is
on and all the doors are closed. The LED charging indicator will turn
Amber during Standby mode.
2) Place the mobile phone into the wireless charger charging area and make sure it is aligned
properly to the center of the charging area.
3) The LED Charging indicator light will change from Amber to blue once the charging begins.
After the charging is complete, the Blue light will change to Green.
Recharging function
➢If a certain amount of time has elapsed since charging completed and the mobile
has not been moved, the wireless charger will restart charging.
➢If the portable device is moved within the charging area, charging will stop
temporarily and then restart.
LED Charging
indicator
Status
Pattern
Color
No light up
-
•Wireless charger is Off / sleep state
Light up
Amber
•Wireless charger is On (Standby Mode –waiting for
receiver to charge)
Light up
Blue
•Charging in progress
Light up
Green
•Charging completed
Blinks (20
times)
Red
•Detect foreign object
•Charging error
•Overheat condition
Light up
Red
•Permanent failure error
*note: No inbuilt charging indication LED available in the wireless charger.
