Arbor Technology EmCORE-i89M2 User manual

1
EmCORE-i89M2
3.5” Compact Board
User’s Manual
Version 1.2
2019.09
85

- 2 -
Revision History
Version Date Description
1.0 2018.01 Initial release
1.1 2019.03
1.1. Packing List: Remove driver CD
1.3. Driver Installation: Revise installation instructions
1.4. Specifications: Revise specication descriptions
of CPU, Ethernet controller and graphic interface
2.1. Block Diagram: Revise PWR1 description
2.2. Jumpers & Connectors Quick Reference / 2.3.
Jumpers & Connectors Location:
Revise COM port 1-6/ LAN1&2 pin assignment
descriptions
Revise DP & HDMI port drawings
1.22019.09
Both dual-channel 24-bit LVDS become standard.
Jumpers JVLCD2 / JINV2 and connectors LVDS2 /
INV2 become standard. Revised sections include:
1.4. Specifications
2.2. Jumpers & Connectors Quick Reference
2.3. Jumpers & Connectors Location:

- i -
Contents
Preface .............................................................................................iii
Copyright Notice....................................................................... iii
Declaration of Conformity......................................................... iii
CE ..................................................................................... iii
RoHS................................................................................. iv
SVHC / REACH................................................................. iv
About This User’s Manual ......................................................... v
Warning .....................................................................................v
Replacing the Lithium Battery ................................................... v
Technical Support......................................................................v
Warranty................................................................................... vi
Chapter 1 - Introduction ..................................................................1

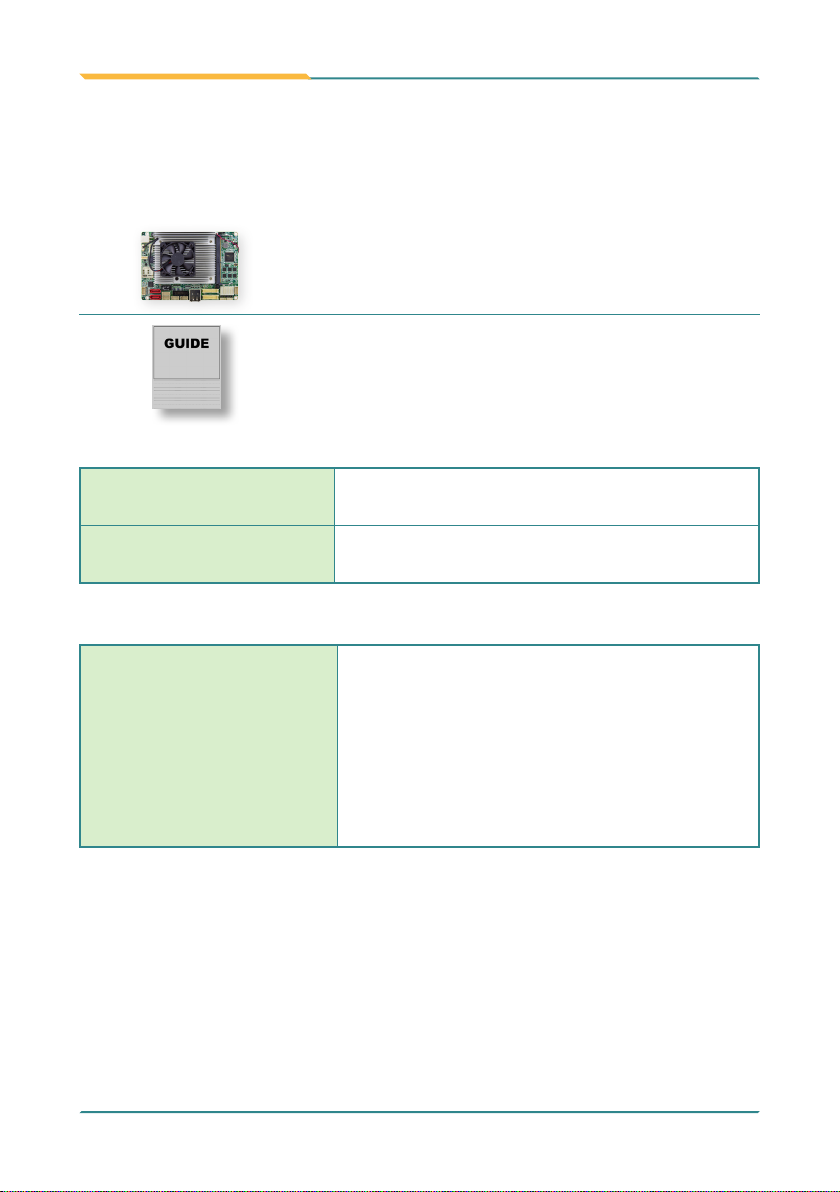

1.1. Packing List ........................................................................2
1.2. Ordering Information ..........................................................2
1.3. Driver Installation................................................................3
1.4. Specications .....................................................................4
1.5. Board Dimensions ..............................................................6

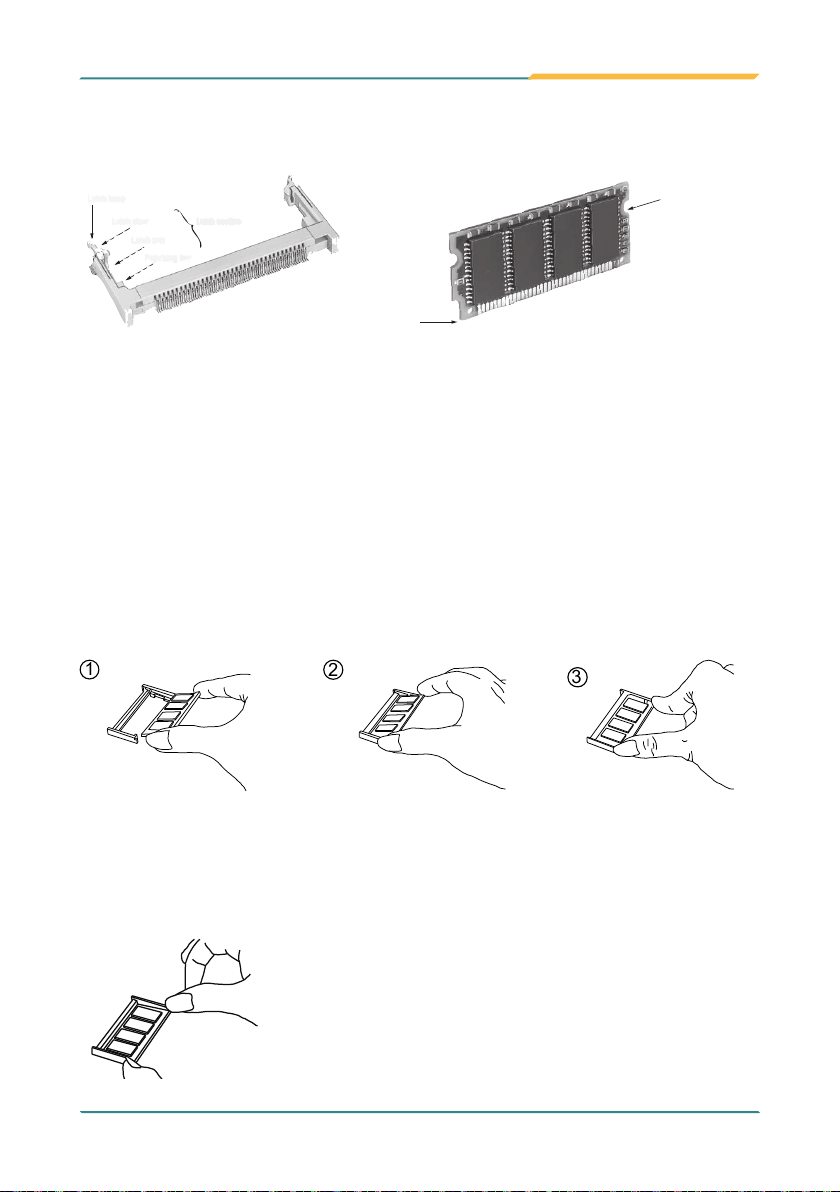

1.6 Installing the Memory .........................................................7
Chapter 2 - Installation ....................................................................9
2.1. Block Diagram .................................................................10
2.2. Jumpers & Connectors Quick Reference......................... 11

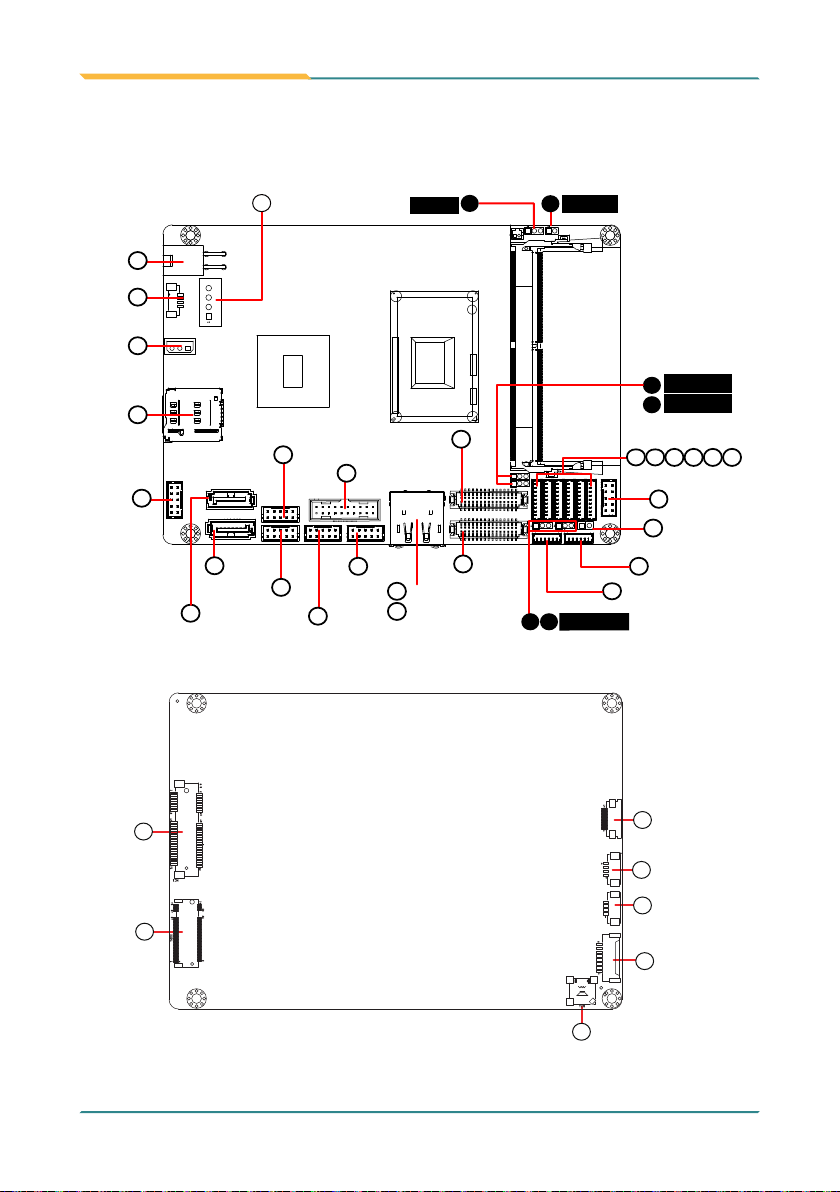

2.3. Jumpers & Connectors Location ......................................12
2.3.1. Jumpers .................................................................13
2.3.2. Connectors.............................................................17
Chapter 3 - BIOS.............................................................................39
3.1 Main..................................................................................40
3.2 Advanced..........................................................................42
3.2.1 CPU Conguration .................................................43
3.2.2 PCI Subsystem Settings ........................................44
3.2.3 SATA Conguration ................................................45
3.2.4 ACPI Settings.........................................................46
3.2.5 USB Conguration .................................................47
3.2.6 AMT Conguration .................................................49
3.2.7 F81866 Super IO Conguration .............................50
3.2.8 Hardware Monitor...................................................52

- ii -
Contents
3.2.9 S5 RTC Wake Settings ..........................................53
3.2.10 CSM Conguration...............................................54
3.3 Chipset .............................................................................55
3.3.1 Graphics Conguration ..........................................57
3.3.2 Memory Conguration............................................59
3.3.3 LCD Control ...........................................................60
3.3.4 PCI Express Conguration.....................................61
3.3.5 USB Conguration .................................................62
3.4 Security ............................................................................63
3.5 Boot ..................................................................................64
3.6 Save & Exit.......................................................................65
3.7 Beep Sound codes list............................................................66
3.7.1 Boot Block Beep codes .................................................66
3.7.2 POST BIOS Beep codes...............................................66
3.7.3 Troubleshooting POST BIOS Beep codes ....................67
3.8 AMI BIOS Checkpoints ...........................................................68
Appendix.........................................................................................79
Appendix A. Watchdog Timer (WDT) Setting ..........................80
Appendix B. Digital I/O Setting................................................82

- iii -
Preface
Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
Declaration of Conformity
CE
The CE symbol on your product indicates that it is in compliance with the
directives of the Union European (EU). A Certicate of Compliance is available
by contacting Technical Support.
This product has passed the CE test for environmental specications when
shielded cables are used for external wiring. We recommend the use of
shielded cables. This kind of cable is available from ARBOR. Please contact
your local supplier for ordering information.
This product has passed the CE test for environmental specications. Test
conditions for passing included the equipment being operated within an
industrial enclosure. In order to protect the product from being damaged by
ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the
use of CE-compliant industrial enclosure products.
Warning
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

- iv -
Preface
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference
that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
RoHS
ARBOR Technology Corp. certies that all components in its products are
in compliance and conform to the European Union’s Restriction of Use of
Hazardous Substances in Electrical and Electronic Equipment (RoHS) Directive
2002/95/EC.
The above mentioned directive was published on 2/13/2003. The main
purpose of the directive is to prohibit the use of lead, mercury, cadmium,
hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated
diphenyl ethers (PBDE) in electrical and electronic products. Member states of
the EU are to enforce by 7/1/2006.
ARBOR Technology Corp. hereby states that the listed products do not
contain unintentional additions of lead, mercury, hex chrome, PBB or PBDB that
exceed a maximum concentration value of 0.1% by weight or for cadmium
exceed 0.01% by weight, per homogenous material. Homogenous
material is dened as a substance or mixture of substances with uniform
composition (such as solders, resins, plating, etc.). Lead-free solder is used for all
terminations (Sn(96-96.5%), Ag(3.0-3.5%) and Cu(0.5%)).
SVHC / REACH
To minimize the environmental impact and take more responsibility to the
earth we live, Arbor hereby conrms all products comply with the restriction

- v -
Preface
of SVHC (Substances of Very High Concern) in (EC) 1907/2006 (REACH
--Registration, Evaluation, Authorization, and Restriction of Chemicals)
regulated by the European Union.
All substances listed in SVHC < 0.1 % by weight (1000 ppm)
About This User’s Manual
This user’s manual provides general information and installation instructions
about the product. This User’s Manual is intended for experienced users and
integrators with hardware knowledge of personal computers. If you are not
sure about any description in this booklet. Please consult your vendor before
further handling.
Warning
Single Board Computers and their components contain very delicate
Integrated Circuits (IC). To protect the Single Board Computer and its
components against damage from static electricity, you should always follow
the following precautions when handling it :
1. Disconnect your Single Board Computer from the power source when you
want to work on the inside.
2. Hold the board by the edges and try not to touch the IC chips, leads or
circuitry.
3. Use a grounded wrist strap when handling computer components.
4. Place components on a grounded antistatic pad or on the bag that comes
with the Single Board Computer, whenever components are separated
from the system.
Replacing the Lithium Battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.
Do not throw lithium batteries into the trash-can. It must be disposed of in
accordance with local regulations concerning special waste.
Technical Support
If you have any technical difculties, please do not hesitate to call or e-mail our
customer service.
https://www.arbor-technology.com
E-mail:[e-mail]

- vi -
Preface
Warranty
This product is warranted to be in good working order for a period of two years
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty does
not apply to products damaged by misuse, modications, accident or disaster.
Vendor assumes no liability for any damages, lost prots, lost savings or any
other incidental or consequential damage resulting from the use, misuse of,
or inability to use this product. Vendor will not be liable for any claim made by
any other related party.
Vendors disclaim all other warranties, either expressed or implied, including
but not limited to implied warranties of merchantability and tness for a
particular purpose, with respect to the hardware, the accompanying product’s
manual(s) and written materials, and any accompanying hardware. This limited
warranty gives you specic legal rights.
Return authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or
faxing the vendor and requesting a Return Merchandise Authorization (RMA)
number. Returned goods should always be accompanied by a clear problem
description.

1Chapter 1
Introduction
Chapter 1 - Introduction

- 2 -
Introduction
1.1. Packing List
Before starting with the installation, make sure the following items are
shipped. If any item appears damaged or is missing, contact your vendor
immediately:
1 x EmCORE-i89M2 3.5” Compact Board with
Cooler
1 x Quick Installation Guide
1.2. Ordering Information
EmCORE-i89M2-6442EQ 6th Generation Intel®Core™ i5-6442EQ /
QM170 3.5” compact board
EmCORE-i89M2-6822EQ 6th Generation Inte®Core™ i7-6822EQ /
QM170 3.5” compact board
Optional Accessories
CBK-15-89M2-00
Cable kit
1 x Audio cable
2 x SATA cables
1 x SATA power cable
2 x USB 2.0 cables
1 x USB 3.0 cable
2 x LAN cables
6 x COM cables

- 3 -
Introduction
1.3. Driver (6.6A) Installation
To install the drivers, please visit our website at www.arbor-technology.com and
download the driver pack from the product page.
The driver path is listed as below:
Windows 7 & Windows 10 64-bit
Chipset \i89X\Chipset\Chipset_10.1.1.13_Public
Audio \i89X\Audio\7687_PG436_Win10_Win8.1_Win8_Win7_WHQLx64
LAN \i89X\Ethernet
Graphic \i89X\Graphic\IntelR Graphics Driver Production Version
15.40.16.64.4364
ME \i89X\ME\Intel(R)_ME_11.0_Corporate_11.0.0.1202
RAID \i89X\RAID\Intel Rapid Storage Technology Driver 14.8.0.1042
USB3.0 \i89X\USB3.0\win8.1 64bit\Intel_USB_3.0_xHC_Adaptation_
Driver_MR1_Release_1.0.1.45_PV

- 4 -
Introduction
1.4. Specications
Form Factor 3.5" Compact Board
CPU
Soldered onboard 6th Generation Intel®
Quad Core™ Processor i5-6442EQ 1.9GHz
(base)/2.7GHz (Turbo); i7-6822EQ 2.0GHz 2.0GHz
(Base)/2.8GHz(Turbo)
Chipset Intel®PCH QM170
Memory 1 x DDR4 SO-DIMM socket, supporting
2133/1866MHz SDRAM up to 16GB
BIOS AMI UEFI BIOS
Watchdog Timer 1~255 levels reset
Super I/O Fintek F81866
USB Port 2 x USB 3.0/2.0 ports
4 x USB 2.0 ports
Serial Port
6 x COM ports
- 4 x RS-232
- 2 x RS-232/422/485 selectable
Expansion 1 x Mini-Card Socket
1 x Micro SIM socket
Storage
2 x Serial ATA ports with 600MB/s HDD transfer rate
1 x NGFF M.2 socket for M-Key to support SATA/
PCIe x4 depending on SSD module
Ethernet Chipset 1 x Intel®i219LM PCIe PHY
1 x Intel®i210IT PCIe GbE controller
Digital I/O 8-bit Programmable
Audio Realtek®ALC662 5.1 Channel HD Audio CODEC,
Mic-in/ Line-in/ Line-out
Graphic Chipset Integrated Intel®HD Graphics 5x0
Graphic Interface
2 x Dual Channel 24-bit LVDS
1 x HDMI
1 x DisplayPort
OS Support
Windows 7, Windows 10 64-bit, Linux Ubuntu
Power Requirement +12V DC-In

- 5 -
Introduction
Power Consumption 1.77A @+12V with i5-6442EQ (Typical)
1.82A @+12V with i7-6822EQ (Typical)
Operating Temp. -40 ~ 85°C (-40 ~ 185ºF)
Operating Humidity 10 ~ 95% @ 85°C (non-condensing)
Dimensions (L x W) 146 x 102 mm (5.7" x 4.0")

- 6 -
Introduction
1.5. Board Dimensions
19,8
29,5
1,6
146
102
3,38 98,58
8,84 142,77
(9,15)
(40,25)
Ø6,4*Ø3.1
Unit:mm
9,15
8,5
9,2

- 7 -
Introduction
1.6 Installing the Memory
Side notch
Key
Latch knob
Latch claw Latch section
Latch arm
Polarizing key
To install the Memory module, locate the Memory SO-DIMM slot on the board
and perform as below:
1. Adjust the socket polarizing key and the board key to the same direction.
2. Insert the board obliquely. Moreover, lay the board in parallel to the opening
at angle of 20oto 30o, and softly insert the board so as to hit the socket
bottom. Stopping insertion halfway will result in improper insertion.
3. Applying the board side notch in parallel to the socket bottom so that the
board position cannot be displaced, press the board side notch up, and x
it to the latch portion at both socket edges. Press the board side notch, and
release the notch with a snap “click” tone, if the printed board exceeds the
latch claw head.
1
2
3
Procedures for board extraction
Apply the thumb nail to the latch knob at both socket edges. Forcibly widen
the latch knobs to right and left ways, and release the latch. Then draw the
board out along an angle where the board is raised.

- 8 -
This page is intentionally left blank.

2Chapter 2
Installation
Chapter 2 - Installation

- 10 -
Installation
2.1. Block Diagram
NGFF1
M key M.2 socket
SATA2 (600Gb/s)
HDMI
DDI (eDP) Dual Chnnels
24-bit LVDS
NXP
PTN3460
eDP to LVDS
transmitter
LVDS1
LVDS connector
DDI (DP) Dual Chnnels
24-bit LVDS
CHRONTEL
CH7511B
eDP to LVDS
transmitter
LVDS2
LVDS connector
Level shift
DDI (HDMI) HDMI1
HDMI Connector
DDI (DP) DP1
DP Connector
SODIMM1
SO-DIMM DDR4 socket
DDR4 2133 MHz
HD Link MIC/ Line-in/ Line-out
Realtek
ALC662
AUDIO
2x5-pin Lockable PH
SATA0, 1 ports
SATA1, 2
SATA connector
4 x USB 2.0 ports
USB2,3
2x5-pin Lockable PH
2 x USB 2.0/ 3.0 ports
USB1
sealatch connector
SMBus I/F
SMB1
1x3 pin-header
SIM1
SIM socket
1 x PCIex1
1 x USB 2.0 port
MC1
Mini-card socket
GbE
1 x PCIex1 LAN2
2x5-pin Lockable PH
Intel i210IT
GbE controller
GbE
1 x PCIex1 LAN1
2x5-pin Lockable PH
Intel i219LM PHY
GbE controller
4 x RS-232
2 x RS/232/422/485
LPC COM1 ~ COM6
2x5-pin Lockable PH
SupwerIO
F81866
DMI3FDI
Intel®
QM170
PCH
6th/7th Generation
Intel® Core
i7-6822EQ (25W)/
i5-6442EQ (25W)
PWR1
12V DC input
8-bit Digital I/O
DIO1
2x5-pin Lockable PH
1 x PCIex4

- 11 -
Installation
2.2. Jumpers & Connectors Quick Reference
Jumpers
Jumper Description
➊JBAT1 Clears/keeps CMOS
➋JPWR1 Sets the AT/ATX mode
➌➍JVLCD1, 2 Sets the power voltage for LVDS1, 2
➎➏JINV1, 2 Sets the inverter voltage for LVDS1, 2
Connectors
Connector Description
①VIN1 12V DC IN Connector
②FAN1 CPU fan connector
③SMB1 SMBus Connector
④SIM1 Micro SIM card socket
⑤Audio1 Audio connector
⑥⑦SATA1, 2 Serial ATA Connectors
⑧⑨LAN1, 2 Ethernet connectors
⑩USB1 USB 3.0 connector
⑪⑫USB2, 3 USB 2.0 connectors
⑬CN1A DisplayPort Connector
⑭CN1B HDMI connector
⑮⑯LVDS1, 2 LVDS1, 2 LCD panel connectors
⑰⑱INV1, 2 LCD1, 2 inverter connectors
⑲DIO1 Digital I/O connector
⑳~
25
COM1~6 Serial port connectors
COM1-2: RS-232/422/485 selectable, COM3-6: RS-232
26
PWROUT1 SATA power connector
27
JFRT2 Power Button
28
SSD1 NGFF M.2 M-Key socket
29
MC1 Mini-card socket
30
BUZZER Buzzer
31
JFRT1 Front-panel connector
32 33
LAN_LED1, 2 LAN1, 2 LEDs
34
LPC1 Low pin count connector

- 12 -
Installation
2.3. Jumpers & Connectors Location
Board Top
JBAT1 JPWR1
CN1A
CN1B
LAN1
LAN2
SATA2
SATA1
USB2
USB3
USB1
LVDS1
LVDS2
INV2
INV1
JVLCD1
JVLCD2
JINV2, 1
JFRT2
Audio1
SIM1
SMB1
VIN1
PWROUT1
FAN1
COM2,1, 6, 5, 3, 4
DIO1
14
15
16 17
27
2
11
12
13
3
4
12
3
4
56
1
18
20 21
10
8
9
5
6
7
22 23 24 25
19
26
Board Bottom
Buzzer
SSD1
JFRT1
LAN_LED2
LAN_LED1
LPC1
MC1
28
29
30
31
32
33
34
