Arbor Technology EmCORE-i965H User manual

EmCORE-i965H
Half Size PCI SBC
User’s Manual
Version 1.1
2009.11

This page is intentionally left blank.

- i -
Index
Table of Contents
Chapter 1 - Introduction............................................ 1
1.1 Copyright Notice .......................................................2
1.2 About this User’s Manual .........................................2
1.3 Warning......................................................................2
1.4 Replacing the lithium battery...................................3
1.5 Technical Support.....................................................3
1.6 Warranty.....................................................................4
1.7 Packing List...............................................................5
1.8 Ordering Information ................................................5
1.9 Specifications............................................................6
1.10 Board Dimensions ..................................................7
Chapter 2 - Installation..............................................9
2.1 Block Diagram.........................................................10
2.2 Jumpers and Connectors.......................................11
Jumpers ..........................................................................12
JCF1: CF Mode Selection .....................................12
JRS2: COM2 RS-232/422/485 Mode Selection ....12
JPWR1: AT/ATX Power Mode Selection ..............13
JVLCD1: LCD Panel Voltage Selection................13
JBAT1: Clear CMOS Setting .................................14
Connectors .....................................................................15
KBM1: Keyboard & Mouse Connector.................15
USB2~3: USB Connectors ....................................15
VGA1: Analog RGB Connector ............................16
DVI1: DVI-I or Analog RGB Connector ................17
RLAN1: Primary GbE RJ-45 Connector...............18
USB1: USB type A connector ...............................18
CFD1: Compact Flash Type II Socket ..................19
AUDIO1: HD Connector.........................................20
DIO1: Digital I/O Connector ..................................20
IDE1: Primary IDE Connector...............................21

- ii -
Index
COM1~2: RS-232 Port Connectors ......................22
CON1: RS-422/ 485 Connector .............................22
JFRT1: Switches and Indicators ..........................22
IR1: Infrared Connector ........................................23
LPT1: Parallel Port Connector..............................23
PWR1: Power Supply Connector .........................25
ATX1: ATX Feature Connector..............................25
SYSF1: System Fan Connector............................25
TV1: TV-Out Connector .........................................26
INV1: LCD Inverter Connector..............................26
LVDS1: LVDS Connector.......................................27
SATA1~2: Serial ATA Connectors.........................28
LAN1: Secondary Ethernet Connector................28
LLED1: Secondary LAN1 KED Indicator .............29
JKBM1: External keyboard Connector................29
2.3 The Installation Paths of CD Driver.......................30
Chapter 3 - BIOS...................................................... 31
3.1 BIOS Main Setup .....................................................32
3.2 Advanced Settings..................................................33
3.2.1 CPU Configuration .....................................34
3.2.2 IDE Configuration.......................................35
3.2.3 Floppy Configuration .................................36
3.2.4 Super IO Configuration..............................37
3.2.5 Hardware Health Configuration.................38
3.2.6 ACPI/APM Configuration ...........................39
3.2.7 Remote Access Configuration ..................41
3.2.8 USB Configuration .....................................43
3.3 Advanced PCI/PnP Settings..................................45
3.4 Boot Settings...........................................................47
3.4.1 Boot Settings Configuration........................48
3.5 Security....................................................................49

- iii -
3.6 Advanced Chipset Settings....................................51
3.6.1 North Bridge Chipset Configuration..........51
3.6.2 South Bridge Chipset Configuration .........52
3.7 Exit Options.............................................................54
3.8 Beep Sound codes list ...........................................59
3.8.1 Boot Block Beep codes ..............................59
3.8.2 POST BIOS Beep codes..............................59
3.8.3 Troubleshooting POST BIOS Beep codes 60
3.9 AMI BIOS Checkpoints ...........................................61
3.9.1 Bootblock Initialization Code Checkpoints...
61
3.9.2 Bootblock Recovery Code Checkpoints ...63
3.9.3 POST Code Checkpoints ............................65
3.9.4 DIM Code Checkpoints ...............................69
3.9.5 ACPI Runtime Checkpoints ........................71
Chapter 4 - Appendix ..............................................73
4.1 I/O Port Address Map..............................................74
4.2 Interrupt Request Lines (IRQ)................................75
4.3 BIOS memory mapping ..........................................75
4.4 Watchdog Timer (WDT) Setting .............................76
4.5 Digital I/O Setting ....................................................79
Index

- iv -
This page is intentionally left blank.
Index

- 1 -
Introduction
1Chapter 1
Introduction
Chapter 1 - Introduction

- 2 -
Introduction
1.1 Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
1.2 About this User’s Manual
This User’s Manual is intended for experienced users and integrators with
hardware knowledge of personal computers. If you are not sure about any
description in this User’s Manual, please consult your vendor before further
handling.
1.3 Warning
Single Board Computers and their components contain very delicate
Integrated Circuits (IC). To protect the Single Board Computer and its
components against damage from static electricity, you should always follow
the following precautions when handling it :
Disconnect your Single Board Computer from the power source when you
want to work on the inside
Hold the board by the edges and try not to touch the IC chips, leads or
circuitry
Use a grounded wrist strap when handling computer components.
Place components on a grounded antistatic pad or on the bag that came
with the Single Board Computer, whenever components are separated
from the system
1.
2.
3.
4.

- 3 -
Introduction
1.4 Replacing the lithium battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.
Do not throw lithium batteries into the trashcan. It must be disposed of in
accordance with local regulations concerning special waste.
1.5 Technical Support
If you have any technical difculties, please do not hesitate to call or e-mail
our customer service when you still can not nd out the answer.
http://www.arbor.com.tw
E-mail:[e-mail]

- 4 -
Introduction
1.6 Warranty
This product is warranted to be in good working order for a period of two years
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty
does not apply to products damaged by misuse, modications, accident or
disaster.
Vendor assumes no liability for any damages, lost prots, lost savings or any
other incidental or consequential damage resulting from the use, misuse of,
or inability to use this product. Vendor will not be liable for any claim made by
any other related party.
Vendors disclaim all other warranties, either expressed or implied, including but
not limited to implied warranties of merchantibility and tness for a particular
purpose, with respect to the hardware, the accompanying product’s manual(s)
and written materials, and any accompanying hardware. This limited warranty
gives you specic legal rights.
Return authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or
faxing the vendor and requesting a Return Merchandise Authorization (RMA)
number. Returned goods should always be accompanied by a clear problem
description.

- 5 -
Introduction
1.7 Packing List
1.8 Ordering Information
EmCORE-i965H1 Socket-P Intel® Core™ 2 Duo/ Celeron® M PCI half-size
SBC
EmCORE-i965H2 Socket-P Intel® Core™ 2 Duo/ Celeron® M PCI half-size
SBC with DVI-I
pga479M
200
199
42
41
40
39
1
2
200
199
42
41
40
39
1
2
1
2
43
44
1
1
1
1
1
2
9
10
1
2
9
10
1
2
9
10
230
29
1
1
2
20
19
1
2
5
6
1
2
9
10
2
9
10
2
9
10
4321
B1 B49 B52 B62
1
-
+
1
2
9
10
1
2
9
10
1
2
3
4
1
1
1
1
1
1
1
1 2
15 16
25
50
26
1
1 x EmCORE-i965H half-size PCI Single Board
Computer & Heatsink
1 x Driver CD
1 x Quick Installation Guide
CBK-12-965H-00
(for EmCORE-i965H1)
Cable Kit
2 x USB cables
1 x Audio cable
1 x LPT to FDD cable
1 x IDE Flat cable
1 x LPT cable
1 x RJ-45 LAN cable
1 x KB/MS Y-cable
1 x COM port cable
2 x Serial ATA cables
1 x TV-out cable
CBK-13-965H-00
(For EmCORE-i965H2)
Cable Kit
2 x USB cables
1 x Audio cable
1 x LPT to FDD cable
1 x IDE Flat cable
1 x LPT cable
1 x RJ-45 LAN cable
1 x KB/MS Y-cable
1 x COM port cable
2 x Serial ATA cables
1 x TV-out cable
1 x RGB cable
If any of the above items is damaged or missing, contact your vendor
immediately.

- 6 -
Introduction
1.9 Specifications
Form Factor Half-size PCI Single Board Computer
CPU Intel® Core™ 2 Duo CPU, up to 800MHz FSB
Intel® Celeron® M CPU, with 533/667MHz FSB
Chipset Intel® GME965 + Intel® ICH8M
System Memory Two 200-pin DDR2 SDRAM Vertical SO-DIMM sockets,
memory capacity up to 4GB
VGA/ LCD Controller
Intel GMA X3100 Technology, supports Dual independent
Display, One TMDS connector for DVI-I output (for
EmCORE-i965H2), TV-out
Ethernet 2 x Intel 82574L GbE Controllers
I/O Chips Winbond W83627HG
BIOS AMI PnP Flash BIOS
Audio Realtek ALC888 HD Audio CODEC
Serial ATA 2 x Serial ATA with 300MB/s HDD transfer rate
Serial Port 2 x COM ports (COM1: RS-232, COM2: RS-232/422/485
selectable)
Parallel Port/ Floppy 1 x LPT Port, SPP/EPP/ECP mode selectable shared with
FDD port (supports only 1 Floppy disk)
KBMS Standard PS/2 interface Keyboard and Mouse via Y-cable
Universal Serial Bus 5 x USB 2.0 ports
Expansion Interface PCI Golden nger, supports 4 PCI master
Operation Temp. -20oC ~ 70oC (-4oF ~ 158oF)
Watchdog Timer 1~255 levels Reset
Dimension (L x W) 185 x 122 mm (7.3” x 4.8”)

- 7 -
Introduction
1.10 Board Dimensions
pga479M
200
1
200
1
1
65
102
17
16
1
64
32
33
48
49
16
1
64
32
33
48
49
4
132
3364
1 2
43 44
1
1
K
1 2
9
10
1 2
9
10
1 2
9
10
230
29
1
1
2
19
1
6
1
2
9
10
2
2
1
210
9
4 3 2 1
3
4321
B1 B49 B52 B62
1
24
16
8
17
9
1
C6
C4
C3
C2
C1C5
-
+
1
2
10
8 6 5 3 2 1
1 2
9
10
1 2
4
1
1
11
1
24
13
12
15
11
65
1
1
2
15
16
3.89 16.99
48.79
76.70
90.15
118.49
122.00
6.93
182.27
185.00
44.11
Unit: mm
EmCORE-965H2
EmCORE-965H1
(30.45)
(4.3)

- 8 -
Introduction
This page is intentionally left blank.

- 9 -
Installation
2Chapter 2
Installation
Chapter 2 - Installation

- 10 -
Installation
Analog R.G.B.
VGA
Dual Channels LVDS
LVDS
SDVO I/F
EmCORE-i965H2 only
DVI
Intel®
GME965
Intel® Core™2 Duo/
Celeron® M
Processors
FSB
533/800MHz
DMI I/F
Intel®
ICH8M
Memory Bus 533/667MHz
Super IO
W83627HG
LPT1
FDD
DIO
4-in/
4-out
KB
MS
LPC I/F
USB I/F
5 x USB
Serial ATA I/F
2 x SATA
IDE ATA I/F
1 x IDE
1 x CF
HD Audio
ALC888
HD CODEC
2 x 200-pin DDRII
Vertical SO-DIMM
Sockets
2x PCIe GbE
LAN Controller
Intel 82574L
1 x RJ-45
1 x PH
PCI Golden
finger
PCI Bus
COM1,
COM2
TPM 1.2
(Optional)
IrDA
PCIe I/F GbE
Transmitter
CH7307

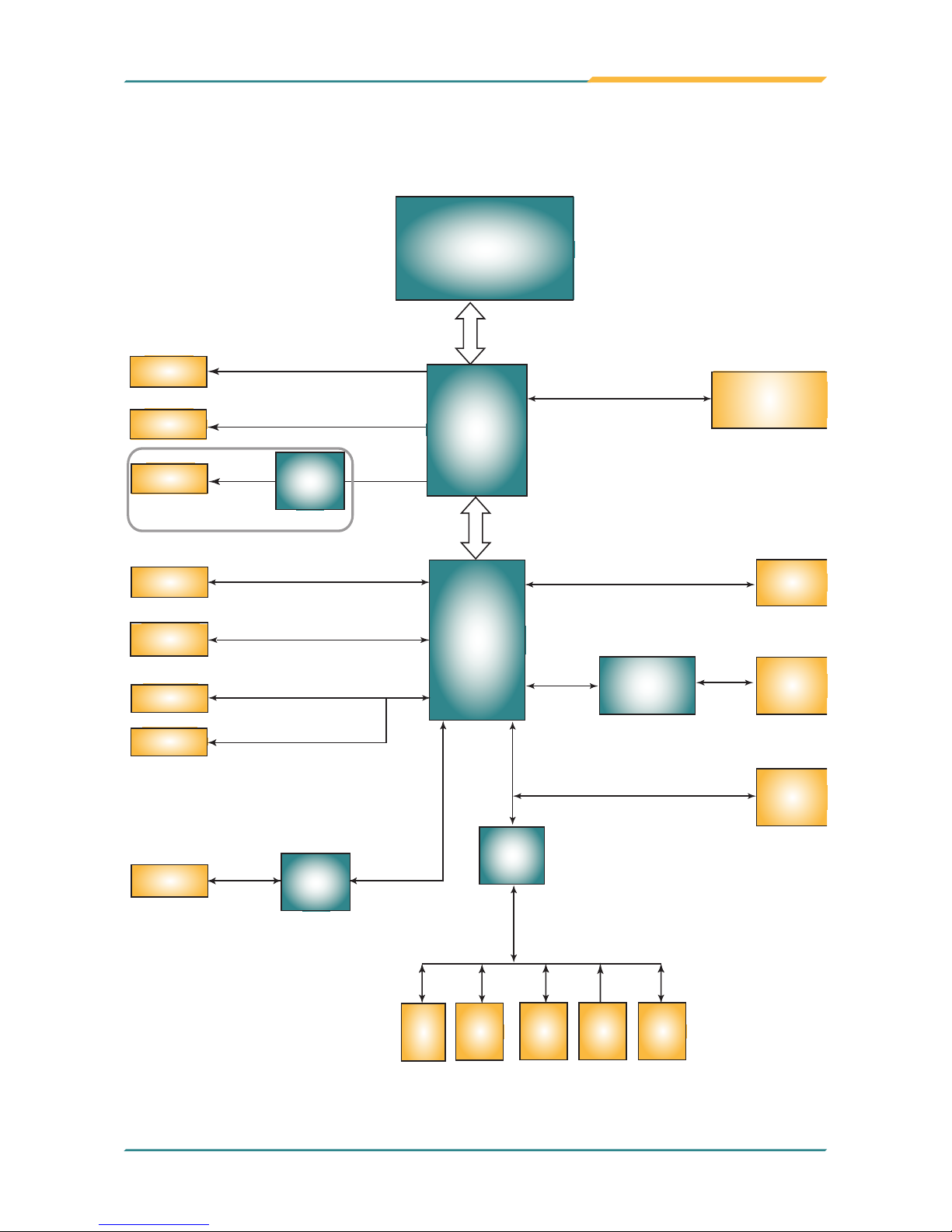

2.1 Block Diagram

- 11 -
Installation
2.2 Jumpers and Connectors
pga479M
200
199
42
41
40
39
1
2
200
199
42
41
40
39
1 2
1
1
2
21
1
121 2
910
2
15
16
B1
B49
B52
B62
-
+
1
1
2
1
1
1
1
2930
1
1
1
1
2
2
9
10
9 10 9 10
34
25
50
26
1
43 44
1 2
910
12
910
12
56
1
1
1
1
1
1
1
1
1
2
2
2
910
910
20 19
4
3
2
RLAN1
LAN1
SATA2
SATA1
LVDS1
JBAT1
JVLCD1
INV1
TV1
CPUF1
DVI1
KBM1
JKBM1
LLED1
VGA1
USB1
USB2
JPWR1
ATX1
PWR1
JFRT1
LPT1
CON1
COM1
COM2
IDE1
DIO1
JRS1
IR1
1
2
3
4
5
6
11
12
13
14
15
16
17
18
19
20
21
2223
24
25
26
27
28
29
30
31
32
33
USB4
8
CFD1
7
JCF1
9
AUDIO1
10

- 12 -
Installation
Jumpers
JCF1: CF Mode Selection (9)
Connector type: 2.00mm pitch 1x2-pin headers.
Pin Mode
Short Master
1 2
Open Slave (Default)
1 2
pga479M
200
199
42
41
40
39
1
2
200
199
42
41
40
39
1 2
1
1
1
1
1
1
1
1
12
12
12
12
56
30 29
2
2
910
910
B1
B49
B52
B62
-
+
1
1
2
3
4
1
1
1
1
1
10
9
1
1
19
2
2
2
20
3
4
1
1
1
2
2
910
1
1 2 1 2
9 10
2
15
16
25
50
26
1
43 44
9 10
9 10
9 10
JCF1
9
JRS1: COM2 RS-232/422/485 Mode Selection (19)
The onboard COM2 port can be congured to operate
in RS-422 or RS-485 modes. RS-422 modes differ
in the way RX/TX is being handled. Jumper JRS1
switches between RS-232 or RS-422/485 mode.
When JRS1 is set to RS-422 or RS-485 mode, there
will be only +12V output let while JRS1 is set. All
RS-232/422/482 modes are available on COM2.
It can be congured COM2 to operate in RS-232,
RS-422 or RS-485 mode
Connector type: 2.00mm pitch 2x3-pin headers.
Mode RS-232 (Default) RS-422 RS-485
1-2 ON OFF OFF
3-4 OFF ON OFF
5-6 OFF OFF ON
65
2
1
65
2
1
65
2
1
pga479M
200
199
42
41
40
39
1
2
200
199
42
41
40
39
1 2
1
1
1
1
1
1
1
1
12
12
12
12
56
30 29
2
2
910
910
B1
B49
B52
B62
-
+
1
1
2
3
4
1
1
1
1
1
10
9
1
1
19
2
2
2
20
3
4
1
1
1
2
2
910
1
1 2 1 2
9 10
2
15
16
25
50
26
1
43 44
9 10
9 10
9 10
JRS1
19

- 13 -
Installation
JVLCD1: LCD Panel Voltage Selection (26)
The voltage of LCD panel could be selected by
JVLCD1 in +5V or +3.3V.
Connector type: 2.54 mm pitch 1x3-pin headers
Pin Voltage
1-2 +5V
23 1
2-3 +3.3V (Default)
23 1
pga479M
200
199
42
41
40
39
1
2
200
199
42
41
40
39
1 2
1
1
1
1
1
1
1
1
1
12
12
12
12
56
30 29
2
2
910
910
B1
B49
B52
B62
-
+
1
1
2
3
4
1
1
1
1
1
10
9
1
1
19
2
2
2
20
3
4
1
1
1
2
2
910
1
1 2 1 2
9 10
2
15
16
25
50
26
1
43 44
9 10
9 10
9 10
JLCD1
26
JPWR1: AT/ATX Power Mode Selection (21)
The power mode jumper selects the power mode
for the system.
Connector type: 2.54mm pitch 1x2-pin headers.
Pin 1-2 Mode
Short AT Mode
1 2
Open ATX Mode (Default)
1 2
pga479M
200
199
42
41
40
39
1
2
200
199
42
41
40
39
1 2
1
1
1
1
1
1
1
1
12
12
12
12
56
30 29
2
2
910
910
B1
B49
B52
B62
-
+
1
1
2
3
4
1
1
1
1
1
10
9
1
1
19
2
2
2
20
3
4
1
1
1
2
2
910
1
1 2 1 2
9 10
2
15
16
25
50
26
1
43 44
9 10
9 10
9 10
JPWR1
21

- 14 -
Installation
JBAT1: Clear CMOS Setting (28)
If the board refuses to boot due to inappropriate
CMOS settings here is how to proceed to clear
(Reset) the CMOS to its default values.
Connector type: 2.54 mm pitch 1x3-pin headers
Pin Mode
1-2 Keep CMOS (Default)
23 1
2-3 Clear CMOS
23 1
You may need to clear the CMOS if your system cannot boot up because you
forgot your password, the CPU clock setup is incorrect, or the CMOS settings
need to be reset to default values after the system BIOS has been updated.
Refer to the following solutions to reset your CMOS setting:
Solution A:
1. Power off the system and disconnect the power cable.
2. Place a shunt to short pin 1 and pin 2 of JBAT1 for ve seconds.
3. Place the shunt back to pin 2 and pin 3 of JBAT1.
4. Power on the system.
Solution B:
If the CPU Clock setup is incorrect, you may not be able to boot up. In this
case, follow these instructions:
1. Turn the system off, then on again. The CPU will automatically boot up
using standard parameters.
2. As the system boots, enter BIOS and set up the CPU clock.
Note:
If you are unable to enter BIOS setup, turn the system on and off a few
times.
pga479M
200
199
42
41
40
39
1
2
200
199
42
41
40
39
1 2
1
1
1
1
1
1
1
12
12
12
12
56
30 29
2
2
910
910
B1
B49
B52
B62
-
+
1
1
2
3
4
1
1
1
1
1
10
9
1
1
19
2
2
2
20
3
4
1
1
1
2
2
910
1
1 2 1 2
9 10
2
15
16
25
50
26
1
4344
9 10
9 10
9 10
1
JBAT1
28
