arcweld 130i-ST User manual

Safety Depends on You
Mega Force machine is designed and
built with safety in mind. However, your
overall safety can be increased by proper
installation and thoughtful operation on
your part. DO NOT INSTALL, OPERATE
OR REPAIR THIS EQUIPMENT WITHOUT
READING THIS MANUAL AND THE
SAFETY PRECAUTIONS CONTAINED
THROUGHOUT. And, most importantly, think
before you act and be careful.
Operator’s Manual
IM1602
arcweld
®130i - ST
arcweld
®130i - ST DV
arcweld
®160i - ST DV
arcweld
®200i - ST
arcweld
®200i - ST DV
For use with machine Part Number
K69001-3 Código 76275
K69001-4 Código 76276
K69003-5 Código 76277
K69005-4 Código 76279
K69006-8 Código 76280

SAFETY
WARNING
ARC WELDING CAN BE HAZADOUS. PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH. KEEP
CHILDREN AWAY. PACEMAKER WEARERS SHOULD CONSULT WITH THEIR DOCTOR BEFORE OPERATING. THIS PRODUCT IS
NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL
DIFFERENT OR ARE REDUCED OR LACKING EXPERIENCE OR KNOWLEDGE, UNLESS SUCH PERSONS OR SUPERVISION
RECEIVED TRAINING FOR THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. CHILDREN MUST
MONITORED TO ENSURE THAT THEY DO NOT LIKE TOY USED BY THE DEVICES. BE SURE THAT ALL INSTALLATION,
OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE PERFORMED ONLY BY QUALIFIED INDIVIDUALS.
1.a Electric current owing through any conductor causes
localized Electric and Magnetic Field (EMF). Welding current
creates EMF elds around welding cables and welding
machines.
1.b EMF elds may interfere with some pacemakers, and
welders having a pacemaker should consult their physican
before welding.
1.c All welders should use the following procedures in order to
minimize exposure to EMF elds from the welding circuit:
1.d.1 Route the electrode and work cables together – Secure
them with tape when possible.
1.d.2 Never coil the electrode lead around your body.
1.d.3 Do not place your body between the electrode and work
cables. If the electrode cable is on your right side, the work
cable should also be on your right side.
1.d.4 Connect the work cable to the workpiece as close as
possible to the area being welded.
2.a Use a shield with the proper lter and cover plates to protect
your eyes from sparks and the rays of the arc. Headshield and
lter lens should conform to ANSI Z87. I standards.
2.b Use suitable clothing made from durable ame-resistant
material to protect your skin and that of your helpers from the
arc rays.
2.c Protect other nearby personnel with suitable, non-ammable
screening and/or warn them not to watch the arc nor expose
themselves to the arc rays or to hot spatter or metal.
3.a The electrode and work (or ground) circuits are electrically
“hot” when the welder is on. Do not touch these “hot” parts with
your bare skin or wet clothing. Wear dry, hole-free gloves to
insulate hand.
3.b Insulate yourself from work and ground using dry insulation.
Make certain the insulation is large enough to cover your full
area of physical contact with work and ground.
In addition to the normal safety precautions, if welding
must be performed under electrically hazardous conditions
(in damp locations or while wearing wet clothing; on metal
structures such as oors, grating or scaffolds; when in
cramped positions such as sitting, kneeling or lying, if there
is a high risk of unavoidable or accidental contact with the
workpiece or ground) use the following equipment:
• Semiautomatic DC Constant Voltage (Wire) Welder.
• DC Manual (Stick) Welder.
• AC Welder with Reduced Voltage Control.
3.c In semiautomatic or automatic wire welding, the electrode,
electrode reel, welding head, nozzle or semiautomatic welding
gun are also electrically “hot”.
3.d Always be sure the work cable makes a good electrical
connection with the metal being welded. The connection should
be as close as possible to the area being welded.
3.e Ground the work or metal to be welded to a good electrical
(earth) ground.
3.f Maintain the electrode holder, work clamp, welding cable
and welding machine in good, safe operating condition. Replace
damaged insulation.
3.g Never dip the electrode in water for cooling.
3.h Never simultaneously touch electrically “hot” parts of
electrode holder to two welders because voltage between the
two can be total of the open circuit voltage of both welders.
ELECTRIC AND MAGNETIC
FIELDS
may be dangerous.
ELECTRIC SHOCK
can kill.
ARC RAYS
can burn.
i i

SAFETY
4.a Welding may produce fumes and gases hazardous to
health. Avoid breathing these fumes and gases. When welding,
keep your head out of fume. Use enough ventillation and/or
exhaust at the arc to keep fumes and gases away from the
breathing zone. When welding with electrodes which require
special ventilation such as stainless or hard facing (see
instructions on container or MSDS) or on lead or cadmium
plated steel and other metals or coatings which produce
highly toxic fumes, keep exposure as low as possible and
below Threshold Limit Values (TLV) using local exhaust
or mechanical ventilation. In conned spaces or in some
circumstances, outdoors, a respirator may be required.
Additional precautions are also required when welding on
galvanized steel.
4.b Do not weld in locations near chlorinated hydrocarbon vapors
coming from degreasing, cleaning or spraying operations. The
heat and rays or the arc can react with solvent vapors to form
phosgene, a highly toxic gas, and other irritating products.
4.c Shielding gases used for arc welding can displace air and
cause injury or death. Always use enough ventilation, especially
in conned areas, to insure breathing air is safe.
4.d Read and understand the manufacturer’s instructions for
this equipment and the consumables to be used, including the
material safety data sheet (MSDS) and follow your employer’s
safety practices. MSDS forms are available from your welding
distributor or from the manufacturer.
5.a Turn off input power using the disconnect switch at the fuse
box before working on the equipment.
5.b Install equipment in accordance with the national standard,
all local standards and the manufacturer’s recommendations.
5.c Ground the equipment in accordance with the national
standards and the manufacturer’s recommendations.
6.a Remove re hazards from the welding area. If this is not
possible, cover them to prevent the welding sparks from starting
a re. Remember that welding sparks and hot materials from
welding can easily go through small cracks and openings to
adjacent areas. Avoid welding near hydraulic lines. Have a re
extinguisher readily available.
6.b When not welding, make certain no part of the electrode
circuit is touching the work or ground. Accidental contact can
cause overheating and create a re hazard.
6.c Do not heat, cut or weld tanks, drums or containers until the
proper steps have been taken to insure that such procedures
will not cause ammable or toxic vapors from subtances inside.
They can cause an explosion even though they have been
“cleaned”.
6.d Sparks and spatter are thrown from the welding arc. Wear
oil free protective garments such as leather gloves, heavy shirt,
cufess trouses, high shoes and a cap over your hair.
7.a Use only compressed gas cylinders containing the correct
shielding gas for the process used and properly operating
regulators designed for the gas and pressure used. All hoses,
ttings, etc. should be suitable for the application and maintained
in good condition.
7.b Always keep cylinders in an upright position securely
chained to an undercarriage or xed support.
7.c Cylinder should be located:
• Away from areas where they may be struck or subjected to
physical damage.
• A safe distance from arc welding or cutting operations and any
other source of heat, sparks, or ame.
7.d Never allow the electrode, electrode holder or any other
electrically “hot” parts to touch a cylinder.
7.e Keep your head and face away from the cylinder valve
outlet when opening the cylinder valve.
7.f Valve protection caps should always be in place and hand
tight except when the cylinder is in use or connected for use.
FUMES AND GASES
can be dangerous.
FOR ELECTRICALLY
powered equipment.
CYLINDER
may explode if damaged.
WELDING SPARKS
can cause fire or explosion.
ii ii

SUMMARY
GENERAL INTRODUCTION
The arcweld®serie machine is a general MMA arc welding power
source which utilized single phase input power. The arcweld®
inverter machines adopt the latest Pulse Width Modulation (PWM)
technology and Insulated Gate Bipolar Transistor (IGBT) power
module. The welding response of the inverter machines has been
optimized for Stick(SMAW) and TIG(GTAW). They are an ideal
choice for maintenance, small repairs & general fabrication where
portability is important.
The arcweld®130i-ST and arcweld®130i-ST DV is recommended
for stick welding with such popular electrodes as E6011, E6013
and E7018, with diameters up to 1/8” (3,2mm). The arcweld®
160i-ST DV is recommended for stick welding with such popular
electrodes as E6011, E6013 and E7018, with diameters up to
5/32” (4,0mm). The arcweld®200i-ST and arcweld®200i-ST DV
is recommended for to stick welding with such popular electrodes
as E6011, E6013 and E7018, with diameters up to 3/16” (5,0mm).
It features automatic arc control to adjust the arc force, hot start
and anti sticking.
The arcweld®130i-ST, arcweld®130i-ST DV, arcweld®160i-ST
DV, arcweld® 200i-ST and the arcweld® 200i-ST DV perform DC
TIG with excellent results.
The arcweld®130i-ST, arcweld®130i-ST DV, arcweld®160i-ST DV,
arcweld® 200i-ST and the arcweld® 200i-ST DV adopt power factor
correction (PFC) technology, which extend the input voltage to a
wide range(98V~-265V~), and it can reduce the harmonic current.
SMAW - Shielded Metal Arc Welding.
PWM - Pulse-Width Modulation.
IGBT - Insulation Gate Bipolar Transistor.
TIG - Tungsten Inert Gas welding.
PFC - Power Factor Correction.
DV – Dual Voltage.
WELDING CAPABILITY
Please see Technical Specications in the Installation Section for
rated outputs for arcweld®inverter machines. It is capable of higher
duty cycles at lower output currents. If the duty cycle is exceeded,
a thermal protector will shut off the output until the machine cools.
The picture below will show what means duty cycle 60% for
example.
VOLT-AMPERE CHARACTERISTIC
Arcweld®Electric machine has excellent volt-ampere characteristic,
refer to the following graph. In MMA welding, the relationship between
rated load voltage U2 and welding current I2 is as follows:
I2 ≤600A,U2=20+0,04 I2(V); When I2>600A,U2=44 (V)
STACKING
The arcweld®130i-ST, arcweld®130i-ST DV, arcweld®160i-ST DV,
arcweld® 200i-ST and the arcweld® 200i-ST DV inverters cannot be
stacked.
TILTING
Place the machine directly on a secure, level surface. Do not
place or operate the machines on a surface with an incline greater
than 15°C from horizontal. The machine may topple over if this
procedure is not followed.
Weld for 6
minutes
Break for 4
minutes
A-1 A-1

TECHNICAL SPECIFICATIONS
INSTALLATION
B-1 B-1
arcweld®
130i-ST DV
arcweld®
160i-ST DV
arcweld®
200i-ST
arcweld®
130i-ST
arcweld®
130i-ST DV
arcweld®
160i-ST DV
arcweld®
200i-ST
Standard Voltag/
Phase/ Frequency
120V~/1/50/60 Hz
230V~/1/50/60 Hz
120V~/1/50/60 Hz
230V~/1/50/60 Hz
230V~/1/50/60 Hz
230V~/1/50/60 Hz
3,3 kW
4,2 kW
3,5 kW
5,2 kW
6,6 kW
3,5 kW
6,6 kW
38 A
26 A
29,6 A
23 A
41 A
25 A
29,6 A
29 A
22 A
13 A
17,5 A
12,6 A
24 A
17,5 A
14,5 A
120V~/1/50/60 Hz
230V~/1/50/60 Hz
arcweld®
200i-ST DV
arcweld®
200i-ST DV
Rated Input
Power
Duty Cycle(1) Amperes
SMAW
SMAW
120 V~
230 V~
230 V~
230 V~
120 V~
SMAW
SMAW
SMAW
SMAW
SMAW
GTAW
GTAW
GTAW
GTAW
GTAW
GTAW
GTAW
Volts at Rated
Amperes
35%
60%
100%
35%
60%
100%
35%
60%
100%
35%
60%
100%
110A
80A
60A
200A
155A
120A
110A
90A
70A
200A
155A
120A
160A
110A
80A
160A
110A
80A
110A
80A
60A
110A
90A
70A
200A
130A
100A
200A
130A
100A
24,4V
23,2V
22,4V
28V
26,2V
24,8V
230 V~
35%
60%
100%
35%
60%
100%
130A
100A
80A
130A
100A
80A
25,2V
24V
23,2V
15,2V
14V
13,2V
14,4V
13,6V
12,8V
18V
16,2V
14,8V
16,4V
14,4V
13,2V
24,4V
23,2V
22,4V
14,4V
13,6V
12,8V
28,0V
25,2V
24,0V
18,0V
15,2V
14,0V
26,4V
24,4V
23,2V
30%
60%
100%
120 V~
110A
85A
65A
110A
85A
65A
14,4V
13,4V
12,6V
24,4V
23,4V
22,6V
35%
60%
100%
35%
60%
100%
30%
60%
100%
35%
60%
100%
25%
60%
100%
25%
60%
100%
35%
60%
100%
Maximum
Supply Current Maximum
Effective Supply
Current
INPUT – SINGLE PHASE ONLY
RATED OUTPUT – DC ONLY
4,1 kW
arcweld®
130i-ST
SMAW
230 V~
GTAW
35%
60%
100%
35%
60%
100%
130A
100A
80A
130A
100A
80A
25,2V
24V
23,2V
15,2V
14V
13,2V
14,8 A

INSTALLATION
B-2 B-2
(1) Based upon 10 minute time period(i.e., for 60% duty cycle, it is 6 minutes on and 4 minutes off).
(2)Power Source only.
Note: The above parameters are subject to change with the improvement of machine.
Open Circuit
Voltage Welding Voltage
Range
Welding Current
Range
arcweld®
130i-ST DV
arcweld®
160i-ST DV
arcweld®
200i-ST
arcweld®
130i-ST DV
arcweld®
160i-ST DV
arcweld®
200i-ST
arcweld®
200i-ST DV
arcweld®
200i-ST DV
OUTPUT
OTHER PARAMETERS
PHYSICAL DIMENSIONS
TEMPERATURE RANGE
0,99
0,72
-10°C ~ +40°C(14°F~104°F)
-20°C ~ +55°C(-4°F~131°F)
IP21S
IP21S
IP21S
F
F
F
F
IP21S
0,99
> 78%
> 79%
> 79%
> 78%
arcweld®
130i-ST 0,72
0,72
IP21S F
> 79%
arcweld®
130i-ST
344mm
419mm
359mm
113mm
135mm
135mm
210mm
246mm
246mm
4,6 kg(2)
7,2 kg(2)
5,8 kg(2)
7,6 kg(2)
419mm 135mm 246mm
345 mm 114 mm 226 mm 4,3 kg(2)
arcweld®
130i-ST DV
arcweld®
160i-ST DV
arcweld®
200i-ST
arcweld®
200i-ST DV
SMAW
SMAW
SMAW
SMAW
SMAW
SMAW
SMAW
120 V~
120 V~
230 V~
15A-110A
10A-110A
15A-200A
20,4V /24,4
20,32V /24,4
20,4V /28
20,4V /25,2
20,4V /26,4
20,2V /24,4
20,4V /28,0
10,4V /14,4
10,32V /14,4
10,4V /18
10,4V /15,2
10,4V /16,4
10,32V /18
10,4V /18,0
10A-110A
15A-130A
15A-160A
15A-200A
120 V~
230 V~
230 V~
230 V~
GTAW
GTAW
GTAW
GTAW
GTAW
GTAW
GTAW
arcweld®
130i-ST
SMAW
230 V~ 70 V 15A-130A 20,4V /25,2
10,4V /15,2
GTAW 4,5 V
92 V
72 V
92 V
78 V
78 V
78 V
78 V
92 V
72 V
92 V
78 V
78 V
78 V
78 V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
Efciency Protection
Class
Insulation
Class
Power Factor
Length Width Height Weight
Operating Temperature Range
Storage Temperature Range

SAFETY PRECAUTIONS
ELECTRIC SHOCK
can kill.
• Only qualied personnel should
perform this installation.
• Turn the input power OFF at the
main switch or fuse box before
working on this equipment.
• Do not touch electrically live parts
or electrode with skin or wet clothing.
• Insulate yourself from work and ground.
• Always wear dry insulating gloves.
FUMES AND GASES
can be dangerous.
• Keep your head out of fumes.
• Use ventilation or exhaust to
remove fumes from breathing zone.
WELDING SPARKS
can cause re or explosion.
• Keep ammable material away.
• Do not weld on closed containers.
SELECT SUITABLE LOCATION
This power source should not be subjected to rain, nor should
any parts of it be submerged in water. Doing so may cause
improper operation as well as pose a safety hazard. The best
practice is to keep the machine in a dry, sheltered area.
The bottom of machine must always be placed on a rm,
secure, level surface. There is a danger of the machine
toppling over if this precaution is not taken.
Place the welder where clean cooling air can freely circulate in
through the front louvers and out through the rear side. Water,dirt,
dust or any foreign material that can be drawn into the welder
should be kept to a minimum. Failure to observe these precautions
can result in excessive operating temperatures and nuisance
shutdowns. Locate the machine away from radio controlled
machinery. Normal operation of the welder may adversely affect
the operation of RF controlled equipment, which may result in
bodily injury or damage to the equipment.
INPUT CONNECTIONS
ELECTRIC SHOCK can kill.
• Have a qualied electrician install and service this equipment.
• Disconnect input power by removing plug from receptacle
before working inside machines. Allow machine to sit for 5
minutes minimum to allow the power capacitors to discharge
before working inside this equipment.
• Do not touch electrically live parts.
INPUT POWER CONNECTION
Check the input voltage, phase, and frequency supplied to this
machine before turning it on. The allowable input voltage is
indicated in the technical specication section of this manual and
on the rating plate of the machine. Be sure that the machine is
grounded.
INPUT VOLTAGE
The arcweld®130i-ST (120V~), arcweld®130i-ST DV (120V~ or
230V~), arcweld®160i-ST DV, arcweld® 200i-ST (230V~) and
the arcweld® 200i-ST DV work with a 120V~/230V~ (±10%) input
voltage, 50/60Hz, it will auto connect to either 120V~ or 230V~
suppliers without changing the inside connection.
An output guide is provided in the technical specication section
of this manual.
ENGINE DRIVEN GENERATOR
The machine is designed to operate on engine driven generators
as long as the generator can supply adequate voltage, frequency
and power as indicated in the “Technical Specication” Installation
Section of this manual. The auxiliary supply of the generator must
also meet the following conditions:
Frequency: in the range of 50 Hz and 60 Hz
RMS voltage of the AC waveform:120V~ or 230V~ ±10%. (Input
voltage depends of the model).
It is important to check these conditions because many engine
driven generators produce high voltage spikes. Operation of this
machine with engine driven generators not conforming to these
conditions is not recommend and may damage the machine.
INSTALLATION
WARNING
B-3 B-3
CAUTION

SECURITY CAUTIONS
ELECTRIC SHOCK can kill.
• Keep the electrode holder and cable
insulation in good condition.
• Do not touch electrically live parts or
electrode with skin or wet clothing.
• Insulate yourseld from work and ground.
• Turn the input line Switch on the arcweld machines “Off”
bedore connecting or disconnecting output cables or other
euipment.
For secure electrical connection, the power source sockets
connecting cable plugs must be tightened. Damage may
occur to the output socket or welding performance maybe
compromised.
To avoid interference problems with other equipment
and to achieve the best possible operation, route all cables directly
to the work. Avoid excessive lengths and do not coil excess cable.
OUTPUT CONNECTIONS
A quick disconnect system using Europe quick cable plugs is used
for the welding cable connections. Refer to the following sections
for more information on connecting the machine for operation of
stick welding(SMAW) or TIG welding.
STICK WELDING (SMAW)
First determine the proper electrode polarity for the electrode to be
used. Consult the electrode data for this information. Then connect
the output cables to the output terminals of the machine for the
selected polarity. Shown here is the connection method for DC(+)
welding. (See Figure B.1)
Connect the welding cable to the (+) terminal and the work clamp
to the (-) terminal. Insert the connector with the key lining up with
the keyway and rotate approximately 1/4 turn clockwise. Do not
over tighten.
For DC(-) welding, switch the cable connections at the machine
so that the welding cable is connected to (-) and the work clamp is
connected to (+). (See Figure B.2)
TIG WELDING (GTAW)
The Arcweld®machine does not have a built in Gas Solenoid so a
piece gas valve TIG Torch with gas valve is required. A TIG Torch
adapter is also required. Refer to the accessories section for more
informatin about TIG Torches and required adapter. Most TIG
welding is done with DC(-) polarity shown here.(See Figure B.3)
If DC(+) polarity is necessary switch the cable connections at the
machine.
Connect the torch cable to the (-) terninal of the machine and the
work clamp to (+) terminal. Insert the connector with key lining up
with the key way and rotate approximately 1/4 turn clockwise. Do
not over tighten. Finally, connect the adapter gas hose to the gas
regulator of the cylinder gas.
Stricking arc of TIG operation
When the tungsten electrode touches the workpiece, the short-
circuit current is only 10A. After generating arc, current can rise
to the preset welding current. If the tungsten electrode touches
the workpiece during welding, the current will drop to 10A within
2s, which can reduce tungsten damage and prolong the tungsten
electrode life.
WARNING
CAUTION
INSTALLATION
B-4 B-4
Figure B.1
Figure B.2
Figure B.3
Figure B.1
Figure B.2
Electrode
holder
Electrode
Work
Electrode
holder
Electrode
Work
Tig Torch
Arcweld®
Arcweld®
Arcweld®

1. Power On/Off
This light illuminates when the power source is on.
2. Thermal LED
This indicator will turn on when the machine is overheated and
the output has been disabled. This normally occurs when the duty
cycle of the machine has been exceeded. Leave the machine on
to allow the internal components to cool. When the indicator turns
off, normal operation is again .
3. Welding Mode Switch
With two positions, controls the welding mode of the machine: one
for Stick welding and one for TIG welding.
SMAW Touch TIG
When the mode switch is in the TIG position, the stick welding
functions is disabled and the machine is ready for TIG welding.
4. Output Current Knob
Potentiometer used to set the output current used during welding.
5. Positive Quick Disconnect
Positive output connector for the welding circuit.
6. Negative Quick Disconnect
Negative output connector for the welding circuit.
7. Power Switch
It turns ON/OFF the input power to the machine.
8. Input Cable
The machines are provided with a plugged input cord. Connect it
to the mains.
Auto Adaptive Arc Force (with stick welding)
The arc force function is activated during stick welding. This
function increases temporary the output current, used to clear
intermittent connections between the electrode and the weld
puddle that occur during stick welding.
This is an active control feature that guarantees the best
arrangement between the arc stability and spatter presence. The
control determines the amount of current to apply to break the
metal drop that is being transferred from the electrode to the work
piece to guarantee the arc stability, but not too high to minimize
spatter around the welding puddle. That means:
• Electrode/work piece sticking prevention, also with low current
values
• Spatters reduction
The welding operations are simplied and the welded joints looks
better, also brush before welding for better results.
With the Stick welding are also enabled the following features:
• Hot Start: This is a temporary increase in the initial welding
current. This helps ignite the arc quickly and reliably.
• Anti-Sticking: This is a function that decreases the output
current of the machine to a low level when the operator makes
an error and sticks the electrode to the work piece. This decrease
the current allows the operator to remove the electrode from the
electrode holder without creating large sparks that can damage
the electrode holder.
INSTALLATION
B-5 B-5
CONTROLS AND OPERATIONAL FEATURES
7
8
80
100
60
40
120
140
160
20
10
8
20
40
60 80
100
110
~ ~
120 V 230 V
arcweld
® 160i - ST DV
3
4
1
2
5
6

ELECTRODE SELECTION
The electrode diameter selection is based on the workpiece
thickness, welding position, joint form, welding layer, etc. Please
refer to the following table.
The relationship between workpiece thickness and electrode
diameter:
The welding current reference for different electrode diameter:
1.Electrode should be drying according to user manual before
using. For reducing the hydrogen of the molten pool and welding
seam, and avoiding the blowhole and cold crack.
2.In the welding process, the arc must not be too long; otherwise,
it will cause unstable arc burning, large spatter, light penetration,
undercut, blowhole, etc. If the arc is too short, it will cause electrode
stick.
3.In MMA welding the arc length is usually equal to 0,5~1,0 time
of the electrode diameter. The basic electrode’s arc length is not
beyond the electrode diameter, it’s better to choose the short arc
welding; the acid electrode’s arc length is equal to the electrode
diameter.
OPERATION ENVIRONMENT
Height above sea level: below 1000m.
Operation temperature range: -10°C~+40°C.
Relative humidity: below 90 %(+20°C).
Preferably site the machine some angles above the oor level, the
maximum angle does not exceed 15°C .
Protect the machine against heavy rain or in hot circumstance
against direct sunshine.
The content of dust, acid, corrosive gas in the surrounding air or
substance can not exceed normal standard.
Make care that there is sufcient ventilation during welding. There
is at least 30cm free distance between the machine and wall.
OPERATION NOTICE
Read Safety carefully before attempting to use this equipment.
Connect the ground wire with the machine directly, and refer to
arcwelding defect and prevent method.
Input power must be AC as one phase, 50/60Hz, 220V~ or
220V~/230~ . Forbid working in lacking any phase.
In case closing the power switch, no-load voltage may be exported.
Do not touch the output electrode with any part of your body.
Before operation, no concerned people should be left. Do not
watch the arc in unprotected eyes.
Ensure good ventilation of the machine to improve duty ratio.
Turn off the engine when the operation nished to economize
energy sources.
When power switch shuts off protectively because of failure. Don’t
restart it until problem is resolved. Otherwise, the range of problem
will be extended.
OPERATION CONTROL AND CONECTORS
WELDING PARAMETERS
JOINT FORMS IN MMA
Butt joint Lap joint Corner joint T joint
Butt joint Lap joint Corner joint T joint
C-1 C-1
Workpiece
thickness/mm
Electrode
diameter/mm
Welding
current/A
Workpiece
thickness/
mm
2
25~40
2
1,6
3
2,0
>13
4,0
3,2
40~60
4~5
2,5
4~5
100~
130
160~
210
6~12
3,2
3,2~4
50~80
4~6
Common basic joint form: Butt joint, lap joint, corner joint & T joint.

OPERATION CONTROL AND CONECTORS
ARCWELDING DEFECT AND PREVENT METHOD
C-2 C-2
Defect name
Welding seam
doesn’t meet the
requirement
Undercut
Incomplete
penetration
Incomplete
fusiont
Overlap
Crater
Blowhole
Inclusion & slag
inclusion
Hot crack
Cold crack
The groove angle or gap is too small, the
root face is too big.
Welding parameters are not suitable, or
the assembly is not good.
The welder’s operation skill is low.
The welding thermal input is too low.
The arc direction is lean.
There are rust & dust on the side of groove.
The slag between the layers is not cleared
well.
The temperature of molten pool is too
high.
The liquid metal concretes slowly.
The crater time lasts too short.
Over current in the welding of thin plate.
Three reasons will cause cold crack:
The structure turned from the marten site.
The residual stress caused by big restraint
intensity.
The residual hydrogen in welding gap.
In the process of solidication, the inter
crystal segregation is seriously caused. At
the same time, with the effect of welding
stress, the hot crack is formed.
The slag clears bad in the middle layer in
the welding process.
Under current or over speed in the welding.
Welding operation is not proper.
The welding material can not match the
work piece.
The groove design & processing are not
prope.
There are some dust like oil, rust or water
on the work piece surface and groove.
The coating of electrode is damped& is not
drying.
Under current or over speed in the welding.
The arc is too long or lean burning, the
molten pool protection is not good.
Over current, the coating of electrode falls
off and lose protection.
Manipulation of electrode is not proper.
Over current.
Arc length is too long.
The electrode angle is wrong.
Manipulation of electrode is not proper.
The groove angle is not proper.
The root face and assembly gap is not
equal.
Welding technics parameters are
unreasonable.
Choosing the proper groove angle &
assembly gap, improve the assembly quality.
Choosing the proper welding parameters.
Improve the operation skill of welders.
Choosing the proper welding current & speed.
The arc can’t be drawn too long.
The electrode angle should be proper.
Manipulation of electrode should be correct.
Correctly to choose the welding parameters.
Operation seriously.
Enhance the clearness of layers.
In the crater, electrode should be stayed for a
short time or round to manipulate electrode
after the molten pool is lled in by metal, take
to the side for cratert
Strictly control the percentage of S and P in
welding material.
Adjust the structure of welding material.
Adopt the basic electrode.
Adopt low hydrogen type basic electrode.
Bake under the instruction before use.
Remove the feculence before use, reduce the
percentage of hydrogen.
Adopt appropriate parameters and heat input.
After welding, do dehydrogenation at once.
Choosing the electrode of good slag
detachability.
Strictly to clear the slag in the layers.
Correctly to choose the welding parameters.
Adjusting the electrode angle and manipulation
way.
Clear out the dust around groove for about
20~30mm.
Strictly to dry the electrode according to
manual.
Correctly to choose parameters and to operate
Using the short arc operation.
Welding operation in the eld should have anti-
wind protection.
Don’t use the invalid electrode.
Choosing parameters based on the welding
different position.
Strictly to control the molten hole size.
Correctly to choose and process the groove
size.
Correctly to assemble and ensure clearance.
Choosing the suitable welding current & speed.
Improve the operation skill of welders.
Caused reasons Prevent methods

In order to guarantee that arc welding machine works high-efciently and safety, it must be maintained regularly. Let customers understand
the maintenance methods and means of arc welding machine more , enable customers to carry on simple examination and safeguarding
by oneself, try one’s best to reduce the fault rate and repair times of arc welding machine, so as to lengthen service life of arc welding
machine .Maintenance items in detail are in the following table.
MAINTENANCE AND TROUBLESHOOTING
● Warning: For safety while maintaining the machine, please shut off the supply power and wait for 5 minutes, until
capacity voltage already drops to safe voltage 36V .
D-1 D-1
Maintenance items
Daily examination
Monthly
examination
Quarter- yearly
examination
Yearly examination
Observe that whether panel knob and switch in the front and at the back of arc welding machine
are exible and put correctly in place. If the knob has not been put correctly in place, please correct;
If you can’t correct or x the knob , please replace immediately; If the switch is not exible or it
can’t be put correctly in place, please replace immediately; Please get in touch with our company
maintenance service department if there are no accessories.
After turn-on power, watch/listen to that whether the arc welding machine has shaking, whistle
calling or peculiar smell. If there is one of the above problems, nd out the reason to get rid of; if you
can’t nd out the reason, Please contact local this area our company agent or the branch company.
Observe that whether the display value of LED is intact. If the display number is not intact, please
replace the damaged LED. If it still doesn’t work, please maintain or replace the display PCB.
Observe that whether the min/max value on LED accords with the set value. If there is any difference
and it has affected the normal welding craft, please adjust it.
Check up that whether fan is damaged and is normal to rotate or control. If the fan is damaged,
please change immediately. If the fan does not rotate after the arc welding machine is overheated,
observe that whether there is something blocked in the blade, if it is blocked, please get rid of; If the
fan does not rotate after getting rid of the above problems, you can poke the blade by the rotation
direction of fan. If the fan rotates normally, the start capacity should be replaced; If not, change the
fan.
Observe that whether the fast connector is loose or overheated. if the arc welding machine has the
above problems, it should be fastened or changed.
Observe that Whether the current output cable is damaged. If it is damaged, it should be wrapped
up, insulated or changed.
Using the dry compressed air to clear the inside of arc welding machine. Especially for clearing up
the dusts on radiator, main voltage transformer, inductance, IGBT module, the fast recover diode
and PCB, etc.
Check up the bolt in arc welding machine, if it is loose, please screw down it. If it is skid, please
replace. If it is rusty, please erase rust on bolt to ensure it works well.
Whether the actual current accords with the displaying value. If they does not accord, they should
be regulated. The actual current value can be measured by the adjusted plier-type ampere meter.
Measure the insulating impedance among the main circuit, PCB and case, if it below 1MΩ, insulation
is thought to be damaged and need to change , and need to change or strengthen insulation.

HOW TO USE TROUBLESHOOTING GUIDE
Before arc welding machines are dispatched from the factory, they have already been debugged
accurately. So forbid anyone who is not authorized by our company to do any change to the equipment!
Unauthorized repairs performed on this equipment may result in danger to the technician and
machine operator and will invalidate your factory warranty. For your safety and to avoid Electrical
Shock, please observe all safety notes and precautions detailed throughout this manual.
This Troubleshooting Guide is provided to help you locate and
repair possible machine malfunctions. Simply follow the three-step
procedure listed below.
Step 1. LOCATE PROBLEM(SYMPTOM).
Look under the column labeled “PROBLEM (SYMPTOMS)”.
This column describes possible symptoms that the machine may
exhibit. Find the listing that best describes the symptom that the
machine is exhibiting.
Step 2. POSSIBLE CAUSE
The third column labeled ”POSSIBLE CAUSE” lists the obvious
external possibilities that may contribute to the machine symptom.
Step 3. RECOMMENDED COUSE OF ACTION
This column provides a course of action for the Possible
Cause, generally it states to contact your local Lincoln
Authorized Field Service Facility.
If you do not understand or are unable to perform the
Recommended Course of Action safely, contact your local
Lincoln Authorized Field Service Facility.
ELECTRIC SHOCK can kill.
1. Have an electrician install and service this equipment.
2. Turn the input ppower off at the fuse box before working on equipment.
3. Do not touch electrically hot parts.
If for any reason you do not understand the test procedure or are unable to perform the tests/repairs safely,
contact your Local Lincoln Authorized Field Service Facility for technical troubleshooting assistance before
you proceed.
MAINTENANCE AND TROUBLESHOOTING
WARNING
WARNING
CAUTION
D-2 D-2

TROUBLESHOOTING
MAINTENANCE AND TROUBLESHOOTING
D-3 D-3
Turn on the power source, and fan
works, but the power light is not on.
Turn on the power source, and the
power light is on, but fan doesn’t
work.
Turn on the power source, and the
power light is not on, and fan doesn’t
work.
The power light damaged or connection is not
good.
Overvoltage (Input voltage is too much or not).
Welding cable is not connected with the two
output of the welder.
The plug loosen or connect not well.
SMAW/GTAW welding selection is wrong.
The welding current potentiometer in the front
panel connection not so good or damaged.
Power PCB failures.
Clear out.
Test and repair the inside circuit of power PCB
Change fan motor.
Check whether there is input voltage.
Check input voltage.
Check the front PCB and power PCB.
Check the earth clamp.
Check and tighten the plug.
Check and clear out.
Select the SMAW weding mode.
Repair or change the potentiometer.
Increase the welding current.
Use the shelter from airow.
Adjust the electrode angle.
Change the electrode.
Use the short arc operation.
Increase the welding current.
The fan motor damaged.
The motor power is faulty.
No no-load voltage output.
Arc blow.
The alarm light is on.
Arc break during welding.
No current output in the welding.
Not easy to start arc in the welding,
or easy to cause sticking.
The welding current can not be
adjusted.
The penetration of molten pool is not
enough(MMA).
No input voltage.
There is trouble inside the machine.
Welding cable is broken.
Earth cable is not connected or loosen.
Oil or dust covered the workpiece.
The welding current adjusted too low.
Airow disturbance.
The electrode eccentricity.
Magnetic effect.
Over current protection.
The welding current adjusted too low.
Over heat
protection.
Over
welding
current.
Working time
too long.
Unusual
current in
the main
circuit.
There is something in the fan
Test and repair the inside circuit of
power light on front PCB.
Repair or change power PCB.
Connect the welding cable to the
welder’s output.
Wrap, repair or change the welding
cable.
Incline the electrode to the opposite way
of the magnetic blow.
Reduce the welding current output.
Reduce the duty cycle (interval work).
Test and repair the main circuit of power
PCB.
Change the position of earth clamp
or add earth cable in the two side of
workpiece.
1
2
3
4
5
6
7
8
9
10
11
Item PROBLEMS(SYMPTOMS) RECOMMENDED COURSE OF
ACTION
POSSIBLE CAUSE

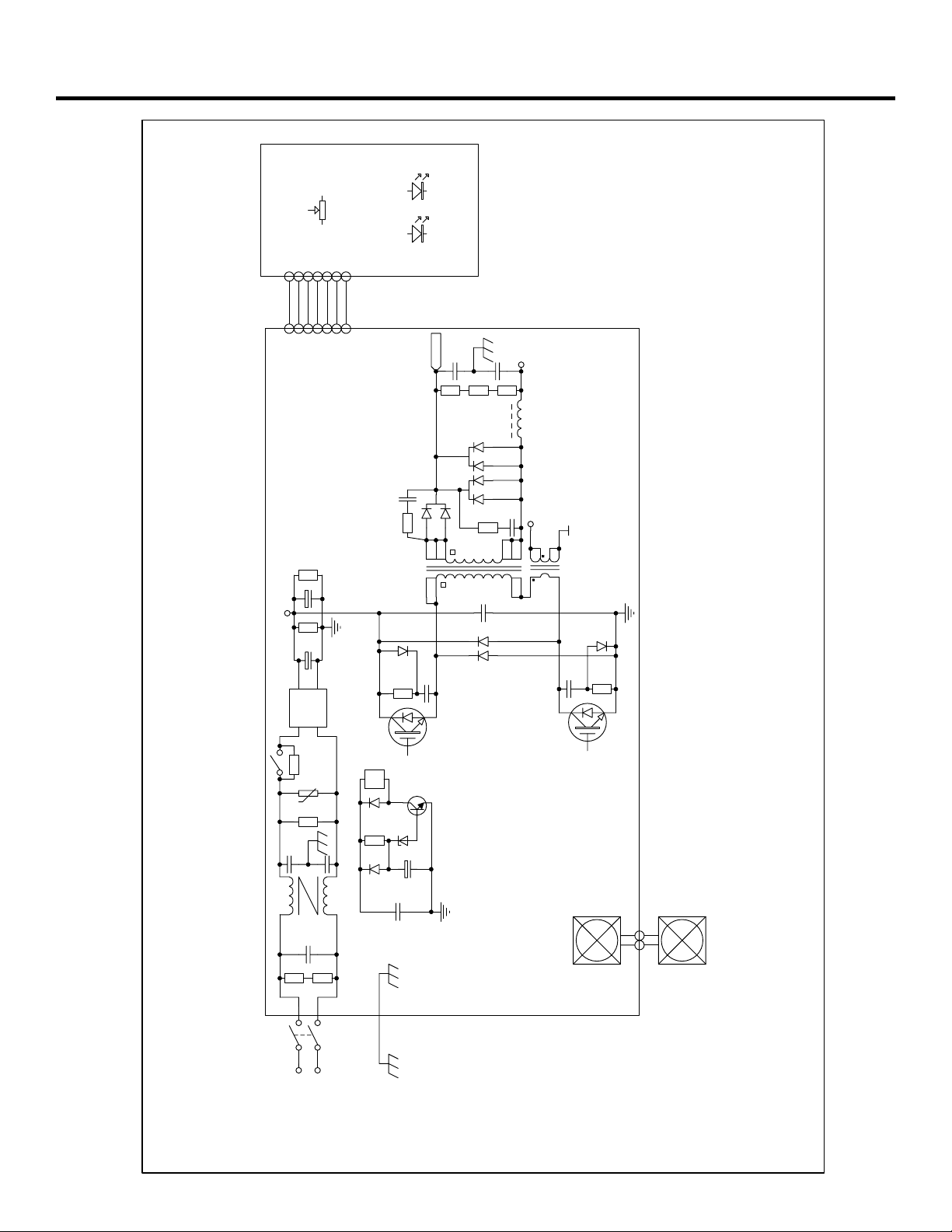

ELECTRICAL DIAGRAM
E-1 E-1
HT+
Iac
v
12
12
12
2
5
3
6
4 1
5
1/4
1/2
1/41/4
～
1
～
3-4
+2
AGND
3
2
1 3
3
4
2 4
4
1
3 4
B
1/4
J
21
A
VR1
Output Control
LED3LED4
AC2
AC1
Fan
1/4
5
1/4 1/4 1/4
Fan
arcweld
®130i-ST
SALIDA
+
SALIDA
-
VISTA FRONTAL
VISTA POSTERIOR
230V ~

ELECTRICAL DIAGRAM

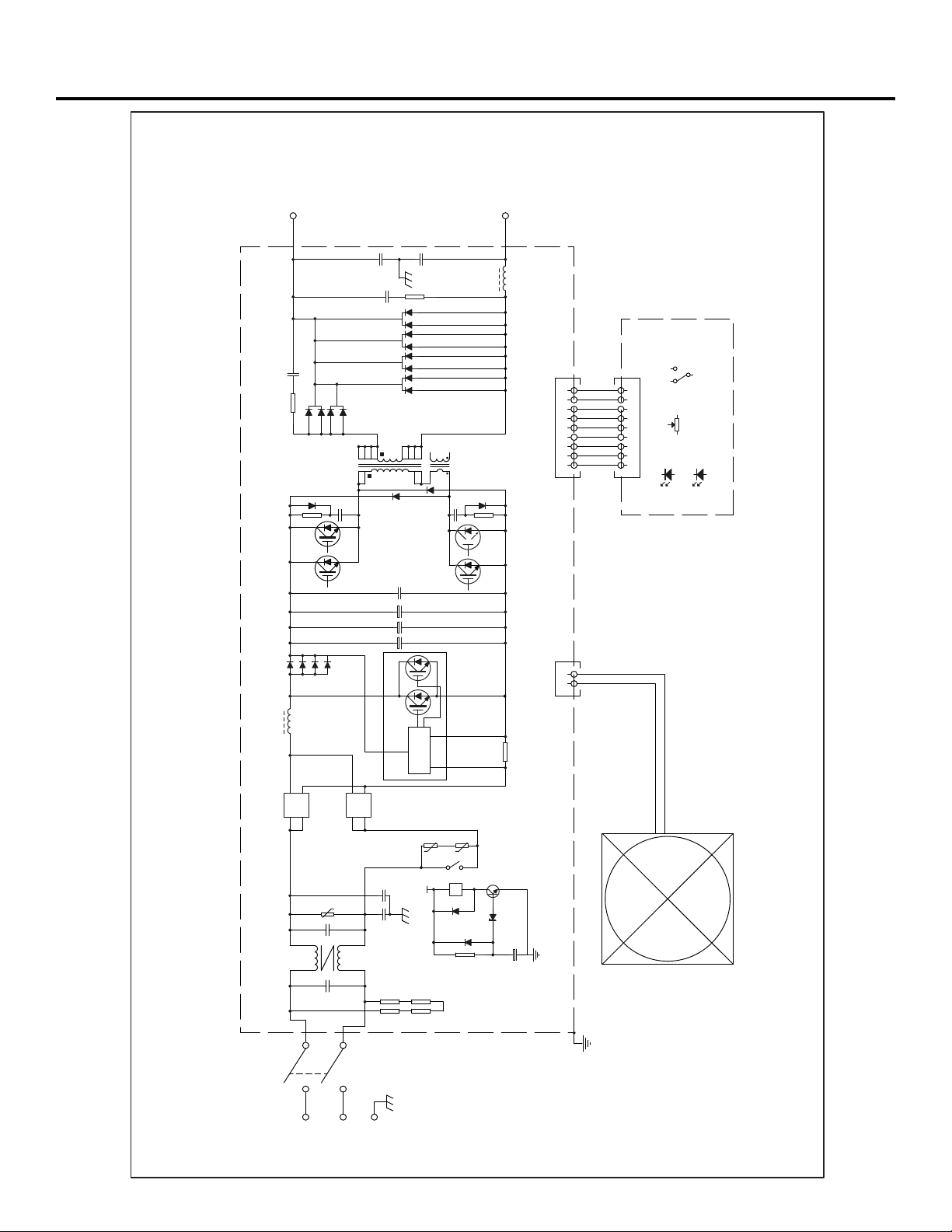

E-2 E-2
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
AC1
AC2
G
34
-t
～
1
～
3-4
+2
～
1
～
3-4
+2
12V
J
2 1
5
6
4
1
3
4
12
7
19 2
1 9
11 10
8
20
SALIDA+
SALIDA-
LED1
LED2
Output Control Mode Switch
VR1SW1
1
2
RECITIFIER
34
34
J
2 1
J
2 1
K2 K3
K2 K3
K1
K1
AC120V CONTROL
1
2
arcweld
®130i-ST DV
VISTA FRONTAL
VISTA POSTERIOR
120V~ /230V~

ELECTRICAL DIAGRAM
E-3 E-3
HT+
SALIDA
+
Iac
v
12
12
12
2
5
3
6
4 1
5
1/4
1/2
1/41/4
～
1
～
3-4
+2
AGND
SALIDA
-
3
2
1 3
3 4
2 4
4
1
3 4
B
1/4
J
21
A
VR1
Output Control
LED3LED4
AC2
AC1
Fan
1/4
5
1/4 1/4 1/4
Fan
arcweld
®200i-ST
VISTA FRONTAL
VISTA POSTERIOR
230V ~

ELECTRICAL DIAGRAM
E-4 E-4
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
AC1
AC2
G
v
34
-t -t
～
1
～
3-4
+2
～
1
～
3-4
+2
15V
J
2 1
IGBT
PFC
5 6
4 1
3
4
12
7
19 2
1
9
11 10
8
20
SALIDA+
SALIDA-
LED1
LED2
Output Control Mode Switch
VR1 SW1
1
2
RECITIFIER
120V~/ 230V~
arcweld
®160i ST DV
arcweld
® 200i-ST DV
VISTA FRONTAL
VISTA POSTERIOR

TIG TORCH K1782-7 INSTALLATION
F-1 F-1
STEP 1:
Identify that the torch K1782-7 have two lines, gas line
and work wire.
STEP 2:
Identify torch tips, lug and pigtel.
STEP 3:
Cut the lug of the power cable. STEP 4: Cut the insulation aprox 1/2 inch.
STEP 5:
Place the plastic body of the quick connector into the
power cable, then place the brass quick connector to
the uncovered cable part ( copper), make sure it ts
securely with copper.
STEP 6:
With the Allen wrench rmly tighten the set screw bronze
connector.
STEP 7:
Place the plastic body brass connector, be careful to
align well plastic entries to the brass connector.
STEP 8:
When the cover is fully seated, connect it to the negative
input of the machine.
STEP 9:
Connect the torch pigtel to the regulator with ow meter
and tighten it securely.
STEP 10:
Place the work wire, energize the machine,
open and bleed the gas, put in TIG position,
adjust parameters and welding.
A
Gas line
Work wire
Lug
Pigtel
Plastic body
Quick connector
Uncovered cable Tight
Connect to the negative input (-)
Flow meter
Pigtel
Tight

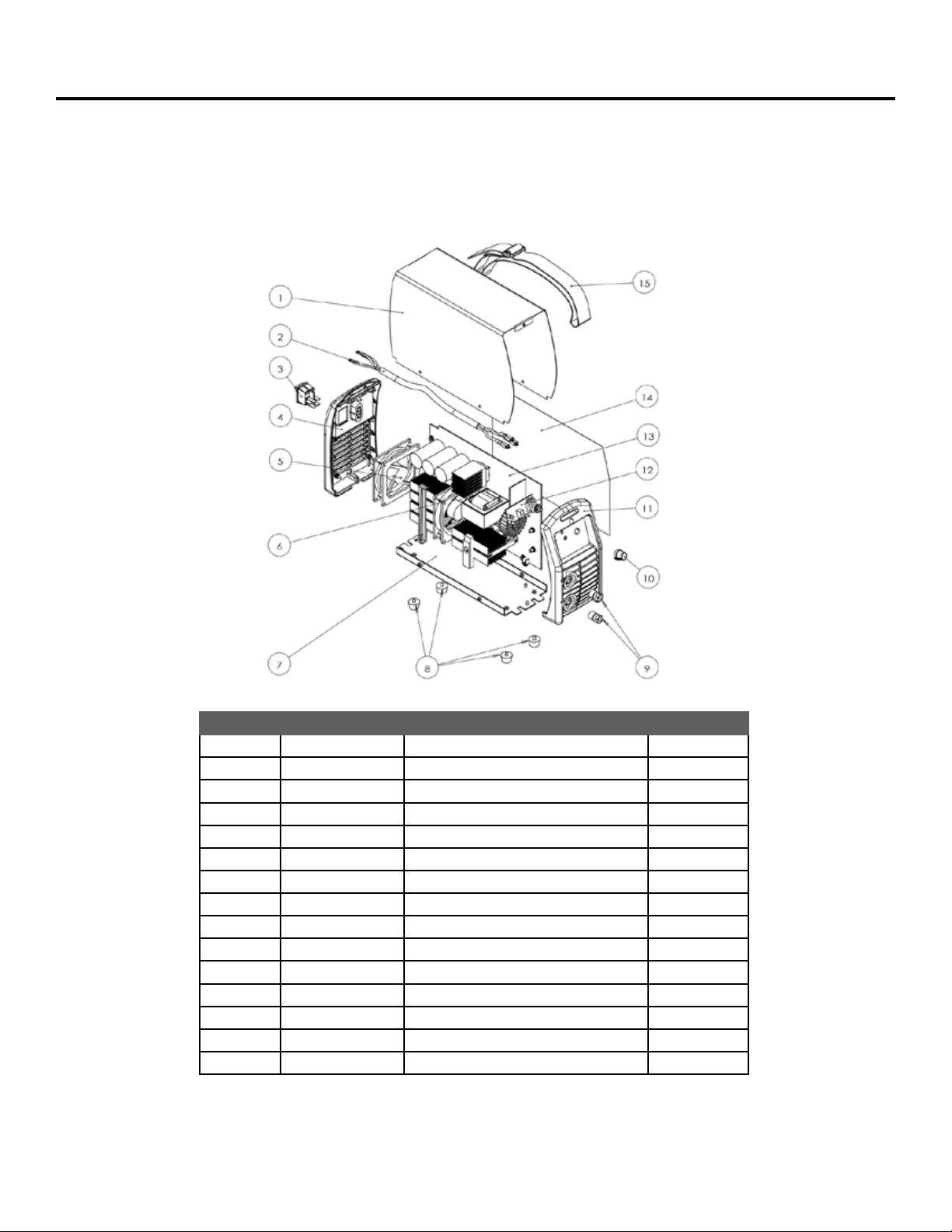

SPARE PART LIST
G-1 G-1
ARCWELD 130i-ST
K69001-3 76275
ITEM CODE DESCRIPTION QTY
1 L16440-22 Top_housing 1PC
2 M22276-18 Power cable 1PC
3 S26343-9 Switch 1PC
4 L15715-7 Rear Panel 1PC
5 M24923-6 Fan 1PC
6 M24923-7 Fan 1PC
7 L16441-10 Bottom Plate 1PC
8 S26787-15 Foot 4PC
9 M22415-21 10-25mm2 Socket 2PC
10 S28748-9 Knob Kit 1PC
11 L15714-5 Front Panel 1PC
12 S29841-6 Front PCB Ass-y 1PC
13 M24922-13 Power System 1PC
14 S28411-21 Insulation Piece 1PC
15 S28410-4 Strap and Buckle 1PC
