AREBOS AR-HE-HRW3T User manual

Original User Manual –AREBOS Hydraulic Trolley Jack 3 Ton
1
Hydraulic Trolley Jack 3 T
AR-HE-HRW3T
Please follow all security measures in this user´s manual to ensure a secure use.
Thank you for trusting in AREBOS.

Original User Manual –AREBOS Hydraulic Trolley Jack 3 Ton
2
List of contents
1.Safety instructions ..............................3
1.1 Explanation of the symbols ............................................ 3
1.2 General safety instructions............................................. 4
2.Construction .......................................5
2.1 Control before use.......................................................... 5
2.2 General instructions ....................................................... 5
3. Commissioning ...................................5
3.1 Starting position ............................................................. 5
3.2 Lifting the load................................................................ 5
3.3 Lowering the load........................................................... 5
4.Explosion view ....................................6
5.Maintenance of the jack......................8
6.Troubleshooting..................................8
7. Specifications .....................................9
8. Environmentally friendly disposal.......9
8.1 Disposal and packaging .................................................. 9
8.2 Disposal of old equipment.............................................. 9
EC Declaration of Conformity ............... 10

Original User Manual –AREBOS Hydraulic Trolley Jack 3 Ton
3
Thank you for purchasing our product. Please read the operating instructions carefully before using
the product for the first time. If you give the product to a third party, this manual must be handed
over with it. Keep the instruction manual for future reference. The drawings in this manual may
not match the physical objects. Please refer to the physical objects.
1.Safety instructions
1.1 Explanation of the symbols
Warning! Read the safety instructions carefully. Failure to follow the safety
precautions could result in serious injury or damage. Keep the operating
instructions in a safe place.
Be careful when using this product.
Warning! Danger of crushing the hands.
This product has been tested and certified by TÜV Rheinland.
The symbol "GS" stands for tested safety. Products marked with
this symbol comply with the requirements of the German
Product Safety Act (ProdSG).
By means of a CE marking, it can be recognized that a product complies with the
legal provisions of European legal standards and therefore may be traded within
the European Community.

Original User Manual –AREBOS Hydraulic Trolley Jack 3 Ton
4
1.2 General safety instructions
•This jack is designed for lifting objects only and shall be supported by an adequate
aid, such as a stand.
•Make sure that the lifted object is firmly fixed to the jack.
•Do not use the jack while persons are in or leaning against the vehicle.
•Do not exceed the permissible load.
•Do not use any extensions other than those attached to the jack.
•Wear safety glasses during work.
•Use the jack only on a firm surface that can support the load.
•Make sure that the jack is central and stable with its support saddle under the object
and the lifting point.
•You must ensure that the safety instructions and labels are always clearly visible and
not soiled. If they need to be replaced, contact your supplier.
•Read the supplied instructions carefully before use.
•Failure to follow these instructions can lead to damage to the lift and/or the vehicle
and/or a person.
•This manual should be kept in a safe place so that it can be used and/or maintained
at a later date.
•This jack is filled with high quality hydraulic oil. Use suitable hydraulic oil at extremely
low temperatures. Use only high quality oil. Avoid mixing different oils. Never use
brake fluid, alcohol, cleaning agents, turbine oil, gear oil, engine oil or glycerin or
contaminated oils. The latter can cause damage to the jack or impair its function.
•Never adjust the adjusting screws on the hydraulic unit.
•The operator should watch the lifting device and the load during all movements.
•It is not allowed to work under the raised load until it is secured by suitable means.
•This jack is for lifting purposes only and it is not designed for the lifting of person.
•The hydraulic jack could not be operated in potentially explosive atmosphere and
severe conditions, e.g. extreme climates, freezer application and strong magnetic
fields.
•The hydraulic jack could not be operated in potentially explosive atmospheres, e.g.
mines.
•Be careful of handling of loads, the nature of which could lead to dangerous
situation, e.g. molten metal, acids, radiating materials, especially brittle loads.
•The A-weighted emission sound pressure level of this product is less than 70dB(A).
•Maybe residual risks unspecified in the label could be remained; always wear PPE
during the operation.
•The product is not allowed to operate on sea ships.
•The jack is designed to work at rated load in a temperature range of -20°C to +50°C.
•No modifications shall be carried out which adversely affect the compliance of the
jack with standard EN 1494 or the essential requirements of the Machinery Directive
2006/42/EC.

Original User Manual –AREBOS Hydraulic Trolley Jack 3 Ton
5
2.Construction
2.1 Control before use
•The jack must be inspected for any oil leaks and/or loose, damaged or missing parts before
each use.
•The owner/user must always ensure that repairs can only carried put by a suitable specialist
or authorized dealer.
2.2 General instructions
Oil level check:
•Lower the jack completely so that it is in an upright position and loosen the bleed screw. Top
up hydraulic oil if necessary.
Lubricate the important internal parts:
•Move the hand piece a few times to ensure good distribution of the lubricant. The valve
screw is open.
Bleed the hydraulic system:
•Air may get into the hydraulic jack system, e.g. during transport. This impairs its function and
the jack must be vented. To bleed, close the bleed valve tightly and pump the jack upwards
two to three times without load until it stops. Then drain again.
3. Commissioning
3.1 Starting position
•Insert the pump rod into the holder and carefully move it to the desired position. Connect
the parts with the supplied screw and nut and the appropriate tool.
3.2 Lifting the load
•Make sure that the parking brake is applied and the wheels are locked when lifting the
vehicle. Close the valve. Place the jack under the vehicle. The surface must be firm, straight
and free of oil, grease or other smooth materials. Ensure that the lift is centrally located
under the object.
3.3 Lowering the load
•Open the drain plug and slowly lower the load. Only when the head of the jack has reached
its lowest point can the jack be pulled out under the vehicle.

Original User Manual –AREBOS Hydraulic Trolley Jack 3 Ton
6

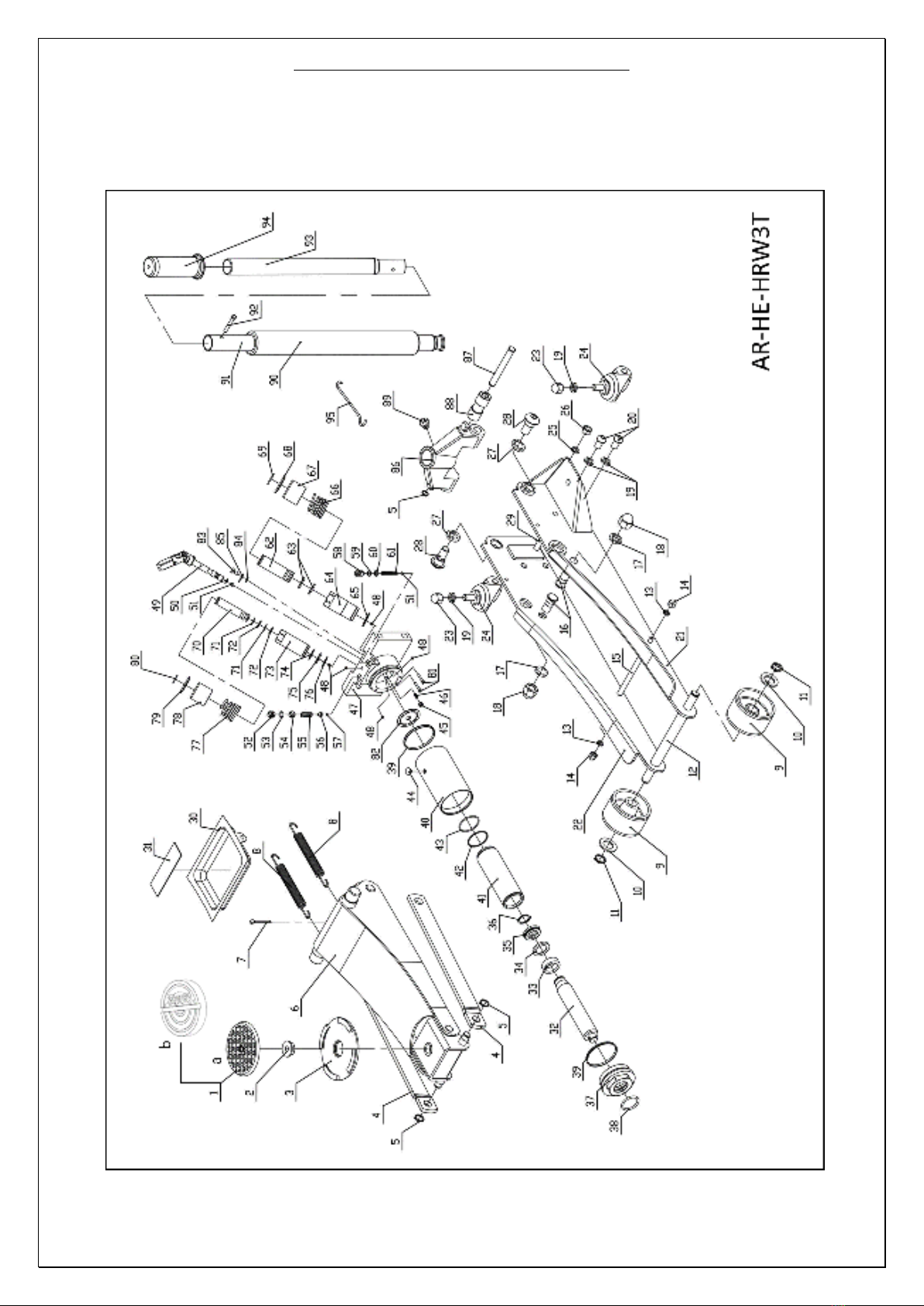

4.Explosion view

Original User Manual –AREBOS Hydraulic Trolley Jack 3 Ton
7
Item number
Description
Item number
Description
1a/1b & 2
Rubber pad & Saddle
bolt
25 & 26
Lock washer & Nut
3 & 4
Saddle & Radius link
27 & 28
Lock washer & Handle
sleeve bolt
5 & 6
Snap ring & Lifting arm
assembly
29 & 30
Frame tie rod & Trestle
table
7 & 8
Retainer & Spring
31 & 32
Magnetic rubber pad &
Ram plunger
9 & 10
Front wheel & washer
33 & 34
Bushing cover & Back-
up washer
11 & 12
Snap ring & Front axle
35 & 36
Y-cup seal & Snap ring
13 & 14
Lock washer & Cap nut
37 & 38
Top nut & O-ring
15 & 16
Frame tie rod & Radius
link stud
39 & 40
Wedge & reservoir
17 & 18
Lock washer & Cap nut
41 & 42
Cylinder & Back-up
washer
19 & 20
Lock washer & Cup-
head bolt
43 & 44
O-Ring & Oil seal
21 & 22
Left plate assembly &
right plate assembly
73 & 74
Pump & Back-up
washer
23 & 24
Cap nut & Bear caster
assembly
75 & 76
O-Ring & Washer
45 & 46
Throttle valve & Spring
77 & 78
Pump core rest spring
& Spring sleeve
47 & 48
Base & Ball
79 & 80
Spring stop sheet &
Snap ring
49 & 50
Release valve assy &
O-Ring
81 & 82
Filter & Washer
51 & 52
Ball & Guard screw
83 & 84
Bolt & Lock Washer
53 & 54
O-Ring & Screw safety
valve
85 & 86
Washer & Handle base
55 & 56
Spring & Valve
87 & 88
Pin & Roller
57 & 58
Ball & Bolt
89 & 90
Bolt & Environmental
protection foam
59 & 60
Back-up washer & O-
Ring
91 & 92
Handle –I & Hex screw
61 & 62
Spring & Pump piston
93 & 94
Handle –II & Handle
grip
63 & 64
O-Ring & Pump
95
Hook
65 & 66
Washer & Pump core
rest spring
67 & 68
Spring sleeve & Spring
stop sheet
69 & 70
Snap ring & Pump
piston
71 & 72
Back-up washer & O-
ring

Original User Manual –AREBOS Hydraulic Trolley Jack 3 Ton
8
5. Maintenance of the jack
•If you want to stow the jack, lower the jack to the lowest position and close the drain valve.
•Keep the jack clean. Lubricants should be applied to all moving parts every three months.
•Check the oil level regularly.
•Check the lift regularly for rust or corrosion.
•Attention:The life of the product of 5 years should not be exceeded due to signs of
wear in order to ensure safe use of the product. This service life is based on proper
and appropriate use.
6. Troubleshooting
Jack does not lift.
Valve is not closed entirely: Check the valve and
close it
and/or
The jack has not enough oil: Check oil level,
eventually top up oil
and/or
Air in the hydraulic system: Venting
Jack sinks under load.
Valve is not entirely closed: Check the valve and
close it
and/or
Air in the hydraulic system: Venting
Air in the hydraulic system: Venting.
Air in the hydraulic system: Venting
and/or
Jack has not enough oil: Check the oil level,
eventually top up oil
Pump rod is not stable.
Air in the hydraulic system: Venting
Jack does not lift to full height.
Air in the hydraulic system: Venting
and/or
Jack has not enough oil: Check the oil level,
eventually top up oil
Jack cannot be lowered completely.
Lubricate the hydraulic parties.

Original User Manual –AREBOS Hydraulic Trolley Jack 3 Ton
9
7. Specifications
Model
AR-HE- HRW3T
Diameter of the mounting plate
110 mm
Max. Capacity of load
3 Tons
Min. Height of Saddle
85 mm
Max. Height of Saddle
500 mm
Diameter of saddle
110 mm
Front wheel diameter
72 mm
Back wheel diameter
40 mm
Material
Steel
Length of handlebar
131.6 cm
Handle diameter
3,2 cm
Net weight
34,2 kg
Thickness of rubber pad (1a)
6 mm
Diameter of rubber pad (1a)
Top: 87 mm / bottom: 92 mm
Diameter of rubber pad (1b)
120 mm
Height of Rubber pad (1b)
22 mm
Delivery Content
1x Trolley jack (with handle / wheels)
2x Rubber pad (1a)
1x Rubber pad (1b)
1x User Manual
8. Environmentally friendly disposal
Warning Danger of suffocation! Packaging material is dangerous for children. Never let children play
with packaging material.
8.1 Disposal and packaging
•The packaging of your unit consists of materials that are necessary to guarantee effective
protection during transport. These materials are fully recyclable and therefore reduce the
environmental impact. Dispose of the packaging in a bin for recyclable materials.
8.2 Disposal of old equipment
•Old appliances must be disposed of in accordance with the guidelines and regulations of the
local waste disposal authority. Check with your local administration for the address of the
nearest recycling centre and deliver your appliance there.
Our customer service number: Tel. [phone]
Fax: [phone] / E-Mail: [e-mail]
Office address: Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/

Original User Manual –AREBOS Hydraulic Trolley Jack 3 Ton
10
EC Declaration of Conformity
We, the
Canbolat Vertriebs GmbH, Gneisenaustraße 10-11, 97074 Würzburg, Germany
hereby declare that the equipment described below, by virtue of its design and construction and in
the versions placed on the market by us, complies with the relevant essential health and safety
requirements of the EU directives.
Product name: AREBOS Hydraulic Trolley Jack 3 T
Model number: AR-HE- HRW3T
Article number: 4260627428328
Should the appliance be modified without our consent, this declaration of conformity will lose its
validity.
Tested according to EU-Norm / Directives:
EN1494:2000+A1
AfPS GS 2019:01 PAK
Machinery Directive: 2006/42/EC
Date/Signature Manufacturer/Place: Würzburg, April 7, 2022
Signature:
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director
Representative of these instructions for use/technical data:
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director
Office address:
Canbolat Vertriebs GmbH
Gneisenaustraße 10-11
D-97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/
VAT identification number: DE 263752326
Court of the Commercial Register is Würzburg, HRB 10082
WEEE Reg.-No. DE 61617071
