Argo KENNY EVO User manual

16
V 11/20
PORTABLE AIR CONDITIONER (LOCAL)
KENNY EVO
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the appliance or carrying out maintenance work.
Observe all the safety instructions; failure to do so may lead to accidents and/or damage. Store these
instructions in a safe place for future reference.
EN

17
V 11/20
The Refrigerant R290
To realize the function of the air conditioner unit, a special refrigerant circulates in the
system. The refrigerant is the fluoride R290 = 3 GWP (Global warming potential). This
refrigerant is flammable and inodorous. It can lead to explosions under certain
conditions, however the flammability of this refrigerant is very low and it can be ignited
only by fire.
Compared to other common refrigerants, R290 is a non-polluting refrigerant with no
harm to the ozonosphere and a no effect upon the greenhouse effect. R290 has very
good thermodynamic features which lead to a really high energy efficiency. The units
therefore need less filling.
Warning:
Do not try to accelerate the defrosting process or to clean the appliance in different ways other
than those recommended by the manufacturer. Should repair be necessary, contact your
nearest authorized Argoclima Service Centre. Any repairs carried out by unqualified personnel
may be dangerous. The appliance has to be stored in a room that doesn’t have any
continuously operating ignition sources. (for example: open flames, an operating gas
appliance or an operating electric heater.) Do not pierce or burn.
Appliance has to be installed, operated and stored in a room with a floor area larger than 7 m2.
For repairs, strictly follow manufacturer’s instructions only for appliances filled with R290
flammable gas. Be aware that refrigerants do not have any odour.
Appliance filled with flammable gas R290.
Before installing and using the appliance, read the owner’s manual.
Before repairing the appliance, read the service manual.

18
V 11/20
GENERAL OPERATING AND SAFETY INSTRUCTIONS
This appliance is a portable air conditioner designed for domestic
use.
Only use this air conditioner as described in this manual.
Ensure that the required voltage and frequency (220-240 V / 50 Hz)
match the available power source.
Fuse style FSD or 50F 250V, the electricity passing through the
fuse cannot be above 3.15A.
This appliance can be used by children older than 8 years and by
people with reduced physical, sensory or mental abilities, or who
lack sufficient experience or the necessary knowledge, provided
that they are supervised or have been instructed on how to use the
appliance safely and understand the hazards related to its use.
Children must not be allowed to play with the appliance.
Cleaning and maintenance operations normally carried out by the
user must not be performed by unsupervised children.
Ensure that the electrical system is able to deliver the operating
current required by the air conditioner, in addition to that normally
absorbed by other appliances (electrical appliances, lighting system,
etc.). Please refer to the maximum power input data shown on the
air conditioner's data plate.
Connection to the electricity grid must take place in accordance with
current installation standards.
Ensure that the automatic switches and system protection valves
are able to withstand a start-up current of 6A (normally for less than
1 second).
The power socket must always include an efficient earth connection.
Make sure that the plug is properly inserted into the socket. Do not
use multiple adapters. Do not touch the plug with wet hands. Make
sure that the plug is clean.
Do not use the plug for starting/stopping the air conditioner: use the
ON/OFF button on the remote control or control panel instead.

19
V 11/20
Do not install the air conditioner in rooms potentially subject to water
sprays (e.g. laundries).
This air conditioner can be used by children of 8 years or older and
by persons with reduced physical, sensory and mental abilities, or
lacking the necessary experience and knowledge, provided they are
supervised or instructed on its use by a person responsible for their
safety, so that they are fully aware of the attendant risks.
Before moving or cleaning the appliance, ensure that it is unplugged
from the socket.
Do not move the air conditioner while it is operating; first turn the
appliance off, then check and remove any condensate which may
have formed.
To turn the appliance off, set the remote control to OFF and remove
the plug from the socket. Pull on the plug only. Do not pull the cord.
Do not use the appliance if the cord or plug are damaged.
Contact a service centre to replace a damaged power cord, so as to
avoid any safety risks.
PRECAUTION!
Do not insert any objects into the air conditioner: this is very
dangerous as the fan turns at high speed.
Ensure that air circulates freely around the unit. Do not cover
the air intake and delivery grilles with drapes or any other
means.
WARNING!
The air conditioner must be positioned at least 50 cm from the wall
or any other obstacles, on a flat and stable surface so as to avoid
water leaks.
The air conditioner is fitted with a system for protecting the
compressor from overload. This means that the compressor
only starts 3 minutes after its previous stoppage.

20
V 11/20
Please wait at least 3 minutes before starting the unit. This
helps prevent the compressor from being damaged.
WARNING!
In the event of an anomaly, switch the appliance off and unplug
it from the socket. Do not dismantle or attempt to repair or
modify the product. In the event of a malfunction, contact the
service centre directly.
WARNING!
Do not expose the air conditioner to direct sunlight, as the
colour of the materials may change; moreover, the appliance
may overheat causing the protection mechanism to intervene
and switch the appliance off.
Do not use insecticides, oils, detergents or spray paints near
the appliance; do not use aggressive chemical detergents to
clean the casing: this may damage the finish and colour.
Close all open windows to maximise air conditioning
efficiency.
The manufacturer will not be held liable if safety and accident
prevention rules are not observed.

21
V 11/20
DESCRIPTION OF THE APPLIANCE
FRONT VIEW
REAR VIEW
Min/max operating limits (internal temperature)
Cooling: 7°C DB / 35 °C DB
Dehumidification: 17°C DB / 35 °C DB
Cooling mode room temperature adjustment range: 16 °C DB / 31 °C DB
1) UPPER PANEL
2) HANDLE
3) REAR STRUCTURE
4) SWIVEL CASTERS
5) CONTROL PANEL – BUTTONS FOR
OPERATION WITHOUT REMOTE CONTROL
6) FINS AND AIR FLOW OUTLET
7) FRONT STRUCTURE
8) AIR INTAKE
9) DRAINAGE HOLE FOR DEHUMIDIFICATION
FUNCTION
10) AIR OUTLET AND FITTING
11) AIR INTAKE
12) DRAINAGE HOLE FOR COOLING FUNCTION

22
V 11/20
APPLIANCE START-UP
Open the packaging and pull out the box. Remove the product and the other elements supplied (illustrated in the box
below).
Infrared remote control
Type-AAA – LR03 – 1.5 V
batteries for remote control.
Flexible pipe inclusive of fitting for unit and end
fitting for window (2).
Round fitting for window unit, to
be positioned between the end
of the tube and the window unit
itself (3)(accessory managed
separately).
Window unit kit with plug.
(accessory managed separately).
Position the product vertically on a flat and stable surface, as close as possible to a window and at least 50 cm from
walls or other nearby obstacles.
USE WITH END FITTING FOR WINDOW
1. Stretch the flexible hose sufficiently so that it
reaches the outside (max 1.5 m) and hook it to the
rear part of the air conditioner.
2. Open the window and lock one of the two
leaves with the handle.
3. Rest the terminal connection on the fixed
leaf, bring the other leaf of the window close.
4. Avoid tight bends or folds in the flexible pipe.

23
V 11/20

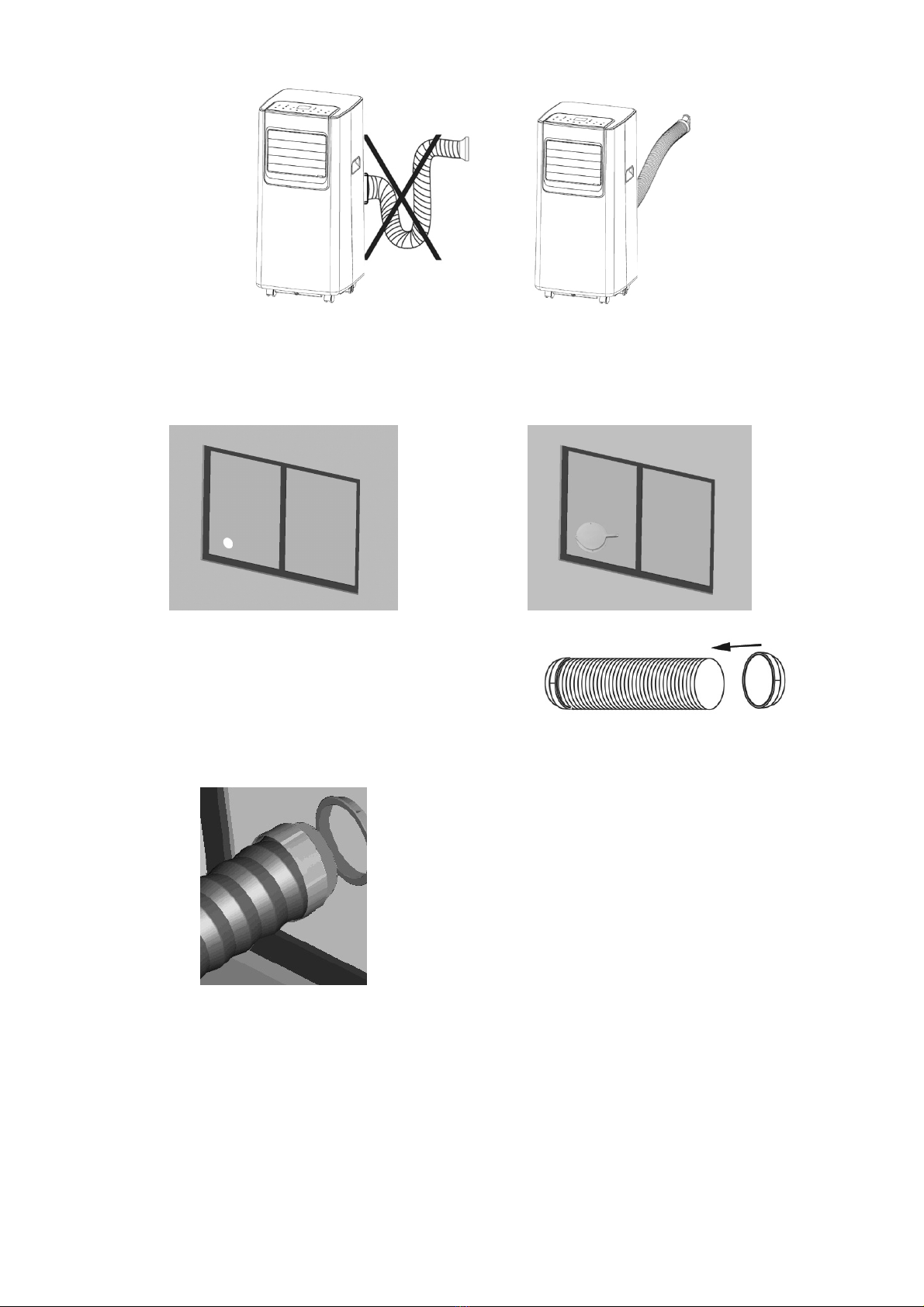

USE WITH WINDOW UNIT KIT (accessory managed separately)
1. Make a hole having a diameter of roughly 133
mm on the glass window.
2. Insert the window unit into the window.
3. Insert the round fitting into the retractable flexible
pipe and insert the latter with its round fitting into
the window unit without the plug.
4. Insert the round fitting onto the flexible pipe.
5. Insert the flexible pipe thus mounted into the rear
of the air conditioner.
If the air conditioner is not used for prolonged periods, disconnect the pipe and plug the window unit.
Connect the power cord to a suitable electric socket (220-240V). Insert the supplied batteries into the remote control and
make sure the poles match. Select the desired operating mode from the remote control.

24
V 11/20
HOW TO USE THE APPLIANCE
This appliance can be used for cooling, dehumidifying and ventilation purposes.
Before using the appliance, leave it standing erect for at least two hours.
When switching between modes, the fan continues to turn but the compressor stops: the compressor will re-start after 3
minutes. This delay protects the compressor from potential damage.
THE DRAINAGE TUBE MUST BE CONNECTED to the appliance AT ALL TIMES: the only exception is when the
appliance is used in dehumidification mode only, in which case the appliance should be left to discharge directly
into the room for maximum efficiency (see the “Dehumidification Mode” paragraph).
Clean the air filters under the easily removable rear grille regularly to keep the air conditioner working efficiently.
OPERATING MODES
1. COOLING MODE
The “Cool” LED on the control panel will turn on.
The temperature can be adjusted to between 16 °C and 31 °C.
In this mode, each time the ON/OFF button is pressed the unit switches off, the appliance saves the temperature
setting and retains this setting when it is switched on again.
In this mode, the fan speed can be adjusted and the Timer and SLEEP functions can be set.
For more silent operation, run the fan at low speed.
2. DEHUMIDIFICATION MODE (DRY)
Press the MODE button to select the dehumidification mode.
The temperature is controlled by the electronic board and cannot be adjusted.
In this mode, each time the ON/OFF button is pressed the unit switches off, the appliance saves the settings and
retains them when it is switched on again.
The fan speed is set to low and cannot be adjusted.
NOTE
The air conditioner does not cool the room when operating as a dehumidifier.
When the appliance is used as a dehumidifier, the flexible pipe must not be connected.
For maximum dehumidification efficiency, leave the rear discharge attachment free to discharge directly into
the environment.
The dehumidification mode is recommended during autumn and winter.
Cooling, Fan
Dehumidifying

25
V 11/20
If used during summer, it is best to leave the flexible pipe attached so that the hot air is discharged towards
the outside rather than into the room.
During dehumidification, continuous drainage should be implemented (see the next chapter, “HOW TO ELIMINATE
CONDENSATE”).
3. FAN MODE
Press the MODE button to select ventilation until the corresponding icon appears.
In this mode, the fan speed can be adjusted.
The temperature cannot be adjusted.
HOW TO ELIMINATE CONDENSATE
Manual drainage
Cooling
This appliance automatically vaporises condensate in the cooling mode.
Ensure that when the unit is operating in cooling mode, the rubber caps
closing the drainage holes on the rear of the appliance are properly
positioned.
When the air conditioner operates in cooling mode, there is no need for
continuous condensate drainage; only in specific weather conditions with very
high air humidity levels may water deposit inside the unit. When the container
is full, the “Full” LED (full tank) lights up on the control panel to signal that full
status and block the appliance’s operation.
To empty the container, switch the air conditioner off and unplug it. Remove
the cap form the rear drainage hole and direct it over a normal drain.
Ensure that the tube is not twisted or bent. The tube must slope downwards.
Re-close the drainage hole with the cap and resume use of the air conditioner.
Continuous drainage
Dehumidification
WARNING!
When using the air conditioner in dehumidification mode, it is advisable to
always arrange for continuous drainage, so as to maximise dehumidification
efficiency.
Connect one end of the PVC pipe (not provided) to the upper discharge hole
and place the other end above a drain.

26
V 11/20
REMOTE CONTROL OPERATION
1. Use only batteries type LR03 / 1,5V compliant with the
Batteries Directive no.2006 / 66 / CE and changes from
Directive 56/2013 / UE
2. Slide the cover open in the direction indicated by the
arrow.
3. Insert the batteries (LR03/1.5 V) into the remote control
and make sure the poles match.
4. Put the cover back on.
5. Point the remote control towards the receiver on the air
conditioner.
6. The remote control should be positioned within 6 metres
from the receiver.
7. There must be no obstacles between the remote control
and the receiver.
8. Do not drop or launch the remote control.
9. Do not leave the remote control under strong sunlight or
heating devices and other source of heat.
10. Remove the batteries from the remote control when the
latter is not used for a long time.
11. If no sound is heard and the transmission symbol on the
display does not flash, the batteries must be replaced.
12. If the system resets when the remote control button is
pressed, the electrical signal is poor and the batteries must
be replaced.
13. Flat batteries must be disposed of correctly.
N.B.:
* The image depicts a general remote control, which contains nearly
all the function keys. These may be of a slightly different material
(depending on the model).
INFORMATION FOR THE CORRECT DISPOSAL OF BATTERIES IN ACCORDANCE WITH EUROPEAN DIRECTIVE
2006/66/EC AND MODIFICATIONS FROM FORMER DIRECTIVE 56/2013/UE
Replace batteries when they are depleted. At the end of their life, batteries must be disposed of separately from unsorted waste.
They must be taken to designated recycling centres or returned to a retailer providing this service. Separate disposal of batteries
prevents potential negative effects on the environment and human health due to inadequate disposal, and also allows for
recovering and recycling their constituent materials, resulting in significant savings in terms of energy and resources. The separate
disposal obligation is underlined by the crossed-out dustbin symbol appearing on the battery. Illegal disposal of the product by the
user implies administrative sanctions applied as per current regulations.

27
V 11/20

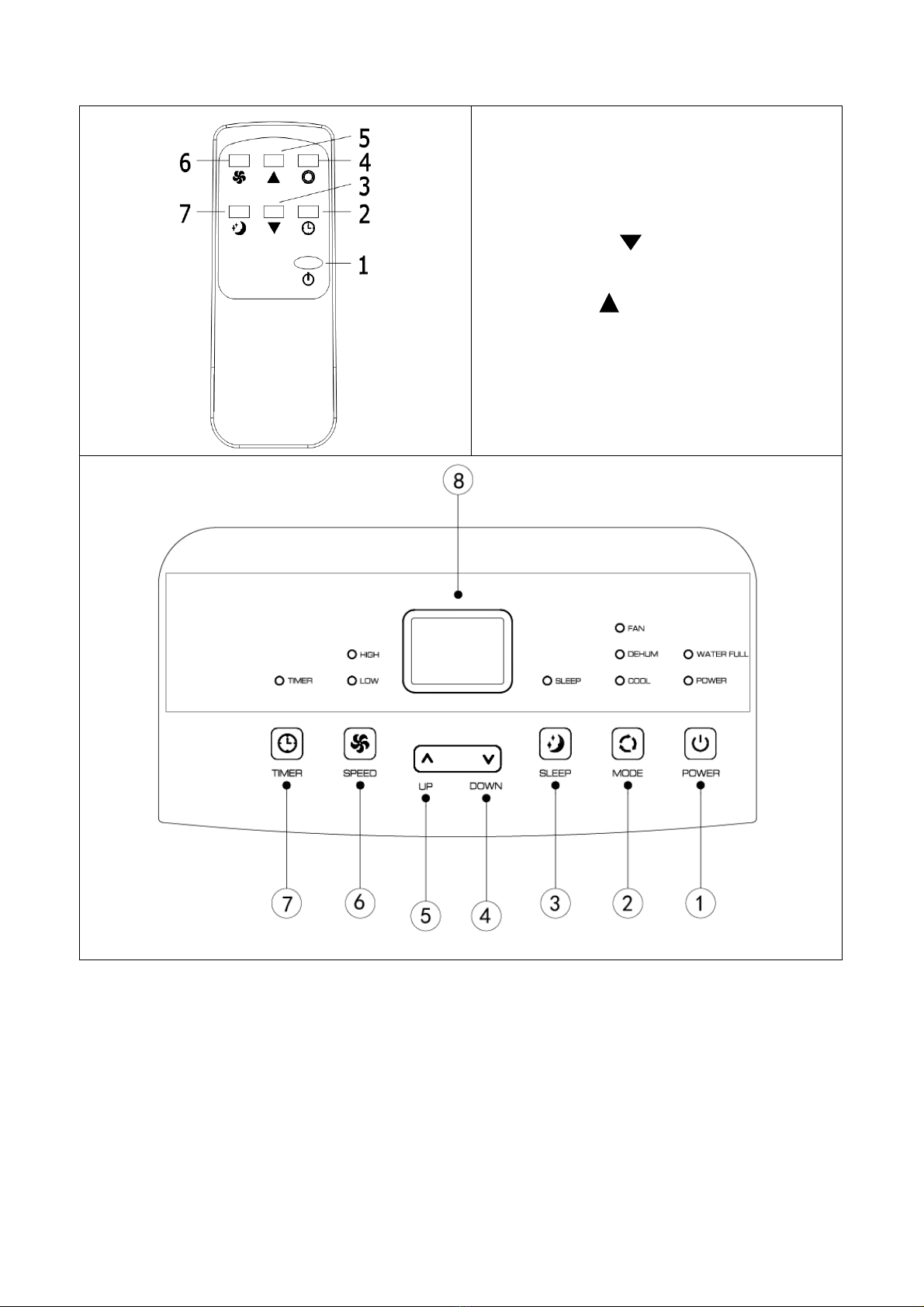

FOR OPTIMAL REMOTE CONTROL OPERATION, POINT THE TRANSMITTER HEAD TOWARDS THE
RECEIVER ON THE AIR CONDITIONER.
1. ON/OFF BUTTON
2. TIMER BUTTON
3. DOWN BUTTON
4. MODE BUTTON
5. UP BUTTON
6. FAN BUTTON
7. SLEEP BUTTON
(1) POWER BUTTON
Press this button to switch the unit on or off.
(2) MODE BUTTON
When the unit is on, press this button to choose the desired mode among: COOLING, FAN and DEHUMIDIFYING.
(3) SLEEP BUTTON
In cooling mode, press the UP and FAN buttons to activate the Sleep mode, after which the unit will return to the silent
mode and save energy.
N.B.: The Sleep function is not available in the dehumidifying or fan modes.

28
V 11/20
(4) DOWN BUTTON
Press this button to adjust the temperature and set the time.
(5) UP BUTTON
Press this button to adjust the temperature and set the time.
(6) SPEED BUTTON
In the cooling and fan modes, press this button to adjust the ventilation speed to low (Low) or high (High). In certain
conditions, the fan speed may not function according to the settings.
In dehumidifying mode, this button cannot be pressed, thus the fan will forcefully choose the low fan speed.
(7) TIMER BUTTON
a. When the air conditioner is off, press “TIMER” to set when to switch the unit on. Press “+” o “–“ to set the time, and press
“TIMER” again to confirm.
b. When the air conditioner is on, press “TIMER” to set when to switch the unit off. Press “+” o “–“ to set the time, and press
“TIMER” again to confirm.
c. After setting the time, press “TIMER” to cancel the time setting.
(8) DISPLAY
CARE AND MAINTENANCE
WARNING!
Before carrying out any cleaning or maintenance operations, unplug the appliance.
1. Cleaning the air filters
The air filters must be checked at least once
every two weeks of use. Operating the appliance
with dirty or clogged filters will decrease the air
conditioner's efficiency and may cause serious
problems.
To remove the upper filter, loosen the central
screw and pull the grille’s lever.
Use a vacuum cleaner to remove the dust from the filters. Should this
not suffice, wash the filter with lukewarm water and some neutral
detergent (if necessary), then rinse it thoroughly in cold water and
leave it to dry in air before putting it back in place. Once the filter has
been replaced, close the grille and resume use of the air conditioner.
2. Cleaning the casing.
Use a damp and soft cloth to clean the outer surface of the appliance.
Do not use excessively hot water, solvents, petrol or other aggressive chemical compounds, talcum powder or brushes:
these may damage the surface or colour of the casing.

29
V 11/20
Remove any stains using lukewarm water with a little neutral detergent.
Do not pour water onto the air conditioner to clean it, as this may damage its internal components or cause a short-circuit.
3. Storage.
When the air conditioner is not expected to be used for a long time, clean the filters before storing it away.
Keep the appliance in a vertical position at all times. Do not place heavy objects on top of the air conditioner. It is advisable
to protect the appliance with a plastic sheet.
4. Transport.
Transport the air conditioner in the vertical position.
Should this not be possible, rest it on its right-hand side; when the
appliance reaches its final destination, place it immediately in the
vertical position and wait at least 4 hours before operating it in cooling
mode.
5. For complete safety, regularly check the condition of the power
cord; should it be damaged as a result of wear, contact the Service Centre to replace it.
TIPS FOR MAXIMISING COMFORT AND MINIMISING CONSUMPTION
CHECK that:
the unit intake and delivery grilles are always free;
the air filters are always clean; a dirty filter will decrease the passage of air and reduce the unit's performance;
all doors and windows are closed, so as to avoid infiltration of unconditioned air;
the flexible pipe is correctly positioned, without tight bends or curves;
the room temperature is above 7°C for the cooling mode, and above 17°C for the dehumidifying mode.
