Aries BT9700 User manual

970190_B 0516
BT9700
Dual Viewing Zoom and Tilt Color Inspection
Camera
Operation and Maintenance
Aries Corporate Office: 550 Elizabeth Street, Waukesha, WI 53186
800-234-7205 / 262-896-7205 / Fax: [phone]
Western Regional Office: 5748 East Shields Avenue, Suite 101, Fresno, CA 93727
800-671-0383 / 559-291-0383 / Fax: [phone]
Southeast Regional Office: 561 Thornton Road, Suite D, Lithia Springs, GA 30122
800-327-4346 / 770-941-1144 / Fax: [phone]
Canadian Regional Office: 95 Whitmore Road, Unit 1, Vaughan, Ontario L4L 6E2
877-730-7010 / 905-265-2279 / Fax: [phone]
Aries Web Site: www.ariesindustries.com

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 1
This document contains proprietary and
confidential information of Aries Industries, Inc.
All rights reserved.
Disclaimer
The information contained in this document has been carefully checked and is believed to be
entirely reliable and consistent with the products described. However, no responsibility is
assumed for inaccuracies, nor does Aries Industries, Inc. assume any liability arising out of the
application and use of the equipment described. Aries Industries, Inc. reserves the right to
make changes to any product and product documentation in an effort to improve performance,
reliability, or design.
Warranty
Aries products are thoroughly inspected before shipment. In the event of any malfunction,
contact the nearest Aries office.
Aries will replace or repair defective manufactured parts, F.O.B. factory, for one year from the
date of shipment. See Aries full warranty statement for complete details.
Notice
No part of this document should be reprinted or reproduced without the prior written
permission of Aries Industries, Inc.
If you have any problems or questions regarding this document, please contact one of the Aries
offices listed on the front cover.

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 2
TABLE OF CONTENTS
SECTION 1 - OPERATION, MAINTENANCE, TROUBLESHOOTING, DRAWINGS, PARTS
INTRODUCTION ............................................................................................................................... 5
OPERATOR AND EQUIPMENT SAFETY
BT9700 Equipment Safety ........................................................................................................ 6
Waterwell and Borehole Safety................................................................................................. 6
SYSTEM EQUIPMENT CONFIGURATION DIAGRAMS ......................................................................... 7-9
BT9700 CAMERA COMPONENTS ................................................................................................... 10
PROCEDURES PRIOR TO USING CAMERA ....................................................................................... 11
CAMERA CONTROL UNIT SETTINGS
Lamp Intensity......................................................................................................................... 11
Meter Select....................................................................................................................... 11-12
VL5000-W OVERLAY /BT403 ....................................................................................................... 13
DESKTOP CAMERA CONTROLLER .................................................................................................. 14
ADJUST FACTOR ........................................................................................................................... 15
LIGHTHEAD ASSEMBLIES
LH9603 ................................................................................................................................... 16
LH9718 ................................................................................................................................... 17
LH9724 ................................................................................................................................... 18
SPARE PARTS KITS
LH97XX .............................................................................................................................................. 19
MAINTENANCE
General ................................................................................................................................... 20
Camera Cleaning .................................................................................................................... 20
O-Rings................................................................................................................................... 21
TROUBLESHOOTING ...................................................................................................................... 22
SECTION 2 - CABLEHEAD ASSEMBLY AND REPAIR
REQUIRED TOOLS.......................................................................................................................................... 25
CABLEHEAD ASSEMBLY DRAWINGS........................................................................................... 26-27
CABLEHEAD CONNECTOR SPARE PARTS KIT .................................................................................. 28
CABLEHEAD ASSEMBLY AND REPAIR PROCEDURES ................................................................... 29-41
SECTION 3 - UHF CONNECTOR REPAIR
CABLEHEAD CONNECTOR COMPONENTS........................................................................................ 43
CONNECTOR REPAIR PROCEDURES.......................................................................................... 44-46
SECTION 4 - CONTINUITY CHECKING
CONTINUITY TESTING PROCEDURE ................................................................................................ 49
SECTION 5 - TEST CABLE ASSEMBLY
TEST CABLE ASSEMBLY ................................................................................................................ 51
SECTION 6 –RETURNING AND ORDERING EQUIPMENT AND PARTS
RETURNING /ORDERING EQUIPMENT AND PARTS ........................................................................... 53
SECTION 7 –VEHICLE SYSTEM DRAWING
VEHICLE SYSTEM HOOKUP CONFIGURATION................................................................................... 55

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 3
(Page intentionally left blank)

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 4
Section 1
Operation, Maintenance, Troubleshooting, Drawings, Parts

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 5
Introduction
The Aries BT9700 camera inspects waterwell and borehole walls between four and
twenty-four inches in diameter. The viewing module is articulated and pivots
between down view and side view with the press of a button. Camera also has
zoom and tilt capabilities in both down view and side view. It provides a 360º
continuous viewing capability for inspecting casing welds, perforations and open
borehole geological strata. The camera is suspended from an industry standard
Gearhart-Owens single conductor threaded connector. It is compatible with some
other manufacturers’ water well inspection and geophysical logging systems. Contact
Aries before connecting BT9700 to other systems.
A dual viewing camera is a precision photographic tool built to work in harsh
environments. Careful handling and good housekeeping reduces excessive wear,
breakage, downtime andexpensive repairs.
CAUTION: HANDLE WITH CARE
A. Do not hit bump, or drag the dual viewing camera housing and lighthead
assemblies against the water well casing, well head, or bottom of the well.
B. On a weekly basis inspect camera, connectors, O-rings and lighthead
assemblies for wearand tightness.
ATTENTION
Reduce Your Camera Repair Costs and
Downtime
Reasonable and cautious handling of the dual viewing camera and lighthead
assemblies while inserting and removing from water wells or boreholes greatly
reduces damage.
Reduce camera drag in bending or angular drilled well/boreholes with proper use of
the centralizer assembly.

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 6
Operator and Equipment Safety
Care and precautions are required when operating and maintaining Aries dual
viewing camera and equipment.
BT9700 Equipment Safety
1. Read and understand the entire manual before operating or maintaining
equipment.
2. To prevent personal injury or damage to equipment, disconnect all power to
the control
unit and lightheads when making electrical connections or
performing maintenance.
Note: For troubleshooting purposes, it may be necessary to have
some electrical connections attached.
3. Inspect all camera and control unit cables before and after each use.
Immediatelyreplace any damaged cables.
4. When connecting or disconnecting cables, verify all system power is off.
Waterwell and Borehole Safety
1. Use the appropriate safety equipment and clothing –goggles,
gloves, boots, masks/respirators, traffic signs, and cones –when
working in confined spaces.
2. Follow all appropriate laws, regulations and guidelines for working in
confined spacesand performing inspections.

Page 7

Page 8

Page 9

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 10
BT9700 Camera Components
5
3
4
2
1
6
1. Light Head O-Ring Groove
2. View Port
3. Light Port
4. Camera Body
5. Cablehead Connection
6. Lighthead Connection

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 11
Procedures Prior to Using Camera/Camera Control Unit Settings
The dual viewing camera is constructed from quality materials and is built to withstand
considerable rigorous treatment in harsh environments. However, care must be applied
when operating the camera to prevent damage to delicate electronic and photographic
components.
Procedures Prior to Using Camera
1. Inspect the camera.
Verify that the camera view ports and light ports are clean and free from dirt,
scratches, and any cracks.
 Verify that lighthead screws (6ea) are in place and fullytightened.
 Verify that no metal components are bent.
Verify that there is no water behind the viewing ports. Never operate the
camera with a cracked or broken lens.
 Verify O-ring is installed between lighthead and front viewport.
2. Verify camera and controller connections. The camera connects to the single
conductor cablehead connection.
3. The camera controller connects to the mating receptacle either directly on the control
unit or to the adapter box.
4. The 7-pin cable, marked REEL, connects to the winch.
5. The encoder cable connects from the ELECTRONIC FOOTAGE COUNTER panel
marked COUNTER, to the winch connector at the footage wheel.
Camera Control Unit Settings
Lamp Intensity
Controls the DC voltage necessary to operate the camera. Also increases light
brightness.
Note: The minimum allowable voltage to the BT9700 is 100VDC.
CAUTION: DO NOT LEAVE THE LAMP INTENSITY SETTING ON HIGH FOR
EXTENDED PERIODS OF TIME WITHOUT THE CAMERA AND
LIGHTHEAD CONNECTED.
Meter Select
AC VOLTS Ensures you have proper voltage being input to the Control Unit.
It should read approximately 120 Volts AC.
Normal Reading…….110-125VAC

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 12
Meter Select (cont’d)
HV VOLTS This position indicates the voltage being delivered to the lighthead
and camera. This reading will vary with the setting of the lamp
intensity control. No reading would indicate a blown fuse, or tripped
circuit breaker in the Control Unit possibly caused by a shorted
cable, lighthead or camera.
Normal Reading………110-200VDC
HV AMPS This position indicates the current being supplied to the lighthead
andcamera. No reading would indicate an open circuit. An
excessive reading, full scale (2.5), would indicate a short in the
cable or lighthead.
Normal Reading………0-1.6
CAM SIG This position indicates relative camera signal levels from the camera
tothe Control Unit. No reading, or a very low reading would indicate
a problem in the camera or cable.
Normal Reading……….95-105
VIDEO This position indicates the relative video output level to the PVR
and/or monitor. A very low or high reading would indicate problems
within the Control Unit or that the camera lens iris is closed.
Normal Reading………..95-160
LV Indicates the relative output of the low voltage power supply +/-
12VDC, used in the control unit to power internal circuitry.
Normal Reading…………95-105
CTRL SIG Indicates the relative output of the remote control signal generator
whenany remote function switch is operated. For example, focus, iris,
color bars.
Normal Reading………..5-120
Also, on the front panel of your Control Unit you may find some of the following
connections or button/switches.
AC IN If your panel has this receptacle plug, insert the AC cable.
AC/Power By depressing or flipping the switch in the up position, AC will be
delivered to the control unit.
REMOTE This 6-pin DIN connector delivers the necessary FSK control signal
needed to control the dual viewing cameras functions.
Resettable
Fuses Your Control Unit may be installed with 2 or more resettable fuses. As
a short circuit, or a high current condition occurs, the fuse will
"pop" up and a white section will be exposed. After the short
circuit is repaired, you may depress the fuse and continue.

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 13
VL5000-W OVERLAY
Please refer to Aries Manual 970176, VL5000-W Overlay Tandem 10.4 User Guide, for
on-screen titling and footage information. If the BT403 is being utilized, please refer to
Aries Manual 970170, ST400X Water Well Camera Control Unit, along with the VL5000-
W Overlay manual.
BT403
Module, Footage Counter with Keyboard Input

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 14
Desktop Camera Controller
The Aries camera controller has all the necessary functions for complete operation
of the dual viewing camera. It consists of the following push-buttons and rocker
switches:
1. 12V Power "On" indicator
2. Side Lamp Control –Low, Med, High
3. Focus –Near, Far
4. Iris –Open, Close (holding the iris ‘open’ button will disable starlight
function)
5. White Balance –Preset, Auto, Manual
6. Rotate –Counter Clockwise, Clockwise
7. Camera –Front view, Side view
8. Rotate Speed –Low, Med, High
9. Diagnostics*
10. Camera
11. Home (will return camera lens, zoom back to center position)
12. Zoom
13. Tilt
*When the Diagnostics mode is enabled, an on-screen display is shown.
This mode will indicate the following information:
Camera Model/Serial No.
FSK (Frequency Shift Key) This is the digital signal necessary for
camera controls. Typically ranges between 800 to 1800.
TMP This the internal temperature of camera. The camera is equipped with
an internal safety shutdown. If the camera reaches over 165ºf, it will
automatically turn off the side lamp until cooled. Typically ranges
between 30ºF to 155ºF.
CAM This is the voltage at the camera. Typically should range between 100VDC
to 195VDC.
L/H This is the voltage at the side viewing light. Low –3.5VDC,
Med –6.5VDC, High –12.5VDC. ± .5VDC
PSI The BT9700 is pressurized with 5-15 psi of nitrogen. This gas helps
reduce internal humidity buildup which can cause "fogging". Typical
range is 5-13 psi, depending on camera temperature.
HUMI This reading is the internal humidity of the camera. This helps determine
if the camera is leaking. Typical range may be 7 to 20.

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 15
Adjust Factor
TANDEM can compensate small systematic errors of a Depth measuring assembly by
adding or subtracting a proportional correcting value. To calculate it, TANDEM uses
special multiplier or Factor. Knowing a relative Depth measuring assembly error (in %),
user can compensate it by adjusting the Factor to the same magnitude with an opposite
sign. To adjust the Factor, select <F2>→ Depth Setup → Depth Counter → Adjust
Factor.
Keys usage:
ARROW-Up/Down: increment/decrement Factor with 0.1% step within ±9.9% range
<Enter>: save changes and return to Main Mode
<ESC>: return to Main Mode without saving.
The default Factor value is zero.

160349
808357
680067
680070
840675
100239
680068
680069
SOLDER WHITE WIRE (820131)
FROM BACK OF PCA (840675)
PAD # D54 TO CONTACT PIN (808357)
PRESS INTO
HOUSING (680067)
DOW CORNING 111 130423
130424
DOW CORNING 111
DOW CORNING 111
130509
LOCTITE 222
C
QUALITY CONTROL INSTRUCTIONS:
SHUTOFF VOLTAGE: 180 TO 190 V
1.
810245
REFERENCE
SEE NOTE 5
BACK SIDE
LOCTITE NOTE:
APPLY LOCTITE 7649 PRIMER ON ALL ANODIZED
ALUMINUM THREADS AND STAINLESS STEEL SCREWS AND THREADS PRIOR TO APPLYING LOCTITE 222. TORQUE TO 4-6 Inch-Lb
ITEM NO.
QTY
PART NO
DESCRIPTION
1 1 100239
SCREW, 2-56X3/16 PAN PH ZN
2 1 130423
O-Ring, M97x94 1.5mm Dia Buna-N 70-Duro
3 1 130424
O-Ring, M73x70 1.5mm Dia Buna-N 70-Duro
4 1 130509
O-Ring, #009 Silicon
5 1 160349
Bushing, Teflon Insulator Modified
6 1 680068
Window, Donut Led Ring
7 1 680069
Rod, Securing Plastic WW Lthd LH9603
8 1 680070
Standoff, PCA LH9603
9 1 808357
Pin, Spring Contact Gold
10 0.25 820131
WIRE, #26AWG WHITE 7/34STRAND
FT(3 IN)
11 1 840675
PCA, W/W LED-Ring Lighthead
12 1 680067
Housing, Led Ring Lighthead LH9603
13 4 810245
Screw, 6-32 x 1/2 Cap Soc SS
REVISIONS
REV
DESCRIPTION
CHG'D BY
DATE
CHK'D BY
ECN
A
RELEASED FOR PRODUCTION
LMR
08/21/2007
N/A
B
160349 WAS 160231
LMR
5/11/2012
GMG
4144
C
ADDED WORK INSTRUCTION
PKS
8/6/2015
PKS
5012
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
DCV
5/18/2012
1 of 2
1:1.5
Lighthead, WW Ring-Leds 4-1/8"
(49 LED's)
8/21/2007
LMR
63
1/2°
.005
.010
.015
1/64
B
DESCRIPTION:
REV
SIZE
SCALE
PART NO.
PHONE: [phone] FAX: [phone]
WEST COAST - FRESNO, CA
5748 E. SHIELDS AVE. STE#101
FRESNO, CA 93727
SHEET
.XXX
±
.XX
.X
±
MAX.
APPROVED
DRAWN
FRACT.
±±
±
ANGLES
Industries Inc. prior written consent of Aries
the drawing is prohibited without
or disclosure of information on Aries Industries. Reproduction This drawing is the property of
PROPRIETARY INFORMATION
UNLESS OTHERWISE SPECIFIED
BREAK CORNERS .005-.015
MACH. SURF.
LH9603
PART NO:
MATERIAL: FINISH:
CORPORATE HEADQUARTERS
550 ELIZABETH ST.
WAUKESHA, WI 53186
PHONE: [phone] FAX: [phone]
ARIES INDUSTRIES INCORPORATED
Notes: Unless Otherwise Specified
1. All parts to be free of all grease, oil and foreign matter.
2. Dimensioning & Tolerancing per ASME Y14.5-2009
3. Remove all burrs and sharp edges.
4. Protect surface/s from mechanical damage or scratches. 5. Mark part number and revision level on this surface, P/N XXXXXX REV X.
C
LH9603
Page 16

680001 810245 680031 680017 130410 100349 130090 100295 840160 680007 680027
810520 840161 680076 680075 810151 770016 810181
130509
9419888
808409 840165
SEE PRIMER NOTE
ENGRAVE MODEL #
+ MONTH / YEAR
ON FACE
B
B
B
B
SCALE 1:2
PIN
#24 RED
TEFLON
(WIRING DETAILS)
11 STRANDS INSIDE PIN
5 STRANDS OUTSIDE PIN
SOLDER ALL TOGETHER
NOT DRAWN TO SCALE
PRIMER NOTE:
APPLY LOCTITE 7649 PRIMER ON ALL
ANODIZED ALUMINUM OR BRASS THREADS AND STAINLESS STEEL SCREWS AND THREADS PRIOR TO APPLYING LOCTITE 222.
SEE PRIMER NOTE
SEE PRIMER NOTE SEE PRIMER NOTE
SEE PRIMER NOTE
DOW CORNING 111 DOW CORNING 111
DOW CORNING 111
PLACE IN BAG
AND TAPE TO ARM
BB
B
B
B B
B B B B
B
B
809109
ITEM NO. PART NO
DESCRIPTION
QTY
REF.
1 100295
Screw, 4-40 x 1-1/4 Pan Ph Zn
2
2 100349
Screw, 6-32 x 1 Cap Soc BO
1
3 130090
O-Ring, #216 Buna-N 70 Duro
1
4 130410
O-Ring, 2-020, 0.070 C.S. x 0.875 I.D. Buna-N 50 Durometer
1
5 130509
O-Ring, #009 Silicon
1
6 680001
Adapter, Lamp Housing
1
7 680007
Housing, Lamp Pyrex Glass
1
8 680017
Lighthead Wldmt, 18" WW
1
9 680027
Retainer, Lamp Housing
1
10 680031
Sleeve, Insulator Contact
1
11 680075
Base, LED, WW Lighthead
1
12 680076
Tower, LED Array, WW Lighthead
1
13 770016
Conn, 1P M Bulkhead 10-32Thrd
1
14 808409
Lug, Solder #4 Locking
1
15 809109
Contact, Spring Loaded
1
16 810151
Screw, 4-40 X 1/4 Pan PHH SS
1
17 810181
Screw, 4-40 X 3/8 Cap SCH SS
4
18 810245
Screw, 6-32 x 1/2 Cap Soc SS
6
19 810520
Screw, Set 6-32 x 3/16 SS Cup
4
20 840160
PCA, LED Strip WW Down-View Light-Head
4
21 840161
PCA, LED Round Top WW Down-View Light-Head
1
22 840165
PCA, LED Regulator, WW Lighthead
1
23 9419888
Screw, 4-40 X 1/4 Pan PH ZN
1
24 820221
Wire, #24Awg Orange 7/32Strand
0.33
FT (4 IN)
25 820215
Wire, #24Awg Black 7/32Strand
0.67
FT (8 IN)
26 820222
Wire, #24Awg Red 7/32Strand
1.75
FT (21 IN)
27 980293
Epoxy, Thermal Conductive 2-Part
0.05
REVISIONS
REV
DESCRIPTION
CHG'D BY
DATE
CHK'D BY
ECN
A
RELEASED FOR PRODUCTION
GMG
5/7/2013
DCV
4365
B
NOTES ADDED, WIRE DIAGRAM ADDED, 820221, 820215, 820222, 980293 ADDED TO BOM
RB
10/17/2013
MS
4465
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
DCV
5/7/2013
1 of 2
1:4
Lighthead, WW, L.E.D., 18"
5/7/2013
GMG
63
1/2°
.005
.010
.015
1/64
B
DESCRIPTION:
REV
SIZE
SCALE
PART NO.
PHONE: [phone] FAX: [phone]
WEST COAST - FRESNO, CA
5748 E. SHIELDS AVE. STE#101
FRESNO, CA 93727
SHEET
.XXX
±
.XX
.X
±
MAX.
APPROVED
DRAWN
FRACT.
±±
±
ANGLES
Industries Inc. prior written consent of Aries
the drawing is prohibited without
or disclosure of information on Aries Industries. Reproduction This drawing is the property of
PROPRIETARY INFORMATION
UNLESS OTHERWISE SPECIFIED
BREAK CORNERS .005-.015
MACH. SURF.
LH9718 B
PART NO:
NONE
SEE BOM
MATERIAL: FINISH:
CORPORATE HEADQUARTERS
550 ELIZABETH ST.
WAUKESHA, WI 53186
PHONE: [phone] FAX: [phone]
ARIES INDUSTRIES INCORPORATED
LH9718 B
Page 17

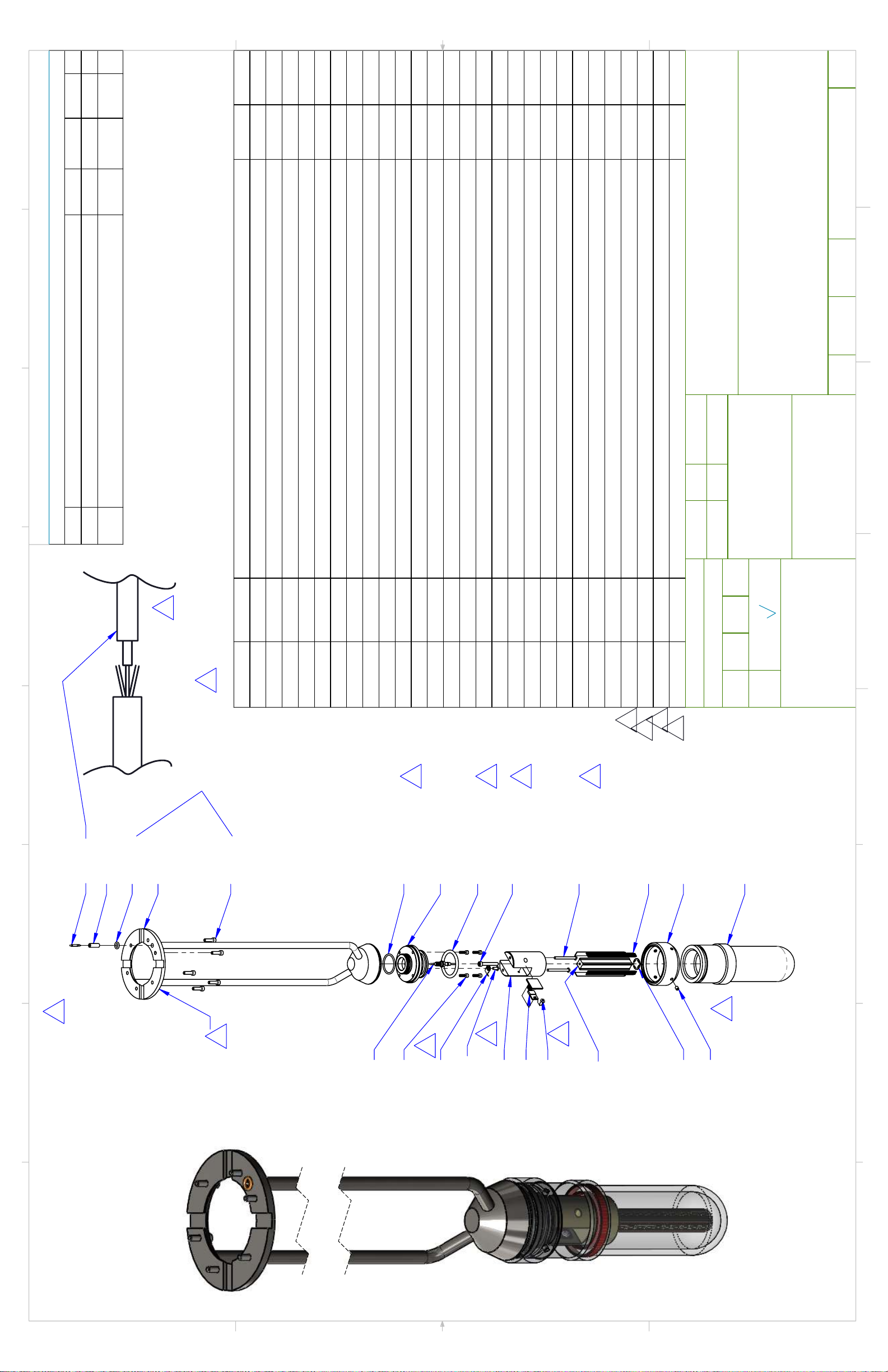

680001 810245 809109 680031 680058 130410 100349 130090 100295 840160 680007 680027
810520 840161 680076 680075 810151 770016 810181
130509
9419888
808409 840165
DOW CORNING 111
SEE PRIMER NOTE
DOW CORNING 111
SEE PRIMER NOTE
DOW CORNING 111
SEE PRIMER NOTE SEE PRIMER NOTE SEE PRIMER NOTE
PLACE IN BAG
AND TAPE TO ARM
PIN
#24 RED
TEFLON
ENGRAVE MODEL #
+ MONTH / YEAR
ON FACE
(WIRING DETAILS)
11 STRANDS INSIDE PIN
5 STRANDS OUTSIDE PIN
SOLDER ALL TOGETHER
NOT DRAWN TO SCALE
B B
B
B B B
B
B
B
B
SCALE 1:2
B B
B
B
B B
( 809109 )
ITEM NO. PART NO
DESCRIPTION
QTY
REF.
1 100295
Screw, 4-40 x 1-1/4 Pan Ph Zn
2
2 100349
Screw, 6-32 x 1 Cap Soc BO
1
3 130090
O-Ring, #216 Buna-N 70 Duro
1
4 130410
O-Ring, 2-020, 0.070 C.S. x 0.875 I.D. Buna-N 50 Durometer
1
5 130509
O-Ring, #009 Silicon
1
6 680001
Adapter, Lamp Housing
1
7 680007
Housing, Lamp Pyrex Glass
1
8 680027
Retainer, Lamp Housing
1
9 680031
Sleeve, Insulator Contact
1
10 680058
Lighthead Wldmt, 24" WW
1
11 680075
Base, LED, WW Lighthead
1
12 680076
Tower, LED Array, WW Lighthead
1
13 770016
Conn, 1P M Bulkhead 10-32Thrd
1
14 808409
Lug, Solder #4 Locking
1
15 809109
Contact, Spring Loaded
1
16 810151
Screw, 4-40 X 1/4 Pan PHH SS
1
17 810181
Screw, 4-40 X 3/8 Cap SCH SS
4
18 810245
Screw, 6-32 x 1/2 Cap Soc SS
6
19 810520
Screw, Set 6-32 x 3/16 SS Cup
4
20 840160
PCA, LED Strip WW Down-View Light-Head
4
21 840161
PCA, LED Round Top WW Down-View Light-Head
1
22 840165
PCA, LED Regulator, WW Lighthead
1
23 9419888
Screw, 4-40 X 1/4 Pan PH ZN
1
24 980293
Epoxy, Thermal Conductive 2-Part
0.05
25 820221
Wire, #24Awg Orange 7/32Strand
0.33
FT (4 IN)
26 820222
Wire, #24Awg Red 7/32Strand
2.25
FT (27 IN)
27 820215
Wire, #24Awg Black 7/32Strand
0.67
FT (8 IN)
REVISIONS
REV
DESCRIPTION
CHG'D BY
DATE
CHK'D BY
ECN
A
RELEASED FOR PRODUCTION
GMG
5/7/2013
DCV
4365
B
NOTES ADDED, WIRE DIAGRAM ADDED, 820221, 820215, 820222, 980293 ADDED TO BOM
RB
10/18/2013
MS
4465
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
DCV
5/7/2013
1 of 2
1:4
Lighthead, WW, L.E.D., 24"
5/7/2013
GMG
63
1/2°
.005
.010
.015
1/64
B
DESCRIPTION:
REV
SIZE
SCALE
PART NO.
PHONE: [phone] FAX: [phone]
WEST COAST - FRESNO, CA
5748 E. SHIELDS AVE. STE#101
FRESNO, CA 93727
SHEET
.XXX
±
.XX
.X
±
MAX.
APPROVED
DRAWN
FRACT.
±±
±
ANGLES
Industries Inc. prior written consent of Aries
the drawing is prohibited without
or disclosure of information on Aries Industries. Reproduction This drawing is the property of
PROPRIETARY INFORMATION
UNLESS OTHERWISE SPECIFIED
BREAK CORNERS .005-.015
MACH. SURF.
LH9724 B
PART NO:
MATERIAL: FINISH:
CORPORATE HEADQUARTERS
550 ELIZABETH ST.
WAUKESHA, WI 53186
PHONE: [phone] FAX: [phone]
ARIES INDUSTRIES INCORPORATED
LH9724 B
PRIMER NOTE:
APPLY LOCTITE 7649 PRIMER ON ALL
ANODIZED ALUMINUM OR BRASS THREADS AND STAINLESS STEEL SCREWS AND THREADS PRIOR TO APPLYING LOCTITE 222.
Page 18

970190_B Aries Industries, Inc. ▪[phone] ▪www.ariesindustries.com Page 19
Spare Parts Kit, LH97XX
(P/N 950281) Kit, Spare Parts, LH97XX
Aries
P/N
Description
Qty
UOM
130090
O-Ring, #216 Buna-N 70 Duro
1
EA
130410
O-Ring, 2-020, 0.070 C.S. x 0.875 I.D., Buna-N 50 Durometer
1
EA
130509
O-Ring, #009 Silicon
2
EA
680007
Housing, Lamp Pyrex Glass
1
EA
809109
Contact, Spring Loaded
1
EA
810245
Screw, 6-32 x 1/2 Cap SOC SS
12
EA
810520
Screw, Set 6-32 x 3/16 SS Cup
4
EA
