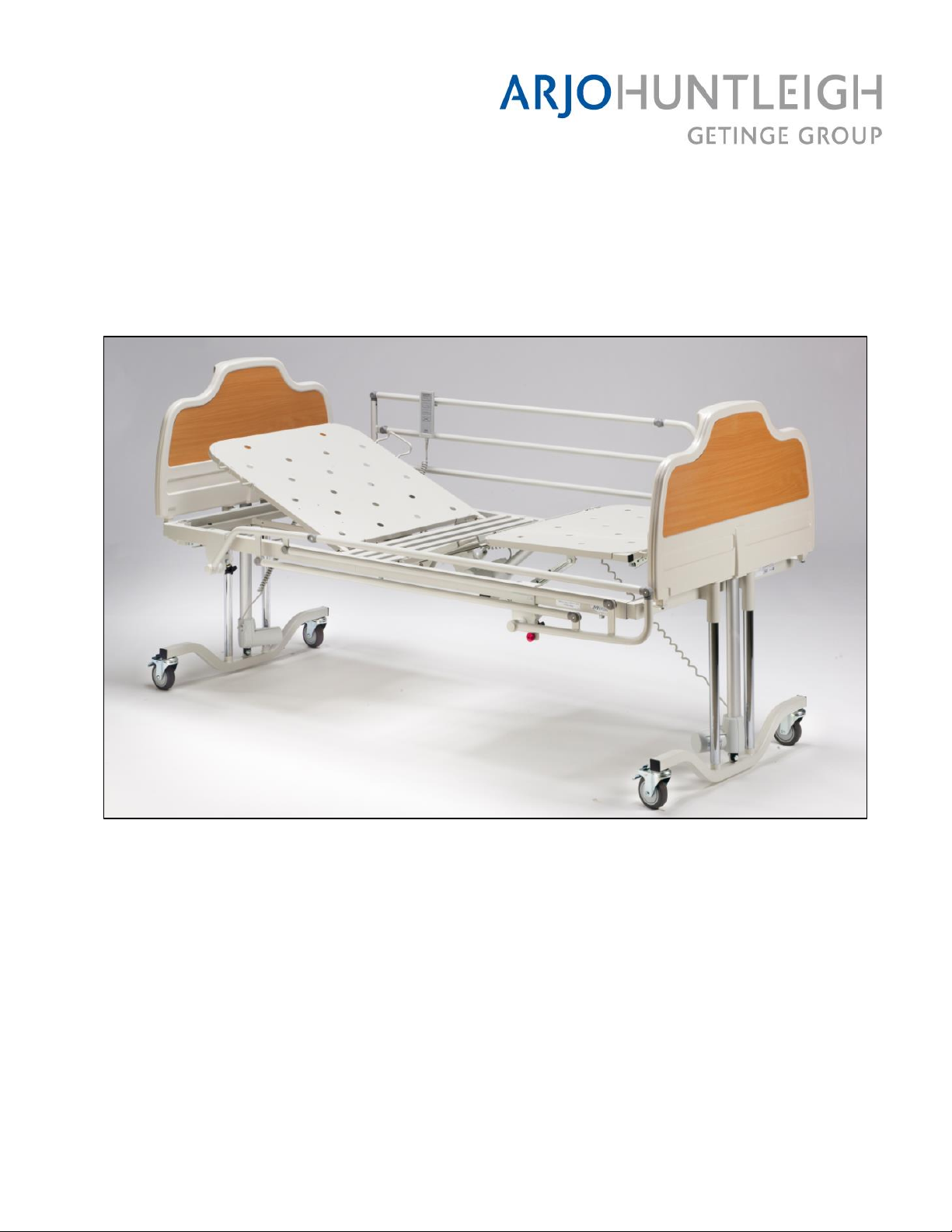

ARJO HUNTLEIGH Minuet 100500AUS User manual

1 AH-MIN V3 08/10/17
Minuet®
USER MANUAL

2 AH-MIN V3 08/10/17
CONTENTS
Introduction
3
Clinical Applications
3
Assembly
4
Installation and Disassembly
7
Operation
8
Cleaning
10
Maintenance/ Troubleshooting
10
Accessories
13
Warranty and Service
13
Technical Specification
14
Parts List
15
Warnings, Cautions & Notes
Warnings given in this manual identify possible hazards in procedures or conditions,
which if not correctly followed, could result in death, injury or other serious adverse
reactions
Cautions given in this manual identify possible hazards in procedures or conditions,
which if not correctly followed, could result in equipment damage or failure.
Notes given in this manual are used to explain or amplify a procedure or condition
WARNING
The tilt facility, if available, should only be used with the guidance of a clinically
qualified person.
Ensure the bed is assembled correctly in accordance with the instructions in
this manual.
The bed is not designed for patient transport and should not be used for this
purpose.

3 AH-MIN V3 08/10/17
MODEL NUMBER
100500AUS
100520AUS
DESIGN FEATURE
Four section mattress platform
Yes
Two section mattress platform
Yes
Electric tilt adjustment
Yes
Yes
Electrical height adjustment
Yes
Yes
Electrical backrest adjustment
Yes
Yes
Electrical leg with elevation
Yes
Manual leg elevation (straight
leg)
Yes
 This manual provides instructions for the use and maintenance of the ArjoHuntleigh
Minuet ® bed with model numbers listed in the table below
1. Introduction
2. Clinical Applications
Area of Use
Private, nursing and convalescent homes.
Indications
The use of the bed is to assist in patient positioning whilst reducing lifting and handling
stresses for the carer.
The four-section deck allows the patient to be moved to an upright sitting position with
the knees supported or legs elevated.
Contra-indications
The total safe working load of the bed is 180kg (ie. Combined weight of patient,
mattress and accessories)

4 AH-MIN V3 08/10/17
3. Assembly
Check that you have the following parts:
Head end assembly
Foot end assembly
Head end mattress platform assembly
Foot end mattress platform assembly
Control handset
Six clamp screws (loose) and Allen key
Make sure you have enough room to turn the bed from its side to upright when
assembled. Use carpet or other suitable protection to avoid damage.

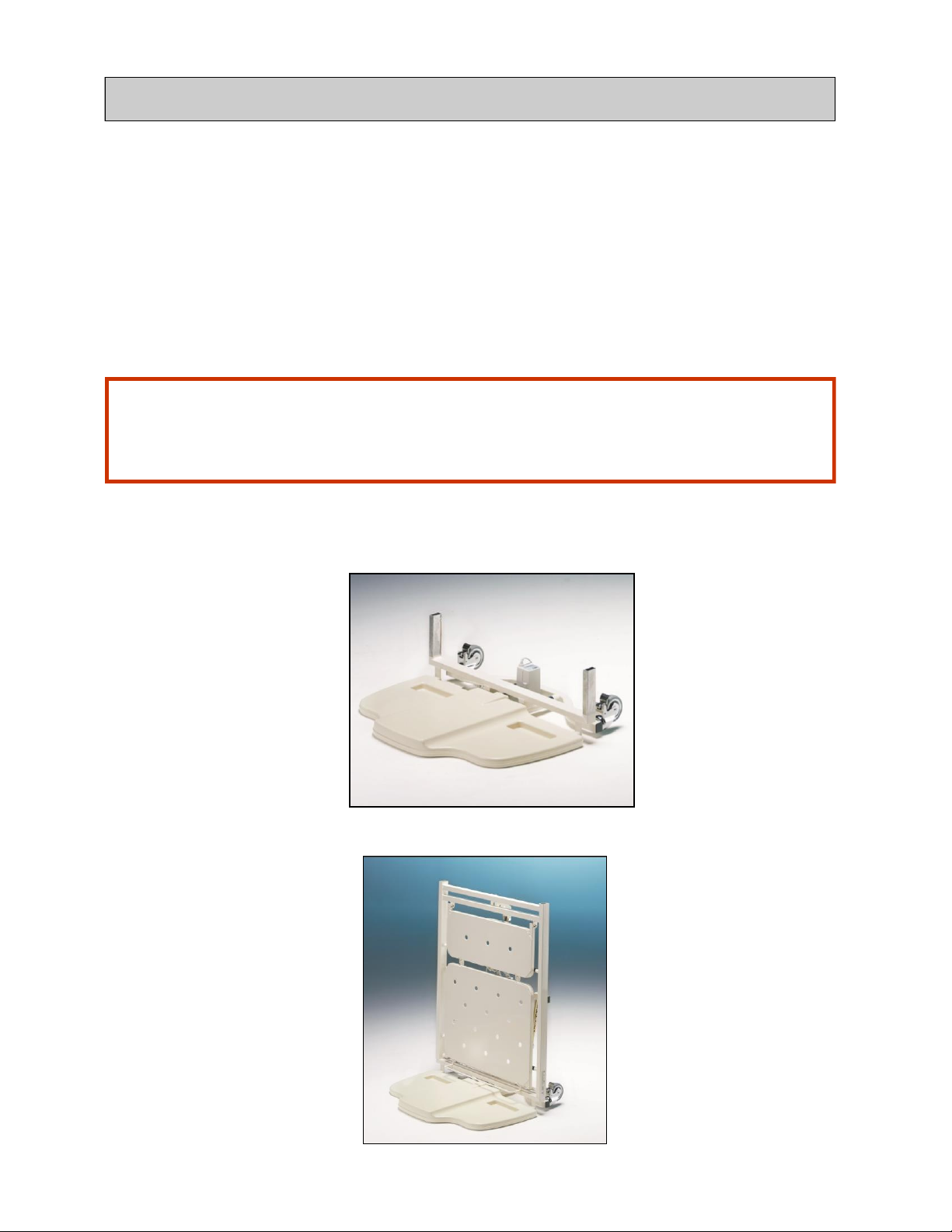

1. On both the head and foot end column assemblies, turn the castors upward and
apply the brakes (refer to Operations section). Lay the foot end flat on the floor
with the spigots on the frame upper most.
WARNING
Heavy equipment hazard.
The bed and its subassemblies are heavy and appropriate precautions should
be taken to avoid injury when lifting or moving them.
2. Assemble the foot end mattress platform assembly to the foot end.

5 AH-MIN V3 08/10/17

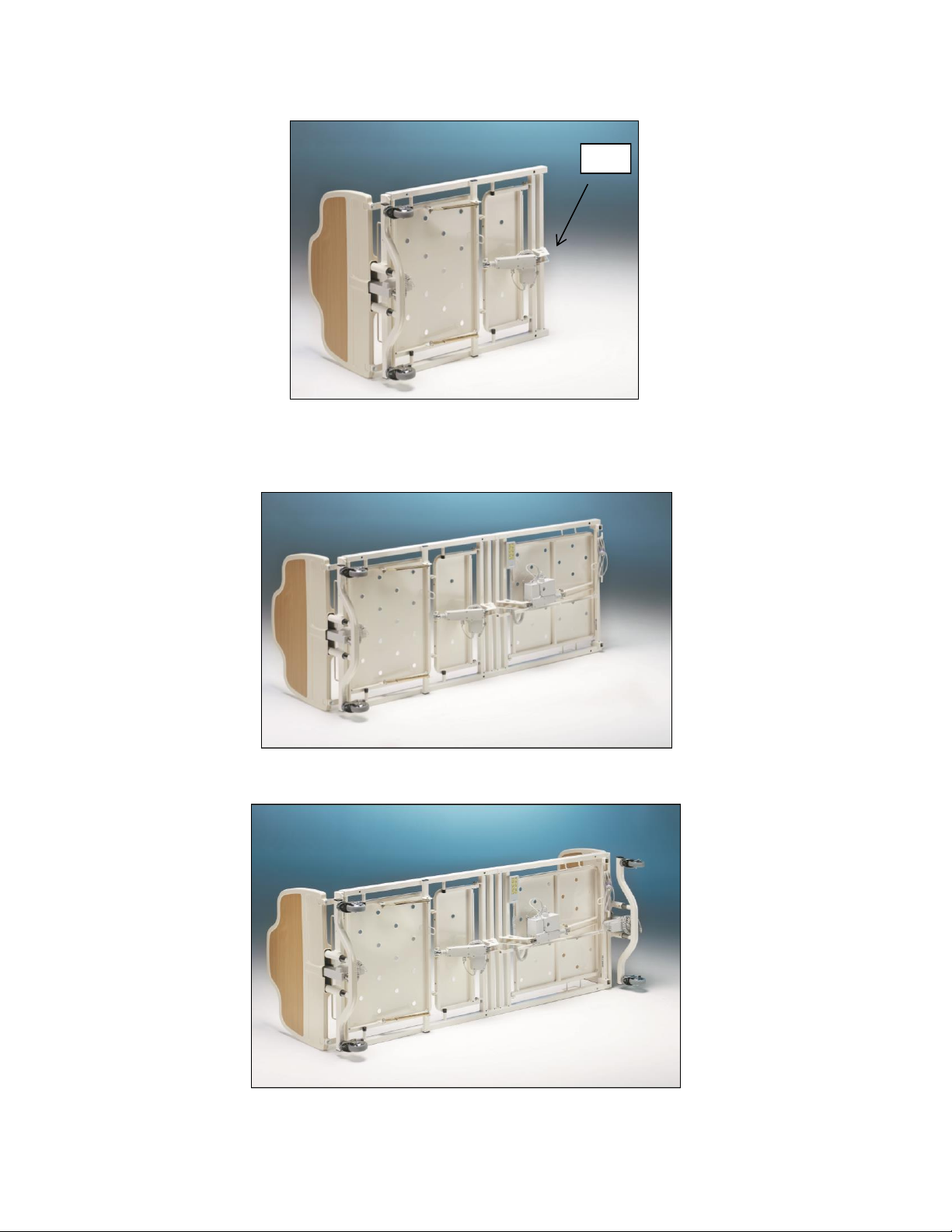

3. Stand the assembled components on one side with the connector sockets on the
backrest actuator or control box (A) uppermost.
4. Assemble the head end deck assembly to the foot end deck assembly.
5. Assemble the foot end to the deck.
A
A

6 AH-MIN V3 08/10/17

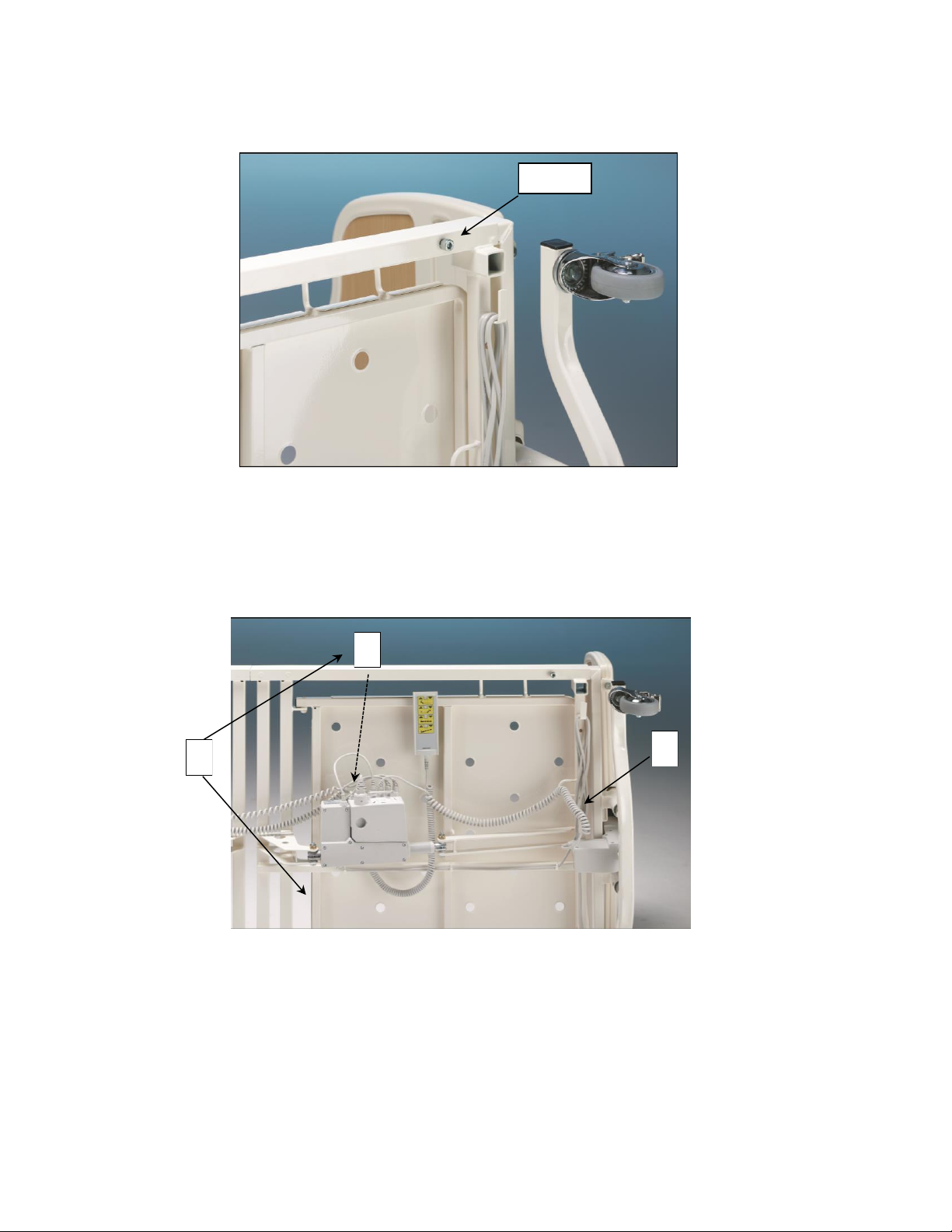

6. There are a total of 6 clamp screws provided for assembling the bed. Assemble
the first 3 of these clamp screws (B) on the underside of the side rail tube of
one length of the bed. Make sure all joints are fully inserted and tighten all 3
clamp screws securely using supplied Allen key.
7. Carefully thread the head end actuator cable through the support loop (C) on the
frame and connect it to socket 3 (D) on the backrest actuator/control box. Adjust
the cable coils in the loop so the cable is under tension but not strained. Note,
Backrest sheet metal top must be removed by unclipping two tabs (E) in order
to access the control box cable ports.
8. On models with electric leg elevation, carefully thread the leg actuator cable up
through the large hole in the actuator mounting bracket (F). Connect the cable to
socket 5 on the backrest actuator or control box.
B (x6)
C
D
E
D
E

7 AH-MIN V3 08/10/17

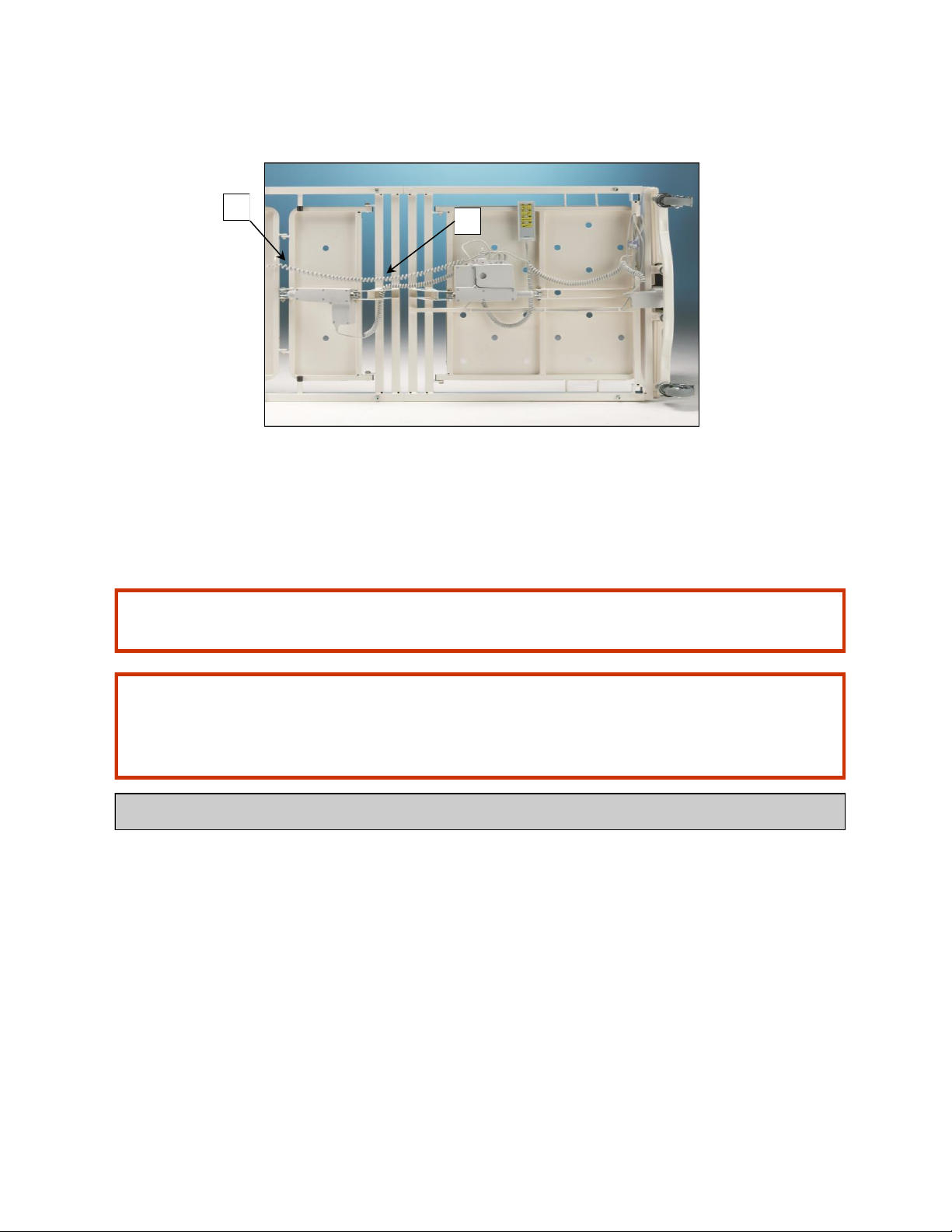

9. Carefully thread the foot end actuator cable through the support loop (G) on the deck frame and
connect it to socket 4 on the backrest actuator/control box. Adjust the cable coils in the loop so the
cable is under tension but not strained..
10. Connect the control handset cable to socket 1 on the backrest actuator or control box. Clip control
box cable retainer in position and replace backrest sheet metal top.
11. Stand the bed on its castors. Assemble the other 3 clamp screws in the underside of the remaining
side rail tube. Make sure all joints are fully inserted and tighten all 3 remaining clamp screws firmly
using supplied Allen key.
WARNING
DO NOT use the safety side rails to lift or move bed.
WARNING
Make sure that the mains supply cable is not stretched when connected.
Make sure that the handset and mains cable cannot become entangled with
moving parts of the bed.
Lower the bed to minimum height and disconnect the bed from mains power supply.
On both the head and foot end column assemblies, turn the castors inward toward each other and
apply the brakes.
Turn the bed on one side. Disconnect the control handset from the socket on the backrest actuator
or control box. Disconnect the actuator cables from the sockets on the backrest actuator or control
box and remove cables from the support loops on the frame.
Loosen two clamp screws and remove the foot end column assembly.
Loosen two clamp screws and remove foot end column deck assembly.
Loosen two clamp screws and remove the head end deck assembly from the head end assembly.
4. Disassembly—All Models
G
F

8 AH-MIN V3 08/10/17
5. Operations
Safety
 Always use a mattress of the correct size and type. A range of suitable pressure
reducing and pressure relieving mattress are available from ArjoHuntleigh.
 Before operation of the bed, ensure that no children, pets or obstacles such as bed-
side furniture are in its path.
 Before operating the bed, ensure that the patient is positioned correctly to avoid
entrapment or imbalance.
 Always apply the brakes when the bed is stationary. When operating the bed in tilt
mode, apply the brakes at one end only.
 Do not expose the equipment, especially the mattress, to naked flames such as
cigarettes etc.
 Use only ArjoHuntleigh accessories designed or approved for use with the bed.
o When moving bed, wrap electrical power cable around Cable Tidy, located at bed head
end in order to avoid damage to cable.
o Ensure the bed is connected to mains power at all times.
o Brakes must be applied before lowering bed to minimum height.
o Bed must be raised before releasing brakes.
o Do not adjust bed height during patient transfer.

 Keep these instructions handy for reference.

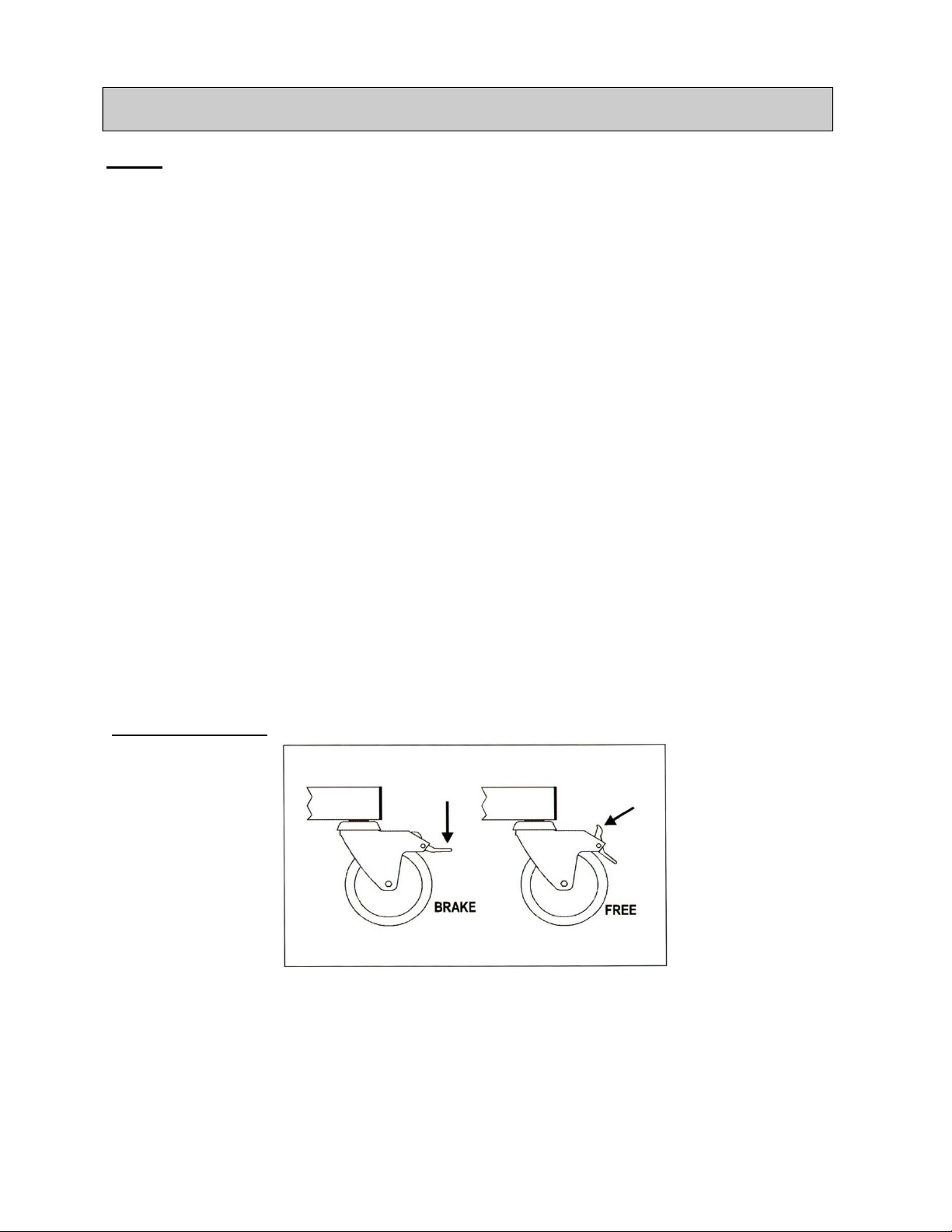

Castors & Brakes

9 AH-MIN V3 08/10/17
WARNING
Some functions may cause injury to the patient if unintentional movement occurs.
WARNING
If the Handset is dropped to the floor, caught between bed parts or sustains any damage or
suspected damage in any way, immediately stop using the Handset and perform the full
Handset Checks as detailed in Section 7 - Maintenance.

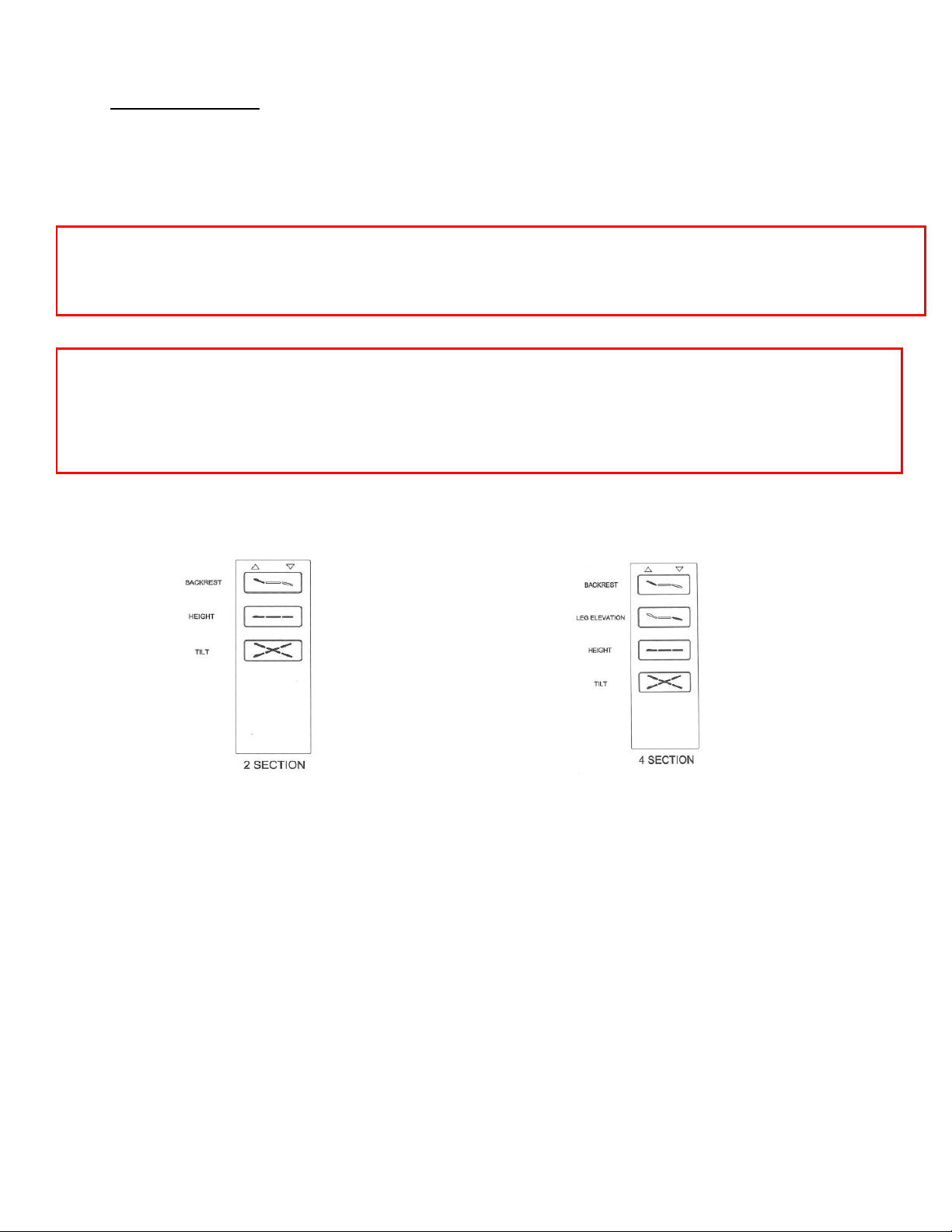

100520AUS 100500AUS

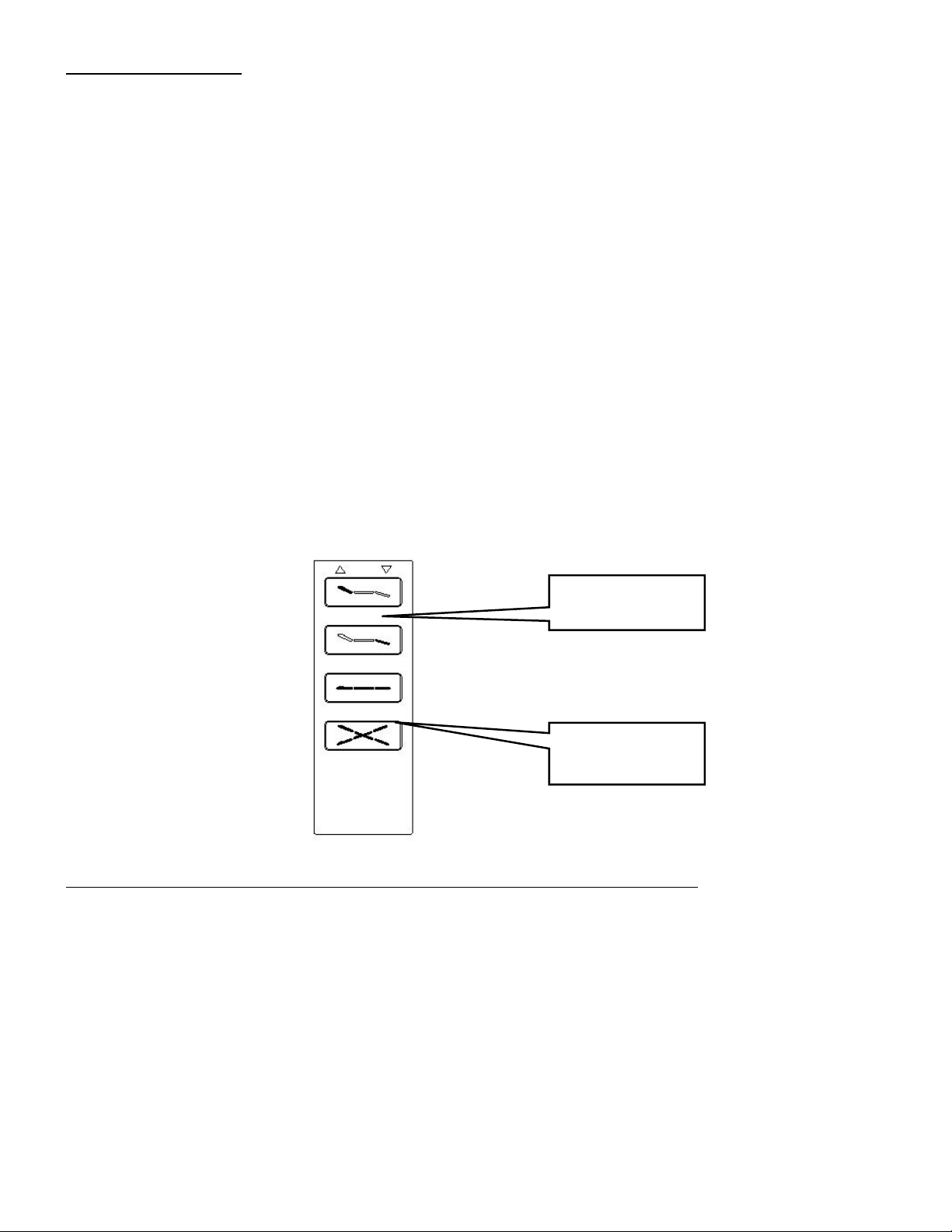

Power Operation
When a handset push button is pressed, the appropriate bed function will operate until
the button is released.
Leg Elevation -
Model 100500AUS
Using the control handset, the legs are elevated by increasing the angle of the thigh section. When
the legs are raised, the Kneebreak angle can be manually adjusted by raising or lowering the foot
end, which is supported by a self-locking ratchet strut.
To adjust, hold the mattress retention rail and lift the foot end slightly to disengage the latch then
raise or lower it, reversing the movement a little to re-engage the latch at the required position.
Model 100520AUS
The legs can be manually elevated by raising the foot end of the mattress deck. To adjust, hold the
mattress retention rail and lift the foot end slightly to disengage the latch then raise or lower it,
reversing the movement a little to re-engage the latch at the required position.

10 AH-MIN V3 08/10/17
General
Examine the bed for obvious signs of damage. Make sure that all nuts, bolts, clamp screws and
other fastenings are tight and not missing.
Examine the flexible cables for cuts, abrasions, kinking or other deterioration. Ensure that the
power supply connector plug is securely attached and not damaged. If appropriate, check that the
plug fuse is of the correct type (BS 1362 5amp)
If either the plug or cable is damaged then both the plug and cable must be replaced as a complete
assembly by an approved service agent.
6. Cleaning
Warning
Before cleaning, disconnect the bed from the mains power supply.
Gloves and protective clothing should always be worn
when carrying out cleaning procedures.
All surfaces can be cleaned by wiping with a soft cloth moistened with hot water and a mild
detergent. Avoid splashing the actuators and handsets.
Rinse with a cloth moistened with clean water and dry with paper towels.
To remove potentially infectious material such as body fluids, or when used by a client with a known
infection, clean afterwards with NaDCC (ie Presept, Actichlor) at 10,000 ppm of
available chlorine.
Rinse and dry.
Allow cleaned parts to dry thoroughly before replacing the mattress.
Any proprietary furniture polish may be used on the head and foot panels.
Caution
Do not use abrasive compounds or pads.
Do not use hypocarbonate or phenolic cleaning solutions
7. Maintenance / Troubleshooting
Warning
Disconnect the bed from mains power supply before starting any maintenance activity.
The following preventative maintenance procedures should be carried out at intervals of 12 months
or as specified.
All service and repair activities must only be performed by properly qualified and trained technicians
approved by ArjoHuntleigh.

11 AH-MIN V3 08/10/17
Castors and Brakes
If fluff or threads are picked up by the castors, these should be removed.
Make sure that castors swivel and rotate freely. Check the brakes for efficient operation. If castors
are unsatisfactory they should be replaced.
HANDSET Checks
Between each patient, ArjoHuntleigh strongly advises that the Handset is visually inspected for
obvious damage before each use if practicable and that Preventative Maintenance checks are
conducted on the handset. When using a specific function staff should be aware of, and checking
for, any of the symptoms listed in point 3 below.
Preventative Maintenance Checks
ArjoHuntleigh recommends that the full check and testing regime is conducted between each bed
use or worst case during annual Preventative maintenance. This should take no more than one (1)
minute to complete.
1. Visual inspection of handset casing
1.1 Inspect the outer plastic casing for any obvious cracks or damage.
1.2 Inspect for damage to the front cover (outer label) particularly over the buttons where the label
may be torn or indented.
If any damage is identified while conducting checks 1.1 and 1.2, immediately quarantine the bed
and report the damage to maintenance staff or replace the Handset.
2. Visual inspection of the cable and Cable insulation:
2.1 Inspect the cable for any nicks or cuts in the insulation
2.2 Inspect for any evidence that the cable may have been squashed or flattened.
Squashed or flattened cables may indicate a possible break in the internal conductors or insulation
causing conductors to short together which could cause unwanted movement of the bed. Any
handsets are found with obvious damage to the cable insulation, immediately report the damage to
maintenance staff or replace the Handset.
Front Cover Outer
Label
Look for tears or
indentations over the
buttons

12 AH-MIN V3 08/10/17
3. Tactile inspection of the buttons:
All buttons should be operated and response tested.
Depress each button on the handset. Each button should have a positive audible click that is
also felt. The function being pressed should also operate.
If the button:
 does not have a click feel
 does not have an audible click sound
 does not immediately operate the function
 feels soft offering no resistance
 feels different to the rest of the buttons
 travels further when depressed
Immediately quarantine the bed and report the damage to maintenance staff
or replace the Handset, otherwise contact an ArjoHuntleigh approved Technician.
The following table identifies some fault symptoms, their possible cause and
suggest some simple checks and corrective actions. If these actions fail to
solve the problem consult the ArjoHuntleigh Service Department on Freecall
1800 072 040.
Symptom
Possible Cause
Action
Actuators fail to work
Power disconnected or
batteries discharged
(battery backup models
only)
Ensure mains supply lead is
connected
Handset disconnected
Check the handset plug is
fully inserted in the control
box
Blown fuse
Contact ArjoHuntleigh
Service Department on
1800 072 040
Damaged handset cable
Replace handset
One actuator does not work
Actuator plug
disconnected
Check the actuator plug us
fully inserted in control box.

13 AH-MIN V3 08/10/17
8. Accessories —Purchased Separately
Self Help Pole
Installation
Install the pole on either side of the bed in the square socket in the head end frame.
Adjustment
The pole an be located with the horizontal bar over the bed or, when not in use, over
the head board. The position of the can be altered by adjusting the length of the strap.
Warning
The maximum safe working load of the self help pole is 76.5kg.
The pole must be used when the handle is central above the mattress platform
A full range of accessories are available from ArjoHuntleigh. Details can be provide
upon request.
9. Warranty and Service
Warranty Terms
Your ArjoHuntleigh product is warranted for 36 months from the date of purchase
against fault arising due to defects in manufacture or materials.
Parts replaced, or repaired under the terms of this warranty will be covered for the
balance of the 36 month period.
The warranty applies only to parts made or approved by ArjoHuntleigh.
The warranty does not extend to items or components which may need replacement
due to normal wear and tear (eg. Castors, protective moldings, paint work etc.) for
which ArjoHuntleigh, nor its distributors can be held responsible.
Any gradual deterioration in performance after this period is normally associated with
fair wear and tear, or misuse and accidental damaged and as such is not covered by
the manufactures warranty.
Warranty Service Visit
If your Minuet bed should require attention due to failure as defined under the warranty
terms, please contact the manufacturer or the distributor from whom it was supplied.

14 AH-MIN V3 08/10/17
Overall Length 2200mm
Overall Width 920mm
Height to Mattress Platform
Min 230mm
Max 630mm
Backrest Angles To 70º
Leg Elevation:
100500 AUS 18º
100520 AUS 15º
Tilt:
100500AUS / 100520AUS 10 Head up to
10 Head down
Mattress Size: 1980 x 860 x 150-170mm
Product Weight (approximate)
Foot End Assembly (standard) 20kg
Head End Assembly (standard) 17kg
Foot End Deck Assembly (with leg elevation) 17kg
Head End Deck Assembly (adjustable
Backrest) 21kg
Maximum Safe Working Load (incl.
Accessories) 180kg
Electrical Data
Power Input 1A max. at 230V a.c. 50/60Hz
Power Output 24V DC
Duty Rating Intermittent 10%, Max.2min / 18min
Electrical Safety Standard Complies with EN 60601-1/ UL60601-1
Electrical Shock Protection Class 2 Type B
EMC Complies with BS EN 60601-1-2 2001
Liquid Ingress Protection IP54
10. Technical Specifications
Dimensions

15 AH-MIN V3 08/10/17
Product Code
Part
Usage Description
QTY
LIN272100
LA27-C063-00
Backrest Actuator
1
LIN273410
LA27-C062-00
Lift/Tilt Column Actuator
2
LINCB6404
CB6404-10019
Control Box
1
LIN73602
HB7X237-00
2 Section Handset
1
LIN74602
HB7X231-00
4 Section Handset
1
LIN009640
0964002-400
Kneebend & Lift Actuator Cable
2/3
LIN009146
00914657-200-B
Backrest Cable
1
LIN272110
LA27-C064-01
Kneebend Actuator
1
LIN912091
SML912091 3,2m Grey
Power Cable
1
SCR1040
M10 x 40 Z/P Capscrew
Base Assembly
6
FPL5244048
P803 Ext BL Cap 19Dia
Footend Base Assembly
2
FPL2655509
Bumpons SJ-5508
Headend Base Assembly
2
FPL5464023
22mm Sq Int BL Caps
B/rest, Th/panel, F/rest panel
4
WSH11000092
10mm White Nylon Washes
B/rest, Th/panel, F/rest panel
4
FMT2218010
10mm Axle Caps
B/rest, Th/panel, F/rest panel
4
FMT9991703
Rastomat Cathces
Footrest Panel Assembly
2
MCC2699093
White Nylon Bushes
Column Base Assembly
2
MCC2699100
White Nylon Bushes
U/carriage Assembly
2
RIV1604615
Alu Rivet 3/16 CSK 01604-00615
Column Base Assembly
2
CST4480
100mm Fallshaw Castors
U/carriage Assembly
2
FPL5464035
35 Int BL Caps
U/carriage Assembly
2
RIV1661613
Alu Rivet 3/16 Low Profile 01661-
00613
U/carriage Assembly
2
TOL1984701
Allen Key
Allen Key
1
11. Parts List

16 AH-MIN V3 08/10/17
TEL
[phone] FAX [phone] FreeCall 1800 072 040
WEBSITE www.arjohuntleigh.com
PERTH—ADELAIDE—MELBOURNE—SYDNEY—BRISBANE
As our policy is one of continuous improvement, we reserve the right to modify designs
without prior notice.
ArjoHuntleigh (ABN 75 007 200 900)
A member of the Huntleigh Technology PLC Group of Companies
Acare Medical Science Co., Ltd
No.6 Hongxingyi Road, Hongwan Industrial Park, Zhuhai,Guangdong P.R. China 519060
TEL: [phone] FAX: [phone]
