ARJO HUNTLEIGH KWIKtrak Turntable Series User manual

KWIKtrak Turntable
Instructions for Use
001.11720.EN rev. 9 • June 2013

Design Policy and Copyright
® and ™ are trademarks belonging to the ArjoHuntleigh group of companies.
© ArjoHuntleigh 2013
As our policy is one of continuous improvement, we reserve the right to modify designs without prior
notice.
The content of this publication may not be copied either whole or in part without the consent of
ArjoHuntleigh.

3
Table of Contents
001.11720.EN rev. 9
General Information ................................................................................................................... 4
Foreword.............................................................................................................................. 4
Thank you for Buying an ArjoHuntleigh Product! .............................................................. 4
Please Read this Manual Carefully! .................................................................................. 4
Service and Support.......................................................................................................... 4
Manufacturer Information .................................................................................................. 4
Definitions Used in this Manual......................................................................................... 4
Intended Use..................................................................................................................... 4
Operational Life................................................................................................................. 5
Product Identification......................................................................................................... 5
Package Contents............................................................................................................. 5
How to Use this Manual .................................................................................................... 5
Safety Instructions..................................................................................................................... 7
General Instructions............................................................................................................. 7
Important Safety Instructions............................................................................................. 7
Safe Working Load (SWL)................................................................................................. 7
Shock Prevention .............................................................................................................. 7
Environmental Advice........................................................................................................ 7
Homecare Environmental Considerations......................................................................... 7
Product Description/Labels....................................................................................................... 8
Automatic KWIKtrak Turntable.......................................................................................... 8
Manual KWIKtrak Turntable .............................................................................................. 9
How to Use the KWIKtrak Turntable....................................................................................... 10
Automatic KWIKtrak Turntable........................................................................................ 10
Manual KWIKtrak Turntable ............................................................................................ 10
Care and Maintenance ............................................................................................................. 11
Preventive Maintenance Schedule.................................................................................. 11
User Inspections.............................................................................................................. 11
Annual Inspection by an Authorized Technician ............................................................. 11
Cleaning.......................................................................................................................... 11
Troubleshooting....................................................................................................................... 12
Automatic KWIKtrak Turntable........................................................................................ 12
Manual KWIKtrak Turntable ............................................................................................ 12
Technical Specifications.......................................................................................................... 13

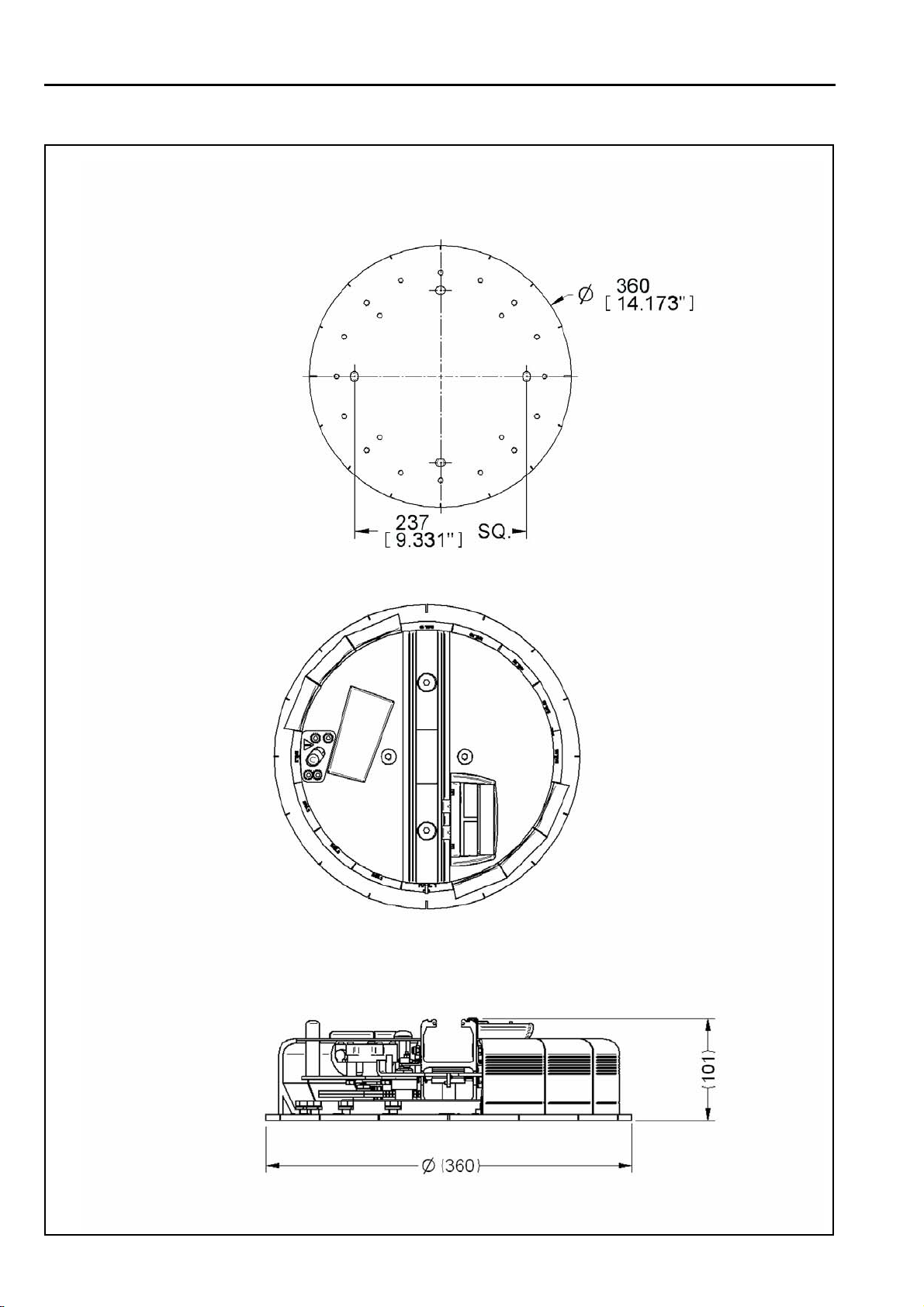

KWIKtrak Turntable Dimensions........................................................................................ 14
Electromagnetic Compliance.................................................................................................. 15
Electromagnetic Compliance............................................................................................. 15
Electromagnetic Emissions ............................................................................................. 15
Electromagnetic Immunity............................................................................................... 16
Table of Contents

General Information
4
001.11720.EN rev. 9
Foreword
Thank you for Buying an
ArjoHuntleigh Product!
Your KWIKtrak Turntable is part of a series of
quality products designed specially for home
care, nursing homes and other health care uses.
We are dedicated to serving your needs and
providing the best products available along with
training that will bring your staff maximum benefit
from every ArjoHuntleigh product.
Please Read this Manual Carefully!
The information in this manual is crucial to the
proper use and maintenance of the KWIKtrak
Turntable. It will help protect your product as well
as ensure that it performs to your satisfaction.
The information in this manual is important for
your safety and must be read and understood to
prevent injuries.
Tested according to standards by:
Service and Support
A service routine has to be done on your
KWIKtrak Turntable by ArjoHuntleigh trained
service staff. This will ensure it remains safe and
functional. See “Care and Maintenance” section.
Please contact your local ArjoHuntleigh agent if
you need more information, want to report an
unexpected event or notice any changes in the
performance of your turntable, or if you need any
help in setting up, using or maintaining your
KWIKtrak Turntable.
The agent can offer support and service
programs to maximize the long-term safety,
reliability and value of the product.
Contact your local ArjoHuntleigh agent for
replacement parts.
Manufacturer Information
This product has been manufactured by:
ArjoHuntleigh AB
Verkstadsvägen 5
241 38 Eslöv
SWEDEN
: [phone]
: [phone]
: www.ArjoHuntleigh.com
Definitions Used in this Manual
Means: Failure to understand and follow this
instruction may result in injury to yourself or
others.
Means: Failure to follow this instruction may
cause damage to the product(s).
Means: This is important information
regarding the correct use of the product.
Intended Use
The KWIKtrak Turntable, part of the KWIKtrak
track system, is designed to allow the ceiling lift to
pass from a track path to another.
The product must only be used for the reasons
stated above. It must be installed by
ArjoHuntleigh authorized staff as per the local
codes.
WARNING: Injuries can be caused by the
use of inadequate parts. Use only parts
designated by ArjoHuntleigh on your
KWIKtrak Turntable.
WARNING: Unauthorized modifications on
any ArjoHuntleigh product may affect its
safety. ArjoHuntleigh will not be held
responsible for any accidents, incidents or
deficiencies of performance that occur as a
result of any unauthorized modification to
its products.
WARNING:
CAUTION:
NOTE:
WARNING: This product is not intended to
be operated by the patient. In the unlikely
case of a failure, the patient might get stuck
in the unit.
General Information

General Information
5
001.11720.EN rev. 9
Operational Life
The turntable is designed and tested for a useful
life of seven (7) years or 10,000 transfers,
whichever comes first.
The useful life of this product corresponds directly
to the safe operating time period before a
complete inspection is needed.
Aging of the product, frequency of use (number of
rotations/days) and maintenance frequency are
factors that have an impact on the turntable’s life
span.
A rotation is defined as the rotation of the
turntable to the desired track path and its rotation
to the initial track path.
Product Identification
The unit's identification numbers (specification,
model, serial number) appear on a silver name
plate fixed inside the track of the KWIKtrak
Turntable.
How to Use this Manual
Keep this manual with the unit and refer to it as
needed.
WARNING: ArjoHuntleigh cannot ensure full
safety for an accessory of which the life
span has been exceeded. Wear may cause
the breakage of a part and lead to a patient
fall.
WARNING: Do not attempt to use this
product without fully understanding the
information contained in this manual. A
misuse of this unit may lead to a patient fall
and to injuries.

6
General Information
001.11720.EN rev. 9
Symbols Key to Symbols
It points out the date of manufacturer’s name and address. May also point out
manufacturing date.
It means that the product complies with the medical device directive 93/42/EEC.
It is accompanied by the manufacturer's catalogue number.
It is accompanied by the manufacturer's serial number.
It points out “separate collection” for all batteries and accumulators as per the
WEEE Directive.
It refers to the Instructions for Use.
It points out the turntable is on automatic rotation mode.
It points out the turntable is on manual rotation mode.
It points out a trapping zone or pinching point.
SWL It represents the maximum load the turntable is rated for safe operation.
IPN1N2Degree of protection provided by enclosure. N1: Ingress of particles, N2: Ingress
of water.
Direct current.
Fig. 1

Safety Instructions
7
001.11720.EN rev. 9
General Instructions
Important Safety Instructions
Always ensure that:
• The unit is used by trained staff.
• All controls and safety features are used only
according to the rules specified in this manual.
Never attempt to force a control or button on
the KWIKtrak Turntable.
• Any precautionary or instruction labels are
read and those that cannot be easily read are
replaced.
• The daily maintenance is carried out before
using the unit.
Safe Working Load (SWL)
Shock Prevention
Do not splash or expose the device to water or
moisture.
Do not attempt to expose, service or repair the
KWIKtrak Turntable.
If the unit is defective, contact your local
ArjoHuntleigh agent.
Environmental Advice
When disposing of any items associated with the
product, contact the appropriate local authorities
for information.
Homecare Environmental Considerations
WARNING: All track ends must have an end
stopper in place and secured. They are part
of safety features. A missing end stopper
might lead to a patient fall.
WARNING: There must be an end stopper in
each red zone labelled “NO RAIL”. They are
part of safety features. A missing end
stopper might lead to a patient fall.
CAUTION: Keep all components of the
turntable clean and dry.
NOTE: The Automatic KWIKtrak Turntable is
designed to be used with ceiling lift series
#910XXXX, #911XXXX, #913XXXX,
#923XXXX, #LDXXXX and MSX1X-XX-XX
only.
NOTE: The Manual KWIKtrak Turntable is
designed to be used with portable ceiling lift
and ceiling lifts listed above (see the
previous note box regarding the Automatic
KWIKtrak Turntable).
WARNING: ArjoHuntleigh warns of possible
strangulation risks related to the pull cords
and advises to take necessary precautions
to prevent these.
WARNING: The KWIKtrak Turntable is
intended to be used with ceiling lifts which
the SWL does not exceed 272 kg (600 lb). Do
not attempt to use the unit with more than
the lowest weight limit indicated on the
following:
• the track system;
• the turntable unit
• the “maximum load” label on the lift;
• the sling.
Overloading any of these elements may lead
to a patient fall and to injuries.
WARNING: This product contains small
parts that might present a choking hazard
for children if swallowed or inhaled.
WARNING: The KWIKtrak Turntable is not
intended to be operated by children. Serious
injuries could occur.
NOTE: Rigorous cleaning actions should be
done when the turntable is exposed to an
animal. Pet hair trapped inside the device
can reduce the product performance.
Safety Instructions

8
Product Description/Labels
001.11720.EN rev. 9
Automatic KWIKtrak Turntable

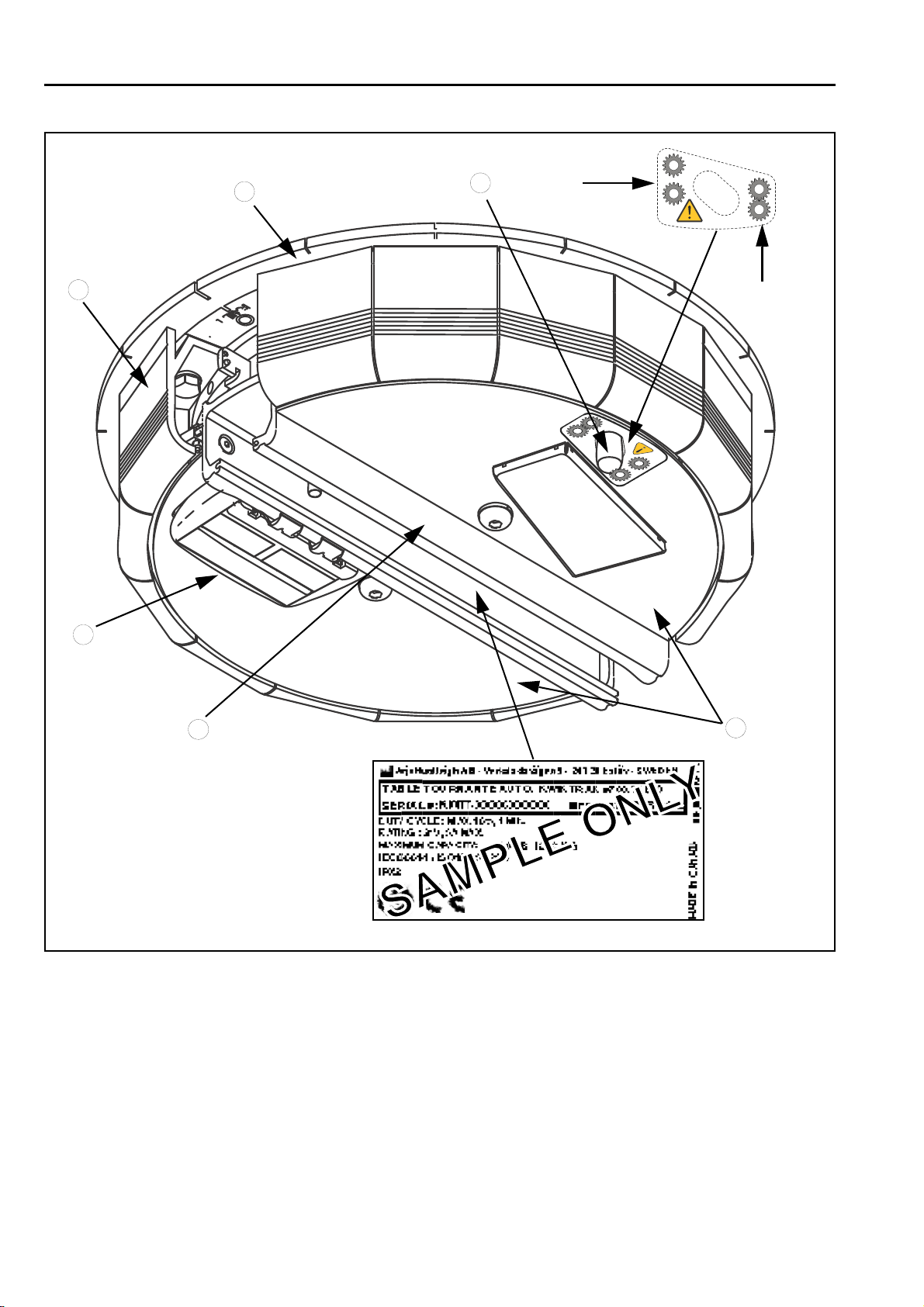

Fig. 2
1
2
3
5
4
6
Manual
rotation
Powered
rotation
Product Description/Labels
Legend
1) Automatic KWIKtrak Turntable
2) Quick-release
3) Covers
4) Pivoting track
5) Activation Station
6) End stopper

9
Product Description/Labels
001.11720.EN rev. 9
Manual KWIKtrak Turntable
Fig. 3
1
2
3
5
4
6
Legend
1) Manual KWIKtrak Turntable
2) Activation arm
3) Activation pull cord
4) Pivoting track
5) Covers
6) End stopper

How to Use the KWIKtrak Turntable
10
001.11720.EN rev. 9
Automatic KWIKtrak Turntable
Operating the Turntable
1) Make sure the lift is powered.
2) Move the lift into the turntable and release the
button on the hand control. Wait for the beep
sounds. The turntable will rotate to the next
position.
3) Move the lift out of the turntable along the new
path.
4) If the turntable fails to operate automatically or
in an emergency situation, manually rotate the
turntable after sliding and holding the quick-
release button in the open position
(see Fig. 4). Take care for not getting injured.
Fig. 4
Manual KWIKtrak Turntable
Operating The Turntable
1) Move the lift into the center of the turntable.
2) Make sure that the lift is centered with the
turntable, then pull the Turntable’s shortest
cord until the pivoting track is aligned with the
next position.
3) Move the lift out of the turntable along the new
path.
4) In case of a malfunction, pull down the
activation arm, to unlock the pivoting track, and
rotate the track manually. Take care for not
getting injured.
Adjusting Pull Cord’s Length
If the pull cords are too long, they may be
shortened as follows.
1) Turn the mechanism halfway so that both
cords are of equal length.
2) Cut both cords to equal length making sure
that you leave at least 20 cm (8 in) on each
cord.
3) Insert one knob on each cord and secure it
with a double knot.
Fig. 5
CAUTION: Pay attention to pull cords, when
moving the ceiling lift onto or out of the
turntable, to make sure they do not get
entangled.
Note: The mechanism may block if the ceiling
lift is not centered under the Turntable before
pulling the cords.
20 cm (8")Shortest possible lenght
Cut both cords equal
when Turntable is
turned halfway
Can be cut anywhere
within this range
How to Use the KWIKtrak Turntable
