ARJO HUNTLEIGH Century Instruction manual

Century
Assembly and Installation Instructions
...with people in mind
06.AK.02_10 GB • 02/2017

© ArjoHuntleigh AB 2009
Arjo products are patented or patent pending. Patent information is available by
contacting ArjoHuntleigh AB.
Our policy is one of continuous development, and we therefore reserve the right to make
technical alterations without notice. The content of this publication may not be copied
either whole or in part without the consent of ARJO Hospital Equipment AB.

3
Contents
Safety Precautions............................................................................ 4
Introduction...................................................................................... 4
Loads............................................................................................................... 4
Transport and Storage Conditions................................................................... 4
Preparations...................................................................................... 5
Before lifting Century out from the pallet ...................................................... 5
Placing the Century into its correct position....................................................5
Assemble the floor fixtures..............................................................................5
Electrical installation ....................................................................... 6
DIP Switches for Autofill ............................................................................... 6
DIP Switch for Cleaning................................................................................. 6
DIP Switch Hydro/No Hydro.......................................................................... 6
Equipotential bonding..................................................................................... 7
Earth ground continuity test............................................................................ 7
Drain installation.............................................................................. 8
Water installation............................................................................. 9
Calibration of the thermostat mixer............................................... 10
Adjustable thermostat ................................................................................... 10
Final installations........................................................................... 11
Assemble the floor fixtures........................................................................... 11
Feet adjustment ............................................................................................. 11
Assemble the wall rim................................................................................... 11
Placing of the liquids..................................................................................... 12
Technical specifications................................................................. 13
Space Requirements...................................................................................... 13
Measurements, Volume and Weight............................................................. 13
Overall dimensions ........................................................................ 14

4
0086
Example of Approval label
Make sure that the installation is
carried out:
• in accordance with the data label.
Check the type label.
• by qualified personnel.
• in accordance with local codes.
• in accordance with local
regulations.
When installation work is completed,
check that:
• all screws are well tightened;
• all parts that might come in contact
with the resident do not have any
sharp edges or cracks;
• all hoses, pipes and connections are
intact and without defects;
• the connection hoses are without
any sharp bend;
• all functions of the bath work
normally. Adjust if necessary.
The Century Bath is delivered in one box .
Loads
Safe workingload (SWL) (resident + water)
...........................................460 kg (1014 lb.)
Max. floor loading .............................
........................1870 N (420 lbs)/ foot pad
Transport and Storage
Conditions
Ambient temperature.................
.............-20°C (-4°F) to +70°C (158°F)
Relative humidity...................
............80% not condensed at 20° (68°F)
Atmospheric pressure range...........
...............................500 hPa to 1100 hPa
Weight, net approx. 90 kg (198 lbs)
Total, approx. 150 kg (330 lbs)
Safety Precautions

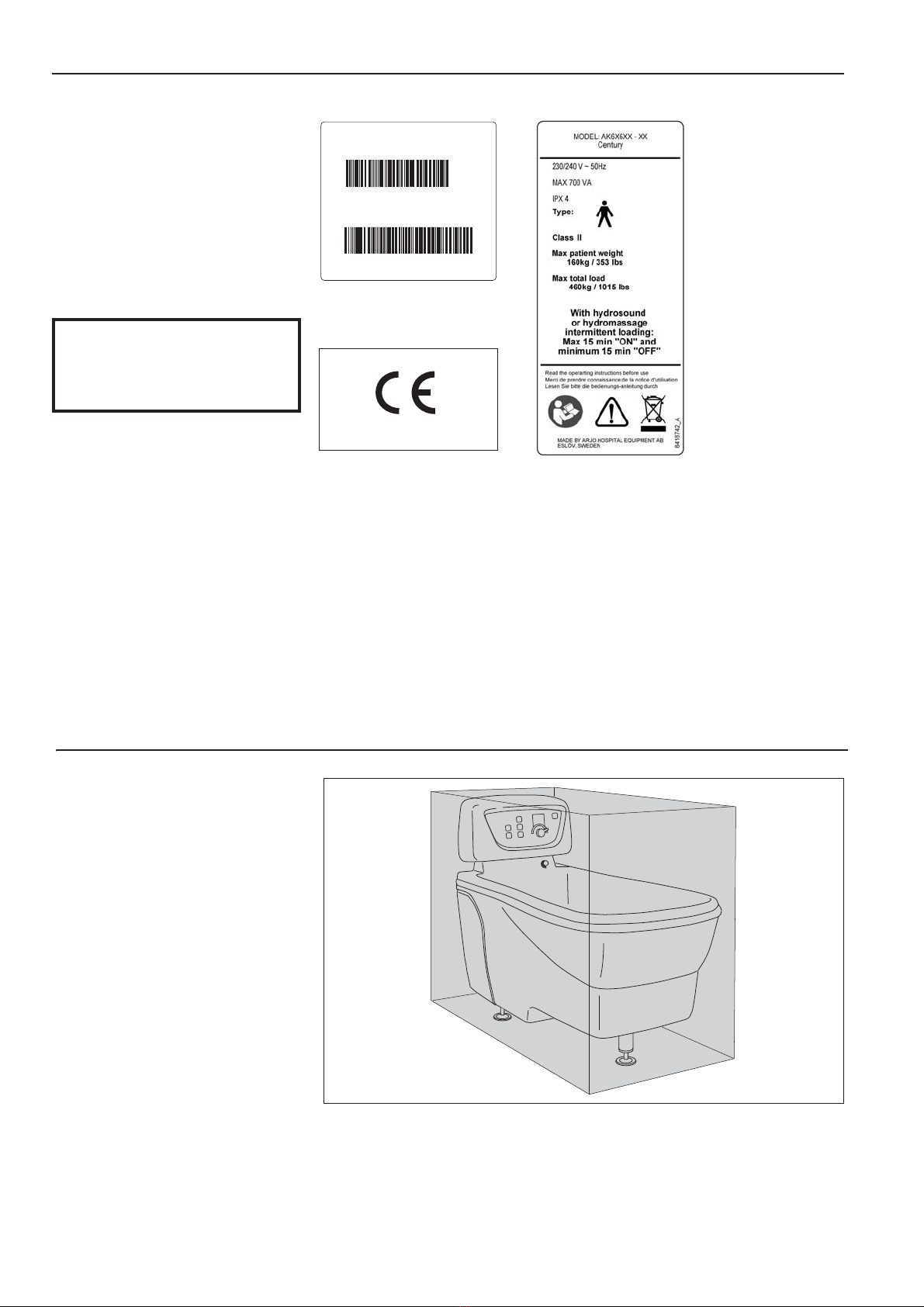

Example of Data label
Product no
Serial no
AK62611-EU
SEE0102001
Made by Arjo in Eslov, Sweden
010115
Example of Type label
WARNING!
To avoid back injuries:
Installation of this unit requires a mini-
mum of two people.
Introduction

5
Remove the wooden lid and then the box
covering the product.
Placing the Century into its
correct position
Unpack the Century and put it in correct
place according to:
• Drainage
(See section Drain Installation),
• water supply
(See section Water Installation) and
• against a wall.

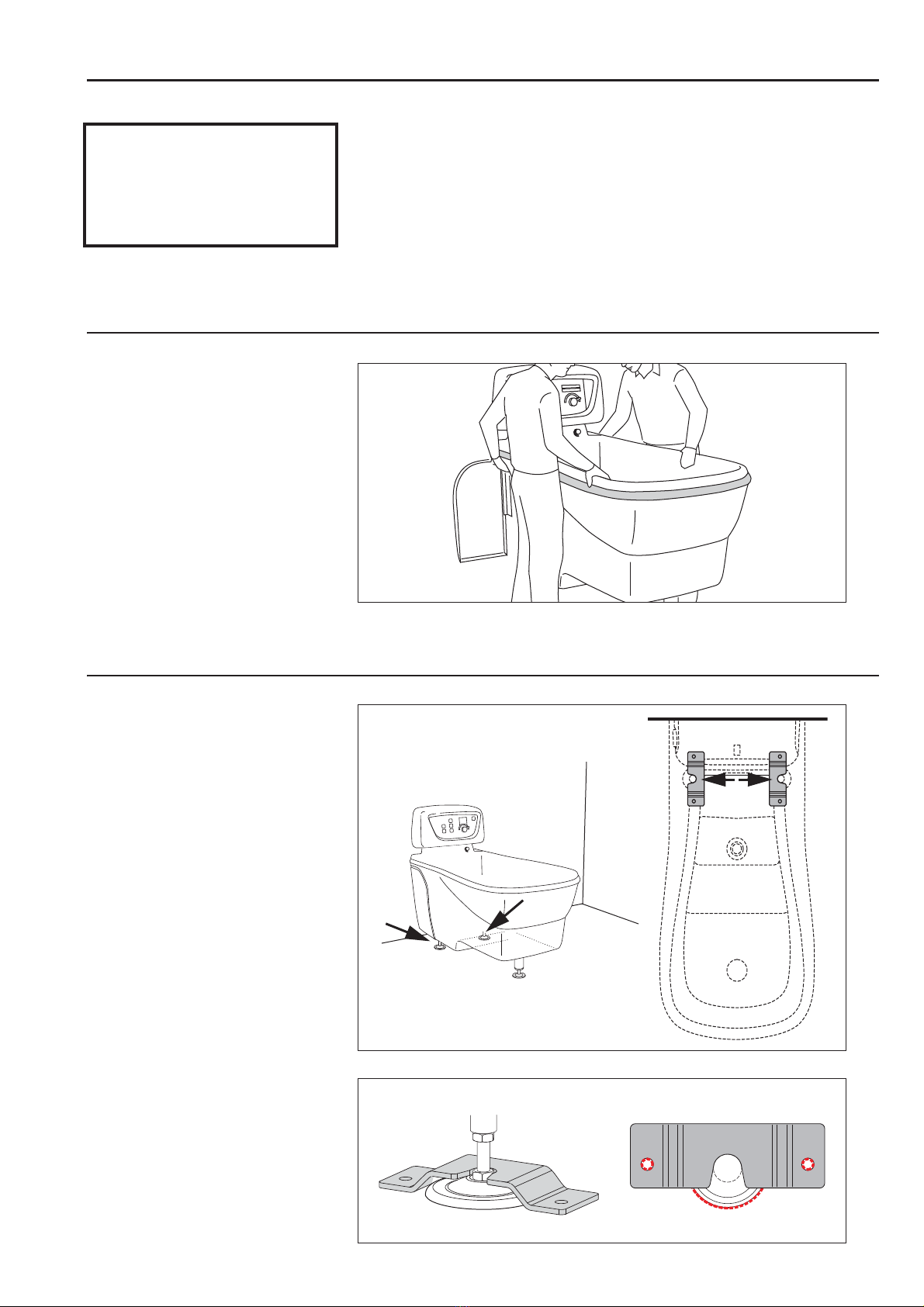

Place the Century by lifting in the upper
part of the door opening, one person at
each side of the tub. (See Fig. 1)
Assemble the floor fixtures
1 Place the floor fixtures (included in
delivery)againstthe tworear legs,as
shown in the illustration.
(See Fig. 2)
2 Using the floor fixtures as templates,
mark the location of the feet and of
the four mounting holes on the floor.
(See Fig .3)
Remove the floor fixtures and save
them for the mounting.
(See section Mounting of floor
fixtures.)
Move the Century out from the wall.
Preparations
CAUTION!
During the unpacking of this product,
always make sure that ALL staples are
fully removed when removing the outer
cover. This will prevent damage to the
laminate surface.
1
2
3
BeforeliftingCenturyoutfrom
the pallet
Prior to moving the bath into its final
position, check:
• Water service, stop and mixing
valves, lines, spout etc.
• House drain system ready for
hook-up.
• Provision is made for electrical
service to interior junction box.

6
• First check that the electrical supply
correspondswith theinformation on
the label on the backside of the
panel.
• The unit must be permanently
installed.
• The unit must be continuously
powered and connected to separate
fuse with ground fault circuit
interrupter.
• Main switch must be placed close to
the tub and visable for the user.
• Power supply is activated via the
main switch.
• Fuses according to EN60898.
The unit shall be electrically connected
with the following equipment
(not included in delivery):
• Separate fuse.
• Ground fault circuit
interrupter (10mA)
• Safety switch, according to
regulations and local codes.
• Mains cable
(3x16AWG / 3x1.5 mm2)
All electrical installations must comply
with the US National Electrical Code and
the Canadian Electrical Code respectively.
Connect the wires as described below:
EUROPE
Neutral to the blue wire (N)
Phase to the brown wire (L)
Protective earth to
the yellow/green wire (PE)
USA
Neutral to the white wire (NEUT)
Phase to the black wire (HOT)
Protective earth to
the green wire (GND)
DIP Switches for Autofill
The model is equipped with dip switches,
which are located on the PCB and can be
adjusted as in the tables below:
PCB located on the backside of the panel
front.
*theamountofsecondsofextendedfillingtime
from that the 0-level is fulfilled.
DIP Switch for Cleaning
DIP Switch Hydro/No Hydro
Electrical installation
Model Market Voltage Frequency Fuse
(slowblow) Power consumption
Stillbath Europe North America
Japan
230/240V single phase AC
120V single phase AC
100V single phase AC
50Hz
60Hz
50/60 Hz
6A
10 A
10 A max.700 VA
Hydrosound Europe North America
Japan
230/240V single phase AC
120V single phase AC
100V single phase AC
50Hz
60Hz
50/60 Hz
6 A
10 A
10 A max. 700 VA
Hydromassage Europe North America
Japan
230/240V single phase AC
120V single phase AC
100V single phase AC
50Hz
60Hz
50/60 Hz
6 A
10 A
10 A max. 700 VA
1OFF Notused
2
2ON OFF Auto-fill activated Auto-fill deactivated
3
4OFF OFF 0 seconds*
3
4ON OFF 60 seconds*
3
4OFF ON 120 seconds*
3
4ON ON 180 seconds*
6
5
5
ON
ON
OFF
Automatic hydroclean
Time set for effect of
cleaning
10 minutes
2 minutes
6 OFF No hydroclean
7 ON Hydrosound/
Hydromassage
7 OFF Stillbath

7

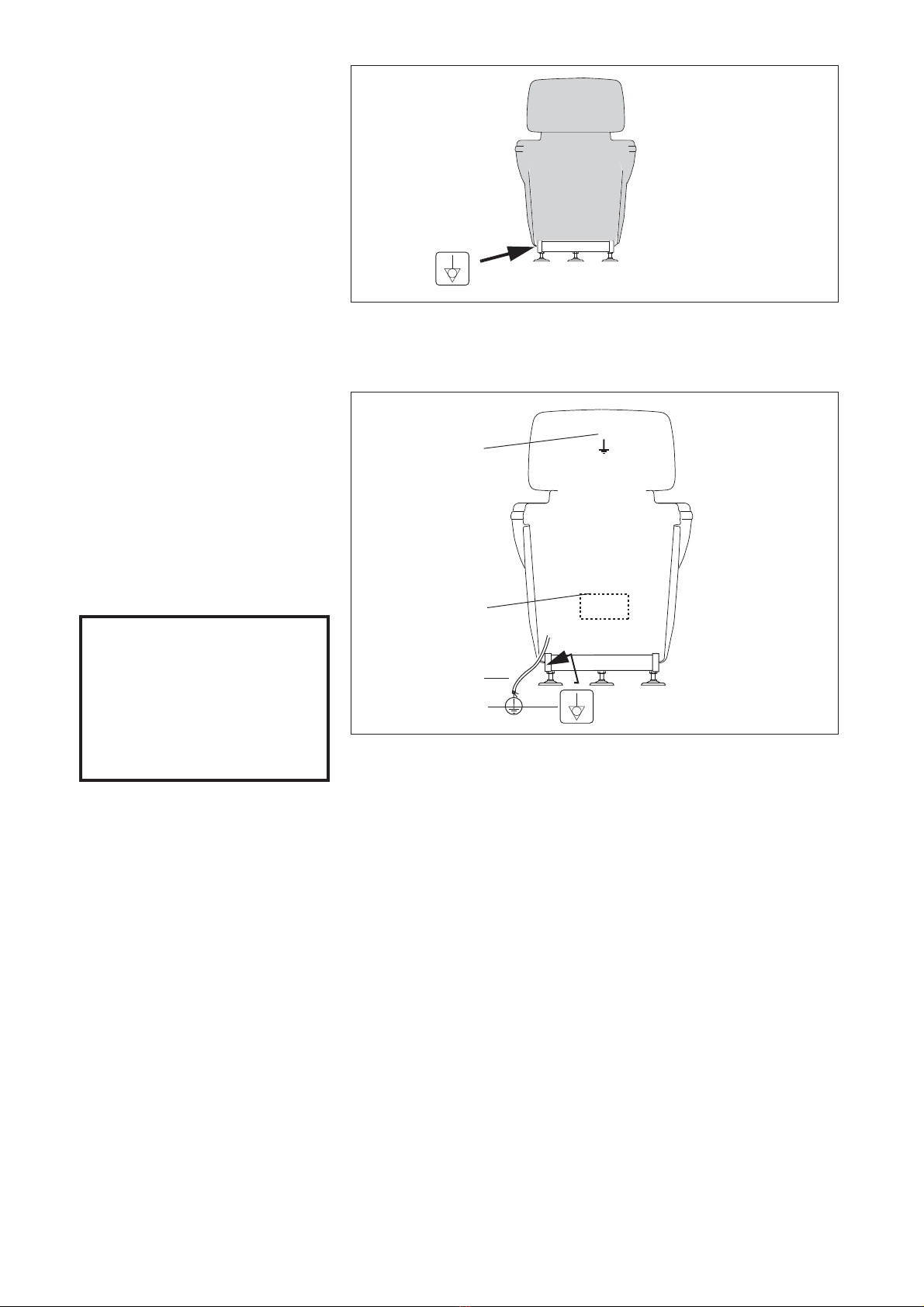

Equipotential bonding
The unit must be connected from the
bonding point labeled on the unit to the
equipotential bonding point of the room.
(See Fig. 1)
Earth ground continuity test
Have a certified electrician perform
earth ground continuity tests between all
locations indicated: (See Fig. 2)
1 Earth bonding lug
2 All metal surfaces
3 Transducer earth grounding stud
(hydrosound only)
4 GND, yellow/green wire
•Donot use an audible tone type con-
tinuity tester for this test.
The use of a digital type resistance
meter capable of measuring and
displaying resistance of 1 ¾ or less
is suggested.
• A firm contact pressure on both
contact points of the meter probes
is necessary to measure resistance
1 ¾ or less.
1
4
3
2
2
1
WARNING!
A certified electrician must, following
installation, ensure that the earth
ground continuity exists at locations
marked in the figure. The resistance
shall be 0.2 ¾ or less.
Corrective action must be taken if resi-
stance is above 0.2 ¾.

8
Min. drainage capacity 22 gallons/min
(100 l/min).
Century is equipped with a flexible
drainage hose with an inside diameter
of 1 1/4" (32 mm).
Century must be connected to drain in the
floor or in the wall. The possible area for
drain in the floor is marked out on the
picture to the right. (See Fig. 1)
When floor drain is applied, the enclosed
end cap should be attached to the grating
of the floor drain. See illustration.
Airgap if needed.
Connections must be done in accordance
with local regulations. (See Fig. 2)
See section Overall dimensions.
Drain installation
710
28"
510
20"
1
2

9
Max. static pressure:
........................................6 bar (600 kPa, 87 psi)
Min. operating pressure,
Canada, Japan and USA:
........................................1 bar (100 kPa, 15 psi)
Recommended............>3 bar (300kPa, 45psi)
Min. operating pressure,
All other markets:
........................................2 bar (200 kPa, 29 psi)
Recommended............>3 bar (300kPa, 45psi)
Min. flow/supply pipe: 25 l/min.(5.5 gal/
min))...........(50l/minCW+WW)(11gal/min
CW+WW)
Cold water temperature: 2-25°C (36-77°F)
Warm water temperature:
...................................38-80°C (100-175°F)
Recommended.....................>60°C (140°F)
The unit connections are G3/4"
(BSP FEMALE or NP threads).
Shut-off valves by others.
Water installation
Backflow prevention USA/Canada
AXXXXX1-US -Shower and Cleaning -
ASSE1001, B64.1.1
AXXXXX2-US - Shower -ASSE1001, B64.1.1
- Cleaning ASSE1056, B64.1.2
IMPORTANT!
The water hoses must be installed within sight.
They must not be walled up, installed in narrow tunnels or in places where they cannot be reached and inspected.
The water hoses must not be insulated or covered with insulating materials.
IMPORTANT!
Do not install water hoses in tension or torsion.
IMPORTANT!
Do not install water hoses with bending radius (R) less than those quoted in the illustration.
L
R
D
R > 4D
L > 4D
Water supply
The water supply can be arranged
according to two main alternatives:
1 Water connection from floor.
2 Water connection from wall.
See section Overall dimensions.
CAUTION!
The enclosed connection hoses should be
without sharp bends to avoid damage which
could cause leakage.

10
Adjustable thermostat
When the water installation is
completed the thermostat mixer must be
calibrated as follows:
1 Activate the shower (a).
2 Turn the mixer knob to maximum
heat (b).
3 Loosen the two stop screws (c).
4 Adjust the screw (d) until the dis-
play shows the maximum set value,
41°C (106°F).
5 Fasten the two stop screws (c).
6 Check the actual water temperature
with a calibrated thermometer.
7 Turn the knob to cold and then back
to maximum heat to check the set
temperature value.
Calibration of the thermostat mixer
WARNING!
Failure to calibrate the thermostat
mixer may cause scalding.
WARNING!
Make sure that the HOT water supply
has a stable temperature and represents
the maximum hot water temperature
available before the calibration
procedurestarts.Record the temperature
value of the hot water supply in the
commissioning report.
a
b
cde
NOTE!
Do not turn the wheel (e).

11
Assemble the floor fixtures
1 Drill holes in the floor and seal
against water ingress.
Choose fasteners (not included in
delivery) with following
requirements:
Thread size and quality = M10, A4-70
Axial force = 2200N
Shear force = 750N
The fasteners shall protrude from
the floor at a height of 20 - 35 mm.
(See Fig. 1)
2 Move the Century back into place.
3 Prior to mounting of the floor fixtu-
res adjust the feet of the Century.
See section Feet adjustment.
4 Assemble the floor fixtures.
Insert the provided washers and
tighten the nuts to a torque of 44Nm.
Feet adjustment
Adjust the feet so the Century is leveled
and the distance from the floor is at a
suitable height. (See Fig. 2)
Assemble the wall rim
1 Mount the wall rim on places A and
B, close against the wall. (See Fig. 3)
2 Cut three pieces of the rim.
(See Fig. 4)
Final installations
20 - 35 mm
3/4"- 1 3/8"
1
WARNING!
To avoid bodily injury, make sure that
the bath is mounted to the floor with
both fixtures to prevent it from tipping.
max. 70 mm
2 3/4"
2
CAUTION!
The distance between the floor and the
underside of the leg must not exceed 2
3/4" (70 mm).
B
AA
3
1560 mm
61 3/8"
195 mm
7 5/8"
x2
4

12
3 Carefully clean the surfaces where
the rim is to be mounted. Use a non
flocking rug. Let dry. (See Fig. 5)
4 Remove the protective foil on the
shorter pieces. Make sure the rear
edge of the rim is following the
contour of the wall. (See Fig. 6)
4 Procede with the longer piece.
Remove the foil continuously as the
rim is mounted. Put the rear edge of
the rim close against the wall, fol-
lowing its contour. (See Fig. 7)
5 Ensure the rear end of the rim
is placed close against the wall.
(See Fig. 8)
Placing of the liquids
1 Place ArjoClean (Arjo Cen-Kleen IV
in the US and Canada) bottle in its
place behind the door at the left side
of the bathtub. Place ArjoOil (Arjo
Cen-Sol II in the US and Canada)
(alt. ArjoSound) and the ArjoCare
(Arjo Cen-Care II in the US and
Canada) bottles in their place behind
the door at the right side of the
bathtub. Connect the suction units to
them.
(See Fig. 9)
A - ArjoClean (Arjo Cen-Kleen IV):
Arjo Disinfectant Cleanser.
B - ArjoOil (Arjo Cen-Sol II):
Arjo Skin Conditioner & Bath Oil
(alt. ArjoSound).
C - ArjoCare (Arjo Cen-Care II):
Arjo Shampoo & Body Wash
2 Set the Disinfectant/Cleaner
concentration. (See Fig. 10)
See instructions in a separate
document, the Operating and
Product Care Instructions.
5
6
NOTE!
Avoid stretching the rim during
monting.
7
8
9
A
9
CB
10

13
Space Requirements
Measurements, Volume and Weight
Tub + Panel length 1610 mm (63 3/8")
Tub length (excluding control panel) 1350 mm (53 1/8")
Total width 850 mm (33 1/2 ")
Total weight 90 kg (198 lbs)
Water consumption (filled, with resident) 200 l (53 gallons)
Filling time, 300 kPa dynamic pressure, WW 45ºC, CW
8ºC (WW 113ºF, CW 46 ºF)(, ) 4 minutes 15 sec
Emptying time, drainage outlet at ground level 3 minutes
Airborn noise (DIN45635-19-01-KL2) max 70 dB(A)
Technical specifications
1100 mm / 44"
2645 mm / 104"
850 mm / 33 1/2"
1100 mm / 43" 1610 mm / 63 3/8 "
2710 mm / 107"
800 mm / 32"
745 mm / 29 1/4"
300 mm / 12"

14
2 "
8" Floor sink with 3" drain pipe
and "P"trap (by others)
50
*Possible area for location of floor drain
Wallmounted drainage
1270-1305
50" - 51 3/8"
825- 860
32 2/4" - 33 7/8"
455-490
17
7/8 " - 19 1/4"
850
33
1/2 "
743
29
1/4 "
485
19"
300
11 3/4"
Max.500
Max 19 5/8"
510
20"
1610
63 3/8"
960
38"
180
7"
710
28"
50
2"
300
11
3/4 "
For other solutions
concerning drainage and
water inlet, please
contact Arjo.
Equapotential bonding
Mains supply 120V, 60Hz
Floor inclination ≤ 3°
Max. 83 mm, 3 1/4" (feet in the lowest position)
Max.118 mm, 4 5/8" (feet in the highest position, 70 mm, 2 3/4")
60
2 3/8 "
Ø 4
3/8 "
270-480
10 5/8 "-18 7/8 "
CW
HW
Ø 110
WATER SUPPLY - WALL
*24"o.c.
*635
210-245
8
1/4 " - 9 5/8"
Mains supply 230V, 50Hz
Overall dimensions

www.arjohuntleigh.com
AUSTRALIA
ArjoHuntleigh Pty Ltd
78, Forsyth Street
O’Connor
AU-6163 Western Australia
Tel: [phone]
Free: [phone]
Fax: + 61 89337 9077
BELGIQUE / BELGIË
ArjoHuntleigh NV/SA
Evenbroekveld 16
BE-9420 ERPE-MERE
Tél/Tel: [phone]
Fax: [phone]
E-mail: [email protected]
BRASIL
Maquet do Brasil
Equipamentos Médicos Ltda
Rua Tenente Alberto Spicciati, 200
Barra Funda, 01140-130
SÃO PAULO, SP - BRASIL
Fone: [phone]
Fax: [phone]
CANADA
ArjoHuntleigh
90 Matheson Boulevard West
Suite 300
CA-MISSISSAUGA, ON, L5R 3R3
Tel/Tél: [phone]
Free: [phone] Institutional
Free: [phone] Home Care
Fax: [phone]
E-mail: [email protected]
ýESKÁ REPUBLIKA
ArjoHuntleigh s.r.o.
Hlinky 118
CZ-603 00 BRNO
Tel: [phone]
Fax: [phone]
DANMARK
ArjoHuntleigh A/S
Vassingerødvej 52
DK-3540 LYNGE
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
DEUTSCHLAND
ArjoHuntleigh GmbH
Peter-Sander-Strasse 10
DE-55252 MAINZ-KASTEL
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
ESPAÑA
ArjoHuntleigh Ibérica S.L.
Ctra. de Rubí, 88 1ª planta - A1
08173 Sant Cugat del Vallés
ES- BARCELONA 08173
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
FRANCE
ArjoHuntleigh SAS
2 Avenue Alcide de Gasperi
CS 70133
FR-59436 RONCQ CEDEX
Tél: [phone]
Fax: [phone]
E-mail: [email protected]
HONG KONG
Getinge Group Hong Kong Ltd
1510-17, 15/F, Tower 2
Kowloon Commerce Centre
51 Kwai Cheong Road
Kwai Chung
HONG KONG
Tel: [phone]
Fax: [phone]
IITALIA
ArjoHuntleigh S.p.A.
Via Giacomo Peroni 400-402
IT-00131 ROMA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
MIDDLE EAST
Getinge Group Middle East
Office G005 - Nucleotide Complex,
Dubai Biotechnology & Research Park,
P.O.Box 214742, Dubai,
United Arab Emirates
Tel: [phone]
E-mail: [email protected]
NEDERLAND
ArjoHuntleigh Nederland BV
Biezenwei 21
4004 MB TIEL
Postbus 6116
4000 HC TIEL
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
NEW ZEALAND
ArjoHuntleigh Ltd
41 Vestey Drive
Mount Wellington
NZ-AUCKLAND 1060
Tel: [phone]
Free Call: 0800 000 151
Fax: [phone]
E-mail: [email protected]
NORGE
ArjoHuntleigh Norway AS
Olaf Helsets vei 5
N-0694 OSLO
Tel: [phone]
Faks: [phone]
E-mail: [e-mail]
ÖSTERREICH
ArjoHuntleigh GmbH
Dörrstrasse 85
AT-6020 INNSBRUCK
Tel: [phone]
Fax: [phone]
POLSKA
ArjoHuntleigh Polska Sp. z o.o.
ul. Ks Piotra Wawrzyniaka 2
PL-62-052 KOMORNIKI (PoznaĔ)
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
PORTUGAL
ArjoHuntleigh em Portugal
MAQUET Portugal, Lda. (Distribudor Exclusivo)
Rua Poeta Bocage n.º 2 - 2G
PT-1600-233 Lisboa
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
SUISSE / SCHWEIZ
ArjoHuntleigh AG
Fabrikstrasse 8
Postfach
CH-4614 HÄGENDORF
Tél/Tel: [phone]
Fax: [phone]
SUOMI
ArjoScandinavia Ab / ArjoHuntleigh Finland
Niittykatu 8
FI- 02200 ESPOO
Puh: [phone]
E-mail: [email protected]
SVERIGE
ARJO Scandinavia AB
Hans Michelsensgatan 10
SE-211 20 MALMÖ
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
UNITED KINGDOM
ArjoHuntleigh UK
ArjoHuntleigh House
Houghton Hall Park
Houghton Regis
UK-DUNSTABLE LU5 5XF
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
USA
ArjoHuntleigh Inc.
2349 W Lake Street Suite 250
US-Addison, IL 60101
Tel: [phone]
Free: [phone] Institutional
Free: [phone] Home Care
Fax: [phone]
E-mail: [email protected]
Address page - REV 18: 09/2016

16
Getinge Group is a leading global provider of products and systems that contribute to quality
enhancement and cost ef¿ciency within healthcare and life sciences. We operate under
the three brands of ArjoHuntleigh, Getinge and Maquet. Getinge provides solutions for
infection control within healthcare and contamination prevention within life sciences. Maquet
specializes in solutions, therapies and products for surgical interventions, interventional
cardiology and intensive care.
ArjoHuntleigh focuses on patient handling and hygiene, disinfection, DVT prevention,
medical beds, therapeutic surfaces and diagnostics.
ArjoHuntleigh AB
Hans Michelsensgatan 10
211 20 Malmö, Sweden
www.arjohuntleigh.com
