Armacost Lighting ProLine 513020 User manual

Introduction
This LED controller is designed to drive constant
voltage CCT Tunable White LED products such as
LED tape light or LED fixtures in a voltage range
of 5–24 volts DC. The receiver works with the RF
wireless remote control, which allows the user to
adjust LED brightness and select color temperature.
Receiver & wiring
24mm
72mm
87mm
123
1. Input – from power supply
The controller input and output voltage range is
5–24 volts DC. Make sure the LED lighting voltage is
within this range and below the rated wattage of the
power supply. Connect input wires from the power
supply to the controller as indicated by the polarity
markings on the controller (+ to + and – to –).
2. Output – to LED lighting
Observe polarity indicated on the controller when
connecting to LED lighting (+ to + and – to –).
Make sure the voltage of the LED lighting is the
same as the power supply and the maximum
load doesn’t exceed that of the controller.
CAUTION: Shorting of output cables could cause
permanent damage to controller. Make sure
cables are well insulated from each other.
3. Status indicator
This light shows the working status of the
controller. It shows different events as following:
Steady green: Normal operation
Single green blink: Command received
Long single green blink: Mode or color cycle edge
Long single yellow blink: Reach brightness limit
Red flash: Overload protection
Yellow flash: Overheat protection
Green flash 3 times: New remote controller paired
Wiring diagram
Connect the power supply to the controller input
and the controller output to the LED lighting.
The output voltage of the power supply must
be the same as the voltage of the LED lighting.
Make sure all power cables are conected
securely and insulated before powering on.
Remote
Control
LED
Controller
5–24V DC
Output
Power Supply
5–24V DC 5–24V DC
100/230V
AC Power
LED
Lighting
1
2 3
Wireless Remote
Built-in Safety Protection
Wide Voltage Range
High Power
Compact Size
ProLine CCT Tunable White
LED Controller
With RF Remote Control
Model # 513020

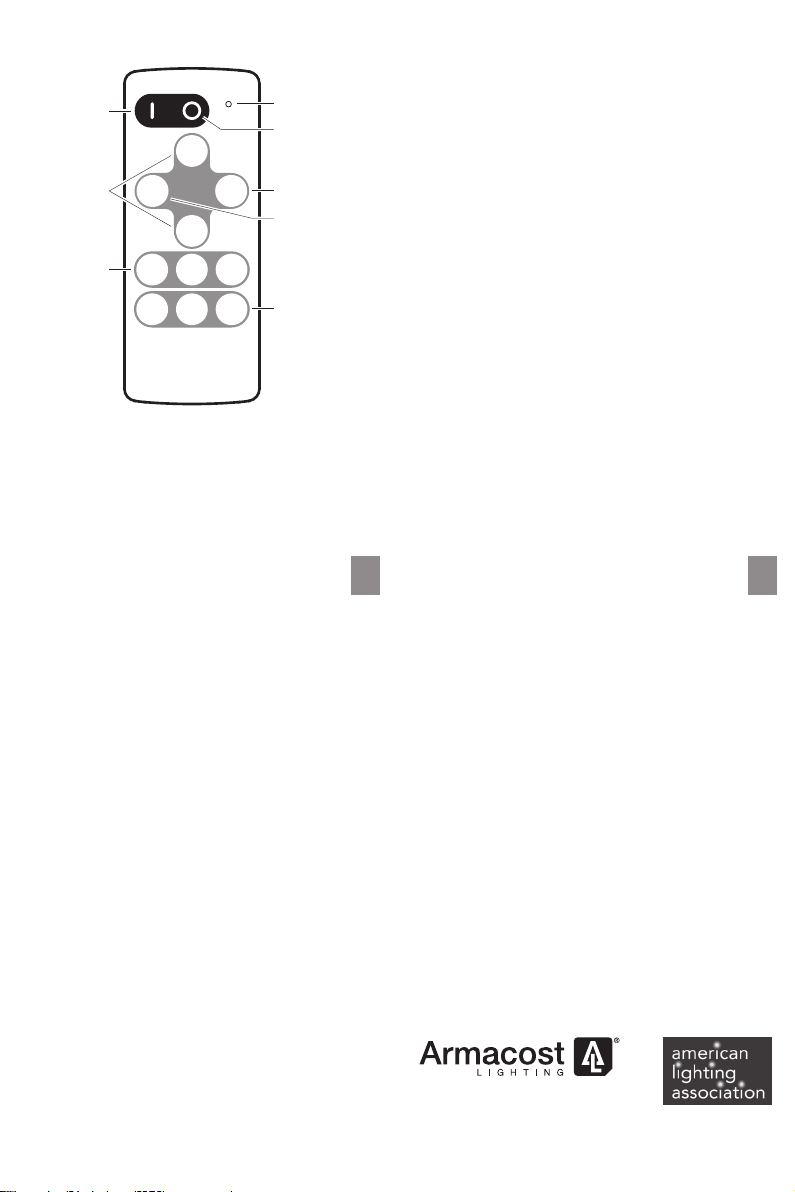

Remote Control
10% 100%50%
WARM COLD NEUTRAL
BRIGHT
–
C/T
+
C/T
–
BRIGHT
+Incrementally
adjust the color
temperature
of the lighting
up or down
Quick access
to preset color
temperature
levels
Quick access
to preset
light levels
Turn lights ON
Turn lights OFF
Incrementally
adjust the
brightness
of the lighting
up or down
Remote indicator
On/Off
The controller will remember the controller
state when powered off, and will return
to that state when powered back on.
Brightness adjustment
Press the “+” and “–” keys to adjust brightness
or press the 10%, 50%, and 100% keys to
jump to the specific brightness level.
Remote indicator
When pressing keys, the indicator blinks if the remote
is working properly. If the indicator flashes slowly
when pressing keys, battery power is low and it needs
to be replaced. Replace with a CR2032 battery.
Remote control operation
Using the remote control
Pull out plastic battery insulation tab before use.
The RF wireless remote will work through non-metal
walls and doors. Do not install in a metal enclosure.
Pairing with a new remote control
The remote control and receiver are already paired,
but up to 5 remotes can be paired to one receiver.
To pair a new remote:
1. Disconnect power to receiver
and wait five seconds.
2. Reconnect power.
3. Within ten seconds, press the “C/T –” and “C/T +”
keys simultaneously for about three seconds
until the remote indicator flashes quickly.
De-pairing remotes
To de-pair a remote control, pair the remote you
wish to continue using with the controller and
any other paired remotes will be de-paired.
Safety protection
The controller has built-in protection for incorrect
wiring, output short circuiting, overloading and
overheating. If the any of these conditions occurs,
the receiver will automatically shut down until
the issue is corrected. If this occurs, check
to make sure the connected LED lighting is
rated for constant voltage current and is in the
controller’s voltage output range. Also, make sure
all cables are securely connected and insulated,
and that the receiver is well ventilated.
Specifications
Output mode..........................PWM constant voltage
Working voltage .......................................5–24V DC
Brightness grade....................................... 11 levels
PWM frequency ............................................. 1KHz
PWM physical grade................................. 256 steps
Overload protection............................................Yes
Overheat protection............................................Yes
Remote frequency.................................433.92MHz
Remote control range ....... >49 ft./15m in open areas
Controller dimensions .......... 3.43 X 0.95 X 0.59 in./
................................................... 87 X 24 X 15mm
Remote dimensions ........... 3.41 X 1.42 X 0.329 in./
............................................... 86.5 X 36 X 7.5mm
4 5
