ARRI Tally System Gen. 2 User manual

Tally System Gen. 2
O P E R A T I N G M AN U A L
01.01.2023

Disclaimer 2
1 Disclaimer
Before using the products, be sure to read and understood all respective instructions.
The products are available for commercial customers only.
For product specification changes since this operating manual was published, refer to the latest
publications of ARRI data sheets or data books, etc., for the most up-to-date specifications. Not all
products and/or types are available in every country. Please check with an ARRI sales representative
for availability and additional information.
ARRI assumes no responsibility for any errors that may appear in this document. The information is
subject to change without notice.
While ARRI endeavors to enhance the quality, reliability and safety of their products, customers agree
and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize
risk of damage to property or injury (including death) to persons arising from defects in the products,
customers must incorporate sufficient safety measures in their work with the system and have to heed
the stated canonic use.
ARRI or its subsidiaries expressly exclude any liability, warranty, demand or other obligation for any
claim, representation, or cause, or action, or whatsoever, express or implied, whether in contract or tort,
including negligence, or incorporated in terms and conditions, whether by statue, law or otherwise. In
no event shall ARRI or its subsidiaries be liable for or have a remedy for recovery of any special, direct,
indirect, incidental, or consequential damages, including, but not limited to lost profits, lost savings, lost
revenues or economic loss of any kind or for any claim by third party, downtime, good will, damage to or
replacement of equipment or property, any cost or recovering of any material or goods associated with
the assembly or use of our products, or any other damages or injury of the persons and so on or under
any other legal theory.
Neither ARRI nor its subsidiaries assume any liability for infringement of patents, copyrights or other
intellectual property rights of third parties by or arising from the use of ARRI products or any other
liability arising from the use of such products. No license, express, implied or otherwise, is granted
under any patents, copyrights or other intellectual property right of ARRI or others.
ARRI or its subsidiaries do not assume any responsibility for incurred losses due to improper handling
or configuration of the system.
In the case one or all of the foregoing clauses are not allowed by applicable law, the fullest extent
permissible clauses by applicable law are validated.

Imprint 3
2 Imprint
© 2023 Arnold & Richter Cine Technik GmbH & Co. Betriebs KG. All rights reserved.
The system contains proprietary information of Arnold & Richter Cine Technik GmbH & Co. Betriebs
KG; it is provided under a license agreement containing restrictions on use and disclosure and
protected by copyright law. Reverse engineering of the software is prohibited.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form
or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written
permission of Arnold & Richter Cine Technik GmbH & Co. Betriebs KG.
Due to continued product development the information in this document may change without notice.
The information and intellectual property contained herein is confidential between ARRI and the client
and remains the exclusive property of ARRI. If you find any problems in the documentation, please
report them to us in writing. ARRI does not warrant that this document is flawless.
ARRI, ARTEMIS 1, ARTEMIS 2, TRINITY 1, TRINITY 2, SRH3 and SRH360 are trademarks or
registered trademarks of Arnold & Richter Cine Technik GmbH & Co. Betriebs KG. All other brands or
products mentioned are trademarks or registered trademarks of their respective holders and should be
treated as such.
For Further Assistance
Arnold & Richter Cine Technik GmbH & Co. Betriebs KG
Herbert-Beyer-Strasse 10
D-80807 Munich
Germany
E-mail: [email protected]
www.arri.com/en/technical-service

Content 4
3 Content
1 Disclaimer.......................................................................................................................... 2
2 Imprint................................................................................................................................ 3
3 Content...............................................................................................................................4
4 About this Document....................................................................................................... 5
4.1 Intended Use.................................................................................................................... 6
5 About this product........................................................................................................... 7
5.1 Introduction........................................................................................................................7
5.2 Dimensional Drawing........................................................................................................8
5.3 Environmental Conditions.................................................................................................8
5.4 Scope of Delivery............................................................................................................. 9
5.5 Declaration of Conformity...............................................................................................11
6 Safety Instructions..........................................................................................................13
6.1 Safety Conventions and Product Labels........................................................................ 13
6.2 Safety Instructions.......................................................................................................... 14
7 Installation and Operation............................................................................................. 15
7.1 Installing the Tally Sensor.............................................................................................. 15
7.2 Mounting the Tally Host Module.....................................................................................16
7.3 Mounting the Tally Client module................................................................................... 18
7.4 Wiring ARTEMIS.............................................................................................................19
7.5 Wiring TRINITY 2........................................................................................................... 21
7.6 Wiring TRINITY Live / TRINITY Gen. 1......................................................................... 22
7.7 Wiring CCP-Live............................................................................................................. 25
7.8 Wiring Camera................................................................................................................ 25
7.9 Pinout.............................................................................................................................. 27
8 Cleaning and Repair.......................................................................................................28
8.1 Cleaning Instructions...................................................................................................... 28
8.2 Repair..............................................................................................................................28
9 Transportation and Storage...........................................................................................29
10 Disposal........................................................................................................................... 30
11 ARRI Service Contacts...................................................................................................31

About this Document 5
4 About this Document
This operating manual is aimed at everyone involved in using the system and provides directions
on how to operate it safely and as intended. To ensure safe and correct use, all users must read the
operating manual before using the system for the first time.
This operating manual is an essential part of this product and must be easily accesible and in close
proximity to the equipment so that users can use it as a reference anytime.
Keep the operating manual, the user manual and all other operating and assembly instructions
belonging to the system in a safe place for future reference and possible subsequent owners.
Additional Information
For useful information in addition to this operating manual please have a look at the ARRI Learn & Help
section on the ARRI website.
Strengthen Your Knowledge and Get Trained
The ARRI Academy courses provide unrivalled insights into the full possibilities of working with ARRI
camera systems, lenses, lights and accessories.
Our Advanced Service Training courses are designed to transfer detailed knowledge about how to
service and repair all types of ARRI products and give you permanent access to detailed Service
instructions, special tools and spare-parts. To learn more, please visit ARRI Academy or contact
[email protected].
For further details, refer to the ARRI website at
https://www.arri.com/tally-gen2
For Tech Tips, refer to the ARRI website at
https://youtube.com/user/arrichannel
Document Revision History
Document ID: D45 1000 7338
Version Release Order # Date Description
1.0 K1196 2022-12-22 Initial Release

About this Document 6
4.1 Intended Use
ATTENTION
All versions of the product are intended exclusively for professional use and may only be used
by skilled personnel. Every user should read and understand the operating instructions and the
user manual. Use the product only for the purpose described in this document. Always follow the
instructions and system requirements for all equipment involved.
Only use the Tally System Gen. 2 as described in the Operation Manual and User Manual. Any other
use is considered improper and can result in property damage. ARRI assumes no liability for damages
or changes that are caused by improper use.
The entire product may not be changed or converted.

About this product 7
5 About this product
5.1 Introduction
What is it?
In the production of TV studios and OB trucks, the Tally system is an auxiliary system when the video
transmission system is working. It prompts the cameraman, host, director, producer and technician
through the color display of the indicator light or characters.
The red Tally light is used to indicate which camera signal is being switched out.
It helps the broadcaster to face the camera and ensure the correct line of sight.
It also reminds the cameraman that the camera signal has been cut out by the guide.
No matter it is in the studio or the OB vehicle system, the tally system is a very important component.
How does it work?
The ARRI Tally System Gen. 2 contains a so-called Host module, which normally mounted onto the
15mm rods and is thus located under the lens, and the so-called Client module, which is mounted on
top of the operator's monitor.
A Tally trigger signal is required to switch the red LED in the Tally Host module ON and OFF.
By default, this trigger signal is generated by picking up the onboard tally LED on the camera using
a photocell. Alternatively, the Tally trigger signal can be tapped directly at the camera using a special
cable (3rd party).
After the Tally Host module has been triggered, i.e. the red LED starts to light up, another trigger signal
is sent through the tally-out socket of the Tally Host module further through the rig to the tally Client
module, which then simultaneously lights up the red LED in the Tally Client module turns on.
What problems does it solve?
Compared to the first generation, the Tally Host module now communicates digitally with the Tally Client
module.
In order to achieve a better perception of the Tally Host module, it has been designed to be extremely
bright, while the Tally Client module has a slightly softer display so as not to blind or distract the
operator.

About this product 8

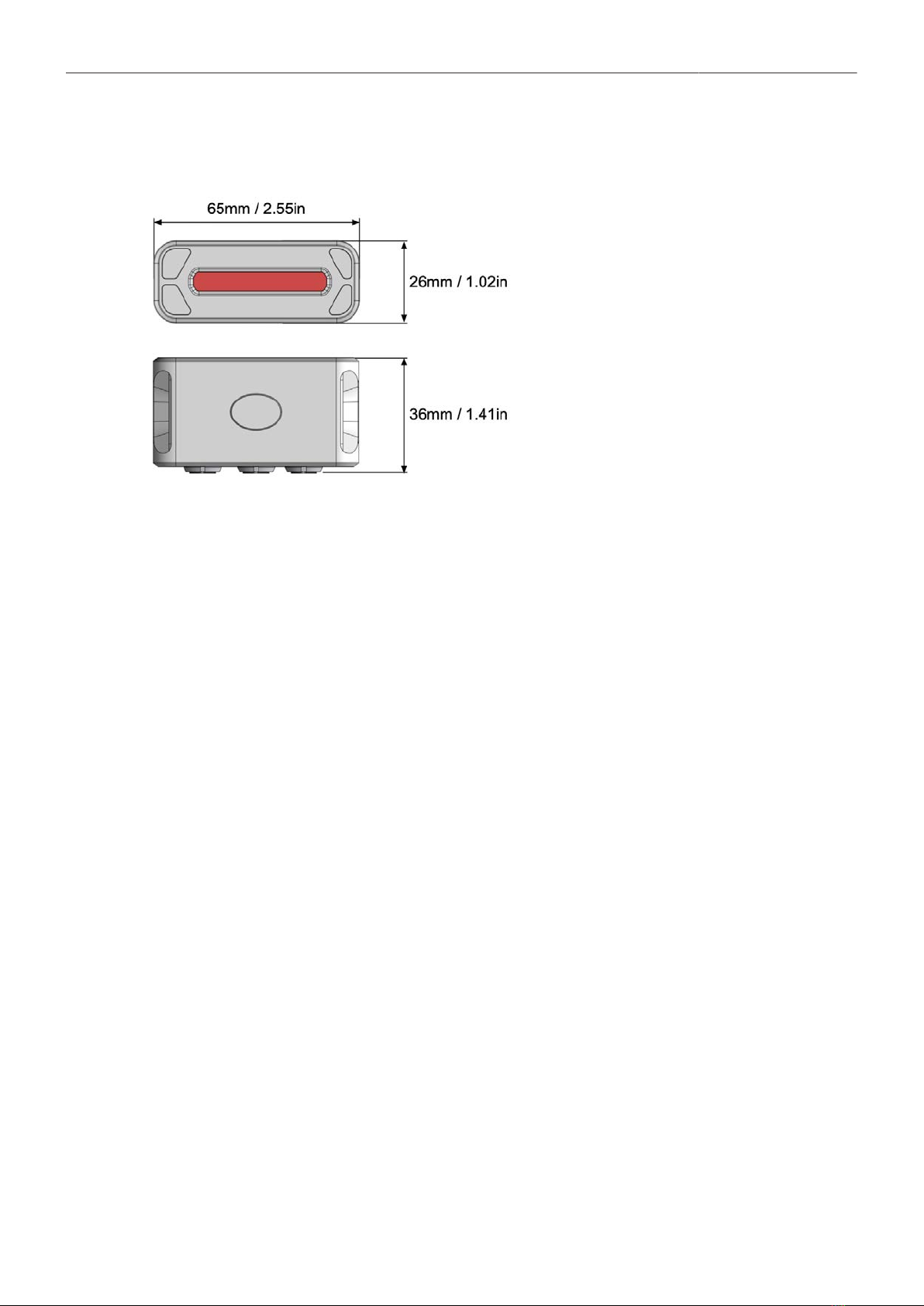

5.2 Dimensional Drawing
Weight
Host Module 76 g / 0.17 lb
Client Module 81 g / 0.18 lb
5.3 Environmental Conditions
The Tally System Gen. 2 should only be used and stored under certain environmental conditions.
Check the following conditions before commissioning and operation:
Electrical Requirements Input voltage: 28 V DC
Operating Temperature -20° C to +45° C / -4° F to +113° F
Storage Temperature -30° C to +70° C / -22° F to +158° F
Humidity 95% relative humidity max, non condensing

About this product 9
5.4 Scope of Delivery
ATTENTION
The packaging consists of recyclable materials. For the sake of the environment, dispose the
packaging material at a suitable disposal site only.
Always store, ship and dispose according to local regulations. ARRI is not liable for consequences
from inadequate storage, shipment or disposal.
On delivery, please check if package and content are intact. Never accept a damaged delivery.
ARTEMIS 2
Tally Gen.2 Set for artemis Gen.2, 3pin Fischer K0.0044680
Tally System Gen.2 / Host K2.0044490
Tally System Gen.2 / Client K2.0044491
Tally Sensor Cable, Gen. 1 & 2 K2.0010482
Tally Gen. 2 Pwr, TST-2, Fischer 3pin to Lemo 0S 3pin, 0,35m / 13.7in K2.0044143
Tally Gen. 2 Pwr, TST-2, Fischer 3pin to Lemo 0S 3pin, 0,35m / 13.7in K2.0044143
ARTEMIS Gen. 1
Tally Set for artemis Gen.1, 3pin Lemo K0.0044685
Tally System Gen.2 / Host K2.0044490
Tally System Gen.2 / Client K2.0044491
Tally Sensor Cable, Gen. 1 & 2 K2.0010482
Tally Gen. 2 Pwr, TST-1, Lemo 0S 3pin to 0S 3pin, 0,35m / 13.7in K2.0044142
Tally Gen. 2 Pwr, TST-1, Lemo 0S 3pin to 0S 3pin, 0,35m / 13.7in K2.0044142

About this product 10
TRINITY 2
Tally Set for TRINITY Gen.2, 3pin Fischer K0.0044678
Tally System Gen.2 / Host K2.0044490
Tally System Gen.2 / Client K2.0044491
Tally Sensor Cable, Gen. 1 & 2 K2.0010482
Tally Gen. 2 Pwr, TST-2, Fischer 3pin to Lemo 0S 3pin, 0,35m / 13.7in K2.0044143
Tally Gen. 2 Pwr, TRH-2, Fischer 3pin to Lemo 0S 3pin, 0,75m / 29.5in K2.0044146
Tally Gen. 2 Mon Pwr, Lemo 0B 2pin to 0B 5pin, 0,10m / 3.9in K2.0044374
Tally Gen. 2 Mon Pwr, Lemo 0B 2pin to 0B 2pin, 0,10m / 3.9in K2.0044147
TRINITY Gen. 1
Tally Set for TRINITY Gen.1, 3pin Lemo K0.0044682
Tally System Gen.2 / Host K2.0044490
Tally System Gen.2 / Client K2.0044491
Tally Sensor Cable, Gen. 1 & 2 K2.0010482
Tally Gen. 2 Pwr, TST-1, Lemo 0S 3pin to 0S 3pin, 0,35m / 13.7in K2.0044142
Tally Gen. 2 Mon Pwr, Analog Joystick Lemo 0B 5pin to 0S 3pin, 0,25m /
9.8in
K2.0044260
Tally Gen. 2 Mon Pwr, Lemo 0B 2pin to 0B 5pin, 0,10m / 3.9in K2.0044374
Tally Gen. 2 Mon Pwr, Lemo 0B 2pin to 0B 2pin, 0,10m / 3.9in K2.0044147

About this product 11
5.5 Declaration of Conformity
Approval Information
The TALLY System Gen. 2 is approved for use in countries where the CE or FCC declaration is
accepted. That contains the European Union, Canada, Japan and the USA. The import and use in
other countries may be subject to legal, official or regulatory requirements and regulations. It is the
importer's or the user's responsibility, prior to importation or use, to inform themselves of the applicable
legal, regulatory and administrative requirements and regulations and to ensure compliance with these
requirements and regulations. This includes the applying for and obtaining of all necessary approvals or
registrations.
As far as reasonable and legally possible, ARRI will support requests in relation to such applications by
providing technical documents or declarations. As an importer or user, you confirm that you are familiar
and comply with the legal, regulatory, and administrative requirements and regulations that apply in
the countries to which you ship or use the products. You further confirm that you will arrange for any
necessary registrations, enrollments, or authorizations that are required in such countries.
You release ARRI from all obligations resulting from any legislative, regulatory, or administrative
requirements regarding import or use of the products, except in countries where ARRI has obtained
a registration or certification. You agree to indemnify, defend, and hold ARRI harmless from any and
all claims, damages, losses, liabilities, costs, and expenses (including reasonable fees of attorneys
and other professionals) that may arise out of a demand on ARRI in connection with your obligations
mentioned above.
EU Declaration of Conformity
Brand Name:
Product Description:
ARRI
TALLY System Gen. 2
The designated products conform to the specifications of the following European directives:
Directive 2014/30/EU of the European Parliament and the Council of 26 February 2014 on the
harmonization of the laws of the Member States relating to electromagnetic compatibility
Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on the restriction
of the use of certain hazardous substances in electrical and electronic equipment and the
Commission Delegated Directive (EU) 2015/863 of March 31, 2015.
The compliance with the requirements of the European Directives was proved by the application of the
following standards:
EN 55032:2015
EN 55035:2017
IEC 62368-1:2018

About this product 12
FCC Class A Statement
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Changes or modifications to the product not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Industry Canada Compliance Statement
CAN ICES-003(A)/NMB-003(A)

Safety Instructions 13
6 Safety Instructions
This safety information is in addition to the product specific operating instructions in general and must
be strictly observed for safety reasons. Read and understand all safety and operating instructions
before you operate or install the system. Retain all safety and operating instructions for future
reference. Always follow the instructions in this and all documents supplied with the device to avoid
injury to yourself or others and damage to the system or other objects.
Assembly and operation should only be carried out by trained staff familiar with the system. Only
use the tools, materials and procedures recommended in this document. For the correct use of other
equipment, see the manufacturer's instructions.
6.1 Safety Conventions and Product Labels
Structure of Safety and Warning Messages
These instructions use safety instructions, warning symbols and signal words to draw your attention to
different levels of risk:
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided, may result in death or
serious injury.
Always follow the recommended measures to avoid this hazardous situation.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
Always follow the recommended measures to avoid this hazardous situation.
ADVICE
NOTICE signifies a potentially hazardous situation which can result in damage to property.
Always follow the recommended measures to avoid this hazardous situation.
ATTENTION
Not relevant to safety, IMPORTANT provides additional information to clarify or simplify a procedure.
Warning Symbols and Product Labels
General warning sign Warning of electrical voltage
Warning of hot surfaces Warning of hand injuries
Warning of the risk of crushing Warning of obstacles on the ground

Safety Instructions 14
Please read all instructions care-
fully before using the product for
the first time.
Direct Current symbol found on elec-
tronics requiring or producing DC
power
General warning for
electronic accessories
6.2 Safety Instructions
WARNING
Crushing during assembly and disassembly of the system
Risk of injury through crushing.
Installation and operation may only be carried out by trained personnel who are familiar with the
system.
Use appropriate tools when mounting and dismounting the system components.
When connecting and disconnecting the system components and cables, there is a risk of
crushing fingers and hands.
Use only accessories approved by ARRI. The use of accessories not approved by ARRI is at
your own risk. Please observe all relevant safety guidelines.
WARNING
Falling system components
Risk of serious injuries and damage to equipment by system components falling down.
Secure the system components against falling and tipping over. Observe the general and local
safety regulations.
Use only accessories approved by ARRI. The use of accessories not approved by ARRI is at
your own risk. Please observe all relevant safety guidelines.
CAUTION
Connected cable on the floor
Risk of injury caused by tripping, falling or slipping.
Always properly secure cables connected to the camera accessories.
Install cables in a way that they cannot be tripped over.
If necessary, use a cable duct or secure the cables with adhesive tape.
Disconnect the cables from the camera accessories before moving.

Installation and Operation 15
7 Installation and Operation
7.1 Installing the Tally Sensor
Tally Sensor

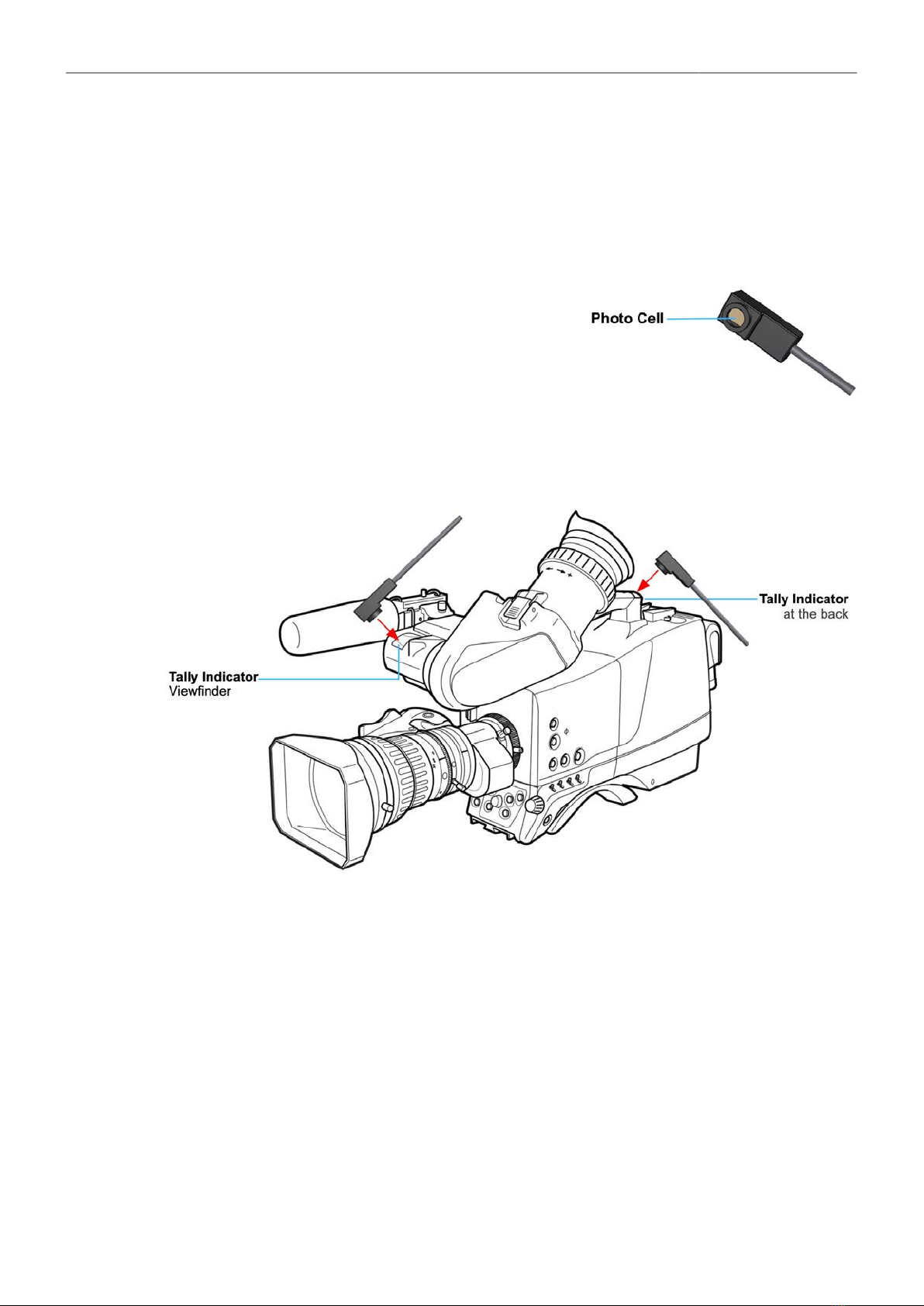

In standard use, the Tally Host module is
triggered by a photocell.
The photocell is located in the top module of the
Tally Sensor Cable (K2.0010482).
Placing the Tally Sensor
Place the tally sensor cable directly onto one of the available Tally LEDs of the
camera or viewfinder.
NOTE
As soon as the tally sensor cable is placed on the tally LED, the photocell module
and the camera tally LED must be covered completely light-tight.
Use so-called black paper tape to cover the photocell module.

Installation and Operation 16
7.2 Mounting the Tally Host Module
SAM Plates

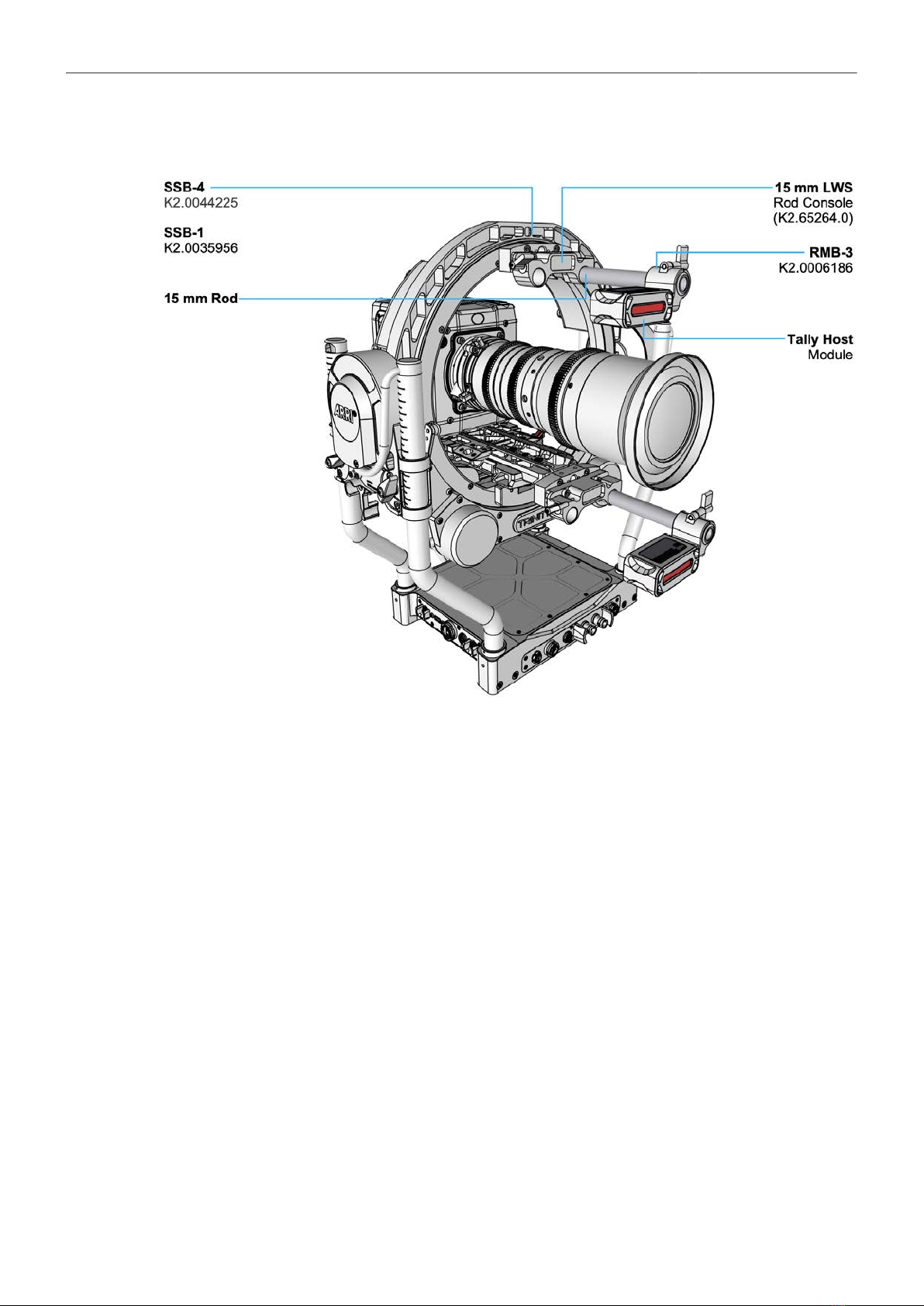

To place the tally host module under the lens on an ARTEMIS 2 or TRINITY
(Gen. 1 & 2) combine the components as shown.
NOTE
With an artemis Gen. 1, the setup is basically identical.
Only another dovetail plate and other lightweight support are used.

Installation and Operation 17
SSB-1 / SSB-4
To place the tally host module over the lens on a TRINITY 2 or TRINITY Gen. 1 combine
the components as shown.
NOTE
For TRINITY 2 you will need SSB-4 (K2.0044225).
For TRINITY Gen. 1 you will need SSB-1 (K2.0035956).

Installation and Operation 18
7.3 Mounting the Tally Client module
ARTEMIS Monitor

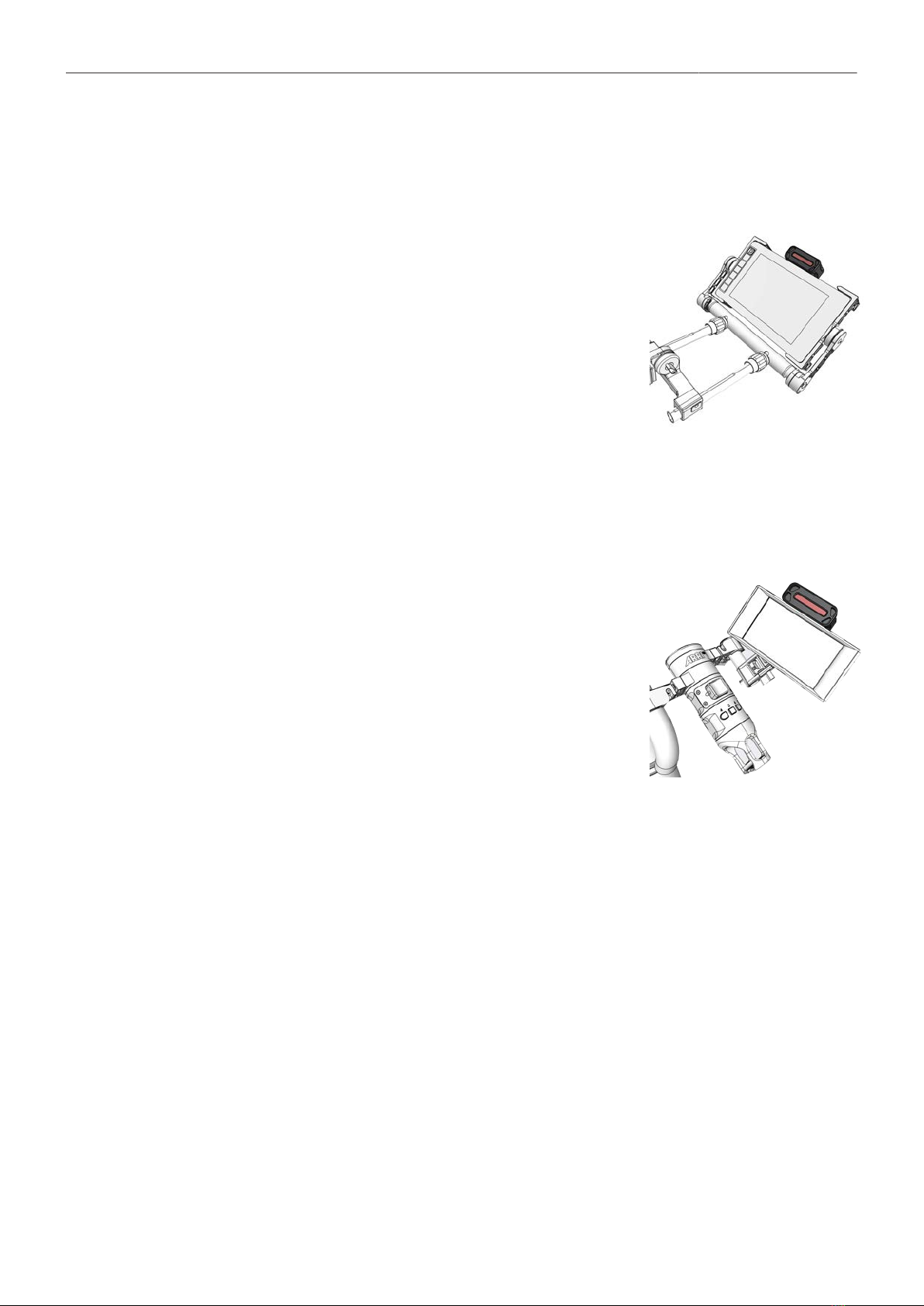

Use 3M™ Dual Lock™ Reclosable Fasteners SJ3550CF to place the
Tally Client module on top of the monitor.
TRINITY Monitor
Use 3M™ Dual Lock™ Reclosable Fasteners SJ3550CF to place the
Tally Client module on top of the monitor.

Installation and Operation 19
7.4 Wiring ARTEMIS

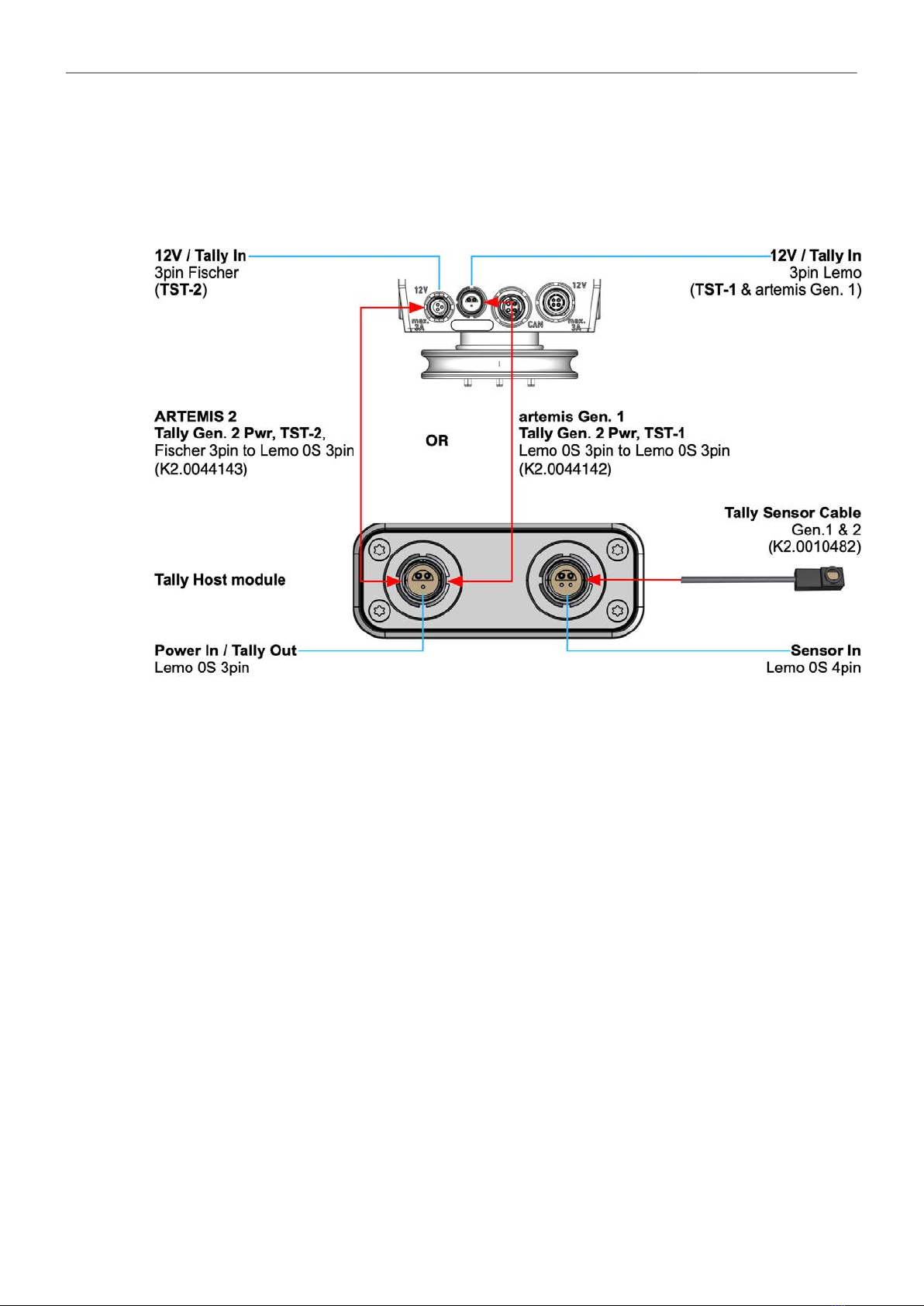

Tally Host Module (ARTEMIS 2 & 1)

Installation and Operation 20

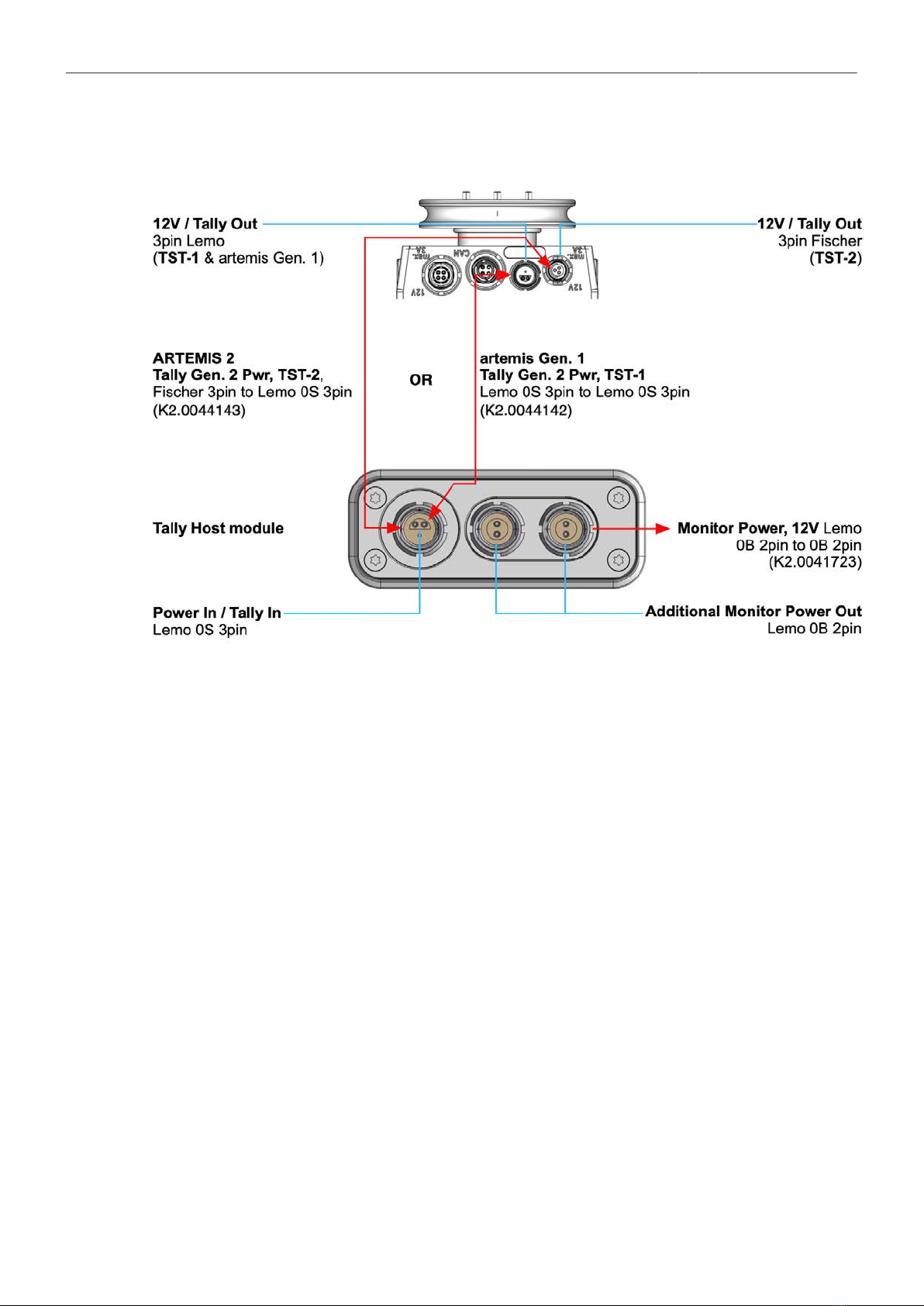

Tally Client Module (ARTEMIS 2 & 1)
