ArtDio IPF-2000L User manual

ARTDio
I
In nt te el ll li ig ge en nc ce e C Co om mm mu un ni ic ca at ti io on n
IPF-2002L User Manual
V1.0
www.artdioinc.com
ArtDio Company, Inc.

IPF-2002LUser Manual
2
Safety Instructions
•Do not attempt to service the product yourself. Any servicing of this product should be
referred to qualified service personal.
•To avoid electric shock, do not put your finger, pin, wire, or any other metal objects into vents
and gaps.
•To avoid accidental fire or electric shock, do not twist power cord or place it under heavy
objects.
•The product should be connected to a power supply of the type described in the operating
instructions or as marked on the product.
•To avoid hazard to children, dispose of the product’s plastic packaging carefully.
•Please read all the instructions before using this product.

IPF-2002LUser Manual
3
Contents
1. PRODUCT SPECIFICATION..................................................................................................5
2. PACKAGE CONTENTS .........................................................................................................6
3. IPF-2002L FUNCTIONS.........................................................................................................7
3.1 Front Panel.........................................................................................................................................................................7
3.2 Rear and Back Panel.......................................................................................................................................................8
3.3 Function Keys...................................................................................................................................................................9
3.4 Status Indicators...............................................................................................................................................................9
4. HARDWARE INSTALLATION:.............................................................................................10
4.1 Connection with a Router ............................................................................................................................................10
4.2 Connection without a Router......................................................................................................................................11
5. CONFIGURE THE IPF-2002L USING KEYPAD ..................................................................12
5.1 Network Settings:...........................................................................................................................................................12
5.1.1 PPPoE Setting...................................................................................................................................................................12
5.1.2 Static IP Setting.................................................................................................................................................................13
5.1.3 DHCP Setting....................................................................................................................................................................13
5.2 Protocol Settings............................................................................................................................................................13
5.3 Audio Settings: ...............................................................................................................................................................14
5.4 Other Settings:................................................................................................................................................................15
5.5 Speed Dial Settings:......................................................................................................................................................15
5.6 Default Settings:.............................................................................................................................................................15
5.7 Save Settings:.................................................................................................................................................................15
5.8 Exit Settings:...................................................................................................................................................................16
6. WEB CONFIGURATION:..................................................................................................17
6.1 Network Settings:...........................................................................................................................................................17
6.2 Protocol Settings: ..........................................................................................................................................................18
6.3 Phone Settings:..............................................................................................................................................................21

IPF-2002LUser Manual
4
6.4 Audio Settings: ...............................................................................................................................................................22
6.5 Other Settings:................................................................................................................................................................23
6.6 Update...............................................................................................................................................................................23
6.7 Phone Book .....................................................................................................................................................................23
7. PASSING THROUGH THE NAT/FIREWALL:......................................................................25
7.1 SIP with STUN.................................................................................................................................................................25
7.2 SIP with Outbound Proxy.............................................................................................................................................25
7.3 Others................................................................................................................................................................................25
8. REGISTRATION MESSAGE................................................................................................27
9. USING IPF-2002L ................................................................................................................27
9.1 Pickup the Phone...........................................................................................................................................................27
9.2 Making Phone Calls.......................................................................................................................................................27
9.3 Check the IPF-2002L Call Records ............................................................................................................................28
9.4 Speed Dial ........................................................................................................................................................................28
9.5 Mute...................................................................................................................................................................................28
9.6 Hold....................................................................................................................................................................................28
10. APPENDIX .........................................................................................................................29
10.1 IPF-2002L Keypad and Symbols Mapping Table:.................................................................................................29
10.2 H.323 Web Configuration Exsample........................................................................................................................29
10.3 MGCP Web Configuration Exsample ......................................................................................................................30
10.4 How to Add a Prefix in Front of the Number.........................................................................................................31
10.5 Some Troubleshooting ...............................................................................................................................................31
10.6 IPF-2002L Keypad Selection Tree............................................................................................................................32
(Using administrator password) .......................................................................................................................................32

IPF-2002LUser Manual
5
1. Product Specification
Voice Interface
Call control protocol SIP(RFC-3261) or H.323 V4 or MGCP
Voice compression G.711 A/µ -Law, G.723.1, G.729A/B/AB
Echo cancellation G.165/G.167 16ms
Voice Process Differential input/Differential output
Delayed (End to End) < 100ms
Flow of the average 14K(G.723.1) ~ 51K(G.729) BPS
Other Support Silence Suppression, VAD, CNG, Acoustic Echo Cancellation, Jitter Buffering, DTMF tone detection,
E.164 Dial plan
LAN Interface
Interfaces Two 10/100 Base-T Auto-Negotiation, MDI/MDI-X
Ethernet Port
Connectors RJ-45 connector
Management Web browser, Keypad on the Phone, LCD screen,
IP address PPPoE, DHCP client, Static IP
Firmware Upgrade FTP/TFTP
Transport Protocol RTP/RTCP, UDP/TCP
General Information 100 ~ 240VAC, 50 ~ 60Hz
Power 5VDC, 1A
Power consumption
5W
Operation Temperature : 0 ~ 40℃(32° ~ 104°F)
Storage Temperature : -30 ~ 65℃(-22° ~ 149°F)
Working environment Relative Humidity : 10 ~ 95% Non Condensing
Certification CE, FCC
Feature Keys
Called, Answered, Miss Call, Phone (Phone book/This
Phone Number), Network-Setting (IP/Subnet Mask/
Gateway/Server IP) Speedy Dial, Call Hold, Redial, Mute,
Volume Up/Down, Hand-free.
100 Entries Phone Book
IVR (English)
Earphone/Microphone Connector
NAT Pass-through (SIP with STUN)
Other information Call Hold, Call Mute, Call Status, Caller ID, Headset,
Networking Status, Volume Adjustment, No
A
nswer Call
Forward, Busy Call Forward, Always Call Forward, Miss
Call, Dialed Call, Answered Call, Last Number Redial,
Speedy Dial, Web configuration, LCD Display, LED
indicators...etc.

IPF-2002LUser Manual
6
2. Package Contents
The IPF-2002L Series VoIP phone package contains:
•One IPF-2002L VoIP phone
•One power adaptor
•One RJ-45 Ethernet cable
•Quick Installation Guide
•Installation CD

IPF-2002LUser Manual
7
3. IPF-2002L Functions
3.1 Front Panel

IPF-2002LUser Manual
8
3.2 Rear and Back Panel

IPF-2002LUser Manual
9
3.3 Function Keys
Keys Function
Called With handset hung, press this button to display the phone number of the last
call placed. In addition, press【#】to dial this number.
Ans. With handset hung, press this button to display the phone number of an
incoming call. In addition, press【#】to dial this number.
Miss With handset hung, press this button to display the missed call number. In
addition, press【#】to dial this number.
Phone With handset hung, press this button to get the phone number of the phone.
Press again will show the data in the phone book. In addition, press【#】to dial
this number.
IP With handset hung, press this button to get local IP address of the phone.
Mask With handset hung, press this button to get the subnet mask of the IPF-2000.
GATE IP With handset hung, press this button to get the gateway IP address in LAN.
SER .IP With handset hung, press this button to get the service server IP address.
Hand Free Press this button to turn on the speaker phone.
SPD / HOLD Speed Dial; Hold
REDIAL / MUTE Redial; Mute
VOL- Decreases the volume of the handset or speaker; turns to the left hand side.
VOL + Increases the volume of the handset or speaker; turns to the right hand side.
ENTER With handset hung, press this button to allow you talk with hands-free; the
“Confirm” button while configuration.
3.4 Status Indicators
Light Description
Fast blinking green light IPF-2002L is receiving a call.
Slow blinking green light IPF-2002L is on phone.
Yellow light blink once Booting IPF-2002L.
Red light blinking IPF-2002L is not connected to the internet, disconnected, or fails to
register to the server.

IPF-2002LUser Manual
10
4. Hardware Installation:
Prepare your Internet information, and then follow the steps below to install your IPF-2002L.
※ For the Cable ISP subscriber:
Cable ISPs usually provide DHCP to its subscribers, and each time they only allow one user
to logon. Therefore, most ISPs require their subscribers report the MAC address of their
internet device to allow them to use the service. If you want to apply another account for
IPF-2002L, just simply report the MAC address of your IPF-2002L to your ISP provider.
If you want to use multiple internet devices in the same time, you need a router to connect to the
ISP, and connect your internet devices to the router. Then replace the original MAC address to
your router’s MAC address.
4.1 Connection with a Router
Plug one end of the RJ-45 cable to one of the LAN port on the IPF-2002L, and plug another end
to one of the LAN port of your router. Once “Ready for call” is shown on the screen, the
hardware installation is completed. There is another LAN port available for you to connect to
another internet device or to your PC.

IPF-2002LUser Manual
11

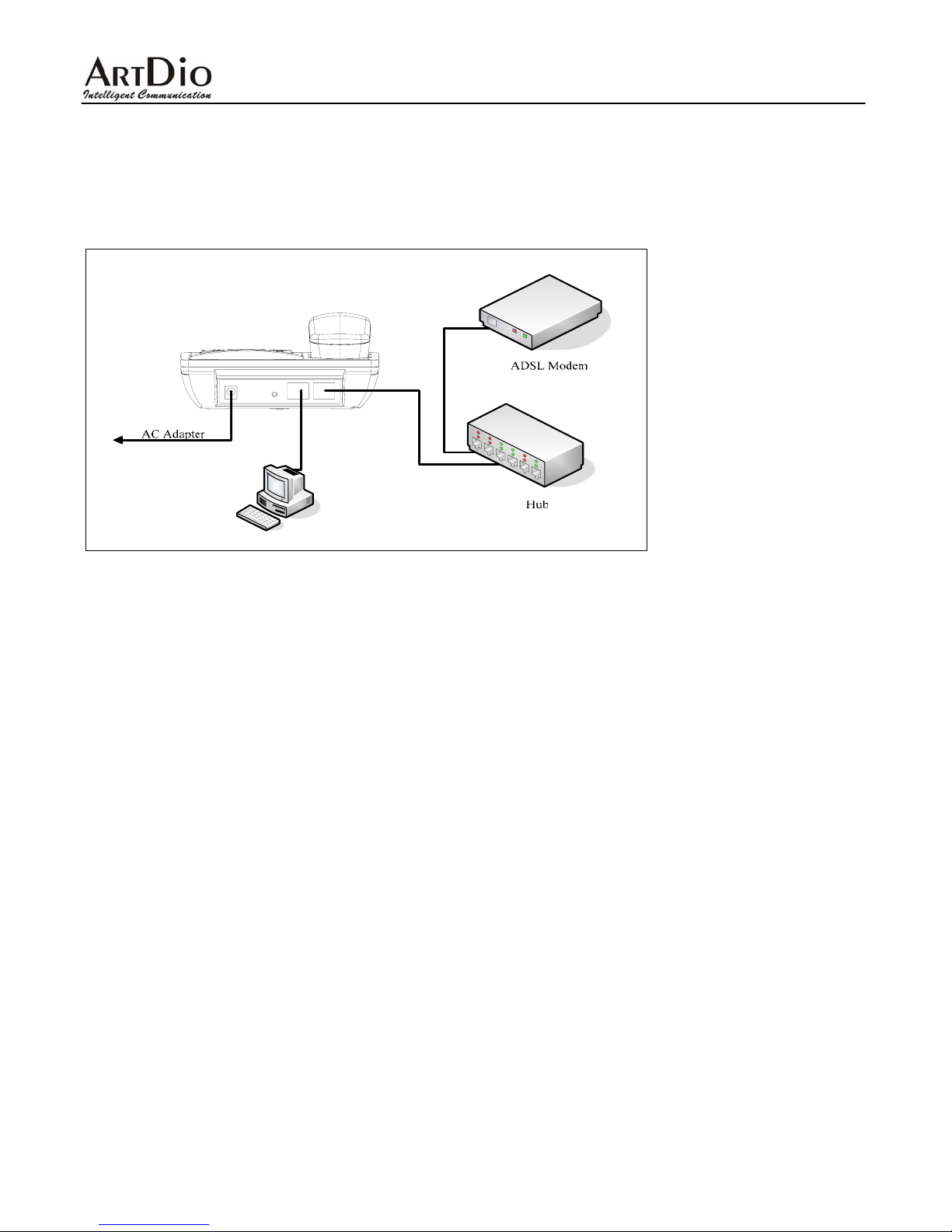

4.2 Connection without a Router
Plug one end of the RJ-45 cable to one of the LAN port on IPF-2002L, and plug another end to
one of the LAN port of your HUB. Once “Ready for call” is shown on the screen, the hardware
installation is completed. There is another LAN port available for you to connect to another
internet device or to your PC.

IPF-2002LUser Manual
12
5. Configure the IPF-2002L Using Keypad
IPF-2002L can be configured with its keypad or on a web page. The following table below
illustrates the configuration function keys when using the keypad:
Keys Function
SPD / HOLD To change settings when using the keypad configuration
REDIAL / MUTE To main menu options when using the keypad configuration
VOL - To the next page when using the keypad configuration
VOL + To the previous page when using the keypad configuration
Enter To confirm the setting when using the keypad configuration
5.1 Network Settings:
The default network setting for IPF-2002L is DHCP. Therefore, if you connect your IPF-2002L to
a DHCP network, it will direct connect to the Internet without any network setting.
If the network environment is PPPoE or Static IP, please change the network setting on your
phone to PPPoE or Static IP. You can use the keypad to change your phone network setting. If
you don’t know what kind of network environment you are at, please contact your Internet
Service Provider.
Use the keypad configuration and choose the【network settings】. Please configure your phone
to DHCP, Static, or PPPoE according to your network environment.
5.1.1 PPPoE Setting
1. Connect the PPPoE network to the RJ-45 port of the IPF-2002L, and then plug in the
power.
2. Press 1234# (Hold the “#” key) ÆLCD shows【password】ÆPress 1234 and then press
ENTER ÆLCD shows 【network settings】.
3. Press ENTER ÆLCD shows 【iptype】Æpress SPD/HOLD ÆBlinking cursor ÆPress 2
and then press ENTER. (2 sets your networking settings the PPPoE mode)
4. Press ENTER ÆLCD shows 【pppid】ÆPress SPD/HOLD ÆInput PPPoE account
number and then press ENTER.
5. Press ENTER ÆLCD shows【pppin】ÆPress SPD/HOLD ÆInput PPPoE password and
then press ENTER ÆPress ENTER again to complete the configuration.
If you want to input symbols or characters such as @, A, a, B, b, C, c, please refer to
the keypad mapping table in Appendix 10.1.

IPF-2002LUser Manual
13
5.1.2 Static IP Setting
Please input the Static IP comes from your ISP, or the Private IP address, Subnet Mask, and
Default Gateway IP address in your company.
1. Connect the RJ-45 Ethernet Cable to the LAN port on the IPF-2002L, and then plug in the
power.
2. Press 1234# (Hold the “#” key) ÆLCD shows【password】ÆPress 1234 and then press
ENTER ÆLCD shows【network settings】.
3. Press ENTER ÆLCD shows【iptype】Æpress SPD/HOLD ÆBlinking cursorÆPress 0
and then press ENTER. (0 sets your networking settings to the Static IP mode)
4. Press ENTER ÆLCD shows【ip】ÆPress SPD/HOLD ÆBlinking cursor ÆInput IP
address (XXX*XXX*XXX*XXX) and then press ENTER.
5. Press ENTER ÆLCD shows 【subnet mask】ÆPress SPD/HOLD ÆBlinking cursor Æ
Input Subnet Mask information (XXX*XXX*XXX*XXX) and then press ENTER.
6. Press ENTER ÆLCD shows【router】ÆPress SPD/HOLD ÆBlinking cursor ÆInput
default gateway information (XXX*XXX*XXX*XXX, where X is any number or character)
and then press ENTER.
5.1.3 DHCP Setting
1. Connect the RJ-45 cable to the LAN port on the IPF-2002L, and then plug in the power.
2. Press 1234# (Hold the # key) ÆLCD shows 【password】ÆPress 1234 and then press
ENTER ÆLCD shows【network settings】.
3. Press ENTER ÆLCD shows【iptype】ÆPress SPD/HOLD ÆBlinking cursor ÆPress 1
and then press ENTER (1 sets your networking settings to the DHCP mode).
5.2 Protocol Settings
1. Press 1234# (Hold the “#” key) ÆLCD shows【password】ÆPress 1234 and then press
ENTER ÆLCD shows【network settings】ÆPress VOL - ÆLCD shows【protocol
settings】.
2. Configure if IPF-2002L needs to login to the server.
【protocol settings】ÆPress ENTER several times ÆLCD shows【service】.
•If the IPF-2002L is not going to register on the server, press SPD/HOLD ÆPress 0(Not
register to the server) and then press ENTER.
•If the IPF-2002L is going to register on the server, press SPD/HOLD ÆPress 1
(Register to the server) and then press ENTER.
3. Configure the server IP address on the IPF-2002L:
【protocol settings】ÆPress ENTER several times ÆLCD shows【service address】Æ
press SPD/HOLDÆInput server IP address (XXX*XXX*XXX*XXX, where X is any number
or character) and then press ENTER.

IPF-2002LUser Manual
14
4. Enable the STUN service to penetrate the NAT network when using SIP protocol.
【protocol settings】ÆPress ENTER several times ÆLCD shows【nat traversal】Æ
Press SPD/HOLDÆPress 4(Enable STUN) and then press ENTER ÆPress ENTER Æ
LCD shows【nat addr】ÆInput STUN server IP address (XXX*XXX*XXX*XXX, where X is
any number or character) and then press ENTER.
5. Configure the IPF-2002L register type
【protocol settings】ÆPress ENTER several times ÆPress VOL+ several timesÆLCD
shows【local type】ÆPress SPD/HOLD.
•Press 0(Input the phone number as E.164 to register to the server) and then press
ENTER.
•Press 1(Input the account number) and then press ENTER. If this option is used,
please also configure step 7 and 8.
6. Configure IPF-2002L register account.
【protocol settings】ÆPress ENTER several timesÆLCD shows【account】Æ
Press SPD/HOLD ÆInput register account (XXX) and then press ENTER.
7. Configure IPF-2002L account password.
【protocol settings】ÆPress ENTER several timesÆLCD shows【pin】ÆPress
SPD/HOLD ÆInput account password (XXX) and then press ENTER.
8. Configure IPF-2002L register port.
【protocol settings】ÆPress ENTER several timesÆLCD shows【register port】ÆPress
SPD/HOLD ÆInput register port (XXX) and then press ENTER.
5.3 Audio Settings:
1. Press 1234# (Hold the “#” key) ÆLCD shows【password】ÆPress 1234 and then press
ENTER ÆLCD shows【network settings】ÆPress VOL – several times ÆLCD shows
【audio settings】.
2. Configure the codec type for IPF-2002L.
【audio settings】ÆPress ENTER ÆLCD shows【audio type】ÆPress SPD/HOLD.
•Press 0(configure the codec as G.729) and then press ENTER.
•Press 1(configure the codec as G.723.1) and then press ENTER.
•Press 2 (configure the codec as G.711u) and then press ENTER.
•Press 3(configure the codec as G.711a1) and then press ENTER.
•Press 4(configure the codec as auto) and then press ENTER.
3. Configure the volume of the phone handset and speaker.
【audio settings】ÆPress ENTER several times ÆLCD shows【handset in】Æ
Press SPD/HOLD ÆInput the volume of the phone handset and speaker (Default is 7,
Max is 15) and then press ENTER.

IPF-2002LUser Manual
15
5.4 Other Settings:
1. Press 1234# (Hold the “#” key) ÆLCD shows【password】ÆPress 1234 and then press
ENTER ÆLCD shows【network settings】ÆPress VOL – several times ÆLCD shows
【other settings】.
2. Configure user password:
【other settings】ÆPress ENTER ÆLCD shows【password】ÆPress SPD/HOLD Æ
Input the new user password and then press ENTER.
3. Configure administrator password:
【other settings】ÆPress ENTER several timesÆLCD shows【super password】Æ
Press SPD/HOLD ÆInput the new administrator password and then press ENTER.
5.5 Speed Dial Settings:
1. Press 1234# (Hold the “#” key) ÆLCD shows【password】ÆPress 1234 and then press
ENTER ÆLCD shows【network settings】ÆPress VOL – several times ÆLCD shows
【speed dial settings】.
2. Configure speed dial code and phone number:
【speed dial settings】ÆPress ENTER ÆLCD shows【memory 1】ÆPress SPD/HOLD
and input first speed dial code (can be any number or character) ÆPress ENTER ÆLCD
shows【number 1】ÆPress SPD/HOLD and input first speed dial number (can only be any
number) and then press ENTER.
Repeat the step 2 for more speed dial numbers. IPF-2002L has up to 100 entries speed
dial numbers.
5.6 Default Settings:
Press 1234# (Hold the “#” key) ÆLCD shows 【password】ÆPress 1234 and then press
ENTER ÆLCD shows【network settings】ÆPress VOL – several times ÆLCD shows【default
settings】and then press ENTER ÆLCD shows【Are You Sure?】.
•If choose Yes, LCD shows【Default ok】then shows【Undo default setting】. Press
REDIAL/MUTE several times until the LCD shows【save settings】, save the setting and
reboot the IPF-2002L
•If choose No, IPF-2002L will not load the factory default settings.
5.7 Save Settings:
After all the configuration is done and correct, press REDIAL/MUTE several times until the LCD
shows 【save settings】ÆPress ENTER ÆLCD shows【Are You Sure?】.
•Press ENTER as Yes, IPF-2002L will reboot and load the new settings.
•Press REDIAL/MUTE as No, IPF-2002L will back to phone keypad configuration mode.

IPF-2002LUser Manual
16
5.8 Exit Settings:
If you want to exit the keypad configure mode without saving any changes, press
REDIAL/MUTE several times until the LCD shows【Are You Sure?】.
•Press ENTER as Yes, IPF-2002L will reboot.
•Press REDIAL/MUTE as No, IPF-2002L will back to phone keypad configuration mode.

IPF-2002LUser Manual
17
6. WEB Configuration:
Start a Web browser, such as Microsoft’s Internet Explorer (IE) , and enter the IPF-2000’s IP
address on the web browser. Address window . The IPF-2002L
Web configuration page is accessed by entering an assigned URL, or by pressing the IP button
from on the IPF-2002L front panel to display the IP address.
The IPF-2002L login screen is displayed:
The IPF-2002L web configuration password comes with two categories: User password and
Administrator password.
•The default User Password is 1234.
•The default Administrator Password is 12345678.
Enter one of the passwords and click the “Submit” button.
The following are the definitions for all the configuration parameters in the Web Configuration
Page:
6.1 Network Settings:
Networking Parameter Values
Fields Description
iptype
Set how IPF-2002L gets relevant network parameters by selecting
corresponding item from drop down list.
•static
Select this option to authorize users to configure IP address, subnet
mask and router IP address of IPF-2002L.
•dhcp
Select this option to enable DHCP server automatically assign all the
required network parameters to IPF-2002L
•pppoe
Select this option and then fill up the ppp id and ppp pin with PPPoE
account and password to enable the PPPoE connection. The ISP will
automatically assign all the required IP parameters to IPF-2002L.
ppp id With PPPoE selected in iptype drop down list, please enter the user name in
this field.
ppp pin With PPPoE selected in iptype drop down list, please enter the password in
this field.
local ip With Static selected in iptype drop down list, please enter the IP address of
the IPF-2000 in this field.
subnet mask With Static selected in iptype drop down list, please enter the Subnet Mask

IPF-2002LUser Manual
18
address of the IPF-2002L in this field.
router ip With Static selected in iptype drop down list, please enter the router IP
address of the IPF-2002L in this field.
dns With Static selected in iptype drop down list, please enter the IP address of
the DNS server in this field.
dns2 With Static selected in iptype drop down list, please enter the IP address of
the backup DNS server in this field.

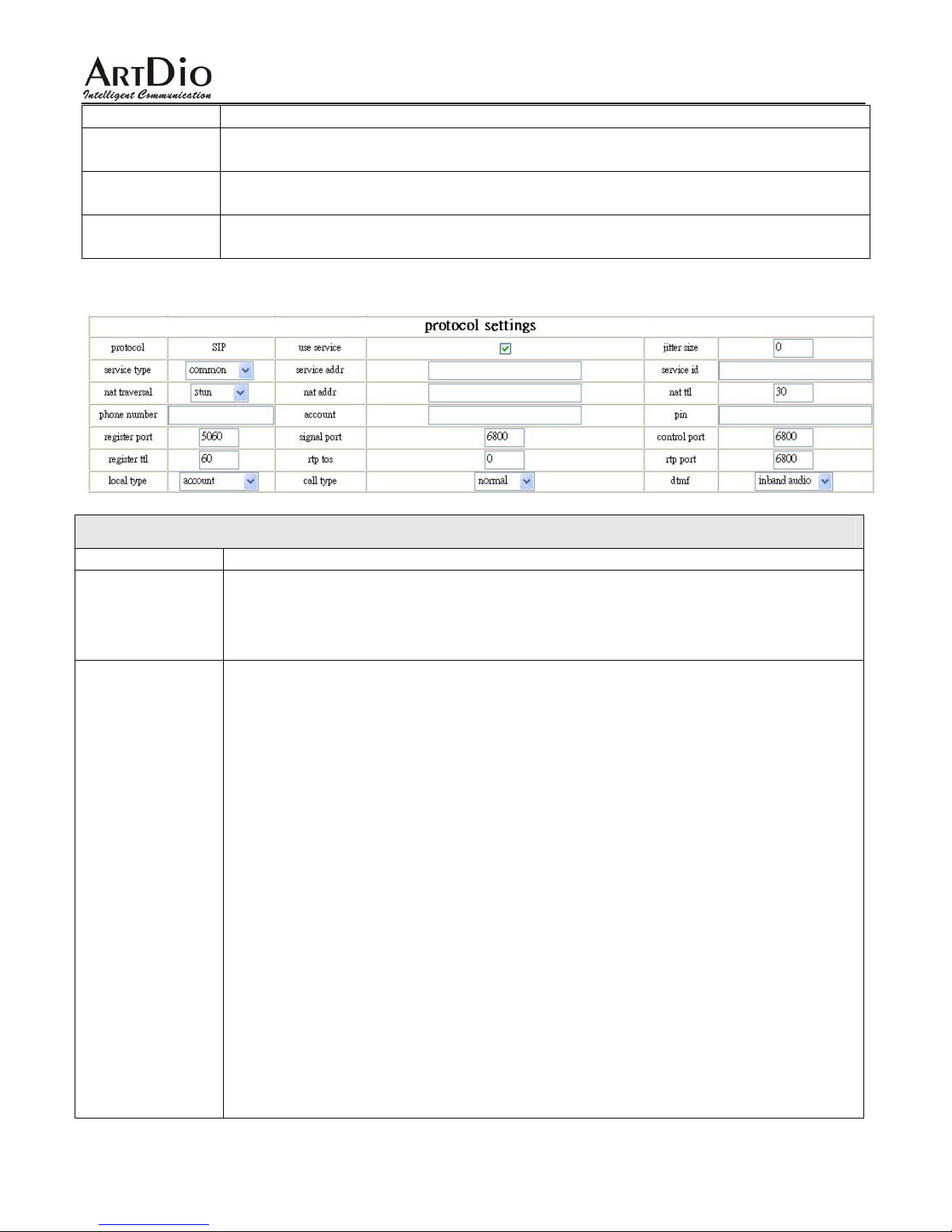

6.2Protocol Settings:
Protocol Parameter Values
Field Description
protocol
The IPF-2002L supports H.323, SIP and MGCP protocols.
•If you are using a H.323 firmware, this field will be H.323.
•If you are using a SIP firmware, this field will be SIP.
•If you are using a MGCP firmware, this field will be MGCP.
use service
Check this box if you will register to the server.Services response to
different protocols as follows:
•For the SIP protocol: Check this box if you will register to the server.
Then, fill in the SIP proxy server IP address or domain name in the
service addr field.
•For the H.323 protocol: Enter the Gatekeeper IP address.
To allow the IPF-2002L calls each other by E.164 number:
Please check this option and then fill the IP address or domain
name of corresponding gatekeeper into the Service Addr. field.
To make point to point calls to another voice gateway: Please do
not check this option and fill up the voice gateway’s IP address
in the Service Addr. field.
To make calls by dialing IP address of other IP Phone or H.323
devices (such as Netmeeting) at the same network segment, do
not check this option and leave the Service Addr. field blank.
※ If the gatekeeper is not to be used, please configure the Service
Port as 1720. Detailed information please refers to the Service Port
configuration.
•With MGCP protocol used, the protocol service refers to Call Agent.
Please check this box according to system, and then fill Service
Address field with the IP address or domain name of the Call Agent.

IPF-2002LUser Manual
19
service type The default service type is common. For other requests, please find the
service type in the drop down list.
service addr
•Use H.323 protocol
If the Use Service option is checked, please fill up the IP address or
the domain name of the gatekeeper.
If the Use Service option is unchecked, please fill up the IP address
or the domain name of the voice gateway.
•USE MGCP protocol: Please fill up the IP address or domain name of
the Call Agent.
•Use SIP protocol: If the Use Service option is checked, please fill up the
IP address or domain name of the SIP Proxy Server in this field.
service id Set service ID according to requirement of system.
nat traversal
When using a private IP to traverse the NAT, select one of the conditions:
•disable
When IPF-2002L is using a public IP, choose disable.
When IPF-2002L is using SIP protocol, and is using the Outbound
Proxy, choose disable
•enable
Automatically check the public IP of the NAT router. When IPF-2002L is
using the private IP, please choose enable. After choosing enable, the
nat addr will automatically activate. Without special request, please fill
up 00.0.0.0 in the nat addr field and properly configure the port on the
NAT router.
•stun
Use the STUN protocol. STUN enables a device to find out its public IP
address and the type of NAT service its sitting behind. It helps the SIP
traverse the NAT. If this option is selected, please also fill up the IP
address of the STUN server in the nat addr field.
nat addr •When stun or enable is enabled in the nat traversal field, enter the NAT
Proxy’s IP address. Otherwise, keep this field as 0.0.0.0.
nat ttl This defines how many seconds a NAT traversal message is will be sent to
the NAT server. The default setting is 30 seconds.
phone number With H.323/MGCP/SIP protocol used, enter the phone number of the
IPF-2002L.
account
•When using the H.323 protocol to logon gatekeeper, please fill up the
H.323 ID or H.235 account.
•When choose the prefix in dialplan field, please fill up the number
provided by ISR, card number and “#”. For example 14589653185#
•With MGCP protocol used, please enter the Local name of the
EndpointID into this field.
•With SIP protocol used, fill up the SIP Proxy account.
pin
•When H.323 protocol is used to logon the gatekeeper, fill up the
password or H.235 authentication password.
•When SIP protocol is used to logon SIP Proxy Server, please fill up the
password into this field.
•When choose the prefix in the use dialplan drop-down menu, please fill

IPF-2002LUser Manual
20
up the password provided by ISR, card number, and “#”. For example
3185#.
•With MGCP protocol used, enter the domain name of the EndpointID
into this field.
※With MGCP protocol is used, as requested by some system, please
add the bracket with the domain name. For example, [voiptest.com].
register port
According to used protocol, set as follows:
•With H.323 protocol used,
If the gatekeeper is used, the register port works as the
gatekeeper’s monitor port. The default value is 1719.
If the gatekeeper is not used, the register port works as the end
point device or the gatekeeper’s monitor port. The default value is
1720.
•With MGCP protocol used, this port is the Call Agent’s receive port. The
default value is 2727.
•With SIP protocol used, the default setting is 5060.
signal port With H.323 protocol used, this port is mapped to the Q.931 port. For H.323,
the Q.931 call usually uses TCP protocol. The value can be set between
1024 and 65535.
control port
zWith H.323 protocol used, this port is H.245 port using TCP protocol.
H.245 protocol defines call control signal, and uses TCP protocol. The
value can be set between 1024 and 65535.
zWith MGCP and SIP used, there is no specific request for this port. You
can enter any number.
※ If there are many IPF-2002L traversing the NAT at the same time,
each IPF-2002L should be assigned with different port number.
register ttl This defines how many seconds a register message will be sent to the
server. The default setting is 60 second.
rtp tos Fill TOS segment of IP header in RTP digital follow here. Detailed
information please refer to IP protocol information.
rtp port RTP port is the port transferring and receiving voice flow using UDP
protocol. Please fill an even number between 1024 and 65535 into this field.
local type
This parameter refers to how IPF-2002L log in gatekeeper or SIP Proxy
server. The meaning of each item is as follow:
•Phone number:
Use phone number as E.164 and H.323 ID to login the gatekeeper.
•Account
Use account authentication to login. Please also fill up the account name
and password into the account and pin fields.
•H.235 account
With H.323 protocol used, if the gatekeeper supports H.235 protocol,
please choose this option. Please also fill up the account name and
password into the account and pin fields.
call type Set call type by selecting the items in drop down list. There are three
options: normal, faststart, advanced. The recommended way is advanced.
dtmf Set DTMF signal sending way by selecting control string, inband audio,
