ArtDio IPF-2000 User manual

IPF-2000 User Manual
V1.2
www.artdioinc.com
ArtDio Company, Inc.

IPF-2000 User Manual
2
Safety Instructions
•Do not attempt to service the product yourself. Any servicing of this product should be
referred to qualified service personal.
•To avoid electric shock, do not put your finger, pin, wire, or any other metal objects into vents
and gaps.
•To avoid accidental fire or electric shock, do not twist power cord or place it under heavy
objects.
•The product should be connected to a power supply of the type described in the operating
instructions or as marked on the product.
•To avoid hazard to children, dispose of the product’s plastic packaging carefully.
•Please read all the instructions before using this product.
For additional information or troubleshooting help, please refer to the Manual CD enclosed in
the package. You may also visit our website or E-mail us for further supports.
E-mail: [email protected]
ArtDio Website: http://www.artdio.com.tw or http://www.artdioinc.com

IPF-2000 User Manual
3
Table of Contents
1. PRODUCT SPECIFICATION ..............................................................................................5
2. PACKAGE CONTENTS......................................................................................................6
3. IPF-2000 FUNCTIONS........................................................................................................6
3.1 Front Panel.................................................................................................................................................................6
3.2 Rear and Back Panel................................................................................................................................................7
3.3 Function Keys............................................................................................................................................................8
3.4 Status Indicators.......................................................................................................................................................8
4. HARDWARE INSTALLATION: ...........................................................................................9
4.1 Connection with a Router.......................................................................................................................................9
4.2 Connection without a Router...............................................................................................................................10
5. CONFIGURE IPF-2000 USING KEYPAD .........................................................................11
5.1 Network Settings ....................................................................................................................................................11
5.2 Protocol Settings....................................................................................................................................................12
5.3 Audio Settings.........................................................................................................................................................13
5.4 Other Settings..........................................................................................................................................................14
5.5 Speed Dial Settings................................................................................................................................................14
5.6 Default Settings.......................................................................................................................................................14
5.7 Save Settings...........................................................................................................................................................15
5.8 Exit Settings.............................................................................................................................................................15
6. WEB CONFIGURATION...................................................................................................16
6.1 Network Settings ....................................................................................................................................................16
6.2 Protocol Settings....................................................................................................................................................17
6.3 Phone Settings........................................................................................................................................................20
6.4 Audio Settings.........................................................................................................................................................21

IPF-2000 User Manual
4
6.5 Other Settings..........................................................................................................................................................22
6.6 Update........................................................................................................................................................................23
7.1 SIP with STUN..........................................................................................................................................................24
7.2 SIP with Outbound Proxy.....................................................................................................................................24
7.3 Others........................................................................................................................................................................25
8. REGISTRATION MESSAGE.............................................................................................26
9. USING IPF-2000 ...............................................................................................................26
9.1 Pickup the Phone....................................................................................................................................................26
9.2 Making Phone Calls ...............................................................................................................................................26
9.3 Check the IPF-2000 Call Records.......................................................................................................................27
9.4 Speed Dial.................................................................................................................................................................27
9.5 Mute............................................................................................................................................................................27
9.6 Hold............................................................................................................................................................................27
9.7 Call Waiting..............................................................................................................................................................28
9.8 Call Transfer.............................................................................................................................................................28
10. AUTO-UPGRADE FIRMWARE .....................................................................................28
11. APPENDIX.....................................................................................................................29
11.1 IPF-2000 Keypad and Symbols Mapping Table...............................................................................................29
11.2 H.323 Web Configuration Example ....................................................................................................................29
11.3 MGCP Web Configuration Example...................................................................................................................30
11.4 How to Add a Prefix in Front of the Number....................................................................................................31
11.5 Some Troubleshooting..........................................................................................................................................31
11.6 Update Information.................................................................................................................................................32
11.7 IPF-2000 Keypad Selection Tree.........................................................................................................................32

IPF-2000 User Manual
5
1. Product Specification
Voice Interface
Call control protocol SIP(RFC-3261) or H.323 V4 or MGCP
Voice compression G.711 A/µ -Law, G.723.1, G.729A/B/AB
Echo cancellation G.165/G.167 16ms
Voice Process Differential input/Differential output
Delayed (End to End) < 100ms
Flow of the average 14K(G.723.1) ~ 51K(G.729) bps
Other Support Silence Suppression, Voice Activity Detection, Comfort Noise
Generator、Acoustic Echo Cancellation, Jitter Buffering, DTMF
tone detection, E.164 Dial plan
LAN Interface
Interfaces 10 Base-T Ethernet Ports
Connectors RJ-45 connector
Management Web browser, Keypad on the Phone, LCD screen,
IP address PPPoE, DHCP client, Static IP
Firmware Upgrade FTP/TFTP
Transport Protocol RTP/RTCP, UDP/TCP
General Information 100 ~ 240V AC, 50 ~ 60Hz
Power 5VDC, 1A
Power consumption 5W
Operation Temperature : 0 ~ 40℃(32° ~ 104°F)
Storage Temperature : -30 ~ 65℃(-22° ~ 149°F)
Working environment Relative Humidity : 10 ~ 95% Non Condensing
Certification CE, FCC
Feature Keys
Called, Answered, Miss Call, Phone (Phone book/This Phone
Number), Network-Setting (IP/Subnet Mask/ Gateway/Server IP)
Speedy Dial, Call Hold, Redial, Mute, Volume Up/Down,
Hand-free.
100 Entries Phone Book
IVR (English)
Earphone/Microphone Connector
NAT Pass-through (SIP with STUN)
Other information Call Hold, Call Mute, Call Status, Caller ID, Headset, Networking
Status, Volume Adjustment, No
A
nswer Call Forward, Busy Call
Forward, Always Call Forward, Miss Call, Dialed Call, Answered
Call, Last Number Redial, Speedy Dial, Web configuration, LCD
Display, LED indicators...etc.

IPF-2000 User Manual
6
2. Package Contents
The IPF-2000 Series VoIP phone package contains:
•One IPF-2000 VoIP phone
•One power adaptor
•One RJ-45 Ethernet cable
•Quick Installation Guide
•Installation CD
3. IPF-2000 Functions

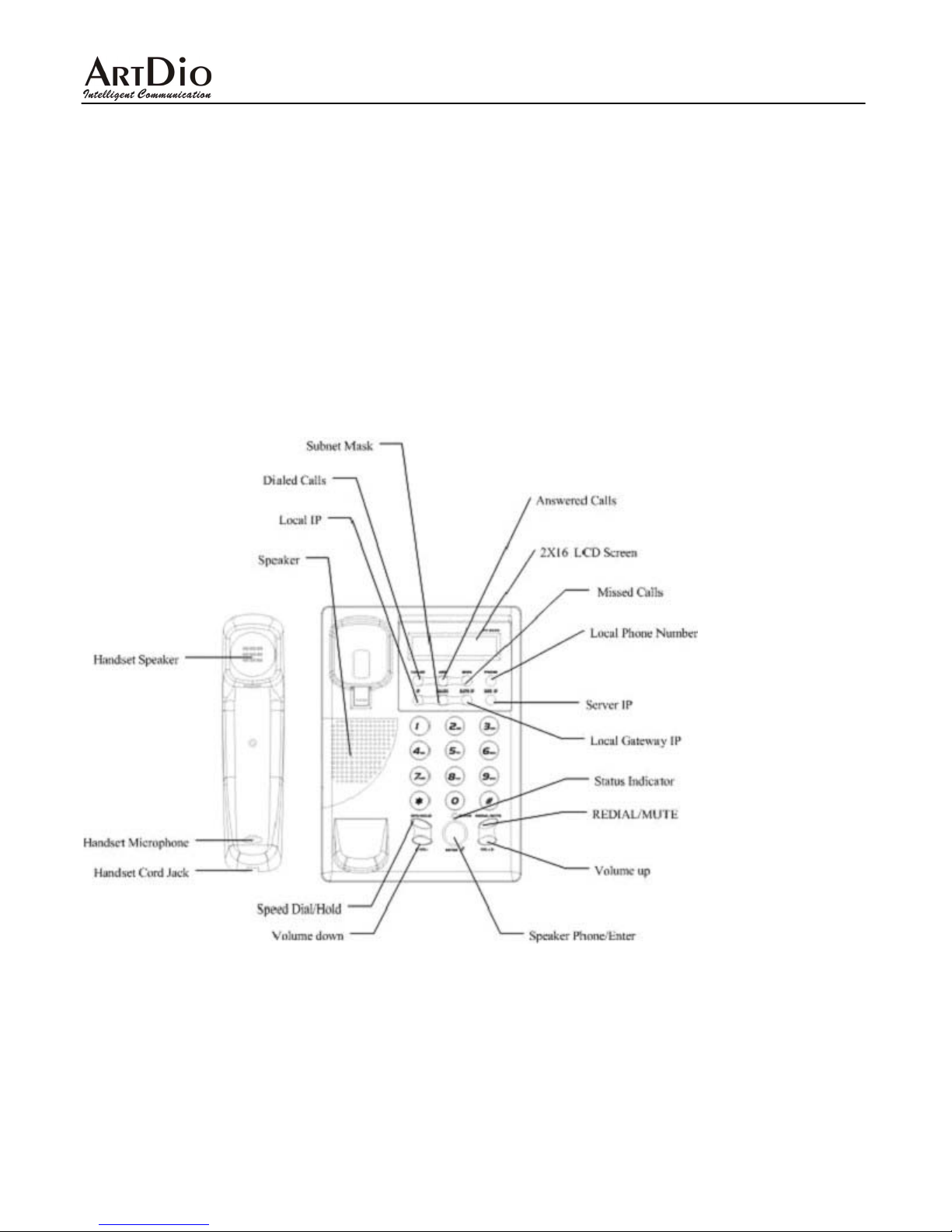

3.1 Front Panel

IPF-2000 User Manual
7
3.2 Rear and Back Panel

IPF-2000 User Manual
8
3.3 Function Keys
Keys Function
Called With handset hung, press this button to display the phone number of the
last call placed. In addition, press【#】to dial this number.
Ans. With handset hung, press this button to display the phone number of an
incoming call. In addition, press【#】to dial this number.
Miss With handset hung, press this button to display the missed call number.
In addition, press【#】to dial this number.
Phone With handset hung, press this button to get the phone number of the
phone. Press again will show the data in the phone book. In
addition, press【#】to dial this number.
IP With handset hung, press this button to get local IP address of the
phone.
Mask With handset hung, press this button to get the subnet mask of the
IPF-2000.
GATE IP With handset hung, press this button to get the gateway IP address in
LAN.
SER .IP With handset hung, press this button to get the service server IP
address.
Hand Free Press this button to turn on the speaker phone.
SPD / HOLD Speed Dial; Hold.
REDIAL / MUTE Redial; Mute.
VOL- Decreases the volume of the handset or speaker; turns to the left hand
side.
VOL + Increases the volume of the handset or speaker; turns to the right hand
side.
ENTER With handset hung, press this button to allow you talk with hands-free; It
is also the “Confirm” button while configuration.
3.4 Status Indicators
Light Description
Fast blinking green light IPF-2000 is receiving a call.
Slow blinking green light IPF-2000 is on phone.
Yellow light blink once Booting IPF-2000.
Red light blinking IPF-2000 is not connected to the internet, disconnected, or fails
to register to the server.

IPF-2000 User Manual
9
4. Hardware Installation:
Prepare your Internet information, and then follow the steps below to install your IPF-2000.
※ For the Cable ISP subscriber:
Cable ISPs usually provide DHCP to its subscribers, and each time they only allow one user
to logon. Therefore, most ISPs require their subscribers report the MAC address of their
internet device to allow them to use the service. If you want to apply another account for
IPF-2000, just simply report the MAC address of your IPF-2000 to your ISP provider.
If you want to use multiple internet devices in the same time, you need a router to connect to the
ISP, and connect your internet devices to the router. Then replace the original MAC address to
your router’s MAC address.
4.1 Connection with a Router
Plug one end of the RJ-45 to your IPF-2000 LAN port, and plug another end to one of the LAN port of
your router. Once “Ready for call” is shown on the screen, the hardware installation is completed.

IPF-2000 User Manual
10
4.2 Connection without a Router
Plug one end of the RJ-45 to your IPF-2000 LAN port, and plug another end to one of the LAN port of
your HUB. Once “Ready for call” is shown on the screen, the hardware installation is completed.
AC Adapter
ADSL Modem
Hub

IPF-2000 User Manual
11
5. Configure IPF-2000 Using Keypad
IPF-2000 can be configured with its keypad or on a web page. The following table below
illustrates the configuration function keys when using the keypad:
Keys Function
SPD / HOLD To change settings when using the keypad configuration.
REDIAL / MUTE To main menu options when using the keypad configuration.
VOL - To the next page when using the keypad configuration.
VOL + To the previous page when using the keypad configuration.
Enter To confirm the setting when using the keypad configuration.
5.1 Network Settings
The default network setting for IPF-2000 is DHCP. Therefore, if you connect your IPF-2000 to
a DHCP network, it will direct connect to the Internet without any network setting.
If the network environment is PPPoE or Static IP, please change the network setting on your
phone to PPPoE or Static IP. You can use the keypad to change your phone network setting.
If you don’t know what kind of network environment you are at, please contact your Internet
Service Provider.
Use the keypad configuration and choose the 【network settings】. Please configure your
phone to DHCP, Static, or PPPoE according to your network environment.
5.1.1 PPPoE Setting
1. Connect the PPPoE network to the LAN port of the IPF-2000, and then plug in the power.
2. Press #(Hold the “#” key) and then reboot IPF-2000 ÆLCD shows【password】ÆPress
1234 and then press ENTER ÆLCD shows 【network settings】.
3. Press ENTER ÆLCD shows【iptype】Æpress SPD/HOLD ÆBlinking cursor ÆPress 2
and then press ENTER. (2 sets your networking settings the PPPoE mode)
4. Press ENTER ÆLCD shows 【pppid】ÆPress SPD/HOLD ÆEnter PPPoE account
number and then press ENTER.
5. Press ENTER ÆLCD shows【pppin】ÆPress SPD/HOLD ÆEnter PPPoE password and
then press ENTER ÆPress ENTER again to complete the configuration.
If you want to enter symbols or characters such as @, A, a, B, b, C, c, please refer to the
IPF-2000 Keypad and Symbols Mapping Table in Appendix 11.1.

IPF-2000 User Manual
12
5.1.2 Static IP Setting
Please enter the Static IP comes from your ISP, or the Private IP address, Subnet Mask, and
Default Gateway IP address in your company.
1. Connect the RJ-45 Ethernet Cable to the LAN port on the IPF-2000, and then plug in the
power.
2. Press #(Hold the “#” key) and then reboot IPF-2000ÆLCD shows【password】ÆPress
1234 and then press ENTER ÆLCD shows【network settings】.
3. Press ENTER ÆLCD shows【iptype】Æpress SPD/HOLD ÆBlinking cursorÆPress 0
and then press ENTER. (0 sets your networking settings to the Static IP mode)
4. Press ENTER ÆLCD shows【ip】ÆPress SPD/HOLD ÆBlinking cursor ÆInput IP
address (XXX*XXX*XXX*XXX) and then press ENTER.
5. Press ENTER ÆLCD shows 【subnet mask】ÆPress SPD/HOLD ÆBlinking cursor Æ
Input Subnet Mask information (XXX*XXX*XXX*XXX) and then press ENTER.
6. Press ENTER ÆLCD shows【router】ÆPress SPD/HOLD ÆBlinking cursor ÆInput
default gateway information (XXX*XXX*XXX*XXX, where X is any number or character)
and then press ENTER.
5.1.3 DHCP Setting
1. Connect the RJ-45 cable to the LAN port on the IPF-2000, and then plug in the power.
2. Press #(Hold the # key) and then reboot IPF-2000 ÆLCD shows【password】ÆPress
1234 and then press ENTER ÆLCD shows【network settings】.
3. Press ENTER ÆLCD shows【iptype】ÆPress SPD/HOLD ÆBlinking cursor ÆPress 1
and then press ENTER (1 sets your networking settings to the DHCP mode).
5.2 Protocol Settings
1. Press #(Hold the “#” key) and then reboot IPF-2000 ÆLCD shows【password】ÆPress
1234 and then press ENTER ÆLCD shows【network settings】ÆPress VOL - ÆLCD
shows【protocol settings】.
2. Configure if IPF-2000 needs to login to the server.
【protocol settings】ÆPress ENTER several times ÆLCD shows【service】.
•If the IPF-2000 is not going to register on the server, press SPD/HOLD ÆPress 0(Not
register to the server) and then press ENTER.
•If the IPF-2000 is going to register on the server, press SPD/HOLD ÆPress 1(Register
to the server) and then press ENTER.

IPF-2000 User Manual
13
3. Configure the server IP address on the IPF-2000:
【protocol settings】ÆPress ENTER several times ÆLCD shows【service address】Æ
press SPD/HOLDÆInput server IP address (XXX*XXX*XXX*XXX, where X is any number
or character) and then press ENTER.
4. Enable the STUN service to penetrate the NAT network when using SIP protocol.
【protocol settings】ÆPress ENTER several times ÆLCD shows【nat traversal】Æ
Press SPD/HOLDÆPress 4(Enable STUN) and then press ENTER ÆPress ENTER Æ
LCD shows【nat addr】ÆInput STUN server IP address (XXX*XXX*XXX*XXX, where X is
any number or character) and then press ENTER.
5. Configure the IPF-2000 register type
【protocol settings】ÆPress ENTER several times ÆPress VOL+ several timesÆLCD
shows【local type】ÆPress SPD/HOLD.
•Press 0(Input the phone number as E.164 to register to the server) and then press
ENTER.
•Press 1(Input the account number) and then press ENTER. If this option is used,
please also configure step 7 and 8.
6. Configure IPF-2000 register account.
【protocol settings】ÆPress ENTER several timesÆLCD shows【account 】Æ
Press SPD/HOLD ÆInput register account (XXX) and then press ENTER.
7. Configure IPF-2000 account password.
【protocol settings】ÆPress ENTER several timesÆLCD shows【pin】ÆPress
SPD/HOLD ÆInput account password (XXX) and then press ENTER.
8. Configure IPF-2000 register port.
【protocol settings】ÆPress ENTER several timesÆLCD shows【register port】ÆPress
SPD/HOLD ÆInput register port (XXX) and then press ENTER.
5.3 Audio Settings
1. Press #(Hold the “#” key) and then reboot IPF-2000 ÆLCD shows【password】ÆPress
1234 and then press ENTER ÆLCD shows【network settings】ÆPress VOL – several
times ÆLCD shows【audio settings】.
2. Configure the codec type for IPF-2000.
【audio settings】ÆPress ENTER ÆLCD shows【audio type】ÆPress SPD/HOLD.
•Press 0(configure the codec as G.729) and then press ENTER.
•Press 1(configure the codec as G.723.1) and then press ENTER.
•Press 2 (configure the codec as G.711u) and then press ENTER.
•Press 3(configure the codec as G.711a1) and then press ENTER.
•Press 4(configure the codec as auto) and then press ENTER.

IPF-2000 User Manual
14
3. Configure the volume of the phone handset and speaker.
【audio settings】ÆPress ENTER several times ÆLCD shows【handset in】Æ
Press SPD/HOLD ÆInput the volume of the phone handset and speaker (Default is 7,
Max is 15) and then press ENTER.
5.4 Other Settings
1. Press #(Hold the “#” key) and then reboot IPF-2000 ÆLCD shows【password】ÆPress
1234 and then press ENTER ÆLCD shows【network settings】ÆPress VOL – several
times ÆLCD shows【other settings】.
2. Configure user password:
【other settings】ÆPress ENTER ÆLCD shows【password】ÆPress SPD/HOLD Æ
Input the new user password and then press ENTER.
3. Configure administrator password:
【other settings】ÆPress ENTER several timesÆLCD shows【super password】Æ
Press SPD/HOLD ÆInput the new administrator password and then press ENTER.
5.5 Speed Dial Settings
1. Press #(Hold the “#” key) and then reboot IPF-2000 ÆLCD shows【password】ÆPress
1234 and then press ENTER ÆLCD shows【network settings】ÆPress VOL – several
times ÆLCD shows【speed dial settings】.
2. Configure speed dial code and phone number:
【speed dial settings】ÆPress ENTER ÆLCD shows【memory 1】ÆPress SPD/HOLD
and input first speed dial code (can be any number or character) ÆPress ENTER ÆLCD
shows【number 1】ÆPress SPD/HOLD and input first speed dial number (can only be any
number) and then press ENTER.
IPF-2000 has up to 100 entries speed dial numbers.
5.6 Default Settings
Press #(Hold the “#” key) and then reboot IPF-2000 ÆLCD shows 【password】ÆPress 1234
and then press ENTER ÆLCD shows【network settings】ÆPress VOL – several times ÆLCD
shows【default settings】and then press ENTER ÆLCD shows【Are You Sure?】.
•If choose Yes, LCD shows【Default ok】then shows【Undo default setting】. Press
REDIAL/MUTE several times until the LCD shows【save settings】, then save the setting
and reboot the IPF-2000
•If choose No, IPF-2000 will not load the factory default settings.

IPF-2000 User Manual
15
5.7 Save Settings
After all the configuration is done and correct, press REDIAL/MUTE several times until the LCD
shows【save settings】ÆPress ENTER ÆLCD shows【Are You Sure?】.
•Press ENTER as Yes, IPF-2000 will reboot and load the new settings.
•Press REDIAL/MUTE as No, IPF-2000 will back to phone keypad configuration mode.
5.8 Exit Settings
If you want to exit the keypad configure mode without saving any changes, press
REDIAL/MUTE several times until the LCD shows【Are You Sure?】.
•Press ENTER as Yes, IPF-2000 will reboot.
•Press REDIAL/MUTE as No, IPF-2000 will back to phone keypad configuration mode.

IPF-2000 User Manual
16
6. WEB Configuration
Start a Web browser, such as Microsoft’s Internet Explorer (IE) , and enter the IPF-2000:’s
IP address on the web browser. Address window . The
IPF-2000 Web configuration page is accessed by entering an assigned URL, or by pressing the
IP button from on the IPF-2000 front panel to display the IP address.
The IPF-2000 login screen is displayed:
The IPF-2000 web configuration password comes with two categories: User password and
Administrator password.
•The default User Password is 1234.
•The default Administrator Password is 12345678.
Enter one of the passwords and then click the “Login” button.
The following are the definitions for all the configuration parameters in IPF-2000 web
configuration page:
6.1 Network Settings
Network Settings
Fields Description
IP Type
Set how IPF-2000 gets relevant network parameters by selecting
corresponding item from the drop down list.
•Static
Select this option to authorize users to configure IP address, subnet
mask and router IP address of IPF-2000.
•DHCP
Select this option to enable DHCP server automatically assign all the
required network parameters to IPF-2000.
•PPPoE
Select this option and then fill up the ppp id and ppp pin with PPPoE
account and password to enable the PPPoE connection. The ISP will
automatically assign all the required IP parameters to IPF-2000.
PPP ID With PPPoE selected in the IP Type drop down list, please enter the user
name in this field.

IPF-2000 User Manual
17
Ppp pin With PPPoE selected the IP Type drop down list, please enter the password
in this field.
local ip With Static selected the IP Type drop down list, please enter the IP address
of the IPF-2000 in this field.
subnet mask With Static selected the IP Type drop down list, please enter the Subnet
Mask address of the IPF-2000 in this field.
router ip With Static selected the IP Type drop down list, please enter the router IP
address of the IPF-2000 in this field.
Dns With Static selected the IP Type drop down list, please enter the IP address
of the DNS server in this field.
Dns2 With Static selected the IP Type drop down list, please enter the IP address
of the backup DNS server in this field.
6.2 Protocol Settings
Protocol Settings
Field Description
Use Service
Check this box if you will register to the server.Services response to
different protocols as follows:
•For the SIP protocol:
Check this box if you will register to the server. Then, enter the SIP
proxy server IP address or domain name in the service addr field.
•For the H.323 protocol: Enter the Gatekeeper IP address.
To allow the IPF-2000 calls each other by E.164 number: Check
this option and then fill the IP address or domain name of
corresponding gatekeeper into the Service Addr. field.
To make point to point calls to another voice gateway:
Do not check this option and enter the voice gateway’s IP
address in the Service Addr. field.
To make calls by dialing IP address of other IP Phone or H.323
devices (such as Netmeeting) at the same network segment:
Do not check this option and leave Service Addr. field blank.
※ If the gatekeeper is not to be used, please configure the
Service Port as 1720. Detailed information please refers to the
Service Port configuration.

IPF-2000 User Manual
18
•For MGCP protocol:
The protocol service refers to Call Agent. Please check this box
according to system, and then enter Service Address field with the
IP address or domain name of the Call Agent.
Jitter Size
Setup jitter buffer size for the RTP voice packet. Jitter buffer ensures that
the received packets are in correct order. The range for the jitter size is
between 0 to 32 voice packets. The default setting value of 0. A bigger
jitter size can store more packets, but may cause more delay.
Service Type The default service type is “common”. For other requests, please find the
service type in the drop down list.
Service Addr
•Use H.323 protocol
If the “Use Service” option is checked, please enter the IP address
or the domain name of the gatekeeper.
If the “Use Service” option is not checked, please enter the IP
address or the domain name of the voice gateway.
•USE MGCP protocol:
Please enter the IP address or domain name of the Call Agent.
•Use SIP protocol:
If the “Use Service” option is checked, please enter the IP address or
domain name of the SIP Proxy Server in this field.
Service ID Set service ID according to requirement of system.
NAT Traversal
When using a private IP to traverse the NAT, select one of the conditions:
•Disable
When IPF-2000 is using a public IP, select “Disable”.
When IPF-2000 is using SIP protocol, and is using the Outbound
Proxy, select “Disable”.
•Enable
Automatically check the public IP of the NAT router. When IPF-2000 is
using the private IP, please select “Enable”. After selecting Enable, the
NAT Addr. will automatically activate. Without special request, please
enter 0.0.0.0 in the NATAddr field and properly configure the port on the
NAT router.
•STUN
Use the STUN protocol. STUN enables a device to find out its public
IP address and the type of NAT service its sitting behind. It helps the
SIP traverse the NAT. Please also enter the IP address or domain
name of the STUN server in the NATAddr field.
NAT Addr When “STUN” or “Enable” is selected in NAT Traversal field, enter the NAT
proxy’s IP address. Otherwise, keep this field as 0.0.0.0.
NAT TTL Define how many seconds a NAT traversal message is will be sent to the
NAT server. The default setting is 30 seconds.
Phone Number With H.323/MGCP/SIP protocol used, enter the phone number of
IPF-2000.
Account •When using H.323 protocol to logon a Gatekeeper, please enter the
H.323 ID or H.235 account in this field.

IPF-2000 User Manual
19
•When select “Prefix” from Use Dialplan drop down list, please enter the
number provided by ISR, card number and “#”. For example
14589653185#
•With MGCP protocol used, please enter the Local name of the
EndpointID in this field.
•With SIP protocol used, enter the SIP Proxy account.
PIN
•When H.323 protocol is used to logon a Gatekeeper, enter the
password or H.235 authentication password.
•When SIP protocol is used to logon a SIP Proxy Server, please enter
the password in this field.
•When select “Prefix” from Use Dialplan drop down list, please enter the
password provided by ISR, card number, and “#”. For example 3185#.
•With MGCP protocol used, enter the domain name of the EndpointID in
this field.
※With MGCP protocol is used, as requested by some system, please
add the bracket with the domain name. For example, [voiptest.com].
Register Port
According to used protocol, set as follows:
•With H.323 protocol used,
If the gatekeeper is used, the register port works as the
gatekeeper’s monitor port. The default value is 1719.
If the gatekeeper is not used, the register port works as the end
point device or the gatekeeper’s monitor port. The default value is
1720.
•With MGCP protocol used, this port is the Call Agent’s receive port. The
default value is 2727.
•With SIP protocol used, the default setting is 5060.
Signal Port With H.323 protocol used, this port is mapped to the Q.931 port. For
H.323, the Q.931 call usually uses TCP protocol. The value can be set
between 1024 and 65535.
Control Port
•With H.323 protocol used, this port is the H.245 port using TCP
protocol. H.245 protocol defines call control signal, and uses TCP
protocol. The value can be set between 1024 and 65535.
•With MGCP or SIP protocol used, there is no specific request for this
port. You can enter any number.
※ If there are many IPF-2000 traversing the NAT at the same time, each
IPF-2000 should be assigned with different port number.
Register TTL This defines how many seconds a register message will be sent to the
server. The default setting is 60 seconds.
RTP TOS Fill TOS segment of IP header in RTP digital follow here. Detailed
information please refers to IP protocol information.
RTP Port RTP port is the port transferring and receiving voice flow using UDP
protocol. Please enter an even number between 1024 and 65535 in this
field.
Local Type This parameter refers to how IPF-2000 login a Gatekeeper or SIP Proxy
server. The meaning of each item is as follow:

IPF-2000 User Manual
20
•Phone number:
Use phone number as E.164 and H.323 ID to login the gatekeeper.
•Account
Use account authentication to login. Please also fill up the account
name and password into the account and pin fields.
•H.235 account
With H.323 protocol used, if the Gatekeeper supports H.235 protocol,
please select this option. Please also enter the account name and
password into theAccount and PIN fields.
Call Type Set call type by selecting either Normal or Advanced from drop down list.
The recommended way is “Advanced”.
DTMF Set DTMF signal sending way by selecting Control string, Inband audio,
Signal keypad or RFC 28933 from drop down list. If you can not dial the
extensions, please set the DTMF as “Inband audio”.
6.3 Phone Settings
Phone Settings
Fields Description
Use Dialplan
Set either Use Dial Plan or Use Dial Number by selecting the
corresponding item in drop down list.
•Disable
Disable “use dial plan” or “use dial number” function.
•Enable
Enable the dialing plan. This dialing plan should combine with the
Regional Code and Area Code. Please comply with E.164 rule to
setup the country code, area code and long distance code.
•Dialnum
Enable “use dial number” function. With this option selected, please
enter the dial prefix into Dial Number field.
•Prefix
•Hotline
Enable the hotline function. Please also enter the number in the Dial
Number field. When you pick up the handset or press ENTER,
IPF-2000 will automatically dial the numbers configured in the Dial
Number field.
