ArtDio IPF-2000 User manual

IPF-2000 Quick Installation Guide
Package Contents:
•One IPF-2000 VoIP phone
•One power adaptor
•One RJ-45 Ethernet cable
•Quick Installation Guide
•Installation CD

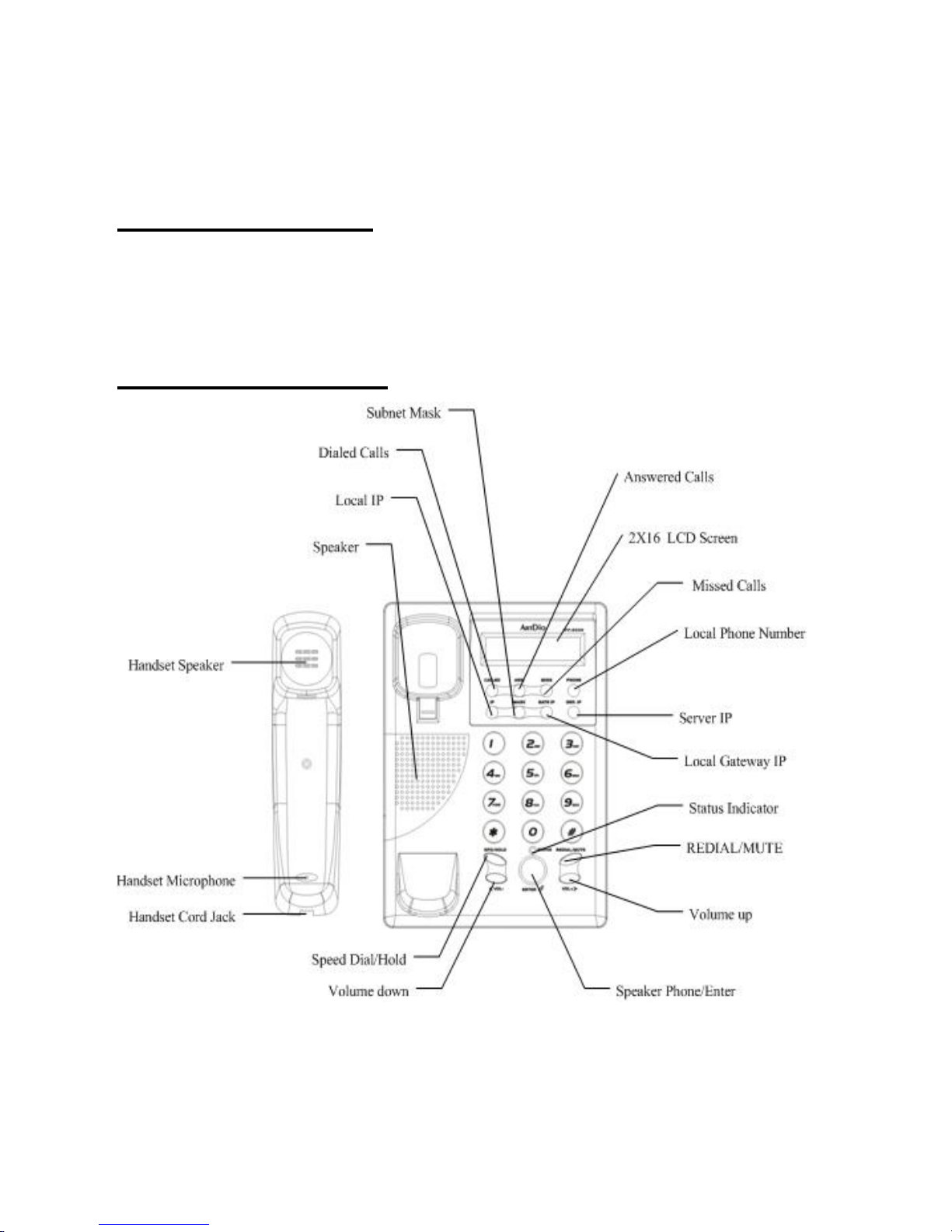

IPF-2000 Functions:

IPF-2000 Quick Installation Guide
2
Hardware Installation:
Prepare your Internet information, and then follow the steps below to install your IPF-2000.
※ For the Cable ISP subscriber:
Cable ISPs usually provide DHCP to its subscribers, and each time they only allow one user logon. Therefore,
most ISPs require their subscribers report the MAC address of their internet devices to allow them to use the
service. If you want to apply another account for IPF-2000, just simply report the MAC address of your
IPF-2000 to your ISP provider.
If you want to use multiple internet devices in the same time, you need a router to connect to the ISP, and connect
your internet devices to the router. Then replace the original MAC address to your router’s MAC address.
Connection with router
Plug one end of the RJ-45 to your IPF-2000 LAN port, and plug another end to one of the LAN port of your router.
Once “Ready for call” is shown on the screen, the hardware installation is completed.
Connection without routers
Plug one end of the RJ-45 to your IPF-2000 LAN port, and plug another end to one of the LAN port of your HUB.
Once “Ready for call” is shown on the screen, the hardware installation is completed.

IPF-2000 Quick Installation Guide
3
Keypad Configuration:
IPF-2000 is able to be configured using keypad. Below table illustrates Function keys for configuration:
Keys Function
SPD / HOLD Change Settings
REDIAL / MUTE Main Menu Options
< VOL -- Next Page
VOL + > Previous Page
ENTER Confirm Setting
Network Settings:
•The default setting for IPF-2000 is DHCP. Therefore, IPF-2000 will be able to connect to the internet
under any DHCP environment.
•If the network environment is either PPPoE or Static IP, please change the networking setting of IPF-2000
to its corresponding network environment.
•Enter keypad configuration mode and select [network setting]. Select DHCP, Static IP or PPPoE based on
your network environment on the phone.
DHCP Setting
1. Connect the RJ-45 Ethernet Cable to the RJ-45 port on the IPF-2000, and then plug in the power.
2. Press 1234# (Hold the # key) ÆLCD shows [Password] ÆPress 1234 and then press ENTER ÆLCD
shows [Network Settings].
3. Press ENTER ÆLCD shows [iptype] ÆPress SPD/HOLD ÆBlinking Cursor ÆPress 1and then press
ENTER (1 sets your networking settings to the DHCP mode).
4. Press REDIAL/MUTE multiple times ÆLCD shows [save settings] ÆPress ENTER ÆLCD shows [Are You
Sure?] ÆPress ENTER to finish this setting. IPF will then reboot.
Static IP Setting
1. Connect the RJ-45 Ethernet Cable to the RJ-45 port on the IPF-2000, and then plug in the power.
2. Press 1234# (Hold the “#” key) ÆLCD shows [Password] ÆPress 1234 and then press ENTER ÆLCD
shows [Network Settings].
3. Press ENTER ÆLCD shows [iptype] Æpress SPD/HOLD ÆBlinking CursorÆPress 0and then press
ENTER. (0 sets your networking settings to the Static IPmode)
4. Press ENTER ÆLCD shows [IP] ÆPress SPD/HOLD ÆBlinking Cursor ÆInput IP address
(XXX*XXX*XXX*XXX) and then press ENTER.
5. Press ENTER ÆLCD shows [Subnet Mask] ÆPress SPD/HOLD ÆBlinking Cursor ÆInput Subnet Mask
information (XXX*XXX*XXX*XXX)and then press ENTER.
6. Press ENTER ÆRouter ÆPress SPD/HOLD ÆBlinking Cursor ÆInput Default Gateway Information
(XXX*XXX*XXX*XXX) and then press ENTER.
7. Press REDIAL/MUTE multiple times ÆLCD shows [save settings] ÆPress ENTER ÆLCD shows [Are You
Sure?] ÆPress ENTER to finish this setting. IPF will then reboot.
PPPoE Setting
1. Connect the PPPoE network to the RJ-45 port of the IPF-2000, and then plug in the power.
2. Press 1234# (Hold the “#” key) ÆLCD shows [Password] ÆPress 1234 and then press ENTER ÆLCD

IPF-2000 Quick Installation Guide
4
shows [Network Settings].
3. Press ENTER ÆLCD shows [iptype] Æpress SPD/HOLD ÆBlinking Cursor ÆPress 2and then press
ENTER. (2 sets your networking settings the PPPoE mode)
4. Press ENTER ÆLCD shows [pppid] ÆPress SPD/HOLD ÆInput PPPoE account number and then press
ENTER.
5. Press ENTER ÆLCD shows [pppin] ÆPress SPD/HOLD ÆInput PPPoE password and then press ENTER
ÆPress ENTER again to complete the configuration
6. Press REDIAL/MUTE multiple times ÆLCD shows [save settings] ÆPress ENTER ÆLCD shows [Are You
Sure?] ÆPress ENTER to finish this setting. IPF will then reboot.
Keypad and Symbols mapping table:
Number key Press once Press twice Press 3 times Press 4 times Press 5 times
１１．，？⁄/！
２２A/a B/b C/c 【
３３D/d E/e F/ f 】
４４G/g H/h I/i ＊
５５J/j K/k L/l
６６M/m N/n O/o ＃
７７P/p Q/q R/r S/s
８８T/t U/u V/v
９９W/w X/x Y/y Z/z
＊．
００Space ：⁄@ ；⁄－’⁄＆
＃Switch to upper/lower case
NAT Environment configuration:
If the IPF-2000 is under the NAT environment (Press the IP button on the front panel, if the LCD shows the IP
address as 192.168.x.x or 10.x.x.x), please contact your VoIP service provider for the information.
※ Refer to the IPF-2000 Manual for detailed configuration of the IPF-2000.
WEB Configuration:
Start a Web browser, such as Microsoft’s Internet Explorer (IE) , and enter the IPF-2000’s IP address on the
web browser.Address window .
The IPF-2000 login screen is displayed:
The IPF-2000 web configuration password comes with two categories: User password andAdministrator password.

IPF-2000 Quick Installation Guide
5
•The default User Password is 1234.
•The defaultAdministrator Password is 12345678.
Please input the password, then click “Login” button.
※ Refer to the IPF-2000 Manual for detailed configuration of the IPF-2000.
Registration Message:
When the registration for IPF-2000 is successful, Ready for Call will appear on the screen, so does the time and
date. If the registration is not successful, Log Fail or Wait Logon will appear. The possible reasons of the
registration failure would be:
•Internet connection is fail. (Fail to acquire the IP address under the DHCP and PPPoE mode, or some IP
configurations are wrong under the Static IPmode),
•Registration is fail. (Fail to register to the VoIP server)
Using IPF:
1. Pick up the handset or press ENTER.
2. After hearing the dial tone, press the phone number you want to dial.
3. Press #right after the numbers, or wait for 4 seconds. The number you want to dial will then be sent out.

IPF-2000 Quick Installation Guide
6
Some Simple Troubleshooting:
Problem: Troubleshooting:
LCD display down or disorder Unplug the power ÆWait for 5 seconds ÆPlug the
power back.
LCD shows [Please dial], but the phone is unable to dial
or hang up. Unplug the power ÆWait for 5 seconds ÆPlug the power back.
LCD shows [Wait Logon], [Log On], or [Log On Failed]
1. Please check the Internet connection of the
RJ-45 is ok.
2. Please check if the IPF-2000 is able to acquire
an IP address. If not, please check the Network
Setting and see if the configuration is correct.
3. Please verify that the account is valid. Please
contact you VoIP service provider for the
account information.
LCD shows [Ready for call]. However, when dialing the
phone number, the LCD shows [Please Hangup] Please verify that the account is valid. Please contact you VoIP service provider for the account information.
Hear echo during the conversation Please press VOL– to the proper volume.
Noise Please check the connection and see if the connection
is loose.
Set to the factory default setting
1. Press 1234*ÆLCD shows [Booting…] Æ
Release the keypad * ÆLCD shows [Page0
running] ÆPress #5*5 Æthe IPF-2000 will
reboot.
2. After rebooting, the phone set to be the factory
default.
