Polycom SoundPoint IP 601 User manual

Polycom
SoundPoint®
IP 601
User Guide
For training/documentation, please visit us @
http://customertraining.verizonbusiness.com or call 1-800-622-1049
© 2006, 2007, 2008 Verizon. All Rights Reserved. The Verizon and Verizon Business names
and logos and all other names, logos, and slogans identifying Verizon’s products and services
are trademarks and service marks or registered trademarks and service marks of Verizon
Trademark Services LLC or its affiliates in the United States and/or other countries. All other
trademarks and service marks are the property of their respective owners.
Version 1.08
1

Table of Contents
Table of Contents 2
Introduction 4
Installation 4
Connect the Network and Power Source 4
Connect the Handset and Optional Headset 5
Attach the Base 5
Features 6
Key Descriptions 7
Configure Basic Settings 8
Appearance of Date/Time 8
Display Contrast 8
Headset Memory Mode 8
Ring Type 9
Directory Search 9
Call Lists 9
Contacts 10
Add/Edit a Contact 10
Search 10
Speed Dial 10
Remove a Speed Dial Entry 11
Place a Call 11
Use the Handset 12
Use the Hands-Free Speakerphone 12
Use the Headset 12
Answer a Call 12
Call Hold 13
Call Hold and Resume 13
Multiple Calls on Hold 13
Mute 13
Volume 14
2

Call Transfer 14
Call Forward 14
Disable Call Forwarding 14
End a Call 14
Shared Call Appearance 15
Multiple Lines 15
Multiple Keys per Line 15
Multiple Call Appearance 16
Shared Lines 17
Voice Mail 17
Listen to Messages 17
3

Introduction
ThePolycomSoundPointIP601isafull‐duplex,hands‐freeSession
InitiationProtocol(SIP)phone.Itprovidestelephonyfeaturessuchas
SharedCallAppearance,CallHold,CallTransfer,andDoNotDisturb.

Installation
Thefollowinginstructionsprovidebasicinstallationinstructions.
Contactyoursystemadministratorforadditionalinformationor
assistance.

Connect the Network and Power Source
UsePoweroverEthernet(PoE)fornetworkandpowersource
connectionsunlessotherwisedirectedbyyoursystemadministrator.

NOTE:TheACpoweradapterisaseparate,optionalaccessory.Yoursystem
administratorwillprovideonetoyouifnecessary.

AC Power Option
Connectthesuppliednetwork
cablebetweentheLANjackon
thephoneandtheLANporton
thewallorhub/switchdevice
port.ConnecttheDCplugonthe
ACwalladaptertotheDCjack
markedonthephone.

In-Line Power Option

Plugthesuppliednetworkcable
betweentheLANjackonthe
phoneandanavailablePower
andDataportontheIn‐Line
Powerswitchifthephoneis
connectedtoacompatible
Ethernetswitch.


4

Connect the Handset and Optional Headset


1. Connecttheshortstraightendofthephonecordtothe
handset,andthecorrespondinglongerstraightendofthe
cordtothehandsetjackonthebackofthephone.
2. Connecttheheadset(optional)totheheadsetjackontheside
ofthephone.

Attach the Base


1. Placeallcordsintherecessedareaabovethemodularjacksin
thefirstexampleabove.
2. Alignthetwoprotrusionsontheonthebracketwiththeir
correspondingholesinthephoneandsnapthemtogetherto
lockthebasetothephone.
5

Features
ThefeaturesoftheSoundPointIP601areshownbelow:




6

Key Descriptions

7

Configure Basic Settings
YoucancustomizeyourSoundPointIP601phonebyadjustingthe
settingsfortimeanddate,displaycontrast,ringtype,etc.Youcan
alsoaddcontactstothephone’sdirectorymanuallyorfromcalllists.
YoucanconfigurebasicsettingsbypressingtheMenubuttonand
thenselectingSettings>Basic.
Appearance of Date/Time
Youcanconfigurehowthedate/timeappearsonthedisplay.The
displayflashesifthephonecannotobtainatimeanddatefroma
configuredSNTPserver.Contactyoursystemadministratorifthe
date/timeisincorrect.

Gotohttp://customertraining.verizonbusiness.comforinformation
onDaylightSavingsTimeprogramming.

1. PresstheMenubutton.
2. SelectSettings>Basic>Preferences>Time&Date.
3. SelectClockDate,ClockTime,ClockOrder,or
Enable/Disable.
4. Scrollthroughtheoptionsundereachoftheseselections
usingthearrowkeys.
5. PressSelecttoconfirmyourchoice.
6. PressMenutotheidledisplay.
Display Contrast
1. PresstheMenubutton.
2. SelectSettings>Basic>Contrast.
3. PresstheUporDownsoftkeystoincreaseordecreasethe
displaycontrast.
4. PresstheOkorCancelsoftkeystoacceptorrejectchanges.
5. PressMenuortheExitsoftkeytotheidledisplay.
Headset Memory Mode
Thisfeatureisusefulforpermanentorfull‐timeheadsetusers.

1. PresstheMenubutton.
2. SelectSettings>Basic>Preferences>HeadsetMemory.
3. UsetheupordownarrowsandSelectsoftkeytoenable
HeadsetMemoryMode.
4. PressMenutoreturntothemainmenu.
8

Ring Type
Youcanselectfromdifferentringtypestodistinguishbetweenlines
ortohaveadifferentringfromaco‐workercloseby.

1. PresstheMenubutton.
2. SelectSettings>Basic>RingType.
3. Selectthelineyouwanttochangeusingtheupordownarrow
keysifmultiplelinesareconfiguredonyourphone,if
applicable.
4. Usetheupordownarrowkeystoselecttheringtypeyou
want.
5. PressthePlaysoftkeytoheartheringtype,ifapplicable.
6. PresstheSelectsoftkey.
7. PressMenuortheExitsoftkeytotheidledisplay.
Directory Search
YoucanconfigurehowthesearchoftheContactDirectoryis
performed.Youcansearchbyfirstnameorlastname.

1. PresstheDirectoriesbutton.
2. SelectContactDirectory.
3. SelectMore.
4. SelectSearch.
5. UsethedialpadfortoenterthefirstfewcharactersforFirst
orLastnames.
6. PressSearch.Successfulmatchescanbedialedfromthe
resultsscreen.
NOTE:Thereconfigurationcouldtakeafewminutesdependingonthe
sizeofyourcontactdirectory.


Call Lists
Locallistsofincoming(missedandreceived)callsandoutgoing(also
knownasplaced)callsaremaintainedbythephone(upto100for
eachlist).

PresstheDirectoriesbutton.
PresstheCallListssoftkey.
oPresstheMissedCallssoftkeytoviewmissedcalls.
oPresstheReceivedCallssoftkeytoviewreceivedcalls.
oPressthePlacedCallssoftkeytoviewoutgoingcalls.
PresstheEditsoftkeytochangethedialstringbeforedialing.
9

PresstheDialsoftkeytocallanumberfromoneofthecall
lists.
PresstheExitsoftkeyreturntothepreviousmenu.






Foradditionaloptions,presstheMoresoftkeyfollowedby:
Infotoviewinformationaboutthecall.
SavetostorethecontacttotheContactDirectory.
Cleartodeletethecallfromthelist.
MoreandExittoreturntotheidledisplay.


Contacts
Toquicklyviewrespectivecalllistsfromtheidledisplay:
PresstherightarrowforPlacedCalls
PresstheleftarrowforReceivedCalls
PressthedownarrowforMissedCalls
Inadditiontoyourmissed,placed,andreceivedcallsdirectory,the
phonecanstorealocaldirectoryof500ormorecontacts.Youcan
add,delete,edit,dial,orsearchforanycontactinthislist.
Add/Edit a Contact
1. PresstheDirectoriesbutton.
2. SelectContactDirectory.
3. Pressthe1/A/asoftkeytoselectbetweennumericand
upper/lowercasealphanumericmodes.
4. Enterthefirstand/orlastnameusingthekeypad.
5. Enterthecontactnumber.Thisisarequiredfieldanditmust
beunique.
Search
FromtheContactDirectory:
1. PresstheMoresoftkey.
2. PresstheSearchsoftkey.
3. UsethedialpadtoenterthefirstfewcharactersforFirstor
Lastnames.
4. PresstheSearchsoftkey.Successfulmatchescanbedialed
fromtheresults.
Speed Dial
Pre‐assignednumberscanbeassociatedwithlinekeysforrapid
automateddialing.Speeddialentriesareconsecutivelyplacednextto
assignedlinekeysonthephone.
Example:ToassignJanetoaspeeddialentry:
10

1. PresstheDirectoriesbutton.
2. SelectContactDirectory.
3. PresstheAddsoftkeytoenterJane’scontactdetails.
‐OR‐
SelectJane’sexistingentryandpressEdit.
4. UsethedialpadtoenterandassignJaneaspeeddialindex
number.Janeisassignedtothefistavailablelinekeyonthe
display.
5. PresstheSavesoftkeytoconfirm,ortheCancelsoftkeyto
cancel.
6. PresstheExitsoftkeytoreturntotheidledisplay.

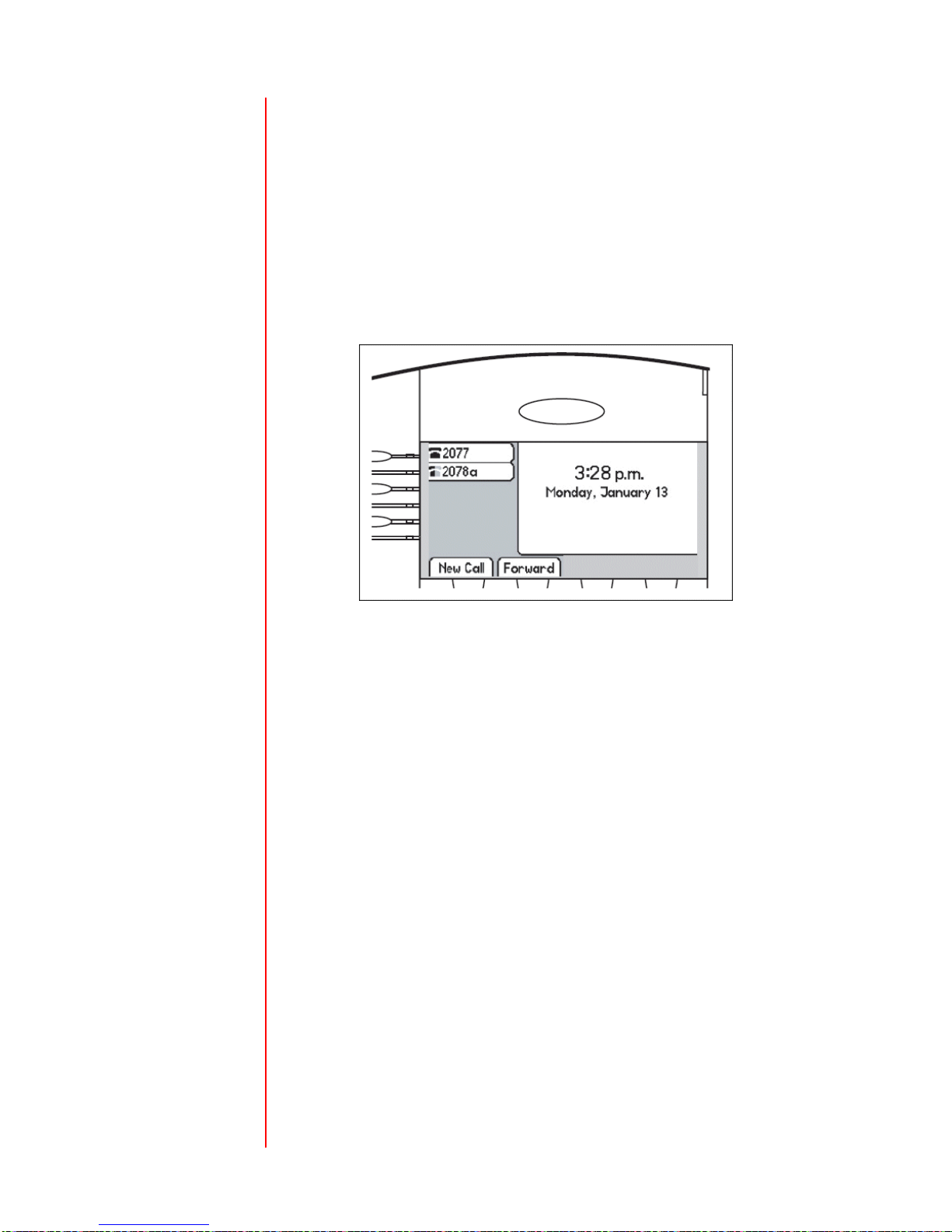

Theidledisplaywilllooklikethis:

PressthelinekeylabeledJanetodialhernumber.
Remove a Speed Dial Entry
1. PresstheDirectoriesbutton.
2. SelectContactDirectory.
3. Scrollthespeeddialentryyouwanttoremove.
4. PresstheEditsoftkey.
5. Pressthekey,thenthe keytoremovethespeeddial
indexnumber.
6. PresstheSavesoftkey.
7. PresstheExitsoftkeytoreturntotheidledisplay.




Place a Call
Toquicklyviewacompletelistofassignedspeeddialentries,
presstheuparrow.Dialdirectlyfromaselectednumber.
Youcanalternatebetweenthehandset,headset,orhands‐freeby
pressingtheor buttons,orpickingupthehandset.
11

Use the Handset
1. Pickupthehandsettoobtainadialtone.
2. Dialthenumber.
‐OR‐
DialtheSIPURL/IPaddress(e.g.,10.3.0.42,[email protected],
sip:[email protected]).
PressNameafterobtainingthedialtone.
EntertheURLorIP(press*for“.”And#for“@”).
PresstheSendsoftkeytocompletethecall.
Use the Hands-Free Speakerphone
1. Pressanyassignedlinekey,the button,ortheNewCall
softkeytoobtainadialtonewiththehandseton‐hook.
2. Dialthenumber.
‐OR‐
DialbySIPURL/IPaddress.
Use the Headset
1. Pressanyassignedlinekey,the button,ortheNewCall
softkeytogetadialtonewiththeheadsetconnected.
2. Dialthenumber.
‐OR‐
DialtheSIPURL/IPaddress.
NOTE:Youcandialdirectlyfromthedialpadwithoutgettingadialtonefirst.
Enterthenumber,leftthehandset,presstheDialsoftkey,orpressthe
or buttons.


Answer a Call
Afteransweringacall,itappearsonthedisplayshowingtheduration
anddestination.
NOTE:IncomingcallscanbeignoredbypressingtheRejectsoftkeyortheDo
NotDisturbbutton.DoNotDisturbremainsactivewhenthecallis
dropped.Youmusttoggleitofftodisableit.

Pickupthehandset.
‐OR‐
Pressthebuttontoanswerwiththespeakerphone.
‐OR‐
Pressthelinekeywiththeactiveindicator(withthehandset
onthehook).
‐OR‐
PresstheAnswersoftkey(withthehandsetonthehook).
12

‐OR‐
Pressthe buttontoanswerthroughyourconnected
headset.
NOTE:IncomingcallscanbeignoredbypressingtheRejectsoftkeyortheDo
NotDisturbbutton.DoNotDisturbremainsactivewhenthecallis
dropped.Youmusttoggleitofftodisableit.


Call Hold
Call Hold and Resume
1. Pressthe buttonortheHoldsoftkey.Thecallisplaces
onholdandisindicatedonthedisplay.
2. PresstheResumesoftkeyorthelinebuttontoretrievethe
call.
NOTE:Callsonholdmaygeneratemusic,sobecarefulifyouareonaconference
call.

Multiple Calls on Hold
Youcanusethearrowkeystoswitchbetweencalls,thenpressthe
Resumesoftkeytoretrieveacallwhenmultiplecallsareonholdona
singleline.Anindicatorappearsonthedisplayifmorethantwocalls
areonholdonasinglekey.Forexample,“2/3”showsthatthisisthe
secondcalloutofthreecalls.

Thedetailsofcallsonanylinekeycanviewedbypressingthatline
keyandholdingitdownforafewsecondsifcallsareonholdonmore
thanoneline.Ifalinekeyispressedbriefly,thefirstcallonholdon
thatlineisretrieved.

Mute
Duringacall,press.TheMessageWaitingIndicator(MWI)turns
redandamicrophoneonthegraphicdisplayindicatesthattheother
party(orparties)cannothearyou.

MicrophoneMuteappliestoallmodes:handset,headset,andhands‐
freespeakerphone.Youcanstillhearallotherpartieswhilemuteis
enabled.

13

Toturnoffmicrophonemute,press again.
Volume
Press toadjustthereceivervolumeduringacall.
Pressingthesekeysintheidlestateadjuststheringervolume.
NOTE:Toconformtoregulatoryrequirements,handsetandheadsetvolume
returnstoapresetlevelaftereachcall.


Call Transfer
1. PresstheTransferbuttonduringacall.Theactivecallis
placedonhold.
‐OR‐
PresstheTrnsfersoftkeyduringacall.Theactivecallisplaced
onhold.
2. PresstheBlindsoftkeyifyouwanttoperformablindtransfer
(withoutinformingthepartytowhomyouaretransferring).
3. Dialthenumbertowhichyouwanttotransferthecall,oruse
thearrowkeystoaccessspeeddialnumbers,missed,placed,
orreceivedcalllists.
4. PresstheDialsoftkey.
5. PresstheTransferbuttonortheTrnsfersoftkeyagain.


Call Forward
Youcanforwardcallstoanotherextensioninyourlocation.
1. PresstheForwardsoftkeyfromthephone’sidledisplay
(selectwhichlinetoforwardofmultiplelinesareinuse).
2. EnterthenumberorURLtowhichyouwanttoforwardthe
call.
3. PresstheEnablesoftkey.
Disable Call Forwarding
1. PresstheForwardsoftkeyfromthephone’sidledisplay
(selectwhichlinetoforwardofmultiplelinesareinuse).
2. PresstheDisablesoftkey.


End a Call
Toendacall,performoneofthefollowingsteps:
14

PresstheEndCallsoftkey.
‐OR‐
Replacethehandset.
‐OR‐
Press ifinhands‐free/speakerphonemode.
‐OR‐
Press ifinheadsetmode.


Shared Call Appearance
Multiple Lines
Uptosixlinescanbeconfiguredforprivateorshareduse.Typically,
thetop‐mostlinekeyisreservedfortheprincipledirectorynumberof
thephone.Dependingonhowyourphoneisconfigured,thedisplay
wouldresembleoneoftheexamplesbelow:




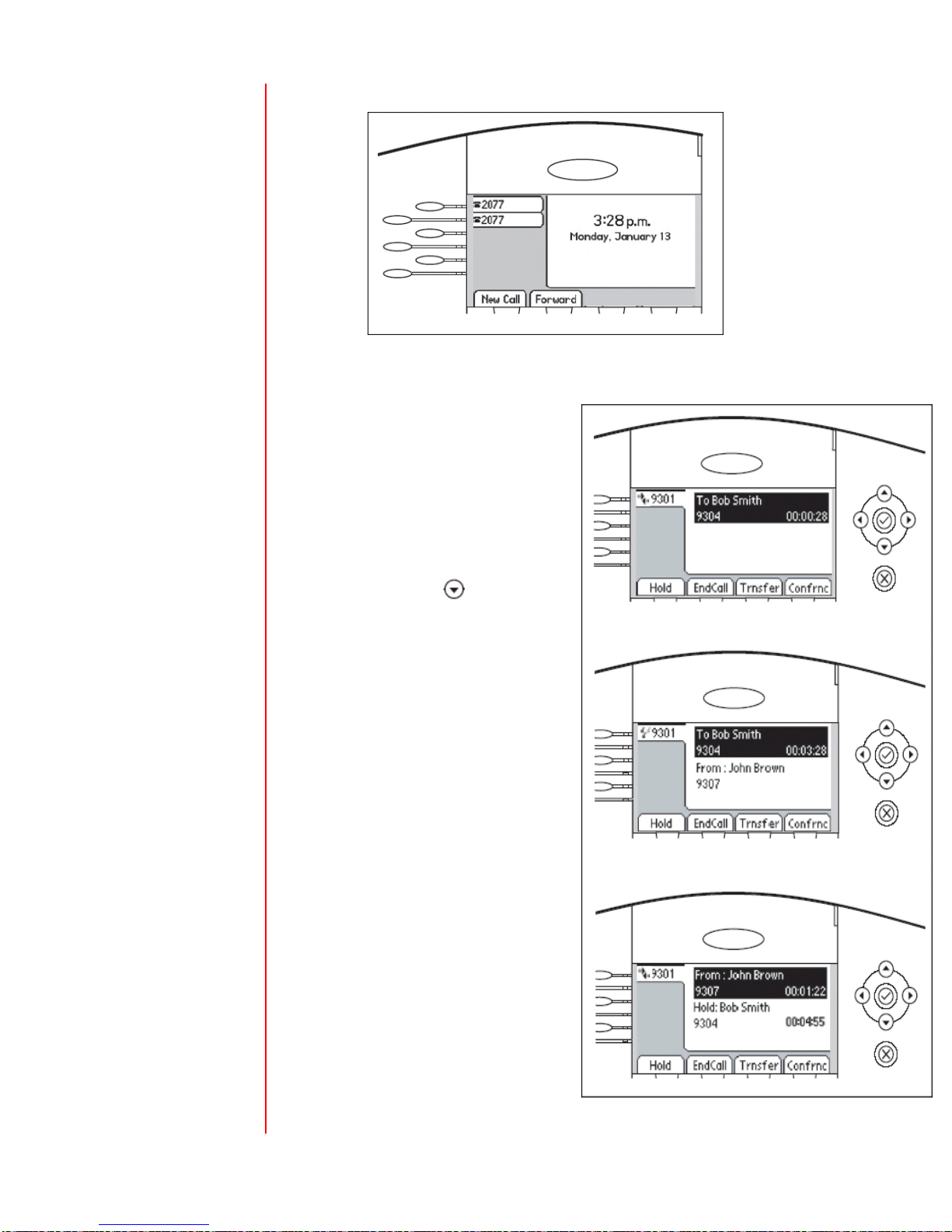

Multiple Keys per Line
Eachlineonthephonecanbeconfiguredtohavemorethanoneline
keyassociatedwithit.Inthiscase,thedisplaywouldlooklikethe
examplebelow.

15

Multiple Call Appearance

Eachlineonthephonecanbeconfigured
tohaveoneormorecallappearances.
Morethanonecallappearanceisusefulif
thereisanactivecallandanincomingcall
ringsonthesameline.Inthefirstexample
ontheright,extension9301isinan
outboundcallwith9304.Thesecond
exampleshowsanincomingcallfromJohn
Brown.Toanswerthecall,puttheoriginal
callonholdorpressthe buttonto
accessthenewcall.Softkeylabelsare
updatedonthedisplaywiththefollowing
options:

Answertheincomingcall–placesthe
originalcallonholdandrefreshesthe
softkeylabelsasshowninthethird
example.Ifmorethantwocall
appearancesareinuse,twoappearon
thedisplayandthetotalnumberis
indicatedbyacounteratthebottom
rightcornerofthedisplay.For
example,“2/3”indicatesthatthe
highlightedcallisthesecondoneout
ofatotalofthree.
Rejecttheincomingcall
Forwardtheincomingcalltoanother
extension

Intheexample,anotheroutboundcallcan
beplacedonthesamefirstline.

1. PresstheHoldsoftkeyduringthe
firstcall.
2. PresstheNewCallsoftkeyto
obtainadialtoneandanewcall
appearanceforasecondcall.
16

17
Shared Lines
Asharedlineisindicatedbyadifferentlineicon.Inthefollowing
example,thefirstlineisprivateandthesecondlineisshared.An
incomingcalltothatnumbercausesbothphonestoringiftwo
phonessharealine.Thecallcanbeansweredoneitherphone,but
notboth.Ifasharedlineisinuseononeofthephones,itcannotbe
usedontheotherone.Thesharedlineiconchangestoamovingicon,
andthelineLEDturnsredwhenitisinuseremotely.Callsonshared
linescanbetransferred,putonhold,oraddedtoaconference.




Voice Mail
ReceivedmessagesareindicatedbyaflashingMessageWaiting
Indicator(MWI)onthefrontofthephone.Individuallineindicators
reflectvoiceortextmessagesleftonthatline(usefulifmultiplelines
areinuse).Astutterdialtoneinplaceofanormaldialtonealso
indicatesthatoneormorevoicemessagesareinyourmessage
center.
Listen to Messages
1. PresstheMessagesbutton.
2. PresstheMessageCentersoftkey.
3. Selectthelineyouwanttoretrievemessagesfromifmultiple
linesareinuse.Thedisplayindicatesthenumberofmessages
andtheirimportance.
4. PresstheConnectsoftkeytoretrievemessages.
‐OR‐
PresstheClearsoftkeytoturnofftheflashingMWIwithout
listeningtomessages.
5. Followthevoicepromptstolistentomessages.

