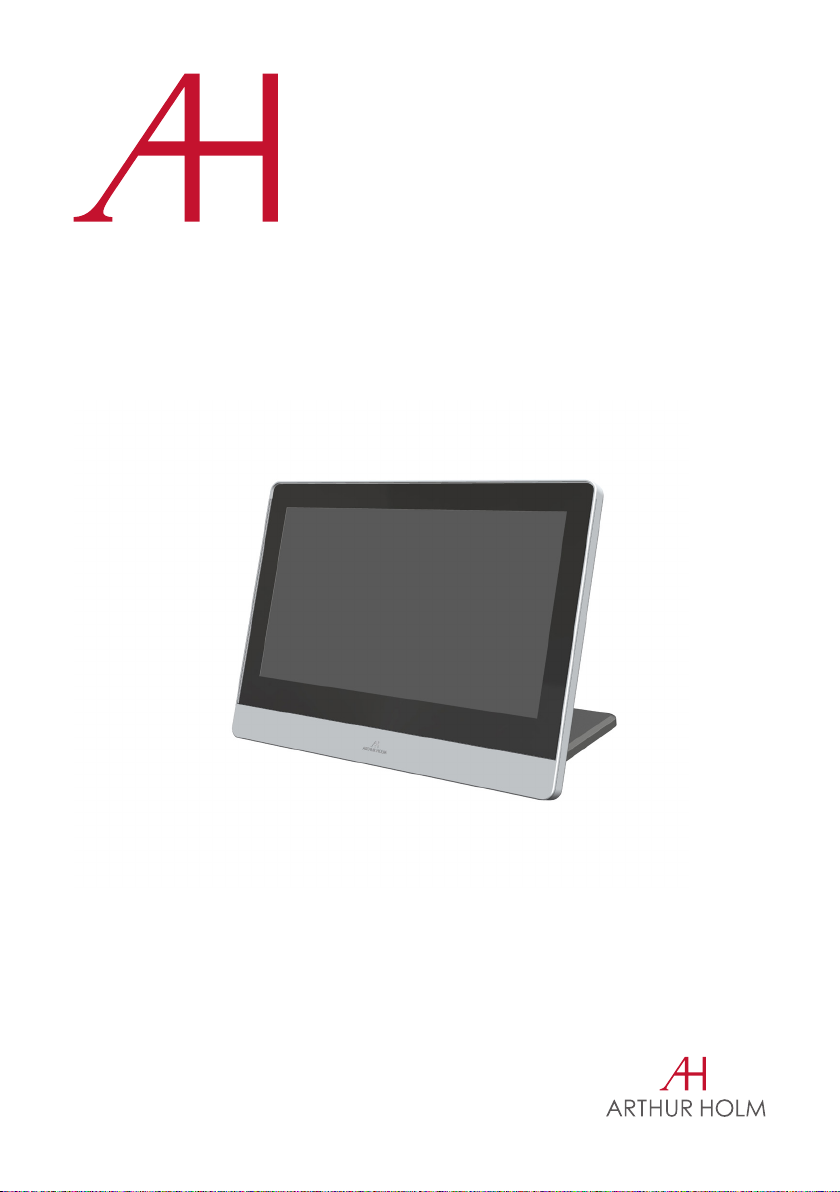

ARTHUR HOLM AH1 Series User manual

AH12TX16GA
AH17TXHDGA
AH19TX16GA
AH22TX16GA
Manually foldable professional monitors
User manual
AH1

3
Table of contents
EC REGULATIONS & SECURITY 6
SAFETY INSTRUCTIONS 7
APPLICATIONS 8
FEATURES 8
BOX CONTENTS 8
CONNECTIONS 9
TROUBLE SHOOTING 9
CONTROLS 10
OSD MENU 11
PRODUCT HANDLING 14
INPUT CONNECTORS 15
INPUT SIGNALS 16
PRODUCT WARRANTY 19

5
Welcome
Thank you for purchasing an ARTHUR HOLM product.
Our product range has been designed to create the perfect meeting room,
where the screens are a part of the interior design as well as essential
communication tools.
Please, read this installation and operating instructions carefully and keep
them in a safe place for future reference.
We remain at your entire disposal if you have any suggestions that would
help us improve our products.
Henrik Holm
General Manager

6
EC Regulations and Security
ATTENTION: Do not disassemble or modify the device in any way.
This symbol warns of the presence of dangerous un-insulated voltages
inside some of the components, of sufficient magnitude to expose people
to risk of electronic shock.
This symbol draws attention to important use and maintenance instructions
in the manual that accompanies the unit.
This symbol indicates that the equipment conforms to the norms
established by the European Community.
Safety instructions
PLUGS
– Do not dismantle any part of the monitor power connector.
– Disconnect the power plug from the AC outlet when the monitor is not
going to be used for an indefinite period of time.

7
Safety instructions
POWER AND EXTENSIONS CORDS
– Use the appropriate power cord with the correct plug type
– Do not overload wall outlets or power cords
– Make sure the total ampere passed through a extension cord does not
exceed the maximum allowed by the cable used
– Do not place anything on the power cord
– Do not locate this product where a person may walk or trip over the cord
Wiring connected to hazardous voltage requires installation by
qualified personnel or the use of ready-made flexible cables.
For your security, your equipment must be connected to an electrical
outlet with grounding connection protection.
The operating electrical outlet must be in an easily accessed place.
ENVIRONMENT
– Install the equipment on an elevated, flat surface
– Install the equipment in a ventilated area
– Avoid exposing the equipment to:
Rain or water
Excessive heat, cold or humidity
Areas exposed to direct sunlight
Dirty areas
Equipment generating strong magnetic fields
– Avoid placing open containers of liquid, near the equipment
– Keep a minimum distance of 30mm in order to have good ventilation
– Never place any sources of flames, such as lighted candles, etc above the
device
– If you are using the device in extreme weather conditions and / or tropical
climates, the equipment should be installed in a room which ensures a
reasonable level of temperature and humidity

8
System Description
APPLICATIONS
The AH1 family consists of a manually foldable monitor in milled aluminium
with anodised finish and dark cast iron base. Flush antiglare protection glass
with elegant black marking.
This TFT-LCD product range is specially designed for desk integration at:
Conference rooms Meeting rooms Board rooms
Auditoriums Information desks Training rooms
FEATURES
– TFT Active Matrix display
AH12TX 16GA 12’’ Widescreen
AH17TX HDGA 17” FULL HD
AH19TX 16GA 19’’ Widescreen
AH22BTX 16GA 22’’ FULL HD
– Manually foldable monitor
– Low power consumption
– Low Radiation
– Quick response time
– Data inputs DVI-D and DVI-I. HDCP compliant
– USB extended connector integrated on the lateral monitor housing
– Optional: capacitive touch screen (no additional drivers needed)
BOX CONTENTS
Before the installation of your monitor, please check the contents of the
shipping box, it must contain the following items:
- Monitor
- Power cord
- Power supply 100-240Vac, 50-60Hz. Output 12V
- User Manual

9
Connections
POWER CONNECTION
1. Plug the power cable from the power supply into an AC socket of
100-240 Vac, 50-60Hz.
2. Plug the 12Vdc cable into the socket on the unit
SIGNAL CONNECTION
1. Use the DVI-I input to connect a DVI-D signal or an analog RGB signal
(VGA).
2. Plug the DVI-D connector to a DVI-D signal.
Use high quality DVI cables with 2m maximum length
Trouble Shooting
The monitor doesn’t turn on:
Check the power connections at the AC plug to the DC plug on the unit
No input signal:
Check the input signal cables
No image is displayed:
Check the status of the brightness, contrast and colour controls
Bad quality image:
Check the input signal cable
Try to auto adjust the image or reset the controller
Other problems:
Please, contact your distributor

10
Controls
OSD MONITOR CONTROL
The OSD buttons, to control or configure the monitor, are located on the
lower body housing of the system
MENU Activates the OSD menu. Exits the OSD menu when is
active
SEL Selects the OSD menu function
DOWN Cursor control down on the OSD menu
UP Cursor control up on the OSD menu
LEFT Cursor control left on the OSD menu
RIGHT Cursor control right on the OSD menu
SOURCE Signal input selection (No function in this model)
LED Indicates operation status
POWER Monitor power on/off
MENU SELECT DOWN UP LEFT RIGHT SOURCE LED POWER

11
OSD menu
ACCESSING THE MENU SYSTEM
– With the OSD off, push the MENU button to activate the main OSD menu
– Press the UP and DOWN button to move from one function to another.
Please refer to the following sections below to view a complete list of
all the functions available for the monitor
– Press the OK button to enable the item
– When a function is selected, press the LEFT and RIGHT buttons in order to
change the parameter of the function
Press the Menu button to access to the main menu
Picture Mode Adjusts the mode of the image
Dynamic
Standard
Mild
User: Contrast, Brightness, Colour, Sharpness, Tint
Colour Temperature Adjusts the color of the image
Cool
Medium
Warm
User: Red, Green, Blue
Aspect Ratio Configures the image aspect on screen
4:3
16:9
Just scan

12
OSD menu
Noise Reduction Adjusts the image noise filter
Off
Low
Middle
High
Default
Screen (Only for analogue signals)
Auto Adjust
Horizontal Pos.
Vertical Pos.
Size
Phase
Backlight Adjust the backlight of the screen
Colour Range 0 – 255
16 – 235

13
OSD menu
OPTION
OSD Language Selects OSD language
Restore Factory Default Adjusts the parameters as factory
Blending OSD window transparency
Low
Middle
High
Off
OSD Duration Adjusts the time that the OSD menu window remains on
screen
Software Update (USB) Used for firmware upgrade
Mirror
0: Image with no flip
1: Vertical flip
2: Horizontal flip
3: Rotate

14
Monitor handling
To adjust the inclination of the monitor, hold it by it’s sides and move it.
The monitor has rubber bumper feet fitted on the base to stop the monitor
sliding on the table surface.
The cables can be secured to the plate with two phillips screws to avoid
them getting under the stand.

15
Input connectors
12V D.C. Power supply input connector
DVI 2 DVI-D input signal. Connect a DVI (digital) input signal and
select DVI 2 on the OSD monitor menu
DVI 1/ DVI A DVI-I input signal. Connect a DVI (digital) input signal and
select DVI 1 on the OSD monitor menu. Use a DVI to VGA
adapter to connect an ARGB (analogue) input signal and
select DVI-A on the OSD monitor menu
Use high quality DVI cables with 2m maximum length
USB USB-A extended connector. On the left side of the monitor
housing, there is also a USB-A connector.
TOUCH USB touch screen connector (optional)

16
Input Signals
AH12TX16GA / AH19TX16GA
RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type
800x600@60Hz 37.879 60.317 Progressive
800x600@72Hz 48.077 72.188 Progressive
800x600@75Hz 46.875 75.000 Progressive
1024x768@60Hz 48.363 60.005 Progressive
1024x768@70Hz 56.476 70.070 Progressive
1024x768@75Hz 60.023 75.030 Progressive
1280x720@60Hz 44.697 59.915 Progressive
1280x768@60Hz 47.396 59.995 Progressive
1360x768@60Hz 47.720 59.799 Progressive
AH17TXHDGA / AH22TX16GA
RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type
800x600@60Hz 37.879 60.317 Progressive
800x600@72Hz 48.077 72.188 Progressive
800x600@75Hz 46.875 75.000 Progressive
1024x768@60Hz 48.363 60.005 Progressive
1024x768@70Hz 56.476 70.070 Progressive
1024x768@75Hz 60.023 75.030 Progressive
1280x720@60Hz 44.772 59.855 Progressive
1360x768@60Hz 47.72 59.799 Progressive
1280x1024@60Hz 63.981 60.020 Progressive
1600x1200@60Hz 75.000 60.00 Progressive
1680 x1050@60Hz 64.742 59.946 Progressive
1920x1080@60Hz 66.647 59.98 Progressive

18
Information on Disposal for users of waste of Electrical & Electronic
equipment
This symbol on the products and/or accompanying documents means
that used electrical and electronic products should not be mixed with
general household waste.
For proper treatment, recovery and recycling, please take these products
to designated collection points, where they will be accepted on a free of
charge basis. Alternatively, in some countries you may be able to return
your products to your local retailer upon the purchase of an equivalent
new product.
Disposing of this product correctly will help to save valuable resources
and prevent any potential negative effects on human health and the
environment which could otherwise arise from inappropriate waste
handling. Please contact your local authority for further details of your
nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
FOR BUSINESS USERS IN THE EUROPEAN UNION
If you wish to discard electrical and electronic equipment, please contact
your dealer or supplier for further information.
INFORMATION ON DISPOSAL IN COUNTRIES OUTSIDE THE EUROPEAN UNION
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or
dealer and ask for the correct method of disposal.

19
Product Warranty
Albiral Display Solutions S.L WARRANTY - Valid from January 2016
This warranty covers the original product purchase for a period of 24 months from the
date of purchase.
GENERAL WARRANTY TERMS
A) Parts. During the above mentioned warranty period, the replacement of any electronic
and mechanical parts against any defects in manufacturing. The warranty does not cover
any faulty electronic and/or mechanical components arising from incorrect installation,
unauthorized modification, and inadequate transport or as a result of atmospheric
phenomenon.
B) Labour. Albiral Display Solutions S.L. covers labour costs for replacement of any
defective parts (in accordance to paragraph A) during the period of this warranty.
C) Transport costs.
I) In the case that a manufacturing defect occurs within 30 days after the purchase
date, both freight and insurance will be paid by Albiral Display Solutions, S.L.
Albiral Display Solutions S.L. will not be responsible for the damages caused by
transportation if the customer does not inform in writing when receiving the goods.
II) After 180 days of the purchase date, both freight and insurance costs will be paid
by the customer.
D) Albiral Display Solutions S.L. will not be responsible for the damages caused by
transportation, when this one is paid by the customer.
E) The warranty is not valid if personnel other than the Authorised Service Centre have
handled the product, if the product has been manipulated or warranty seals have been
removed or manipulated.
F) The beneficiary of the warranty will have to return the product in its original packaging
or in an appropriate package that will warrant no damages during transportation.
G) The warranty is not valid if the customer does not include a RMA form and a copy of
the purchasing invoice.
Albiral Display Solutions S.L. recognizes all guaranteed user rights by all legal rules from
its region, and in the absence of them, all established consumer rights by general law
26/84.
Albiral Display Solutions S.L.

P 24821 RUPC
P 24821 USPC
P 27178 EPPC
P 27178 RUPC
P 27178 USPC
P 2784 EPPC
P 2784 RUPC
P 2784 USPC
P 27715 EPPC
P 28089 EP00
P 28089 PCEP
P 28090 EP00
P 28090PCEP
P 28495 ES00
MU 1996 ES00
MU 16997 ES00
MU 17180 ES00
MU 17301 ES00
MU 17322 ES00
MU 17376 ES00
MU 1741 ES00
MU 17445 ES00
P 248121 DEEP
P 24821 ESEP
P 24821 FREP
P 24821 GBEP
P 24821 ITEP
This manual can be modified without previous notice. ENG - July 2017
Fàtima 25, Sant Hipòlit de Voltregà
08512 Barcelona – Spain
tel: [phone] / 23 83
fax: [phone] / 23 72
web: www.arthurholm.com
e-mail: mark[email protected]
Our Product
Patents
