ARTHUR HOLM RISE AH12RI Wide User manual

User Guide
Danish craftmanship
Mediterranean soul
Technology Serving Desing
RISE
HDCP compliant monitors for on-wall information

TABLE OF CONTENTS
EC REGULATIONS AND SECURITY 6
SAFETY INSTRUCTIONS 6
SYSTEM DESCRIPTION 8
CONTROLS 10
OSD MENU 12
INPUT CONNECTORS 15
INPUT SIGNALS 16
INFORMATION ON DISPOSAL 19
WARRANTY TERMS AND CONDITIONS 20

WELCOME
Thank you for purchasing an ARTHUR HOLM product.
Our product range has been designed for a seamless integration and for
a maximum reliability.
Please, read this installation and operating instructions carefully and keep
them in a safe place for future reference.
We remain at your entire disposal if you have any suggestions that would
help us improve our products.
Henrik Holm
General Manager
[email protected]

ABOUT US
The Company
Arthur Holm has its origins in the Danish furniture designer Jorgen Alex
Jensen, who was active during the sixties and the seventies. His design
inspiration and his concept of ergonomics have been continued by his
family, who is the design force behind Arthur Holm product range. The
result of combining Scandinavian design tradition with Mediterranean
creativity, exibility and emotion is a wide product range built on more
than 25 years of craftsmanship.
Arthur Holm offers a professional product range where tomorrow’s
technology is shaped into valued materials with design exibility and
customisation, specially created to enhance communication in reception,
collaboration, conference and meeting areas.
The art of customisation
Arthur Holm offers a range of ingenious products whose designs are based
on quality materials and the latest technology. Products which endow
meeting and conference rooms with silent, ergonomic, innovative and
aesthetic solutions that integrate into the furniture, hang from the walls as
works of art or are used as interactive points of information.
The world of Arthur Holm
Arthur Holm offers a selection of unique, elegant, versatile, exible and
ergonomic products that are being used in meeting and conference
rooms, reception areas, huddle rooms, control rooms, auditoriums and
public zones of leading companies throughout the world.
The numbers speak for themselves! We currently own 33 product patents,
have presence in over 45 countries with products and solutions inmore
than 25,000 installations.
It will be our pleasure to work with you, designing your unique and
personalised environment. Our broadcast electronic engineers will
provide the latest technology while our design team will offer you the most
exclusive appearance.
Our team puts its heart, passion and pride in all our designs.

6
SAFETY INSTRUCTIONS
Plugs
• Do not dismantle any part of the monitor power connector.
• Disconnect the power plug from the AC outlet when the monitor is not
going to be used for an indenite period of time.
Power and extensions cords
• Use the appropriate power cord with the correct plug type.
• Do not overload wall outlets or power cords.
• Make sure the total ampere passed through an extension cord does not
exceed the maximum allowed by the cable used.
• Do not place anything on the power cord.
• Do not locate this product where a person may walk or trip over the
cord.
EC REGULATIONS AND SECURITY
ATTENTION: Do not disassemble or modify the device in any way.
This symbol warns of the presence of dangerous un-insulated
voltages inside some of the components, of sufcient magnitude
to expose people to risk of electronic shock.
This symbol draws attention to important use and maintenance
instructions in the manual that accompanies the unit.
This symbol indicates that the equipment conforms to the norms
established by the European Community.
This symbol indicates the power supply.

7
Wiring connected to hazardous voltage requires installation by
qualied personnel or the use of ready-made exible cables.
For your security, your equipment must be connected to an
electrical outlet with grounding connection protection.
Since the plug is used to disconnect the device, the operating
electrical outlet must be in an easily accessible place.
Environment
• Install the equipment on an elevated, at surface.
• Install the equipment in a ventilated area.
• Avoid exposing the equipment to:
∙Rain or water
∙Excessive heat, cold or humidity
∙Area exposed to direct sunlight
∙Dirty areas
∙Equipment generating strong magnetic elds
• Avoid placing open containers of liquid, near the equipment.
• Keep a minimum distance of 30 mm in order to have good ventilation.
• Never place above the device any sources of ames such as lighted
candles, etc.
• If you are using the device in extreme weather conditions and/or
tropical climates, the equipment should be installed in a room which
ensures a reasonable level of temperature and humidity.
• To prevent damage the equipment must be rmly anchored to the
surface, as shown on the installation instructions.
SAFETY INSTRUCTIONS

8
SYSTEM DESCRIPTION
Applications
In-wall, on-wall, built into the furniture or even mounted on a foot stand,
Rise and Drop monitors offer a wide range of sizes and nishes including
aluminium, stainless steel or glass. They can be personalised by adding
different features, like company logos. They have been designed with
a professional approach and provide all the accessories for a quick,
straight forward and secure installation.
Integrating monitors in or on the wall is a convenient space optimising
solution specially conceived to enhance the user experience. When
installed in a reception and in public areas like hotels, ofces and
commercial buildings, museums and visitor or business centres, they
become part of a friendly, eye-catching space, providing positive
feelings to visitors. Wall mount monitors can be discreetly installed on
the wall and deliver convenient information, as well as personalised
welcome messages or corporate presentations.
Wall monitors are also ideal to offer relevant meetings information
when placed outside a conference or purpose-built room, a place
where they will undoubtedly catch the eye of the public. They can
display details about the session taking place inside, being extremely
helpful and engaging for attendees to know schedules, programmes
or other general information of interest. Wall mount monitors become
an entertaining feature standing out in these spaces while acting as an
interactive communication display for users.
Features
• On- wall installation.
• Brushed stainless steel/ aluminium/ glass front frame (depending on the
model).
• Integrated wall mount
• Security anti-theft locking system
• Maintenance free
• Easy to install
• Energy saving design

9
Model
AH12RI Wide / AH12RA Wide / AH12RG Wide
HDCP compliant 12.1" widescreen monitor nished with a stainless steel
(I), aluminium (A) or Glass (G) front frame for on-wall integration, DVI-I
and DVI-D inputs.
AH15RI Wide FHD / AH15RA Wide FHD / AH15RG Wide FHD
HDCP compliant 15.6" widescreen monitor nished with a stainless steel
(I), aluminium (A) or Glass (G) front frame for on-wall integration, DVI-I
and DVI-D inputs.
AH17RI Wide FHD / AH17RA Wide FHD / AH17RG Wide FHD
HDCP compliant 17.3" widescreen monitor nished with a stainless steel
(I), aluminium (A) or Glass (G) front frame for on-wall integration, DVI-I
and DVI-D inputs.
AH19RI Wide FHD / AH19RA Wide FHD / AH19RG Wide FHD
HDCP compliant 18.5" Full HD monitor nished with a stainless steel (I),
aluminium (A) or Glass (G) front frame for on-wall integration, DVI-I and
DVI-D inputs.
AH22RI / AH22RA / AH22RG
HDCP compliant 21.5" Full HD monitor nished with a stainless steel (I),
aluminium (A) or Glass (G) front frame for on-wall integration, DVI-I and
DVI-D inputs.
Box Contents
Before the installation of your monitor, please check the contents of the
shipping box, it must contain the following items:
• Monitor
• Power cord
• Remote control (1 per 5 monitors)
• Power supply 100-240Vac, 50-60Hz. Output 12V
• User Manual
Important note: This device can only work with the power supply
included in the shipping box. This power supply can not be replaced by
any other rather than the original one.
SYSTEM DESCRIPTION

10
POWER LED SOURCE RIGHT LEFT UP DOWN SELECT MENU
CONTROLS
OSD monitor control

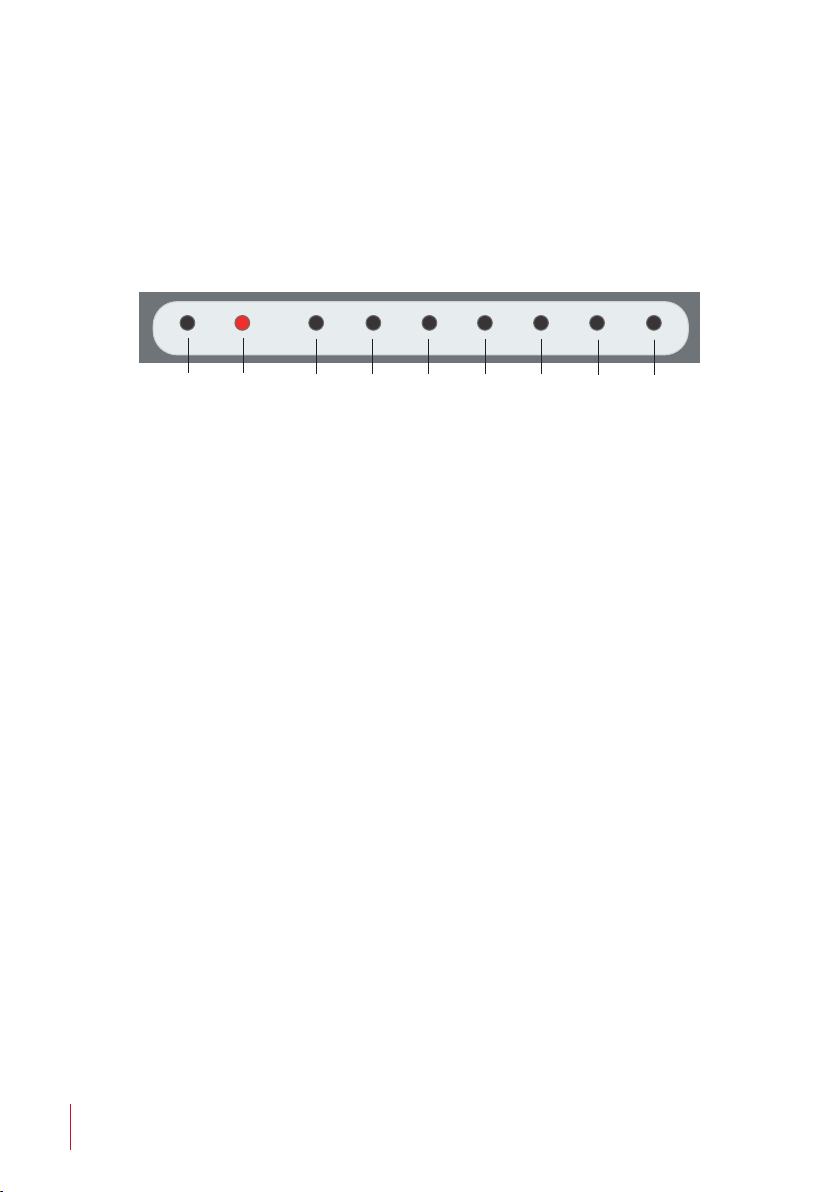

The OSD buttons, to control or set-up the monitor, are located on the
lower body housing of the system:
POWER Monitor power ON/OFF
LED Indicates operation status
SOURCE Signal input selection
RIGHT Cursor control right on the OSD menu
LEFT Cursor control left on the OSD menu
UP Cursor control up on the OSD menu
DOWN Cursor control down on the OSD menu
SELECT Selects the OSD menu function
MENU Activates the OSD menu on screen. Exits the OSD menu
when is active

11
CONTROLS
Remote control
POWER Switch ON/OFF the monitor
MENU Activates the OSD menu on screen
UP Cursor control up on the OSD menu
DOWN Cursor control down on the OSD
menu
LEFT Cursor control left on the OSD menu
RIGHT Cursor control right on the OSD
menu
OK Selects the function on the OSD
menu. When the OSD menu is not active
on screen, selects the input source

12
OSD MENU
Accessing the menu system
• With the OSD off, push the MENU button to activate the main OSD
menu.
• Press the UP and DOWN buttons to move from one function to another.
Please refer to the following sections below to view a complete list of
all the functions available for the monitor.
• Press the OK button to enable the item.
• When a function is selected, press the LEFT and RIGHT buttons in order
to change the parameter of the function.
Press the MENU button to access to the main menu.
Picture Mode: Adjusts the mode of the image
∙Dynamic
∙Standard
∙Mild
∙User: Contrast - Brightness - Colour - Sharpness - Tint
Colour Temperature: Adjusts the colour of the image
∙Cool
∙Medium
∙Warm
∙Use: Red - Green - Blue
Aspect Ratio: Adjusts the image aspect on screen
∙4:3
∙16:9
∙Just scan

13
OSD MENU
Noise Reduction: Adjusts the image noise lter
∙Off
∙Low
∙Medium
∙High
∙Default
Screen: (Only for analogue signals)
∙Auto Adjust
∙Horizontal Position
∙Vertical Position
∙Size
∙Phase
Backlight: Adjusts the backlight screen level
Colour Range: Adjusts the colour range
∙0 - 255
∙16 - 235

14
OSD MENU
Option
Language: OSD language selection
Restore Factory Default: Adjusts the parameters to the initial factory
parameters
Blending: OSD window transparency
∙Low
∙Medium
∙High
∙Off
OSD Duration: Adjusts the time that the OSD menu window remains on
screen
Software Update (USB): Used for rmware upgrade mirror
Mirror:
0. Image with no ip
1. Vertical ip
2. Horizontal ip
3. Rotate

15
INPUT CONNECTORS

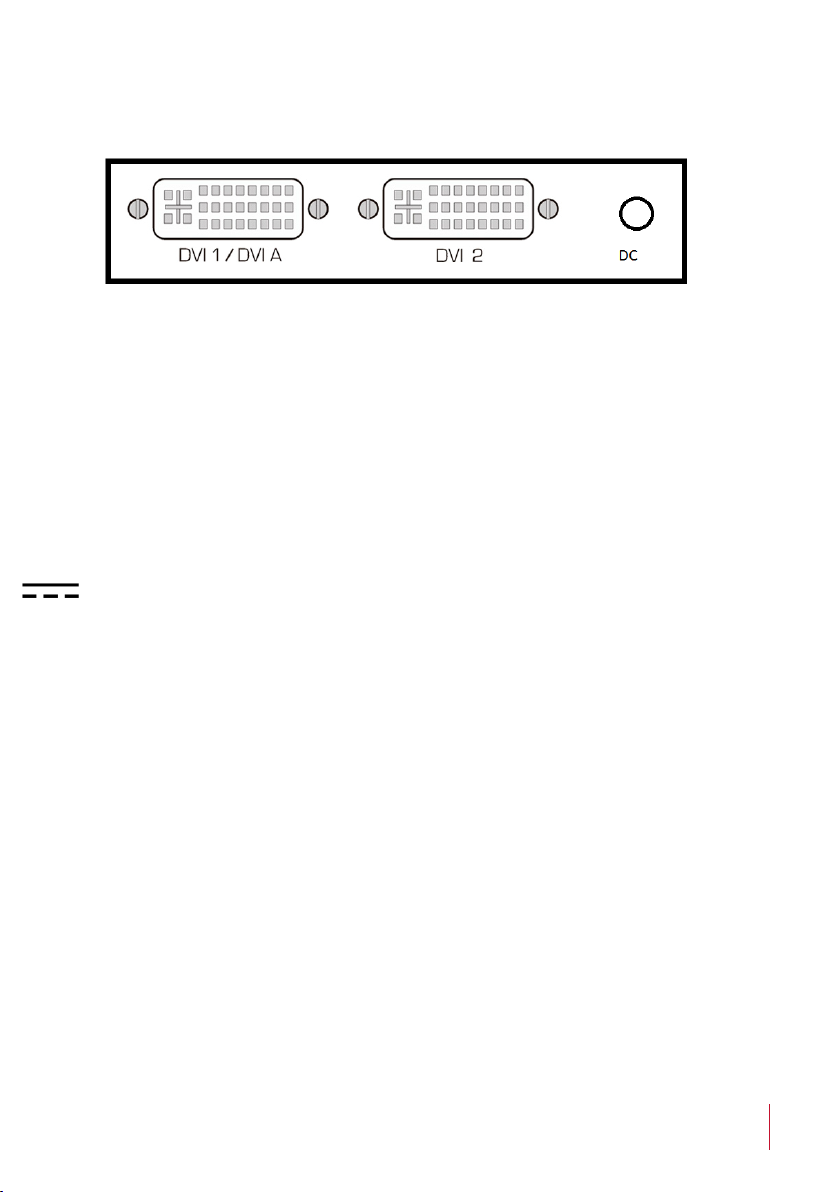

DVI 1/ DVI A: DVI-I input signal. Connect a DVI (digital) input signal and
select DVI 1 on the OSD monitor menu. Use a DVI to VGA adapter to
connect an ARGB (analogue) input signal and select DVI-A on the OSD
monitor menu.
DVI 2: DVI-D input signal. Connect a DVI (digital) input signal and select
DVI 2 on the OSD monitor menu.
- Use high quality DVI cables with 2m maximum length.
12V D.C.: Power supply input connector

16
INPUT SIGNALS
AH12 RA Wide/AH12 RI Wide/AH12 RG Wide
RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type
800x600@60Hz 37.879 60.317 Progressive
800x600@72Hz 48.077 72.188 Progressive
800x600@75Hz 46.875 75.000 Progressive
1024x768@60Hz 48.363 60.005 Progressive
1024x768@70Hz 56.476 70.070 Progressive
1024x768@75Hz 60.023 75.030 Progressive
1360x768@60Hz 47.720 59.799 Progressive
AH15 RA Wide FHD/AH15 RI Wide FHD/AH15 RG Wide FHD
RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type
800x600@60Hz 37.879 60.317 Progressive
800x600@72Hz 48.077 72.188 Progressive
800x600@75Hz 46.875 75.000 Progressive
1024x768@60Hz 48.363 60.005 Progressive
1024x768@70Hz 56.476 70.070 Progressive
1024x768@75Hz 60.023 75.030 Progressive
1280x720@60Hz 44.697 59.915 Progressive
1280x768@60Hz 47.396 59.995 Progressive
1360x768@60Hz 47.720 59.799 Progressive
1280x1024@60Hz 63.981 60.020 Progressive
1680x1050@60Hz 65.160 59.944 Progressive
1600x1200@60Hz 74.479 59.967 Progressive
1920x1080@60Hz 67.500 60.000 Progressive

17
INPUT SIGNALS
AH17 RA Wide FHD/AH17 RI Wide FHD/AH17 RG Wide FHD
RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type
800x600@60Hz 37.879 60.317 Progressive
800x600@72Hz 48.077 72.188 Progressive
800x600@75Hz 46.875 75.000 Progressive
1024x768@60Hz 48.363 60.005 Progressive
1024x768@70Hz 56.476 70.070 Progressive
1024x768@75Hz 60.023 75.030 Progressive
1280x720@60Hz 44.697 59.915 Progressive
1280x768@60Hz 47.396 59.995 Progressive
1360x768@60Hz 47.720 59.799 Progressive
1280x1024@60Hz 63.981 60.020 Progressive
1680x1050@60Hz 65.160 59.944 Progressive
1600x1200@60Hz 74.479 59.967 Progressive
1920x1080@60Hz 67.500 60.000 Progressive
AH19 RA Wide FHD/AH19 RI Wide FHD/AH19 RG Wide FHD
RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type
800x600@60Hz 37.879 60.317 Progressive
800x600@72Hz 48.077 72.188 Progressive
800x600@75Hz 46.875 75.000 Progressive
1024x768@60Hz 48.363 60.005 Progressive
1024x768@70Hz 56.476 70.070 Progressive
1024x768@75Hz 60.023 75.030 Progressive
1280x720@60Hz 44.697 59.915 Progressive
1280x768@60Hz 47.396 59.995 Progressive
1360x768@60Hz 47.720 59.799 Progressive
1280x1024@60Hz 63.981 60.020 Progressive
1680x1050@60Hz 65.160 59.944 Progressive
1600x1200@60Hz 74.479 59.967 Progressive
1920x1080@60Hz 67.500 60.000 Progressive

18
INPUT SIGNALS
AH22 RA/AH22 RI/AH22 RG
RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type
800x600@60Hz 37.879 60.317 Progressive
800x600@72Hz 48.077 72.188 Progressive
800x600@75Hz 46.875 75.000 Progressive
1024x768@60Hz 48.363 60.005 Progressive
1024x768@70Hz 56.476 70.070 Progressive
1024x768@75Hz 60.023 75.030 Progressive
1280x720@60Hz 44.697 59.915 Progressive
1280x768@60Hz 47.396 59.995 Progressive
1360x768@60Hz 47.720 59.799 Progressive
1280x1024@60Hz 63.981 60.020 Progressive
1680x1050@60Hz 65.160 59.944 Progressive
1600x1200@60Hz 74.479 59.967 Progressive
1920x1080@60Hz 67.500 60.000 Progressive

19
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL &
ELECTRONIC EQUIPMENT
This symbol on the products and/or accompanying
documents means that used electrical and electronic
products should not be mixed with general household
waste.
For proper treatment, recovery and recycling, please
take these products to the designated collection
points, where they will be accepted on a free
of charge basis. Alternatively in some countries,
you may be able to return your products to your
local retailer upon the purchase of an equivalent
new product.
Disposing of this product correctly will help save valuable resources
and prevent any potential negative effects on human health and the
environment, which could otherwise arise from inappropriate waste
handling. Please contact your local authority for further details of your
nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact
your dealer or supplier for further information.
Information on disposal in countries outside the European Union
This symbol is only valid in the European Union. If you wish to discard this
product, please contact your local authorities or dealer and ask for the
correct method of disposal.

20
WARRANTY TERMS AND CONDITIONS
Albiral Display Solutions warrants this product against manufacturing
defects and workmanship for a period of two (2) years from the
date of purchase, subject to the conditions below.
1. LCD panel, inverter, controller, electrical, electronic boards,
accessories and power supply are warranted against manufacturing
defects and workmanship for a period of two (2) years from the
date of purchase.
2. Labour costs: Albiral Display Solutions covers the labour costs to
replace any defective parts during the validity of this warranty.
3. Transport costs:
3.1. In the case that a manufacturing defect occurs within 90 days
after the purchase date, both freight and insurance costs will be
paid by Albiral Display Solutions.
Although Albiral Display Solutions S.L. pays for freight and
insurance costs, Albiral Displays Solutions will not be responsible
for any damages caused by the transportation of the goods if the
customer does not inform in writing when receiving the goods.
3.2. After 90 days of the purchase date, the beneciary of the warranty
will pay both freight and insurance costs.
Albiral Display Solutions S.L. will not be responsible for any damages
caused by transportation, when this one is paid by the customer.
4. This warranty does not cover the labour costs of handling, diagnose,
removal, replacement, reinstall and/or program any product.
5. This warranty does not apply if the fault has been caused by misuse,
improper handling, electrical or mechanical abuse, abnormal operation
conditions, non-authorised modications, and inadequate transportion
or as a result of atmospheric phenomenons.
6. The warranty is not valid if people other than authorised Service Centre
have handled the product and if the product has been manipulated
or warranty seals are removed or manipulated.
