ARTHUR HOLM AH2 User manual

User Guide
Danish craftmanship
Mediterranean soul
Technology Serving Design
AH2
HDCP compliant aluminium manually foldable monitors

TABLE OF CONTENTS
REGULATIONS AND SECURITY 5
SAFETY INSTRUCTIONS 5
SYSTEM DESCRIPTION 7
INSTALLATION INSTRUCTIONS 10
POWER AND CONTROLS 12
CONTROLS 13
OSD MENU 14
VIDEO SIGNALS 17
INFORMATION ON DISPOSAL 18
WARRANTY TERMS AND CONDITIONS 19

WELCOME
Thank you very much for purchasing an Arthur Holm product.
Please, read these installation and operating instructions carefully and
keep them in a safe place for future consultations.
We remain at your entire disposal if you have any suggestions.
Henrik Holm
General Manager
[email protected]

ABOUT US
The Company
Arthur Holm has its origins in the Danish furniture designer Jorgen Alex
Jensen, who was active during the sixties and the seventies. His design
inspiration and his concept of ergonomics have been continued by his
family, the design force behind Arthur Holm product range. The result of
combining Scandinavian design tradition with Mediterranean creativity,
exibility and emotion is a wide product range built on more than 25 years
of craftsmanship.
Arthur Holm offers a professional product range where tomorrow’s
technology is shaped into valued materials with design exibility and
customisation, specially created to enhance communication and
collaboration in reception, conference and meeting areas.
The art of customisation
Arthur Holm offers a range of ingenious products whose designs are based
on quality materials and the latest technology. Products which endow
meeting and conference rooms with silent, ergonomic, innovative and
aesthetic solutions that integrate into the furniture, hang from the walls as
works of art or are used as interactive points of information.
The world of Arthur Holm
Arthur Holm offers a selection of unique, elegant, versatile, exible and
ergonomic products that are being used in meeting and conference
rooms, reception areas, auditoriums and public zones of leading
companies throughout the world.
The numbers speak for themselves! We currently own 33 product
patents,have presence in over 45 countries with products and solutions
inmore than 25,000 installations.
It will be our pleasure to work with you, designing your unique and
personalised environment. Our broadcast electronic engineers will
provide the latest technology while our design team will offer you the most
exclusive appearance.
Our team puts its heart, passion and pride in all our designs.

5
SAFETY INSTRUCTIONS
Plugs
• Do not dismantle any part of the monitor power connector.
• Disconnect the power plug from the AC outlet when the monitor is not
going to be used for an indenite period of time.
Power and extensions cords
• Use the appropriate power cord with the correct plug type.
• Do not overload wall outlets or power cords.
• Make sure the total ampere passed through an extension cord does not
exceed the maximum allowed by the cable used.
• Do not place anything on the power cord.
• Do not locate this product where a person may walk or trip over the
cord.
REGULATIONS AND SECURITY
ATTENTION: Do not disassemble or modify the device in any way.

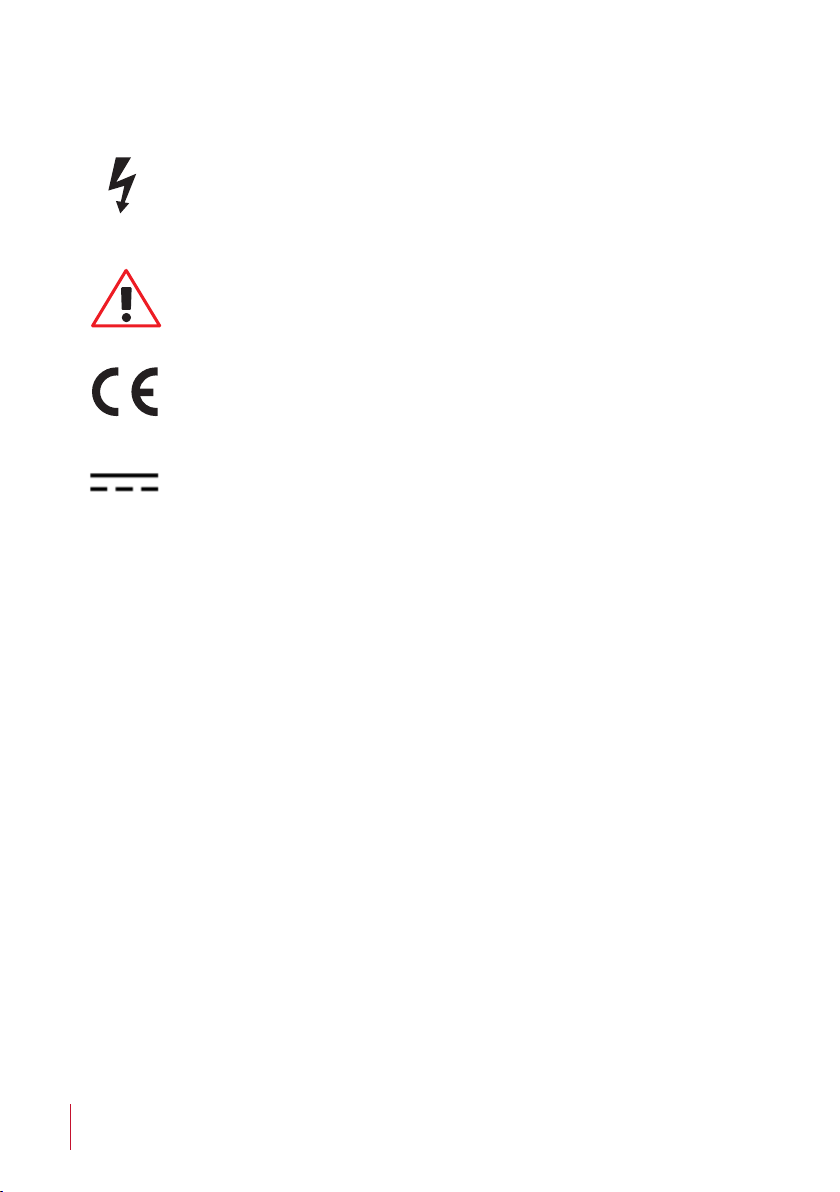

This symbol warns of the presence of dangerous un-insulated
voltages inside some of the components, of sufcient magnitude
to expose people to risk of electronic shock.
This symbol draws attention to important use and maintenance
instructions in the manual that accompanies the unit.
This symbol indicates that the equipment conforms to the norms
established by the European Community.
This symbol indicates D.C. current.

6
Wiring connected to hazardous voltage requires installation by
qualied personnel or the use of ready-made exible cables.
For your security, your equipment must be connected to an
electrical outlet with grounding connection protection.
Since the plug is used to disconnect the device, the operating
electrical outlet must be in an easily accessible place.
Environment
• Install the equipment on an elevated, at surface.
• Install the equipment in a ventilated area.
• Avoid exposing the equipment to:
∙Rain or water
∙Excessive heat, cold or humidity
∙Area exposed to direct sunlight
∙Dirty areas
∙Equipment generating strong magnetic elds
• Avoid placing open containers of liquid, near the equipment.
• Keep a minimum distance of 30 mm in order to have good ventilation.
• Never place above the device any sources of ames such as lighted
candles, etc.
• If you are using the device in extreme weather conditions and/or
tropical climates, the equipment should be installed in a room which
ensures a reasonable level of temperature and humidity.
• To prevent damage the equipment must be rmly anchored to the
surface, as shown on the installation instructions.
SAFETY INSTRUCTIONS

7
SYSTEM DESCRIPTION
General
AH2 are manually foldable monitors made of solid aluminium with a
natural anodised nish and a black edged anti-reection glass. Ready
for a quick installation in tables. These manually foldable monitors are
the perfect solution to create exible and versatile tables needing to
optimise the space. The monitor is xed to the table surface through
its milled aluminium base, allowing the user to adjust the viewing area
of the monitor and holding the monitor in a rm working position. All
connectors are placed under the table and cables are passed unseen
through the base to the monitor, leaving the monitor minimalistic design
unobstructed.
AH2 are aluminium monitors that can be easily folded down to leave a
direct line of sight to the other participants or activities taking place in
the room. Furthermore, the low prole space needed for their installation
allows users to have a large cable-free surface to work using both the
screen and other materials over the desk.
Highlights
• Manually foldable from 0° to 110°
• Totally adjustable position
• Ready for desk mounting
• Auto-power off
• Easy to integrate
• Maintenance free
• Energy saving design

8
SYSTEM DESCRIPTION
Available Models
MODEL DESCRIPTION
AH17BTX16GA HDCP compliant manually foldable 17,3" FULL HD aluminium
monitor with anodised nishing for desk mounting. HDMI input.
AH22BTX16GA HDCP compliant manually foldable 21,5" FULL HD aluminium
monitor with anodised nishing for desk mounting. HDMI input.
Options
AH17BTX16GA AH22BTX16GA
CL (Min.5 units)
Laser engraved logo
CL (Min.5 units)
Laser engraved logo
TS170HDG
Projected capacitive multitouch
screen
TS2216G
Projected capacitive multitouch screen
CABAH2 (Min.10 units)
Black anodised
CABAH2 (Min.10 units)
Black anodised
GFAH2 (Min.10 units)
Gold nish
GFAH2 (Min.10 units)
Gold nish

9
Box Contents
Before the installation of your monitor, please check the contents of the
shipping box, it must contain the following items:
• Monitor
• Power cord
• Power supply 100-2 40Vac, 50-60Hz. Output 12V
• User guide
Important note: This device can only work with the power supply
included in the shipping box. This power supply can not be replaced by
any other rather than the original one.
SYSTEM DESCRIPTION

10
INSTALLATION INSTRUCTIONS
AH2 monitors are prepared to be assembled in the table by drilling four
holes (three for xing nuts and one for cables). This version is supplied with
all the accessories to be assembled.
It is important to decide the correct position before making holes and to
bear in mind the dimensions of the monitor when it’s closed and open in
the working angle position.
Pattern Hole
Pattern hole dimensions for milling are specied in the general dimensions
for each model.
Attention
No stress should be applied to the product except from the instructions
given in this document. Cutting, drilling, soldering and adding electrical
and mechanical components can cause danger and should be
avoided by all means. Not complying with these directions will result in
a lost of the Arthur Holm warranty.
Albiral Display Solution S.L. shall not be hold liable for any loss or injury
incurred as a result of modications made to the products by anyone
other than the supplier or the supplier's authorised representative
and with the supplier's written permission. Such modications shall be
deemed to terminate any further guarantee obligations.

11

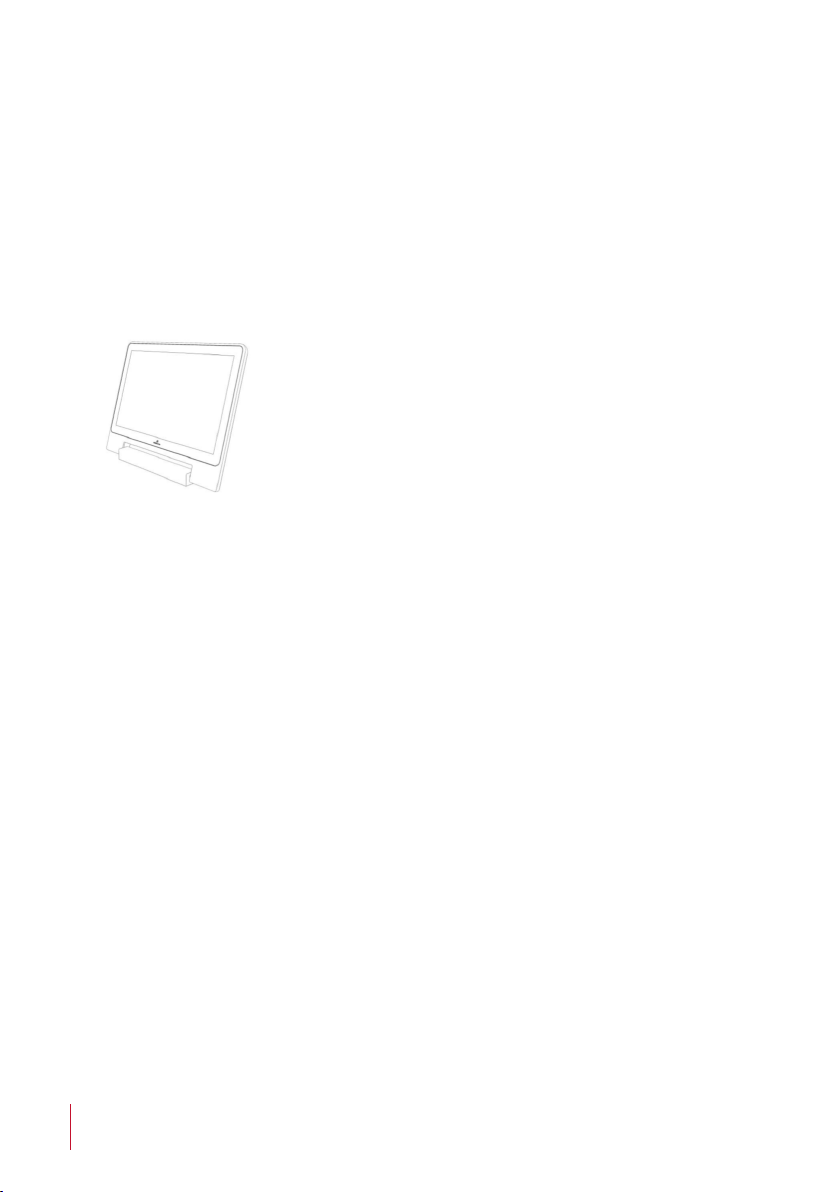

ASSEMBLING GUIDE
Mounting table brackets
Please, use the template included in the shipment to decide the monitor’s
position. The external dimensions iindicate the monitor area in contact
with the table top, plus 3 holes for the screws and a big one for cables.
Please note the correct side: “UP” in reading position.
When the holes are made in the table, you need to x the M8 screws
without head until the end (x3). Please note the correct position of the
screws.
Then, place the monitor on the table and tighten from below the x3
hexagon nuts and connect. The device is ready!

12

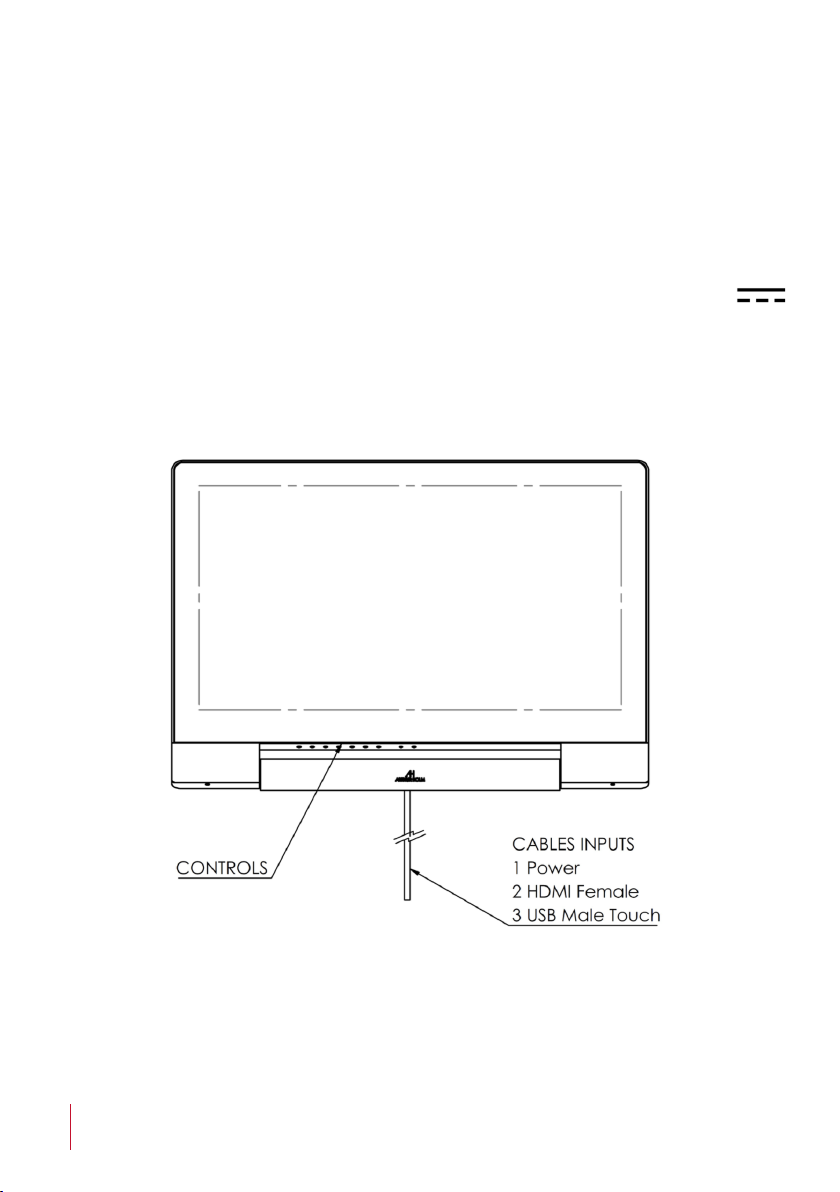

INPUT CONNECTORS
The power DC input cable and the HDMI female input signal cable
are located under the monitor. To connect the monitor, please follow
these steps:
1. Connect the power supply to the DC female connector (12Vdc)
2. Connect the HDMI signal cable to the HDMI female connector
3. If you have ordered the optional Touch Screen, you will also nd a
USB male connector
POWER AND CONTROL

13
CONTROLS
OSD monitor control
The OSD buttons, to control or congure the monitor, are located at the
lower body housing of the system
MENU Activates the OSD menu on screen. Exits the OSD menu
when is active
SEL Selects the OSD menu function
UP Moves the cursor up in the OSD menu
DOWN Moves the cursor down in the OSD menu
LEFT Moves the cursor left in the OSD menu
RIGHT Moves the cursor right in the OSD menu
SOURCE Signal input selection [No function in this model]
LED Indicates operation status
POWER Monitor power on/off

14
OSD MENU
Accessing the menu system
• With the OSD off, push the MENU button to activate the main OSD
menu.
• Press the UP and DOWN buttons to move from one function to another.
Please refer to the following sections below to view a complete list of
all the functions available for the monitor.
• Press the OK button to conrm.
• When a function is selected, press the LEFT and RIGHT buttons in order
to change the parameter of the function.
Press the MENU button to access to the main menu.
Picture Mode: Adjusts the mode of the image
∙Dynamic
∙Standard
∙Mild
∙User: Contrast - Brightness - Colour - Sharpness - Tint
Colour Temperature: Adjusts the colour of the image
∙Cool
∙Medium
∙Warm
∙User: Red - Green - Blue

15
OSD MENU
Aspect Ratio: Adjusts the image aspect on screen
∙4:3
∙16:9
∙Zoom1
∙Zoom2
∙Just scan
Noise Reduction: Adjusts the image noise lter
∙Off
∙Low
∙Medium
∙High
∙Default
Screen: (Only for analogue signals)
∙Auto Adjust
∙Horizontal Position
∙Vertical Position
∙Size
∙Phase
Backlight: Adjusts the backlight screen's level
Colour Range: Adjusts the colour range
∙0 - 255
∙16 - 235

16
OSD MENU
Option
Language: OSD language selection
Restore Factory Default: Adjusts the parameters to the initial factory
parameters
Blending: OSD window transparency
∙Low
∙Medium
∙High
∙Off
OSD Duration: Adjusts the time that the OSD menu window remains on
the screen
Software Update (USB): Port to use for rmware's upgrade.
Mirror:
0. Image with no ip
1. Vertical ip
2. Horizontal ip
3. Rotate

17
VIDEO SIGNALS
AH17BTX16GA / AH22BTX16GA
RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type
800x600@60Hz 37.879 60.317 Progressive
800x600@72Hz 48.077 72.188 Progressive
800x600@75Hz 46.875 75.000 Progressive
1024x768@60Hz 48.363 60.005 Progressive
1024x768@70Hz 56.476 70.070 Progressive
1024x768@75Hz 60.023 75.030 Progressive
1280x720@60Hz 44.772 59.855 Progressive
1360x768@60Hz 47.720 59.799 Progressive
1280x1024@60Hz 63.981 60.020 Progressive
1600x1200@60Hz 74.479 59.967 Progressive
1680x1050@60Hz 65.160 59.944 Progressive
1920x1080@60Hz 67.500 60.000 Progressive

18
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL &
ELECTRONIC EQUIPMENT
This symbol on the products and/or accompanying
documents means that used electrical and electronic
products should not be mixed with general household
waste.
For proper treatment, recovery and recycling, please
take these products to the designated collection
points, where they will be accepted on a free
of charge basis. Alternatively, in some countries,
you may be able to return your products to your
local retailer upon the purchase of an equivalent
new product.
Disposing of this product correctly will help save valuable resources
and prevent any potential negative effects on human health and the
environment, which could otherwise arise from inappropriate waste
handling. Please contact your local authority for further details of your
nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact
your dealer or supplier for further information.
Information on disposal in countries outside the European Union
This symbol is only valid in the European Union. If you wish to discard this
product, please contact your local authorities or dealer and ask for the
correct method of disposal.

19
WARRANTY TERMS AND CONDITIONS
Albiral Display Solutions warrants this product against manufacturing
defects and workmanship for a period of two (2) years from the date of
purchase, subject to the conditions below.
1.LCD panel, inverter, controller, electrical, electronic boards, accessories
and power supply are warranted against manufacturing defects and
workmanship for a period of two (2) years from the date of purchase.
2. Labour costs: Albiral Display Solutions covers the labour costs to replace
any detective parts during the validity of this warranty.
3. Transport costs:
3.1 In the case that a manufacturing defect occurs within 90 days
after the purchase date, both freight and insurance costs will be
paid by Albiral Display Solutions.
Although Albiral Display Solutions S.L. pays for freight and
insurance costs, Albiral Displays Solutions will not be responsible
for any damages caused by the transportation of the goods
if the customer does not inform in writing when receiving the
goods.
3.2. After 90 days of the purchase date, the beneciary of the
warranty will pay both freight and insurance costs.
Albiral Display Solutions S.L. will not be responsible for any
damages caused by transportation, when this one is paid by
the customer.

20
4. This warranty does not cover the labour costs of handling, diagnose,
removal, replacement, reinstall and/or program any product.
5. This warranty does not apply if the fault has been caused by misuse,
improper handling, electrical or mechanical abuse, abnormal operation
conditions, non-authorised modications, and inadequate transport or
as a result of atmospheric phenomeneons.
6. The warranty is not valid if persons other than authorised Service Centre
hove handled the product and if the product has been manipulated or
warranty seals are removed or manipulated.
7. The beneciary of the warranty will hove to send the devices with
the original packaging to warranty there are no damages during the
transport.
8. The warranty is not valid if the beneciary of the warranty does not
include RMA form and copy of the purchasing invoice.
Please note that laws vary from country to country, and the same
provisions of this warranty may not apply to you.
If you have any doubts concerning the terms of this warranty, please
contact:
[email protected]
[phone]
Copyright ©
Nov. 2020. All rights reserved
Albiral Display Solutions SL.
Registered trademarks: Albiral, Arthur Holm
WARRANTY TERMS AND CONDITIONS
