ARTHUR HOLM AH12TX16GA User manual

User Guide
Danish craftmanship
Mediterranean soul
Technology Serving Design
AH1
HDCP compliant manually foldable professional monitors

TABLE OF CONTENTS
REGULATIONS AND SECURITY 7
SAFETY INSTRUCTIONS 7
SYSTEM DESCRIPTION 9
PRODUCT HANDLING 13
INPUT CONNECTORS 14
CONTROLS 15
OSD MENU 16
VIDEO SIGNALS 19
INFORMATION ON DISPOSAL 20
WARRANTY TERMS AND CONDITIONS 21

WELCOME
Thank you very much for purchasing an Arthur Holm product.
Please, read these installation and operating instructions carefully and
keep them in a safe place for future consultations.
We remain at your entire disposal if you have any suggestions.
Henrik Holm
General Manager
[email protected]

ABOUT US
The Company
Arthur Holm has its origins in the Danish furniture designer Jorgen Alex
Jensen, who was active during the sixties and the seventies. His design
inspiration and his concept of ergonomics have been continued by his
family, the design force behind Arthur Holm product range. The result of
combining Scandinavian design tradition with Mediterranean creativity,
exibility and emotion is a wide product range built on more than 25 years
of craftsmanship.
Arthur Holm offers a professional product range where tomorrow’s
technology is shaped into valued materials with design exibility and
customisation, specially created to enhance communication and
collaboration in reception, conference and meeting areas.
The art of customisation
Arthur Holm offers a range of ingenious products whose designs are based
on quality materials and the latest technology. Products which endow
meeting and conference rooms with silent, ergonomic, innovative and
aesthetic solutions that integrate into the furniture, hang from the walls as
works of art or are used as interactive points of information.
The world of Arthur Holm
Arthur Holm offers a selection of unique, elegant, versatile, exible and
ergonomic products that are being used in meeting and conference
rooms, reception areas, auditoriums and public zones of leading
companies throughout the world.
The numbers speak for themselves! We currently own 33 product
patents,have presence in over 45 countries with products and solutions
inmore than 25,000 installations.
It will be our pleasure to work with you, designing your unique and
personalised environment. Our broadcast electronic engineers will
provide the latest technology while our design team will offer you the most
exclusive appearance.
Our team puts its heart, passion and pride in all our designs.

7
SAFETY INSTRUCTIONS
Plugs
• Do not dismantle any part of the monitor power connector.
• Disconnect the power plug from the AC outlet when the monitor is not
going to be used for an indenite period of time.
Power and extensions cords
• Use the appropriate power cord with the correct plug type.
• Do not overload wall outlets or power cords.
• Make sure the total ampere passed through an extension cord does not
exceed the maximum allowed by the cable used.
• Do not place anything on the power cord.
• Do not locate this product where a person may walk or trip over the
cord.
REGULATIONS AND SECURITY
ATTENTION: Do not disassemble or modify the device in any way.
This symbol warns of the presence of dangerous un-insulated
voltages inside some of the components, of sufcient magnitude
to expose people to risk of electronic shock.
This symbol draws attention to important use and maintenance
instructions in the manual that accompanies the unit.
This symbol indicates that the equipment conforms to the norms
established by the European Community.
This symbol indicates D.C. current.

8
Wiring connected to hazardous voltage requires installation by
qualied personnel or the use of ready-made exible cables.
For your security, your equipment must be connected to an
electrical outlet with grounding connection protection.
Since the plug is used to disconnect the device, the operating
electrical outlet must be in an easily accessible place.
Environment
• Install the equipment on an elevated, at surface.
• Install the equipment in a ventilated area.
• Avoid exposing the equipment to:
∙Rain or water
∙Excessive heat, cold or humidity
∙Area exposed to direct sunlight
∙Dirty areas
∙Equipment generating strong magnetic elds
• Avoid placing open containers of liquid, near the equipment.
• Keep a minimum distance of 30 mm in order to have good ventilation.
• Never place above the device any sources of ames such as lighted
candles, etc.
• If you are using the device in extreme weather conditions and/or
tropical climates, the equipment should be installed in a room which
ensures a reasonable level of temperature and humidity.
SAFETY INSTRUCTIONS

9
SYSTEM DESCRIPTION
General
AH1 is a manually foldable aluminium monitor for desktops with anodised
nish and a dark cast iron base. They include an anti-glare protection
glass with a stylish black frame.
AH1 desktop monitor is the ideal solution for auditoriums, tele presence,
training rooms, meeting and conference rooms and information
counters. With a height that can be easily adjusted, they do not require
structural changes on the table surface.
Highlights
• Milled aluminium with a cast iron base
• Manually foldable
• Totally adjustable position
• No need to modify desk surface
• USB pass through
• Maintenance free
• Energy saving design

10
SYSTEM DESCRIPTION
Available Models
MODEL DESCRIPTION
AH12TX16GA
HDCP compliant manually foldable 12,1" widescreen aluminium
monitor with anodised nishing and black cast iron base. DVI-I
and DVI-D inputs.
AH17TXHDGA
HDCP compliant manually foldable 17,3" FULL HD aluminium
monitor with anodised nishing and black cast iron base. DVI-I
and DVI-D inputs. USB passthrough.
AH22TX16GA
HDCP compliant manually foldable 21,5" FULL HD aluminium
monitor with anodised nishing and black cast iron base. DVI-I
and DVI-D inputs. USB passthrough.
Options
AH12TX16GA AH17TXHDGA AH22TX16GA
CL (Min.5 units)
Laser engraved logo
CL (Min.5 units)
Laser engraved logo
CL (Min.5 units)
Laser engraved logo
TS170HDG
Projected capacitive
multitouch screen
TS2216G
Projected capacitive
multitouch screen
CABAH1 (Min.10 units)
Black anodised
CABAH1 (Min.10 units)
Black anodised
CABAH1 (Min.10 units)
Black anodised
GFAH1 (Min.10 units)
Gold nish
GFAH1 (Min.10 units)
Gold nish
GFAH1 (Min.10 units)
Gold nish
BFAH1 (Min.10 units)
Bronze nish
BFAH1 (Min.10 units)
Bronze nish
BFAH1 (Min.10 units)
Bronze nish

11
Box Contents
Before the installation of your monitor, please check the contents of the
shipping box, it must contain the following items:
• Monitor
• Power cord
• Power supply 100-2 40Vac, 50-60Hz. Output 12V
• User guide
Important note: This device can only work with the power supply
included in the shipping box. This power supply can not be replaced by
any other rather than the original one.
SYSTEM DESCRIPTION

12
Connections
Power Connection:
1. Plug the power cable from the power supply into an AC socket of
100-240 Vac, 50-60Hz.
2. Plug the 12Vdc cable into the socket on the unit.
Signal Connection:
1. Use the DVI-I input to connect a DVI-D signal or an analog RGB
signal (VGA).
2. Plug the DVI-D connector to a DVI-D signal.
Use high quality DVI cables with 2m maximum length.
Trouble shooting
The monitor doesn’t turn on:
Check the power connections at the AC plug to the DC plug on the
unit.
No input signal:
Check the input signal cables.
No image is displayed:
Check the status of the brightness, contrast and colour controls.
Bad quality image:
Check the input signal cable. Try to auto adjust the image or reset the
controller.
Other problems:
Please, contact your distributor.
SYSTEM DESCRIPTION

13
MONITOR HANDLING
To adjust the inclination of the monitor, hold it by its sides and move it.
The monitor has rubber bumper feet tted on the base to stop the
monitor sliding on the table surface.
The cables can be secured to the plate with two phillips screws to avoid
them getting under the stand.

14

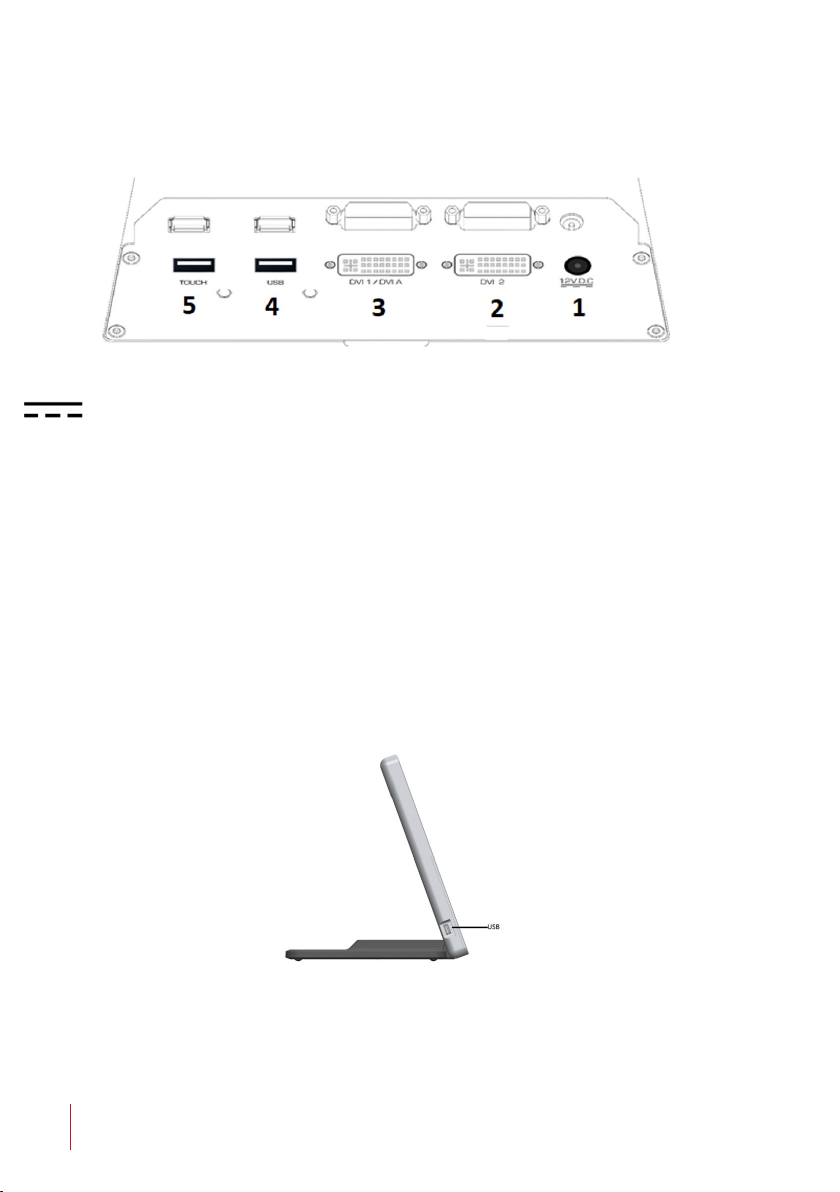

INPUT CONNECTORS
(1) 12V D.C.: Power supply input connector.
(2) DVI 2: DVI-D input signal. Connect a DVI (digital) input signal and
select DVI 2 on the OSD monitor menu.
(3 ) DVI 1/ DVI A DVI-I input signal: Connect a DVI (digital) input signal
and select DVI 1 on the OSD monitor menu. Use a DVI to VGA adapter
to connect an ARGB (analogue) input signal and select DVI-A on the
OSD monitor menu.
- Use high quality DVI cables with 2m maximum length.
(4) USB: USB-A extended connector. On the left side of the monitor housing,
there is also a USB-A connector. Not available for 12"model.
(5) TOUCH: USB touch screen connector (optional).

15

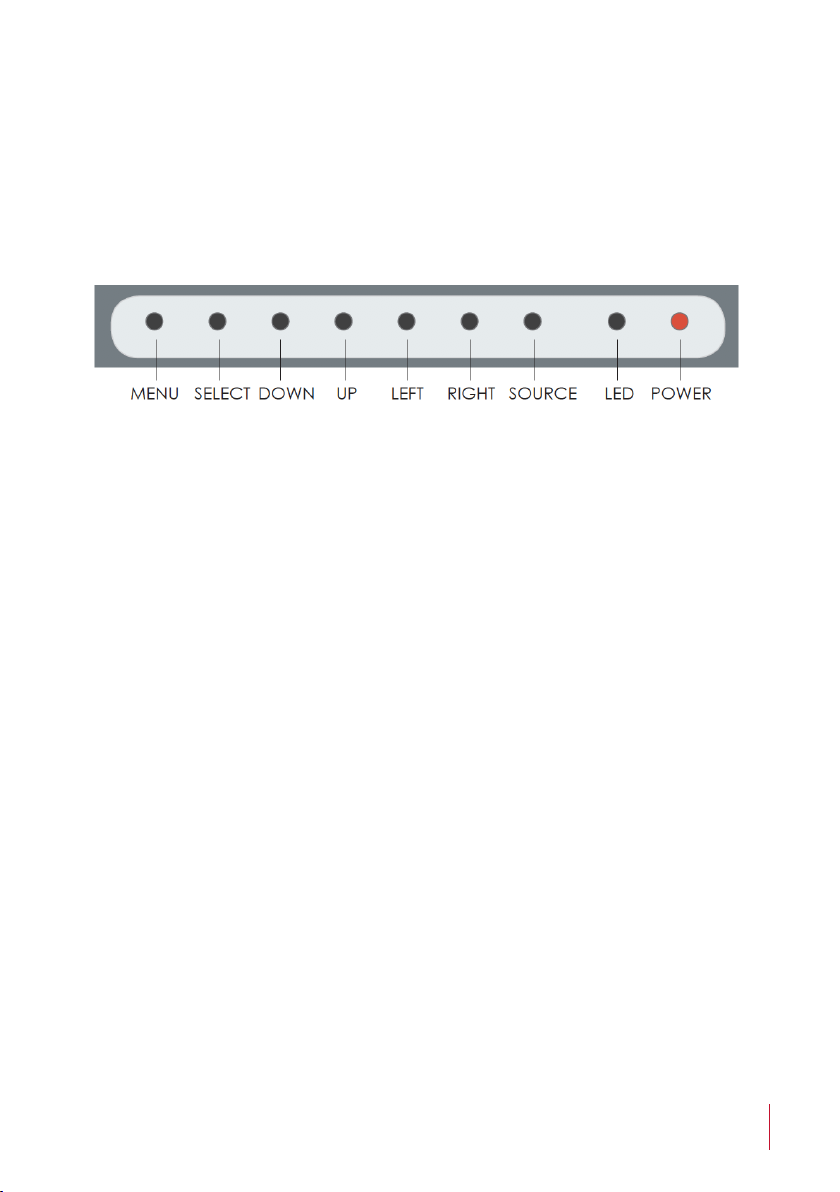

CONTROLS
OSD monitor control
The OSD buttons, to control or congure the monitor, are located at the
lower body housing of the system
MENU Activates the OSD menu on screen. Exits the OSD menu
when is active
SEL Selects the OSD menu function
UP Moves the cursor up in the OSD menu
DOWN Moves the cursor down in the OSD menu
LEFT Moves the cursor left in the OSD menu
RIGHT Moves the cursor right in the OSD menu
SOURCE Signal input selection [No function in this model]
LED Indicates operation status
POWER Monitor power on/off

16
OSD MENU
Accessing the menu system
• With the OSD off, push the MENU button to activate the main OSD
menu.
• Press the UP and DOWN buttons to move from one function to another.
Please refer to the following sections below to view a complete list of
all the functions available for the monitor.
• Press the OK button to conrm.
• When a function is selected, press the LEFT and RIGHT buttons in order
to change the parameter of the function.
Press the MENU button to access to the main menu.
Picture Mode: Adjusts the mode of the image
∙Dynamic
∙Standard
∙Mild
∙User: Contrast - Brightness - Colour - Sharpness - Tint
Colour Temperature: Adjusts the colour of the image
∙Cool
∙Medium
∙Warm
∙User: Red - Green - Blue

17
OSD MENU
Aspect Ratio: Adjusts the image aspect on screen
∙4:3
∙16:9
∙Zoom1
∙Zoom2
∙Just scan
Noise Reduction: Adjusts the image noise lter
∙Off
∙Low
∙Medium
∙High
∙Default
Screen: (Only for analogue signals)
∙Auto Adjust
∙Horizontal Position
∙Vertical Position
∙Size
∙Phase
Backlight: Adjusts the backlight screen's level
Colour Range: Adjusts the colour range
∙0 - 255
∙16 - 235

18
OSD MENU
Option
Language: OSD language selection
Restore Factory Default: Adjusts the parameters to the initial factory
parameters
Blending: OSD window transparency
∙Low
∙Medium
∙High
∙Off
OSD Duration: Adjusts the time that the OSD menu window remains on
the screen
Software Update (USB): Port to use for rmware's upgrade.
Mirror:
0. Image with no ip
1. Vertical ip
2. Horizontal ip
3. Rotate

19
VIDEO SIGNALS
AH12TX16GA
RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type
800x600@60Hz 37.879 60.317 Progressive
800x600@72Hz 48.077 72.188 Progressive
800x600@75Hz 46.875 75.000 Progressive
1024x768@60Hz 48.363 60.005 Progressive
1024x768@70Hz 56.476 70.070 Progressive
1024x768@75Hz 60.023 75.030 Progressive
1280x720@60Hz 44.697 59.915 Progressive
1280x768@60Hz 47.396 59.995 Progressive
1360x768@60Hz 47.720 59.799 Progressive
AH17TXHDGA / AH22TX16GA
RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type
800x600@60Hz 37.879 60.317 Progressive
800x600@72Hz 48.077 72.188 Progressive
800x600@75Hz 46.875 75.000 Progressive
1024x768@60Hz 48.363 60.005 Progressive
1024x768@70Hz 56.476 70.070 Progressive
1024x768@75Hz 60.023 75.030 Progressive
1280x720@60Hz 44.772 59.855 Progressive
1360x768@60Hz 47.720 59.799 Progressive
1280x1024@60Hz 63.981 60.020 Progressive
1600x1200@60Hz 75.000 60.000 Progressive
1680x1050@60Hz 64.742 59.946 Progressive
1920x1080@60Hz 66.647 59.980 Progressive

20
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL &
ELECTRONIC EQUIPMENT
This symbol on the products and/or accompanying
documents means that used electrical and electronic
products should not be mixed with general household
waste.
For proper treatment, recovery and recycling, please
take these products to the designated collection
points, where they will be accepted on a free
of charge basis. Alternatively, in some countries,
you may be able to return your products to your
local retailer upon the purchase of an equivalent
new product.
Disposing of this product correctly will help save valuable resources
and prevent any potential negative effects on human health and the
environment, which could otherwise arise from inappropriate waste
handling. Please contact your local authority for further details of your
nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact
your dealer or supplier for further information.
Information on disposal in countries outside the European Union
This symbol is only valid in the European Union. If you wish to discard this
product, please contact your local authorities or dealer and ask for the
correct method of disposal.
