WELCOME
Thank you for purchasing an ARTHUR HOLM product.
Our product range has been designed to create the perfect meeting
room, where the screens are a part of the interior design as well as an
essential communication tool.
Please, read this installation and operating instructions carefully and keep
them in a safe place for future reference.
We remain at your entire disposal if you have any suggestions that would
help us improve our products.
Henrik Holm
General Manager

6
SAFETY INSTRUCTIONS
Plugs
• Do not dismantle any part of the monitor power connector.
• Disconnect the power plug from the AC outlet when the monitor is not
going to be used for an indenite period of time.
Power and extensions cords
• Use the appropriate power cord with the correct plug type.
• Do not overload wall outlets or power cords.
• Make sure the total ampere passed through a extension cord does not
exceed the maximum allowed by the cable used.
• Do not place anything on the power cord.
• Do not locate this product where a person may walk or trip over the
cord.
EC REGULATIONS AND SECURITY
ATTENTION: Do not disassemble or modify the device in any way.
This symbol warns of the presence of dangerous un-insulated
voltages inside some of the components, of sufcient magnitude
to expose people to risk of electronic shock.
This symbol draws attention to important use and maintenance
instructions in the manual that accompanies the unit.
This symbol indicates that the equipment conforms to the norms
established by the European Community.

7
Wiring connected to hazardous voltage requires installation by
qualied personnel or the use of ready-made exible cables.
For your security, your equipment must be connected to an
electrical outlet with grounding connection protection.
Since the plug is used to disconnect the device, the operating
electrical outlet must be in an easily accessible place.
Environment
• Install the equipment on an elevated, at surface.
• Install the equipment in a ventilated area.
• Avoid exposing the equipment to:
• Rain or water
• Excessive heat, cold or humidity
• Area exposed to direct sunlight
• Dirty areas
• Equipment generating strong magnetic elds
• Avoid placing open containers of liquid, near the equipment.
• Keep a minimum distance of 30mm in order to have good ventilation.
• Never place above the device any sources of ames such as lighted
candles, etc.
• If you are using the device in extreme weather conditions and/
or tropical climates, the equipment should be installed in a room
which ensures a reasonable level of temperature and humidity.
SAFETY INSTRUCTIONS

8
SYSTEM DESCRIPTION
Applications
The AH1 family consists of a manually foldable monitor in milled
aluminium with anodised nish and dark cast iron base. Flush antiglare
protection glass with elegant black marking.
This TFT-LCD product range is specially designed for desk integration at:
Conference rooms Meeting rooms Board rooms
Auditoriums Information desks Training rooms
Features
• TFT Active Matrix display
AH12TX 16GA 12" Widescreen
AH17TX HDGA 17" FULL HD
AH22BTX 16GA 22" FULL HD
• Manually foldable monitor.
• Low power consumption.
• Low radiation.
• Quick response time.
• Data inputs DVI-I & DVI-D. HDCP compliant.
• USB extended connector integrated on the lateral monitor housing.
• Optional: capacitive touch screen (no additional drivers needed).
Box Contents
Before the installation of your retractable monitor, please check the
contents of the shipping box, it must contain the following items:
• Monitor
• Power cord
• Power supply 100-240Vac, 50-60Hz. Output 12V
• User Manual

9
SYSTEM DESCRIPTION
Box Contents
Important Note: This device can only work with the power supply
included in the shipping box. This power supply can not be replaced by
any other rather than the original one
Connections
Power connection
1. Plug the power cable from the power supply into an AC
socket of 100-240 Vac, 50-60Hz.
2. Plug the 12Vdc cable into the socket on the unit
Signal connection
1. Use the DVI-I input to connect a DVI-D signal or an analog RGB
signal (VGA).
2. Plug the DVI-D connector to a DVI-D signal.
Use high quality DVI cables with 2m maximum length.
Trouble shooting
The monitor doesn’t turn on:
Check the power connections at the AC plug to the DC plug on the unit
No input signal:
Check the input signal cables
No image is displayed:
Check the status of the brightness, contrast and colour controls
Bad quality image:
Check the input signal cable
Try to auto adjust the image or reset the controller
Other problems:
Please, contact your distributor

10
MENU SELECT DOWN UP LEFT RIGHT SOURCE LED POWER
CONTROLS
OSD monitor control
The OSD buttons, to control or congure the monitor, are located on the
lower body housing of the system
MENU Activates the OSD menu on screen. Exits the OSD menu
when is active
SELECT Selects the OSD menu function
DOWN Cursor control down on the OSD menu
UP Cursor control up on the OSD menu
LEFT Cursor control left on the OSD menu
RIGHT Cursor control right on the OSD menu
SOURCE Signal input selection (No function in this model)
LED Indicates operation status
POWER Monitor power ON/OFF

11
OSD MENU
Accessing the menu system
• With the OSD off, push the MENU button to activate the main OSD
menu.
• Press the UP and DOWN buttons to move from one function to another.
Please refer to the following sections below to view a complete list of
all the functions available for the monitor.
• Press the OK button to enable the item.
• When a function is selected, press the LEFT and RIGHT buttons in order
to change the parameter of the function.
Press the Menu button to access to the main menu
PICTURE MODE Adjusts the mode of the image
Dynamic
Standard
Mild
User (manually adjustment of brightness and contrast):
Contrast - Brightness - Colour - Sharpness - Tint
COLOR TEMPERATURE Adjusts the colour of the image
Cool
Medium
Warm
User (manually adjustment of red, green and blue
colours)
ASPECT RATIO Adjusts the image aspect on screen
4:3
16:9
Just scan

12
OSD MENU
Noise Reduction Adjusts the image noise filter
Off
Low
Middle
High
Default
Screen (Only for analogue signals)
Auto Adjust
Horizontal Pos.
Vertical Pos.
Size
Phase
Backlight Adjust the backlight of the screen
Colour Range 0 – 255
16 – 235
OSD MENU
NOISE REDUCTION Adjusts the image noise lter
Off
Low
Medium
High
Default
SCREEN (Only for analogue signals)
Auto Adjust
Horizontal Position
Vertical Position
Size
Phase
BACKLIGHT Adjusts the backlight screen level
COLOUR Adjusts the colour range
RANGE 0 - 255
16 - 235

13
OSD MENU
Setup
LANGUAGE OSD language selection
RESTORE FACTORY DEFAULT Adjusts the parameters to the initial factory
parameters
BLENDING OSD window transparency
Low
Medium
High
Off
OSD DURATION Adjusts the time that the OSD menu window remains
on screen
SOFTWARE UPDATE Used for rmware upgrade mirror
MIRROR 0: Image with no ip
1: Vertical ip
2: Horizontal ip
3: Rotate

14
MONITOR HANDLING

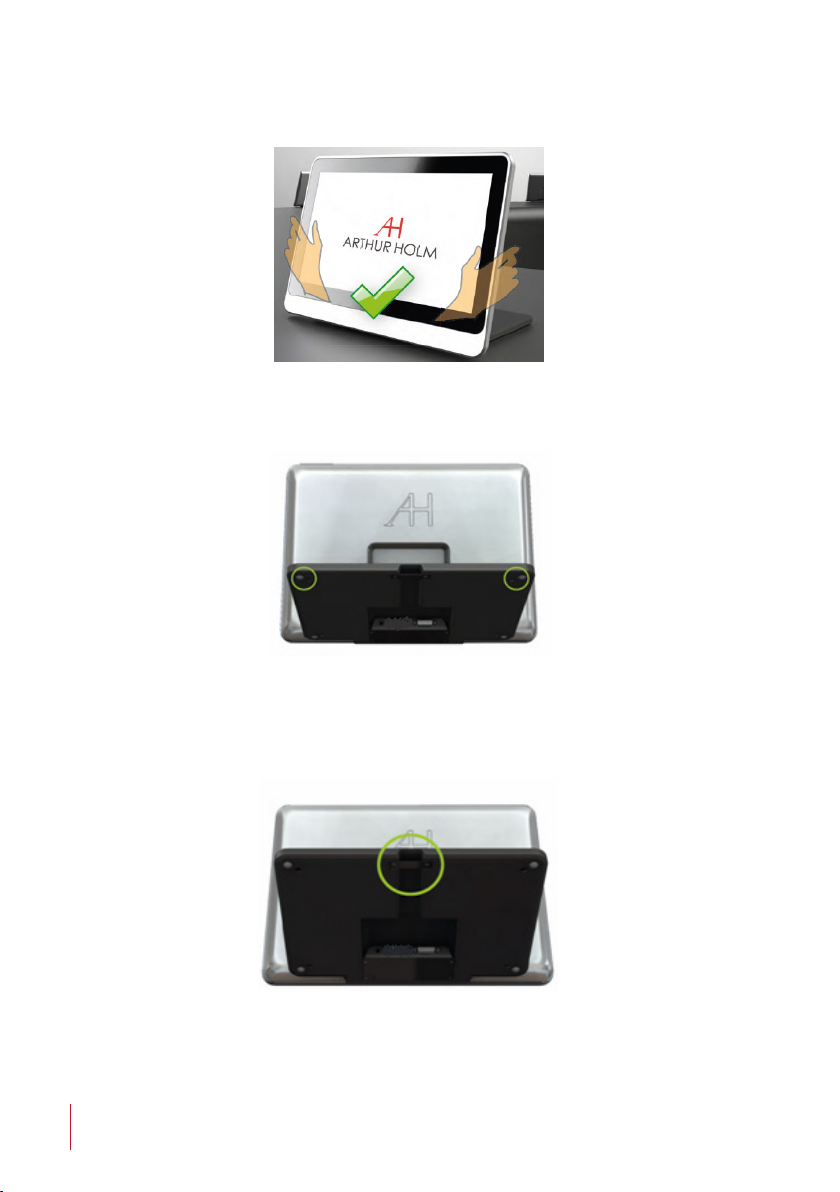

To adjust the inclination of the monitor, hold it by it’s sides and move it.
The monitor has rubber bumper feet tted on the base to stop the monitor
sliding on the table surface.
The cables can be secured to the plate with two phillips screws to avoid
them getting under the stand.

15
INPUT CONNECTORS
12V D.C. Power supply input connector. XLR-4 connector
DVI 2 DVI-D input signal. Connect a DVI (digital) input signal and
select DVI 2 on the OSD monitor menu
DVI 1/ DVI A DVI-I input signal. Connect a DVI (digital) input signal and
select DVI 1 on the OSD monitor menu. Use a DVI to VGA
adapter to connect an ARGB (analogue) input signal and
select DVI-A on the OSD monitor menu
- Use high quality DVI cables with 2m maximum length
USB USB-A extended connector. On the left side of the monitor
housing, there is also a USB-A connector.
TOUCH USB touch screen connector (optional)

16
INPUT SIGNALS
AH12TX16GA
RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type
800x600@60Hz 37.879 60.317 Progressive
800x600@72Hz 48.077 72.188 Progressive
800x600@75Hz 46.875 75.000 Progressive
1024x768@60Hz 48.363 60.005 Progressive
1024x768@70Hz 56.476 70.070 Progressive
1024x768@75Hz 60.023 75.030 Progressive
1280x720@60Hz 44.697 59.915 Progressive
1280x768@60Hz 47.396 59.995 Progressive
1360x768@60Hz 47.720 59.799 Progressive
AH17TXHDGA / AH22TX16GA
RESOLUTION Horizontal freq (KHz) Vertical freq (Hz) Scanning type
800x600@60Hz 37.879 60.317 Progressive
800x600@72Hz 48.077 72.188 Progressive
800x600@75Hz 46.875 75.000 Progressive
1024x768@60Hz 48.363 60.005 Progressive
1024x768@70Hz 56.476 70.070 Progressive
1024x768@75Hz 60.023 75.030 Progressive
1280x720@60Hz 44.772 59.855 Progressive
1360x768@60Hz 47.72 59.799 Progressive
1280x1024@60Hz 63.981 60.020 Progressive
1600x1200@60Hz 75.000 60.00 Progressive
1680 x1050@60Hz 64.742 59.946 Progressive
1920x1080@60Hz 66.647 59.98 Progressive

17
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL
& ELECTRONIC EQUIPMENT
This symbol on the products and/or accompanying documents means
that used electrical and electronic products should not be mixed with
general household waste.
For proper treatment, recovery and recycling, please take these products
to the designated collection points, where they will be accepted on a free
of charge basis. Alternatively in some countries, you may be able to return
your products to your local retailer upon the purchase of an equivalent
new product.
Disposing of this product correctly will help save valuable resources
and prevent any potential negative effects on human health and the
environment, which could otherwise arise from inappropriate waste
handling. Please contact your local authority for further details of your
nearest designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in
accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact
your dealer or supplier for further information.
Information on disposal in countries outside the European Union
This symbol is only valid in the European Union. If you wish to discard this
product, please contact your local authorities or dealer and ask for the
correct method of disposal.

18
WARRANTY TERMS AND CONDITIONS
Albiral Display Solutions warrants this product against manufacturing
defects and workmanship for a period of two (2) years from the
date of purchase, subject to the conditions below.
1. LCD panel, inverter, controller, electrical, electronic boards,
accessories and power supply are warranted against manufacturing
defects and workmanship for a period of two (2) years from the
date of purchase.
2. Labour costs: Albiral Display Solutions covers the labour costs to
replace any defective parts during the validity of this warranty.
3. Transport costs:
3.1. In the case that a manufacturing defect occurs within 90 days
after the purchase date, both freight and insurance costs will
be paid by Albiral Display Solutions.
Although Albiral Display Solutions S.L. pays for freight and
insurance costs, Albiral Displays Solutions will not be responsible
for any damages caused by the transportation of the goods
if the customer does not inform in writing when receiving the
goods.
3.2. After 90 days of the purchase date, the beneciary of the
warranty will pay both freight and insurance costs.
Albiral Display Solutions S.L. will not be responsible for any
damages caused by transportation, when this one is paid by
the customer.
4. This warranty does not cover the labour costs of handling, diagnose,
removal, replacement, reinstall and/or program any product.
5. This warranty does not apply if the fault has been caused by misuse,
improper handling, electrical or mechanical abuse, abnormal operation
conditions, non-authorised modications, and inadequate transportion
or as a result of atmospheric phenomenons.

19
6. The warranty is not valid if people other than authorised Service Centre
have handled the product and if the product has been manipulated
or warranty seals are removed or manipulated.
7. The beneciary of the warranty will have to return the device with
the original packaging to warranty there are no damages during
transportation.
8. The warranty is not valid if the beneciary of the warranty does not
include a RMA form and a copy of the purchasing invoice.
Please note that laws vary from country to country, and the same provisions
of this warranty may not apply to you.
If you have any doubts concerning the terms of this warranty, please
contact:
[email protected]
[phone]
Copyright ©
Dec. 2019. All rights reserved
Albiral Display Solutions SL.
Registered trademarks: Albiral, Arthur Holm, Pixtron Broadcast
WARRANTY TERMS AND CONDITIONS

Patents
MU17180ES00
MU17301ES00
MU17322ES00
MU17413ES00
MU17445ES00
MU17854ES00
MU17868DEPC
MU17868RUPC
P24821DEEP
P24821ESEP
P24821GBEP
P24821USPC
P27178DEEP
P27178EPDV01
P27178EPPC
P27178ESEP
Fàtima 25, Sant Hipòlit de Voltregà
08512 Barcelona – Spain
tel: [phone] / 23 83
fax: [phone] / 23 72
web: www.arthurholm.com
e-mail: [email protected]
This manual can be modied without previous notice. ENG – December 2019
P27178ITEP
P27178RUPC
P27178USPC
P27284DEEP
P27284EPPC
P27284ESEP
P27284GBEP
P27284RUPC
P27284USPC
P27715ESEP
P28089DEEP
P28089ESEP
P28089ITEP
P28089USPC
P28090EP00
P31160ESES
P31160PCES
