DynamicChairDisplay is a retractable motorised monitor to be integrated
in chair armrests. The monitor is only visible when it is in use and it is safely
stored in the armrest when not needed.
This elegant aluminium screen possess an automatic vertical extraction
movement plus an additional manual rotation towards the user followed
by a motorised tilt adjustment. The monitor housing is made of milled
aluminium with anodised nish. Its mechanism is robust and silent and
the whole solution is integrated in a compact block, being very simple
to install.
Highlights
• Adapts to multiple armrests
• Motorised adjustable angle
• Maintenance free
• Energy saving design
• Safety system
• Serial control & Remote diagnostic
• Wireless connectivity for setup and control
Box Contents
Before the installation of your retractable monitor, please check the
contents of the shipping box, it must contain the following items:
• Monitor
• Mounting tools
• Power cord
• Power supply 100-240Vac, 50-60Hz. Output 12V
• User Manual

8
SYSTEM DESCRIPTION
Available Models
MODEL DESCRIPTION
AH15DCDHD
HDCP compliant 15,6” Full HD motorised monitor for
armrest integration. DVI-I and DVI-D inputs
Interactive Setup Display allowing the control setup and
diagnose of the monitors. The monitor provides
RS-422 I/O allowing the remote control of movements,
speeds, safety settings, brightness, contrast and
backlight. The monitors are equipped with AH-AMMC:
an auto mechanical movement calibration system.
Options
AH15DCDHD
TS15HD
Projected capacitive multitouch
screen
CCUSBPowerDCD (Min.10 units)
USB power
EMS (Min.10 units)
Synchronised mic

9
INSTALLATION INSTRUCTIONS
Armrest Monitor 15” is customized to be mounted in the left armrest of
an armchair model of Figueras International Seating.
This guide shows how to make the described assembly.
Pattern Hole
Mounting space for Armrest Monitor is the dened space of the armrest
module of the Figueras International Seating Armchair.
Attention
Manipulation of the product should be avoided, no stress should
be applied to the product except from the instructions given in
this document. Cutting, drilling, soldering, adding of electrical and
mechanical components can cause danger and should be avoided
by all mean. Not complying with these direction will result in a lost
of the Arthur Holm warranty. Albiral Display Solution S.L. shall not be
held liable for any loss or injury incurred as a result of modications
made to goods by anyone other than the supplier or the supplier's
authorised representative without the supplier's written permission. Such
modications shall be deemed to terminate any further guarantee
obligations.

10
INSTALLATION INSTRUCTIONS

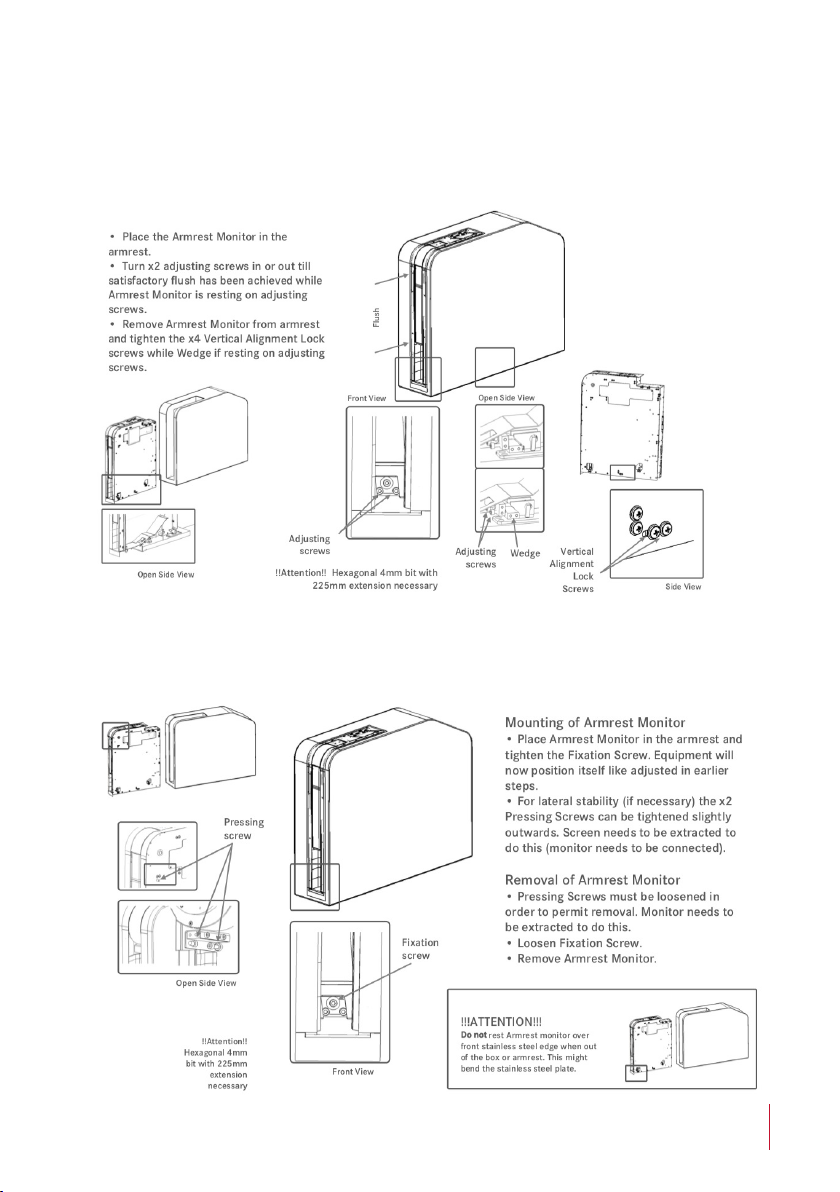

Start up: Mount Fixation Assembly
Start up: Adjust for Horizontal Alignment

11
INSTALLATION INSTRUCTIONS
Start up: Adjust for Vertical Alignment
Normal Mounting and Removing of Armrest Monitor from Armrest

12
USER DESCRIPTION
The arm is extracted automatically when the OPEN/CLOSE button is pressed.
During the opening, the movement can be interrupted by pressing the
button again.
The monitor can now be rotated manually to the desired reading position. In
this moment the two tilt buttons become active. Also, the LED in the OPEN/
CLOSE button switches to red.
With the two tilt buttons, the monitor can now be used to ne adjust the
viewing angle of the monitor in the dened range.

13
USER DESCRIPTION
When the monitor is wanted stored, it must point downwards. Otherwise the
drive system is locked. Green light in the LED of the OPEN/CLOSE button
signals that the monitor is oriented correctly.
When the monitor is oriented correctly, the LED in the OPEN button will be
green. Now the OPEN/CLOSE button can be pressed to retract the monitor.
During the movement, this can be interrupted with the OPEN/CLOSE button.

14
INPUT CONNECTORS

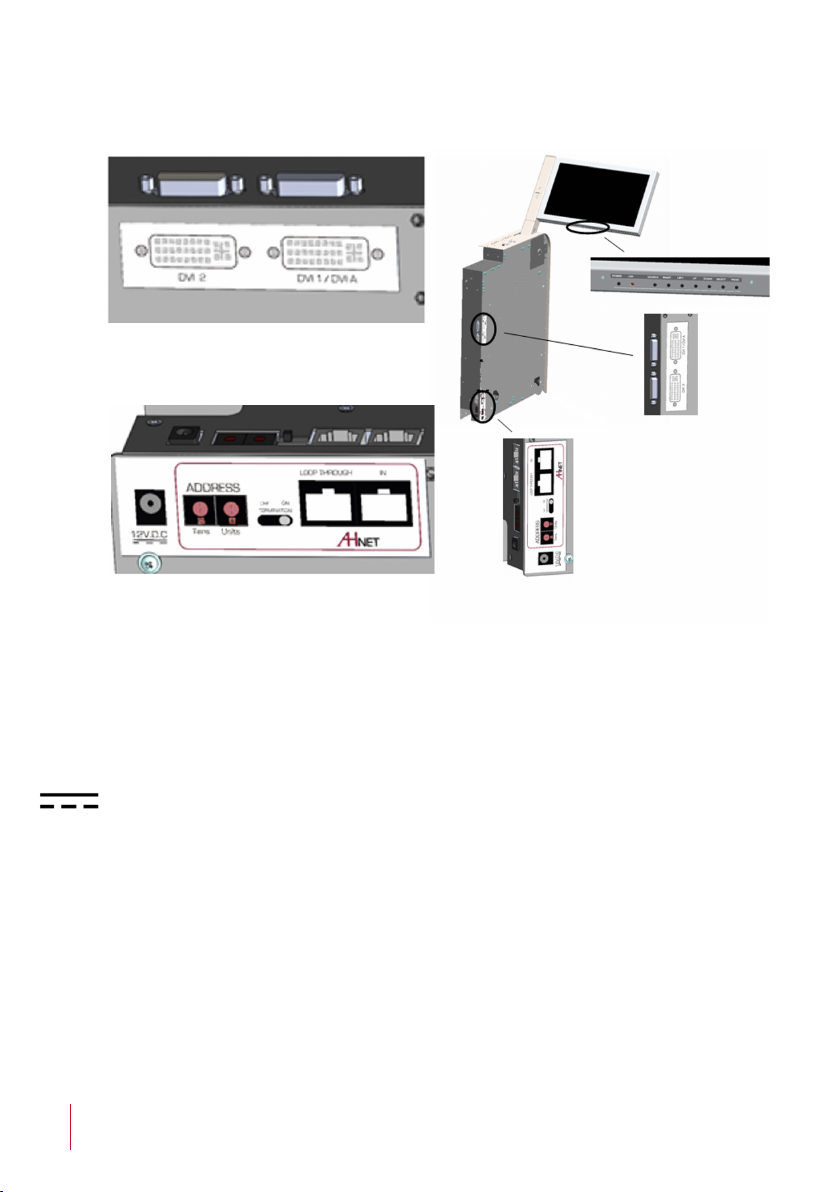

DVI 1/ DVI A: DVI-I input signal. Connect a DVI (digital) input signal and
select DVI 1 on the OSD monitor menu. Use a DVI to VGA adaptor to connect
an ARGB (analogue) input signal and select DVI-A on the OSD monitor menu.
DVI 2: DVI-D input signal. Connect a DVI (digital) input signal and select DVI 2 on
the OSD monitor menu.
12V D.C.: Power supply input connector.
Address: AHNet address for the addressable AHNet command protocol.
Address 00 is reserved for service.
Termination: Activate (ON) the termination. Only on the last unit of the
RS422 bus.

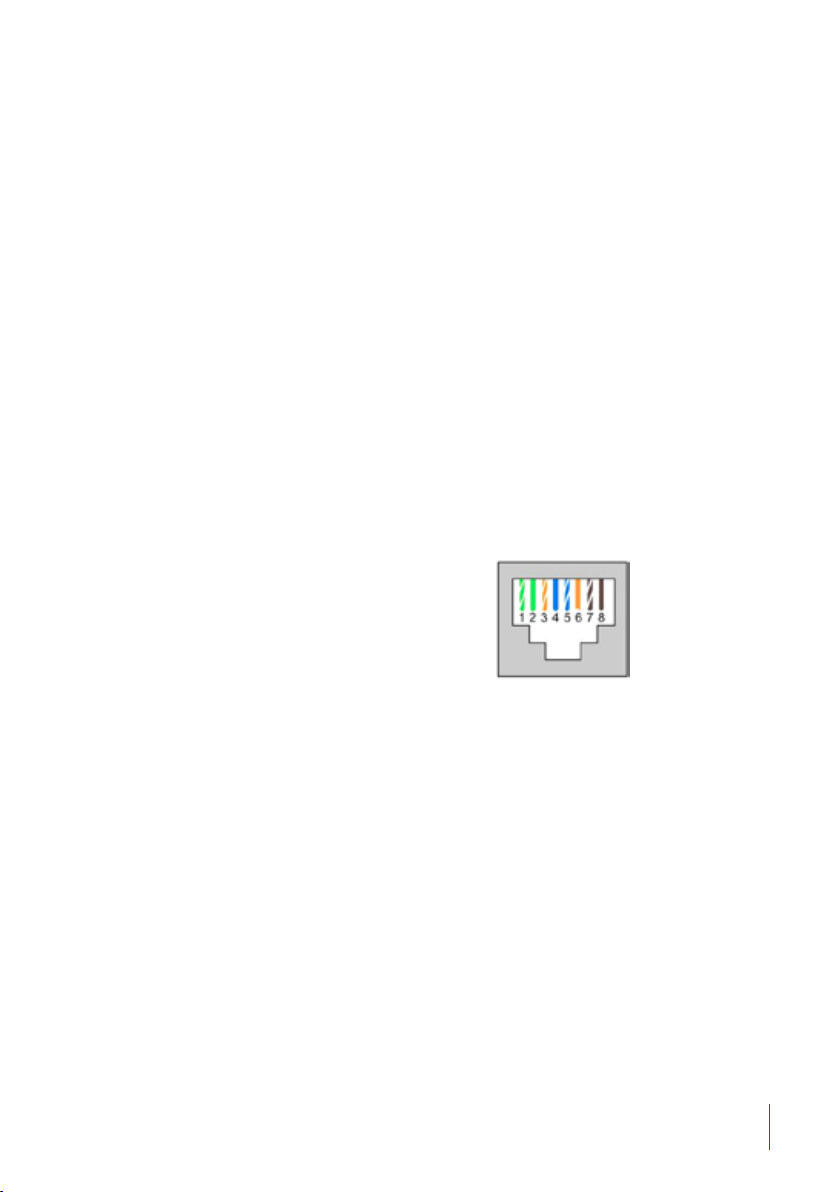

AHnet: RJ45 CAT6 connector for addressable RS422 control. There is a loop
through connector to use as signal RS422 output. Up to 30 devices can be
connected on the same RS422 bus.

15
CONTROLS
OSD monitor control
The OSD buttons, to control or congure the monitor, are located below
the screen:
MENU Activates the OSD menu on screen. Exits the OSD menu
when is active
SEL Selects the OSD menu function
DOWN Moves the cursor down in the OSD menu
UP Moves the cursor up in the OSD menu
LEFT Moves the cursor left in the OSD menu
RIGHT Moves the cursor right in the OSD menu
SOURCE Signal input selection
LED Indicates operation status
POWER Monitor power on/off

16
OSD MENU
Accessing the menu system
• With the OSD off, push the MENU button to activate the main OSD
menu.
• Press the UP and DOWN buttons to move from one function to another.
Please refer to the following sections below to view a complete list of
all the functions available for the monitor.
• Press the OK button to conrm.
• When a function is selected, press the LEFT and RIGHT buttons in order
to change the parameter of the function.
Press the MENU button to access to the main menu.
Picture Mode: Adjusts the mode of the image
∙Dynamic
∙Standard
∙Mild
∙User: Contrast - Brightness - Colour - Sharpness - Tint
Colour Temperature: Adjusts the colour of the image
∙Cool
∙Medium
∙Warm
∙Use: Red - Green - Blue
Aspect Ratio: Adjusts the image aspect on screen
∙4:3
∙16:9
∙Just scan

17
OSD MENU
Noise Reduction: Adjusts the image noise lter
∙Off
∙Low
∙Medium
∙High
∙Default
Screen: (Only for analogue signals)
∙Auto Adjust
∙Horizontal Position
∙Vertical Position
∙Size
∙Phase
Backlight: Adjusts the backlight screen's level
Colour Range: Adjusts the colour range
∙0 - 255
∙16 - 235

18
OSD MENU
Option
Language: OSD language selection
Restore Factory Default: Adjusts the parameters to the initial factory
parameters
Blending: OSD window transparency
∙Low
∙Medium
∙High
∙Off
OSD Duration: Adjusts the time that the OSD menu window remains on
the screen
Software Update (USB): Port to use for rmware's upgrade.
Mirror:
0. Image with no ip
1. Vertical ip
2. Horizontal ip
3. Rotate

19
AHnet PROTOCOL
Communications protocol
COMMUNICATION RS422
CONNECTION RJ45
WIRING CAT-6
Speed and conguration
BAUD RATE 38400
DATA BITS 8
PARITY NONE
STOP BITS 1
Wiring Diagram
1. Data TX +
2. Data TX –
3. Data RX +
4. NC
5. NC
6 .Data RX –
7. NC
8. NC
Connection
PINS 1 & 2 The units respond
PINS 3 & 6 The units receive instructions
Protocol to control the monitor by addressable RS422 bus.
You can connect up to 30 monitors on the same RS422 bus.
You can use an AH ERT interface, to control the RS422 bus.
The units should have a set address and the address must start by 1.
Maximum cable length between ends: 500 m/1640 ft.
RJ-45

20
AHnet PROTOCOL
AHnet protocol
Uses 5 bytes communication:
BYTE 0 START BYTE
BYTE 1 ADDRESS BYTE
BYTE 2 COMMAND BYTE
BYTE 3 VALUE 1
BYTE 4 VALUE 2
Commands
COMMAND DESCRIPTION RESPONSE
FA XX 01 01 00 GO UP FB XX 01 01 00
FA XX 01 00 00 GO DOWN FB XX 01 00 00
FA XX 02 01 00 SCREEN ON FB XX 02 01 00
FA XX 02 00 00 SCREEN OFF FB XX 02 00 00
FA XX 03 01 00 DVI-A SELECTION FB XX 03 01 00
FA XX 03 00 00 DVI-1 SELECTION FB XX 03 00 00
FA XX 03 03 00 DVI-2 SELECTION FB XX 03 03 00
FA XX 04 01 00 BUTTON LOCK FB XX 04 01 00
FA XX 04 00 00 BUTTON UNLOCK FB XX 04 00 00
FA XX 13 00 00 MECHANICAL PROTECTION RESET FB XX 13 00 00
FA XX 14 00 00 INQUIRY CONTROL BYTE FB XX 14 CB1 CB2
XX Number of the monitor address. Up to 30 monitors for each
RS422 BUS
CB1 Response in 8 bites of the monitor status
CB2 Response in 8 bites of the monitor status
