IAP-228 Wireless Access Point
Installation Guide
0511758-01 | April 2015 1
The Aruba IAP-228 is a fully temperature hardened, water resistant, indoor rated, dual-radio IEEE
802.11ac wireless access point. This access point use MIMO (Multiple-in, Multiple-out) technology and
other high-throughput mode techniques to deliver high-performance, 802.11ac 2.4 GHz and 5 GHz
functionality while simultaneously supporting existing 802.11a/b/g/n wireless services.
IAP-228 Operations
Wireless transceiver
Wireless access point (IEEE 802.11 a/b/g/n/ac)
Wireless air monitor (IEEE 802.11 a/b/g/n/ac)
Protocol-independent networking functionality
Compatibility with IEEE 802.3at PoE
Guide Overview
“IAP-228 Hardware Overview” on page3provides a detailed hardware overview of the IAP-228.
“Before You Begin” on page5provides key questions to ask and items to consider when deploying
a wireless network.
“Installing the AP” on page7describes the multi-step process for a successful installation and
deployment of the IAP-228.
“Safety and Regulatory Compliance” on page12 provides an overview of safety and regulatory
compliance information.
Package Contents
IAP-228 Access Point
Cable Glands x2
USB Console Cable
Copper Lug x1
M4 x 8 Screw x1
Aruba Instant Quick Start Guide
Installation Guide (this document)
The weatherproof caps for Ethernet and Console interfaces are connected to the AP, not loose in the package.
Mounting kits for use with the IAP-228 access point are sold separately. Contact your Aruba sales
representative for details.

2IAP-228 Wireless Access Point | Installation Guide
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.

IAP-228 Wireless Access Point | Installation Guide 3
IAP-228 Hardware Overview
Figure 1 IAP-228 Front View
External Antenna Connectors
The IAP-228 is designed for use with external antennas and has six RP-SMA connectors for external
antennas.
Figure 2 IAP-228 Bottom View
LED
The IAP-228 is equipped with one LED that indicates the system status of the AP.
2G0
2G1
2G2
5G0
5G1
5G2
!
CAUTION
All Aruba devices with external antennas must be installed by an ACMP qualified technician using
manufacturer-approved antennas only. The ACMP installer(s) is/are responsible for ensuring that Equivalent
Isotropically Radiated Power (EIRP) levels for all external antenna devices are compliant with the regulatory
standards of the host country/domain. Installer(s) are required to record the antenna gain for this device in
system management software.
LAN
WAN
Grounding Point
USB Console Port, Reset button and LED

4IAP-228 Wireless Access Point | Installation Guide
Table 1 IAP-228 LED Meanings during Boot Up
Table 2 IAP-228 LED Meanings during Operation
USB Console Port
The USB Micro-B console port allows you to connect the AP to a terminal or a laptop for direct local
management. Use the included USB console cable to connect the AP. You can download the
necessary driver for USB-UART adapter from support.arubanetworks.com under the Tools &
Resources tab.
Use the following setting to access the terminal:
Ethernet Ports
IAP-228 is equipped with two10/100/1000Base-T (RJ-45) Gigabit Ethernet ports (WAN and LAN port)
for wired network connectivity. The WAN port supports 802.3at Power over Ethernet (PoE), accepting
48 VDC (nominal) as a standard defined Powered Device (PD) from a Power Sourcing Equipment (PSE)
such as a PoE midspan injector.
These ports have RJ-45 female connectors with the pin-outs shown in Figure 3.
LED Color/State Meaning
System LED Off No power to AP
Red Initial power-up
Green - Flashing AP booting
Green - Steady AP ready and 1000Mbps Ethernet link established. The LED
turns off after 1200 seconds
Green - Yellow, 6 seconds
period AP ready and 10/100Mbps Ethernet link established. The LED turns off after 1200 seconds
LED Color/State Meaning
System LED Solid Red General fault
One blink off every 3
seconds Radio 0 fault (5 GHz)
Two quick blink off 0.5
seconds apart cycled every
3 seconds
Radio 1 fault (2.4GHz)
Table 3 Console Settings
Baud Rate Data Bits Parity Stop Bits Flow Control
9600 8 None 1 None

IAP-228 Wireless Access Point | Installation Guide 5

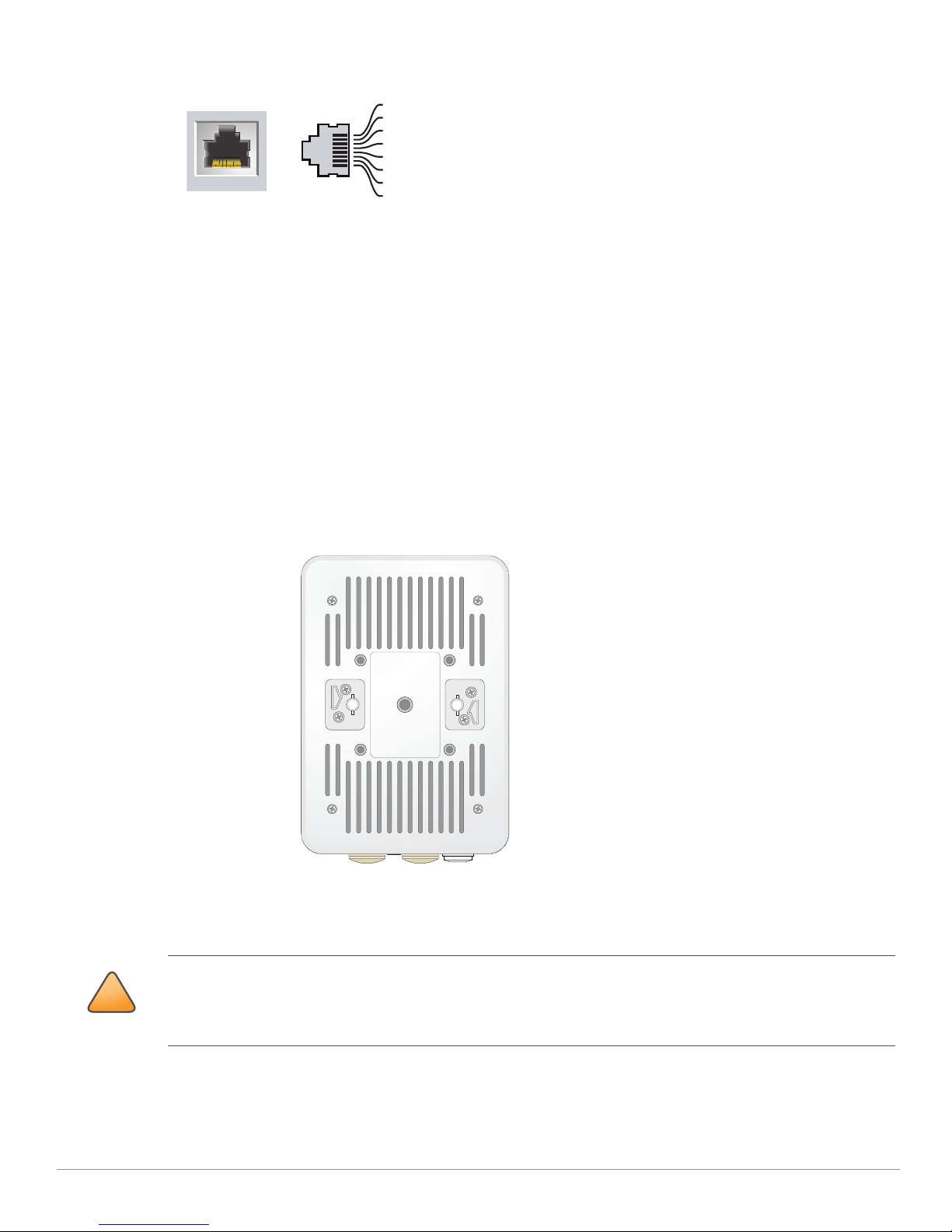

Figure 3 Gigabit Ethernet Port Pin-Out
Reset Button
The reset button can be used to return the AP to factory default settings. To reset the AP:
1. Power off the AP.
2. Press and hold the reset button using a small, narrow object, such as a paperclip.
3. Power-on the AP without releasing the reset button. The system LED will flash within 5 seconds.
4. Release the reset button.
The system LED will flash again within 15 seconds indicating that the reset is completed. The AP will
now continue to boot with the factory default settings.
Grounding Point
Always remember to protect the AP by installing grounding lines. The ground connection must be
complete before connecting power to the AP enclosure.
Figure 4 IAP-228 Rear View
Before You Begin
1000Base-T Gigabit
Ethernet Port
RJ-45 Female
Pin-Out
Signal Name
1
2
3
4
5
6
7
8
BI_DC+
BI_DC-
BI_DD+
BI_DD-
BI_DA+
BI_DA-
BI_DB+
BI_DB-
Function
Bi-directional pair +C, POE Positive
Bi-directional pair -C, POE Positive
Bi-directional pair +D, POE Negative
Bi-directional pair -D, POE Negative
Bi-directional pair +A, POE Negative
Bi-directional pair -A, POE Negative
Bi-directional pair +B, POE Positive
Bi-directional pair -B, POE Positive
!
CAUTION
FCC Statement: Improper termination of access points installed in the United States configured to non-US
model controllers will be in violation of the FCC grant of equipment authorization. Any such willful or
intentional violation may result in a requirement by the FCC for immediate termination of operation and may
be subject to forfeiture (47 CFR 1.80).

6IAP-228 Wireless Access Point | Installation Guide
Identifying Specific Installation Locations
Use the AP placement map generated by Aruba’s RF Plan software application to determine the
proper installation location(s). Each location should be as close as possible to the center of the
intended coverage area and should be free from obstructions or obvious sources of interference.
These RF absorbers/reflectors/interference sources will impact RF propagation and should have been
accounted for during the planning phase and adjusted for in RF plan.
Identifying Known RF Absorbers/Reflectors/Interference Sources
Identifying known RF absorbers, reflectors, and interference sources while in the field during the
installation phase is critical. Make sure that these sources are taken into consideration when you
attach an AP to its fixed location. Examples of sources that degrade RF performance include:
Cement and brick
Objects that contain water
Metal
Microwave ovens
Wireless phones and headsets
!
CAUTION
EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands. Please refer to the Aruba Instant User
Guide for details on restrictions.
Produit réseau local radio basse puissance operant dans la bande fréquence 2.4 GHz et 5 GHz. Merci de vous
referrer au Aruba Instant User Guide pour les details des restrictions.
Low Power FunkLAN Produkt, das im 2.4 GHz und im 5 GHz Band arbeitet. Weitere Informationen bezlüglich
Einschränkungen finden Sie im Aruba Instant User Guide .
Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz. Fare riferimento alla Aruba Instant User Guide
per avere informazioni detagliate sulle restrizioni.
!
CAUTION
This device must be professionally installed and serviced by a trained Aruba Certified Mobility Professional
(ACMP) or similar Aruba-certified technician. Aruba access points are classified as radio transmission devices,
and are subject to government regulations of the host country. The network administrator(s) is/are responsible
for ensuring that configuration and operation of this equipment is in compliance with their country’s
regulations. For complete list of approved channels in your country, refer to the Aruba Domain Regulatory Table
at arubanetworks.com.
Aruba Networks, Inc. in compliance with governmental requirements, has designed the IAP-228 such that only
authorized network administrators can change configuration settings. For more information about AP
configuration, refer to the Aruba Instant Quick Start Guide and Aruba Instant User Guide.
!
CAUTION
Access points are radio transmission devices and as such are subject to governmental regulation. Network
administrators responsible for the configuration and operation of access points must comply with local
broadcast regulations. Specifically, access points must use channel assignments appropriate to the location in
which the access point will be used.

IAP-228 Wireless Access Point | Installation Guide 7
Installing the AP
Using the AP-220-MNT-W1 Mount Kit
The IAP-228 access point can be installed on a wall by using AP-220-MNT-W1 mount kit.
1. Begin by attaching the wall mount adapter to the wall.
a. Install any necessary wall anchors. Wall anchors are not included in this kit.
b. Align the screw holes in the mounting bracket with the previously installed anchors or
demarcated screw points.
c. Insert the screws to secure the mounting bracket. Screws are not included in this kit.
Service to all Aruba products should be performed by trained service personnel only.
The IAP-228 access point does not ship with any mount kit. The AP-220-MNT-W1 mount kit is available as
accessories and must be ordered separately.
For details on AP-220-MNT-W1, please refer to the AP-220-MNT-W1 Installation Guide.

8IAP-228 Wireless Access Point | Installation Guide

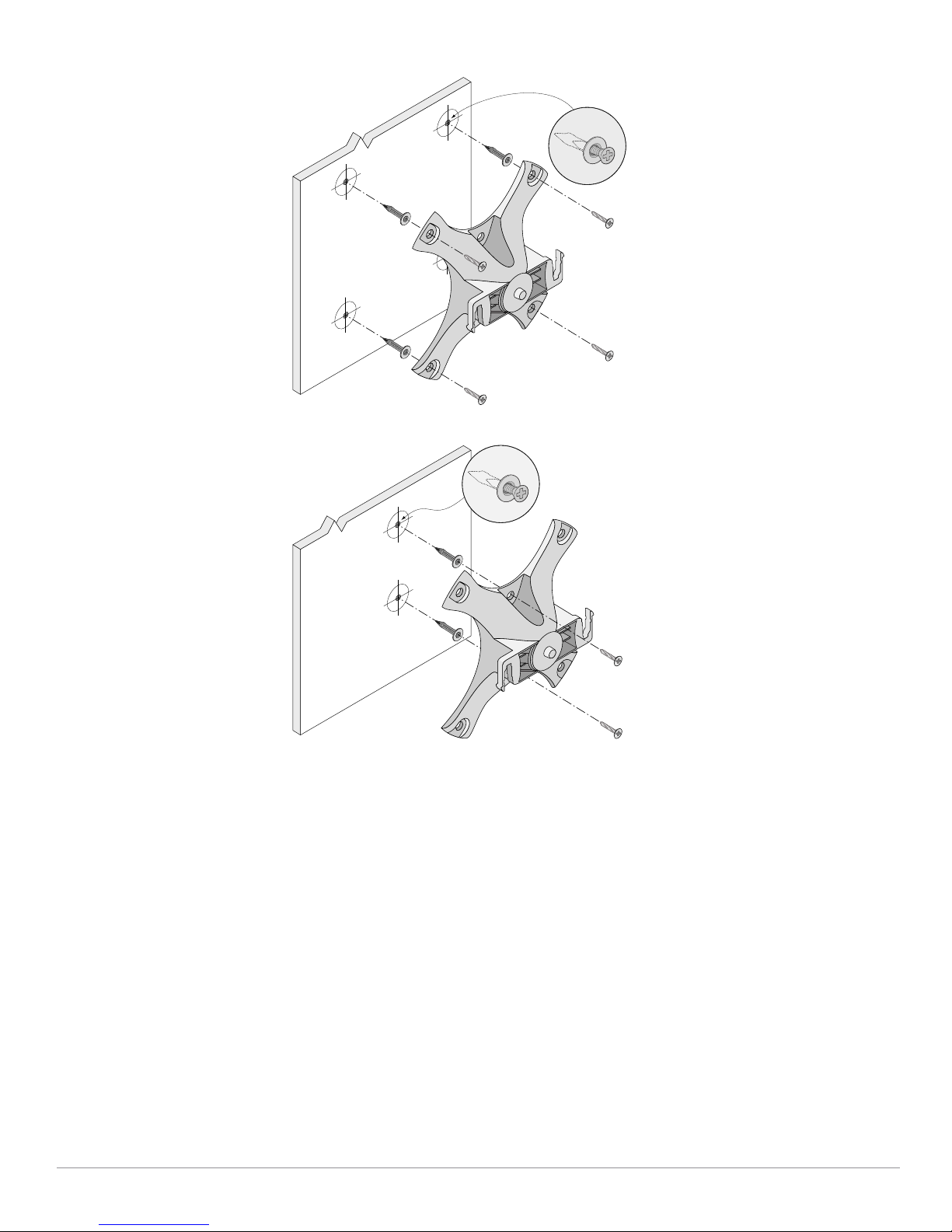

Figure 5 Attaching the Adapter to a Wall
Figure 6 Attaching the Adapter to a Wall (Alternate)
2. Attach necessary cables and/or antennas to the AP.
3. Attach the AP to the secured mounting adapter as shown in Figure 7.
a. Align the AP with a mounting adapter, placing the AP so that it’s mounting tabs are at an angle
of approximately 30 degrees to the adapter.
4. Pushing toward the wall, rotate the AP clockwise until it clicks into place (see Figure 7).
AP-220_11
AP-220_14

IAP-228 Wireless Access Point | Installation Guide 9
Figure 7 Attaching the AP to the Mounting Bracket
Figure 8 Completed Installation
Grounding the AP
The grounding must be completed before powering up the AP. The grounding wire should be #8
AWG.
1. Peel the cover of one end of the grounding wire and place the bare grounding wire into the
included copper lug, and press firmly with the crimping pliers.
2. Fasten the copper lug to the grounding hole on the AP with the included M4 x8 screw.
Connecting the Ethernet Cable
To connect the Ethernet cable to the AP, perform the following steps using the cable glands that ships
with your AP.
WARNING
Failure to use the included Ethernet cable glands can lead to connectivity and POE issues.

10 IAP-228 Wireless Access Point | Installation Guide
Figure 9 Installing a Cable Gland
1. Slide the sealing nut over the cable (without the RJ45 connector attached to the end).
2. Slide the clamping ring over the cable.
3. Using a crimping tool, attach the shielded RJ45 connector to the end of the cable.
4. Remove the weatherproof cap on the Ethernet port.
5. Insert the RJ45 connector to the Ethernet port.
6. Screw the clamping ring onto the Ethernet port.
7. Screw the sealing nut onto the clamping ring.
Verifying Post-Installation Connectivity
The integrated LEDs on the AP can be used to verify that the AP is receiving power and initializing
successfully (see Table 1 and Table 2). Refer to the Aruba Instant Quick Start Guide for further details
on verifying post-installation network connectivity.
The cable is not included and must be purchased separately. Purchase a suitable UV-resistant, outdoor rated,
CAT 5E or better RJ45 cable for use with the AP.
Sealing Nut Clamping Ring CAT 5E or Better Cable
Seals
The seals inside the clamping ring by factory default is applicable for cables with 5-8.5 mm diameter. In the
cable gland kit, another seals is provided for use with the cables with 7-10 mm diameter.

IAP-228 Wireless Access Point | Installation Guide 11
Product Specifications
Mechanical:
Device Dimensions (HxWxD): 8.7 inches x 5.9 inches x 2.6 inches (221mm x 150mm x 66mm)
Electrical
Ethernet
2 x 10/100/1000Base-T auto-sensing Ethernet RJ-45 Interfaces
MDI/MDX
Power over Ethernet (IEEE 802.3at compliant), 48VDC(nominal) /0.6A
Power
POE support on WAN port: 802.3at-compliant POE sourcing devices
Environmental
Operating
Temperature: -40ºC to 60ºC (-40ºF to 140ºF)
Humidity: 5% to 95% non-condensing
Storage
Temperature: -40ºC to 70ºC (-40ºF to 158ºF)
For additional specifications on this product, please refer to the data sheet. The data sheet can be
found at www.arubanetworks.com.

12 IAP-228 Wireless Access Point | Installation Guide
Safety and Regulatory Compliance
Aruba Networks provides a multi-language document that contains country-specific restrictions and
additional safety and regulatory information for all Aruba access points. This document can be
viewed or downloaded from the following location: www.arubanetworks.com/safety_addendum
Regulatory Model Name
The regulatory model name of IAP-228 is APIN0228.
FCC
This device is electronically labeled. To view the FCC ID:
1. Log into the controller WebUI
2. Navigate to Maintenance > Controller > About.
FCC Class B Part 15
This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation
is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the manufacturer’s instructions,
may cause interference harmful to radio communications.
If this equipment does cause interference, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
!
CAUTION
Aruba access points must be installed by a professional installer. The professional installer is responsible for
ensuring that grounding is available and it meets applicable local and national electrical codes.
!
CAUTION
RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits. This
equipment should be installed and operated with a minimum distance of 9.84 inches (25 cm) between the
radiator and your body for 2.4 GHz and 5 GHz operations. This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter. When operated in the 5.15 to 5.25 GHz frequency range,
this device is restricted to indoor use to reduce the potential for harmful interference with co-channel Mobile
Satellite Systems.
!
CAUTION
RF Radiation Exposure Statement: When operated in the 5.15 to 5.25 GHz frequency range, this device is
restricted to indoor use to reduce the potential for harmful interference with co-channel Mobile Satellite
Systems.
!
CAUTION
Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.

IAP-228 Wireless Access Point | Installation Guide 13
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio or TV technician for help.
EU Regulatory Conformance
Aruba Networks, Inc., hereby declares that the APIN0228 device model is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC -CE(!). The
Declaration of Conformity made under Directive 1999/5/EC is available for viewing at
www.arubanetworks.com.
Proper Disposal of Aruba Equipment
For the most current information about Global Environmental Compliance and Aruba products, see
our website at www.arubanetworks.com.
Waste of Electrical and Electronic Equipment
Aruba products at end of life are subject to separate collection and treatment in the
EU Member States, Norway, and Switzerland and therefore are marked with the
symbol shown at the left (crossed-out wheelie bin). The treatment applied at end of
life of these products in these countries shall comply with the applicable national
laws of countries implementing Directive 2002/95/EC on Waste of Electrical and
Electronic Equipment (WEEE).
European Union RoHS
Aruba products also comply with the EU Restriction of Hazardous Substances
Directive 2011/65/EC (RoHS). EU RoHS restricts the use of specific hazardous
materials in the manufacture of electrical and electronic equipment. Specifically,
restricted materials under the RoHS Directive are Lead (including Solder used in printed circuit
assemblies), Cadmium, Mercury, Hexavalent Chromium, and Bromine. Some Aruba products are
subject to the exemptions listed in RoHS Directive Annex 7 (Lead in solder used in printed circuit
assemblies). Products and packaging will be marked with the “RoHS” label shown at the left indicating
conformance to this Directive.
China RoHS
Aruba products also comply with China environmental declaration requirements and
are labeled with the “EFUP 10” label shown at the left.
10

14 IAP-228 Wireless Access Point | Installation Guide
Canadian Statement
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
᳝↦᳝ᆇ⠽䋼ໄᯢ
Hazardous Materials Declaration
᳝↦᳝ᆇ⠽䋼៪ܗ㋴(Hazardous Substance)
䚼ӊৡ⿄
(Parts) 䪙
3E
∲
+J
䬝
&G
݁Ӌ䫀
&U
໮⒈㘨㣃
3%%
໮⒈Ѡ㣃䝮
3%'(
⬉䏃ᵓ
(PCA Boards) hƻƻ ƻ ƻ ƻ
ᴎẄ㒘ӊ
(Mechanical Sub-Assemblies)
hƻƻ ƻ ƻ ƻ
ƻ˖ 㸼⼎䆹᳝↦᳝ᆇ⠽䋼೼䆹䚼ӊ᠔᳝ഛ䋼ᴤ᭭Ёⱘ৿䞣ഛ೼ SJ/T11363-2006 󰵼ޚ㾘ᅮⱘ䰤䞣㽕∖ҹϟDŽ
Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is
below the relevant threshold of the SJ/T11363-2006 standard.
h˖ 㸼⼎䆹᳝↦᳝ᆇ⠽䋼㟇ᇥ೼䆹䚼ӊⱘᶤϔഛ䋼ᴤ᭭Ёⱘ৿䞣䍙ߎ6-7󰵼ޚ㾘ᅮⱘ䰤䞣㽕∖DŽ
Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials
in the parts is above the relevant threshold of the SJ/T11363-2006 standard.
ᇍ䫔ଂП᮹ⱘ᠔ଂѻકᴀ㸼ᰒ⼎կᑨ䫒ⱘ⬉ᄤֵᙃѻકৃ㛑ࣙ৿䖭ѯ⠽䋼DŽ
This table shows where these substances may be found in the supply chain of electronic information
products, as of the date of sale of the enclosed product.
ℸ󰵼ᖫЎ䩜ᇍ᠔⍝ঞѻકⱘ⦃ֱՓ⫼ᳳ󰵼ᖫᶤѯ䳊䚼ӊӮ᳝ϔϾϡৠⱘ⦃ֱՓ⫼ᳳ
՟བ⬉∴ܗ῵ഫ䌈೼݊ѻકϞ
ℸ⦃ֱՓ⫼ᳳ䰤া䗖⫼Ѣѻકᰃ೼ѻક᠟ݠЁ᠔㾘ᅮⱘᴵӊϟᎹ԰
The Environment- Friendly Use Period (EFUP) for all enclosed products and their parts are
per the symbol shown here. The Environment- Friendly Use Period is valid only when the
product is operated under the conditions defined in the product manual.

IAP-228 Wireless Access Point | Installation Guide 15
This page is intentionally left blank.

© 2015 Aruba Networks, Inc. All rights reserved.
www.arubanetworks.com
1344 Crossman Avenue
Sunnyvale, California 94089
Phone: [phone]
Fax [phone]
16 IAP-228 Wireless Access Point | Installation Guide
Contacting Aruba Networks
Web Site Support
Main Site http://www.arubanetworks.com
Support Site https://support.arubanetworks.com
Software Licensing Site https://licensing.arubanetworks.com/login.php
Wireless Security Incident
Response Team (WSIRT) http://www.arubanetworks.com/support/wsirt.php
Support Emails
Americas, APAC and EMEA [email protected]
WSIRT Email
Please email details of any security
problem found in an Aruba product.
[email protected]
Telephone Support
Aruba Corporate [phone]
FAX [phone]
Support
United States 800-WI-FI-LAN (800-943-4526)
Universal Free Phone Service
Number (UIFN): Australia, Canada,
China, France, Germany, Hong Kong,
Ireland, Israel, Japan, Korea,
Singapore, South Africa, Taiwan, and
the UK.
+800-4WIFI-LAN ([phone])
All Other Countries [phone]
