Surge Protective Devices Installation & Operation Manual
Model 247

© 2020 ASCO Power Technologies. All Rights Reserved
2
IO-75053
01/2020
For access to self-service tools and chat support visit se.com/us/en/work/support or call 1-888-778-2733 for technical assistance
Model 247 (Islatrol RM Series)
Surge Protective Device (SPD)
Safety Information
Important Information
Read these instructions carefully and look at the equipment to become
familiar with the device before trying to install, operate, service or maintain it.
The following special messages may appear throughout thisbulletin or on the
equipment to warn of potential hazards or to call attention to information that
clarifies or simplifies a procedure.
The addition of either symbol to a “Danger”or “Warning” safety label
indicates that an electrical hazard exists which will result inpersonal
injury if the instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messagesthat follow this
symbol to avoid possible injury or death.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderateinjury.
NOTICE
NOTICE is used to address practices not related to physical injury. The safety
alert symbol shall not be used with this signal word.
Please Note
Electrical equipment should be installed, operated, serviced, and maintained only
by qualified personnel. No responsibility is assumed by ASCO Power Technologies
for any consequences arising out of the use of this material.
A qualified person is one who has skills and knowledge related to the
construction, installation, and operation of electrical equipment andhas received
safety training to recognize and avoid the hazards involved.

© 2020 ASCO Power Technologies. All Rights Reserved 3
IO-75053
01/2020
For access to self-service tools and chat support visit se.com/us/en/work/support or call 1-888-778-2733 for technical assistance
Model 247 (Islatrol RM Series)
Surge Protective Device (SPD)

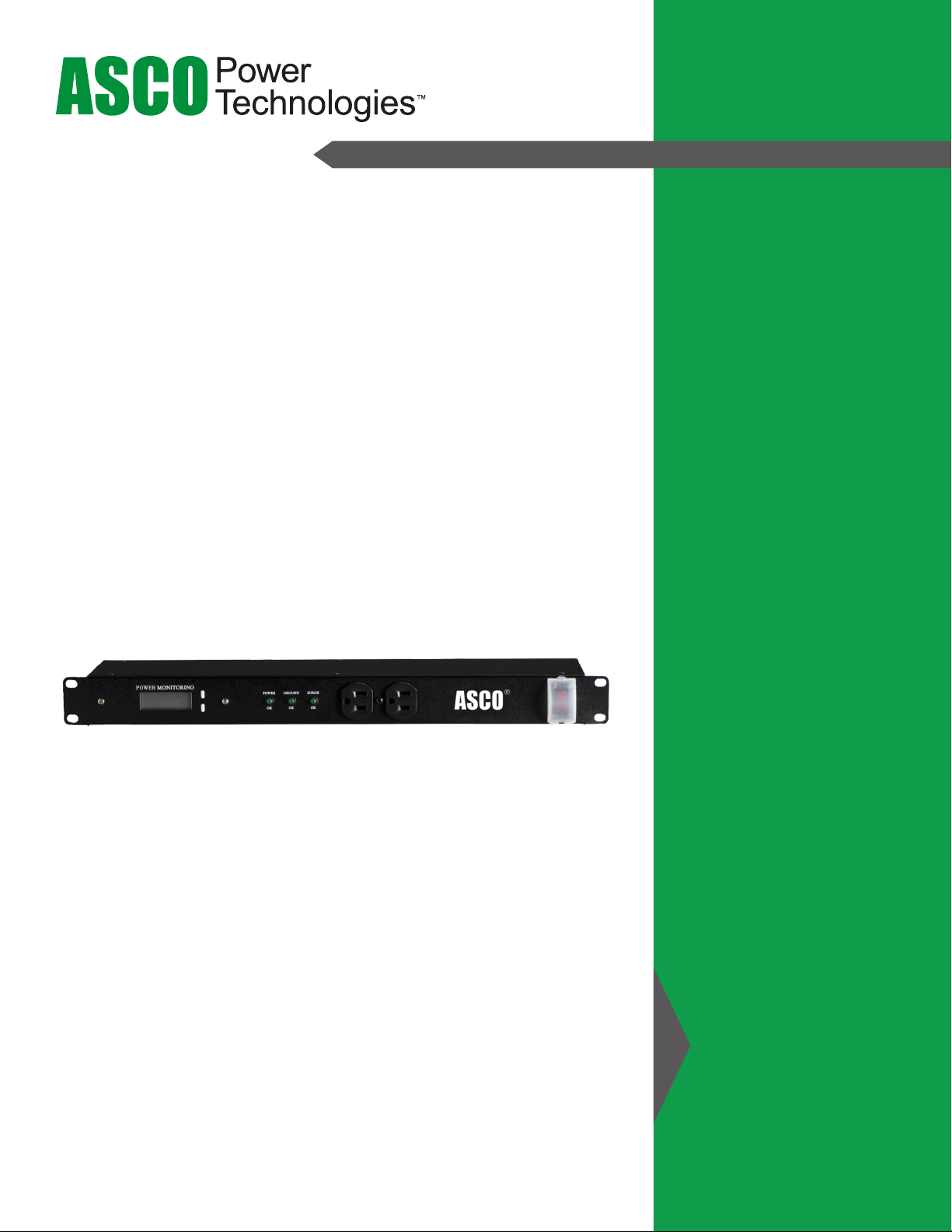

Introduction The ASCO Model 247 relocatable power tap is specically designed for
rack mounted equipment. Status LEDs indicate power is supplied to the unit,
whether the unit is grounded and whether the surge components are still
functioning. Model 247 features a digital meter mounted on the front of the
unit, which monitors voltage, current, and power supplied to the connected
loads.
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices. See NFPA 70E, NOM-029-STPS or CSA Z462.
• This equipment must only be installed and serviced by qualied electri-
cal personnel.
• Turn o󰀨 all power supplying this equipment before working on or inside
equipment.
• Always use a properly rated voltage sensing device to conrm power is o󰀨.
• Replace all devices, doors and covers before turning on power to this
equipment.
• This equipment must be e󰀨ectively grounded per all applicable codes.
Use an equipment-grounding conductor to connect this equipment to the
power system ground.
• Do not exceed 15 Amps continuous current for 247120NF015ALCN0.
• Do not exceed 20 Amps continuous current for 247120NF020ALCN0.
Failure to follow these instructions will result in death or serious injury.
WARNING: This product can expose you to chemicals including
DINP, which is known to the State of California to cause cancer, and
DIDP which is known to the State of California to cause birth defects
or other reproductive harm. For more information go to: www.
P65Warnings.ca.gov.
NOTICE
LOSS OF SURGE SUPPRESSION
• Make certain that Surge Protective Device is disconnected from the
circuit it is protecting before conducting high potential insulation testing.
Failure to follow these instructions can result in equipment damage.
DANGER
Installation 1. Turn o󰀨 all power supplying this equipment before working on or inside
any enclosure containing this equipment.
2. The rackmount devices are designed to be installed in a standard 19
inch equipment rack and take up 1 unit (1U) of space. Mount the unit to
rack using the four slots and four screws (not provided).
3. Plug AC power cable into a properly grounded NEMA 5-15R or 5-20R
receptacle, (depending on the model).
4. Plug equipment into receptacles on back of Model 247.
5. Equipment may be re-energized after all the above steps are complete.
6. Press on/o󰀨 switch on front of device to the “on” position.
7. Provides power for up to 12 individual circuits.

© 2020 ASCO Power Technologies. All Rights Reserved
4
IO-75053
01/2020
For access to self-service tools and chat support visit se.com/us/en/work/support or call 1-888-778-2733 for technical assistance

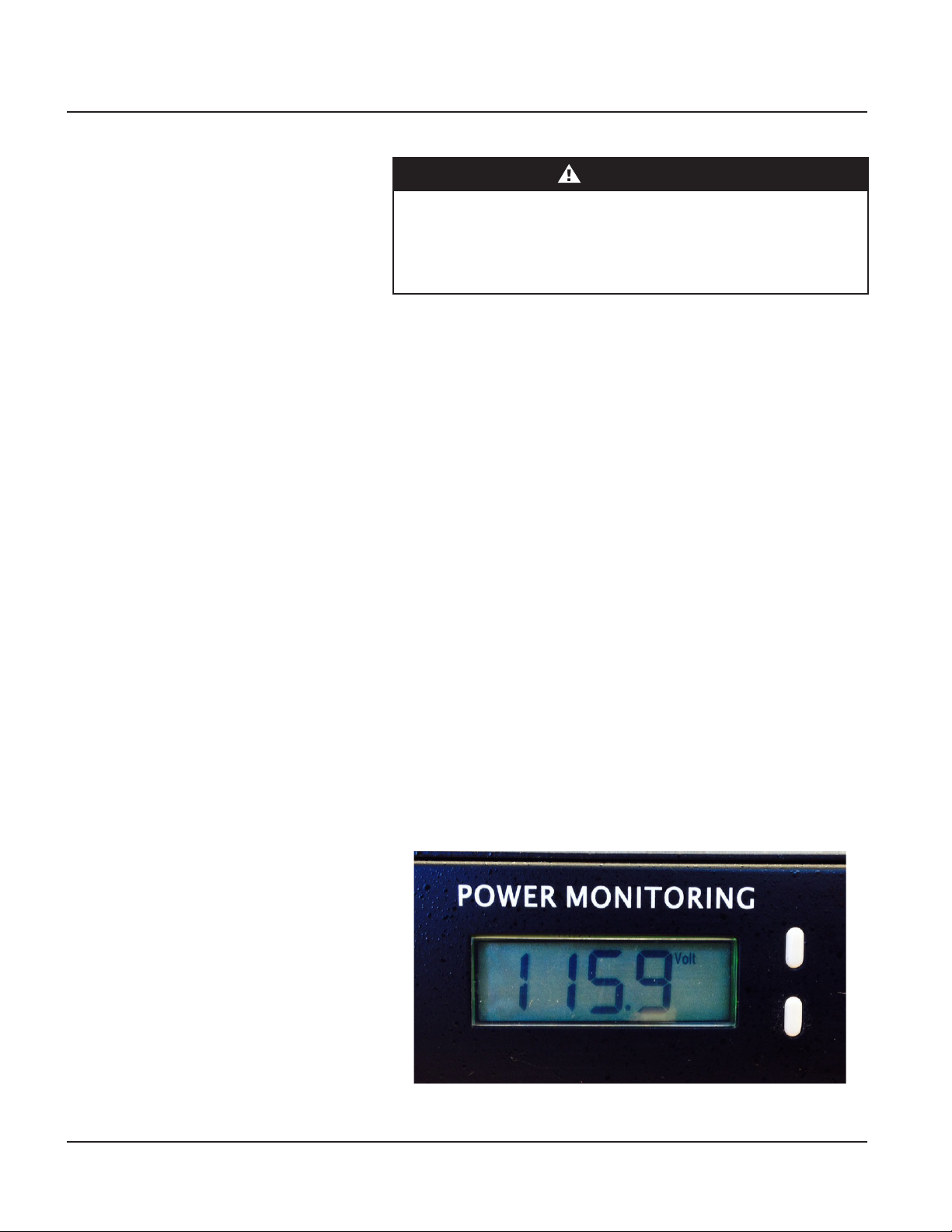

Power Monitoring Display The voltage reading is displayed when power is rst turned on and will
remain until the Function button is pressed. The FUNCTION button is the top
button next to the display. Pressing this button will cycle through the eight
meter functions. The order of the functions is as follows: Voltage, Amperage,
Watts, VA (apparent power), Hz (frequency), PF (power factor), Kwh (kilo-
watt-hour), Time (clock).
The SET button is the bottom button next to the display.
The Kwh and clock function can be reset by turning the power switch o󰀨 for
3 seconds.
To set a load current alert hold the SET button for 3 seconds, then press
the FUNCTION button to start stepping up the current in 1 amp increments.
Once the desired amperage is reached press the SET button to save. The
display will then ash if the load current limit is exceeded.
Over Voltage will be indicated on the display by “OUP” and will occur when
the input voltage is above 145 volts.
Over Current will be indicated by a blinking screen when the input current
exceeds the selected amperage level.
Model 247 (Islatrol RM Series)
Surge Protective Device (SPD)
Diagnostic Operation
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices. See NFPA 70E, CSA Z462, or NOM-029-
STPS.
Failure to follow these instructions will result in death or serious injury.
Indicator Status ON =
Three green status LEDs are located on the front panel indicating
incoming power, grounding and surge component status.
Indicator Status OFF =
Check connections, verify that the line voltage is at the point of connection; if
all is correct, then replace the device.
DANGER

© 2020 ASCO Power Technologies. All Rights Reserved 5
IO-75053
01/2020
For access to self-service tools and chat support visit se.com/us/en/work/support or call 1-888-778-2733 for technical assistance
Model 247 (Islatrol RM Series)
Surge Protective Device (SPD)
Model 247120NF015ALCN0 247120NF020ALCN0
Operating Voltage 120 VAC
Operating Current 15 Amp 20 Amp
Operating Frequency 50/60 Hz
Peak Surge Current 20 kA/mode, 40 kA/phase
EMI/RFI Filtering 60dB Max
LED Indicators (Green) Power On, Ground OK, Surge Circuit OK
Digital Meter Voltage, Amps, Watts, VA, Hz, PF, Kwh, and
Clock
Input Power SJT 14/3C Power
Cord (9ft) with NEMA
5-15P Plug
SJT 12/3C Power
Cord (9ft) with NEMA
5-20P Plug
Output Receptacles Front – (2) NEMA
5-15R Back – (10)
NEMA 5-15R
Front – (2) NEMA
5-20R Back – (10)
NEMA 5-20R
SPD Technology Thermally Protected MOVs
Overcurrent Protection Rocker Switch / Circuit Breaker
Response Time < 5ns
Dimensions (in/mm) 1.75 x 19.0 x 3.8 in. (1U)
[44.45 x 482.6 x 96.52 mm]
Weight (lbs/kg) 3.2 lbs [1.45 kg]
Limited warranty 5 Year
Agency Approvals UL 1449 Recognized
UL 1283 Recognized
UL 1363 Recognized
General Technical
Specications

© 2020 ASCO Power Technologies. All Rights Reserved
6
IO-75053
01/2020
For access to self-service tools and chat support visit se.com/us/en/work/support or call 1-888-778-2733 for technical assistance
Model Cross Reference MODEL
Former Model Name APPLICATION
247120NF015ALCN0
Islatrol RM-115-10RM 120 VAC, 15 Amp, 5-15P, (x12) 5-15R
247120NF020ALCN0
Islatrol RM-120-10RM 120 VAC, 20 Amp, 5-20P, (x12) 5-20R
