Asgard Parcel Delivery Box User manual

K ( 1:3 )
K
ASGARD
MEDIUM
PARCEL BOX
ITEM
NO PART DESCRIPTION QTY
1
2
3
1
4
12
ASGARD
ASGPAR2###

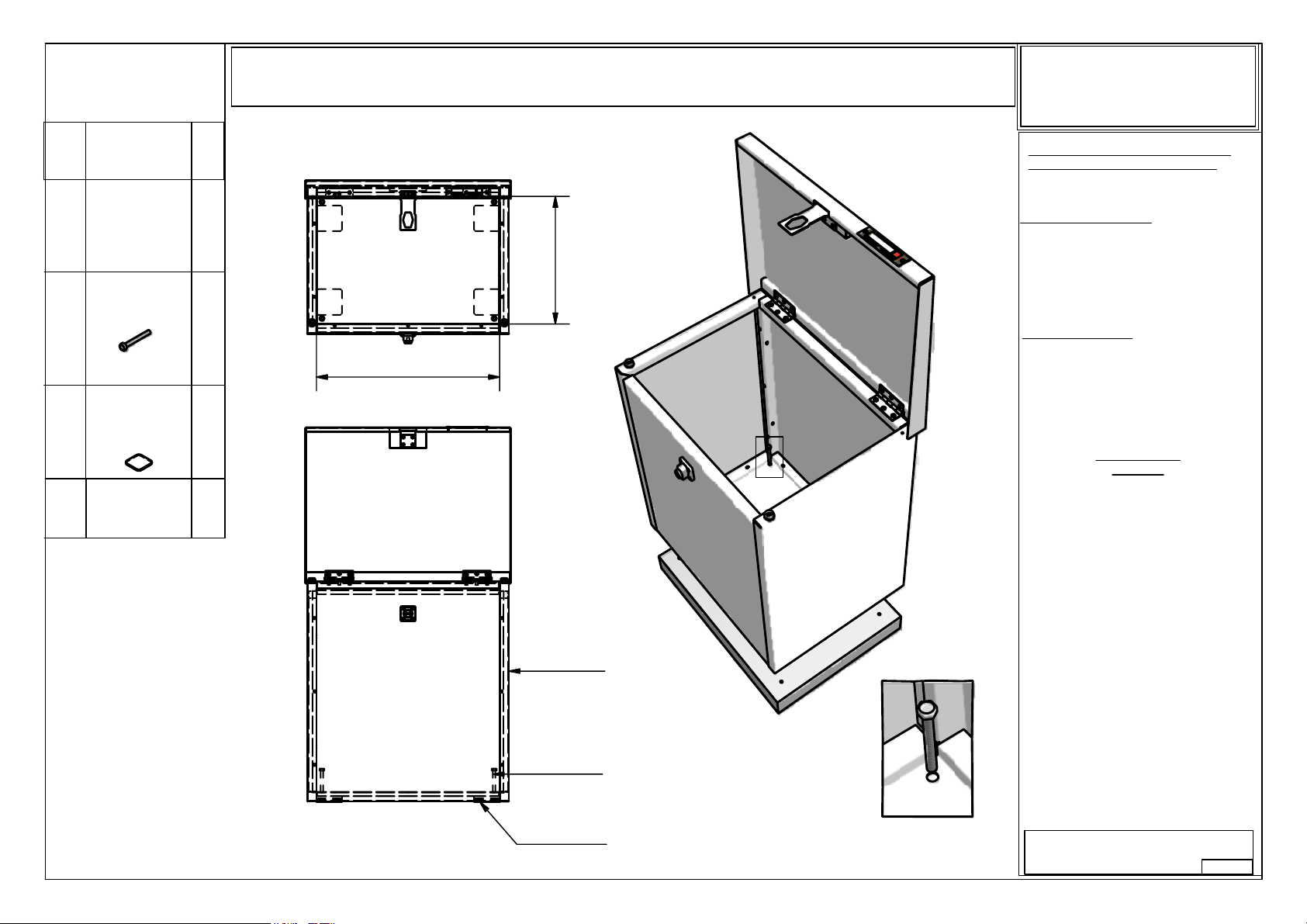

INSTALLATION INSTRUCTIONS
BASE INSTRUCTIONS
A FIRM, LEVEL ,FLAT SURFACE IS
REQUIRED AS A BASE FOR THIS UNIT
SUCH AS CONCRETE OR FLAGS.
- MINIMUM BASE MEASUREMENT
(550W*400D)
TOOLS REQUIRED
- POSI-DRIV SCREWDRIVER
(POWER DRIVER RECOMMENDED)
- 6mm DIA MASONRY DRILL
- 13mm SOCKET SPANNER
(FOR ANCHOR FIXINGS)
ANCHORING
OF UNIT
THIS UNIT HAS BEEN DESIGNED
TO RAISE THE FLOOR OFF THE
CONCRETE SLAB BY PLACING
PACKING PIECES NEARTHE FIXING
POINTS IN THE BASE.3 PER CORNER
- SLIDE THE PACKING PIECES UNDER THE
CORNERS OF THE UNITS WHERE SHOWN
- MARK THROUGH THE FOUR HOLES
IN THE FLOOR OF THE UNIT.
DRILL THE BASE USING 6mm DIA
MASONRY DRILL TO A DEPTH OF 70mm.
- SCREW IN THE ANCHOR FIXINGS.
(THESE HAVE A SELF CUTTING THREAD)
PLEASE SEE OUR WEBSITE FOR DETAILS
OF MAINTENANCE OF THIS PRODUCT
WWW.ASGARDSSS.CO.UK
ZSCREW32
M7.5*60 ANCHOR BOLT
ZCOMPPLAS 24
5mm PACKERS
045759
HDU BOX ASSY
2
1
3
THIS UNIT HAS BEEN DESIGNED
TO BE FLOOR STANDING ONLY
- PLEASE NOTE IF ANCHORING UNIT
NEAR A WALL PLEASE ALLOW
ENOUGH SPACE FOR LID TO OPEN
25MM BEYOND BOX BACK.
500,00
348,00
OPENING SIZE: 500X348MM
4ZST197 ASGARD PACEL
DELIVERY BOX LABEL 1
