Ashcroft 2032 User manual

I&M008-10162-10/08
Digital
Sanitary
Gauge
Operating
Instructions

2
Congratulations on your purchase of the Ashcroft
®
digital sanitary gauge. This feature-packed gauge
offers a menu-driven display for easy customization.
User selectable features include 12 units of measure-
ment, password protected calibration and disable
functions, adjustable bar graph and update rate. A
five digit display for maximum resolution is standard.
Optional 4-20mA output, switching and line- power
add to the versatility of the gauge. With the range
printed on the keypad, Ashcroft digital gauges meet
ASME B40.7 specification. See a complete listing of
product features and specifications on pages 16.

3
TAB E OF CONTENTS
Quick Reference ............................................4-5
Keypad Functions ..........................................6-8
• ON/O KEY
• ZERO/CLEAR KEY
• MIN/MAX KEY (down arrow key)
• MENU KEY
• BACKLITE KEY (up arrow key)
• ENTER KEY
MENU Functions (MENU Mode) ................................8-15
• Engineering Units
• CON IG Mode
• Set Password
• Recalibration of Gauge
• Zero Key Adjustment
• Disabling Menu Options
• Bar Graph Options
• Auto Off Options
• Update Options for Displayed Pressure
• Dampening Options
• Backlite Options (Backlite Optional)
• Set Switch(es) Option(s) (Switches Optional)
Specifications ................................................16
Ranges ........................................................16
Display Messages ..........................................17
Wiring Diagrams ........................................18-22
Gauge Installation & Maintenance........................24
• Mounting
• Battery Replacement & Installation

4

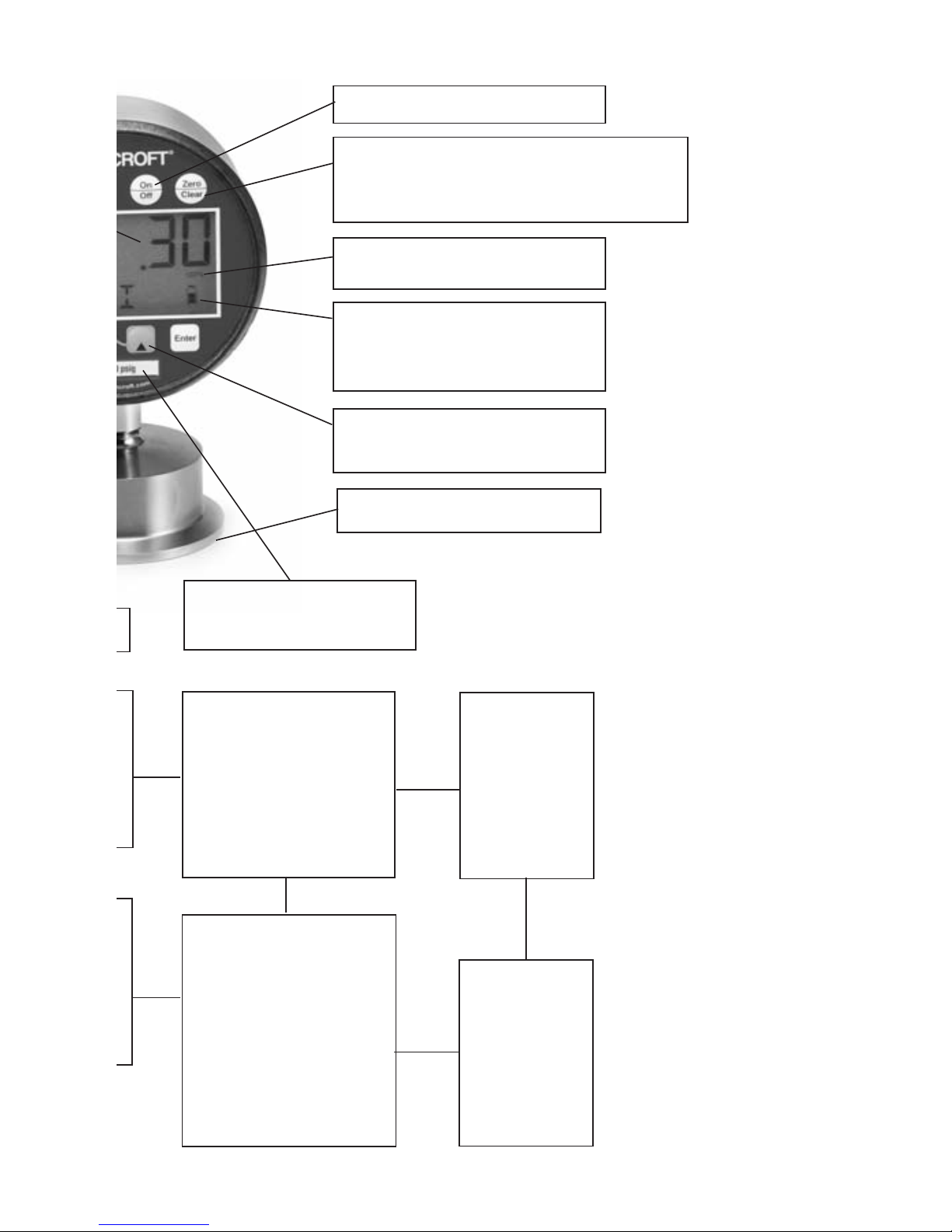

Bar graph
% of full scale
Flashing display when unit
pressured below zero
Press to indicate minimum
or maximum pressure
gauge has measured
Press again to return to
pressure units
Press to read menu
316LSS
UNITS (Pressure)
ENGLISH
INHG
PSI*
INH2O
@ 4°C, 20°C, 60°F
FTW
FTSW
ETRIC
BAR
BAR
KPA
C H2O
KG/C 2
UPDATE RATE
(Pressure measurement
per second)
10x (100 MS)*
5x (200 S)
2x (500 S)
1x (1 Sec)
BACKLITE
(Off options)
Never
2 SEC
5 SEC*
15 IN
30 IN
.88˝ high digital display (41⁄2˝ case)
.60 high digital display(3˝ case)
QUICK RE

5
12-20RA Surface finish
While in unit of measurement mode (eg: psi),
press the ZERO CLEAR button to rezero the
gauge. This feature functions when displayed
pressure is within ±5% or 10% of zero value
This bar graph indicates battery level;
the more segments, the closer the
battery is to full charge (only dis-
played on units with battery
Flashing display when unit
pressurized beyond full-scale
Press to turn backlite on or off
(backlite optional)
Range on keypad;
complies with AS E B40.7
Press to turn unit on or off
AUTO OFF
(Turns unit off after
option selected)
Never*
2 minutes
5 minutes
15 minutes
30 minutes
CALIBRATE
Zero and span
adjustments,
password
protected
DISABLE
Allows for
“lockout” of
ENU
options
DA PENING
(Takes pressure reading
and averages
process pressure
None*
Avg 2
Avg 4
Avg 6
Avg 8
*Indicates Default
FERENCE

6
Turns the gauge on and off. When pressing the
ON/O key while in the off position, gauge start-
up display first indicates the software version
followed by the model number and gauge pres-
sure range. The gauge will then display indicated
pressure and be ready for use.
Press this key for one second prior to gauge
usage to rezero any initial zero shift. If zero shift
is greater than programmed zero allowance, the
gauge will display O SET (blinking) for 1 sec-
ond, then return to the measure mode. To clear
minimum and maximum values, press
ZERO/CLR button (when min/max values are
indicated). Gauge will auto advance once zeroed.
KEYPAD FUNCTIONS
ON/OFF
ZERO
C R
MAX/MIN The Max/Min key allows review of minimum and
maximum pressure values since unit start-up or
last push of the clear key. Press key to:
1) Indicate maximum pressure.
2) Indicate minimum pressure.
3) Exit MAX/MIN mode and return the unit to
pressure measurement mode. To clear mini-
mum and maximum values press ZERO/CLR
key (must be in MAX/MIN mode).
The (down arrow key) is used in the MENU
mode, see following MENU key section.

7
This key allows for customization of the gauge.
Pressing the MENU key allows cycling through
the main MENU items; UNITS, CON IG, GRAPH,
O , UPDAT & DAMP. Any item changed in the
Menu become the new default setting(s).
Revised settings are saved in the event of power
loss.
The (up arrow key) or (down arrow key)
on the keypad allows for scrolling through the
MENU options to increase or decrease numeric
values as required. If in the menu mode, gauge
will automatically advance to measure mode
once selected MENU item has been set.
This key manually turns the backlite on or off.
five options are available. They include NEVER,
10 sec, 30, sec, 1 min, 5 min*. With the NEVER
option, the gauge BACKLITE will remain lit
whenever the gauge is in the ON mode or until
the BACKLITE button is pushed again. Options,
10 sec, 30 sec, 1 min, 5 min*. allow the BACK-
LITE to automatically turn-off after a selected
period of time.
To use the BACK ITE option:
Step 1: Press the MENU key.
Step 2: Press the (up arrow key) or (down
arrow key) until the word LITE appears.
Step 3: Press ENTER.
Step 4: Press the (up arrow key) or (down
arrow key) to select the BACKLITE option.
Step 5: Press the ENTER key to finalize your
choice of LITE options.
KEYPAD FUNCTIONS
MENU
Key for g uge
with B cklite
Key for g uge
without B cklite
displ yed with
(up rrow
icon only)

8
KEYPAD FUNCTIONS
MENU OPTIONS
UNITS: 12 units of measurement are available: psi, mmHG,
inH2O with three temperature options: 20°C, 60° , 4°C*,
mBar, inHg, ftH2O, mPa, kPa, kg/cm2and bar.
Step 1: Press the MENU key until the word UNITS appears.
Step 2: Press Enter.
Step 3: Press the (up arrow key) or (down arrow
key) to select the required unit of measure.
Step 4: Press ENTER to finalize the UNIT selection.
Note: For inH20 r nge with three temper ture options,
press the

(up rrow key) nd

(down rrow key) to
select the desired temper ture, then press ENTER to fin l-
ize the UNIT selection.
CONFIG: This option allows access to additional Menu
options. Options include:
• ENTPW or enter password (this ppe rs s sub-menu
in the CONFIG mode if user p ssword h s been set).
• RECA (allows for zero, span and mid-scale calibra-
tion of the gauge).
• 0bUTN or zero key (allows for adjustment of % of
range that can be zeroed),
• dISAb, allows for disabling MENU options.
• SETPW: This feature allows for a user defined numer-
ic password. If a user password is not set, all features
in the CON IG mode will be accessible without a
password. If a user password is set, all items in the
CON IG menu options are accessible with or without
a user password. If a user password is programmed,
it will be required to access the CON IG menu options.
*Indicates default.
ENTER
This key allows for selecting gauge features in the
menu finalizing selection. Use of the enter key is
described throughout operating instructions.

9
MENU FUNCTIONS
How to Use Your Menu Functions
To set a user password (SETPW):
Step 1: Press the Menu key on the keypad
Step 2: Press the (up arrow key) or (down arrow
key) until the word CON IG appears.
Step 3: Press Enter. The word SETPW appears on the
gauge display
Step 4: Press Enter. A five digit numeric password is now
required.
Step 5: Press the (up arrow key) or (down arrow
key) on the keypad to select the first digit of the password.
Step 6: Press ENTER.
Step 7: Repeat until the five-digit password is shown on
the gauge display.
Step 8: Press ENTER.
Note: to er se p ssword t ny time while in the SETPW
(set p ssword) mode, press the ZERO/CLEAR key. The
user will be prompted to reprogr m the p ssword once the
five-digit p ssword is entered. The g uge will displ y SAVE.
Step 9: Press Enter to save the password setting.
ENTPW: Once a user password has been established and
entry into the CON IG mode is required, the user will be
prompted to ENTPW or enter password.
Follow setup steps 4-8 above.
RECA : or recalibrate allows for zero, mid-scale, full-scale
and factory default calibration of the gauge. The RECAL
feature also allows for recalibration of gauges with
4-20mA output.
*Indicates default.
KEYPAD FUNCTIONS

10
To use RECA option:
Step 1: Press the Menu key on the keypad
Step 2: Press the (up arrow key) or (down arrow
key) on the keypad until the word CON IG appears.
Step 3: Press Enter.
Step 4: Enter user password if it has been programmed.
Step 5: Press (up arrow key) or (down arrow key)
until the word RECAL appears.
Step 6: Press Enter.
Step 7: The gauge will now flash between INPUT and unit
of measure on the lower line and .00 on the top line. Apply
zero pressure to the gauge.
Step 8: Press Enter. Zero pressure is now set.
Step 9: The gauge will display full-scale pressure. Apply
full-scale pressure to the gauge.
Step 10: Press Enter. ull-scale pressure is now set.
Step 11: The gauge will now display mid-scale pressure.
Apply mid-scale pressure to the gauge.
Step 12: Press Enter. Mid-scale pressure is now set.
(Note: For compound r nges this rec libr tion is zero,
full-sc le, mid-sc le nd full-v c.)
FOR FACTORY CA IBRATED SETINGS:
Step 13: To reinstate factory calibrated settings for zero,
full-scale and mid-scale press the (down arrow key)
Menu key until the word ACT appears.
Step 14: Press Enter. actory calibration settings are now
reinstated.
Step 15: After zero, full-scale and/or mid-scale or factory
default calibration have been set, the word SAVE appears
on the gauge display.
Step 16: Press Enter to finalize calibration.
MENU FUNCTIONS
*Indicates default.

11
Note: C libr tion of Zero, mid-sc le or sp n c n be set inde-
pendently of e ch other. For inst nce, if only full-sc le c li-
br tion is required, press the

(down arrow key) until the
g uge displ y indic tes full-sc le pressure. Press Enter nd
proceed s indic ted bove. C libr tion of zero, midsc le nd
full-sc le is recommended when rec libr ting the g uge.
ZERO KEY (0bUTN): This feature allows the user to select
percent of full-scale at which the gauge can be rezeroed
using the Zero/Clear key on the keypad. Options include 5%
full-scale*, 10% full-scale or DISAB (disable of the zero key).
To use ZERO option:
Step 1: Press the Menu key on the keypad.
Step 2: Press the (up arrow key) or (down arrow
key) until the word CON IG appears.
Step 3: Press Enter.
Step 4: Enter user password, if it has been programmed.
Step 5: Press the (up arrow key) or (down arrow
key) until the word 0bUTN (zero key) appears.
Step 6: Press Enter.
Step 7: Press the (up arrow key) or (down arrow
key) to select 5PCT (5% full-scale), dISAb (disable zero
key) or 10PCT (10% full-scale).
Step 8: Press Enter to finalize the selection.
DISAB: or disable: This feature allows the user to dISAb
(or disable) or ENAb (enable) items in the MENU. Some
keypad keys can also be enabled or disabled. Any or all
MENU items can be enabled or disabled.
To use DISAB option:
Step 1: Press the Menu key on the keypad.
Step 2: Press the (up arrow key) or (down arrow
key) until the word dISAb appears.
MENU FUNCTIONS
*Indicates default.

12
MENU FUNCTIONS
Step 3: press ENTER. The current setting (ENAB or dISAB)
will be displayed.
Step 4: Press the (up arrow key) or (down arrow
key) on the keypad to select a setting.
Step 5: Press ENTER To finalize the setting.
GRAPH: This option allows the user to change the BAR
graph on the gauge display to correspond to any desired
pressure within the pressure limits of the gauge. This
option is useful when identifying a select portion of the
full-scale range of the gauge. The default setting for the
GRAPH is zero and full-scale pressure. or compound
gauges, the default setting for zero is set at full-scale vacu-
um. ull-scale pressure is set at the positive pressure as
displayed on the gauge keypad.
or gauges supplied with the 4-20mA output option, the
default is 4mA equals 0% of the bar graph and 20 mA
equals 100% of the bar graph.
Ch nging the b r gr ph to pressure other th n 0 nd
100% of r nge will lso ch nge the 4-20mA output to cor-
respond with the new b r gr ph pressures for 0 nd 100%.
To use GRAPH option:
Step 1: Press the MENU key.
Step 2: Press the (up arrow key) or (down arrow key)
on the keypad until the word until the word GRAPH appears.
Step 3: Press ENTER . The gauge display will indicate the
set full scale pressure range setting on the top line. The
middle line indicates the bar graph at 100% of full-scale.
The bottom line of the display will indicate SET S to set
the full-scale range as displayed by the bar graph and 4-
20mA.
Step 4: Press the (up arrow key) or (down arrow key)
on the keypad to increase or decrease gauge value at
100% of range.
*Indicates default.

Step 5: Press the ENTER key to finalize your choice. The
gauge display will now display SET. After two seconds the
screen will display the pressure value for 0% on the top
line. The middle line indicates the bar graph at 100% of
fullscale. The bottom line will display SET 0.
Step 6: Press the (up arrow key) or (down arrow
key) on the keypad to increase or decrease gauge value at
0% of range.
Step 7: Press the ENTER key to finalize your choice. The
new values for the bar graph and 4/20mA settings have
now been saved.
OFF: This option sets the amount of time before the gauge will
turn itself off. Offerings are Never*, 30MIN,10MIN, 5MIN, 2
MIN.
To use the OFF option:
Step 1: Press the MENU key.
Step 2: Press the (up arrow key) or (down arrow
key) until the word O appears.
Step 3: Press ENTER.
Step 4: Press the (up arrow key) or (down arrow
key) to select the desired O time.
Step 5: Press the Enter key to finalize the O setting.
UPDATE: This option allows for changing the rate at which
pressure is updated on the display screen. This feature is
useful with rapid changes in process pressure that may
cause flutter of the display. Options are 100ms*, 1 sec,
500ms and 200ms, updates per second or 100ms*.
Since customer processes vary, update rates should be
selected based on the application.
To use the UPDATE option:
Step 1: Press the MENU key.
13
MENU FUNCTIONS
*Indicates default.

14
Step 2: Press the (up arrow key) or (down arrow
key) until the word UPDATE appears.
Step 3: Press Enter.
Step 4: Press the (up arrow key) or (down arrow
key) to select an update rate.
Step 5: Press ENTER to finalize the selection.
DAMP or dampening: with five different options, this mode
allows for taking process pressure readings and averaging
them. This option is particularly useful to stabilize minor
process fluctuations. The options are NONE*, AVG 8, AVG
6, AVG 4, AVG 2.
Step 1: Press the MENU key until the word dAMP appears.
Step 2: Press Enter
Step 3: Press the (up arrow key) or (down arrow
key) to select a dampening option.
Step 4: Press the ENTER key to finalize your Damp option.
(This Menu item is only seen on units with the switch option)
SWSET: Allows for setting switch setpoints. The gauge is
offered with one or two SPDT switches. If (one) SPDT
switch is ordered the menu option is SW1. If (two) SPDT
switches are ordered, the MENU options are SW1 and SW2.
Step 1: Press the MENU key.
Step 2: Press the (up arrow key) or (down arrow
key) on the keypad to select the switch to be set. (If two
switches are present.)
Step 3: Press ENTER. The top line of the gauge display will
indicate pressure at 60% of the fullscale gauge range* or
the most recent switch setpoint. The middle line of the dis-
play will indicate a bar graph that displays the pressure
position within the pressure range. The bottom line will
display SETPT (blinking).
*Indicates default.
MENU FUNCTIONS

15
Note: Setpoints re limited to the full-sc le pressure r nge
of the g uge.
Step 4: Press the (up arrow key) or (down arrow key)
on the keypad to increase or decrease switch set-point
Step 5: Press the ENTER key to finalize switch setpoint. The
gauge will display SET. After two seconds, the top line will
indicate RETRP pressure. The bottom line will read SET.
Step 6: Repeat above to set RETRP (retrip value) If the
gauge is supplied with (one) setpoint, the screen will
advance to the measurement mode. If (two) switches are
supplied the display will advance to SW2.
Repe t the forementioned if the g uge is supplied with
two switches.
Notes: The b r gr ph will incre se or decre se s ny
setpoint pressure is djusted. The b r gr ph indic tes
switch setpoint position within the full-sc le pressure
r nge of the g uge.
The switch setpoint unit of pressure measurement corre-
sponds with the current set unit of measure of the gauge.
If gauge unit of measurement is changed after switch(es)
is set, switch setpoint(s) will automatically be updated to
correspond with revised unit of measurement. Switch
deadband is the difference between the SETPT (setpoint)
and the RETRP (retrip) pressure.
MENU FUNCTIONS

16
DIGITAL SANITARY GAUGE SPECIFICATIONS
Type Convention l Tri-cl mp: 2032 (battery), 2132
(1)
(4-20mA), 2232
(1)
(line)
In-line Tri-cl mp: 2036 (battery), 2136 (4-20mA), 2232 (line)
Accur cy: Termin l Point
Full Sc le .25% F.S. Accuracy:
C se Size 3˝
C se M teri l/Finish (3˝) 300 series SS, Electropolished
C se Enclosure R ting Weatherproof, IP65, NEMA 4
Wetted P rts 316 SS
Tri-Cl mp Connection Direct, in-line 1
1
⁄ 2 ˝, 2˝, Ashcroft remote in-line (XRE),
Se l Surf ce Finish 12-20Ra
Connection Loc tion ower
R nges 15 psi thru 1,000 psi including metric, compound & vac
Process Temp. Limits
(2)
14°F / 275°F (-10°C / 135°C) to withstand clean in place
(CIP) & steam in place (SIP)
Ambient Temp.Limits
(3)
14°F / 140°F (-10°C / 60°C)
Temper ture Error ± .22% per 10°F, (12°F) (Span and Zero shift can be eliminated
by rezeroing the gauge at operating temperatures. Temperatures
must be within process temperature limits)
Stor ge Temper ture -4°F / 158°F (-20°C / 70°C)
Overr nge Pressure 2x range of gauge
DISPLAY
Type CD
Displ y Digits 5 Digits
Ch r cter Height .60˝
B cklite Off By Default
B r Gr ph Yes
B ttery Life 1000 Hrs., Battery ife Indicator - standard
Agency Approv ls CE (excludes XRE variation)
Material Traceability Certification to EN 10204: 2004 3.1 standard
KEYPAD FUNCTIONS
On/Off Manually Turns Unit On & Off (auto off options in menu)
Zero/Cle r Zeros Display or Clears Min/Max Values When Displayed
Min/M x Arrow Key Stores Min & Max Values, Arrow Key allows for scrolling
thru Menu items
Menu Allows for changes to default settings (See Below)
B cklite (option l) Arrow Key Manually Turns Backlite On & Off (auto off options in menu),
Arrow Key allows for scrolling thru Menu items
Enter Selects Items In the Menu
MENU MODE
Allows Scrolling Through Menu To Select Available Options
Engineering Units (Units) 10units of measurement are available psi, inh
2
o with 3 temp.
options: 20°C, 60°F, 4°C*, mmHg, fth
2
o, mPa, kPa, kg/cm
2
& bar
Configur tion Mode(Config) Allows for changes to default settings of gauge
B r Gr ph (Gr ph) Allows for adjustment of bargraph & 4-20(optional feature)
Auto Off (Off) Allows for changes to auto off of gauge 5 Options:, 30 Min.,
10 Min., 5 Min., 2 Min., Never
Upd te R te (Upd te) 4 Options: 100mili-sec, 1sec, 500mili-sec,200mili-sec,
D mpening (D mp) 6 Options: None, Average 8, 6, 4, 2 times per 100ms
B cklite Lit (option l) 5 options: NEVER, 10 sec, 30, sec, 1 min, 5 min.
Zero Dis ble Zero “lockout” feature
Field Rec libr tion Zero, Span & Midscale (password protected)
C libr tion Allows for recalibration of zero & span
(includes factory default calibration)
OPTIONS
4-20mA Displ y
Line Powered 12-36 Vdc
Switching (XU1 code) (1) or (XU@ code) (2) SPDT switches, (requires line
power), (max. contact 30Vdc, 1 amp, 125Vac, .5 Amp)
Switches adjustable to 100% of range
Remote Mount Se l (RE code) standard with 10´ shielded cable
Notes (1) 3´ shielded cable standard
(2) Rezero gauge often after exposure to elevated temperatures and use.
(3) The 2030 Series Digital Gauge is not suitable for an autoclave.

17
Comp. mmHg in.Hg In. mm ft. B r/
psi (psi) (press.) (press.) H2OH
2O mB r H2O mP kP ksc
-15/0/15 1500 60 800 60 250 30 6 200 2
-15/0/30 2000 100 1000 100 300 60 10 300 4
-15/0/60 3000 160 160 400 160 50 400 6
30 -15/0/100 200 200 500 200 600 10
60 300 300 600 300 800 16
100 400 400 1000 400 1000 25
160 600 600 1500 600 1600 40
200 800 800 2000 1000 2500 60
300 1000 1000 2500 4000 100
600 1600 4000 6000 160
800 2000 5000 8000 250
1000 3000 400
1500 6000 500
2000 800
3000 1000
5000
8000
10,000
15,000
20,000
DIGITAL SANITARY GAUGE RANGES:
DISPLAY MESSAGES:
Display/Problem Description Action
No Battery Icon
Display (applicable to
gauges with batteries
Gauge has <10%
battery life left Replace batteries
O SET (blinking)
Zero/Clear button
pushed when pressure
displayed is beyond set
rezero pressure limit
Only rezero the gauge within
limits of setting in Menu
Menu button disabled Gauge is in
Max/Min mode
Push Max/Min button until
unit of measure is displayed
on keypad
Unit of measure
selected in Menu
displays N/A
Resolution at full scale
pressure range
exceeds 50,000 counts
Choose another unit of
measure
I can’t access items in
the main Menu
Items that cannot be
accessed have been
disabled
Enable item(s) in the Menu.
See Menu/CON IG and
diSAb or DISABLE
I can’t set the
password I want
00000 is not a valid
password Select a different password

WIRING DIAGRAM
1000
750
500
250
0
0362010 30
Load Limitations 4-20mA Output Only
RL-Loop Resistance in Ohms
Loop Supply Voltage (Vdc)
OPERATING
REGION
Vdc MIN = 12V + [0.022A* X (R ) ]
RL= RS+ RW
RL= Loop Resistance (ohms)
RS= Sense Resistance (ohms)
Rw= Wiring Resistance (ohms)
*Includes a 10% safety factor.
+
+
–
POWER
SUPPLY
(+)
(–)
METER
GAUGE
–
V+
V–
PIN A
PIN B
4-20mA
18
(seperate power supply required when switch(s) is/are ordered)

19

20
Ashcroft Inc.
250 East Main Street
Stratford, CT 06614-5145
Tel: [phone]
ax: 203-385-0602
e-mail: [e-mail]
www. shcroft.com
© Ashcroft Inc. 7/08 I&M008-10162 10/08
GAUGE INSTALLATION:
The Ashcroft digital sanitary gauge comes standard with a Tri-Clamp connection.
A gasket compatible with the process media is not provided.
!
Pipe to which gauge is attached
must be properly grounded.
4.00
1.860
.17
CLAMPING RING (1278G ONLY)
WASHER
SPACER POST
(3 REQ’D)
“B” (3 REQ’D)
PANEL
MOUNTING
RING
6˝ RING 
DIA.
5.65˝ 
PANEL
OPENING
5/16˝ MAX PANEL 
THICKNESS
Battery Installation and Replacement:
The Types 2032 & 2036 comes standard with batteries installed. These gauges use
qty (2) AA alkaline batteries. Use alkaline, non-rechargeable batteries only.
Batteries have a life of approximately 1500 hours. Battery life is dependent on gauge
usage, backlite settings and power off settings. When the lower bar of the battery icon of
the gauge display flashes, the gauge has approximately 7 hours of life remaining.
HO E
CUTOUT
DIAMETER
3.406
(3
13
⁄ 32 ±
1
⁄ 32 )
To replace the batteries:
1) Remove the single screw on the back of the gauge case.
2) Hold the keypad in the palm of hand.
3) Carefully remove the two batteries from the holder and replace batteries.
Use only AA alkaline non-rechargeable batteries.
To provide m ximum b ttery life, repl ce both b tteries.
Notes:
1) Do not mix ages or brands of batteries.
2) Do not replace batteries in hazardous areas.
3˝ CASE 41⁄2˝ CASE
PANEL MOUNTING DIMENSIONS
