Ashland CS18-HD User manual

Earthmovers
ver. 1011
1115 Rail Drive
P.O. Box 717
Ashland, WI U.S.A.
Toll Free: [phone]
Business: [phone]
Fax: [phone]
wwwww.ashlandind.com
www.scraperdrawbar.com

ASHLAND SCRAPERS
How to Order Parts
IMPORTANT
Parts must be ordered through your local authorized ASHLAND dealer.
Be sure to state MODEL and SERIAL NUMBER of your machine, PART NUMBER,
DESCRIPTION and QUANTITY needed.
Unless this is done, we cannot provide prompt service or assure shipment of the correct
parts.
Ashland Industries weldable replacement parts are available to rebuild, modify or update
your scraper to current factory specifications.
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #1

ASHLAND SCRAPERS
Illustration: Travel Lock CS18HD
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #2

ASHLAND SCRAPERS
Instruction: Operation and Maintenance
This scraper is a durable piece of equipment and with proper care will yield many years of trouble free
operation. The life of your scraper can be severely shortened by poor maintenance. Follow consistent
maintenance practices and use good quality grease and hydraulic oil (compatible with the power unit’s
hydraulic system) to insure the longest, most productive use from your equipment.
Before startin
g
the
j
ob, make sure Di
gg
ers Hot Line has been contacted and all under
g
round utilities have
been properly located (electric, phone and pipelines). Have a clear understanding of all local, OSHA and
MSHA rules that apply to the job. Beware of your environment and keep others a safe distance from the
machine while familiarizing yourself with the machine’s controls. The scraper requires a power source
with TWO 4 way (double acting) hydraulic control valves.
The scraper should be greased at all points where grease fittings are provided. Connect hydraulic hoses
to the tractor and retract lift cylinders to REMOVE TRANSPORT LOCK PINS, then extend and retract
all cylinders several times to force out any air from the hydraulic cylinders and lines. Check the oil levels
in the tractor hydraulic system and add to maintain the proper level. Care should be used when adding
oil or when disconnecting any oil line to keep all dirt out of the oil as dirt is a major factor in the failure of
hydraulic components. Each time the scraper is hooked to a power unit, the sequencing valve needs to
be checked for proper timing. This will insure optimum performance from the scraper.
When the scraper is placed into operation, the operator will have to “feel out” the amount of depth of
cut to obtain maximum loading efficiency. This is usually accomplished by taking a lesser and more
uniform cut; however, some soil conditions such as loose sand may require a “pumping action” obtained
by taking successive deep cuts and lifting out of cut as the tractor begins to lose power or traction. The
operation of the scraper will varydepending upon soil type, moisture content, power-unit and jobsite.
Results will vary.
1. After 10 hours work, all bolts should be checked and tightened if necessary.
2. Every 10 hours all grease fittings should be lubricated.
3. After 50 hours work, all bolts should be rechecked and tightened if necessary.
Check wheel bearings and adjust if necessary.
4. After 300 hours work, clean and repack wheel bearings and replace, if necessary,
cutting edges, worn pins, etc.
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #3

ASHLAND SCRAPERS
Instruction: Operation and Maintenance
SCRAPER DAMAGE CAN OCCUR IF :
1. The scraper is running over the haul road with the bowl fully raised.
2. A power unit that is above the horsepower rating is pulling the scraper.
3. The scraper is being used to level haul roads with the apron closed.
4. The scraper is being top loaded with the bowl is a raised position.
5. The scraper is being used to load rock.
These types of damage are notcovered by warranty. Warranty only covers defects in material or
workmanship and not abuse because of improper use.
KNOW THE JOB:
1. Know the weight of the material to be moved.
2. Lay the job out to take advantage of grades when loading, if possible.
3. Keep hauls as short as possible.
4. Keep haul roads smooth.
5. If more than one unitis on the job, make sure the haulroads are one wayand that the
operators understand the direction.
6. Brief the operators as to what the job consists of so there is not misunderstanding.
7. Know the moisture content in the material to be moved.
8. Will water be needed for proper compaction?
9. Will drainage be a problem?
10. How many units will be needed to efficiently complete the job?
TRANSPORT SCRAPER SAFELY:
1. Always empty scraper.
2. Clean all material from exterior of scraper.
3. Make sure all road rules are followed .
4. Use proper lighting and flagging.
5. Lower scraper bowls to provide just enough clearance over obstacles.
6. Transport at a safe speed to avoid roll over .
7. Reduce speed on curves and when going down hill.
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #4

ASHLAND SCRAPERS
Instruction: Operation and Maintenance
APRON OPENING GUIDELINES:
You will need to determine the ideal opening for your soil condition. It is important to have the apron
opened prior to loading To receive the highest production possible, it is important to know the general
characteristics of the material that you will be loading. In heavier soils like clay or gumbo, the soil will
slab up and and remain together after being cut by the blades. In li
g
hter soils, like sand or dry loose top
soil, the matieral will pile up or push after being cut by the blade. Use the suggestions listed below:
Topsoil with heavy vegetation (12” to 24” opening):
When cutting undisturbed soils, you will need to open the apron high enough to allow debris to easily
enter the scraper bowl. If the apron is opened too high, the rolling up sod will fall out past the apron
and hinder the incoming material. If the apron is not adjusted quick enough, the material will bunch or
push ahead of the machine. If this happens, you should close the apron and pull out the cut quickly. If
you wait too long, you may develop too large a pile to clear the scraper while rising out of the cut. This
can cause the power unit to lose traction and possibly cause you to get stuck.
Clay or loamy material (6” to 12” opening):
To cut clay or loam soils, lower the apron to approximately 6” to 12” between the blades and the bottom
of the apron. When you first lower the bowl, you’ll see the material being cut by the blades and
enterin
g
the bowl. As you continue to move forward, small clumps will fall past the apron and develop a
small pile ahead of the apron. By limiting this apron opening, the small pile will “blade off” any loose
material ahead of the machine. Adjustments should be made if large objects such as rocks or deep
gouges are within the cut.
Sand or loose top soil (15” to 30” opening):
Loading sand or loose top soil is the most difficult type of soil to load. In combination with the larger
apron opening, you’ll want to operate at a faster ground speed. By traveling faster and lowering the
blade deeper than normal, it forces the material into the scraper bowl.
We encourage you to experiment with different apron openings to determine the best condition for your
jobsite.
The Apron is designed to capture material inside of the scraper bowl and should not be used as a large
blade. Obstructions like large rocks or dense piles may cause the apron to bend inward after prolonged
exposure to these conditions.
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #5

ASHLAND SCRAPERS
Safety Guidelines
SAFETY SIGNAL WORDS
Note the use ofthe signal words DANGER,WARNING and CAUTION with the safety messages. The
appropriate signal word for each has been selected using the following guidelines:
DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death
or serious injury. This signal word is to be limited to the most extreme situations typically for
machine components which, for functional purposes, cannot be quarded.
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in
death or serious injury, and includes hazards thatare exposed when guards are removed. It
may also be used to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor
or moderate injury. It may also be used to alert against unsafe practices.
GENERAL SAFETY GUIDELINES
Safety of the operator is one of the main concerns in designing and developing a new piece of
equipment. Designers and manufacturers build in as many safety features as possible. However, every
year many accidents occur which could have been avoided by a few seconds of thought and a more
careful approach to handling equipment. You, the operator, can avoid many accidents by observing the
following precautions in this section. To avoid personal injury, study the following precautions and insist
those working with you, or for you, follow them.
Replace any CAUTION, WARNING, DANGER or instruction safety decal that is not readable or is missing.
Location of such decals is indicated in this booklet.
Do not attempt to operate this equipment under the influence of drugs or alcohol.
Review the safety instructions with all users annually.
This equipment is dangerous to children and persons unfamiliar with its operation. The operator should
be a responsible adult familiar with farm machinery and trained in this equipment’s operations. Do not
allow persons to operate or assemble this unit until they have read this manual and have
developed a thorough understanding of the safety precautions and of how it works.
To prevent injury or death, use a tractor equipped with a Roll Over Protective System (ROPS). Do not
paint over, remove or deface any safety signs or warning decals on your equipment. Observe all safety
signs and practice the instructions on them.
Never exceed the limits of a piece of machinery. Ifits abilityto do a
j
ob, or to do so safely, is in question
- DON’T TRY IT.
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #6

ASHLAND SCRAPERS

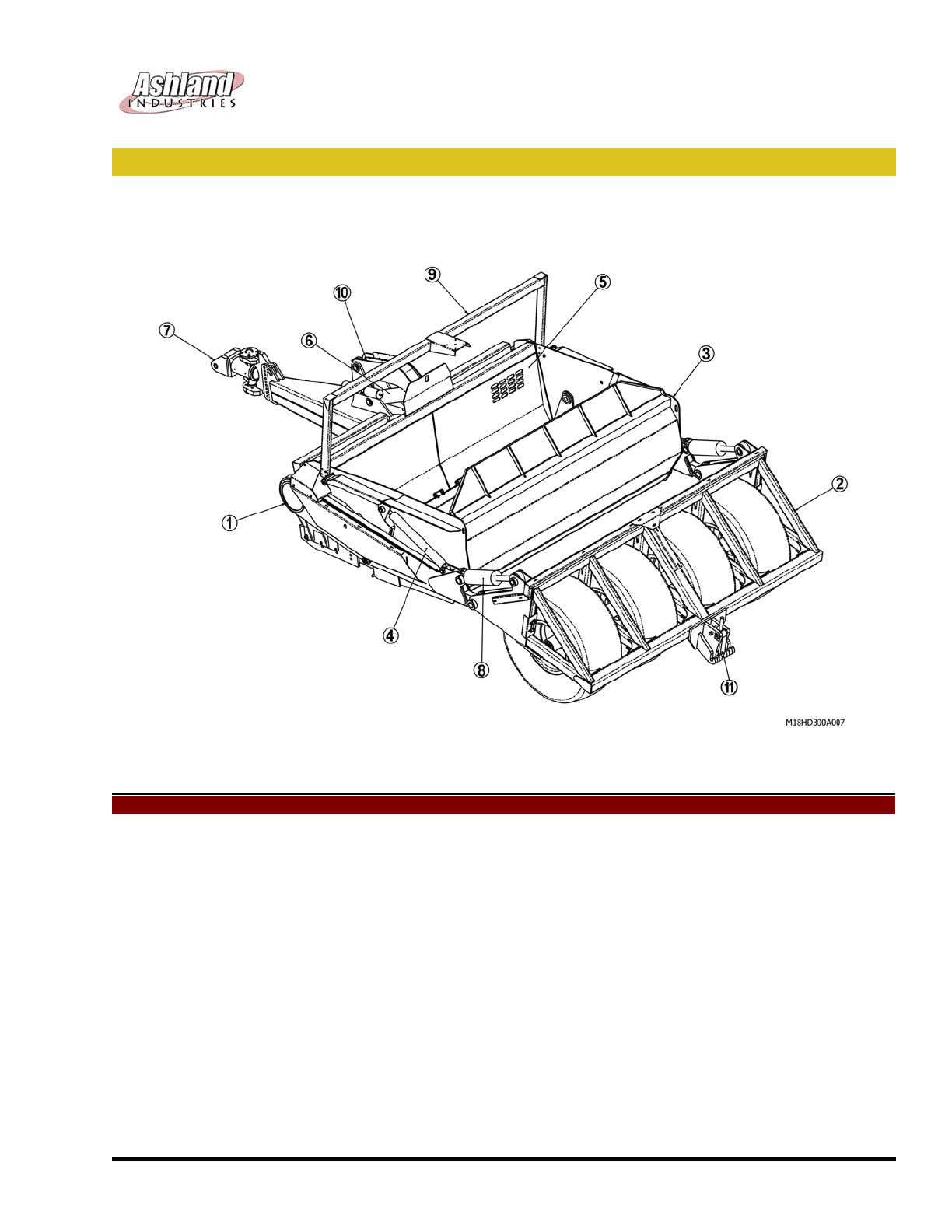

Machine Assembly (CS18HD)
KEY PART DESCRIPTION
1700001 Front Section
2700002 Rear Section
3700004 Bowl
4A125160 Bowl Dump Cylinder
5700003 Apron
6A125158 Apron Lift Cylinder
7A125224 Super Swivel Hitch
8A125159 Main Lift Cylinder
9700005 Laser Mount (Optional)
10 600031 Apron Lift Arm
11 600009 Locking Lug
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #7

PHONE : [phone] Fax: [phone]
Front Frame Assembly (CS18HD)
KEY PART DESCRIPTION
1600033 Frame-Front Section
2600003 Arm Guard LH
3600008 Front Pipe Guard RH
4600007 Front Pipe Guard LH
5500164 Bank Edge
6600004 Arm Guard RH
7A125009 Accumulator Bracket
8A125051 Accumulator
9AFN-00012 1" NC Heavy Hex Nut
10 PB1P-NC-100-0375 1" Plow Bolt x 3 3/4" Lg
11 AFW-00001 1" Flat Washer
12 600002 Top Shield Pin
13 600005 Top Pivot Shield LH
14 AFW-00002 3/4" NC Lock Washer
15 7680 3/4" NC Hex Jam Nut
16 A125211 Valve
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #8

ASHLAND SCRAPERS
Front Frame Assembly (CS18HD)
KEY PART DESCRIPTION
17 A125180 Manual Canister
18 AFB-00094 3/8"NC Flanged Bolt
19 500395 Guard Corner LH
20 500394 Guard Corner RH
21 600006 Top Pivot Shield RH
22 500332 Pin-Apron Lift Cylinder
23 500335 Pin-Bowl Dump Cylinder-Lower
24 500336 Pin-Rear Section Cylinder-Lower
26 A123320-08 Bushing
27 600031 Apron Lift Arm
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #9

ASHLAND SCRAPERS
Apron Assembly (CS18HD)
KEY PART DESCRIPTION
1600039 Upper Apron
2600040 Lower Apron
3500333 Pin-Apron Lift Arm
4600000 Assembly-Apron Pivot Pit
5500330 Washer-Apron Pin Spacer
6AFN-00033 Jam Nut
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #10

ASHLAND SCRAPERS

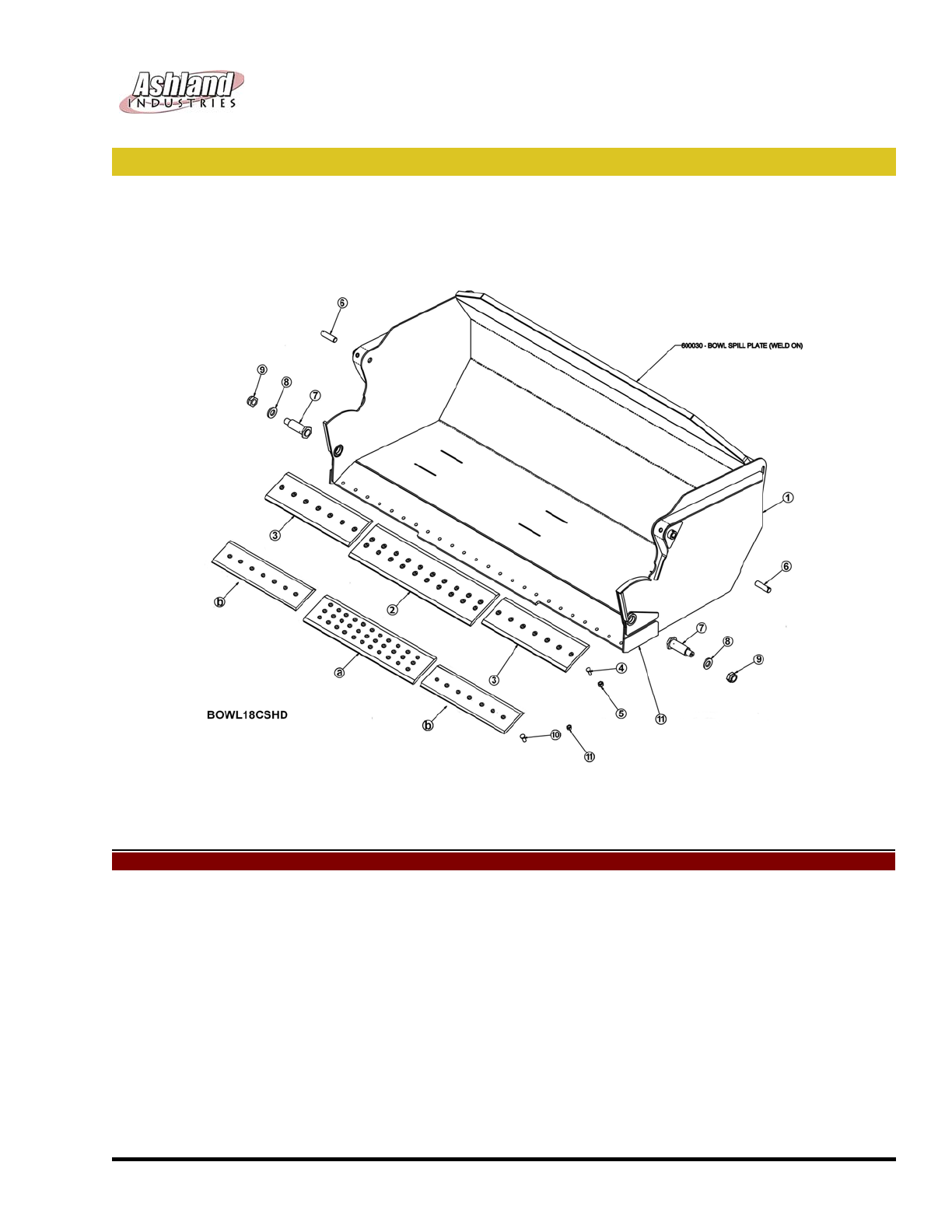

Bowl and Frame Assembly (CS18HD)
KEY PART DESCRIPTION
1600026 Bowl and Frame CS18HD
2500418 Center Blade: 10 Hole
3500419 Corner Blade
4PB1P-NC-100-0275 1" Plow Bolt x 2 3/4" L
5AFN-00012 1" NC Hex Nut
aA125198 Center Blade: Old Style 11 Hole
bA125199 Corner Blade: Old Style
cPB7P-NC-750-0275 Plow Bolt: 3/4 NC X 2 3/4" gr.8
dAFN-00006 Nut: 3/4" NC Gr. 8
6500334 Pin-Upper Bowl Dump
7600001 Assembly-Bowl Pivot Pin
8500330 Washer-Apron Pin Spacer
9AFN-00033 2.00NF-Jam Nut
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #11

ASHLAND SCRAPERS

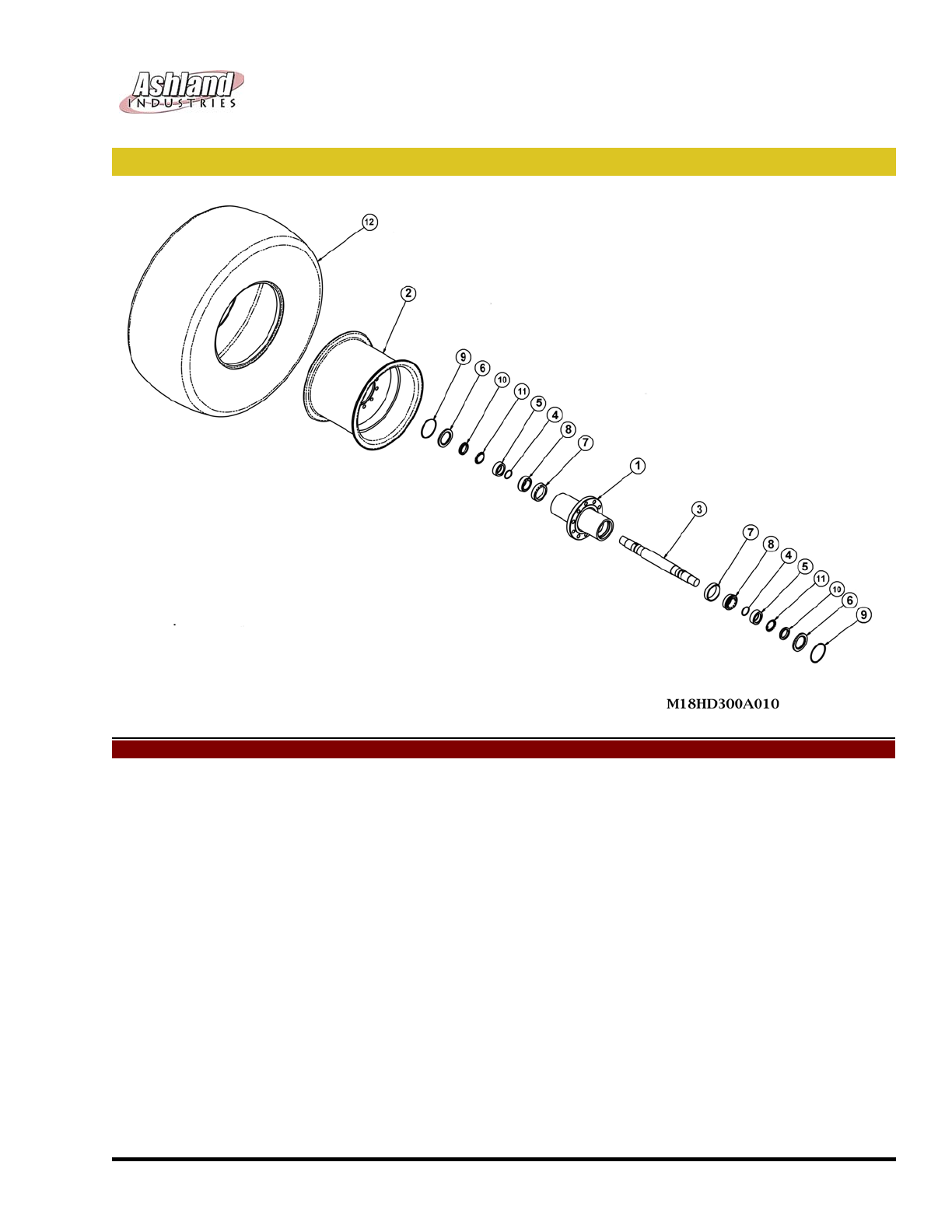

Wheel Assembly (CS18HD)
KEY PART DESCRIPTION
1500278 Hub
2500279 Rim - 25 X 19.5
3500138 Axle
4A130H13 O-Ring 2.50 ID X 2.88 OD
5500140 Spacer Bearing
6A125214 Seal
7A14014 Bearing Cup
8A14015 Bearing Cone
9A125204 Retaining Ring
10 A125202 Locknut
11 A125203 Lockwasher
12 ATI-00024 Tire: 23.5 X 25
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #12

ASHLAND SCRAPERS
Rear Frame Assembly (CS18HD)
KEY PART DESCRIPTION
1600025 Frame Assembly-Rear Section
2600022 Wheel Assembly
3600018 Quick Hitch
4600021 Guard-Rear Section Top
5500408 Guard-Side LH
6500405 Guard-Side RH
7500409 Guard-Top Center
8600020 Guard-Rear Center
9A125227 Grommet
10 500415 Transport Lock-Rear Section
11 A125226 Quick Release Pin
12 AFB-00094 3/8 NC Flange Head Bolt
13 AFB-00017 1" NF x 6.5 Lg. Hex Bolt
14 AFN-00001 1" NF Locknut
15 500205 Axle Clamp Block
16 600019 Assembly-Locking Lug
17 A123321-98 Pin-Quick Hitch
18 AFP-00001 Cotter Pin
19 A125006 Safety Snap Pin
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #13

ASHLAND SCRAPERS
Hitch Assembly (CS18HD)
KEY PART DESCRIPTION
1Quick Hitch Assembly
2500282 Inner Ears
3500283 Outer Ears
4600019 Assembly-Locking Lub
5A123321-98 Pin-Quick Hitch
6123321-55 Tie Strap
7500278 Tube-Hitch Support
8500279 Tube Cap-Hitch Support
9500422 Gusset-Rear Hitch
9500422 Gusset-Rear Hitch
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #14

PHONE : [phone] Fax: [phone]
Hitch Assembly - Swivel (#A125224)
KEY PART DESCRIPTION
1A125224 Swivel Hitch: 360 deg. cast
1a A125224-01 Yoke: A-Frame Swivel
2A125224-03 Bracket: 10 Hole
3A125224-04 Pin: Main Vertical
4A125224-05 Spacer Tube
5A125224-07 Bushing
6A125224-08 Seal: O-ring
7A125224-09 Seal: O-ring
8A125224-10 O-ring
9A125224-13 Spacer: 6"
10 A125224-14 Washer: 2 1/2"
11 A125224-15 Nut: Slotted 2 1/2" NC
12 A125224-16 Sleeve: 2" Rubber
13 A125224-17 Cap: For Vertical Pin
14 A125224-18 Pin: Cotter 3/8 X 5"
15 14505 Grease Fitting Straight
16 A125057-02A Bushing
17 AHF-00027 Zerk 45 deg.
18 A123299-08 Pin: Four Ear Drawbar to Hitch 1 1/2" x 15 5/8"L
19 A123299-07 Pin: Two Ear Drawbar to Hitch 1 12" X 12 5/8"L
20 AFN-00014 Nut: 1 1/2" Slotted
21 AFP-00001 1/4" X 3" Cotter Pin
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #15

ASHLAND SCRAPERS
Hitch Assembly - Swivel (#A125224)
KEY PART DESCRIPTION
22 A123299-08 4 Ear Drawpar Hitch Pin
23 AFN-00014 Slotted castle Nut
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #16

ASHLAND SCRAPERS
Parts - Cylinder - Apron (#A125395) 6" X 16"
KEY PART DESCRIPTION SN CS18HD
A125395 APRON CYLINDER 22623-XXXXX
1A125158-10 Barrel Weldment
2A125395-20 Barrel Weldment 22623-XXXXX
3A125159-30 Barrel Weldment
4A125395-31 Barrel Weldment 22623-XXXXX
5A125159-33 Barrel Weldment
6A125159-34 Barrel Weldment
7A125159-35 Barrel Weldment
8A125159-36 Barrel Weldment 22623-XXXXX
9A125395-40 Barrel Weldment 22623-XXXXX
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #17

ASHLAND SCRAPERS
Lift Cylinder (#A125159) 6" X 12"
KEY PART DESCRIPTION
A125159 LIFT CYLINDER
1125159-10 Barrel Weldment
2125159-20 Shaft Weldment
3125159-30 Piston, 6.00"dia.
4125159-31 Head, 6.00" dia.
5125159-33 Grease Fitting, 1/8 NPT
6125159-34 Nut, 1 3/4"" NF Toplock
8125159-36 Snap Ring
9125159-40 Seal Kit
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #18

ASHLAND SCRAPERS
Dump Cylinder ( #A125160) 3 1/2 X 32"
KEY PART DESCRIPTION
1A125160 DUMP CYLINDER
1A125160-10 Barrel Weldment
2A125160-20 Shaft Weldment
3A125160-30 Piston, 3.50" Dia.
4A125160-31 Head, 3.50" Dia.
5A125160-33 Grease Fitting, 1/8-NPT
6A125160-34 Nut, 1 1/4"
7A125160-35 Uniball, 1 3/4" ID
8A125160-36 Snap Ring
9A125160-40 Seal Kit
PHONE : [phone] Fax: [phone]
P.O. Box 717
1115 Rail Dr
A
shland , WI 54806
Page #19
