Ashland 1410E User manual

1
Parts Manual
1410E
WG-1410-003 & -004 5-19
4-Tire & 2-Tire
PH: [phone]
37 Winton St. West
Dalby QLD 4405
[phone]
www.domdistribution.com.au
www.domdistribution.com.au

2
Table of Contents
Introduction
3
Scraper Specifications
4
Assembly
5
Ashland Hitch
6
Bowl
7
Pushoff
9
Apron
11
Optional
–Laser Mast
12
Rear Section
13
Wheel Assembly
15
Apron Cylinder
17
Lift Cylinder
19
Pushoff Cylinder
21
Transport Locks & Hose Holder
23
Hydraulic Hose Clamps
24
Manifold
25
Decals
26
Operation & Maintenance
27
Safety Guidelines
30
Tire Inflation & Torque Chart
31
Tire Service
32
Hub Service
33
Troubleshooting
34
Warranty Statement
35
PH: [phone] www.domdistribution.com.au

3
Introduction
Thank you for choosing an Ashland scraper for your earthmoving needs.
Years of research, testing, and successful application have been spent to
ensure quality and maximum performance for our customers.
Quality Policy
It is our mission to exceed our customers’ expectations in quality, delivery, and cost
through continuous improvement and customer interaction.
Please read and understand this manual before attempting to attach or operate this
scraper. This manual should always remain with the machine. Be sure and fill out and
send in the owner’s registration form at the beginning of this manual, or you may fill
out the form on-line by going to ashlandind.com and click on “Owner Registration” in
the Parts section drop-down. If you have questions, please feel free to call or email
us. You can visit us on-line at www.ashlandind.com.
Ashland Industries hours of operation are 8:00 a.m. to 5:00 p.m. CST. We can be
reached toll free at: 877-634-4622.
Scraper ID Number
You can find the serial number plate for most machines on the right side of the
scraper in the top corner of the bowl. CS models will have plates on the front horse-
head or front section. The letter and numbers stamped identify the serial number,
model number, and capacity of the scraper. Please record this serial number for use
in ordering parts, warranty issues, and to track your equipment if it is ever stolen.
Important
Parts must be ordered through your local authorized ASHLAND dealer. Be sure to
state MODEL and SERIAL NUMBER of your machine. Ashland Industries Weldable
replacement parts are also available to rebuild, modify, or update your scraper to
current factory specifications.
PH: [phone] www.domdistribution.com.au

4
Scraper Specifications
Capacity, Struck
9 Cubic Yards
Capacity, Heaped
14 Cubic Yards
Overall Dimensions:
Length
Width
Height
298 Inches
134 Inches
74-1/4 Inches
Apron Clearance
49 Inches
Weight: Empty
2
-Tire
4
-Tire
14,000 Pounds
15,300 Pounds
Cutting Width
120 Inches
Depth of Cut
6 Inches
Depth of Spread
0 –17 Inches
Blade: 5 Piece
Center
Corner
Router
7/8 x 13 x 50-1/8 Inches
3/4 x 10 x 35-13/16 Inches
1 x 10 x 30 Inches
Cylinders:
Apron
Lift
Pushoff
Two (4 x 13 Inches)
Two (5 x 16 Inches)
One (4-1/2 x 40 Inches)
Horsepower Requirements:
Single (Tractor)
225 -500
PH: [phone] www.domdistribution.com.au

5
Item
Part Number
Description
1
Multiple
Bowl
2
702021
Pushoff
3
703017
Apron
4
704023
Front Section
5
706011
Rear Section: 2
-Tire
6
706009
Rear Section: 4
-Tire
Assembly
PH: [phone] www.domdistribution.com.au

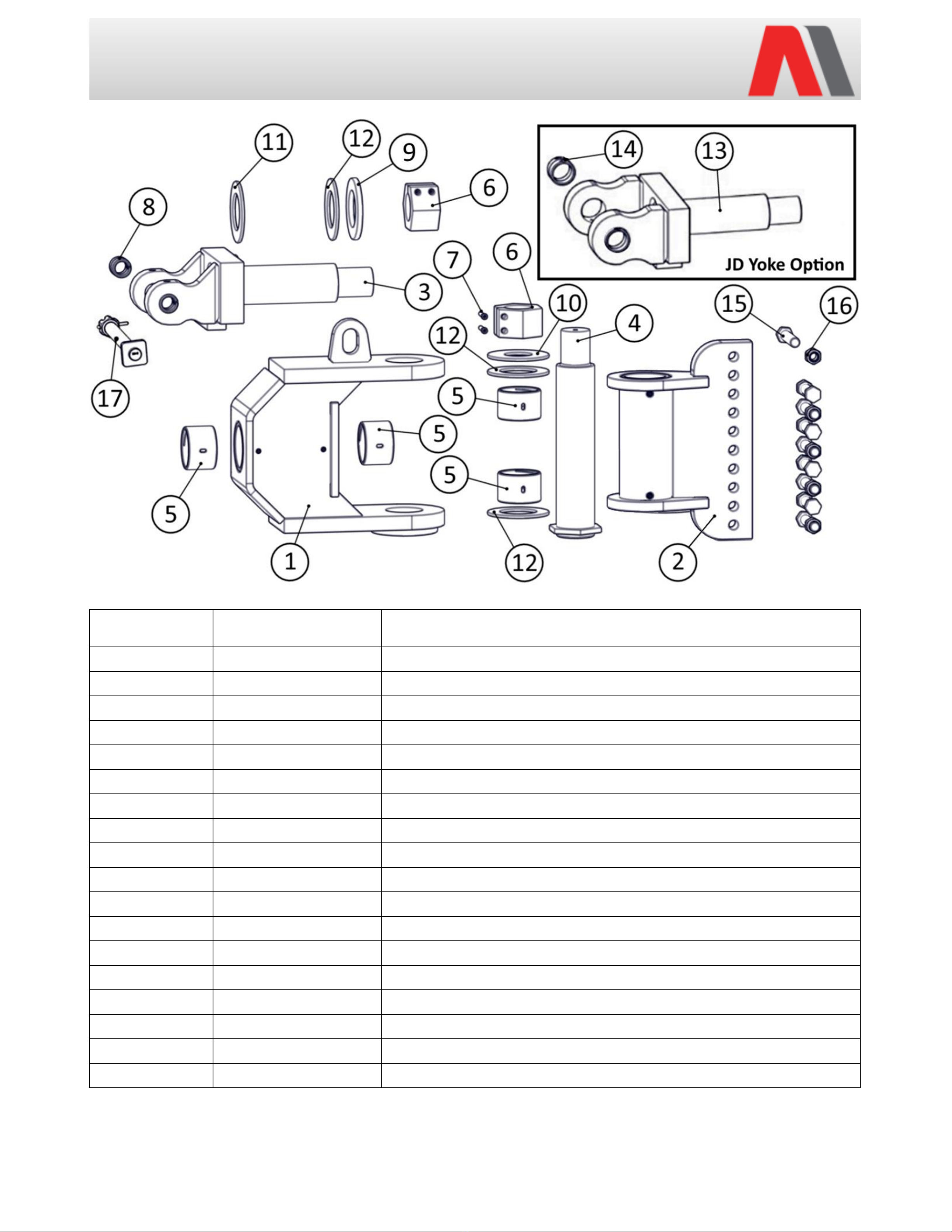

6
Item
Part Number
Description
Ashland Hitch
601135
Hitch
Ass’y.: Includes Items 1 –12 only
1
601139
Hitch: Housing
2
601138
Hitch: Vertical Bracket
3
601090
Yoke: Ashland Swivel
4
600925
Pin: Vertical, 4"
5
400312
Bushing: 4" ID x 3" Long
6
601026
Clamp: 3"
-8 Nut w/ Cap Screws
7
AFB
-00184
Cap Screw: 3/8"
-16 x 2"
8
A123343
Bushing: Spring 1
-1/2" x 2" w/ Grease Hole
9
501937
Ring: Steel, 4" ID x 8” OD
10
503468
Ring: Steel, 3" ID
11
400318
Washer: UHMW, 4" x 6
-3/8"
12
400384
Washer: Nylon, 4" x 8"
13
601121
Yoke: JD Swivel
14
400216
Bushing: Spring 2
-3/8" x 2-7/8" w/ Grease Hole
15
AFB
-00021
HHCS: 1"
-8 x 5-1/2“ (8 Bolts Required)
16
AFN
-00037
Nut: 1"
-8 Top Lock
17
CNH 84268964
Pin
Ass'y.: 1-1/2" Diameter w/ Nut & Cotter Pin
Ashland Hitch - 601135
PH: [phone] www.domdistribution.com.au

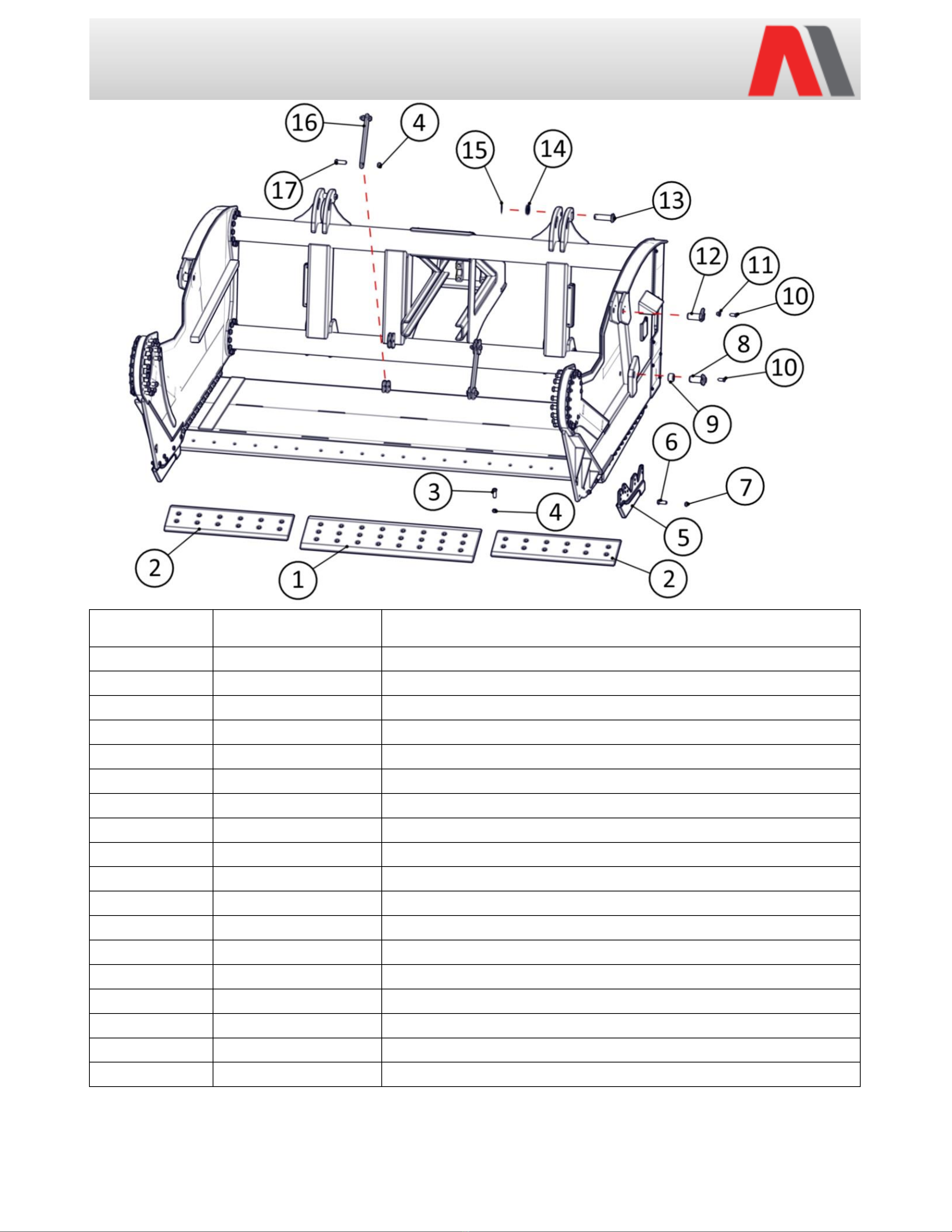

7
Item
Part Number
Description
1
400306
Blade: Center 13" x 50
-1/8" Straight (8 Bolts Required)
2
502662
Blade: Corner 10" x 35
-13/16" Straight (6 Bolts Required)
Optional
400388
Blade: Corner 13" x 35
-13/16" Finishing (6 Bolts Required)
3
PB7P
-NC-075-
0225
Bolt: Flat Head Plow 3/4"
-10 x 2-1/4"
4
AFN
-00006
Nut: 3/4"
-10
5
400073
Blade: Router Bit (5 Bolts Required)
6
AFB
-00047
HHCS: 5/8"
-11 x 2"
7
AFN
-00050
Nut: 5/8"
-11
8
601071
Pin: 1
-1/2" x 3-5/8” w/ Square Head for Fiber Bushing
9
400302
Bushing: 1
-1/2" x 1-1/4" Fiber
10
AFB
-00015
HHCS: 1/2"
-13 x 1-1/2"
11
A123351
Bushing: Pin Keeper w/ Flange
12
601070
Pin: 1
-1/2” x 3-3/4” w/ Flag Head for Fiber Bushing
13
601126
Pin: 1
-1/4” x 5” for Fiber Bushing
14
AFW
-00016
Washer: 1
-1/2"
15
AFP
-00001
Pin: 1/4" x 3" Cotter
16
503285
Tie Bar: Rear Frame
17
AFB
-00005
HHCS: 3/4"
-10 x 2-1/2"
Bowl
PH: [phone] www.domdistribution.com.au

8
Item
Part Number
Description
1
503669
Guard: Rear Frame
2
AFB
-00128
Bolt: 3/8"
-16 x 1" Serrated Flanged
3
503696
Guard: Bowl Side, LH
4
AFW
-00007
Washer: 3/4" Flat
5
AFN
-00006
Nut: 3/4"
-10
6
503822
Guard: Rear Bowl Side, LH
7
503811
Guard: Rear Frame Tube
8
503709
Guard: Bowl Side, RH
9
503825
Guard: Rear Bowl Side, RH
Bowl Guards
PH: [phone] www.domdistribution.com.au

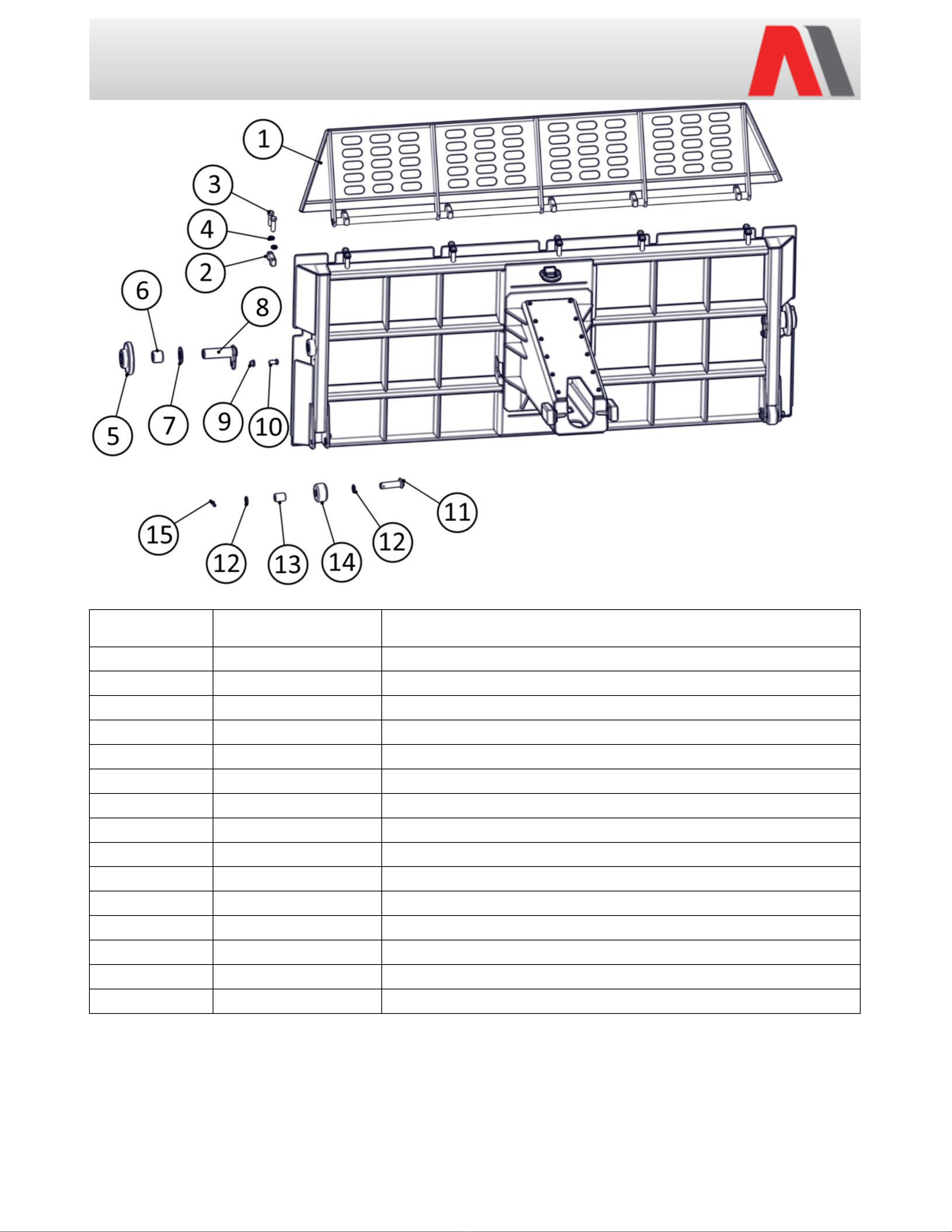

9
Item
Part Number
Description
1
601199
Spill Plate
Ass'y: Tiltable
2
503599
Block: 2” ID Clamp
3
AFB
-00064
HHCS: 3/4"
-10 x 3"
4
AFW
-00002
Washer: 3/4" Split Lock
5
503829
Roller: 7
-1/2” OD Flanged Hold Down
6
400355
Bushing: 2" x 2
-1/8" Fiber
7
501598
Spacer: 2" ID
8
601265
Pin: 2" x 7” w/ Flag Head for Fiber Bushing
9
A123358
Bushing: 11/16” ID Pin Keeper w/ Flange
10
AFB
-00079
HHCS: 5/8"
-11 x 1-1/2"
11
601126
Pin: 1
-1/4" x 5” for Fiber Bushing
12
AFW
-00015
Washer: 1
-1/4" Flat
13
400298
Bushing: 1
-1/4" x 2-3/8" Fiber
14
503135
Roller: 4
-1/4” OD Guide
15
AFP
-00010
Pin: 1/4" x 2" Cotter
Pushoff
PH: [phone] www.domdistribution.com.au

10
Item
Part Number
Description
1
503268
Plate: Top Pushoff Tail
2
AFN
-00078
Nut: 1/2"
-13 Nylon Insert Lock
3
AFW
-00009
Washer: 1/2" Flat
4
503337
Slide: 3
-1/2” x 7” Slide Block
5
AFB
-00144
HHCS: 1/2"
-13 x 2"
6
AFB
-00015
HHCS: 1/2"
-13 x 1-1/2"
7
503354
Pin: 2" x 5” for Fiber Bushing
8
AFW
-00014
Washer: 2"
9
AFP
-00001
Pin: 1/4" x 3" Cotter
Pushoff Tail
PH: [phone] www.domdistribution.com.au

11
Item
Part Number
Description
1
400352
Bushing: 1
-1/2" x 1-5/8" Fiber
2
601070
Pin: 1
-1/2" x 3-3/4” w/ Flag Head for Fiber Bushing
3
A123351
Bushing: 9/16” ID Pin Keeper w/ Flange
4
AFB
-00015
HHCS: 1/2"
-13 x 1-1/2"
Apron
PH: [phone] www.domdistribution.com.au

12
Item
Part Number
Description
1
601200
Mount
Ass'y: Laser Mast
2
AFB
-00143
HHCS: 1/2"
-13 x 1"
3
503333
Guard: Front Section Center
4
AFB
-00128
Bolt: 3/8"
-16 x 1" Serrated Flanged
5
503719
Plate: Bulkhead
Optional –Laser Mast
PH: [phone] www.domdistribution.com.au

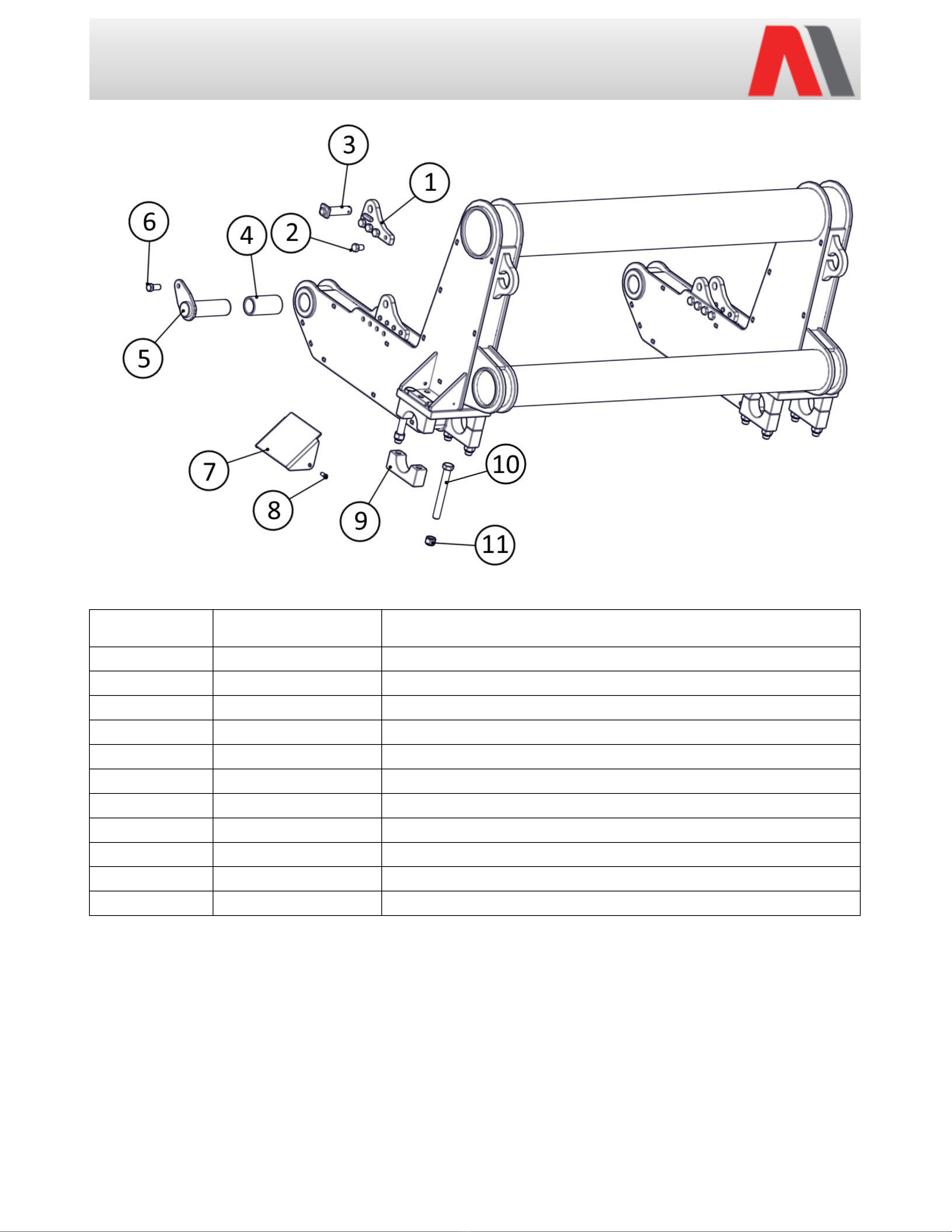

13
Item
Part Number
Description
1
503955
Ear: Bolt
-On
2
AFB
-00042
HHCS: 3/4"
-10 x 1-1/4"
3
601126
Pin: 1
-1/4" x 5” for Fiber Bushing
4
400307
Bushing: 2
-1/2" x 5-3/4" Fiber
5
601128
Pin: 2
-1/2" x 7-3/4” w/ Flag Head for Fiber Bushing
6
AFB
-00048
HHCS: 3/4"
-10 x 1-3/4"
7
503962
Guard: Rear Truss
8
AFB
-00128
Bolt: 3/8"
-16 x 1" Serrated Flanged
9
503678
Block: 2
-1/8” ID Axle Mount
10
AFB
-00135
HHCS: 1"
-14 x 9"
11
AFN
-00004
Nut: 1"
-14 Nylon Insert Lock
Rear Section –2-Tire
PH: [phone] www.domdistribution.com.au

14
Item
Part Number
Description
1
503720
Ear: Bolt
-On
2
AFB
-00042
HHCS: 3/4"
-10 x 1-1/4"
3
601126
Pin: 1
-1/4" x 5” for Fiber Bushing
4
400307
Bushing: 2
-1/2" x 5-3/4" Fiber
5
601128
Pin: 2
-1/2" x 7-3/4” w/ Flag Head for Fiber Bushing
6
AFB
-00048
HHCS: 3/4"
-10 x 1-3/4"
7
AFB
-00135
HHCS: 1"
-14 x 9"
8
AFN
-00004
Nut: 1"
-14 Nylon Insert Lock
9
503678
Block: 2
-1/8” ID Axle Mount
Rear Section –4-Tire
PH: [phone] www.domdistribution.com.au

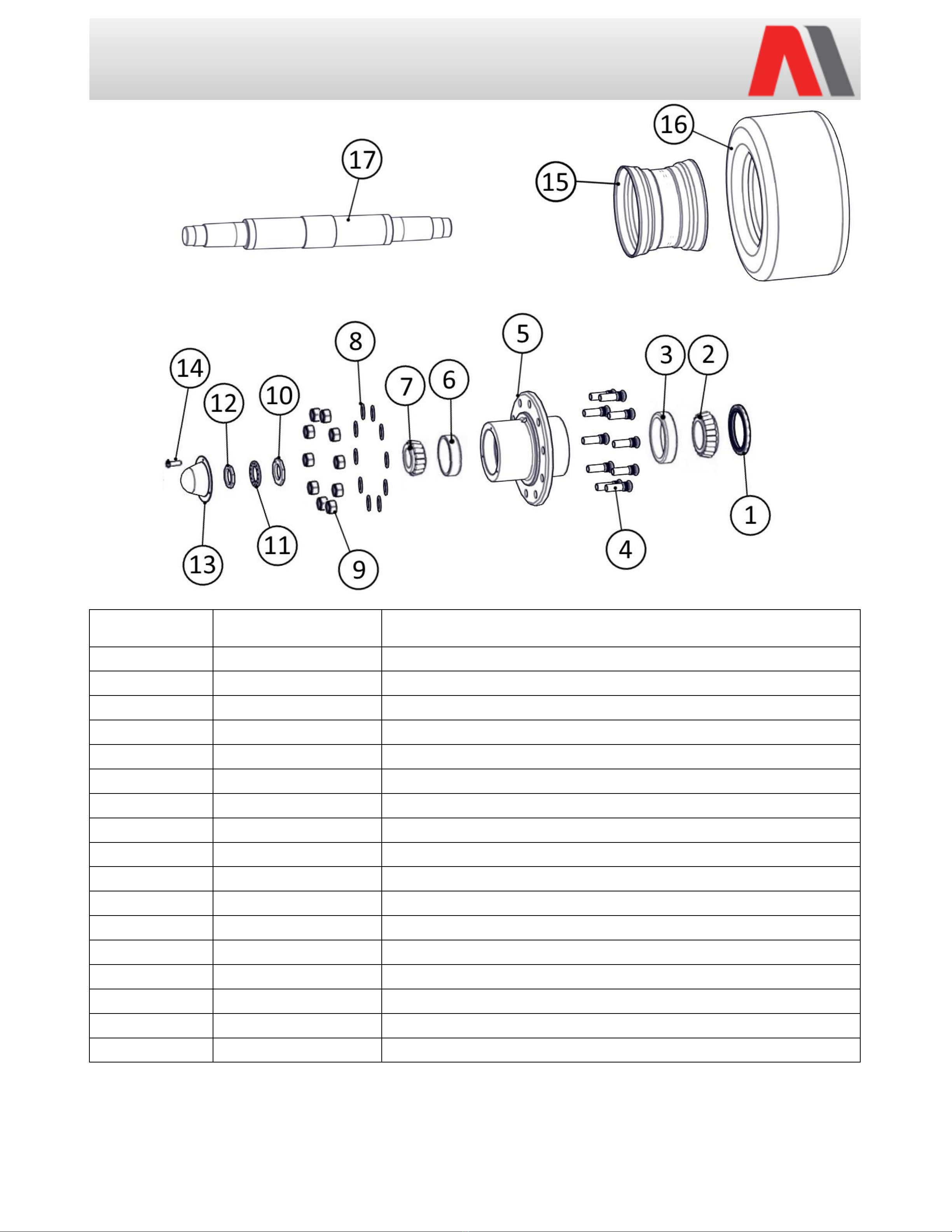

15
Item
Part Number
Description
1
A14011
Seal: Grease
2
A14012
Bearing: Cone Inner
3
A14013
Bearing: Cup Inner
4
400257
Stud: Wheel 3/4"
-16 x 2-3/4"
5
A14010A
Hub: 10
-Hole
6
A14014
Bearing: Cup Outer
7
A14015
Bearing: Cone Outer
8
AFW
-00036
Washer: 3/4" x 2", Thick Hardened Washer
9
A10046
Nut: Lug 3/4"
-16
10
A10172
Nut: Spindle 2
-5/8" (Inner)
11
A10049A
Ring: Spindle Lock
12
A10048
Nut: Spindle 2
-5/8" (Outer)
13
A14004
Cap: Hub
14
AFB
-00080
HHCS: 5/16"
-18 x 1/2"
15
400229
Wheel: 17” x 25” 10
-Hole
16
ATI
-00010
Tire: 20.5
–25
17
503948
Axle: 4
-1/4” Diameter x 24-1/4” Long
Wheel Assembly –2-Tire
PH: [phone] www.domdistribution.com.au

16
Item
Part Number
Description
1
A14011
Seal: Grease
2
A14012
Bearing: Cone Inner
3
A14013
Bearing: Cup Inner
4
400257
Stud: Wheel 3/4"
-16 x 2-3/4"
5
A14010A
Hub: 10
-Hole
6
A14014
Bearing: Cup Outer
7
A14015
Bearing: Cone Outer
8
AFW
-00036
Washer: 3/4" x 2", Thick Hardened Washer
9
A10046
Nut: Lug 3/4"
-16
10
A10172
Nut: Spindle 2
-5/8" (Inner)
11
A10049A
Ring: Spindle Lock
12
A10048
Nut: Spindle 2
-5/8" (Outer)
13
A14004
Cap: Hub
14
AFB
-00080
HHCS: 5/16"
-18 x 1/2"
15
400304
Wheel: 14” x 25” 10
-Hole
16
ATI
-00006
Tire: 17.5
-25
17
503819
Axle: 4
-1/4” Diameter x 39-1/2” Long
Wheel Assembly –4-Tire
PH: [phone] www.domdistribution.com.au

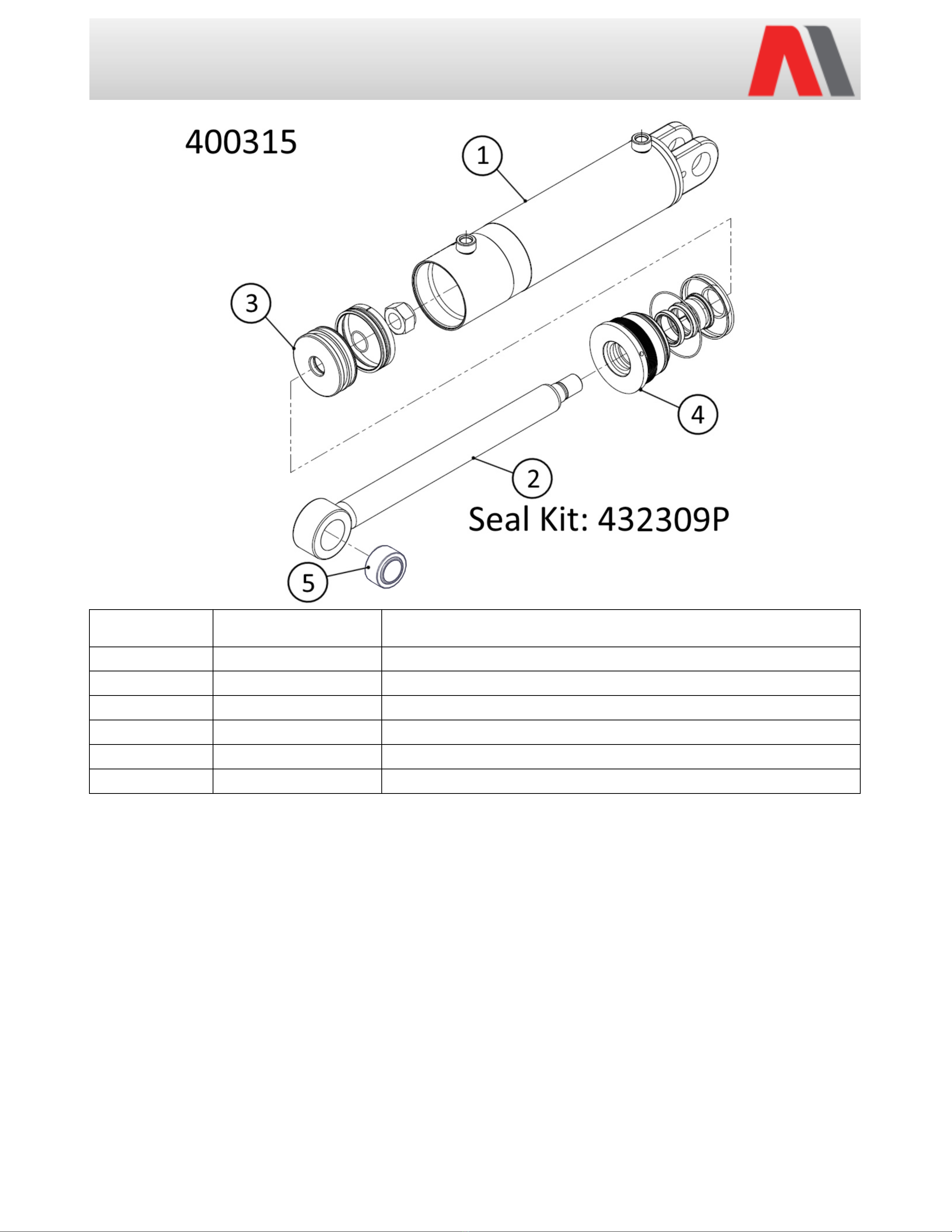

17
Item
Part Number
Description
1
202062P
Barrel: for 4” x 13” Cylinder
2
301702P
Rod: 1
-3/4”
3
400475P
Piston:
Ass’y 4” x 1-1/8”
4
500958P
Head:
Ass’y 4” x 1-3/4”
5
400378
Bushing: 1
-1/2” ID Spherical w/ PTFE Lining
Seal Kit
432309P
Kit: Seal for 400315
Apron Cylinder –400315
PH: [phone] www.domdistribution.com.au

18
Item
Part Number
Description
1
400315
Cylinder: 4" x 13"
2
601070
Pin: 1
-1/2“ x 3-3/4” w/ Flag Head
3
A123351
Bushing: 9/16” ID Pin Keeper w/ Flange
4
AFB
-00015
HHCS: 1/2"
-13 x 1-1/2"
5
601071
Pin: 1
-1/2" x 3-5/8” w/ Square Head for Fiber Bushing
Apron Cylinder Pins
PH: [phone] www.domdistribution.com.au

19
Item
Part Number
Description
1
202061P
Barrel: for 5” x 16” Cylinder
2
301703P
Rod: 2”
3
400782P
Piston:
Ass’y 5” x 1-1/4”
4
500929P
Head:
Ass’y 5” x 2”
5
400299
Bushing: 1
-1/4” x 2” Fiber
6
400300
Bushing: 1
-1/4” x 2-1/4” Fiber
Seal Kit
432234P
Kit: Seal for 400313
Lift Cylinder –400313
PH: [phone] www.domdistribution.com.au

20
Item
Part Number
Description
1
400313
Cylinder: 5" x 16"
2
601126
Pin: 1
-1/4“ x 5” for Fiber Bushing
3
AFW
-00016
Washer: 1
-1/2"
4
AFP
-00010
Pin: 1/4" x 2" Cotter
Lift Cylinder Pins
PH: [phone] www.domdistribution.com.au
