Ashley AGPH-40SS Operation and maintenance manual
* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.
© 2021 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380 Ph. 800-750-2723
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.
Owner’s Instruction and Operation Manual
Save These Instructions In A Safe Place For Future Reference.
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon
monoxide, which is known to the State of California to cause
cancer, birth defects, and/or other reproductive harm. For
more information, go to www.P65warnings.ca.gov
Please read this manual BEFORE
installing and operating this unit.
DANGER:
If you smell gas:
1. Shut off gas to the appliance.
2.
3. If oder continues, keep away from the
appliance and immediately call your gas
WARNING:
FOR OUTDOOR USE ONLY
WARNING:
vapors and liquids in the vicinity of this or any
other appliance. An LP-cylinder not connected
or any other appliance.
WARNING:
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read the installation,
operation and maintenance instructions
equipment.
853872-0205K
Model Number:
AGPH-40SS
Control # 5016039
2
© 2021 United States Stove Company
SAFETY INFORMATION
Read and understand this entire manual before
attempting to assemble, operate or install
the product. This manual contains important
information about the assembly, operation and
maintenance of this patio heater. General safety
information is presented in these rst few pages
and is also located throughout the manual. Keep
this manual for future reference and to educate new
users of this product. This manual should be read in
conjunction with the labeling on the product. Safety
precautions are essential when any mechanical
or propane-fueled equipment is involved. These
precautions are necessary when using, storing and
servicing this item. Using this equipment with the
respect and caution demanded will reduce the
possibilities of personal injury or property damage.
DANGER:
Failure to comply with the precautions and
instructions provided with this heater can
monoxide poisoning. Only persons who
can understand and follow the instructions
should use or service this heater.
DANGER:
made of our heaters. Check with your local
use of fuel gases and heat producing products
exist, follow National Fuel Gas Code, ANSI
Z223.1. In Canada installation must conform
to local codes. If no local codes exist, follow
the current National Standards Of Canada
WARNING:
Certain materials or items, when stored under
WARNING:
•
as a “rotten egg” smell. The odorant can
fade over time so leaking gas is not always
• Propane gas is heavier than air and leaking
propane will sink to the lowest level
including matches, lighters, sparks or open
the original leak. Use only propane gas set
up for vapor withdrawal.
• Store or use propane gas in compliance
with local ordinances and codes or with
use.
DANGER - EXPLOSION - FIRE HAZARD:
•
a safe distance away from the heater as
• Provide adequate clearances around air
• Never use the heater in spaces which
solvents, paint thinner, dust particles or
unknown chemicals.
•
source of ignition. Keep heater area clear
gasoline, paint thinner, cleaning solvents
Do not use heater in areas with high dust
content. Minimum heater clearances from
sides & 3 feet from the top.
WARNING:
Use as a heating appliance only. Never alter
in any way or use with any device.
© 2021 United States Stove Company
3
SAFETY INFORMATION
CAUTION - SERVICE SAFETY:
•
Make sure propane cylinder valve outlet is
clean.
• During set up, check all connections and
• Use as a heating appliance only. Never
alter in any way or use with any device.
• Never leave heater unattended when hot
or in use.
• Keep out of reach of children.
DANGER - EXPLOSION - FIRE HAZARD:
• Never store propane near high heat, open
sources or where temperatures exceed
• Propane vapors are heavier than air and
can accumulate in low places. If you smell
gas, leave the area immediately.
• Never install or remove the propane
other ignition sources or while heater is
hot to touch.
• This heater is red hot during use and can
from sides & 3 feet from top. Keep gasoline
well away from heater.
• Store the propane cylinder outdoors in
a well-ventilated space out of reach of
children. Never store the propane cylinder
the propane cylinder for outdoor storage.
•
process. This product is designed to
produce extremely minute, non-hazardous
amounts of co if used and maintained
in accordance with all warnings and
out of the heater.
•
can’t see it and you can’t smell it. It’s an
present during operation of this product,
get fresh air immediately!
• For outdoor use only.
• Never use inside house, or other
unventilated or enclosed areas.
•
use in unventilated or enclosed areas to
avoid endangering your life.
WARNING:
• Alert children and adults to the hazards
of high surface temperatures. Stay away
or igniting clothing.
• Carefully supervise young children when
in the vicinity of the heater.
• Do not hang clothing or any other
place on or near the heater.
• Replace any guard or protective device
removed for servicing the appliance prior
•
imperative that the control compartment,
4
© 2021 United States Stove Company

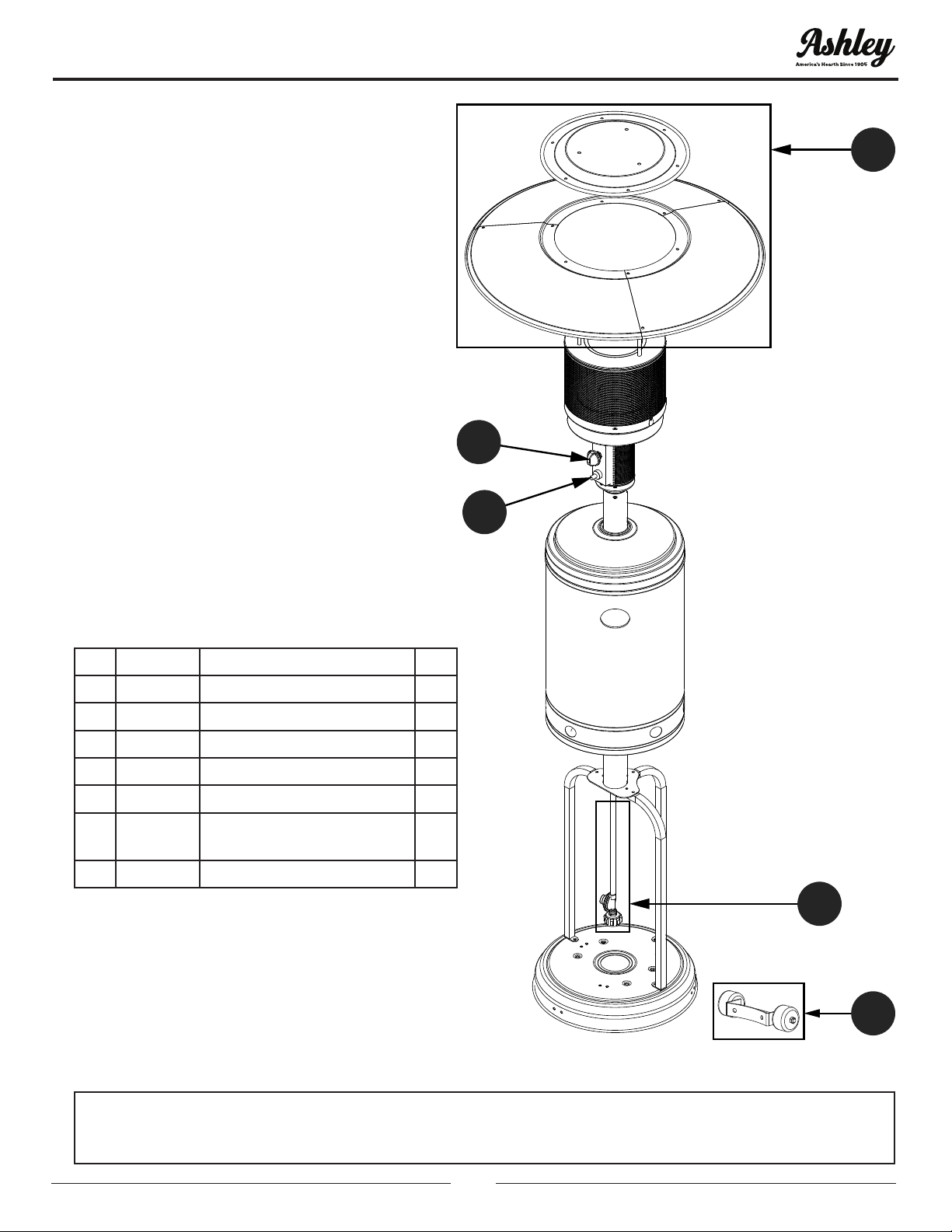

PREPARATION
Before beginning assembly of product, make sure
all parts are present. Compare parts with package
contents list and hardware contents above. If any
part is missing or damaged, do not attempt to
assemble the product. Contact customer service
for replacement parts.
Tools Required for Assembly (not included):
Phillips screwdriver with medium blade. Leak
Detection Solution.
PART DESCRIPTION QTY
AA M6 Cap Nut 9
BB M6*8 Bolt 9
CC Reector Stud 3
DD Wing Nut 3
EE M6*12 Bolt 12
FF M6*30 Bolt 6
GG M6 Nut 18
HH Anchoring Arm 3
ii M8*15 Bolt 5
JJ M8 Big Washer 9
KK M6/M8 Wrench 1
LL Anchor 3
MM Propane Tank
Bracket 3
NN M8 Nut 2
PP M8*30 Bolt 3
HH, LL, MM, and 12 pcs GG are packed
together with wheels in a zipped bag
A
C
D
E
F
G
H
B
PART DESCRIPTION QTY
AReector Panels 3
BReector Plate 1
C Burner 1
D Post 1
E Tank housing 1
FTank housing support 3
G Base 1
H Wheel Kit 1
© 2021 United States Stove Company
5
Secure the three propane tank brackets (MM) to
the base (G) using two M6 bolts (EE) and nuts (GG)
each. Note: Once assembly is complete use the
three provided M8*30 bolts (PP) to secure the gas
tank into posit.
MM
G
GG
EE KK
PP
Attach each of the three anchor arms (HH) to the
base (G) using two M6 bolts (EE) and nuts (GG) each.
G
GG
EE
HH
Note: To secure the unit, please use three anchors
(LL) to nail the unit to the ground. For cement
ground or wood ground unsuitable for nails, please
use expansion screws (screws not included, may be
bought from local stores).
G
LL
1. Attach wheel assembly (I) to base (H). Line up
holes in wheel bracket with corresponding holes in
base, insert two bolts M8 x 16 (BB) through holes,
and nger tighten two M8 ange nuts (AA). Be sure
that the wheel assembly is parallel to the base, and
fully tighten bolts.
G
II
NN
H
HARDWARE USED
NN
II
x 2
Bolt M8 x 16
M8 Flange nut
x 2
STEP 1
1-1. Position the 3 tank housing supports on the
base as shown in the picture.
1-2. Use 3 bolts (M8 x 15 mm) to attach the tank
housing supports to the base.
G
F
ll*3
6
© 2021 United States Stove Company

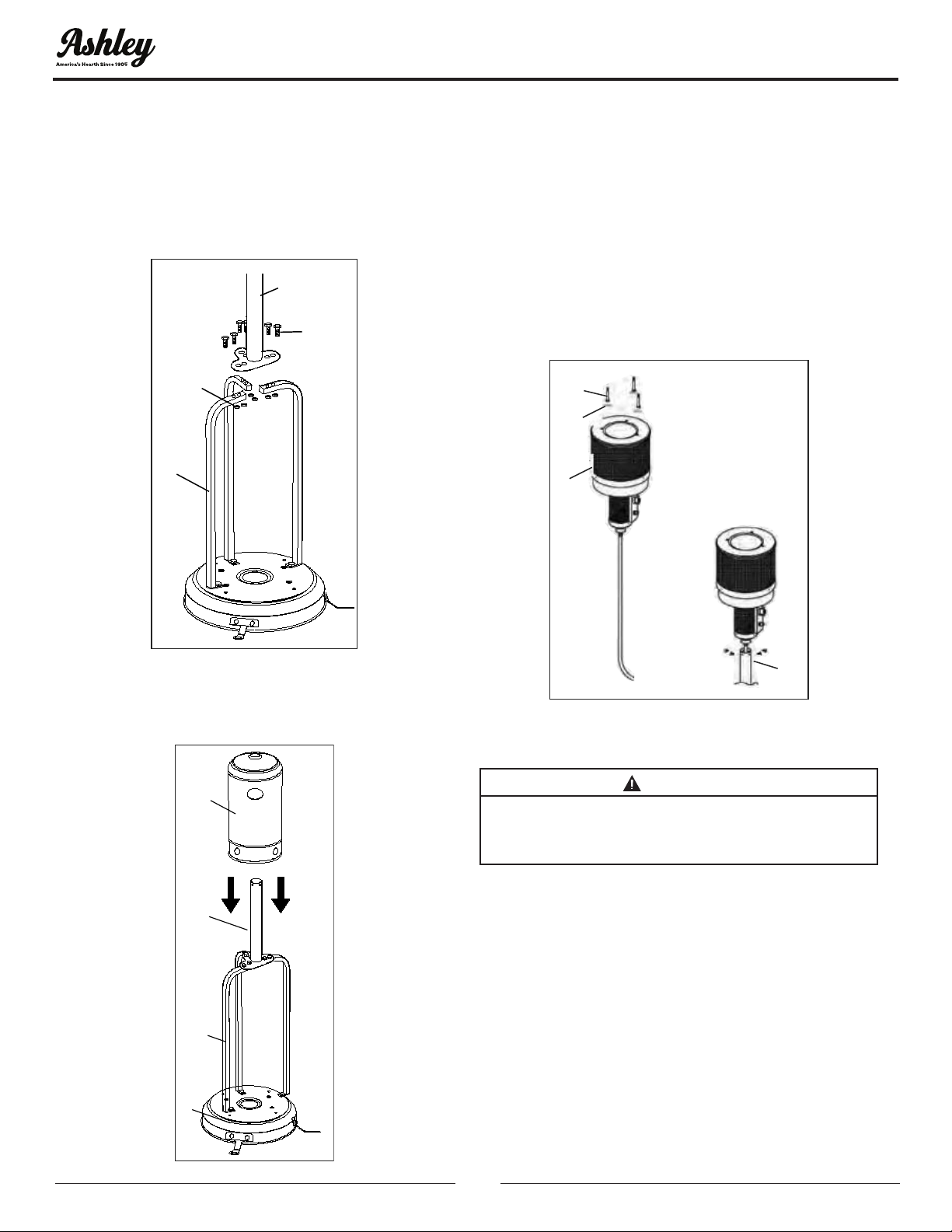

STEP 2
2-1. Put the post on the top of 3 tank housing
supports.
2-2. Use 6 M6 bolts (FF) and nuts (GG) to connect
the post to the 3 tank housing supports. Tighten
the bolts and nuts.
FF
F
D
GG
FF*6
GG*6
STEP 3
3-1. Place the tank housing (E) on the base (G).
E
D
F
G
STEP 4
4-1. Attach a reector stud (CC) and three washers
Ø8mm (JJ) to the top of the burner (C). Tighten the
reector stud.
4-2. Unscrew the four screws that are already
assembled on the burner assembly (C). Place the
burner assembly (C) into the top of the post (D) by
inserting the regulator into the post (D). Tightly
fasten the previously removed screws back into the
burner assembly (C) through the slots at the top of
the post (D).
CC
JJ
C
D
CC*3
JJ*3

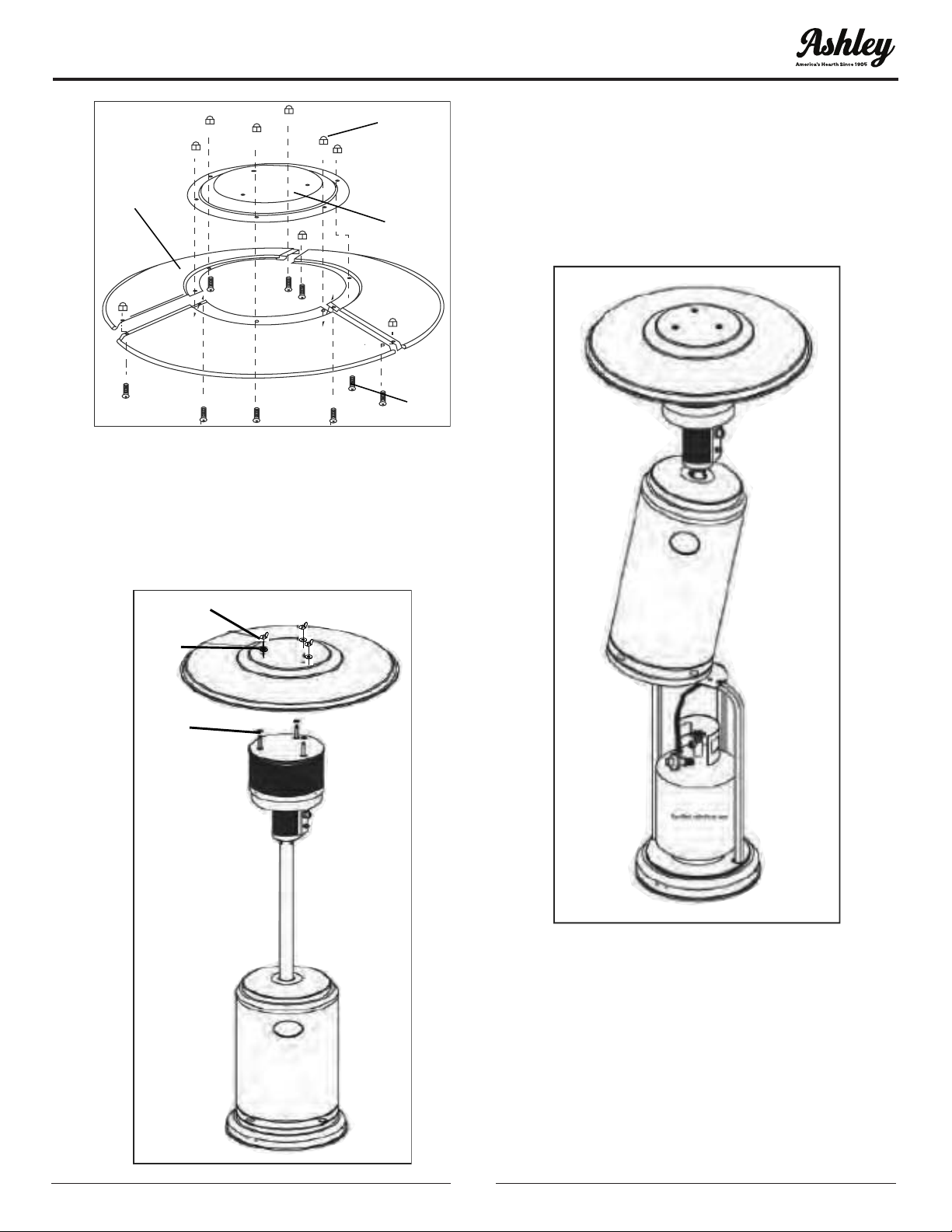

STEP 5
WARNING:
REMOVE THE PLASTIC PROTECTIVE COATING
ON THE REFLECTOR PANEL AND CENTER THE
5-1. Attach the two reectors with 1 cross bolt M6*8
(BB) and 1 cap nut M6 (AA), repeat this step to install
the third reector.
5-2. Then attach and lock the reector plate and the
newly attached reector with 6 cross bolts M6*8
(BB) and 6 cap nuts M6 (AA).
© 2021 United States Stove Company
7
B
B
AA
A
AA*9
BB*9
STEP 6
6-1. Put Ø8mm washer (JJ) on each reector stud
(CC).
6-2. Fasten the reector with 3 washers and 3 wing
nuts (DD).
DD
JJ
JJ
DD*3
JJ*6
STEP7
7-1. Lift the tank housing and rest it on the tank
housing supports.
7-2. Connect the regulator to the gas cylinder and
tighten it with an adjustable wrench.
7-3. Put the gas cylinder on the base.
8
© 2021 United States Stove Company

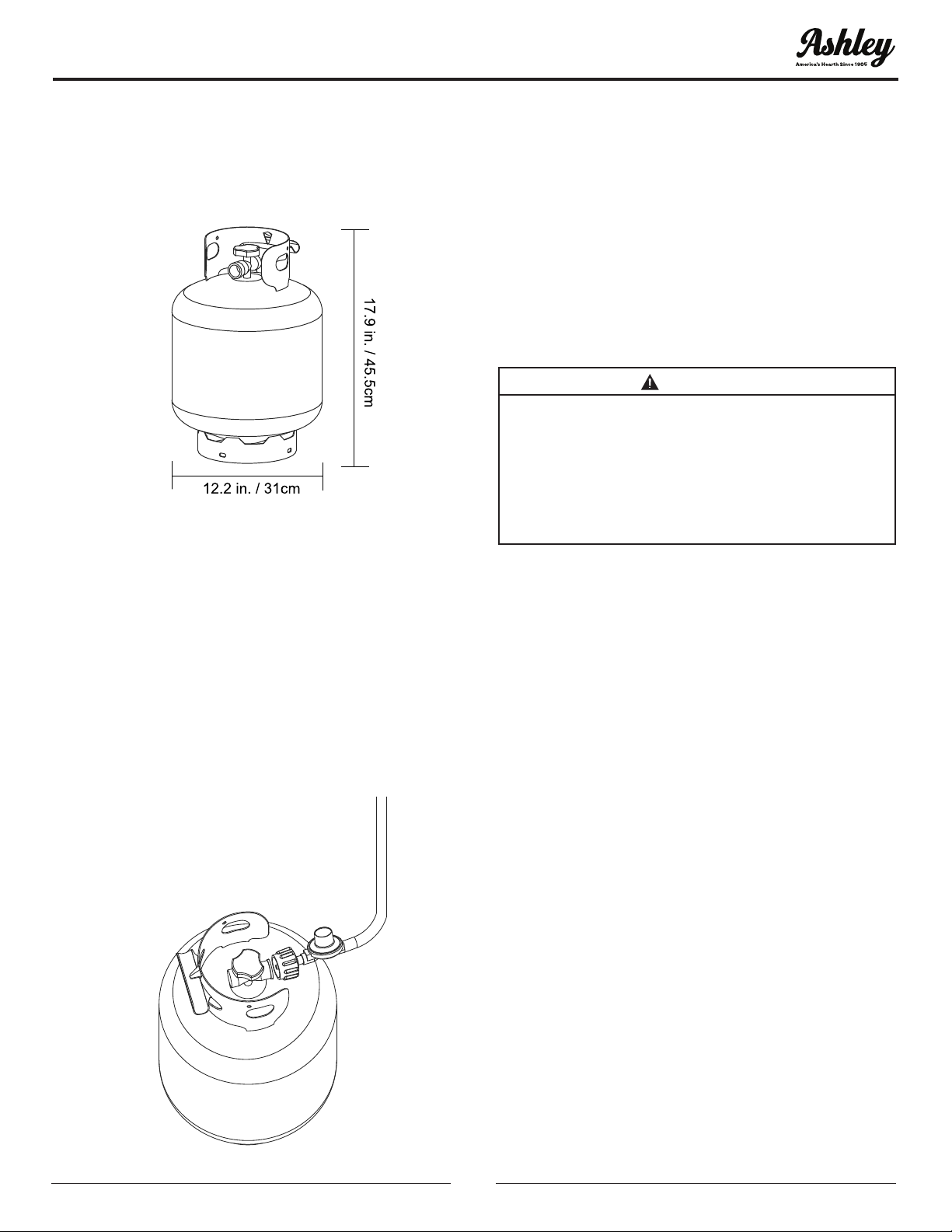

REPLACING THE GAS CYLINDER
Screw gas hose (C) and regulator (E) onto propane
cylinder (not included). Do not cross-thread.
C
J
E
Regulator
Anchoring
Gas tank
Every part of the heater should be secure against
displacement and should be constructed to
maintain a xed relationship between essential
parts under normal and reasonable conditions
of handling and usage. Parts not permanently
secured should be designed so they cannot be
incorrectly assembled and cannot be improperly
located or misaligned in removing or replacing
during cleaning or other servicing.
NOT INCLUDED
Use a standard 20 lb. (Not included.)propane
cylinder only (approximately 12.2” / 31 cm in diameter
and 17.9” / 45.5 cm high).
Use this heater only with a propane vapor
withdrawal supply system. See chapter 5 of the
standard for storage and handling of liqueed
petroleum gas, ANS/NFPA 58. Your local library or
re department should have this book. Storage
of an appliance indoors is permissible only if the
cylinder is disconnected and removed from the
appliance. A cylinder must be stored outdoors in a
well ventilated area out of the reach of children. A
disconnected cylinder must have dust caps tightly
installed and must not be stored in a building,
garage or any other enclosed area. The maximum
inlet gas supply pressure: 250 psi /1750 kPa. The
minimum inlet gas supply pressure: 5 psi /35 kPa.
Manifold pressure with regulator provided: 11” W.C/
2.74 kPa. The pressure regulator and hose assembly
supplied with the appliance must be used. The
installation must conform with local codes, or in the
absence of local codes, with National fuel gas code,
ANSI Z223.1/NFPA54, Natural gas and propane
installation code, CSA B149.1, or Propane storage
and handling code, B149.2.
A dented, rusted or damaged propane cylinder
may be hazardous and should be checked by your
cylinder supplier. Never use a propane cylinder with
a damaged valve connection.
The propane cylinder must be constructed and
marked in accordance with the specications
for LP gas cylinders of the U.S. Department of
Transportation (DOT) or the standard for cylinders,
spheres and tubes for transportation of dangerous
goods and commission, CAN/CSA-B339.
The cylinder must have a listed overlling prevention
© 2021 United States Stove Company
9
REPLACING THE GAS CYLINDER
device. The cylinder must have a connection device
compatible with the connection for the appliance.
The cylinder used must include a collar to protect
the cylinder valve. Never connect an unregulated
propane cylinder to the heater.
Standard 20 lb. tank
The knob on the LP tank must be closed. Make sure
that the knob is turned clockwise to a full stop. The
cylinder supply system must be arranged for vapor
withdrawal. Check that the control knob on the
control unit is turned off. Hold the regulator in one
hand and insert the nipple into the valve outlet. Be
sure the nipple is centered in the valve outlet. The
coupling nut connects to the large outside threads
on the valve outlet. Hand-tighten the coupling nut
clockwise until it comes to a full stop. Firmly tighten
by hand only.
To Disconnect: Fully close the tank valve by turning
until the regulator assembly detaches clockwise.
Turn the coupling nut counterclockwise.
• Do not store a spare LP-gas cylinder under or near
this appliance;
• Never ll the cylinder beyond 80 percent full;
• Place the dust cap on the cylinder valve outlet
whenever the cylinder is not in use. Only install
the type of dust cap on the cylinder valve that is
provided with the cylinder valve. Other type of
caps or plugs may result in leakage of propane.
WARNING:
to municipal requirements. Swallowed small
swallowed or inhaled. Keep children away
10
© 2021 United States Stove Company
OPERATION INSTRUCTIONS
TO CHECK FOR A LEAK
1. Make 2-3 oz. leak check solution (one part liquid
dish-washing detergent and three parts water).
2. Apply several drops of solution where regulator
connects to cylinder and to all hose and valve
connections.
3. Make sure all patio heater and light valves are
OFF.
4. Turn cylinder valve ON.
leak.
1. Turn cylinder valve OFF
2. If leak is at regulator/cylinder valve connection:
Disconnect, reconnect, and perform another
leak check. Apply the soapy solution to all hose
and valve connections.
3. If you continue to see bubbles after several
attempts, cylinder valve is defective and should
be returned to cylinder’s place of purchase.
If leak is at hose/regulator connection: This part is
defective and you should contact the customer
service department for replacement.
connections are secure.
NOTE: Whenever gas connections are loosened or
removed, you must perform a complete leak test.
Regulator / Cylinder connection
WARNING:
• Perform all leak tests outdoors.
•
• NEVER leak test when smoking.
• Do not use the heater until all connections
For outdoor use only. Never use inside house,
or other unventilated or enclosed areas. This
in unventilated or enclosed areas to avoid
endangering your life.
CAUTION:
Do not attempt to operate until you have read
and understood all General Safety Information
W A L L
CEILI NG
This appliance shall be used only in a well-ventilated
space and shall not be used in a building, garage or
any other enclosed area.
An appliance may be installed with shelter no more
inclusive than:
1. With walls on all sides, but with no overhead
cover. Always maintain a clearance of 1.2 m (47”)
from combustible materials from the top and
side.
2. Within a partial enclosure which includes an
overhead cover and no more than two side
walls. These side walls may be parallel, as in a
breezeway, or at right angles to each other.
© 2021 United States Stove Company
11
OPERATION INSTRUCTIONS
3. Within a partial enclosure which includes an
overhead cover and three side walls, as long as
30 percent or more of the horizontal periphery
of the enclosure is permanently open.
1. Your heater was designed and approved for
outdoor use only. Do NOT use it inside a building,
garage, or any other enclosed area.
2. Make sure surrounding areas are free of
combustible materials, gasoline and other
ammable vapors or liquids.
3. Ensure that there is no obstruction to air
ventilation. Be sure all gas connections are tight
and there are no leaks.
4. Be sure the cylinder cover is clear of debris. Be
sure any component removed during assembly
or servicing is replaced and fastened prior to
starting.
1. Heater should be thoroughly inspected before
each half year use, and by a qualied service
person at least annually. If relighting a hot
heater, always wait at least 5 minutes.
2. Inspect the visible portion of the hose before
each use of the appliance. If the hose leaks, it
must be replaced prior to operation. Only use
the replacement hose assembly specied by
manufacturer.
3. The pressure regulator and hose assembly
supplied with the appliance must be used.
Replacement pressure regulators and hose
assemblies must be those specied by the
appliance manufacturer.

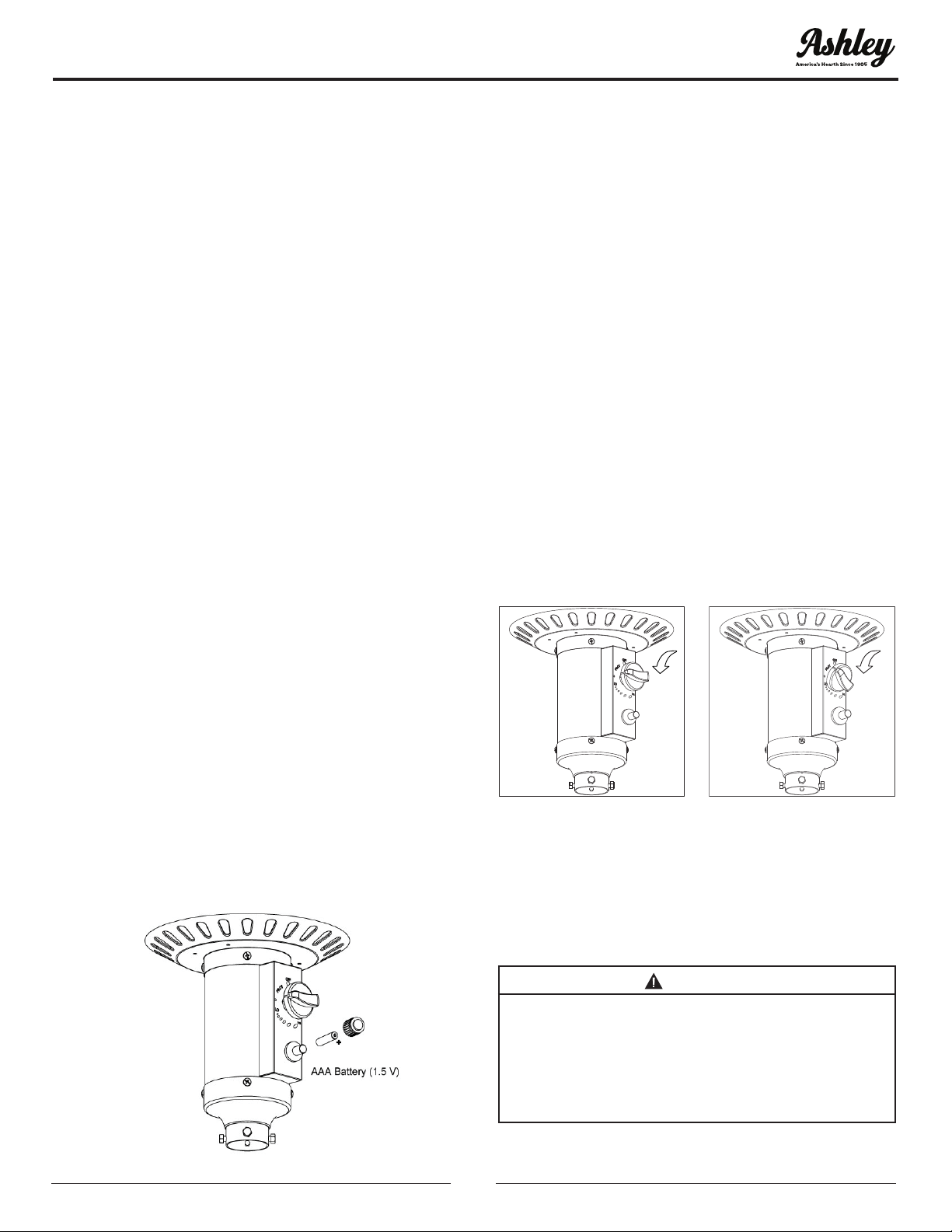

Before use, please purchase AAA batteries by
yourself, unscrew the black igniter springs cover
counterclockwise, put the positive pole outward
into the igniter, and screw back the black igniter
spring cover.
LIGHTING
1. Turn on the valve on the gas cylinder.
2. Press and turn the control knob to PILOT
position (anti-clockwise 90º).
3. Holding down the control knob, press the igniter
button until the main ame is ignited. Release
the control knob 10 seconds after the ignition.
4. Press lightly and turn the variable control knob
to “HI” (maximum) position and leave it there
for 5 minutes or more before turning the knob
to the desired temperature setting.
5. If the burner ame goes out, turn off the heater
and wait at least 5 minutes or more to let the
gas dissipate before re-lighting to avoid gas
explosion.
Repeat steps 2 to 4.
Note: Improper operation can cause injury or
property damage. If pilot fails to remain lit, all valves
should be closed and you should wait for at least 5
minutes before attempting to light it again. If you
experience any ignition problem, please consult
“Troubleshooting”.
CAUTION:
Avoid inhaling fumes emitted from the
after approximately 30 minutes. The heater
12
© 2021 United States Stove Company
Note: The burner may be noisy when initially turned
on. Turn the knob to the level of heat desired.

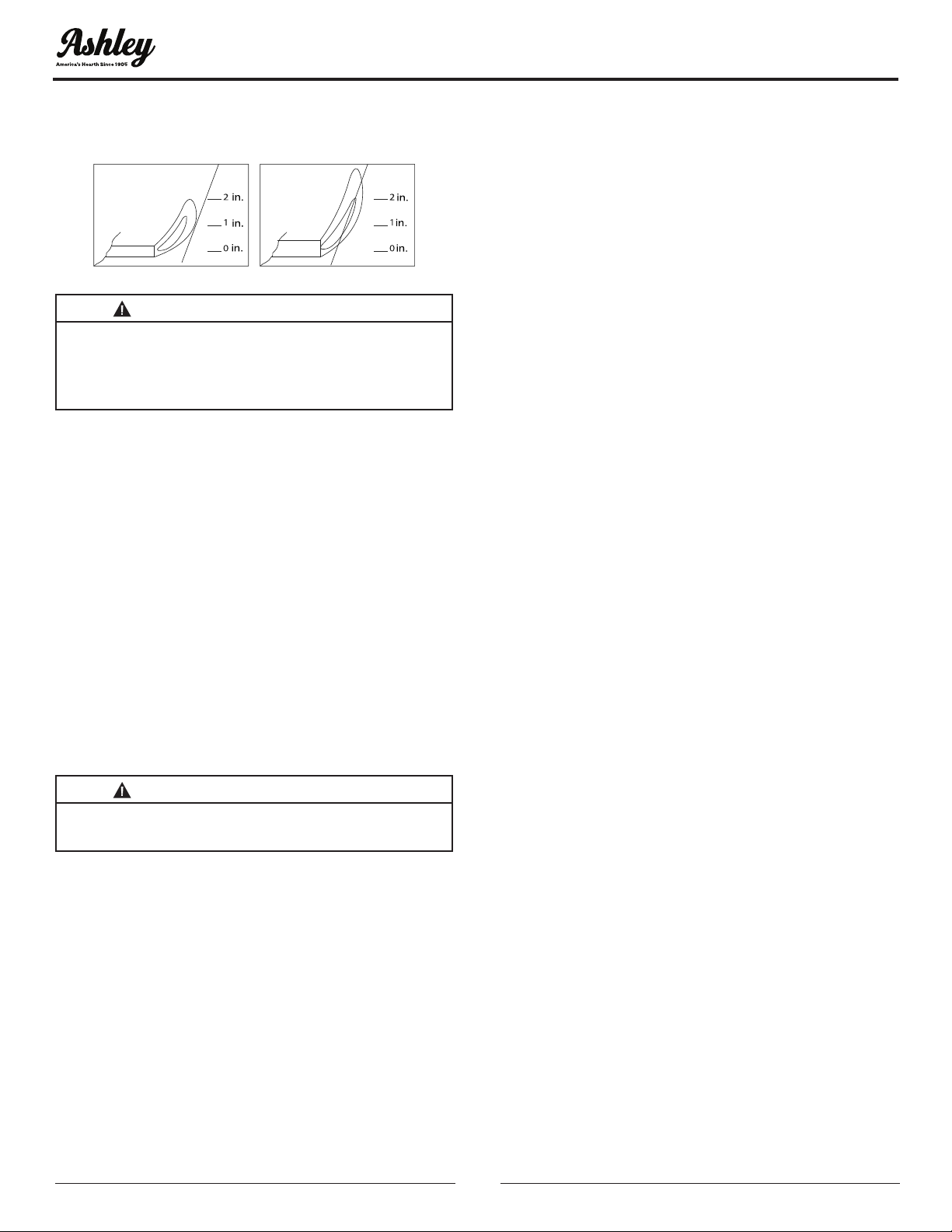

Normal Abnormal
WARNING - FOR YOUR SAFETY:
WHEN HEATER IS ON
Emitter screen will become bright red due to
intense heat. The color is more visible at night.
Burner will display tongues
of blue and yellow ame. These ames should not
be yellow or produce thick black smoke, indicating
an obstruction of airow through the burners. The
ame should be blue with straight yellow tops. If
excessive yellow ame is detected, turn off heater
and consult “Troubleshooting”.
1. Turn control knob to OFF.
2. Repeat the “Lighting” steps.
WARNING - FOR YOUR SAFETY:
extreme care.
SHUT DOWN
Turn cylinder valve clockwise to OFF and disconnect
regulator when heater is not in use.
Note: After use, some discoloration of the emitter
screen is normal.
OPERATION CHECKLIST
For a safe and pleasurable heating experience,
perform this check before each use.
1. Be familiar with the entire owner’s manual and
understand all precautions noted.
2. All components are properly assembled, intact
and operable.
3. No alterations have been made.
4. All gas connections are secure and do not leak.
5. Wind velocity is below 10 mph.
6. Unit will operate at reduced efciency below
40°F.
7. Heater is outdoors (outside any enclosure).
8. There is adequate fresh air ventilation.
9. Heater is away from gasoline or other ammable
liquids or vapors.
10. Heater is away from windows, air intake
openings, sprinklers and other water sources.
11. Heater is at least 2.3 feet on top and at least 3.3
feet on sides from combustible materials.
12. Heater is on a hard and level surface.
13. There are no signs of spider or insect nests.
14. All burner passages are clear.
15. All air circulation passages are clear.
16. Children and adults should be alerted to the
hazards of high surface temperatures and
should stay away to avoid burns or clothing
ignition.
17. Young children should be carefully supervised
when they are in the area of the heater.
18. Clothing or other protective material should not
be hung from the heater, or placed on or near
the heater.
19. Any guard or other protective device removed
for servicing the heater must be replaced prior
to operating the heater.
20. Installation and repair should be done by a
qualied service person. The heater should be
inspected before use and at least annually by a
qualied service person.
21. More frequent cleaning may be required
as necessary. It is imperative that control
compartment, burner and circulating air
passageways of the heater be kept clean.
AFTER OPERATION
1. Gas control is in OFF position.
2. Gas tank valve is OFF.
3. Disconnect gas line.
OPERATION INSTRUCTIONS
© 2021 United States Stove Company
13
CARE AND MAINTENANCE
WARNING - FOR YOUR SAFETY:
• Do NOT touch or move heater for at least
45 minutes after use.
•
•
To enjoy years of outstanding performance from
your heater, make sure you perform the following
maintenance activities on a regular basis:
Keep exterior surfaces clean.
1. Use warm soapy water for cleaning. Never use
ammable or corrosive cleaning agents.
2. While cleaning your unit, be sure to keep the
area around the burner assembly dry at all times.
Do not submerge the control valve assembly. If
the gas control is submerged in water, do NOT
use it. It must be replaced.
a. Keep the appliance area clear and free from
combustible materials, gasoline and other
ammable vapors and liquids.
b. Do not obstruct the ow of combustion and air
ventilation.
c. Keep the ventilation opening(s) of the cylinder
enclosure free and clear from debris.
3. Air ow must be unobstructed. Keep controls,
burner, and circulating air passageways clean.
Visually check portions of the hose assembly
located within the connes of the heater post.
Inspect the entire hose assembly at least annually,
disassembling the reector and burner. Inspect the
hose assembly for evidence of excessive abrasion,
cuts, or wear. Suspected areas should be leak
tested. Then assembling the reector and burner
again following with step 6 and 7.
• Gas odor with extreme yellow tipping of ame.
• Heater does NOT reach the desired temperature.
• Heater glow is excessively uneven.
• Heater makes popping noises.
• Spiders and insects can nest in burners or orices.
This dangerous condition can damage the heater
and render it unsafe for use. Clean burner holes
by using a heavy-duty pipe cleaner. Compressed
air may help clear away smaller particles.
• Carbon deposits may create a re hazard. Clean
dome and burner screen with warm soapy water
if any carbon deposits develop.
Note: In a salt-air environment (such as near an
ocean), corrosion occurs more quickly than normal.
Frequently check for corroded areas and repair
them promptly.
TIP: Use high-quality automobile wax to help
maintain the appearance of your heater. Apply to
exterior surfaces from the pole down. Do not apply
to emitter screen or domes.
STORAGE
Between uses:
• Turn control knob OFF.
• Disconnect LP source.
• Store heater upright in an area sheltered from
direct contact with inclement weather (such as
rain, sleet, hail, snow, dust and debris).
• If desired, cover heater to protect exterior surfaces
and to help prevent build-up in air passages. Note:
Wait until heater is cool before covering.
DURING PERIODS OF EXTENDED
INACTIVITY OR WHEN TRANSPORTING:
• Turn control knob OFF.
• Disconnect LP source and move to a secure, well-
ventilated location outdoors.
• Store heater upright in an area sheltered from
direct contact with inclement weather (such as
rain, sleet, hail, snow, dust and debris).
• If desired, cover heater to protect exterior surfaces
and to help prevent build-up in air passages.
• Never leave LP cylinder exposed to direct sunlight
or excessive heat. Note: Wait until heater is cool
before covering.
SERVICE
Only a qualied service person should repair gas
passages and associated components.
CAUTION:
service
14
© 2021 United States Stove Company
Burner won’t light
Propane cylinder is frosted over Wait until the propane cylinder warms
up and is defrosted
Blockage in orice Clear blockage
Control knob is not in ON position Turn control knob to ON
Burner ame is low
Gas pressure is low Turn cylinder valve OFF and replace
cylinder
Outdoor temperature is less than 40ºF
and tank is less than 1/4 full Use a full cylinder
Control knob fully ON Check burner and orices for blockage
Carbon build-up Dirt or lm on reector and burner screen Clean reector and burner screen
Thick black smoke Blockage in burner Remove blockage and clean burner
inside and outside
The information in this owner’s manual is specic to your unit. When ordering replacement parts the
information in this manual will help to ensure the correct items are ordered. Before contacting customer
service write down the model number and the serial number of this unit. That information can be found on
the certication label attached to the back of the unit. Other information that may be needed would be the
part number and part description of the item(s) in question. Part numbers and descriptions can be found
in the “Repair Parts” section of this manual. Once this information has been gathered you can contact
customer service by phone 1-800-750-2723 Ext 5051 or Email parts@usstove.com.
Model Information
Model Number
Serial Number
HOW TO ORDER REPAIR PARTS
© 2021 United States Stove Company
15
REPAIR PARTS
2
3
4
5
1
PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM ASHLEY. USE OF THIRD PARTY
COMPONENTS WILL VOID THE WARRANTY.
Key Part # Description Qty
1 68-0535 Reector Panel Assembly 1
2 68-0553 Selector Knob 1
3 68-0537 Igniter 1
4 68-0540 Gas Regulator Assembly 1
5 68-0550 Wheel Bracket Assembly 1
* 68-0549 Cylinder Hold Bracket
Assembly (not shown) 1
* 68-0549 Hardware Kit (not shown) 1
To order parts:
Call 1-800-750-2723 Ext 5051 or
Email to: parts@usstove.com
16
© 2021 United States Stove Company
1 YEAR LIMITED WARRANTY
All components are warranted for a period of 1
year after date of purchase by the original owner
against defects in materials and workmanship
under normal use. This warranty does not cover
normal wear and weathering, assembly and \or
maintenance or use in commercial application if
model is not designated as a commercial mode.
At USSC’s sole discretion, products under warranty
will be repaired and \or replaced at no charge to
the customer. Any returns sent back to USSC must
be sent via prepaid freight and in the original retail
packaging.
For warranty service contact USSC at the address,
Phone number or web site listed in this owner’s
manual. Be sure to have your sales receipt, date
of purchase and catalogue/model number
available when calling. All warranty service will be
coordinated by the USSC service center.
This warranty is extended only to the original
purchaser. Proof of purchase will be required before
warranty service is rendered. The sales receipt is
the only valid proof of purchase. This warranty
only covers failures due to defects in materials or
workmanship which occur during normal use.
Failures and\or damage which result from accident,
negligence, misuse, abuse, neglect, mishandling
alteration or modication, failure to maintain,
improper assembly or maintenance, service by
unauthorized agency or use of unauthorized
components or damage that is attributable to acts
of god are not covered.
***THERE ARE NO EXPRESS WARRANTIES
***PURCHASER ASSUMES ALL RISK IN THE
***FAILURE TO FOLLOW WARNINGS AND
OPERATIONAL INSTRUCTIONS CONTAINED IN
THISMANUALCANRESULTINSEVEREPROPERTY
DAMAGE AND\OR PERSONAL INJURY***
IN NO EVENT WILL USSC OR ITS DIRECTORS,
PURCHASER OR ANY THIRD PARTY, WHETHER
IN CONTRACT, IN TORT, OR ON ANY OTHER
PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR
INCIDENTAL LOSS, COST, OR DAMAGE ARISING
OUT OF OR IN CONNECTION WITH THE SALE,
PRODUCT, EVEN IF USSC OR ITS DIRECTORS,
OR DAMAGES, OR IF SUCH LOSSES, COSTS, OR
WILL USSC, OR ITS OFFICER, DIRECTORS, OR
COSTS OR DAMAGES THAT EXCEED THE
PURCHASE PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
LIMITATION OR EXCLUSION MAY NOT APPLY TO
THE PURCHASER.;
This limited warranty gives you specic legal rights
and you may also have other rights which vary
from jurisdiction to jurisdiction. The provisions of
the United Nations Convention on Contracts for
the sales of goods shall not apply to this limited
warranty or the sale of products covered by this
limited warranty.
***IMPORTANT NOTICE***
-DO NOT return to place of purchase-
For customer service and warranty issues contact
customer service
16
© 2021 United States Stove Company
GARANTIE LIMITÉE DE 1 AN
Tous les composants sont garantis pendant 1 an après la
date d’achat par le propriétaire original contre les défauts
des matériaux et de fabrication sous une utilisation
normale. Cette garantie ne couvre pas l’usure normale,
le vieillissement naturel, l’assemblage et/ou l’entretien ou
l’utilisation commerciale si le modèle n’est pas désigné
comme un modèle commercial. À la seule discrétion
de USSC, les produits sous garantie seront réparés et/
ou remplacés, sans frais pour le client. Tous les retours
à USSC doivent être effectués par transport prépayé et
dans l’emballage original.
Pour un service sur garantie, contactez USSC à l’adresse,
le numéro de téléphone ou le site Web inscrit dans le
manuel du propriétaire. Assurez-vous d’avoir en main
votre reçu de vente, la date de l’achat et le numéro de
catalogue/modèle lors de votre appel. Tout service sur
garantie sera coordonné par le centre de service USSC.
Cette garantie n’est destinée qu’à l’acheteur original. La
preuve d’achat sera requise avant que le service sous
garantie ne soit effectué. Le reçu de vente est la seule
preuve d’achat valide. Cette garantie ne couvre que les
défaillances en raison des défauts des matériaux ou de
la fabrication survenant pendant un usage normal. Les
défaillances et/ou dommages résultant d’un accident,
une négligence, une mauvaise utilisation, l’abus,
la négligence, une altération ou des modications
sans précautions, le défaut d’entretenir, un mauvais
assemblage ou entretien, une réparation par une
agence non autorisée ou l’utilisation de composants non
autorisés ou des dommages attribuables à une force
majeur, ne sont pas couverts.
***IL N’Y A AUCUNE GARANTIE EXPRESSE, SAUF
COMME IL EST INDIQUÉ CI-DESSOUS***
***L’ACHETEUR ASSUME TOUS LES RISQUES DE
UNITÉ***
***NE PAS RESPECTER LES AVERTISSEMENTS ET
DIRECTIVES DE FONCTIONNEMENT CONTENUES
DANS CE MANUEL PEUT CAUSER DE SÉVÈRES
EN AUCUN CAS, USSC OU SES DIRIGEANTS,
DEVANT L’ACHETEUR OU TOUT AUTRE TIERS,
S’IL SURVENAIT DANS LE CONTRAT, UN ACTE
DÉLICTUEL, OU SURVENAIT SUR TOUTE AUTRE
INDIRECTS, SPÉCIAUX, PUNITIFS, EXEMPLAIRES,
CONSÉCUTIFS, OU FORTUITS, OU RELATIFS À
LA VENTE, L’ENTRETIEN, L’UTILISATION, OU
L’INCAPACITÉ À UTILISER LE PRODUIT, MÊME SI
USSC, OU SES DIRIGEANTS, OFFICIERS OU AGENTS
USSC, OU SES OFFICIERS, DIRIGEANTS, OU AGENTS
PRIX D’ACHAT DU PRODUIT.
CERTAINES JURIDICTIONS N’AUTORISENT PAS
L’EXCLUSION OU LA LIMITATION DES DOMMAGES
FORTUITS OU CONSÉCUTIFS, ET LES PRÉCÉDENTES
RESTRICTIONS, OU EXCLUSIONS POURRAIENT NE
PAS S’APPLIQUER À L’ACHETEUR.
Cette garantie limitée vous donne des droits légaux
spéciques et vous pourriez avoir d’autres droits qui
varieront d’une juridiction à l’autre. Les dispositions de la
Convention des Nations Unies sur les contrats de vente
internationale de marchandises ne doit pas d’appliquer à
cette garantie limitée, ni à la vente de produits couverts
par cette garantie limitée.
***AVIS IMPORTANT***
- NE PAS retourner à l’endroit de l’achat -
garantie, contactez le service à la clientèle
© 2021 United States Stove Company
15
PIÈCES DE RECHANGE
2
3
4
5
1
Clé Partie La Description Qté
1 68-0535 Assemblage du panneau réecteur 1
2 68-0553 Bouton de sélection 1
3 68-0537 Allumeur 1
4 68-0540 Ensemble régulateur de gaz 1
5 68-0550 Ensemble de support de roue 1
* 68-0549 Ensemble de support de maintien
de cylindre (non illustré) 1
* 68-0549 Kit de quincaillerie (non illustré) 1
AFIN DE MAINTENIR LA GARANTIE, LES COMPOSANTS DOIVENT ÊTRE REMPLACÉS À L’AIDE DE PIÈCES
ASHLEY ACHETÉES CHEZ VOTRE CONCESSIONNAIRE OU DIRECTEMENT À ASHLEY. L’UTILISATION DE
COMPOSANTS TIERS ANNULERA LA GARANTIE.
Pour commander des pièces:
Appelez le 1-800-750-2723 Ext 5051 ou
Envoyez un courriel à: parts@usstove.com
14
© 2021 United States Stove Company
DÉPANNAGE
Le brûleur ne s’allume
pas.
La bouteille de propane est couverte d'une
couche de glaçage
Attendez jusqu'à ce que la bouteille de
propane se réchauffe et se déglace
Obstruction d'un orice Nettoyez l’obstruction.
Le bouton de commande n'est pas à la position
« ON » Tournez le bouton de commande à ON
La amme du brûleur
est faible.
La pression du gaz est faible Tourner la vanne de la bouteille vers la
position « OFF » et remplacer la bouteille
La température externe est inférieure à 4 °C
(40 °F) et le réservoir n’est rempli qu’à 1/4 ou
moins.
Utilisez une bouteille pleine
Bouton de commande complètement ouvert Vériez le brûleur et les orices pour
déceler les obstructions
Dépôt de carbone La saleté ou de la poussière est présente sur le
réecteur et le chapeau du brûleur
Nettoyez le réecteur et la chapeau du
brûleur
Épaisse fumée noire Obstruction dans le brûleur Enlevez les obstructions et nettoyez le
brûleur à l’intérieur et à l’extérieur.
Les informations contenues dans le présent manuel du propriétaire sont spéciques à votre appareil. Lorsque vous
commandez des pièces de rechange, les informations contenues dans ce manuel vous aideront à vous assurer que les
articles appropriés sont commandés. Avant de contacter le service clientèle, notez le numéro de modèle et le numéro
de série de cet appareil. Ces informations se trouvent sur l'étiquette de certication apposée au dos de l'appareil.
D'autres informations, telles que le numéro de pièce et la description de l'article ou des articles en question, peuvent
être nécessaires. Les numéros et descriptions des pièces se trouvent dans la section « Pièces de rechange » du présent
manuel. Une fois ces informations recueillies, vous pouvez contacter le service clientèle par téléphone au 1-800-750-
2723, poste 5051 ou par e-mail à parts@usstove.com.
Informations sur le modèle
Numéro de modèle
Numéro de série
COMMENT EFFECTUER LA COMMANDE DE PIÈCES DE RÉPARATION
© 2021 United States Stove Company
13
SOIN ET ENTRETIEN
AVERTISSEMENT - POUR VOTRE SÉCURITÉ
• NE touchez PAS ou NE déplacez PAS le chauffage
pendant au moins 45 minutes après l'utilisation.
•
•
manipuler.
Pour proter des années de performance exceptionnelle
de votre appareil de chauffage, assurez-vous d'effectuer
régulièrement les activités de maintenance suivantes :
Gardez les surfaces extérieures propres.
1. Utilisez de l'eau tiède savonneuse pour le nettoyage.
N'utilisez jamais des produits de nettoyage
inammables ou corrosifs.
2. Lorsque vous nettoyez votre unité, veillez à ce que
l'espace autour du brûleur soit sec à tout moment.
N'immergez pas l'assemblage de la vanne de réglage.
Si la commande du gaz est immergée dans de l’eau,
NE l’utilisez PAS. Elle doit être remplacée.
a. Gardez les aires autour de l’appareil dégagées et
exemptes de tous matériaux combustibles, d’essence
et d’autres vapeurs et liquides inammables.
b. N’obstruez en aucune circonstance le ux d’air de
combustion ou de ventilation.
c. Gardez les orices de ventilation de l’enceinte de la
bouteille dégagés et exempts de débris.
3. Le ux d'air ne doit pas être obstrué. Maintenez les
commandes, le brûleur et les canaux de circulation
d'air propres.
Vériez de manière visuelle les parties du tuyau situées dans
le périmètre du poste de chauffage. Inspectez l'ensemble
du tuyau au moins une fois par an, en démontant le
réecteur et le brûleur. Inspectez l'assemblage du tuyau
pour déceler la présence d'abrasion, de coupures ou
d'usure. Les zones soupçonnées devraient être testées
an de déceler la présence de fuites. Ensuite, on assemble
à nouveau le réecteur et le brûleur en suivant les étapes
6 et 7.
• Une odeur de gaz avec un bout de amme très jaune.
• L’unité n’atteint PAS les températures souhaitées.
• La lueur de l'appareil de chauffage est excessivement
inégale.
• L'appareil de chauffage fait des bruits de claquement.
• Les araignées et les insectes peuvent se nicher dans
les brûleurs ou les orices. Cette situation dangereuse
peut endommager l'appareil de chauffage et le rendre
impropre à l'utilisation. Nettoyez les trous du brûleur
à l'aide d'un cure-pipe robuste. L'air comprimé peut
aider à dégager les petites particules.
• Des dépôts de carbone peuvent provoquer des risques
d’incendie. Nettoyez le dôme et l'écran du brûleur avec
de l'eau tiède savonneuse si des dépôts de carbone se
développent.
Remarque : Dans un environnement où l'air est salé
(comme près de l'océan), la corrosion peut se produire
plus vite qu'à la normale. Recherchez régulièrement
des signes de corrosion puis effectuez les retouches
nécessaires sans délai.
CONSEIL : Utilisez une cire automobile de qualité
supérieure an de préserver l'apparence de votre appareil
de chauffage. Appliquer sur les surfaces extérieures du
poteau vers le bas. Ne pas appliquer sur l'écran émetteur
ou les dômes.
ENTREPOSAGE
Entre les utilisations :
• Tournez le bouton de commande sur « OFF ».
• Déconnectez la bouteille de GPL.
• Entreposez l'appareil de chauffage dans un endroit qui
est à l'abri des intempéries (comme la pluie, le grésil, la
grêle, la neige, la poussière et les débris).
• Au besoin, couvrez l'appareil de chauffage pour
protéger les surfaces extérieures et empêcher les
accumulations dans les conduits d'air. Remarque :
Attendez que l’appareil de chauffage se soit refroidi
avant de le recouvrir.
PENDANT LES PÉRIODES D'INACTIVITÉ
PROLONGÉE OU LORS DU TRANSPORT :
• Tournez le bouton de commande sur « OFF ».
• Déconnectez la bouteille de GLP et déplacez-vous dans
un endroit sûr et bien ventilé à l'extérieur.
• Entreposez l'appareil de chauffage dans un endroit qui
est à l'abri des intempéries (comme la pluie, le grésil, la
grêle, la neige, la poussière et les débris).
• Au besoin, couvrez l'appareil de chauffage pour
protéger les surfaces extérieures et empêcher les
accumulations dans les conduits d'air.
• Ne laissez jamais la bouteille de GLP exposée
directement aux rayons du soleil ou à la chaleur
excessive. Remarque : Attendez que l’appareil de
chauffage se soit refroidi avant de le recouvrir.
ENTRETIEN
Seul un technicien qualié devrait réparer les conduits
de gaz et les composants associés.
ATTENTION :
Laissez toujours l'appareil de chauffage se refroidir
avant de le manipuler.
Table of contents
Other Ashley Patio Heater manuals
Popular Patio Heater manuals by other brands
Guangdong Chant Group
Guangdong Chant Group PG188H manual
Charmglow
Charmglow 200605 owner's manual
Outdoor Leisure
Outdoor Leisure TD100A Assembly instructions
Desa
Desa ALL-PRO SPC-21PHTSA owner's manual
Outdoor Leisure
Outdoor Leisure TD112 owner's manual
Ev-ent Hire
Ev-ent Hire 16092A Operating & safety guide
Hortus
Hortus ZHQ1288-HD-65 instructions
Pro-Elec
Pro-Elec PEL01219 manual
Balkene Home
Balkene Home FireSense Bessemer Patio Fireplace manual
Iko-Z
Iko-Z XTR3 Safety instructions and operation manual
Sunjoy
Sunjoy A306006400 Use and care guide
Heat Outdoors
Heat Outdoors UMBRA Tulip Safety instructions and operation manual
