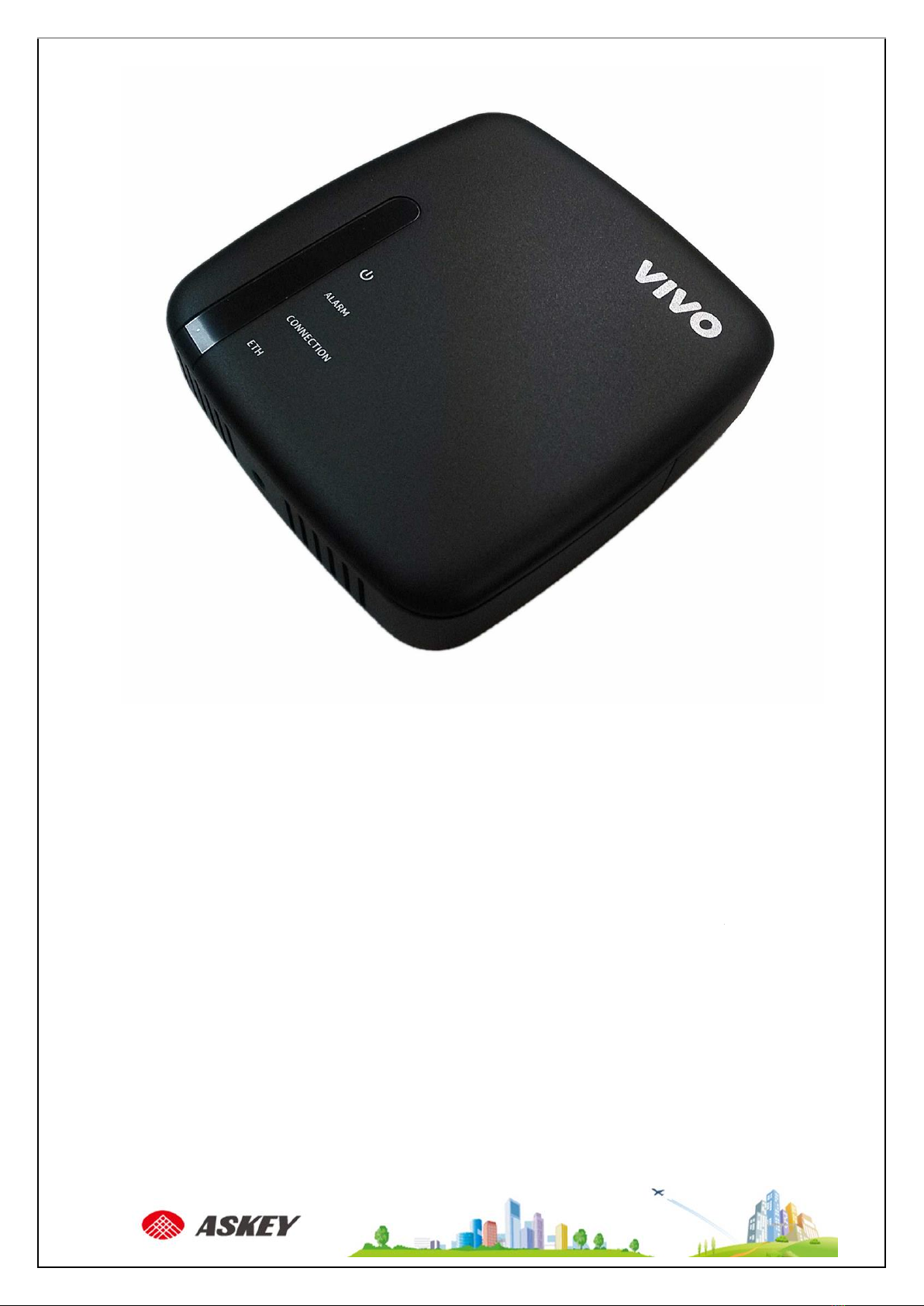

Askey VIVO RTF7000 GPON Mini-ONT User manual

RTF7000 GPON Mini-ONT
Getting Started Guide

RTF7000 GPON MINI-ONT -GETTING STARTED GUIDE
2 / 10
SAFETY NOTES
GENERAL
Please read this Getting Started Guide carefully before using the
RTF7000 GPON Mini-ONT. Do not use this device for any other
purpose, as doing so may be dangerous.
PLACEMENT
The RTF7000 GPON Mini-ONT and all its components (including
cables and power adaptor) should be placed in a dry, indoor area,
at elevated heights such as on top of shelves, cabinets, etc. It
should be kept away from any wet or damp environments; such as
kitchens, bathrooms, laundry rooms or any other areas with
exposure to moisture, sprays, drips, or running water. For the
safety of stored data, it should not be placed near magnetic
devices such as audio or video tapes, diskettes or credit cards.
DISPOSAL & RECYCLING
To facilitate disposal and/or recycling, please respect the sorting
rules of your country or region for this kind of device. European
regulations require the disposal of this device at sales points or at
designated collection points such as drop-off centers, etc.
LASER SAFETY
Observe the following instructions when you perform installation,
operations, and maintenance tasks on the ONT equipment.
Danger —There may be invisible laser radiation at the fiber optic
cable when the cable is removed from the connector. Avoid
direct exposure to the laser beam. Eyes can be damaged when
they are exposed to a laser beam. Take necessary precautions
before you plug in the optical modules.

RTF7000 GPON MINI-ONT -GETTING STARTED GUIDE
3 / 10
Index
WELCOME................................................................. 4
STATUS INDICATOR ..................................................... 5
CONNECTIONS OVERVIEW ............................................. 6
QUICK SETUP............................................................. 7
LED INDICATOR FOR TROUBLESHOOTING ......................... 10

RTF7000 GPON MINI-ONT -GETTING STARTED GUIDE
4 / 10
WELCOME
ASKEY® , an industry leader in networking, introduces RTF7000
which is a single LAN port GPON ONT offering a bandwidth of
up to 1 G bps.
The RTF7000 supports optical network termination
management and control interface (OMCI), which helps the
service provider to provision services remotely.

RTF7000 GPON MINI-ONT -GETTING STARTED GUIDE
5 / 10

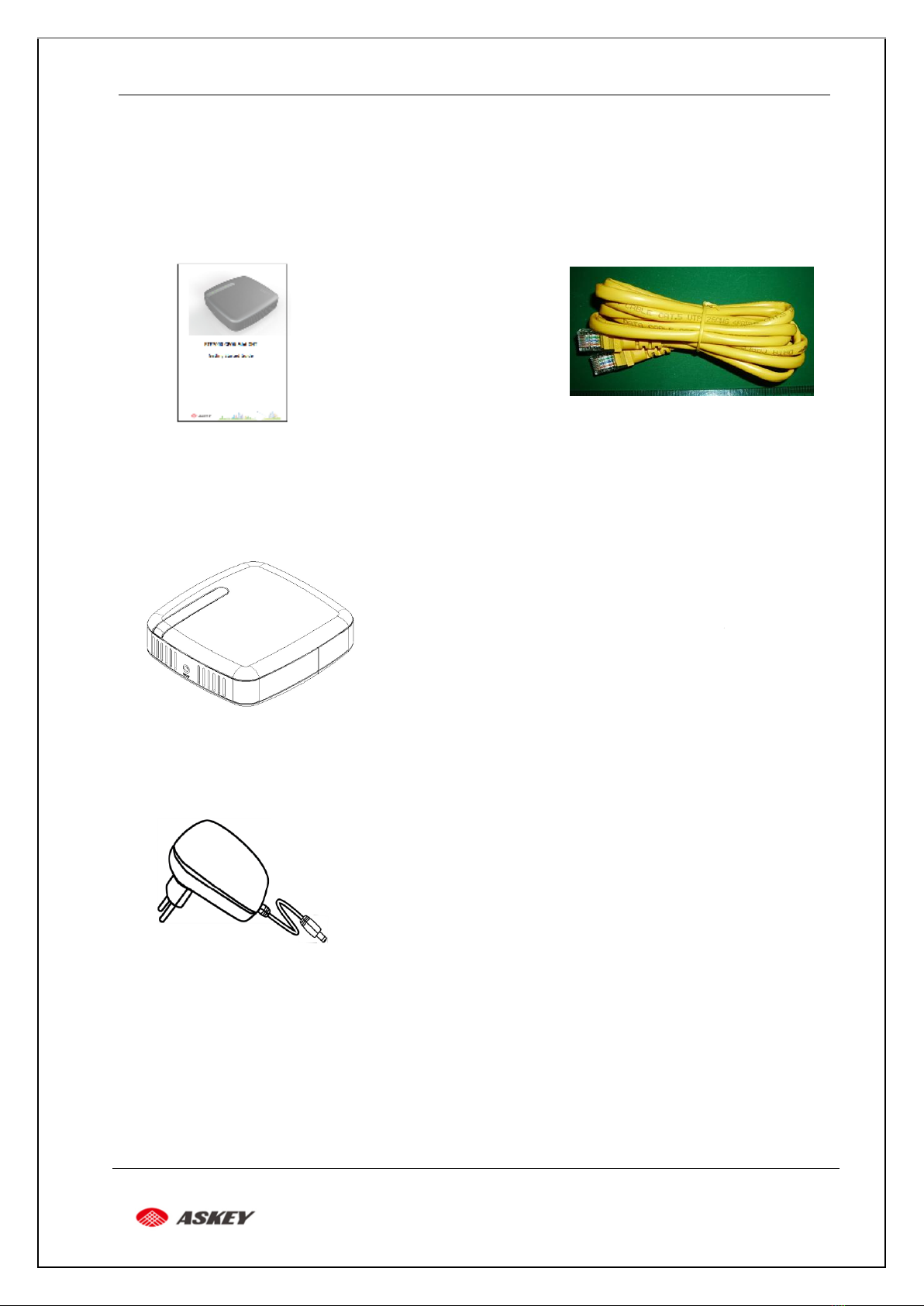

AC Power Adaptor x 1
RTF7000 GPON MINI-ONT
Ethernet cable x 1
BOX CONTENT
Getting Started Guide (this document)

RTF7000 GPON MINI-ONT -GETTING STARTED GUIDE
6 / 10
STATUS INDICATOR
Status indicators only become visible when the RTF7000
GPON Mini-ONT is powered and the appropriate feature is
operational.
POWER STATUS (Power status of the product)
Off: ONT is switched-off.
Green Steady on: ONT is switched-on.
ALARM
Detect problems in the power levels of the optical signal
received by the ONT
Off: Optical power >-27dBm
Red Steady ON: Optical B+: Optical power <-27dBm
CONNECTION
Identify the different synchronization and activation phases
of an ONT
Off: ONT is not synchronized with the PON
Green Blinking: ONT is synchronizing with the PON and it is
in the activation phase
Green Steady On: ONT has reached its Operational State
during the activation phase, remaining in this state as long
as the ONT is working
ETH (Show the status of the Ethernet port)
Off: Link is down
Green Steady On: Link is up but no traffic detected
Green Blinking: Link is up and Rx/Tx traffic is detected

RTF7000 GPON MINI-ONT -GETTING STARTED GUIDE
7 / 10
CONNECTIONS OVERVIEW
Power Switch
Power connector
(DC adapter plug-in)
LAN Port
(Connect to high speed internet)
GPON Port
(Connect to fiber cable)
Reset Switch

RTF7000 GPON MINI-ONT -GETTING STARTED GUIDE
8 / 10
QUICK SETUP
Step 1: Connect Fiber cable to GPON port of Mini-ONT
Step 2: Connect Ethernet cable (RJ-45) to GE port of Mini-ONT
Step 3: Connect power adapter to Mini-ONT and AC power
jack
Step 4: Turn on power switch, and check:
A. POWER LED should be steady ON (Green).If not, please
check the power cable is connected properly.
B. CONNECTION LED should be steady ON. If not, please
check the fiber cable is connected properly. If problem still
exists, please contact with local dealer.
C. ETH LED should be steady ON when Ethernet cable is
connected properly or blinking when RX/TX traffic is detected.
D. Check ALARM LED is OFF. If ALARM LED is ON, please
check fiber cable is connected properly. If the alarm still
existed, please contact with local agent.
Step 5: Wall mounting or free standing
Danger —Fiber cables transmit invisible laser light. To avoid eye
damage or blindness, never look directly into fibers, connectors, or
adapters.
Warning —Be careful to maintain a bend radius of no less than 1.5 in.
(3.8 cm) when connecting the fiber optic cable. Too small of a bend
radius in the cable can result in damage to the optic fiber.

RTF7000 GPON MINI-ONT -GETTING STARTED GUIDE
9 / 10
The RTF7000 GPON Mini-ONT can be either free standing on a
flat sturdy surface or wall mounted.

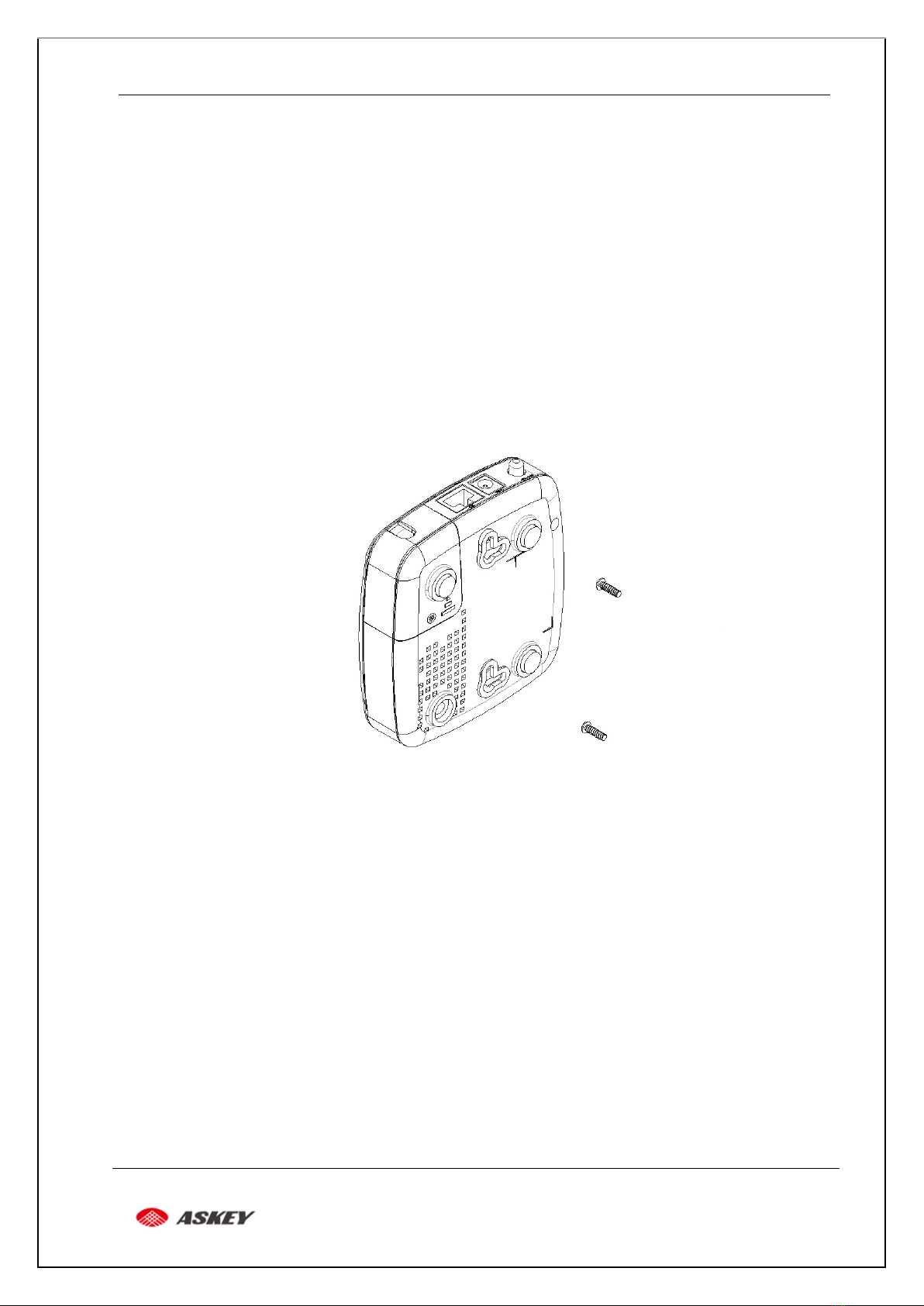

To wall mount the RTF7000 GPON Mini-ONT, fix the wall
screws to the wall as shown in the below illustration Use the
stand’s screw holes as guidelines to drill 2 fixing points. Insert
the wall anchors if necessary for your wall type.
Attach the RTF7000 GPON Mini-ONT (with cables already
connected) to the screws.

RTF7000 GPON MINI-ONT -GETTING STARTED GUIDE
10 / 10

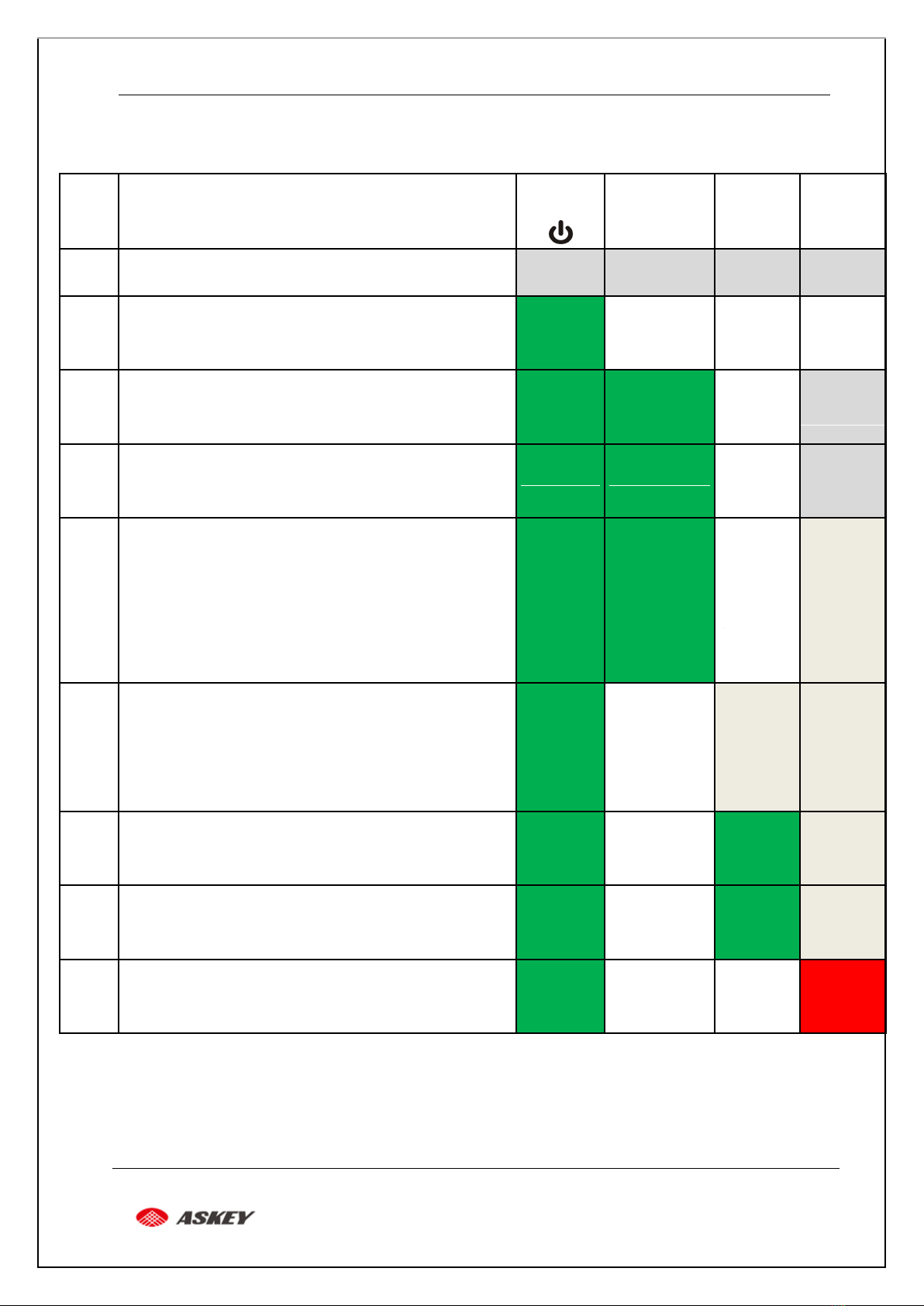

LED INDICATOR FOR TROUBLESHOOTING
Case
Description
Power
Connection
ETH
Alarm
1
Power Off
Off
Off
Off
Off
2
The RTF7000 is powered on
Green
steady
Any
Any
Any
3
The RTF7000 is in ranging mode
(connection green blinking for 3~5 sec)
Green
steady
Green
Blinking
Any
Off
4
GPON connection for RTF7000 is ready
Green
steady
Green
steady
Any
Off
5
RTF7000 SN mismatch, GPON password
mismatch or RTF7000 failed
(connection green is blinking
continuously) In failure situation,
please contact with local dealer.
Green
steady
Green
Blinking
Any
Off
6
RTF7000 was not connected to
Ethernet port of PC or RTF7000 LAN
connection failed. In failure situation,
please contact with local dealer.
Green
steady
Any
Off
Off
7
RTF7000 is connected to Ethernet port
of PC with flowing traffic
Green
steady
Any
Green
Blinking
Off
8
RTF7000 is connected to Ethernet port
of PC but no traffic
Green
steady
Any
Green
Steady
Off
9
Reception power level is too
low(please contact local dealer)
Green
steady
Any
Any
Red
Steady
