Dear customer!
Congratulations on choosing this Asko wine reserve. This product is designed with simple operation
and optimum comfort in mind.
These instructions for use explain how you can make best use of this appliance. These instructions
contain information about the operation of the appliance and background information that may be
of help to you during its use.
WARNING!
Read the safety instructions before using the appliance!
Read these instructions thoroughly before you first use the appliance, and keep the instructions
for future use.
Carefully read the instructions for use before using the appliance.
Link to the EU EPREL database
The QR code on the energy label supplied with the appliance provides a web link to the registration
of this appliance in the EU EPREL database. Keep the energy label for reference together with the
user manual and all other documents provided with this appliance. It is possible to find information
related to the performance of the product in the EU EPREL database using the link
https://eprel.ec.europa.eu and the model name and product number that you can find on the rating
plate of the appliance. For more detailed information about the energy label, visit
www.theenergylabel.eu.
The following symbols are used throughout the manual and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning –general danger
ELECTRIC SHOCK!
Warning –danger of electric shock
DANGER OF FIRE!
Warning –danger of fire
3
Introduction

Before the installation and use of the appliance, carefully read the
supplied instructions. The manufacturer is not responsible if an
incorrect installation and use causes injuries and damages. Always
keep the instructions with the appliance for future reference.
Safety of children and vulnerable people
•The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
•Children should be supervised to ensure that they do not play
with the appliance.
•Cleaning and user maintenance shall not be made by children
without supervision.
•Keep all packaging away from children.
For European markets only
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
•Children shall not play with the appliance.
•Cleaning and user maintenance shall not be made by children
without supervision.
•Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
General safety
•The lamp in this household appliance is only suitable for
illumination of this appliance. The lamp is not suitable for
household room illumination.
•WARNING! This appliance is intended to be used in household
and similar applications such as:
4
Safety instructions

- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
WARNING!
•Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
•Do not store explosive substances such as aerosol cans with
a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
WARNING!
Connect to potable water supply only.
5
Safety instructions

Installation
WARNING!
This appliance should only be connected by a registered installer.
•Remove all the packaging.
•Do not install or use a damaged appliance.
•Obey the installation instruction supplied with the appliance.
•WARNING! To avoid any hazard resulting from poor stability of
the appliance, make sure it is installed as instructed.
•Always be careful when you move the appliance because it is
heavy. Always wear safety gloves.
•Make sure the air can circulate around the appliance.
•Wait at least 4 hours before connecting the appliance to the power
supply. This is to allow the oil to flow back in the compressor.
•Do not install the appliance close to radiators or cookers, oven
or hobs.
•Do not install the appliance where there is direct sunlight.
•Do not install this appliance in areas that are too humid or too
colds, such as the construction appendices, garages or wine
cellars.
•When you move the appliance, lift it by the front edge to avoid
scratching the floor.
WARNING!
When positioning the appliance, ensure the supply cord is not
trapped or damaged.
Electrical connection
WARNING!
Risk of fire and electrical shock.
•The appliance must be earthed.
6
Safety instructions

•All electrical connections should be made by a qualified
electrician.
•Make sure that the electrical information on the rating plate agrees
with the power supply. If not, contact an electrician.
•Always use a correctly installed shockproof socket.
•Do not use multi-plug adapters and extension cables.
•Make sure not to cause damage to the electrical components
(e.g. mains plug, mains cable, compressor). Contact the Service
or an electrician to change the electrical components.
•The mains cable must stay below the level of the mains plug.
•Connect the mains plug to the mains socket only at the end of
the installation. Make sure that there is access to the mains plug
after the installation.
•Do not pull the mains cable to disconnect the appliance. Always
pull the mains plug.
•WARNING! Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
•If a stationary appliance is not fitted with a supply cord and a
plug, or with other means for disconnection from the supply mains
having a contact separation in all poles that provide full
disconnection under overvoltage category III conditions, the
means for disconnection must be incorporated in the fixed wiring
in accordance with the wiring rules. This is also applicable for
appliances with a supply cord and plug when the plug is not
accessible after installing the appliance. Using an omnipolar
switch with a contact separation of at least 3 mm fitted in the fixed
wiring will fulfil this requirement.
Use
WARNING!
Risk of injury, burns, electrical shock or fire.
•Do not change the specification of this appliance.
7
Safety instructions

•Do not put electrical appliances (e.g. ice cream makers) in the
appliance unless they are stated applicable by the manufacturer.
•Be careful not to cause damage to the refrigerant circuit. It
contains isobutene (R600a), a natural gas with a high level of
environmental compatibility. This gas is flammable.
•If damage occurs to the refrigerant circuit, make sure that there
are no flames and sources of ignition in the room. Ventilate the
room.
•Do not let hot items to touch the plastic parts of the appliance.
•Do not store flammable gas and liquid in the appliance.
•Do not put flammable products or items that are wet with
flammable products in, near or on the appliance.
•Do not touch the compressor or the condenser. They are hot.
Care and cleaning
WARNING!
Risk of injury or damage to the appliance.
•Before maintenance, deactivate the appliance and disconnect
the mains plug from the mains socket.
•This appliance contains hydrocarbons in the cooling unit. Only a
qualified person must do the maintenance and the recharging of
the unit.
•Regularly examine the drain of the appliance and if necessary,
clean it. If the drain is blocked, defrosted water collects in the
bottom of the appliance.
Disposal
WARNING!
Risk of injury or suffocation.
•Disconnect the appliance from the mains supply.
•Cut off the mains cable and discard it.
8
Safety instructions

•Remove the door to prevent children and pets to be closed inside
of the appliance.
•The refrigerant circuit and the insulation materials of this appliance
are ozone friendly.
•The insulation foam contains flammable gas. Contact your
municipal authority for information on how to discard the appliance
correctly.
•Do not cause damage to the part of the cooling unit that is near
the heat exchanger.
9
Safety instructions

Selecting the location
•Place the appliance in a dry and well aired room. The permitted ambient temperature range for
the appliance depends on the appliance's climate class, which is shown on the type plate.
•Do not place the appliance near a source of heat, such as a gas cooker, radiator or boiler, etc.,
and do not expose it to direct sunlight.
Relative humidityAmbient temperature range °CClassDescription
≤75%
+10 to +32SNExtended temperate
+16 to +32NTemperate
+16 to +38STSubtropical
+16 to +43TTropical
WARNING!
Do not place the appliance in a room where the temperature can fall below 5 °C: the appliance
may not work properly or become defective!
WARNING!
The appliance is not suitable for outdoor use and it may not be exposed to rain.
•The appliance must be placed at a distance of at least 5 cm from an electrical or gas cooker
and at least 30 cm from a radiator or heater. An insulation panel must be fitted when these
distances cannot be kept.
•The appliance must be placed at a distance of about 5 cm from the wall, back and sides of a
cupboard. A kitchen cupboard above the wine reserve must have a gap of at least 5 cm between
the back of the cupboard and the wall. This is needed to make sure that there is sufficient cooling
air for the condenser.
•The plug of the installed appliance must remain accessible!
WARNING!
Place the appliance in a room with a sufficient volume of air. The room must have a volume of at
least 1 m3of air for every 8 grams of refrigerant. The quantity of refrigerant is shown on the type
plate on the inside of the appliance.
•The kitchen unit in which the appliance is to be built in must have an opening of at least 200 cm2
in its base to allow sufficient air to circulate.
•The appliance's air outlet is at the top. Make sure that the outlet is not blocked. Blocking the
outlet can result in damage to the appliance.
10
Installation and connection

How to connect electricity
Connect the appliance to the power mains using a connection cable. The wall outlet should be fitted
with a ground contact (safety socket). Nominal voltage and frequency are indicated on the rating
plate/label with basic information on the appliance.
The appliance must be connected to the power mains and grounded in compliance with the effective
standards and regulations. The appliance will withstand short-term deviations from the nominal
voltage, but not more than +/- 6%.
WARNING!
DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE.
This provides the best performance and also prevents overloading house wiring circuits, which could
cause a fire hazard from overheated wires.
Never unplug your wine reserve by pulling on the power cord. Always grip plug firmly and pull straight
out from the outlet.
Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do
not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the wine reserve away from the wall, be careful not to roll over or damage the power
cord.
Wine reserve location
Do not install the wine reserve where temperatures will be below 16°C because it will not maintain
proper temperatures, and the wine reserve could develop high internal humidity.
For proper installation, the wine reserve must be placed on a level surface of hard material the same
height as the rest of the flooring. This surface should be strong enough to support a fully loaded
wine reserve, or approximately 500 kg each. See the Installation Instructions for complete directions.
Clearances
Allow 42,5 cm minimum clearance between the door and wall for a full 115° door swing. Allow 9 cm
min. clearance to a wall for a 90° door swing for Stainless Steel panel.
11
Installation and connection

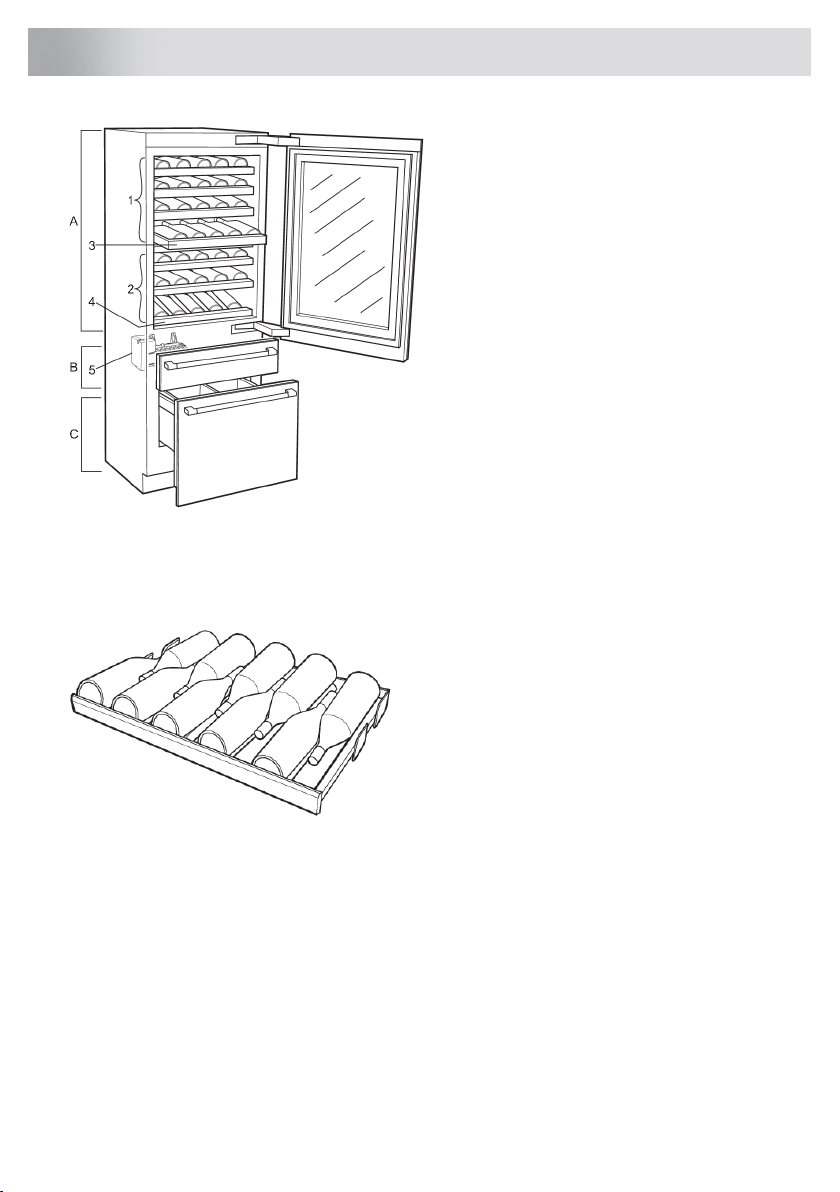

A Wine Reserve
1. Upper Wine Reserve
2. Lower Wine Reserve
3. Full Extension Drawers
4. Wine Display Shelf
B Freezer Drawer
5. Icemaker
C Customizable Drawer
Wine bottle arrangement
Full-Extension Drawers
The top 6 drawers are full-extension drawers,
with each drawer holding up to 10 bottles. The
bottles will be stored with necks alternating
from front to back.
12
Description of the appliance

Wine Display Shelf
The wine display shelf can either be in a
horizontal position or an angled position. The
horizontal position can hold 18 bottles. The
angled position holds 5 bottles. The shelf can
be angled by lifting the shelf onto pegs on the
back wall.
Peg
Horizontal Position
Angled Position
Angled Position
Wine bottle loading tips and suggestions
•Keep wines that you plan to use for everyday drinking and entertaining on the front half of the
full-extension drawers where labels are completely visible. Place wines for aging or longer-term
storage in the rear.
•Do not allow children to climb, stand or hang on the wine reserve full-extension drawers. They
could seriously injure themselves and possibly cause damage to the wine reserve.
•Group your wine inventory according to type: i.e., white wines in the cooler zones and red wines
in the warmer zones.
•Store red and white wines in separate zones so you can keep them at diff erent temperatures.
Customizable drawer
The customizable drawer can be used as a freezer or as a fresh-food refrigerator.
To customize your drawer:
Press the ZONE indicator on the control pad to select the customizable drawer.
13
Description of the appliance

Recommended Temperatures for Customizable Drawer:
TemperatureFunctionButton
3°CFresh FoodChill
-18°CFreezerFreeze
This drawer has LED strip lighting above it . There is also one adjustable divider that can be placed
in different positions and a bin that can slide left or right in the drawer.
To change the divider position:
1. Pull in the tabs at the top of the divider to release it from the tab holes at the front and back of
the drawer.
2. Lift the divider off of the raised tabs at the bottom of the drawer.
3. Move the divider to its new location and slide it onto the raised tabs.
4. Pull in the tabs at the top of the divider and position the divider so the tabs will fit into the tab
holes. Release the tabs so they lock into place.

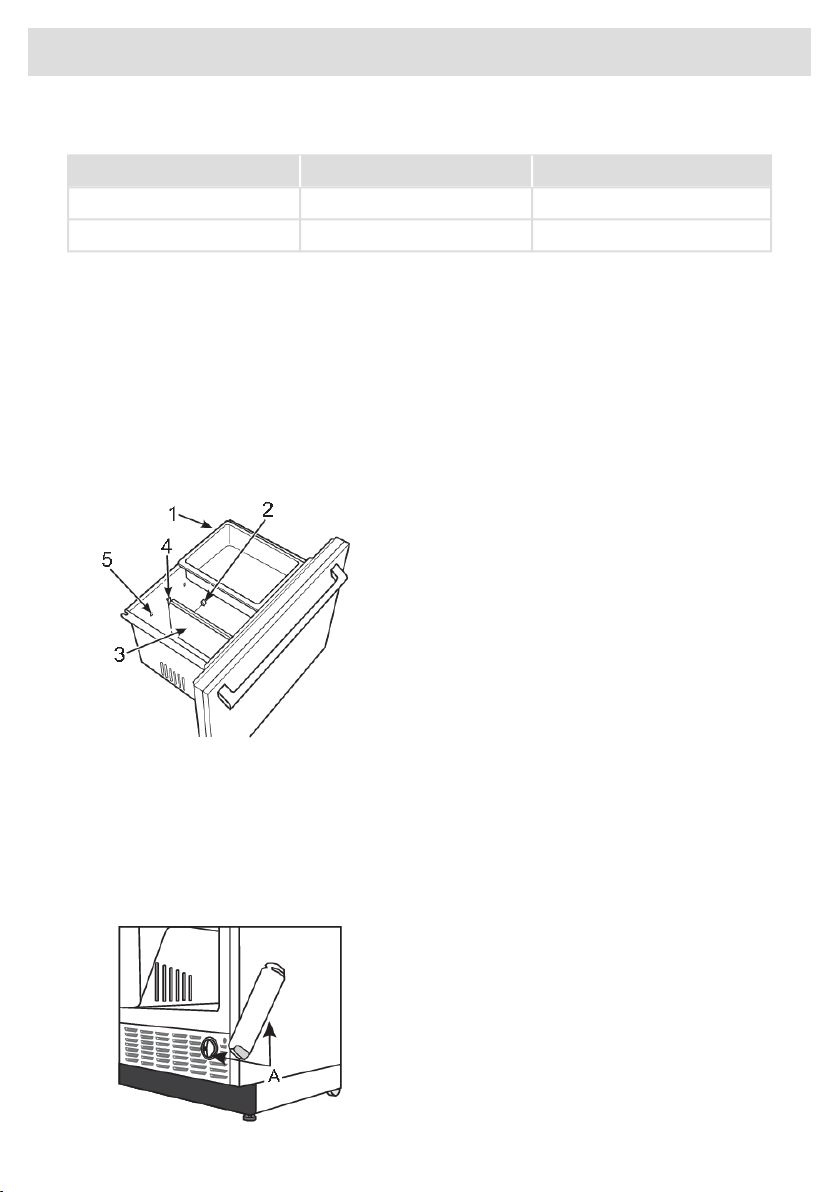

1. Removable sliding bin
2. Raised Tab
3. Divider
4. Tab
5. Tab Hole
Accessing the icemaker and freezer drawer
The icemaker is located on the ceiling of the freezer drawer and to the left rear. There is an LED strip
in the freezer drawer ceiling. The freezer drawer contains 1 ice bin.
Water filter cartridge
A. Water filter cartridge
The water filter cartridge is located below the
customizable drawer on the lower-right side
of the appliance.
14
Description of the appliance

To Replace the Filter:
While the filter cartridge may last up to 1 year,
replacement frenquency will depend on ice
usage. There is a replacement indicator light
for the water filter cartridge on the control
panel. The filter cartridge should be replaced
when the word REPLACE appears beneath
FILTER on the control panel.
Installing the Filter Cartridge:
1. Open the customizable drawer to gain access to the water filter cartridge.
2. Remove the old cartridge by twisting counterclockwise. Pull forward on the filter to remove.
3. Insert the new filter into the compartment and twist clockwise until the cartridge stops.
To Reset the Filter Status Light:
Press and hold the FILTER button for 3 seconds.
Filter Bypass Plug:
You must use the filter bypass plug if:
1. You have a household reverse osmosis water system and/or another form of home water filtration
system.
2. A replacement filter is not available.
The icemaker will not operate without the filter or filter bypass plug installed.
The bypass plug and mini manual are located in the bottom machine compartment.
IMPORTANT NOTE: Remove the water filter to immediately stop any water leak from the icemaker.
15
Description of the appliance

Wine –Upper Compartment
Wine - Lower Compartment
Upper Drawer - Freezer
Lower Drawer - Customizable
The temperature display shows the actual temperature of the wine compartment, freezer drawer
or customizable drawer when each one is selected by toggling the ZONE indicator. The actual
temperature will vary from the set temperature based on factors such as frequency of door openings,
amount of food, defrost cycling and room temperature.
NOTE: Frequent door openings or doors left open for periods of time may increase the internal
temperature of the compartments temporarily.
To turn off the cooling system, toggle the ZONE indicator to the fresh-food mode. Press the plus
(+) pad until the display shows OFF.
To turn the cooling system on, toggle the ZONE indicator to the fresh-food mode and press the
minus (–)pad until the desired temperature is displayed. The preset temperature of -18°C for the
freezer or 3°C for the fresh-food unit will appear in the display.
To check the current temperature setting for a compartment , press the plus (+) or minus (–)
pad once. After 5 seconds, the display will return to the actual temperature.
16
Operating the appliance

To change the temperature settings, press the plus (+) or minus (–)pad for each increment to the
desired temperature set point. Allow 24 hours for the unit to reach the temperature you have set.

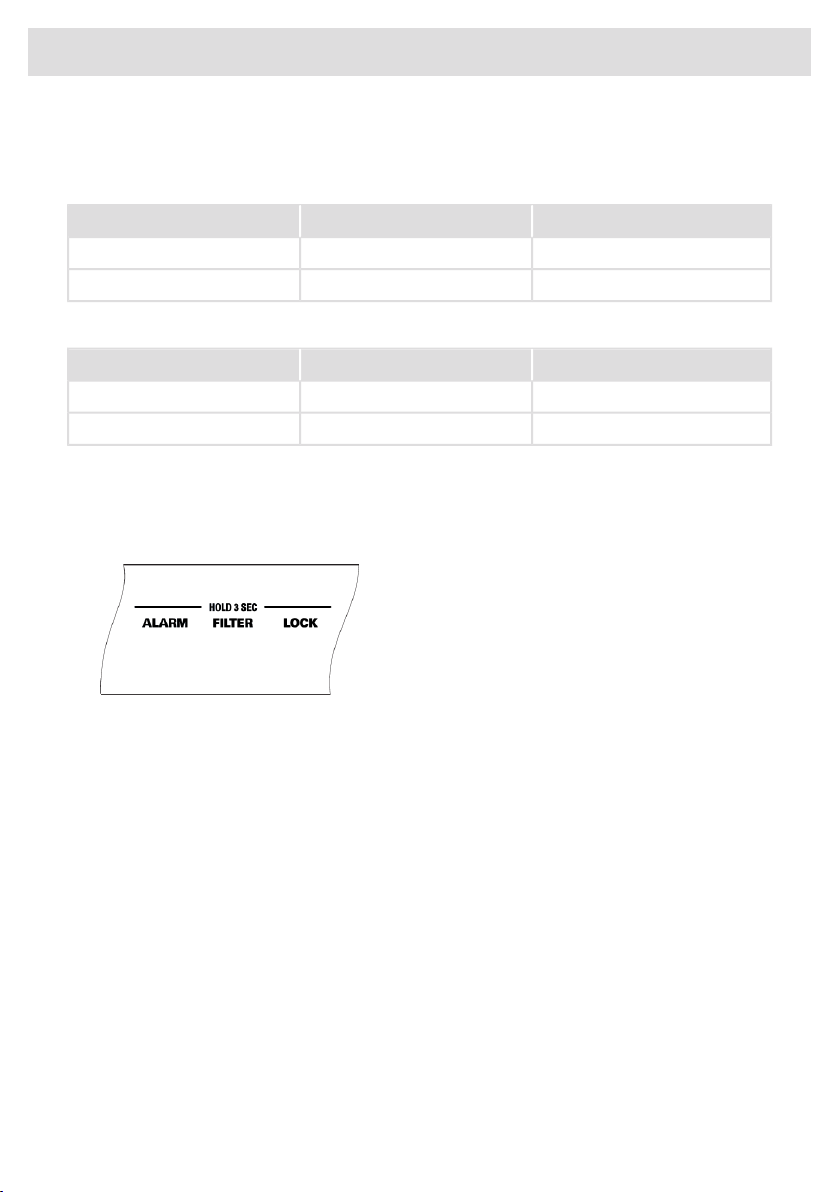

Temperature Ranges
HighLow
18°C4°CWine
-14°C-21°CFreezer Drawer
Customizable Drawer Temperature Ranges
HighLow
-14°C-21°CFreezer
8°C1°CChill
NOTE: Setting the controls to OFF stops cooling, but does not shut off electrical power to the unit .
All readings in °C will be rounded.
Alarm
To turn the Alarm feature on, press and hold
the ALARM button for 3 seconds. ALARM will
be underlined when active. To turn off , press
and hold the ALARM button for 3 seconds.
The underline will disappear. When the
ALARM is active, the alarm will flash and beep
if you keep the door open for more than 2
minutes.
Automatic icemaker
A newly installed wine reserve may take 12–24 hours to begin making ice. The wine reserve is
shipped with the icemaker set to ON.
The icemaker will produce seven cubes per cycle —approximately 15 cycles in a 24-hour period,
depending on freezer compartment temperature, room temperature, number of door openings and
other use conditions.
If the wine reserve is operated before the water connection is made to the icemaker, set the icemaker
to OFF. To set the icemaker to OFF, press the ZONE indicator on the control pad twice to select the
freezer drawer. Press the ICE icon to the right . The line under ICE will disappear and the word OFF
will show under ICE. Throw away the fi rst full bucket of ice. Be sure nothing interferes with the sweep
of the feeler arm.
When the bin fills to the level of the feeler arm, the icemaker will stop producing ice.
It is normal for several cubes to be joined together.
If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink.
17
Operating the appliance

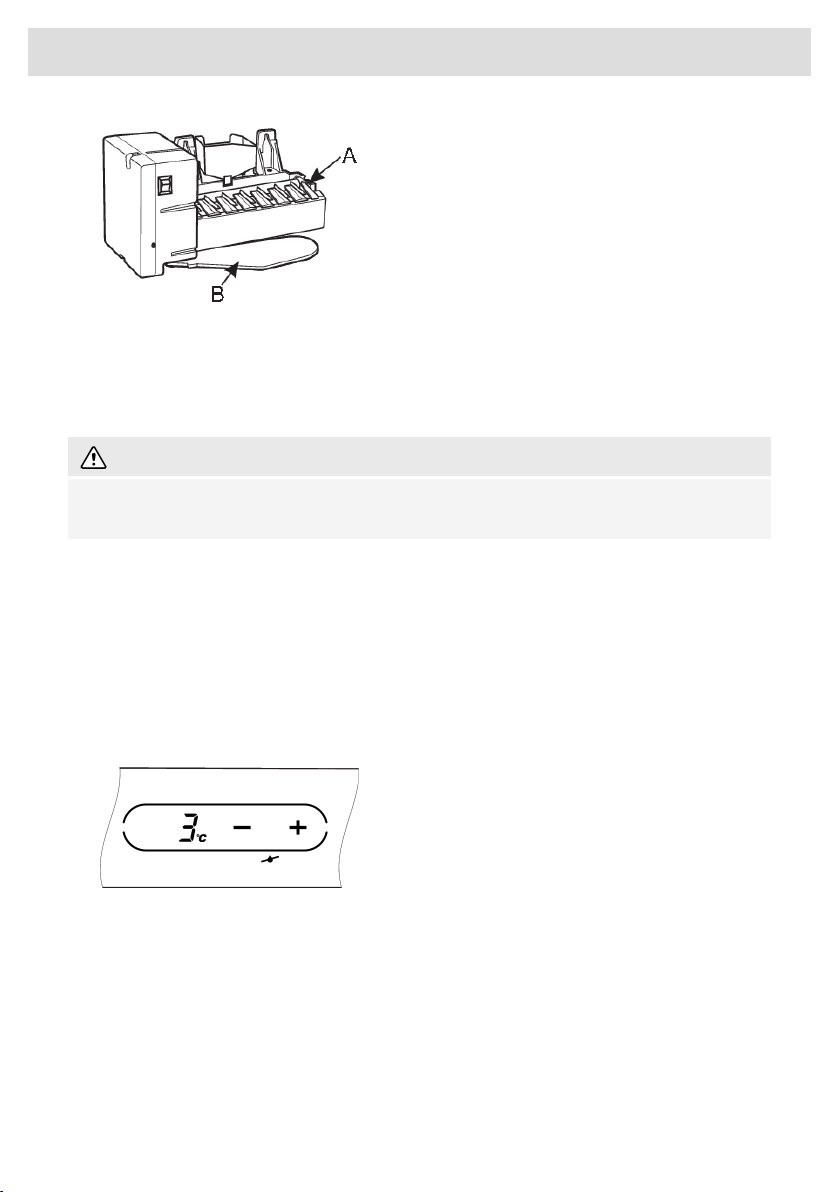

AIcemaker
BFeeler Arm
After the icemaker has been turned on again, there will be a delay of about 45 minutes before the
icemaker resumes operations.
NOTE: In homes with lower-than-average water pressure, you may hear the icemaker water valve
cycle on several times when making one batch of ice.
WARNING!
Icemaker works best between 300 kPa (3 bar inlet water pressure) and 800 kPa (8 bar inlet
water pressure) home water pressure.
Child control lockout
This child control lockout feature prevents unwanted changes to your temperature settings.
After the desired temperature is set , the temperature can be locked. To lock, press and hold the
LOCK button for 3 seconds. To unlock, press and hold the LOCK button for 3 seconds.
External moisture control
This product is equipped with an external moisture control feature. The wine reserve is shipped with
the external moisture control feature off.
In some humid environments, moisture can
form on the front surface of the wine reserve
cabinet. If moisture does appear on the front
surface of the wine reserve cabinet, turn on
the external moisture control feature by
pressing and holding the ALARM and LOCK
buttons on the control panel for 5 seconds.
When activated, a small picture of a water
droplet with a line through it will appear below
the (+) and (–)signs on the control panel.
18
Operating the appliance

LED lighting
This wine reserve has LED lighting on both
sides of the interior as well as above the
freezer drawer and above the customizable
drawer.
The wine reserve has a display light option for
the interior side lights: full power and 1/2
power. In display mode at either full or 1/2
power, the lights will stay on after the door is
closed and automatically go off after 1 hour.
To access the lighting options, press the ZONE
indicator on the control pad. In wine mode, the
LIGHTS button is to the right on the control
pad. When lights are at full power, there are 2
bars under LIGHTS; at 1/2 power, there is 1
one bar; when the lights are off , there are no
bars.
19
Operating the appliance

Recommended distribution
Wine reserve
•for storing wine bottles
Freezer drawer with icemaker
•ice, ice cream, frozen product.
Customizable drawer
•set as Freeze: leftovers, ice, pizza, meat, fish, bread,...
•set as Chill: dairy products, ready-to-cook meals, desserts, soft drinks, beer and cooked food,
meat, meat produce, delicatessen etc.
WARNING!
Do not store lettuce, eggs, apples, pears, grapes, peaches, yoghurt, buttermilk, sour cream or
mayonnaise in the freezer.
Avoid contamination of food
To avoid contamination of food, please respect the following instructions:
•Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
•Regularly clean surfaces that can come in contact with food and accessible drainage systems.
•Clean water tanks if they have not been used for 48 h; flush the water system connected to a
water supply if water has not been drawn for 5 days.
•Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with
or drip onto other food.
•If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
Freezing and storing foods in the freezer
Important recommendations for freezing fresh food
•The maximum quantity of food that you can put in the freezer in one go is stated on the type
plate. Putting more than this maximum quantity of food into the freezer will slow the freezing
process and reduce the quality. Moreover, this will also harm the quality of frozen food already
stored in the freezer.
•Use only good-quality fresh food that is suitable for freezing.
•Allow hot food to cool to room temperature.
•Food needs to be frozen quickly. It is recommended that you use small packs.
•Use air and watertight packaging to prevent the food from drying out and lose its vitamins.
•Note the type and quantity of the food on the packaging, together with the date on which it was
frozen.
•Do not allow fresh food to come into contact with frozen food.
20
Storing and freezing
