1
DE
SL
HU
EN
GENERAL INFORMATIONS
SYMBOLS
This manual contains particularly important information that should be read with care.
Each signal consists of a different symbol to make clear the content of the text that follows it, and to facilitate the
placement of the subjects in the different areas.
CAUTION
This symbol indicates situations of particular danger, which could result in death or
serious injury if not avoided.
WARNING
This symbol indicates a security generic warning. It is used to put warn about
potential danger of personal injury or damage to things.
Failure to fully comply with these requirements may cause serious damage to the
vehicle and in some cases void the warranty.
Right behaviour is indicated to prevent damaging nature by using the vehicle.
eS1_eS2_eS3_Rev_0_EN.indb 1eS1_eS2_eS3_Rev_0_EN.indb 1 4/28/2017 9:04:59 AM4/28/2017 9:04:59 AM

2
GENERAL INFORMATIONS
SAFETY IMPORTANT INFORMATION
CAUTION
It is very important for you to know the electric scooter: read and understand this
manual before the first use.
CAUTION
This operating manual is part of the scooter, keep it for future reference. If the
scooter is sold, the manual must be delivered to the next owner.
CAUTION
The scooter is not intended to be used by persons with reduced physical, sensory or
mental capacities, or lack of experience or knowledge, unless a person responsible
for their safety has supervised or instructed them concerning the use of the scooter.
CAUTION
Failure to fully comply with these requirements may cause serious damage to
people, the vehicle, the environment and in some cases void the warranty.
CAUTION
Each processing that changes either performance or main structure of the scooter,
besides from being forbidden by law, void vehicle compliance and approvals,
making it dangerous.
eS1_eS2_eS3_Rev_0_EN.indb 2eS1_eS2_eS3_Rev_0_EN.indb 2 4/28/2017 9:04:59 AM4/28/2017 9:04:59 AM

3
GENERAL INFORMATIONS
DE
SL
HU
EN
IDENTIFICATION

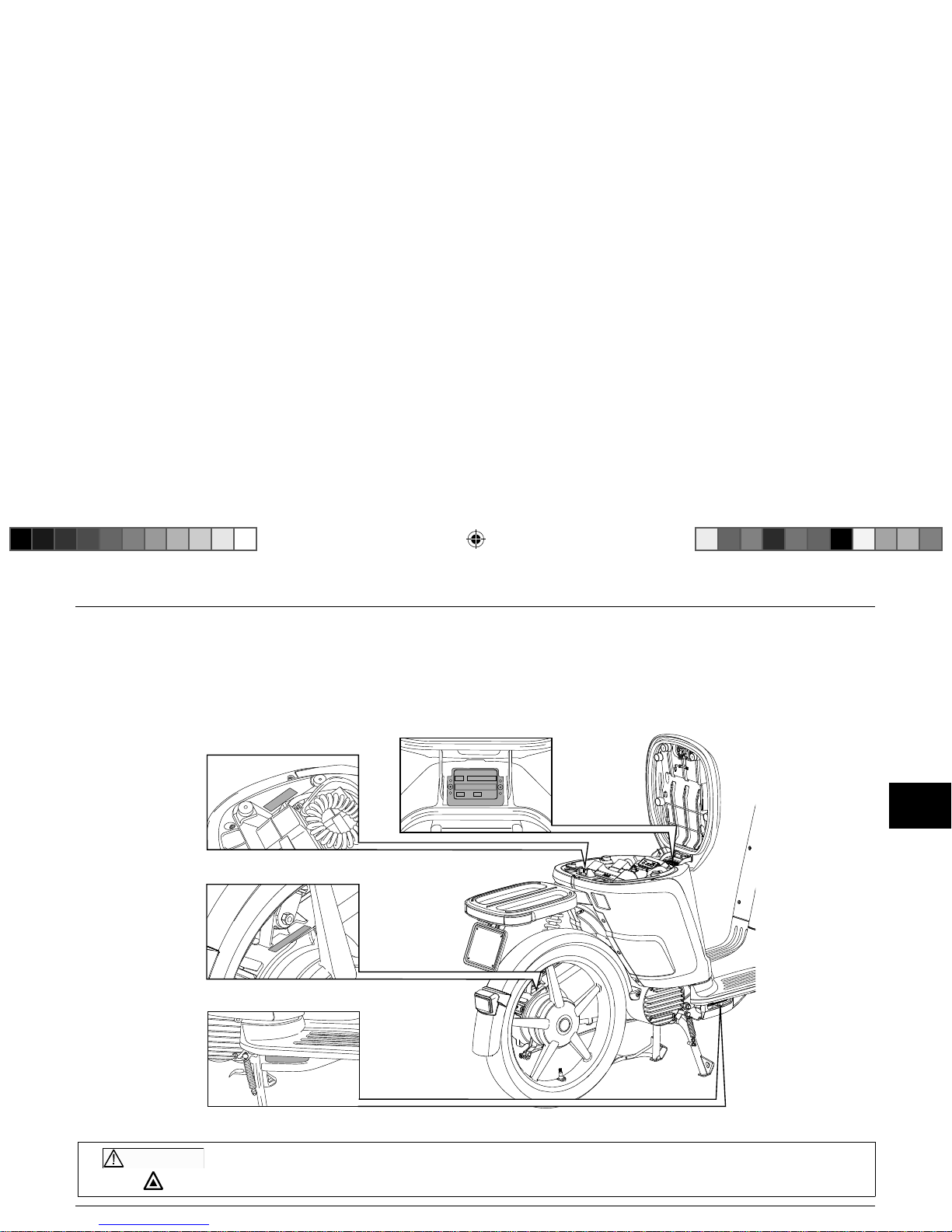

Identification plates are stamped on frame, engine casing and battery compartment. They must be indicated when
ordering spare parts.
It is advisable to check the correspondence of vehicle plates with the ones present in its documents.
WARNING
Alteration of identification plates can incur in serious penalties.
(*) Valid only for eS1- eS2. Not required for eS3.
ASKOLL EVA S.R.L.
TYPE:
(code: )
dB(A) min (-- kW)
1
- - - - -
(*)
eS1_eS2_eS3_Rev_0_EN.indb 3eS1_eS2_eS3_Rev_0_EN.indb 3 4/28/2017 9:04:59 AM4/28/2017 9:04:59 AM

4
CONTROLS AND INSTRUMENTS
SCOOTER OVERVIEW
eS1RIGHT SIDE
A. Rear view mirror
B. Headlights
C. Turn indicator
D. Front LH reflector
E. Stand
F. Battery compartment
G. Seat
H. Seat hook
I. Tail light
J. License plate holder
K. Rear reflector
L. Engine
M. Front RH reflector
N. Ignition switch
eS1LEFT SIDE
A
B
C
D
E
F
G
H
I
J
K
L
M
N
eS1_eS2_eS3_Rev_0_EN.indb 4eS1_eS2_eS3_Rev_0_EN.indb 4 4/28/2017 9:05:00 AM4/28/2017 9:05:00 AM

5
CONTROLS AND INSTRUMENTS
DE
SL
HU
EN
SCOOTER OVERVIEW
eS2RIGHT SIDE
A. Rear view mirror
B. Headlights
C. Turn indicator
D. Front LH reflector
E. Stand
F. Battery compartment
G. Seat
H. Seat hook
I. Tail light
J. License plate holder
K. Rear reflector
L. Engine
M. Front RH reflector
N. Ignition switch
O. Passenger grab handle
P. Passenger pegs
eS2LEFT SIDE
A
B
CDE
F
G
H
I
J
K
L
M
N
O
P
eS1_eS2_eS3_Rev_0_EN.indb 5eS1_eS2_eS3_Rev_0_EN.indb 5 4/28/2017 9:05:03 AM4/28/2017 9:05:03 AM

6
CONTROLS AND INSTRUMENTS
SCOOTER OVERVIEW
eS3RIGHT SIDE
A. Rear view mirror
B. Headlights
C. Turn indicator
D. Front LH reflector
E. Stand
F. Battery compartment
G. Seat
H. Seat hook
I. Tail light
J. License plate holder
K. Rear reflector
L. Engine
M. Front RH reflector
N. Ignition switch
O. Passenger grab handle
P. Passenger pegs
eS3LEFT SIDE
A
B
CDE
F
G
H
I
J
K
L
M
N
O
P
eS1_eS2_eS3_Rev_0_EN.indb 6eS1_eS2_eS3_Rev_0_EN.indb 6 4/28/2017 9:05:04 AM4/28/2017 9:05:04 AM

7
CONTROLS AND INSTRUMENTS
DE
SL
HU
EN
F. Driving mode switch
G. Engine start switch
H. Throttle control
I. Front brake lever
J. Rear brake lever
A. Instrument panel
B. Key switch
C. Power regeneration switch
D. Turn indicators switch
E. Horn
DASHBOARD (eS1- eS2)
CONTROLS AND INSTRUMENTS POSITION
%%
Km/trip
AB
PWR ECO
Km/
SELECT SET
10
20
Km/h
mph
10
1
20
2
P
U
S
H
I
G
N
I
T
I
O
N
B
C
D
EF
G
H
I
J
A
eS1_eS2_eS3_Rev_0_EN.indb 7eS1_eS2_eS3_Rev_0_EN.indb 7 4/28/2017 9:05:06 AM4/28/2017 9:05:06 AM

8
CONTROLS AND INSTRUMENTS
G. Engine start switch
H. Throttle control
I. Front brake lever
J. Combined brake control lever
K. Headlight switch
A. Instrument panel
B. Key switch
C. Power regeneration switch
D. Turn indicators switch
E. Horn
F. Driving mode switch
DASHBOARD (eS3)
CONTROLS AND INSTRUMENTS POSITION
%%
Km/trip
AB
PWR ECO
Km/
SELECT SET
Km/h
mph
P
U
S
H
I
G
N
I
T
I
O
N
B
K
C
D
EF
G
H
I
J
A
eS1_eS2_eS3_Rev_0_EN.indb 8eS1_eS2_eS3_Rev_0_EN.indb 8 4/28/2017 9:05:07 AM4/28/2017 9:05:07 AM

9
CONTROLS AND INSTRUMENTS
DE
SL
HU
EN
LH CONTROLS
Rear brake lever
Rear drum brake lever is placed on the left side of the
handlebar.
Drum brake lever with combined function (eS3only)
The brake acts on both wheels, with prevalence on
the rear one to ensure greater safety and improved
stopping distances.
Power regeneration switch
During scooter deceleration, the battery can be
automatically recharged by activating the power
regeneration mode.

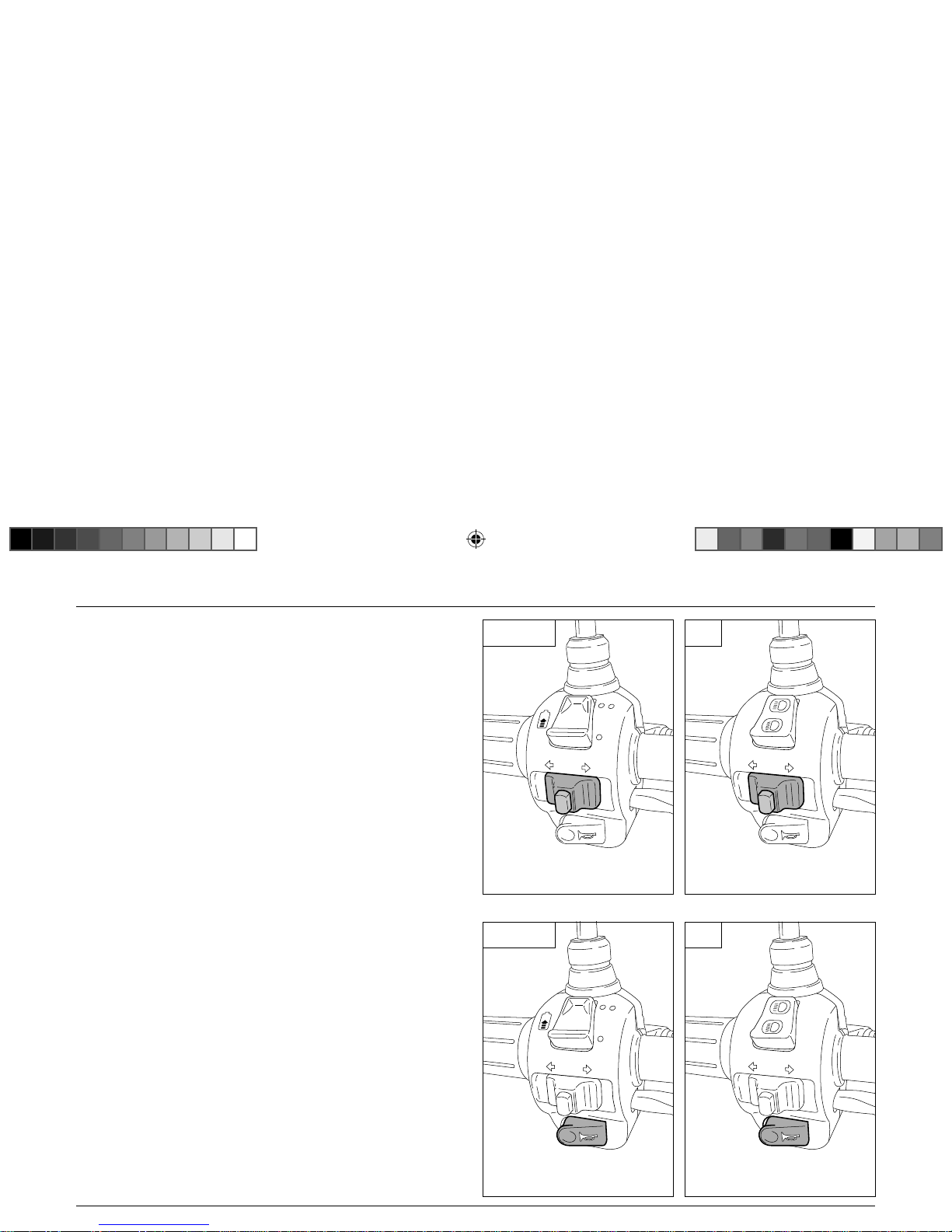

Use the 2 position turn indicators switch to activate or
deactivate power regeneration.
MODE
eS1- eS2eS3
eS1_eS2_eS3_Rev_0_EN.indb 9eS1_eS2_eS3_Rev_0_EN.indb 9 4/28/2017 9:05:07 AM4/28/2017 9:05:07 AM

10
CONTROLS AND INSTRUMENTS
Turn indicators switch
Move the lever to the left to operate LH turn indicator.
Move the lever to the right to operate RH turn indicator.
Press the button in the centre of the lever to turn the
indicators off.
Horn
Press to honk the horn.
eS1- eS2
eS1- eS2
eS3
eS3
eS1_eS2_eS3_Rev_0_EN.indb 10eS1_eS2_eS3_Rev_0_EN.indb 10 4/28/2017 9:05:07 AM4/28/2017 9:05:07 AM

11
CONTROLS AND INSTRUMENTS
DE
SL
HU
EN
RH CONTROLS

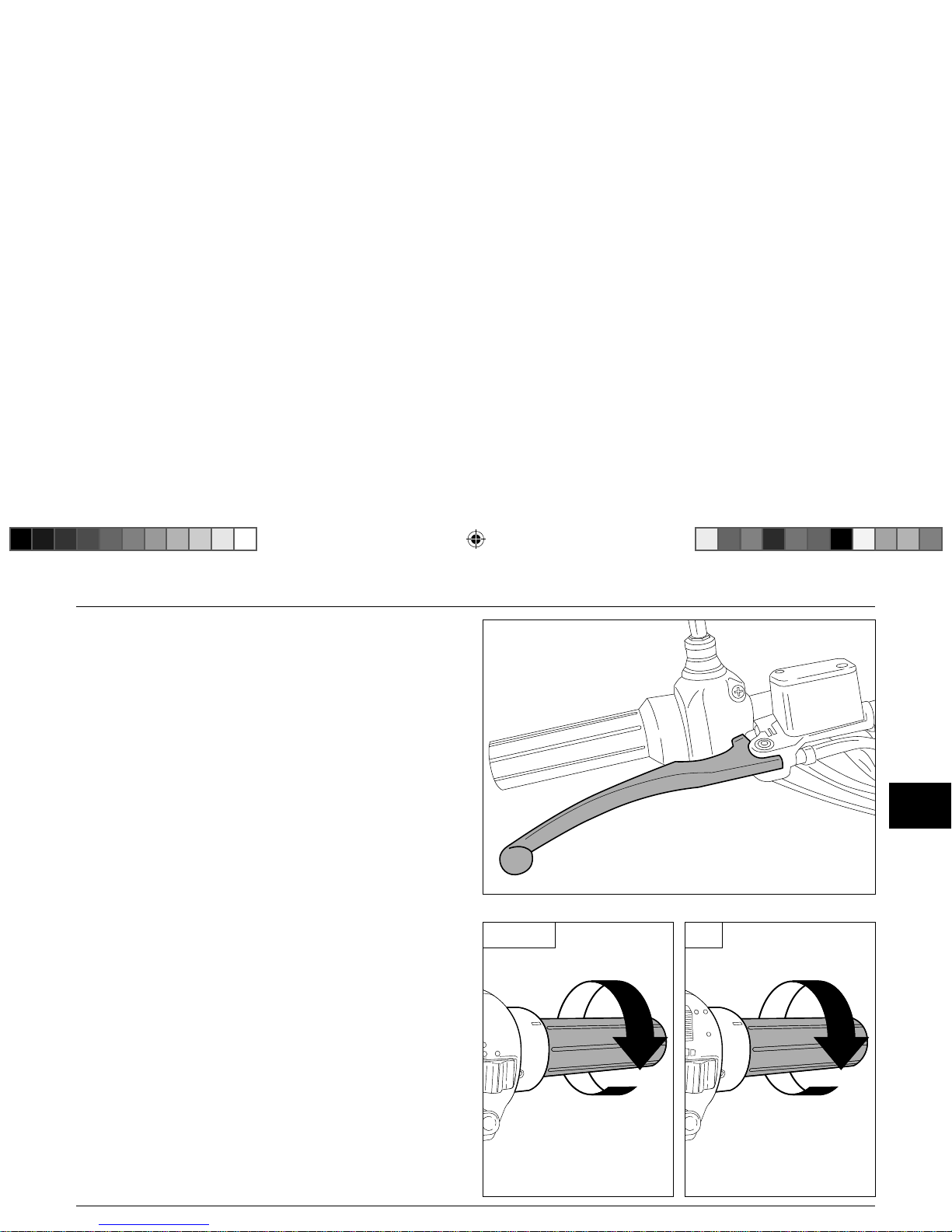

Front brake lever
Front disk brake lever is placed on the right side of the
handlebar.
Throttle control
Scooter speed is adjusted through the grip.
D
E
D
E
eS1- eS2eS3
eS1_eS2_eS3_Rev_0_EN.indb 11eS1_eS2_eS3_Rev_0_EN.indb 11 4/28/2017 9:05:08 AM4/28/2017 9:05:08 AM

12
CONTROLS AND INSTRUMENTS
Driving mode switch
Three different driving modes can be selected using
the switch depending on driving style, road conditions
or other.
Headlight high beam light ON/OFF selector (eS3 only)
Using the selector is possible to activate the high
beam light.
Engine start switch
Pressing the button for 3 seconds will start or stop the
engine depending on key position.
MODE MODE
MODE MODE
eS1- eS2
eS1- eS2
eS3
eS3
eS3
eS1_eS2_eS3_Rev_0_EN.indb 12eS1_eS2_eS3_Rev_0_EN.indb 12 4/28/2017 9:05:08 AM4/28/2017 9:05:08 AM

13
CONTROLS AND INSTRUMENTS
DE
SL
HU
EN
KEY SWITCH
The key switch enables or disables system and
steering lock.
The scooter is provided with a main key and a
duplicate, both can be used to actuate the key switch
and to open the seat.
Please, keep the duplicate key separated from the
main one.
Enabling and disabling the system
Turning the key to the system enables.
Turning the key to the system disables.
WARNING
Do not turn or remove key while driving.
P
U
S
H
I
G
N
I
T
I
O
N
eS1_eS2_eS3_Rev_0_EN.indb 13eS1_eS2_eS3_Rev_0_EN.indb 13 4/28/2017 9:05:08 AM4/28/2017 9:05:08 AM
