The manual contains particularly important information on which it is necessary to focus more carefully.
Each sign consists of a different symbol to make the content of the text that follows it clear and to facilitate the
placement of topics in the different areas.
WARNING
This symbol indicates particularly hazardous situations which, if not avoided, could
result in death or serious injury.
This version of the warning sign will be used throughout the manual.
WARNING
This symbol indicates a generic safety notice. It is used to warn you of the potential
danger of damage to people and / or vehicles.
Failure or incomplete compliance with these prescriptions may be the cause of any
serious damage to the vehicle and in some cases the invalidation of the warranty..
The correct behaviors to be followed are indicated in order not to cause damage to
nature through the use of the vehicle.
LUM eSPRO 2022 01.indd 1LUM eSPRO 2022 01.indd 1 04/10/22 09:3504/10/22 09:35

2
GENERAL INFORMATIONS
IMPORTANT SAFETY INFORMATION
It is of fundamental importance for you to know the electric scooter: read and
understand this manual before using it for the first time.
This operating manual is an integral part of the scooter, keep it for future reference.
In case of sale it must be handed over to the next owner.
The scooter is not intended to be used by people whose physical, sensory or mental
capacities are reduced, or with a lack of experience or knowledge, unless they have
been able to benefit, through the intermediation of a person responsible for their
safety. , supervision or instructions regarding the use of the scooter.
Failure or incomplete compliance with these requirements may be the cause of
any serious damage to people, the vehicle, the environment and in some cases the
forfeiture of the warranty.
Any processing that modifies the performance or the main structure of the scooter,
in addition to being prohibited by law, makes the vehicle no longer compliant with
the approval and, therefore, dangerous for safety.
LUM eSPRO 2022 01.indd 2LUM eSPRO 2022 01.indd 2 04/10/22 09:3504/10/22 09:35

3
GENERAL INFORMATIONS
EN

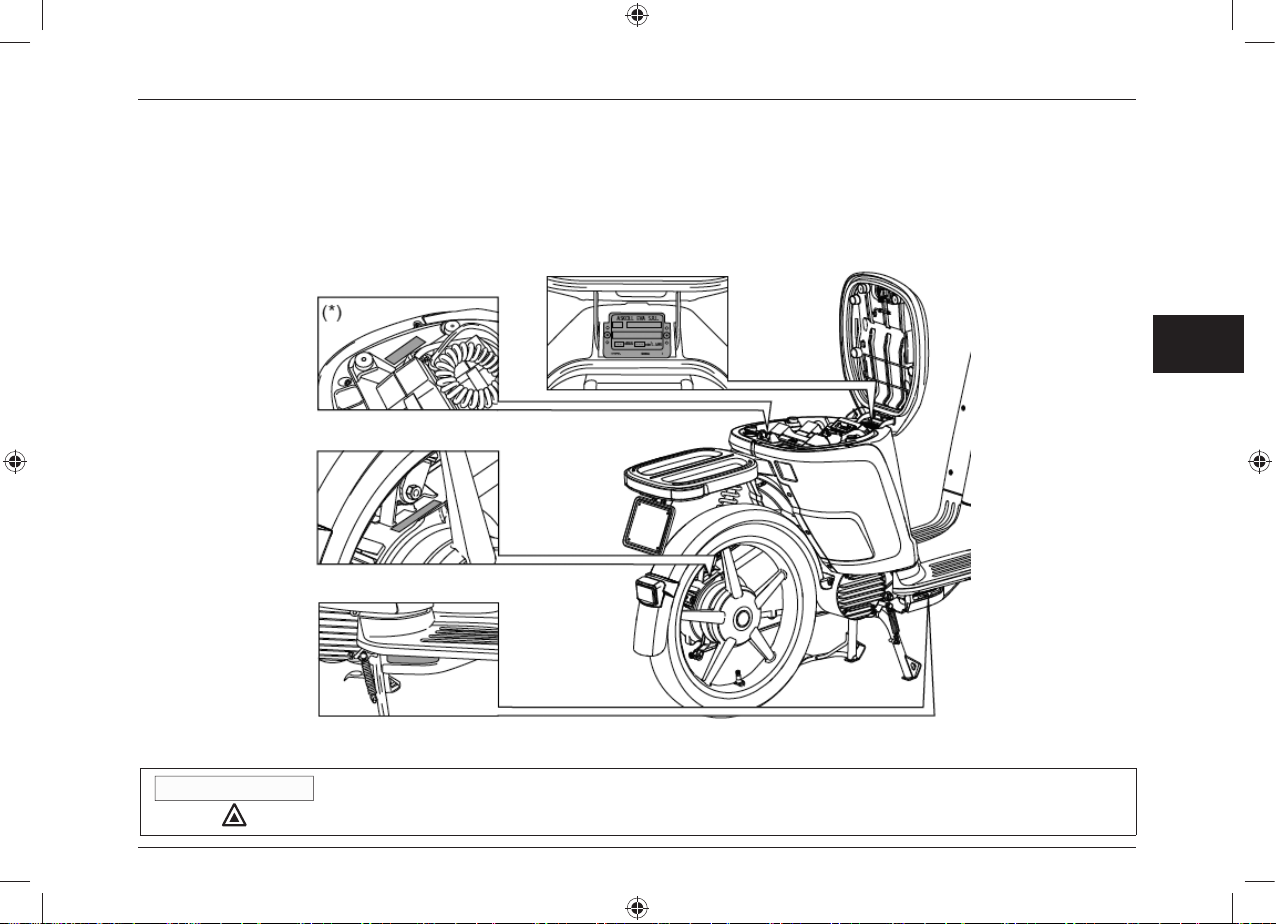

IDENTIFICATION
The identification numbers are stamped on the frame, on the crankcase and in the battery compartment. They
must always be indicated in requests for spare parts.
It is advisable to check the correspondence of the vehicle serial numbers with those reported on the documents
of the same.
WARNING
Altering the identification numbers can lead to serious criminal penalties.
LUM eSPRO 2022 01.indd 3LUM eSPRO 2022 01.indd 3 04/10/22 09:3504/10/22 09:35

4
CONTROLS AND INSTRUMENTS
GENERAL VIEW OF THE SCOOTER

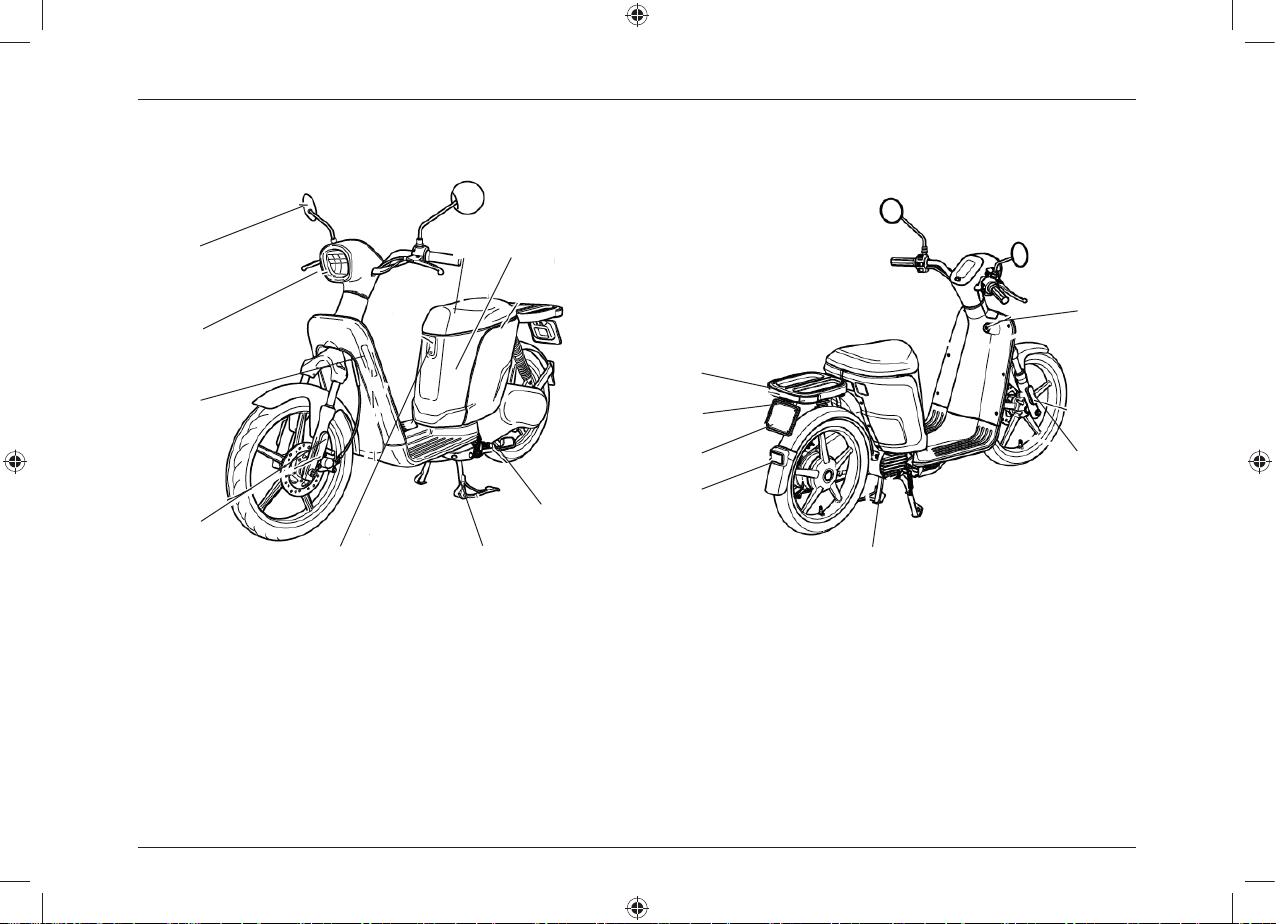

eSPRO 45 right side
A. Rearview mirror
B. Front light unit
C. Direction indicator
D. Left front reflector
E. Kick stand
F. Battery compartment
G. Saddle
H. Bag hook
I. Rear light unit
J. License plate
K. Rear reflector
L. Motor
M. Right front reflector
N. Ignition switch
O. Lateral kick stand
eSPRO 45 left side
D
C
E
B
A
H
I
J
C
K
L
M
N
G F
O
LUM eSPRO 2022 01.indd 4LUM eSPRO 2022 01.indd 4 04/10/22 09:3504/10/22 09:35

5
EN
CONTROLS AND INSTRUMENTS
GENERAL VIEW OF THE SCOOTER

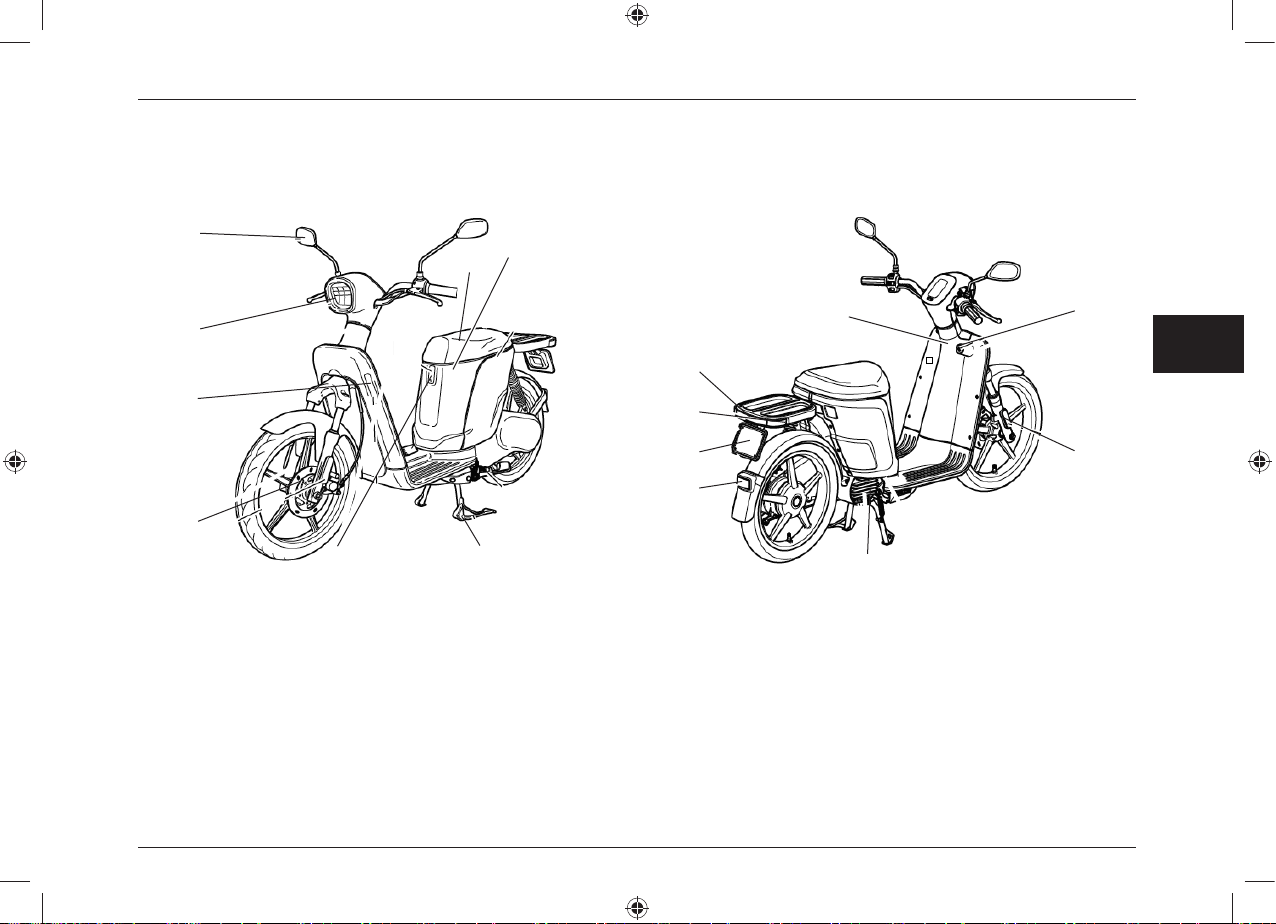

eSPRO 70 right side
A. Rearview mirror
B. Front light unit
C. Direction indicator
D. Left front reflector
E. Kick stand
F. Battery compartment
G. Saddle
H. Bag hook
I. Rear light unit
J. License plate
K. Rear reflector
L. Motor
M. Right front reflector
N. Ignition switch
eSPRO 70 left side
D
C
E
B
A
HL
M
N
GF
I
H
J
C
K
LUM eSPRO 2022 01.indd 5LUM eSPRO 2022 01.indd 5 04/10/22 09:3504/10/22 09:35

6
CONTROLS AND INSTRUMENTS
GENERAL VIEW OF THE SCOOTER

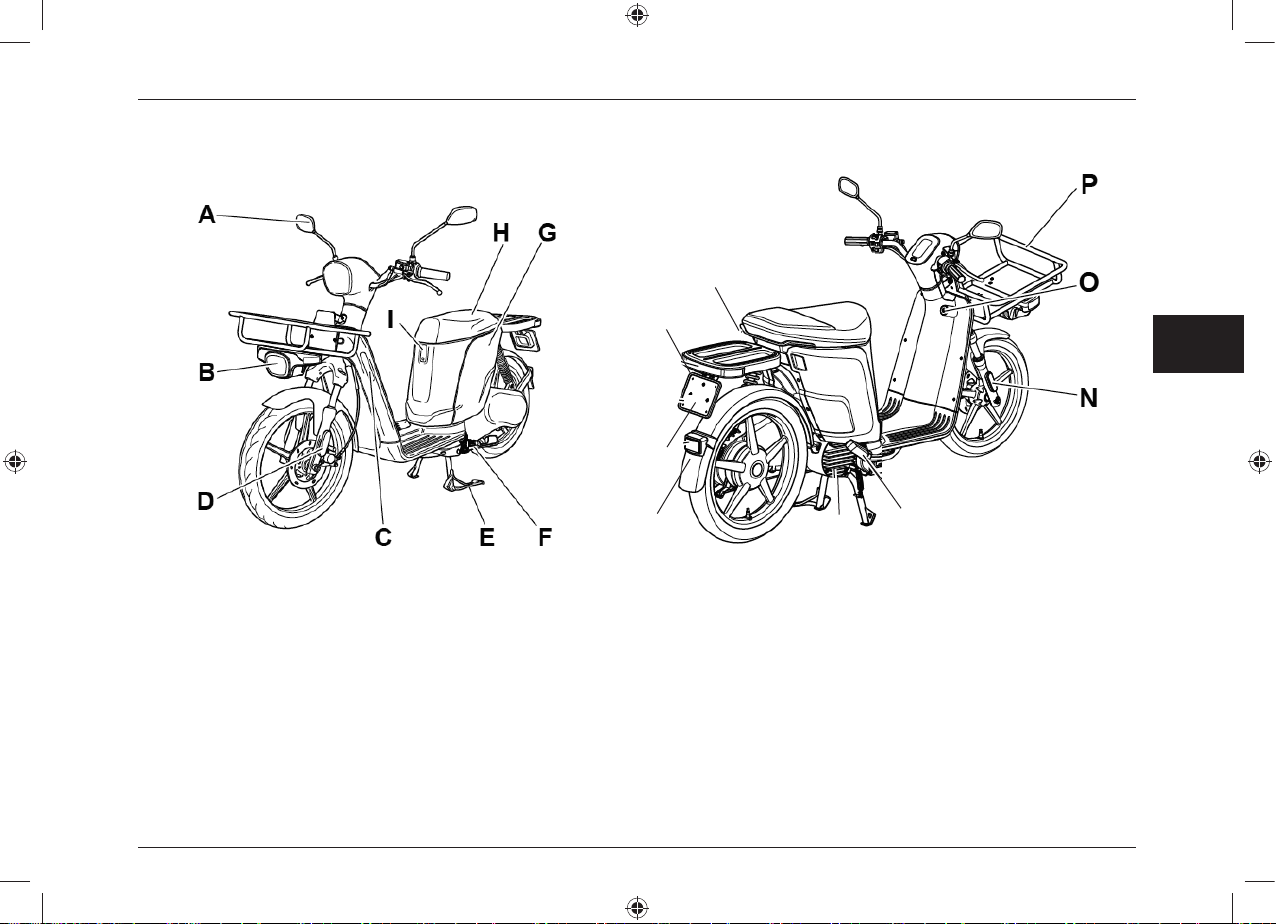

eSPRO 45K - eSPRO 70K left side eSPRO 45K - eSPRO 70K right side
A. Rearview mirror
B. Front light unit
C. Direction indicator
D. Left front reflector
E. Kick stand
F. Lateral kick stand
G. Battery compartment
H. Saddle
I. Bag hook
J. Rear light unit
K. License plate
L. Rear reflector
M. Motor
N. Right front reflector
O. Ignition switch
P. Front carrier basket
Q. Rear carrier basket (K2 version only)
LUM eSPRO 2022 01.indd 6LUM eSPRO 2022 01.indd 6 04/10/22 09:3504/10/22 09:35

7
EN
CONTROLS AND INSTRUMENTS
GENERAL VIEW OF THE SCOOTER
eSPROK1 2 Seats left side eSPROK1 2 Seats right side
A. Rearview mirror
B. Front light unit
C. Direction indicator
D. Left front reflector
E. Kick stand
F. Battery compartment
G. Saddle
H. Bag hook
I. Rear light unit
J. License plate
K. Rear reflector
L. Motor
M. Passenger footrests
N. Right front reflector
O. Ignition switch
P. Front carrier basket
Q. Passenger handle
I
J
KLM
Q
LUM eSPRO 2022 01.indd 7LUM eSPRO 2022 01.indd 7 04/10/22 09:3504/10/22 09:35

8
CONTROLS AND INSTRUMENTS
G. Engine start button /
MODE function selection of driving mode
H. Throttle control
I. Front brake lever
J. Combined brake lever
K. Headlight switch
A. Instrumentation
B. Key switch
C. Energy regeneration mode selector
D. Flasher switch
E. Horn button
F. Front gear driving mode selector
+ Reverse gear + 4 parking direction indicators
DASHBOARD COVER (eSPRO45 - eSPRO70- eSPRO45K- eSPRO70K - eSPROK1 2 Seats)
POSITION OF CONTROLS AND INSTRUMENTS
K
J
D
E
A
BGF
I
H
C
LUM eSPRO 2022 01.indd 8LUM eSPRO 2022 01.indd 8 04/10/22 09:3504/10/22 09:35

9
EN
CONTROLS AND INSTRUMENTS
LEFT CONTROL UNIT

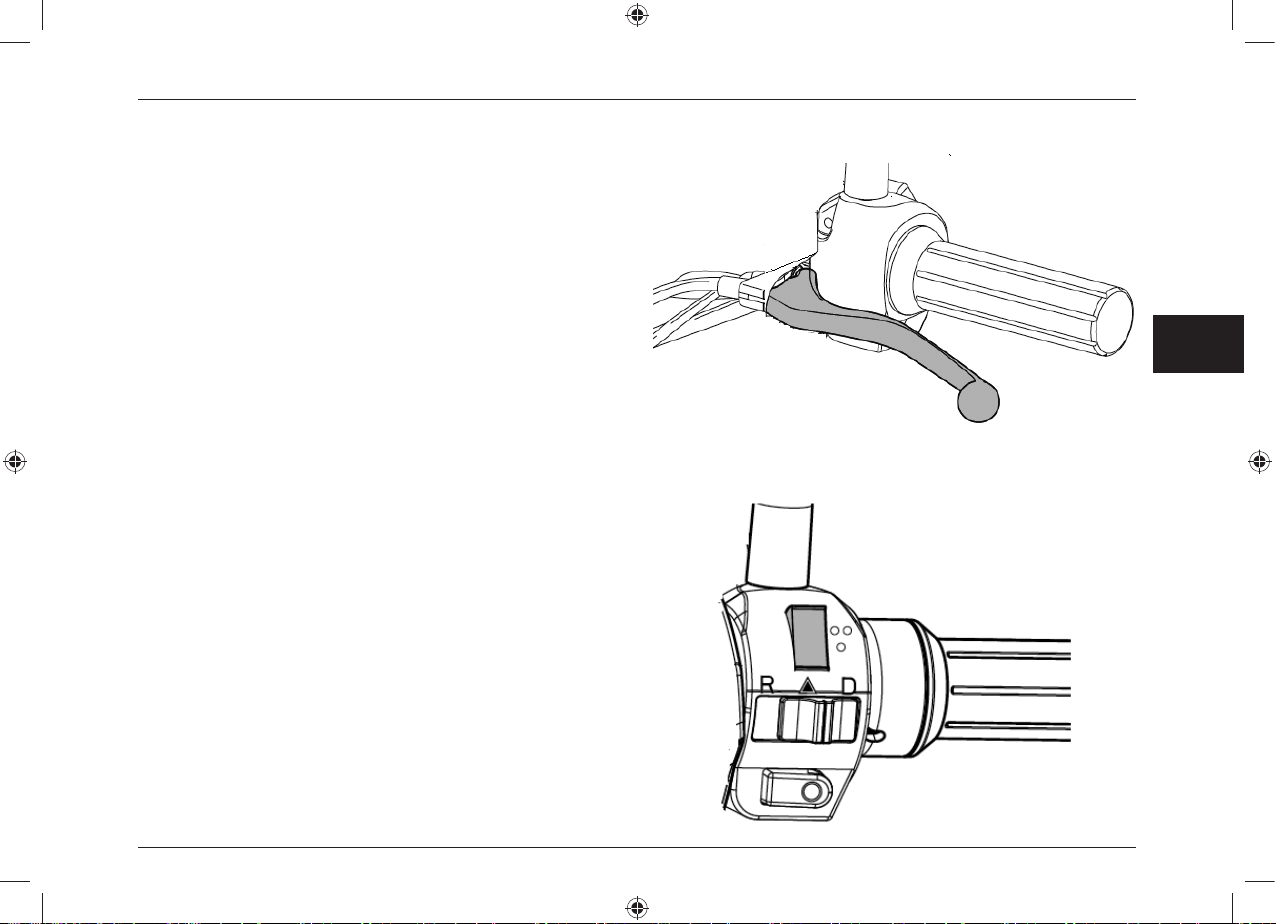

Rear brake lever
The rear brake lever (drum for eSPRO45, eSPRO45K e
eSPROK1 2 Seats, to disc for eSPRO70 e eSPRO70K) is
located on the left side of the handlebar.
Rear brake lever with combined function (only
eSPRO70 e eSPRO70K)
The brake acts on both wheels, with prevalence on the
rear one to ensure greater safety and better stopping
distances.
Energy regeneration mode selector
When the scooter is decelerating, the battery can
be automatically recharged by activating the energy
regeneration mode.
Use the two-position switch to activate or deactivate
the energy regeneration mode.
LUM eSPRO 2022 01.indd 9LUM eSPRO 2022 01.indd 9 04/10/22 09:3504/10/22 09:35

10
CONTROLS AND INSTRUMENTS
Flasher switch
Move the lever to the left to operate the left turn
indicators.
Move the lever to the right to operate the right turn
indicators.
Press the button in the center of the lever to turn off
the Speedlights.
Horn button
Press to sound the horn.
LUM eSPRO 2022 01.indd 10LUM eSPRO 2022 01.indd 10 04/10/22 09:3504/10/22 09:35

11
EN
CONTROLS AND INSTRUMENTS
RIGHT CONTROL UNIT

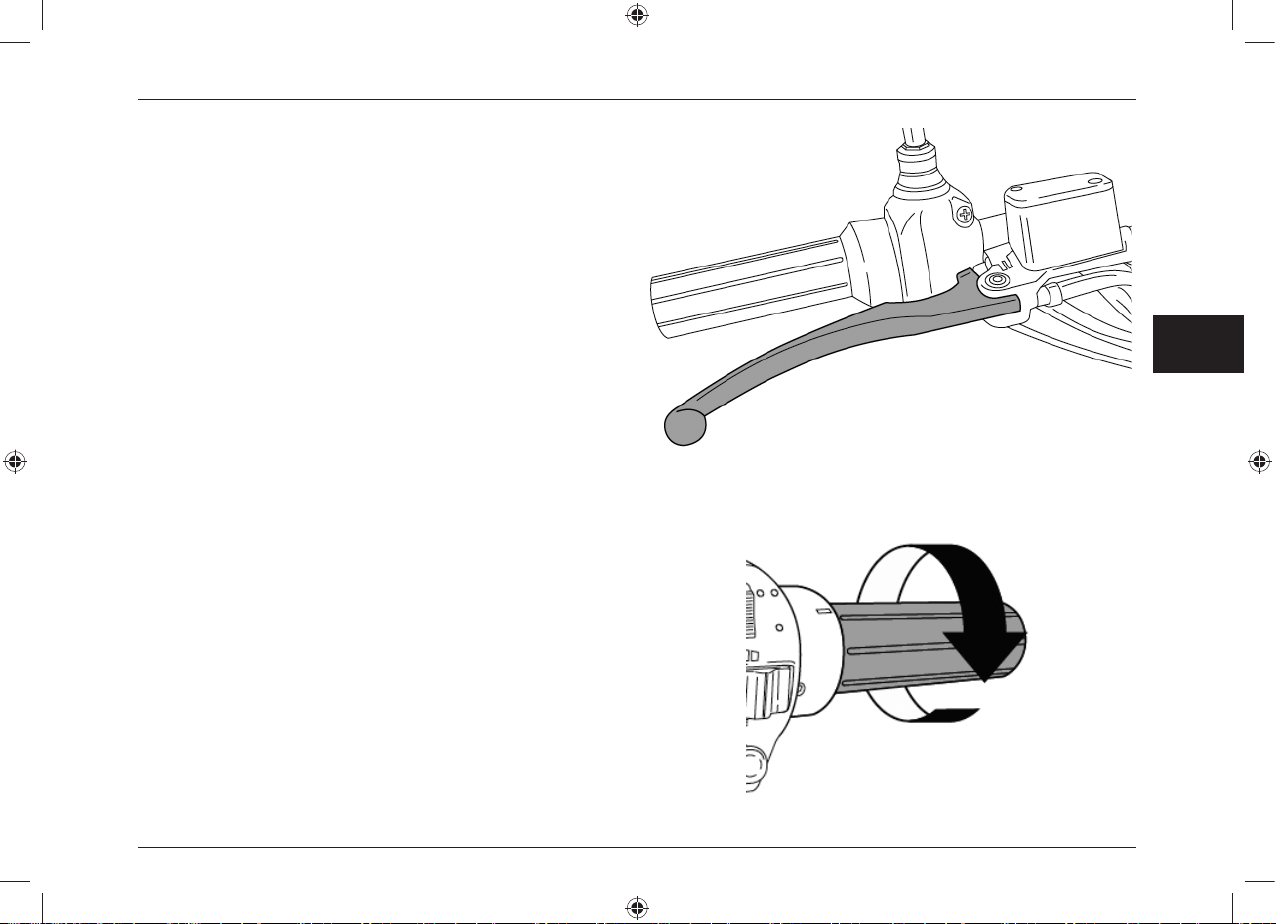

Front brake lever
The front disc brake lever is located on the right side
of the handlebar.
Throttle control
The speed of the scooter is adjusted by turning the
knob.
LUM eSPRO 2022 01.indd 11LUM eSPRO 2022 01.indd 11 04/10/22 09:3504/10/22 09:35

12
CONTROLS AND INSTRUMENTS

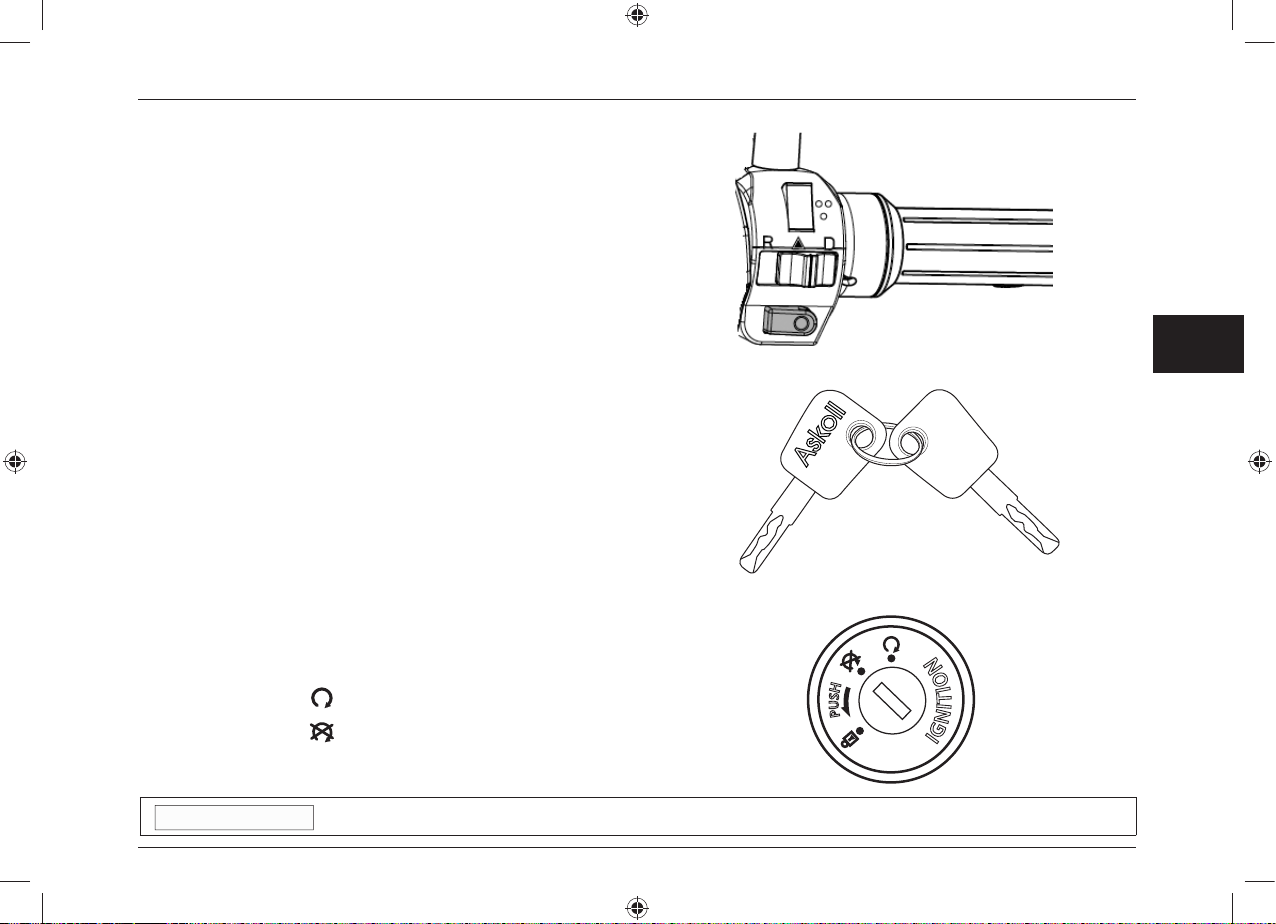

Driving mode selector
Using the switch it is possible to select three different
modes
Position D = proceed with front gear
Position = the 4 parking direction lights are activated
Position R = proceed with Reverse
The reverse function must be engaged with the vehicle completely stationary, with both brakes applied, and with both
feet on the ground. The maximum speed in reverse is 3Km / h, during the reverse maneuver the 4 parking arrows
and the intermittent acoustic buzzer are automatically active. If during the front gear, the reverse gear is incorrectly
engaged, the vehicle does not hear the command, the incorrect command is signaled on the dashboard by lighting the
letter “R” intermittently on the number of km of the dashboard, the drive letter D remains active anyway, the acoustic
buzzer is activated continuously.
High beam headlight switch
Using the selector it is possible to activate the high
beam.
LUM eSPRO 2022 01.indd 12LUM eSPRO 2022 01.indd 12 04/10/22 09:3504/10/22 09:35

13
EN
CONTROLS AND INSTRUMENTS
Engine start button
Pressing the button for 3 seconds, depending on the
position of the key in the switch, enables or disables
the engine.
KEY SWITCH
The key switch enables or disables the system and
the steering lock.
The scooter is supplied with a master key and a
duplicate that can be used both to operate the key
switch and to open the saddle.
It is recommended that you keep the duplicate key
separately from the master key.
System enabling and disabling
Turning the key on the system is enabled.
Turning the key on you disable the system.
WARNING
Do not turn or remove the key while driving
P
U
S
H
I
G
N
I
T
I
O
N
LUM eSPRO 2022 01.indd 13LUM eSPRO 2022 01.indd 13 04/10/22 09:3504/10/22 09:35

14
CONTROLS AND INSTRUMENTS
INSTRUMENTATION
A. Indicator lights
B. Speedometer
C. Digital display
D. Display commands
eSPRO45 - eSPRO45K - eSPRO70 - eSPRO70K - eSPROK 2 Seats
D
CA
B
LUM eSPRO 2022 01.indd 14LUM eSPRO 2022 01.indd 14 04/10/22 09:3504/10/22 09:35
