ASRock Industrial IMB-151D-WF User manual

1
IMB-151D-WF
User Manual
Version 1.0
Published September 7, 2020
Copyright©2020 ASRockInd INC. All rights reserved.

2
Version 1.0
Published September 7, 2020
Copyright©2020 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockInd Website: http://www.asrockind.com

3
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 10
2 Installation ......................................................... 11
2.1 Screw Holes................................................................... 11
2.2 Pre-installation Precautions ........................................... 11
2.3 Installation of Memory Modules (SO-DIMM).................. 12
2.4 Expansion Slot............................................................... 13
2.5 Jumpers Setup............................................................... 14
2.6 Onboard Headers and Connectors................................ 16
3 UEFI SETUP UTILITY......................................... 22
3.1 Introduction .................................................................... 22
3.1.1 UEFI Menu Bar .................................................... 22
3.1.2 Navigation Keys ................................................... 23
3.2 Main Screen................................................................... 23
3.3 Advanced Screen........................................................... 24
3.3.1 CPU Conguration ............................................... 25
3.3.2 Chipset Conguration........................................... 26
3.3.3 Storage Conguration .......................................... 28
3.3.4 Intel(R) Smart Connect Technology ..................... 29
3.3.5 Super IO Conguration ........................................ 30
3.3.6 ACPI Conguration............................................... 31
3.3.7 USB Conguration ............................................... 32
3.4 Hardware Health Event Monitoring Screen ................... 33
3.5 Security Screen ............................................................. 34
3.6 Boot Screen ................................................................... 35
3.7 Exit Screen .................................................................... 37
4 Software Support .............................................. 38
4.1 Install Operating System................................................ 38
4.2 Support CD Information ................................................. 38
4.2.1 Running Support CD............................................ 38
4.2.2 Drivers Menu........................................................ 38
4.2.3 Utilities Menu........................................................ 38
4.2.4 Contact Information.............................................. 38

5
Chapter 1: Introduction
Thank you for purchasing ASRockInd IMB-151D-WF motherboard, a reliable moth-
erboard produced under ASRockInd’s consistently stringent quality control. It deliv-
ers excellent performance with robust design conforming to ASRockInd’s commit-
ment to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockInd website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRockInd website
as well. ASRockInd website http://www.asrockInd.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrockInd.com/support/index.asp
1.1 Package Contents
ASRockInd IMB-151D-WF Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRockInd IMB-151D-WF Driver CD
ASRockInd IMB-151D-WF Jumper Setting Instruction
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU Intel®AtomTM Baytrail-M/D Processor
Supports Hyper-Threading Technology
Core
Number 4
Max Speed (By CPU)
Cache 2MB
Chipset N/A
BIOS UEFI
Expansion
Slot
PCI 0
Mini-PCIe 1 (half size) + 1 (full size) shared with mSATA
mSATA 1 (shared with SATA2_2)
PCIe 1
CFast Card
Socket 0
Memory
Technology Dual Channel DDR3L-1333 MHz SDRAM
Max. 8GB
Socket 2 x SO-DIMM
Graphics
Controller Intel® Gen7 Intel® Graphics DX 11, OGL3.2
VRAM Shared Memory
VGA Supports max. resolution 1920x1200
LVDS Dual Channel 24-bit, max resolution
1920x1200@60Hz
HDMI Supports HDMI 1.4a, max resolution 1920x1200
DVI No
DisplayPort No
Multi Display Yes (Dual Display)
Ethernet
Ethernet 10/100/1000 Mbps
Controller GbE LAN Realtek
Connector 1 x RJ-45
SATA
Max Data
Transfer
Rate
SATA2 (3.0Gb/s)
Rear I/O
VGA 1
DVI 0
HDMI 1
DisplayPort 0
Ethernet 1

7
USB 4 (2 x USB 3.0, 2 x USB 2.0)
Audio 2 (Mic-in, Line-out)
Serial 0
PS/2 0
Internal
Connector
USB 6 (2 x USB 3.0, 4 x USB 2.0)
LVDS/
Inverter 1/1
VGA 1 (shared with rear I/O VGA COM)
Serial 5 (1 x RS-232/422/485, 4 x RS-232)
SATA 2 x SATA2 (3.0Gb/s)
mPCIe 1
Parallel 1
mSATA 1 (shared)
IrDA 0
GPIO 8-bit 4 x GPI + 4 x GPO
SATA PWR
Output Con 1
Speaker
Header 1
Watchdog
Timer
Output Output from super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec/Min
Power
Requirements
Input PWR 9-19V DC-In (4-pin ATX PWR Con)
Power On
AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power
input ready
Environment Temperature 0ºC – 60ºC

8
1.3 Motherboard Layout

9
1 : ATX Power Connector (Input 9V-19V)
2 : 2-pin UPS Module Power Input Connector
3 : 4-Pin CPU FAN Connector (+12V)
4 : PWR_COM6 Jumper
5 : PWR_COM4 Jumper
6 : PWR_COM3 Jumper
7 : Internal COM Port Headers
COM1 (RS232/422/485)
COM2, 3, 4, 6 (RS232)
8 : Printer Port Header
9 : PWR_COM1 Jumper
10 : JGPIO_SET1 Jumper
11 : Digital Input / Output Pin Header
12 : PWR_COM2 Jumper
13 : Digital Input / Output Power Select
14 : TPM Header
15 : Chassis Intrusion Headers (CI1, Cl2)
1 6 : SATA Power Output Connector
17 : USB3.0 Connector
18 : mSATA Selection Jumper
19 : PS2_KB_MS1
20 : System Panel Header
21 : CIR Header
22 : Clear CMOS Header
23 : USB2.0 Connector (USB2_56)
24 : ATX/AT Mode Jumper
25 : SPDIF Header
26 : SATA2 Connectors (SATA2_1, SATA2_2)
27 : 3-Pin Chassis FAN Connector (+12V)
28 : Backlight Power Connector
29 : USB2.0 Connector (USB2_34)
30 : 3W Audio AMP Output Wafer
31 : Backlight Power Selection (BKT_PWR1)
32 : Panel Power Selection (PNL_PWR1)
33 : Backlight Control Level ( BLT_PWM1)
34 : Front Panel Audio Header
35 : Backlight Volume Control (BLT_VOL1)
36 : LVDS Panel Connector
37 : VGA2

10
1.4 I/O Panel
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity O󰀨 100Mbps connection
On Link Green 1Gbps connection
1 DC Jack
2 USB 2.0 Ports (USB2_12)
3 LAN RJ-45 Port*
4 VGA Port (VGA1)
5 USB 3.0 Ports (USB3_12)
6 HDMI Port (HDMI1)
7 Line out (Green)
8 Microphone (Pink)
ACT/LINK
LED
SPEED
LED
LAN Port
6
12 4
358
7

11
Chapter 2: Installation
This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you
install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
IMB-151D-WF motherboard provides two 204-pin DDR3 (Double Data Rate 3) SO-
DIMM slots, which support Dual Channel DDR3L (low voltage).
1. If you install one memory module only, please install it on DDR3_A1.
2. It is not allowed to install a DDR or DDR2 memory module into a
DDR3 slot; otherwise, this motherboard and SO-DIMM may be
damaged.
3. Please make sure to disconnect the power supply before adding or
removing SO-DIMMs or the system components.
4. The SO-DIMM only ts in one correct orientation. It will cause
permanent damage to the motherboard and the SO-DIMM if you force
the SO-DIMM into the slot at incorrect orientation.
Installing a SO-DIMM
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (mini-PCIe, mini-PCIe/mini-SATA and PCI
Express Slots)
There is 1 mini-PCIe slot, 1 mini-PCIe/mini-SATA slot and 1 PCI Express slot on this
motherboard.
mini-PCIe slot:
MINI_PCIE1 (mini-PCIe slot; half size) is used for PCI Express mini
cards.
mini-PCIe/mini-SATA slot:
MINI_SATA1 (mini-PCIe slot/mini-SATA slot; full size) is used for PCI
Express mini cards or mSATA cards. This SATA signal is shared with
SATA2_2 connector.
PCIE slot: PCIE1 (PCIE x1 slot) is used for PCI Express x1 lane width cards.
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched o󰀨 or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

14
2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper
(CLRCMOS1)
(see p.8, No. 22)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault

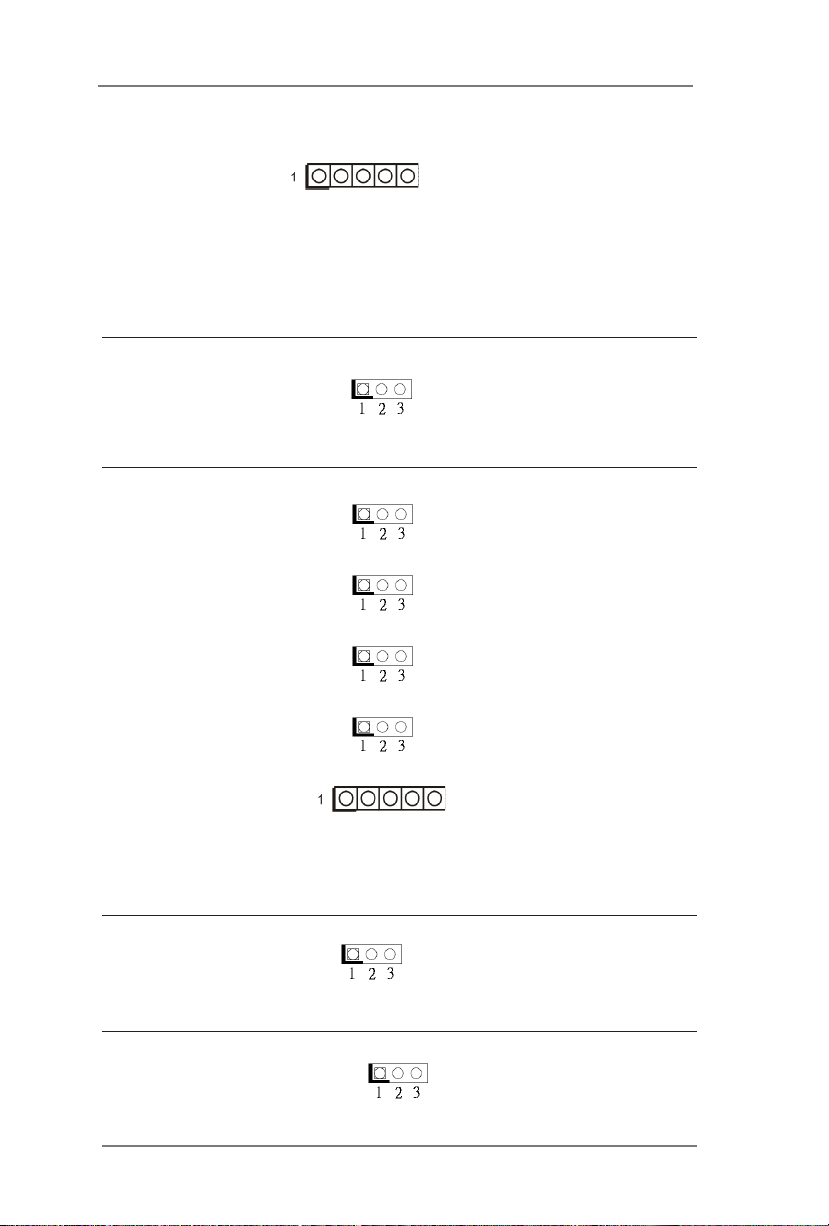

Panel Power Selection (LCD_VCC) Use this to set up the VDD
(5-pin PNL_PWR1) power of the LVDS connector.
(see p.8 No. 32) 1-2: LVDD: +3V
2-3: LVDD: +5V
4-5: LVDD: +12V
Digital Input / Output Power Select 1-2: +12V
(3-pin JGPIO_PWR1) 2-3: +5V
(see p.8 No. 13)
ATX/AT Mode Selection 1-2: AT Mode
(3-pin PWR_JP1) 2-3: ATX Mode
(see p.8 No. 24)

15
Backlight Power Selection Use this to set up the backlight
(LCD_BLT_VCC) power of the LVDS connector
(5-pin BKT_PWR1) and the panel backlight power
(see p.8 No. 31) of BLT_PWM1.
1-2: LCD_BLT_VCC: +5V
2-3: LCD_BLT_VCC: +12V
4-5: LCD_BLT_VCC: DC_IN
Backlight Control Level (CON_LBKLT_CTL) 1-2: +3V
(3-pin BLT_PWM1) 2-3: +5V
(see p.8, No. 33)
COM Port PWR Setting Jumpers
(3-pin PWR_COM1, for COM Port1)
1-2: +5V
(see p.8, No. 9) 2-3: +12V
(3-pin PWR_COM3, for COM Port3) 1-2: +5V
(see p.8, No. 6) 2-3: +12V
(3-pin PWR_COM4, for COM Port4) 1-2: +5V
(see p.8, No. 5) 2-3: +12V
(3-pin PWR_COM6, for COM Port6) 1-2: +5V
(see p.8, No. 4) 2-3: +12V
(5-pin PWR_COM2, for COM Port2) 1-2: +5V
(see p.8, No. 12) 2-3: +12V
3-4: +12V
4-5: +5VSB
mSATA Select 1-2: SATA2_2 + mini-PCIe
(3-pin MSATA_SEL1) 2-3: mSATA,
(see p.8 No. 18) SATA2_2 no function
JGPIO_SET Jumper 1-2: High
(3-pin JGPIO_SET1) 2-3: Low
(see p.8 No. 10)

16

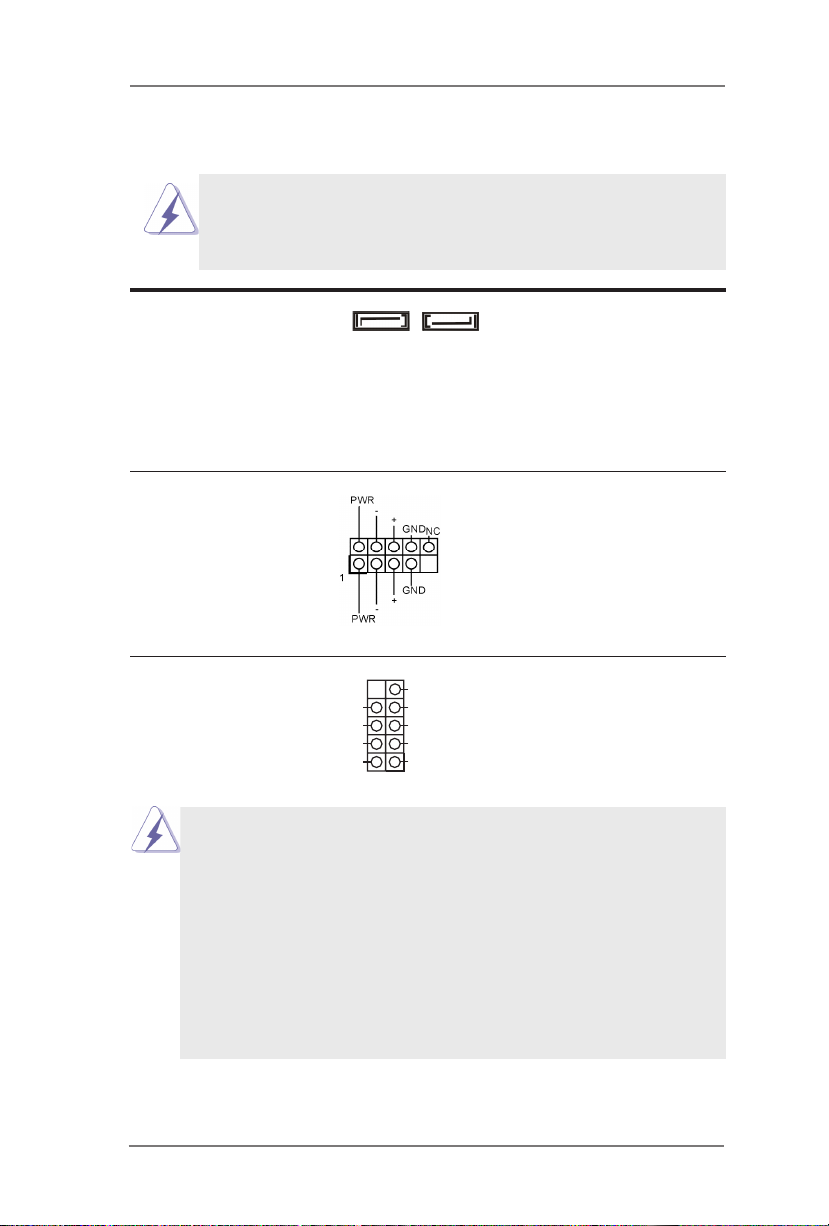

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
SATA2 Connectors These two Serial ATA2
(SATA2_1, SATA2_2: see p.8, No. 26) (SATA2) connectors support
SATA data cables for internal
storage devices. The current
SATA2 interface allows up to
3.0 Gb/s data transfer rate.
USB 2.0 Connectors Besides two default USB 2.0
(9-pin USB2_34) ports on the I/O panel, there
(see p.8 No. 29) are two USB 2.0 connectors on
this motherboard. Each USB 2.0
(9-pin USB2_56) connector can support two USB
(see p.8 No. 23) ports.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8 No. 20) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn o󰀨 your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
SATA2_1 SATA2_2
GND RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND

17
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1/S3 sleep state. The LED is o󰀨 when the system is in S4 sleep
state or powered o󰀨 (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may di󰀨er by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 30)
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 34) convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
1
PIN Signal Name
1 SPK R-
2 SPK R+
3 SPK L+
4 SPK L-

18

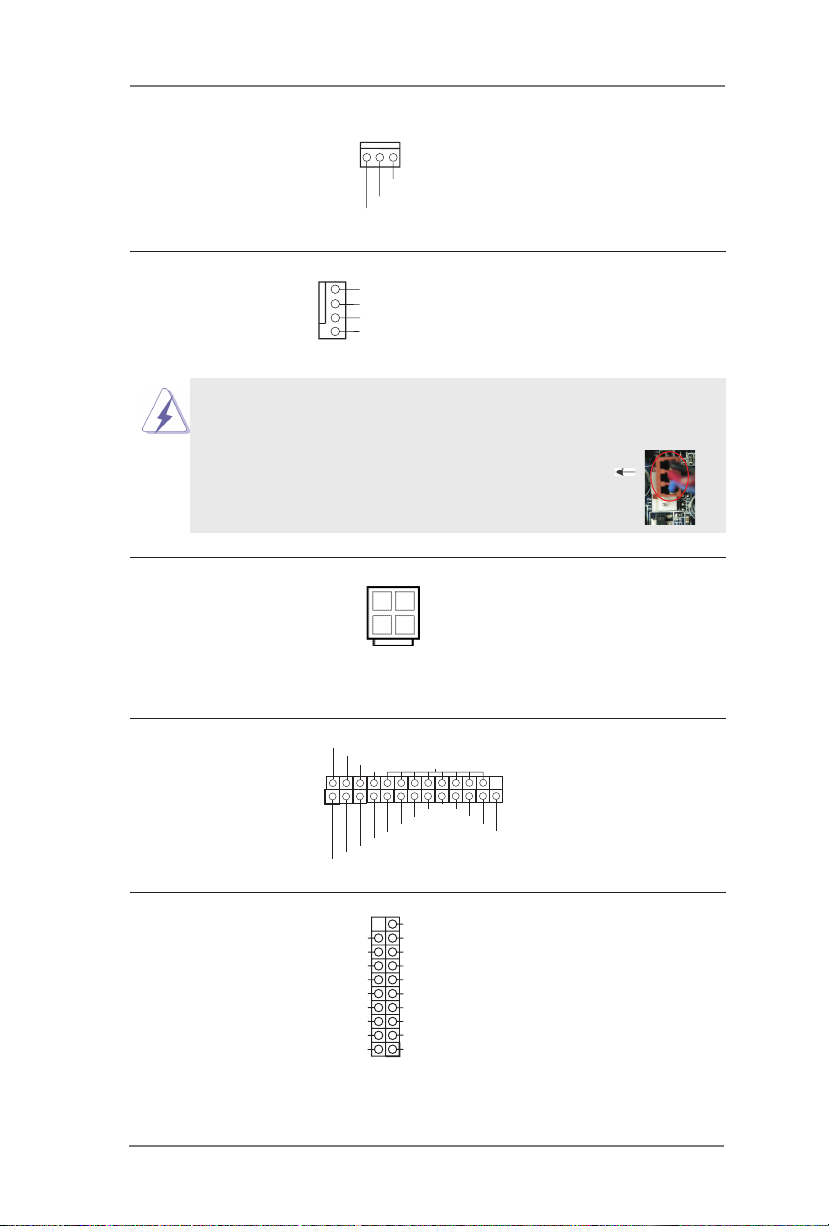

Chassis Fan Connector Please connect the fan cable
(3-pin CHA_FAN1) to the fan connector and
(see p.8 No. 27) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
ATX Power Connector Please connect a DC
(Input 9V-19V) 9V-19V power supply to this
(4-pin ATX12V1) connector.
(see p.8 No. 1) 1-2: GND
3-4: DC Input
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 3) match the black wire to the
ground pin.
Printer Port Header
(25-pin LPT1)
(see p.8 No. 8)
GND
+ 12V
CHA_ FAN_SPEED
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
4
2
3
1
1
AFD#
ERROR#
PINIT# GND
SLIN#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
USB 3.0 Connector Besides two default USB 3.0
(19-pin USB3_34) ports on the I/O panel, there
(see p.8 No. 17) is one USB 3.0 connector on
this motherboard. This USB 3.0
connector can support two USB
ports.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+

19

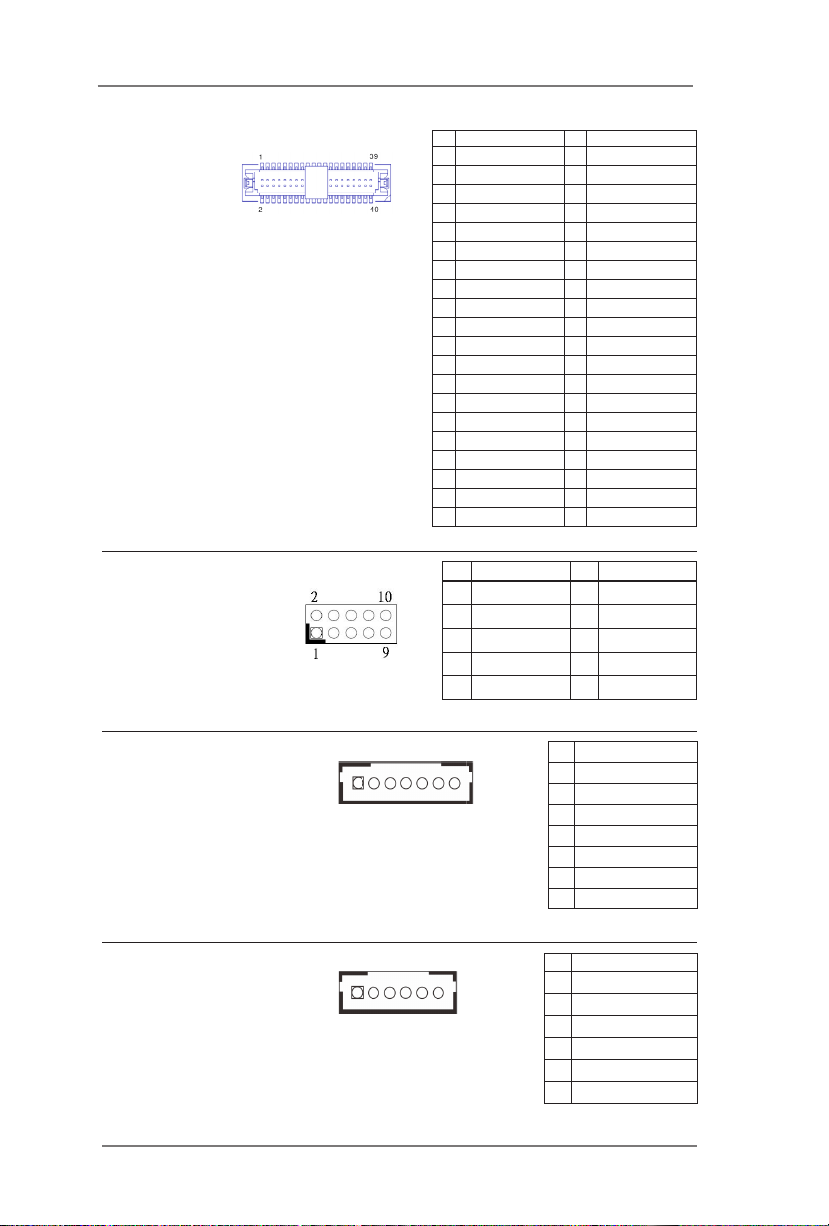

Digital Input / Output Pin Header
(10-pin JGPIO1)
(see p.8 No. 11)
LVDS Connector
(40-pin LVDS1)
(see p.8 No. 36)
Backlight Volume Control
(7-pin BLT_VOL1)
(see p.8 No. 35)
Backlight Power Connector
(6-pin BLT_PWR1)
(see p.8 No. 28)
PIN Signal Name PIN Signal Name
1 LVDD 2 LVDD
3 +3V 4 N/A
5 N/A 6 LVDS_A_DATA0#
7 LVDS_A_DATA0 8 GND1
9 LVDS_A_DATA1# 10 LVDS_A_DATA1
11 GND6 12 LVDS_A_DATA2#
13 LVDS_A_DATA2 14 GND2
15 LVDS_A_DATA3# 16 LVDS_A_DATA3
17 GND7 18 LVDS_A_CLK#
19 LVDS_A_CLK 20 GND3
21 LVDS_B_DATA0# 22 LVDS_B_DATA0
23 GND8 24 LVDS_B_DATA1#
25 LVDS_B_DATA1 26 GND4
27 LVDS_B_DATA2# 28 LVDS_B_DATA2
29 DPLVDD_EN 30 LVDS_B_DATA3#
31 LVDS_B_DATA3 32 GND5
33 LVDS_B_CLK# 34 LVDS_B_CLK
35 GND9 36 CON_LBKLT_EN_R
37 CON_LBKLT_CTR_R 38 LCD_BLT_VCC
39 LCD_BLT_VCC 40 LCD_BLT_VCC
PIN Signal Name
1GPIO_VOL_UP
2GPIO_VOL_DW
3 PWRDN
4 LVDS1 BLUP
5 LVDS1 BLDW
6GND
7GND
1
1
PIN Signal Name
1GND
2GND
3 BL CTL
4 BL EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
PIN Signal Name PIN Signal Name
1SIO_GP24 2SIO_GP20
3SIO_GP25 4SIO_GP21
5SIO_GP26 6SIO_GP22
7SIO_GP27 8SIO_GP23
9JGPIO_PWR 10 GND

20
SATA Power Output Connector
(4-pin SATA_PWR1)
(see p.8 No. 16)
GND
+5V
+12V
1
GND
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2: see p.8, No. 15) CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
Internal COM Port Headers
COM1 (RS232/422/485)*
COM2, 3, 4, 6 (RS232)
(9-pin COM1~6: see p.8, No. 7)
TPM Header This connector supports a
(19-pin TPM1) Trusted Platform Module (TPM)
(see p.8, No. 14) system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
12
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD RX+ N/A
3 TXD TX+ RTX+
4 DTR RX- N/A
5GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9 +5V/+12V +5V/+12V +5V/+12V
10 NC NC NC
* This motherboard supports RS232/422/485 on COM1 port. Please refer to below table for the pin denition. In
addition, COM1 port (RS232/422/485) can be adjusted in BIOS setup utility > Advanced Screen > Super IO
Conguration. You may refer to page 30 for details.
PIN Signal Name PIN Signal Name
2 RRXD 1 DDCD#
4 DDTR# 3 TTXD
6 DDSR# 5 GND
8 CCTS# 7 RRTS#
10 NC 9 COM1/3/4/6: +5V/+12V
COM2: +5V/+12V/+5VSB
COM1 Port Pin Denition
1
Signal
GND
