ASRock Industrial IMB-X1316 User manual

IMB-X1316
User Manual
Version 1.0
Published November 3, 2023
Copyright©2023 ASRockInd INC. All rights reserved.

Version 1.0
Published November, 2023
Copyright©2023 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished
for informational use only and subject to change without notice, and should
not be constructed as a commitment by ASRockInd. ASRockInd assumes no
responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

WARNING
THIS PRODUCT CONTAINS A BUTTOON BATTERY
If swallowed, a button battery can cause serious injury or death.
Please keep batteries out of sight or reach of children.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
AUSTR ALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRockInd
Tel : [phone] ext.123 (Standard International call charges apply)
ASRockInd follows the green design concept to design and manufacture our products,
and makes sure that each stage of the product life cycle of ASRockInd product is in line
with global environmental regulations. In addition, ASRockInd disclose the relevant in-
formation based on regulation requirements.
DO NOT throw the motherboard in municipal waste. is product has been
designed to enable proper reuse of parts and recycling. This symbol of the
crossed out wheeled bin indicates that the product (electrical and electronic
equipment) should not be placed in municipal waste. Check local regulations
for disposal of electronic products.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 5
1.4 I/O Panel 8

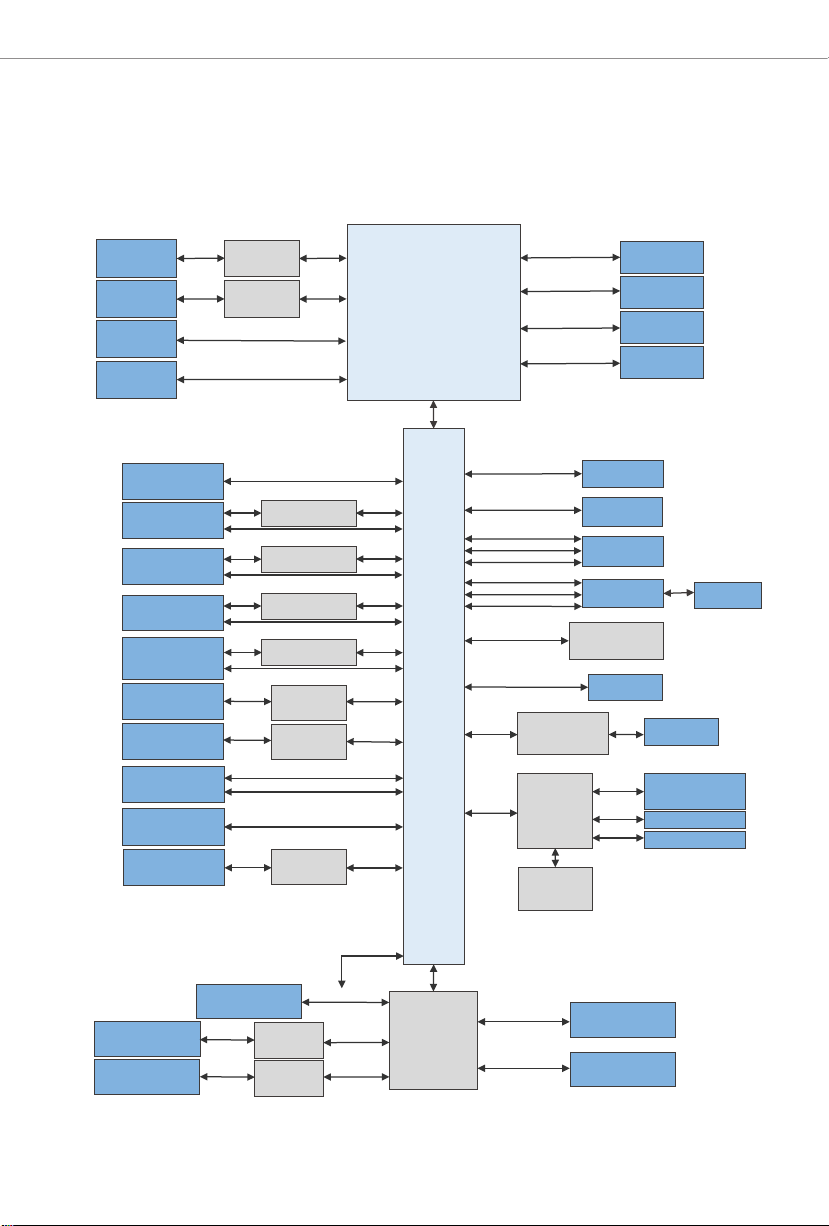

1.5 Block Diagram 10
Chapter 2 Installation 11
2.1 Screw Holes 11
2.2 Pre-installation Precautions 11

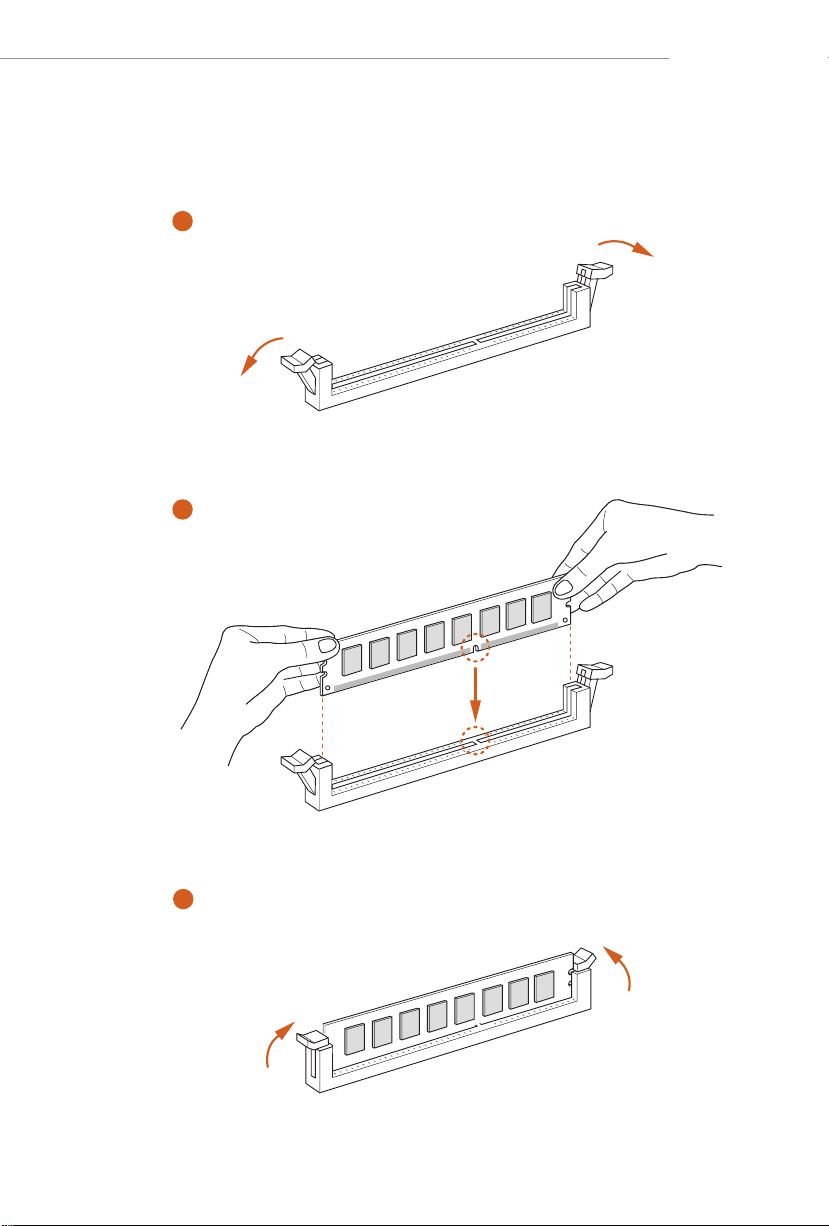

2.3 Installation of Memory Modules (LONG-DIMM) 12
2.4 Expansion Slots 14
2.5 Jumpers Setup 16
2.6 Onboard Headers and Connectors 20
Chapter 3 UEFI SETUP UTILITY 28
3.1 Introduction 28
3.1.1 Entering BIOS Setup 28
3.1.2 UEFI Menu Bar 29
3.1.3 Navigation Keys 30
3.2 Main Screen 31
3.3 Advanced Screen 32
3.3.1 CPU Conguration 33
3.3.2 Chipset Conguration 36

3.3.3 Storage Conguration 40
3.3.4 Super IO Conguration 42
3.3.5 AMT Conguration 44
3.3.6 ACPI Conguration 46
3.3.7 USB Conguration 47
3.3.8 Trusted Computing 48
3.3.9 Thunderbolt (TM) Conguration 50
3.4 Hardware Health Event Monitoring Screen 51
3.5 Security Screen 53
3.6 Boot Screen 54
3.7 Exit Screen 55

1
IMB-X1316
Chapter 1 Introduction
Thank you for purchasing ASRockInd IMB-X1316 motherboard, a reliable motherboard
produced under ASRockInd’s consistently stringent quality control. It delivers excellent per-
formance with robust design conforming to ASRockInd’s commitment to quality and endur-
ance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step
guide to the hardware installation. Chapter 3 contains the conguration guide to BIOS setup.
Because the motherboard specications and the BIOS soware might be updated, the
content of this manual will be subject to change without notice. In case any modica-
tions of this manual occur, the updated version will be available on ASRockInd website
without further notice. You may nd the latest CPU support lists on ASRockInd web-
site as well.
ASRockInd website https://www.asrockind.com/zh-tw/IMB-X1316
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
https://www.asrockind.com/zh-tw/technical-support
1.1 Package Contents
ASRockInd IMB-X1316 Motherboard (Micro-ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x 24.4
cm x 3.6 cm))
ASRockInd IMB-X1316 Jumper Setting Instruction
Gi Package:
2 x SATA Data Cable
1 x I/O Shield
4 x SCREW M2*2, D=5
Bulk Package:
1 x I/O Shield
4 x SCREW M2*2, D=5

2
1.2 Specications
Form
Factor Dimensions Micro-ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x 24.4 cm x 3.6 cm)
Processor
System
CPU
Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/
Raptor Lake-S/Alder Lake-S) Core™ Processors, up to
125W
Chipset Intel® W680
Socket LGA 1700
BIOS AMI SPI 256 Mbit
Memory
Technology
ECC/non-ECC DDR5 4400 MHz (2DPC - 1DIMM)
ECC/non-ECC DDR5 4000 MHz (2DPC - 2DIMM
1R)
ECC/non-ECC DDR5 3600 MHz (2DPC - 2DIMM
2R)
Capacity 192GB (48GB per DIMM)
Socket 4 x 288-pin Long-DIMM
Graphics
Controller Intel® UHD Graphics
HDMI 2 x HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
LVDS Dual channel 24 bit up to 1920x1200@60Hz
Multi Display Quad Display
Expansion
Slot
PCIe
2 x PCIe Gen5 Slots (PCIE1/PCIE4: single at x16
(PCIE1); dual at x8 (PCIE1)/x8 (PCIE4))
(PCIE1: support riser card x8/x8)
2 x PCIe x4 (Gen4)*
*If using PCIE x8/x16 card on PCIE2 slot, M.2 Key
M2 (M2_M2) is limited to install.
M.2
1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0
and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB
3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket 1x SIM socket connected to M.2 key B
Audio Interface Realtek ALC897 HD, High Denition Audio. Line-In,
Line-Out, Mic-In
Ethernet
Controller/
Speed
LAN1: Intel® I226LM with 10/100/1000/2500 Mbps,
supports vPro
LAN2: Intel® I210AT with 10/100/1000 Mbps
Controller 2 x RJ-45

3
IMB-X1316
Rear I/O
HDMI 2 x HDMI 2.0b
DisplayPort 1 x DP++
Ethernet 1 x 2.5 Gigabit LAN
1 x 1 Gigabit LAN
USB
2 x USB 2.0
5 x USB 3.2 Gen2
1 x USB 3.2 Gen2 x2 (Type-C, 5V/3A)
Audio 3 (Line-In/Line-Out/Mic-In)
Serial Port COM1 (RS-232/422/485)
Internal
Connector
USB 2 x USB 3.2 Gen2 vertical connector
COM COM2 (RS-232/422/485)
COM3, COM4, COM5, COM6 (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
LVDS 1
Speaker
Header 1
PS/2 1 x PS/2 header
underbolt
header 1 (only use with PCIE3)
Storage
M.2
1 x M.2 (Key M, 2242/2280/25110) with PCIe
Gen4 x4 for SSD
1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x4
for SSD
SATA 8 x SATA3
RAID
Intel® VMD RAID 0/1/5/10
**supported by identical interface (PCIE or
SATA)
PCIE interface: M.2 Key B + M.2 Key M1/2 or
2*M.2 Key M
SATA interface: SATA port
Security TPM TPM 2.0 onboard IC
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255 sec
Power
Requirements
Input PWR ATX PWR (24+8-pin)
Power On
AT/ATX supported
-AT: Directly PWR on as power input ready
-ATX: Press button to PWR on aer power input
ready

4
Environment
Operating
Temp 0ºC ~ 70ºC
Storage Temp -40° C ~ 85° C
Operating
Humidity 5% ~ 90%
Storage
Humidity 5% ~ 90%

5
IMB-X1316
1.3 Motherboard Layout
DDR5_A1 (64 bi t, 288 -pin module) DDR5_B2 (64 bi t, 288 -pin module)
PSU_SMB1
ATXPWR1
1
1
1
PWR_COM6
PWR_COM5
1
PWRBT N PLED
RESET HDLED
11
1
PANEL1
COM5 COM6
1
SIM1
1
1
11
M2_M1
M2_E1
M2_M2
M2_B1
1
SATA3_6
SATA3_7
SATA3_4
SATA3_5
1
BLT_PWM2
BLT_PWM1
111
1
CLRMOS1
1
TB1
1
1
11
SATA3_1
SATA3_0
SATA3_3
SATA3_2
1
USB2_12_13
1
CPU_FAN1
1
CHA_FAN3
1
CHA 1_FAN
1
ATX12V1
CHA_FAN2
1
1
From left to right:
PWR_COM2
PWR_COM3
PWR_COM4
COM2 COM3 COM4
111
1
LPT_GPIO1
PCIE3
PCIE2
PCIE1
PCIE4
1
HEATER1
CI1CI2
DACC1
SIO_AT1
1
SPDIF1JGPIO_SET1
1
1
11
1
PS2_KB_MS1
JGPIO_PWR1
1
1
HD_AUDIO1
1
LAN2_LED1
1
BUZZ2
1
PWR_BAT1
1
SPEAKER1
1
Top:
LINE IN
Middle:
LINE OUT
Bottom:
MIC IN
1
IMB-X1316
Industrial
PWR_LOSS1
1
LAN_LED11
1
11
1
PWR_COM1
13 24 567
8910
11
12
13
14
15
16
19
18
17
20
21
22
23
24
25
26
2728
29
303133 32
34
35
3637
38
39
40
4142
43
44
45
46
48
49
USB 3.2 Gen2
: USB3_2Top
Bottom: USB3_1
Top:
LAN2
Middle:
USB 3.2 Gen2
USB3_9
USB2.0
Top:
USB2_10
iddle:M
USB2_11
HDMI2
Top:
LAN1
USB 3.2 Gen2
iddle: USB3_4M
Bottom: USB3_3
BKT_PWR1
BLT_VOL1
BLT_PWR1
PNL_PWR1
1
CMOS
Battery
COM1
HDMI1
DP1
Bottom:
USB 3.2 Gen2 x2 20G
Type C
TC_U3_7_8
DDR5_A2 (64 bi t, 288 -pin module)
DDR5_B1 (64 bi t, 288 -pin module)
BIOS
ROM
47
USB3_10
USB_53
1
1
ESPI1
1
LVDS1
1

6
1 : COM Port Pin9 PWR Setting Jumper
(PWR_COM1 (For COM Port1))
2 : LAN LED Header
LAN1_LED1 (For LAN1 Port)
3 : Chassis FAN Connector (+12V) (CHA_FAN1)
4 : 8-Pin ATX 12V Power Connector (ATX12V1)
5 : Chassis FAN Connector (+12V) (CHA_FAN3)
6 : M.2 Key-E Socket (M2_E1)
7 : CPU FAN Connector (+12V) (CPU_FAN1)
8 : M.2 Key-M Socket (M2_M1)
9 : M.2 Key-M Socket (M2_M2)
10 : Power Loss Header (PWR_LOSS1)
11 : PSU_SMB1
12 : 24-pin ATX Power Input Connector (ATXPWR1)
13 : COM Port Pin9 PWR Setting Jumpers
PWR_COM5 (For COM Port5)
PWR_COM6 (For COM Port6)
14 : System Panel Header (PANEL1)
15 : COM Port Headers (COM5, COM6 (RS232))
16 : USB 3.2 Gen2 Connector (Type-A) (USB3_10)
17 : USB 3.2 Gen2 Connector (Type-A) (USB3_5)
18 : M.2 Key-B Socket (M2_B1)
19 : LVDS Panel Connector (LVDS1)
20 : Panel Power Select (PNL_PWR1)
21 : Inverter Power Control Wafer (BLT_PWR1)
22 : Backlight Volume Control (BLT_VOL1)
23 : Brightness Control Mode (BLT_PWM1)
24 : Brightness Control Voltage Mode (BLT_PWM2)
25 : SATA3 Connectors (SATA3_4, SATA3_5)
26 : SATA3 Connectors (SATA3_6, SATA3_7)
27 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
28 : Clear CMOS Header (CLRMOS1)
29 : SATA3 Connectors (SATA3_0~SATA3_4)
30 : ESPI Header (ESPI1)
31 : underbolt AIC Connector (TB1)
32 : USB 2.0 Header (USB2_12_13)
33 : Chassis FAN Connector (+12V) (CHA_FAN2)
34 : COM Port Headers
COM2 (RS232/422/485)*
COM3, COM4 (RS232)

7
IMB-X1316
35 : COM Port Pin9 PWR Setting Jumpers
PWR_COM2 (For COM Port2)
PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)
36 : Printer Port/GPIO Header (LPT_GPIO1)
37 : Buzzer Header (BUZZ2)
38 : Digital Input/Output Power Select (JGPIO_SET1)
39 : ATX/AT Mode Jumper (SIO_AT1)
40 : PS/2 Keyboard/Mouse Header (PS2_KB_MS1)
41 : Digital Input/Output Power Select (JGPIOPWR) (JGPIO_PWR1)
42 : Chassis Intrusion Headers (CI1, CI2)
43 : DACC Jumper (DACC1)
44 : SPDIF Header (SPDIF1)
45 : HEATER Header (HEATER1)
46 : PWR_BAT1
47 : LAN LED Header
LAN2_LED1 (For LAN2 Port)
48 : Front Panel Audio Header (HD_AUDIO1)
49 : 3W Audio Output Wafer (SPEAKER1)

8
1.4 I/O Panel
1 RJ45 LAN Port (LAN1)*
(supports vPro)
2 COM Port (COM1) (RS232/422/485)**
3 USB 2.0 Ports (USB2_10_11)
4 USB 3.2 Gen2 Port (USB3_9)
5 RJ45 LAN Port (LAN2)***
6 USB 3.2 Gen2 Ports (USB3_1_2)
7 Audio Jack：Blue - Line In
8 Audio Jack：Green - Line Out
9 Audio Jack：Pink - Mic In
10 USB 3.2 Gen2 x2 20G Type C Port
(TC_U3_7_8)
11 HDMI Port (HDMI2)
12 DisplayPort (DP1)
13 HDMI Port (HDMI1)
14 USB 3.2 Gen2 Ports (USB3_3_4)
23
1456
7
8
9
10
11
121314

9
IMB-X1316

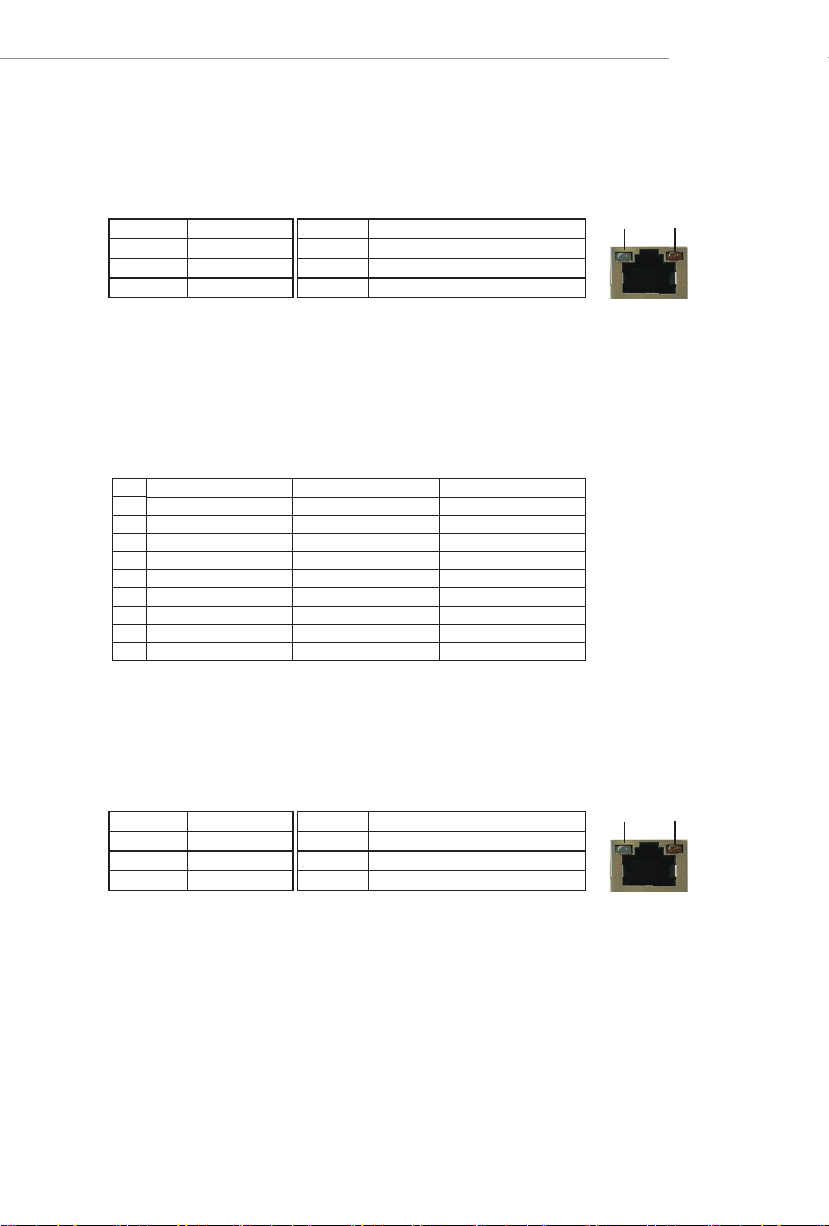

*** ere are two LEDs next to the LAN2 port. Please refer to the table below for the LAN2
port LED indications.
LAN2 Port LED Indications
ACT/LINK
LED
SPEED
LED
LAN2 Port
Status Description
O 10Mbps connection
Orange 100Mbpsconnection
Green 1Gbp connection
Activity/Link LED SPEED LED
Status Description
O No Link
Blinking Data Activity
On Link
Pin RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD TX+ RTX+
3 TXD RX+ N/A
4DTR RX- N/A
5 GND GND GND
6DSR N/A N/A
7RTS N/A N/A
8 CTS N/A N/A
9 PWR PWR PWR
COM1 Port Pin Denition
** is motherboard supports RS232/422/485 on COM1 port. Please refer to the table below
for the pin denition. In addition, COM1 port (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to our user manual for de-
tails.
COM1 Port Pin Denition
* ere are two LEDs next to the LAN1 port. Please refer to the table below for the LAN1 port
LED indications.
LAN1 Port LED Indications
ACT/LINK
LED
SPEED
LED
LAN1 Port
Status Description
O 10Mbps connection
Orange 100Mbps/1Gbp connection
Green 2.5Gbps connection
Activity/Link LED SPEED LED
Status Description
O No Link
Blinking Data Activity
On Link

10
1.5 Block Diagram
SMBUS
HDMI DDIB
PCIe Gen3 x4
Intel
PCH
W680
Intel
Alder Lake-S
Raptor Lake-S
Raptor Lake-S refresh
Processor
LGA-1700
DMI
FINTEK
F81966
GPIO x4
LPT/GPIO
PCIe x1
MDI 2.5G
PCIe Gen4 x4
2 x USB 3.2 Gen2
2 x USB 2.0
2 x USB 3.2 Gen2
2 x USB 2.0
SPI
IMB-X1316
PCIe Gen3 x1
USB 3.2 Gen1
USB 2.0
SIM
PS/2 KB, MS
FAN
LPT/DGIO header
COM Port x2
RS232/422/482
COM Port x4
RS232 only
UART x2
NUVOTON
NUC121ZC2AE CHA FAN x2
BIOS
INFINEON
SLB9670XQ2.0
SIM Card
M.2 Key B
UART x4
M.2 Key E
PCIe Gen3 x1
CNVi
USB 2.0
M.2 Key M2
SATA Port x8
SATA x8
PCIe Gen4 x4
U-DIMM
(A1/A2)
HDMI
Connector
Channel B
DDR5 4400MHz
Channel A
DDR5 4400MHz
PCIe Gen5
DDIC
2 x PCIe x4 Slot
2 x USB 3.2 Gen2
Connector
USB REDRIVER
PI3EQX1004B1ZHEX
2 x USB 3.2 Gen2
Header
USB REDRIVER
PI3EQX1004B1ZHEX
1 x USB 3.2 Gen1
1 x USB 2.0
1 x USB 3.2 Gen2
USB REDRIVER
PI3EQX1004B1ZHEX
1 x USB 3.2
Gen2 x2
1 x USB 3.2 Gen2 x2
Type-C
USB REDRIVER
PI3EQX2004ZHEX
1x USB2.0
RJ45 Connector
(vPRO)
PCIe x1
MDI 1G
RJ45 Connector Intel
I210AT
2 x USB 2.0
2 x USB 2.0
Header
U-DIMM
(B1/B2)
PCIe x16 or
x8/x8 Slot
M.2 Key M1
Display port
Connector
HDMI
Connector
ITE
IT66318
DDID
Intel
I226LM
CPU FAN x1
CHA FAN x1
PS/2 Combo Wafer
SP339EER1-
L/TR x2
SP3243EUEY
-L/TR x4
DDIA
LVDS Chrontel
CH7513
LVDS/eDP
HDA
Line In/Line Out
Mic In
SPDIF
Front Audio
Realtek
ALC897
Realtek
ALC122
SMBUS
CHA FAN x2 MCU
2 x USB 2.0
2 x USB 3.2 Gen2
2 x USB 3.2 Gen2
Type-A vertical

11
IMB-X1316
Chapter 2 Installation
is is a Micro-ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x 24.4 cm x 3.6 cm) form factor moth-
erboard. Before you install the motherboard, study the conguration of your chassis to ensure
that the motherboard ts into it.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change
any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity, NEVER place
your motherboard directly on the carpet or the like. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or in the
bag that comes with the component.
5. Heatsink (e thermal solution of whole system needs to be designed additionally.)
Make sure to unplug the power cord before installing or removing the motherboard. Failure to
do so may cause physical injuries to you and damages to motherboard components.
Do not over-tighten the screws! Doing so may damage the motherboard.
Before you install or remove any component, ensure that the power is switched o or the
power cord is detached from the power supply. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components.

12
2.3 Installation of Memory Modules (LONG-DIMM)
IMB-X1316 provides four 288-pin DDR5 (Double Data Rate 5) Long-DIMM slots, and
supports ECC/non-ECC Memory Technology.
e DIMM only ts in one correct orientation. It will cause permanent damage to the moth-
erboard and the DIMM if you force the DIMM into the slot in the incorrect orientation.
1. For dual channel conguration, you always need to install identical (the same brand,
speed, size and chip-type) DDR5 DIMM pairs.
2. It is unable to activate Quad Channel Memory Technology with only one memory
module installed.
3. It is not allowed to install a DDR, DDR2, DDR3 or DDR4 memory module into a
DDR5 slot; otherwise, this motherboard and DIMM may be damaged.
Priority DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
1Populated Populated
2Populated Populated Populated Populated
Recommended Memory Conguration

13
IMB-X1316
1
2
3
Aligh the notch. Carefully press down until the
DIMM slides into the slot.
e latches snap back into place.
1
2
3
1
2
3
Open the DIMM slot latches.

14
2.4 Expansion Slots
ere are four PCI Express slots, four M.2 sockets and one SIM socket on this motherboard.
PCIE slot: 2 x PCIe Gen5 Slots (PCIE1/PCIE4: single at x16 (PCIE1); dual at x8 (PCIE1) / x8
(PCIE4))(PCIE1: Support riser card x8/x8)
2 x PCIe x4 (Gen4)*
*If using PCIE x8/x16 card on PCIE2 slot, M.2 Key M2 (M2_M2) is limited to install.
M.2 sockets: 1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.2 Gen1, USB 2.0 and SIM for
4G/5G
1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen4 x4 for SSD
1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x4 for SSD
SIM socket: 1x SIM socket connected to M.2 key B

15
IMB-X1316
M.2 Key-E Socket
(M2_E1)
M.2 Key-M Socket
(M2_M1)
M.2 Key-M Socket
(M2_M2)
M.2 Key-B Socket
(M2_B1)
Pin Signal Name Signal Name Pin
1 GND +3VSB 2
3 USB_D+ +3VSB 4
5 USB_D- NA 6
7 GND NA 8
9 CNV_WGR_D1- CNV_RF_RESET 10
11 CNV_WGR_D1+ NA 12
13 GND MODEM_CLKREQ 14
15 CNV_WGR_D0- NA 16
17 CNV_WGR_D0+ GND 18
19 GND NA 20
21 CNV_WGR_CLK- CNV_BRI_RSP 22
23 CNV_WGR_CLK+
33 GND CNV_BGI_DT 32
35 PE Tp CNV_RGI_RSP 34
37 PETn CNV_BRI_DT 36
39 GND NA 38
41 PERp NA 40
43 PERn NA 42
45 GND NA 44
47 PEFCLKp NA 46
49 PEFCLKn NA 48
51 GND SUSCLK 50
53 CLKREQ# PERST0# 52
55 WAKE# W_DISABLE1# 54
57 GND W_DISABLE2# 56
59 CNV_WT_D1- SMB_DATA 58
61 CNV_WT_D1+ SMB_CLK 60
63 GND NA 62
65 CNV_WT_D0- CLKIN_XTAL_LCP 64
67 CNV_WT_D0+ NA 66
69 GND NA 68
71 CNV_WT_CLK- NA 70
73 CNV_WT_CLK+ +3VSB 72
75 GND +3VSB 74
Pin Signal Name Signal Name Pin
1 GND +3.3V 2
3 GND +3.3V 4
5 PERn3 NA 6
7 PERp3 NA 8
9 GND LED 10
11 PETn3 +3.3V 12
13 PE Tp3 +3.3V 14
15 GND +3.3V 16
17 PERn2 +3.3V 18
19 PERp2 NA 20
21 GND NA 22
23 PETn2 NA 24
25 PE Tp2 NA 26
27 GND NA 28
29 PERn1 NA 30
31 PERp1 NA 32
33 GND NA 34
35 PETn1 NA 36
37 PE Tp1 DEVSLP 38
39 GND SMB_CLK 40
41 PERn0 SMB_DATA 42
43 PERp0 NA 44
45 GND NA 46
47 PETn0 NA 48
49 PETP0 PERST# 50
51 GND CLKREQ# 52
53 PEFCLKn WAKE# 54
55 PEFCLKp NA 56
57 GND NA 58
67 NA NA 68
69 PEDET +3.3V 70
71 GND +3.3V 72
73 GND +3.3V 74
75 GND
Pin Signal Name Signal Name Pin
1NA +3.3V 2
3 GND +3.3V 4
5 GND FuLL_Card_Power_o 6
7 USB_D+ W_DISABLE 8
9 USB_D- WWAN_LED# 10
11 GND
NA 20
21 GND NA 22
23 NA NA 24
25 NA NA 26
27 GND NA 28
29 USB3_RX- UIM_RESET 30
31 USB3_RX+ UIM_CLK 32
33 GND UIM_DATA 34
35 USB3_TX- UIM_PWR 36
37 USB3_TX+ NA 38
39 GND NA 40
41 PERn0 NA 42
43 PERp0 NA 44
45 GND NA 46
47 PETn0 NA 48
49 PETP0 PERST# 50
51 GND CLKREQ# 52
53 PEFCLKn WAKE# 54
55 PEFCLKp NA 56
57 GND NA 58
59 NA NA 60
61 NA NA 62
63 NA NA 64
65 NA NA 66
67 NA NA 68
69 NA +3.3V 70
71 GND +3.3V 72
73 GND +3.3V 74
75 NA
Pin Signal Name Signal Name Pin
1 GND +3.3V 2
3 GND +3.3V 4
5 PERn3 NA 6
7 PERp3 NA 8
9 GND LED 10
11 PETn3 +3.3V 12
13 PE Tp3 +3.3V 14
15 GND +3.3V 16
17 PERn2 +3.3V 18
19 PERp2 NA 20
21 GND NA 22
23 PETn2 NA 24
25 PE Tp2 NA 26
27 GND NA 28
29 PERn1 NA 30
31 PERp1 NA 32
33 GND NA 34
35 PETn1 NA 36
37 PE Tp1 DEVSLP 38
39 GND SMB_CLK 40
41 PERn0 SMB_DATA 42
43 PERp0 NA 44
45 GND NA 46
47 PETn0 NA 48
49 PETP0 PERST# 50
51 GND CLKREQ# 52
53 PEFCLKn WAKE# 54
55 PEFCLKp NA 56
57 GND NA 58
67 NA NA 68
69 PEDET +3.3V 70
71 GND +3.3V 72
73 GND +3.3V 74
75 GND
