ASRock Industrial NUC-1360P/D5 User manual

NUC-1360P/D5
NUC-1340P/D5
NUC-1365UE/D5
NUC-1335UE/D5
NUC-1315UE/D5
NUC-1315U/D5
User Manual
Version 1.1
Updated April 19, 2023
Copyright©2023 ASRockInd INC. All rights reserved.

Version 1.0
Published April 2023
Copyright©2023 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in
California, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/
hazardouswaste/perchlorate”
ASRockInd Website: http://www.asrockind.com

e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 4
1.4 I/O Panel 6
1.5 Block Diagram 7
Chapter 2 Installation 8
2.1 Screw Holes 8
2.2 Pre-installation Precautions 8
2.3 Installation of Memory Modules 9
2.4 Expansion Slots 10
2.5 Onboard Headers and Connectors 11
2.6 Installation of ROM Socket 14
Chapter 3 UEFI SETUP UTILITY 15
3.1 Introduction 15
3.1.1 Entering BIOS Setup 15
3.1.2 UEFI Menu Bar 16
3.1.3 Navigation Keys 17
3.2 Main Screen (Advanced Mode) 18
3.3 Advanced Screen 19
3.3.1 CPU Conguration 20
3.3.2 Chipset Conguration 23
3.3.3 Storage Conguration 25
3.3.4 Super IO Conguration 27
3.3.5 AMT Conguration 28
3.3.6 ACPI Conguration 30
3.3.7 USB Conguration 31
3.3.8 Trusted Computing 32
3.4 Hardware Health Event Monitoring Screen 34
3.5 Security Screen 35
3.6 Boot Screen 36
3.7 Exit Screen 38

1
NUC 1300/D5 Series
Chapter 1 Introduction
Thank you for purchasing ASRockInd NUC-1360P/D5 / NUC-1340P/D5 / NUC-
1365UE/D5 / NUC-1335UE/D5 / NUC-1315UE/D5 / NUC-1315U/D5 motherboard,
a reliable motherboard produced under ASRockInd’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to ASRock-
Ind’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-
step guide to the hardware installation. Chapter 3 contains the conguration guide to
BIOS setup.
Because the motherboard specications and the BIOS soware might be updated, the
content of this manual will be subject to change without notice. In case any modica-
tions of this manual occur, the updated version will be available on ASRockInd website
without further notice. You may nd the latest CPU support lists on ASRockInd web-
site as well.
ASRockInd website https://www.asrockind.com/
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
https://www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd NUC-1360P/D5 / NUC-1340P/D5 / NUC-1365UE/D5 / NUC-1335UE/
D5 / NUC-1315UE/D5 / NUC-1315U/D5 Motherboard (NUC (4.09-in x 4.02-in x
1.5-in, 10.4 cm x 10.2 cm x 3.8 cm)

2
1.2 Specications
Form
Factor Dimensions NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm)
Processor
System
CPU
NUC-1360P/D5 (i7-1360P, 4P+8E)
NUC-1340P/D5 (i5-1340P, 4P+8E)
NUC-1365UE/D5 (i7-1365UE, 2P+8E)
NUC-1335UE/D5 (i5-1335UE, 2P+8E)
NUC-1315UE/D5 (i3-1315UE, 2P+4E)
NUC-1315U/D5 (i3-1315U, 2P+4E)
Chipset MCP
BIOS AMI SPI 256 Mbit
Expansion
Slot M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
Memory
Technology Dual Channel DDR5 4800 MHz
Capacity 32GB (16GB per DIMM)
Socket 2 x 262-pin SO-DIMM
Graphics
Controller Intel® Iris® Xe Graphics for i7/i5 CPU
Intel® UHD Graphics for i3/Celeron CPU
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 2.1/1.4a, DP++
Max resolution up to 4096x2160@60Hz
Multi
Display Max 4 display (Included 2 outputs from Type-C)
Audio Interface Realtek ALC256, High Denition Audio
Ethernet
Controller/
Speed
NUC-1365UE/D5, NUC-1335UE/D5, NUC-1360P/D5,
NUC-1340P/D5:
LAN1: Intel® I226LM with 10/100/1000/2500 Mbps,
supports vPro
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
NUC-1315U(E)/D5:
LAN1: Intel® I226LM with 10/100/1000/2500 Mbps
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
Controller 2 x RJ-45
Rear I/O
HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.4a
Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type A)
DC Jack 1

3
NUC 1300/D5 Series
Front I/O USB
2 x USB 3.2 Gen2 (Type A)
1 x USB4/underbolt™ 4 (5V/3A, supports
DP2.1a display output)
1 x USB 3.2 Gen2x2 (Type-C, 5V/3A, supports
DP1.4a display output)
Audio 1 (headphone & microphone jack)
Internal
Connector
USB 2 x USB 2.0 (1 x 2.00 pitch header)
COM 1 x COM(RS-232/RS-422/RS-485)
TPM TPM 2.0 onboard IC
Storage M.2
1 x M.2 (KEY M, 2242/2260/2280) with PCIe
Gen4x4 for SSD
*M.2 Key M 2280 (Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255 Sec
Power
Requirements
Input PWR 12V~19V DC-In Jack
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on aer power
input ready
Environment
Operating
Temp -20ºC ~ 70ºC
Storage Temp -40ºC ~ 85ºC
Operating
Humidity 5% ~ 90%
Storage
Humidity 5% ~ 90%

4

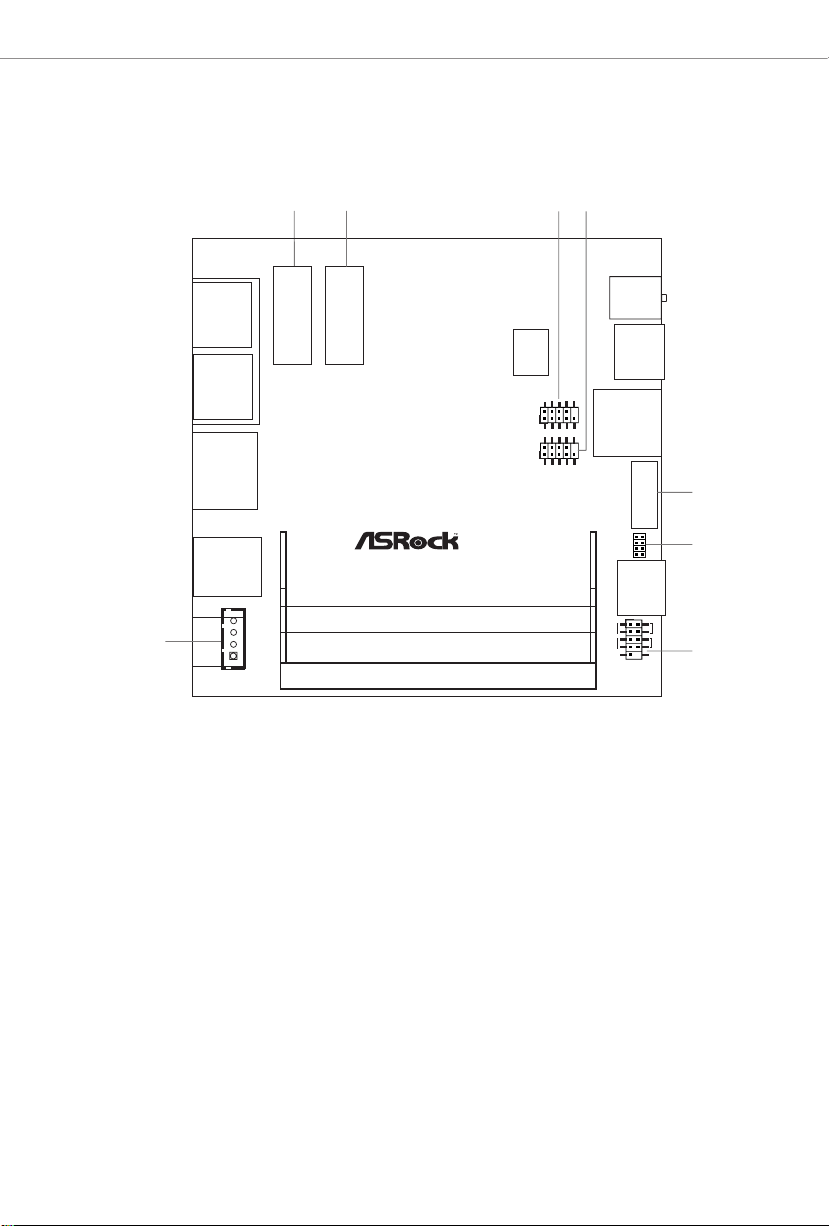

1.3 Motherboard Layout
1
5
2
6
87
34
M2_E1
AUDIO1
DC_JACK1
M.2 SSD (M2_M1)
SATA3_0
Industrial
LAN1
COM1
1
1
HDLED
PLED PWRBTN
PANEL1
DDR5_B1 (Support DDR5 Only)
DDR5_A1 (Support DDR5 Only)
USB2_7_8
1
LAN2
BIOS
ROM
RESET
USB3_1_2
(USB3.2 Gen2):
Bottom: USB3_1
Top: USB3_2
USB3_3_4
(USB3.2 Gen2):
Bottom: USB3_3
Top: USB3_4
TC_U3D_1
(Type C):
USB3.2 Gen2/DP
JP1
1
75 74
12
2 1
74 75
NUC-1360P/D5
DC-IN1
(BOM option)
1
TC_TB_0
(Type C):
USB4/
Thunderbolt 4
TM
HDMI_DP_1:
Bottom: HDMI1
Top: D 1
P

5
NUC 1300/D5 Series
PWR_BTN1
1
FAN1
BAT1
ESPI1
910
1112
1 : M.2 Key-M Socket (M2_M1)
2 : M.2 Key-E Socket (M2_E1)
3 : USB 2.0 Connector (USB2_7_8)
4 : COM Port Header (COM1)(RS-232/422/485)
5 : SATA3 Port (SATA3_0)
6 : JP1
7 : System Panel Header (PANEL1)
8 : DC-IN Wafer (DC-IN1) (BOM option)

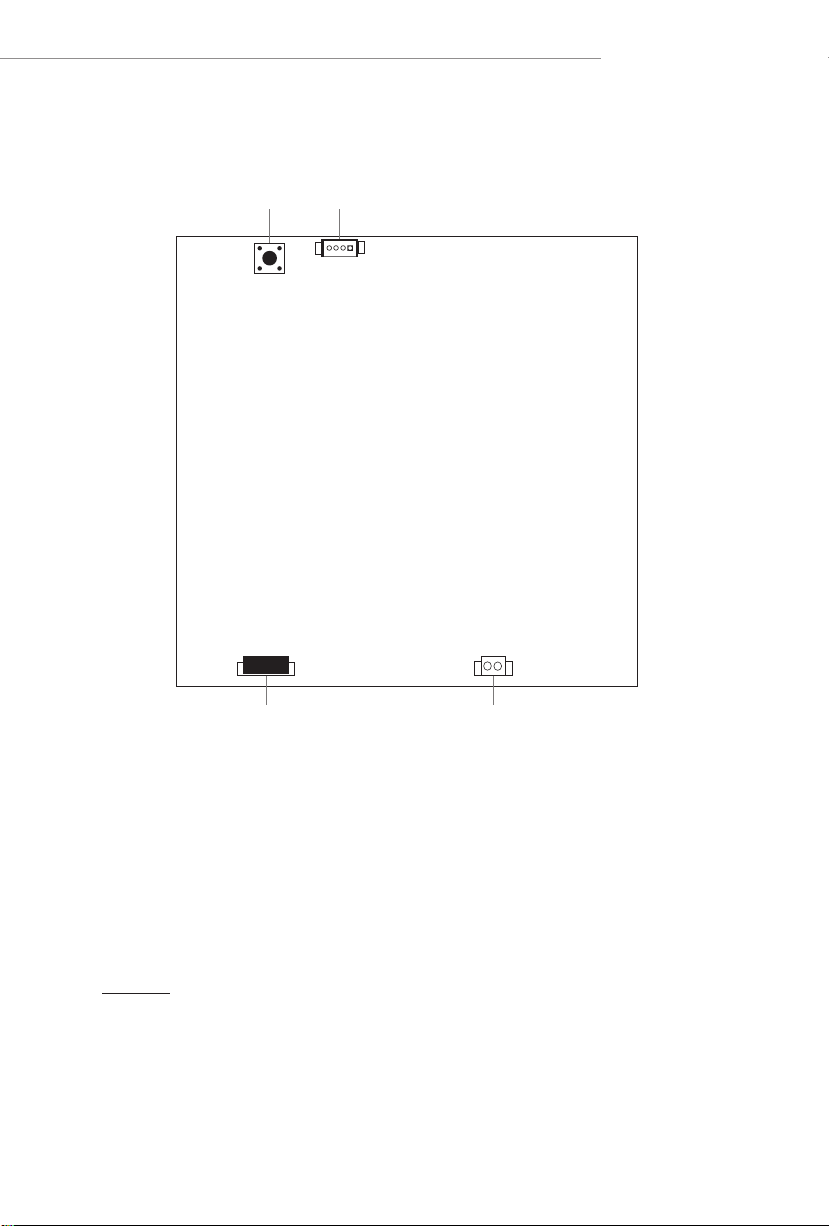

Back Side :
9 : Power Button (PWR_BTN1)
10 : Fan Connector (FAN1)
11 : Battery Connector (BAT1)
12 : ESPI Connector (ESPI1)

6
1.4 I/O Panel
1 USB 3.2 Gen2x2/DP Type-C Port
(TC_U3D_1)
2 USB 3.2 Gen2 Ports (USB3_3_4)
3 USB4/underbolt™4 Type-C Port
(TC_TB_0)
4 Audio Jack (AUDIO1)
5 RJ-45 LAN Port (LAN1)*
6 RJ-45 LAN Port (LAN2)*
7 HDMI Port (HDMI1)
8 DisplayPort (DP1)
9 USB 3.2 Gen2 Ports (USB3_1_2)
10 DC-In Jack (DC_JACK1)
Front I/O :
Rear I/O :
ACT/LINK
LED
SPEED
LED
LAN Port
SPEED LED
Status Description
O 10Mbps connection
Orange 100Mbps/1Gbps connection
Green 2.5Gbps connection
Activity/Link LED
Status Description
O No Link
Blinking Data Activity
On Link
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications

7
NUC 1300/D5 Series

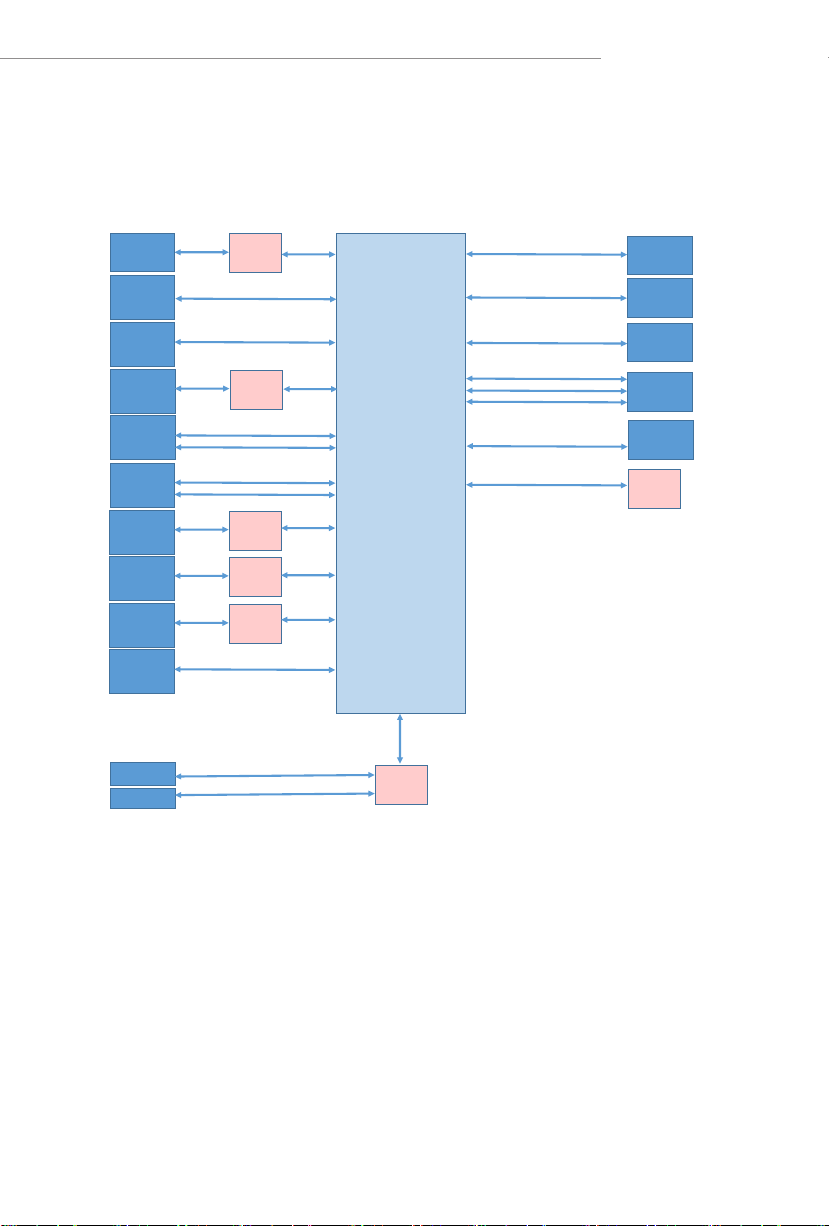

1.5 Block Diagram
Intel
Raptor Lake-P
FCBGA1744
Package(50*25mm)
Hayden
Bridge
JHL9040R
TCP0+USB2.0#5
TBT
Type-C
Connector
Type-C
Connector
eSPI
Display port
TCP2
HDMI
Connector
HDMI ITE
IT66318
DDIB
2x USB3.2 Gen2
Connector
2xUSB3.2 Gen2(#1, #2)
RJ45
Connector
2.5G Intel
I226LM
PCIex1(#5)
RJ45
Connector
2.5G Intel
I226V
PCIex1(#9)
DDR5 4800MHZ
SO-DIMM
Line out & Mic in
Combo Jack
Audio Realtek
ALC233
HDA
2x USB2.0
Connector
2x USB2.0(#7, #8)
NUVOTON
NCT5525D
COM 232/422/485*1 UART*1
CPU FAN1
FAN
SATA(#0) SATA Port
PCIe x1(#6)
M.2 Key E
CNVi
USB2.0(#10)
PCIe x4+USB2.0(#9) M.2 Key M
SPI INFINEON
SLB9670XQ2.0
2x USB2.0(#1, #2)
SO-DIMM
DDR5 4800MHZ
TCP1+ USB2.0#6
2x USB3.2 Gen2
Connector
2xUSB3.2 Gen2(#3, #4)
2x USB2.0(#3, #4)

8
Chapter 2 Installation
is is a NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm) form
factor motherboard. Before you install the motherboard, study the conguration of
your chassis to ensure that the motherboard ts into it.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components or
change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity, NEV-
ER place your motherboard directly on the carpet or the like. Also remember to
use a grounded wrist strap or touch a safety grounded object before you handle
components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
5. Heatsink (e thermal solution of whole system needs to be designed addition-
ally.)
Make sure to unplug the power cord before installing or removing the motherboard. Failure to
do so may cause physical injuries to you and damages to motherboard components.
Do not over-tighten the screws! Doing so may damage the motherboard.
Before you install or remove any component, ensure that the power is switched o or the
power cord is detached from the power supply. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components.

9
NUC 1300/D5 Series
2.3 Installation of Memory Modules
NUC-1360P/D5 / NUC-1340P/D5 / NUC-1365UE/D5 / NUC-1335UE/D5 / NUC-
1315UE/D5 / NUC-1315U/D5 provides two 262-pin DDR5 (Double Data Rate 5)
slots, and supports Dual Channel Memory Technology.
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
1. e SO-DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at incor-
rect orientation.
2. Please do not intermix dierent voltage SO-DIMMs on this motherboard.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

10
2.4 Expansion Slots
ere are 2 M.2 sockets on this motherboard.
M.2 for SSD: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4x4 for SSD.
* M.2 Key M 2280 (Supported by bracket)
M.2 for Wi-Fi: 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless.
M.2 Key-M
Socket (M2_M1)
M.2 Key-E
Socket (M2_E1)
Pin Signal Signal Pin
1 GND +3.3V 2
3 GND +3.3V 4
5 PERn3 NC 6
7 PERp3 NC 8
9 GND 10
11 PETn3 +3.3V 12
13 PE Tp3 +3.3V 14
15 GND +3.3V 16
17 PERn2 +3.3V 18
19 PERp2 NA 20
21 GND NA 22
23 PETn2 NA 24
25 PE Tp2 NA 26
27 GND NA 28
29 PERn1 NA 30
31 PERp1 GND 32
33 GND USB_D+ 34
35 PETn1 USB_D- 36
37 PE Tp1 GND 38
39 GND SMB_CLK 40
41 PERn0 SMB_DATA 42
43 PERp0 NA 44
45 GND NA 46
47 PETn0 NA 48
49 PE Tp0 PERST# 50
51 GND CLKREQ# 52
53 PEFCLKn WAKE# 54
55 PEFCLKp NA 56
57 GND NA 58
67 NA NA 68
69 PEDET +3.3V 70
71 GND +3.3V 72
73 GND +3.3V 74
75 GND
Pin Signal Signal Pin
1 GND +3.3V 2
3 USB_D+ +3.3V 4
5 USB_D- NA 6
7 GND NA 8
9 CNV_WGR_D1- CNV_RF_
RESET 10
11 CNV_WGR_D1+ NA 12
13 GND MODEM_
CLKREQ 14
15 CNV_WGR_D0- NA 16
17 CNV_WGR_D0+ GND 18
19 GND NA 20
21 CNV_WGR_
CLK- CNV_BRI_RSP 22
23 CNV_WGR_
CLK+
33 GND CNV_BGI_DT 32
35 PE Tp CNV_RGI_RSP 34
37 PETn CNV_BRI_DT 36
39 GND NA 38
41 PERp NA 40
43 PERn NA 42
45 GND NA 44
47 PEFCLKp NA 46
49 PEFCLKn NA 48
51 GND SUSCLK 50
53 CLKREQ# PERST0# 52
55 WAKE# W_DISABLE1# 54
57 GND W_DISABLE2# 56
59 CNV_WT_D1- SMB_DATA 58
61 CNV_WT_D1+ SMB_CLK 60
63 GND NA 62
65 CNV_WT_D0- 64
67 CNV_WT_D0+ NA 66
69 GND NA 68
71 CNV_WT_CLK- NA 70
73 CNV_WT_CLK+ +3.3V 72
75 GND +3.3V 74

11
NUC 1300/D5 Series
2.5 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause per-
manent damage to the motherboard!
USB 2.0 Connector
(9-pin USB2_7_8)
(see p. 4, No. 3)
ere is one USB 2.0 connector on this motherboard.
COM Port Header (RS232/422/485)
(9-pin COM1)
(see p. 4, No. 4)
Pin Signal Name Pin Signal Name Pin Signal Name Pin Signal Name Pin Signal Name
2RRXD1 4DDTR#1 DDSR#1 8CCTS#1
1DDCD#1 3TTXD1 5GND 7RRTS#1 9PRI#1
is motherboard supports RS232/422/485 on COM1 port. Please refer to the table below
for the pin denition. In addition, COM1 port (RS232/422/485) can be adjusted in BIOS
setup utility > Advanced Screen > Super IO Conguration. You may refer to our manual for
details.
COM1 Port Pin Denition
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD RX+ N/A
3 TXD TX+ RTX+
4DTR RX- N/A
5 GND GND GND
6DSR N/A N/A
7RTS N/A N/A
8 CTS N/A N/A
9 NA/+5V/+12V N/A N/A
1
2
1
DUMMY

12
Connect the power switch, reset switch and system status indicator on the chassis to this
header according to the pin assignments below. Note the positive and negative pins before
connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure the way to turn
o your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset switch to restart the
computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. e LED is on when the
system is operating. e LED keeps blinking when the system is in S3 sleep state. e LED
is o when the system is in S4 sleep state or powered o (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. e LED is on when the
hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly consists of
power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When
connecting your chassis front panel module to this header, make sure the wire assignments
and the pin assignments are matched correctly.
SATA3 Port
(SATA3_0)
(see p. 4, No. 5)
e Serial ATA3 (SATA3) connector supports SATA data cables for internal storage
devices. e current SATA3 interface allows up to 6.0 Gb/s data transfer rate.
JP1 Header
(8-pin JP1)
(see p. 4, No. 6)
* Auto clear CMOS when system boot improperly.
1-2: SIO AT Mode
(Default Open: SIO ATX Mode)
4-6: Clear CMOS
5-7: DACC*
12
System Panel Header
(9-pin PANEL1)
(see p. 4, No. 7)
is header accommodates several system front panel functions.
R
ESET#
PWRBTN
#
PLED-
PLED+
GND
HDLED-
HDLED
+
1
DUMMY
GND
1

13
NUC 1300/D5 Series

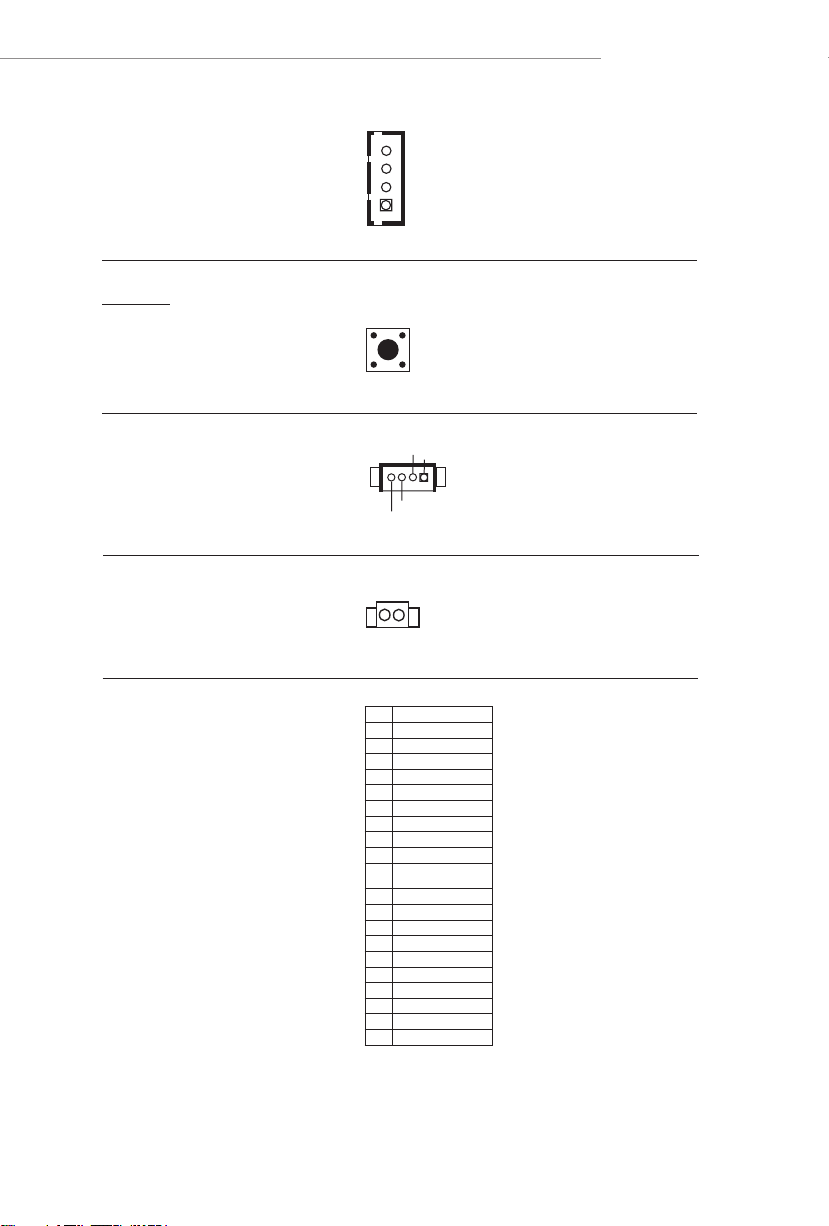

Back Side :
ESPI Header
(ESPI1)
(see p. 5, No. 12)
Power Button
(PWR_BTN1)
(see p. 5, No. 9)
Fan Connector
(FAN1)
(see p. 5, No. 10) 1
FAN_SPEED_CONTROL
FAN_SPEED
+12V
GND
+5V
Battery Connector
(BAT1)
(see p. 5, No. 11)
BAT1
BAT1
Pin Net
1 GND
2 ESPI_CLK
3 GND
4 ESPI_CS#
5 ESPI_RESET#
6 GND
7 +3V
8 GND
9 SMB_CLK_MAIN
10 SMB_DATA_
MAIN
11 ESPI_IO0
12 ESPI_IO1
13 ESPI_IO2
14 ESPI_IO3
15 GND
16 +3VSB
17 GPIO_TEST#
18 N/A
19 ESPI_ALERT#
20 GND
DC-In Wafer (BOM option)
(4-pin DC-IN1)
(see p. 4, No. 8)
1
1-4 : GND
2-3 : DC Input

* e yellow dot (Pin1) on the ROM must be installed at pin1 position of
the socket.
* Make sure the white dot on the ROM is installed outwards of the socket.
* For further details of how to install ROM, please refer to ASRock
Industrial website.
Warning: If the installation does not follow as the picture, then it may
cause severe damage to chipset & MB.
2.6 Installation of ROM Socket
* Do not apply force to the actuator cover aer IC inserted.
* Do not apply force to actuator cover when it is opening over 120 degrees,
Otherwise, the actuator cover may be broken.

15
NUC 1300/D5 Series
Chapter 3 UEFI SETUP UTILITY
3.1 Introduction
ASRock Industrial UEFI (Unied Extensible Firmware Interface) is a BIOS utility
which oers tweak-friendly options in an advanced viewing interface. e UEFI
system works with a USB mouse and oers users a faster, sleeker experience.
This BIOS utility can perform the Power-On Self-Test (POST) during system
startup, record hardware parameters of the system, load operating system, and so on.
e battery on the motherboard supplies the power needed to the CMOS when the
system power is turned o, and the values congured in the UEFI utility are kept in
the CMOS.
Please note that inadequate BIOS settings may cause system instability, mulfunc-
tion or boot failure. We strongly recommend that you do not alter the UEFI default
congurations or change the settings only with the assistance of a trained service
person.
If the system becomes unstable or fails to boot aer you change the setting, try to
clear the CMOS values and reset the board to default values. See your motherboard
manual for instructions.
3.1.1 Entering BIOS Setup
You may run the UEFI SETUP UTILITY by pressing <F2> or <Delete> right
aer you power on the computer; otherwise, the Power-On-Self-Test (POST) will
continue with its test routines. If you wish to enter the UEFI SETUP UTILITY aer
POST, restart the system by pressing <Ctl> + <Alt> + <Delete>, or by pressing the
reset button on the system chassis. You may also restart by turning the system o
and then back on.
is setup guide explains how to use the UEFI SETUP UTILITY to congure all
the supported system. e screenshots in this manual are for reference only. UEFI
Settings and options may vary owing to different BIOS release versions or CPU
installed. Please refer to the actual BIOS version of the motherboard you purchased
for detailed screens, settings and options.
