ASRock Industrial IMB-1231 User manual

1
IMB-1231
User Manual
Version 1.0
Published August 2022
Copyright©2022 ASRockInd INC. All rights reserved.

2
Version 1.0
Published July 2022
Copyright©2022 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished
for informational use only and subject to change without notice, and should
not be constructed as a commitment by ASRockInd. ASRockInd assumes no
responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockInd Website: http://www.asrockind.com

3
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 10
2 Installation ......................................................... 11
2.1 Screw Holes................................................................... 11
2.2 Pre-installation Precautions ........................................... 11

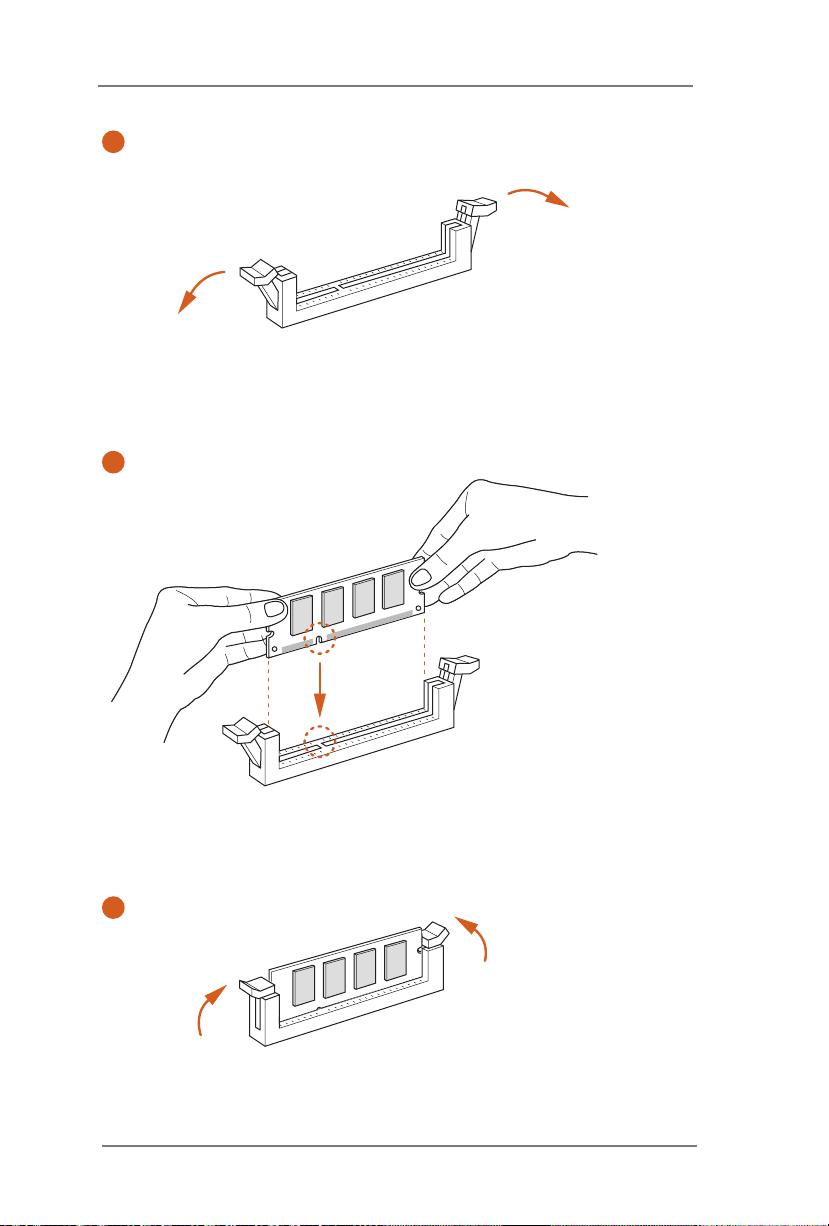

2.3 Installation of Memory Modules (SO-DIMM).................. 12
2.4 Expansion Slots ............................................................ 14
2.5 Jumpers Setup............................................................... 15
2.6 Onboard Headers and Connectors................................ 17
2.7 Installation of ROM Socket ............................................ 22
3 UEFI SETUP UTILITY......................................... 23
3.1 Introduction .................................................................... 23
3.1.1 UEFI Menu Bar .................................................... 23
3.1.2 Navigation Keys ................................................... 24
3.2 Main Screen................................................................... 24
3.3 Advanced Screen........................................................... 25
3.3.1 CPU Conguration ............................................... 26
3.3.2 Chipset Conguration........................................... 28
3.3.3 Storage Conguration .......................................... 30
3.3.4 Super IO Conguration ........................................ 31
3.3.5 AMT Conguration ............................................... 32
3.3.6 ACPI Conguration............................................... 34
3.3.7 USB Conguration ............................................... 35
3.3.8 Trusted Computing............................................... 36
3.4 Hardware Health Event Monitoring Screen ................... 37
3.5 Security Screen ............................................................. 38
3.6 Boot Screen ................................................................... 39
3.7 Exit Screen .................................................................... 40

5
Chapter 1: Introduction
Thank you for purchasing ASRockInd IMB-1231 motherboard, a reliable mother-
board produced under ASRockInd’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRockInd’s commitment
to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-
step guide to the hardware installation. Chapter 3 contains the conguration guide
to BIOS setup.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockInd website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRockInd website
as well. ASRockInd website http://www.asrockind.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd IMB-1231 Motherboard (Mini-ITX (6.7-in x 6.7-in))
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU Intel® 12th Gen (Alder Lake-S) Core™
Processors, up to 65W
Chipset Intel®Q670
Socket LGA1700
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller Intel® UHD Graphics
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
eDP eDP1.4b
Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920x1200@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
MultiDisplay Quad Display
Expansion
Slot
PCIe 1 x PCIe x16 (Gen4, Support riser card x8/x8)
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1/USB
3.2 Gen1/USB 2.0 and SIM for 4G
SIM Socket 1 x Socket connected to M.2 Key B
Audio Interface Realtek ALC897, High Denition Audio. Line-
out, Mic-in
Ethernet
Controller/
Speed
LAN1: Intel®I225LM with 10/100/1000/2500
Mbps, support AMT/vPro
LAN2: Intel®I225LM with 10/100/1000/2500
Mbps
Connector 2 x RJ-45
Rear I/O
HDMI 1 x HDMI 2.0b
DisplayPort 2 x DP 1.4a++
VGA 1
Ethernet 2 x 2.5 Gigabite LAN
USB 4 x USB 3.2 (Gen2)
Audio 2 (Mic-in, Line-out)
COM 2 x COM (RS-232/422/485)

7
Internal
Connector
USB 2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM 3 x COM (RS-232)
GPIO 4 x GPI, 4 x GPO
TPM TPM 2.0 onboard IC
LVDS 1
eDP 1
SATA PWR
Output 1
Speaker
Header 1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with PCIe
Gen3 x4 for SSD
1 x M.2 (Key M, 2242) with PCIe Gen4 x4
and SATA3 for SSD*
*Recommend using M2X4-SATA-4P module
to support extra 4 SATA ports (Support by
special BIOS)
SATA 4 x SATA3 (6Gb/s)
RAID
Intel®VMD RAID 0/1/5/10
**Supported by identical interface (PCIe or
SATA)
PCIe interface: M.2 Key B + M.2 Key M1/2
or 2*M.2 Key M
SATA interface: SATA port
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power
Requirements
Input PWR ATX PWR (24+4-pin) and +12V DC-In co-
design
Power On
AT/ATX Supported
- AT: Directly PWR on as power input ready
- ATX: Press button to PWR on after power
input ready
Environment
Operating
Temp 0ºC ~ 60ºC
Storage
Temp -40°C ~ 85°C
Operating
Humidity 5% ~ 90%
Storage
Humidity 5% ~ 90%

8
1.3 Motherboard Layout

9
1 : COM Port PWR Setting Jumpers
PWR_COM1 (For COM Port1)
PWR_COM2 (For COM Port2)
2 : M.2 Key-M Socket (M2_M2)
3 : ESPI Header (ESPI1)
4 : M.2 Key-B Socket (M2_B1)
5 : 24-pin ATX Power Input Connector
6 : SATA3 Connectors (SATA3_1~4)
7 : COM Port PWR Setting Jumper
PWR_COM3 (For COM Port3)
8 : SATA Power Output Connector
9 : COM Port Headers (COM5, 4, 3) (RS232)
10 : Digital Input/Output Pin Header (JGPIO1)
11 : Backlight Volume Control (BLT_VOL1)
12 : Inverter Power Control Wafer (BLT_PWR1)
13 : Digital Input / Output Power Select (JGPIO_PWR1)
14 : LVDS Panel Connector
15 : Panel Power Select (LCD_VCC) (PNL_PWR1)
16 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
17 : CON_LBKLT_CTL Voltage Level (BLT_PWM2)
18 : Digital Input / Output Default Value Setting (JGPIO_SET1)
19 : Brightness Control Mode (BLT_PWM1)
20 : DACC1_PCIE_PWR1
21 : Clear CMOS Header (CLRMOS1)
22 : Chassis Intrusion Header (CI1_2)
23 : PWR_BAT1_SIO_AT1
24 : System Panel Header
25 : SMBUS_TEST1
26 : CPU FAN Connector (+12V)
27 : Chassis FAN Connector (+12V)
28 : M.2 Key-M Socket (M2_M1)
29 : M.2 Key-E Socket (M2_E1)
30 : Front Panel Audio Header
31 : 4-pin ATX PWR Connector
32 : SPDIF Header
33 : 3W Audio AMP Output Wafer
34 : USB2.0 Headers (USB2_5_6, USB2_10_11)
35 : USB3.2 Gen1 Header (USB3_4_9)
36 : Battery Connector
Back Side:
SIM Card Socket (SIM1)

10

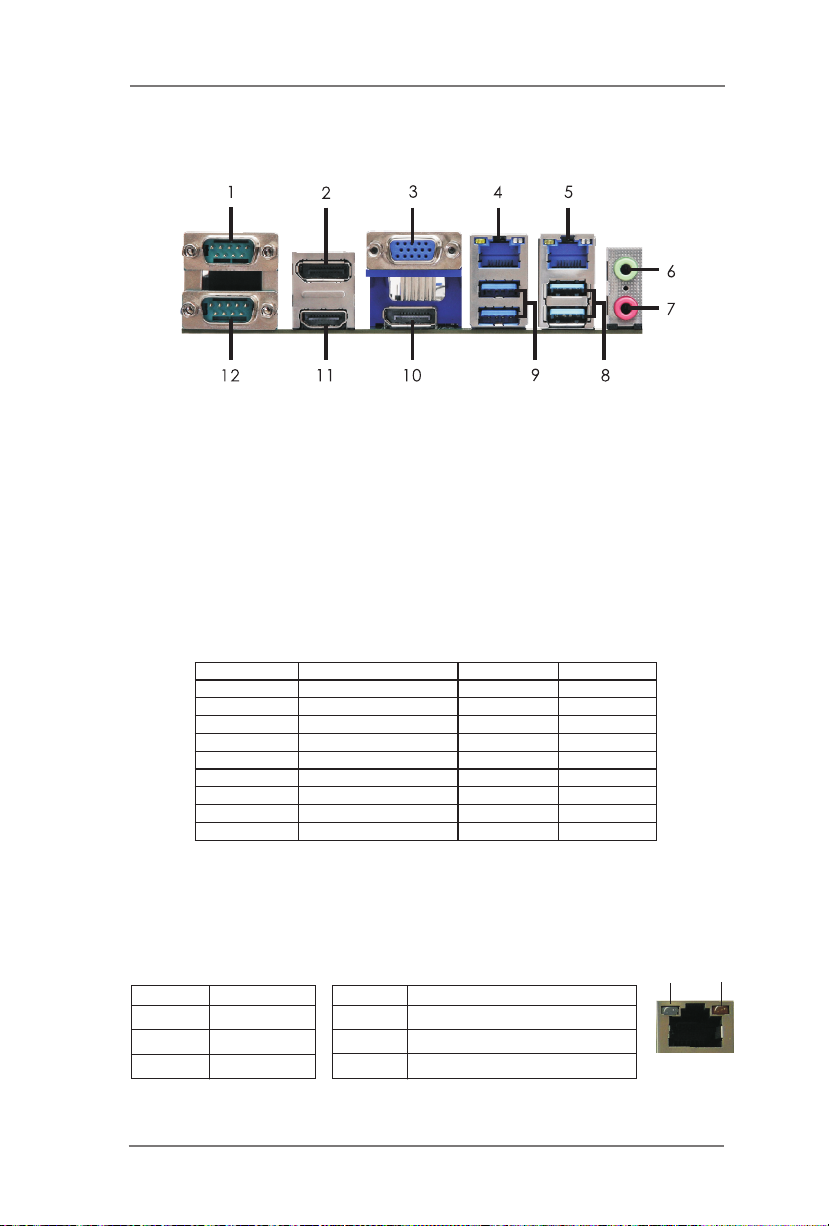

1.4 I/O Panel
1 COM Port (COM1)*
2 DisplayPort (DP1)
3 D-Sub Port (VGA1)
4 RJ45 LAN Port (LAN2)**
5 RJ45 LAN Port (LAN1)**
6 Line out (Lime)
7 Microphone (Pink)
8 USB3.2 Gen2 Ports (USB3_7_8)
9 USB3.2 Gen2 Ports (USB3_1_2)
10 DisplayPort (DP2)
11 HDMI Port (HDMI1)
12 COM Port (COM2)*
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps/100Mbps connection
Blinking Data Activity Orange 1Gbps connection
On Link Green 2.5Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
* This motherboard supports RS232/422/485 on COM1, 2 ports. Please refer to below table for
the pin denition. In addition, COM1, 2 ports (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 31 for details.
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD TX+ RTX+
3 TXD RX+ N/A
4 DTR RX- N/A
5GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9 PWR PWR PWR
COM1, 2 Port Pin Denition

11
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps/100Mbps connection
Blinking Data Activity Orange 1Gbps connection
On Link Green 2.5Gbps connection
Chapter 2: Installation
This is a Mini-ITX form factor (6.7” x 6.7”) motherboard. Before you install the moth-
erboard, study the conguration of your chassis to ensure that the motherboard ts
into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
This motherboard provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM
slots.
1. The SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
2. Please do not intermix di󰀨erent voltage SO-DIMMs on this motherboard.

13
1
2
3

14
2.4 Expansion Slots
There is 1 PCI Express slot, 4 M.2 sockets and 1 SIM socket on this motherboard.
PCIE slot: PCIE1 (PCIE 4.0 x16 slot) is used for PCI Express x16 lane width cards*.
*Supports riser card x8/x8.
M.2 sockets:
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless.
1 x M.2 (Key B, 3042/3052) with PCIe x1/USB3.2 Gen1/USB 2.0 and SIM
for 4G.
1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD.
1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD*
*Special BIOS to support M2X4-SATA-4P.
SIM socket:
1 x SIM socket connected to M.2 key B.
M.2 Key-E Socket (M2_E1): M.2 Key-M Socket (M2_M1):
M.2 Key-B Socket (M2_B1): M.2 Key-M Socket (M2_M2)*:
*Special BIOS to support M2X4-SATA-4P
PIN Sign al Signal PIN
1 GND +3.3V 2
3 USB_D+ +3.3V 4
5 USB_D- NA 6
7 GND NA 8
9 CNV_WGR_D1- CNV_RF_ RESET 10
11 CNV_WGR_D1+ NA 12
13 GND MODEM_CLKR EQ 14
15 CNV_WGR_D0- NA 16
17 CNV_WGR_D0 + GND 18
19 GND NA 20
21 CNV_WGR_CLK- CNV_BRI _RSP 22
23 CNV_WGR_CL K+
33 GND CNV_BGI_DT 32
35 PETp CNV_RGI_RSP 3 4
37 PETn CN V_BRI_ DT 36
39 GND NA 38
41 PERp NA 4 0
43 PERn NA 42
45 GND NA 44
47 PEFCLKp NA 46
49 PEFCLKn NA 48
51 GND SUSCLK 50
53 CLKR EQ# PE RST0 # 52
55 NA W_DISABLE1# 54
57 GND W_DISABL E2# 56
59 CNV_WT_D1- SMB_ DATA 58
61 CNV_WT_D1+ SM B_CL K 60
63 GND NA 62
65 CNV_WT_D0- NA 64
67 CNV_WT_D0+ NA 66
69 GND NA 68
71 CNV_WT_CLK- NA 70
73 CNV_WT_CLK+ +3.3V 72
75 GND +3.3V 74
PIN Sign al Signal PIN
1 GND +3.3V 2
3 GND +3.3V 4
5 PERn3 NA 6
7 PERp3 NA 8
9 GND SATA_LED 10
11 PETn3 +3.3V 12
13 PETp3 +3.3V 14
15 GND +3.3V 16
17 PERn2 +3.3V 18
19 PERp2 NA 20
21 GND NA 22
23 PETn2 NA 24
25 PETp2 NA 2 6
27 GND NA 28
29 PERn1 NA 30
31 PERp1 NA 32
33 GND NA 34
35 PETn1 NA 36
37 PETp1 NA 38
39 GND SMB_CLK 40
41 PERn0 SMB_DATA 42
43 PERp0 NA 44
45 GND NA 46
47 PETn0 NA 48
49 PETP0 PERST# 50
51 GND CLKREQ# 52
53 PEFCLK n NA 54
55 PEFCLKp NA 56
57 GND NA 58
67 NA NA 68
69 PEDET +3.3V 70
71 GND +3.3V 72
73 GND +3.3V 74
75 GND
PIN Sign al Signal PIN
1 GND +3.3V 2
3 GND +3.3V 4
5 PERn3 NA 6
7 PERp3 NA 8
9 GND SATA_LE D 10
11 PETn3 +3.3V 12
13 PETp3 +3.3V 14
15 GND +3.3V 16
17 PERn2 +3.3V 18
19 PERp2 NA 20
21 GND NA 22
23 PETn2 NA 24
25 PETp2 NA 26
27 GND NA 2 8
29 PERn1 NA 30
31 PERp1 NA 32
33 GND NA 34
35 PETn1 NA 3 6
37 PETp1 NA 38
39 GND SMB _CLK 40
41 PER n0 / SATA-B+ SMB_DATA 42
43 PE Rp0 / SATA-B- NA 44
45 GND NA 46
47 PETn0 / SATA-A- NA 48
49 PETP0/ SATA-A+ PERST# 50
51 GND CLKREQ# 52
53 PEFCLK n NA 54
55 PEFCLKp NA 56
57 GND NA 58
67 NA NA 68
69 PEDET +3.3V 70
71 GND +3.3V 72
73 GND +3.3V 74
75 GND
PIN Sign al Signal PIN
1 NA +3.3V 2
3 GND +3.3V 4
5 GND FuLL_Card_Power_o 6
7 USB_D+ W_DISA BLE 8
9 USB_D- WWAN_ LED# 10
11 GND
21 GND NA 20
23 NA NA 22
25 NA NA 24
27 GND NA 26
29 USB3_RX- NA 28
31 USB3_R X+ UI M_RESET 30
33 GND UIM_CLK 32
35 USB3_TX- UIM_DATA 34
37 USB3_TX+ UI M_PWR 36
39 GND NA 38
41 PERn0 NA 40
43 PERp0 NA 42
45 GND NA 44
47 PETn0 NA 4 6
49 PETP0 NA 48
51 GND PERST# 50
53 PEFCLK n CLKR EQ# 52
55 PEFCLKp NA 54
57 GND NA 56
59 NA NA 58
61 NA NA 60
63 NA NA 62
65 NA NA 64
67 NA NA 66
69 PEDET NA 68
71 GND +3.3V 70
73 GND +3.3V 72
75 NA +3.3V 74

15
2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumper
(3-pin CLRMOS1)
1-2 : Normal
(see p.8, No. 21)
2-3 : Clear CMOS
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the date, time and user default prole will be cleared
only if the CMOS battery is removed.
Clear CMOSDefault
COM Port PWR Setting Jumpers 1-2 : +5V
(3-pin PWR_COM1 (For COM Port1))
2-3 : +12V
(3-pin PWR_COM2 (For COM Port2))
(see p.8, No. 1)
(3-pin PWR_COM3 (For COM Port3))
(see p.8, No. 7) 3 2 1
3 2 1
Digital Input / Output Power Select 1-2 : +12V
(3-pin JGPIO_PWR1)
2-3 : +5V
(see p.8, No. 13)
Backlight Power Select (LCD_BLT_VCC) 1-2 : LCD_BLT_VCC: +5V
(3-pin BKT_PWR1)
2-3 : LCD_BLT_VCC: +12V
(see p.8, No. 16)

16
1
CON_LBKLT_CTL Voltage Level 1-2 : 3V Level
(3-pin BLT_PWM2)
2-3 : 5V Level
(see p.8, No. 17)
1
Panel Power Select (LCD_VCC) 1-2 : LCD_VCC: +3V
(5-pin PNL_PWR1)
2-3 : LCD_VCC: +5V
(see p.8, No. 15)
4-5 : LCD_VCC: +12V
Digital Input / Output Default Value Setting 1-2 : Pull-High
(3-pin JGPIO_SET1)
2-3 : Pull-Low
(see p.8, No. 18)
Brightness Control Mode 1-2 : From eDP PWM to CON_
(3-pin BLT_PWM1)
LBKLT_CTL
(see p.8, No. 19)
2-3 : From LVDS PWM to CON_
LBKLT_CTL
Note: Please set to 1-2 when adjusting brightness by Brightness Control bar under
OS. Please set to 2-3 when adjusting brightness by BLT_VOL1.
DACC1_PCIE_PWR1 PIN1-2 Open : No ACC
(4-pin DACC1_PCIE_PWR1) PIN1-2 Short : ACC
(see p.8, No. 20) PIN3 : PSON#
PIN4 : GND
Note: Auto clear CMOS when system boot improperly.
1
Chassis Intrusion Header PIN1-2 Open : Normal
(4-pin CI1_2) PIN1-2 Short : Active Case Open
(see p.8, No. 22) PIN3-4 Open : Active Case Open
PIN3-4 Short : Normal
1
PWR_BAT1_SIO_AT1 PIN1-2 Open : Normal
(4-pin PWR_BAT1_SIO_AT1) PIN1-2 Short : Charge Battery
(see p.8, No. 23) PIN3-4 Open : ATX Mode
PIN3-4 Short : AT Mode

17
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!

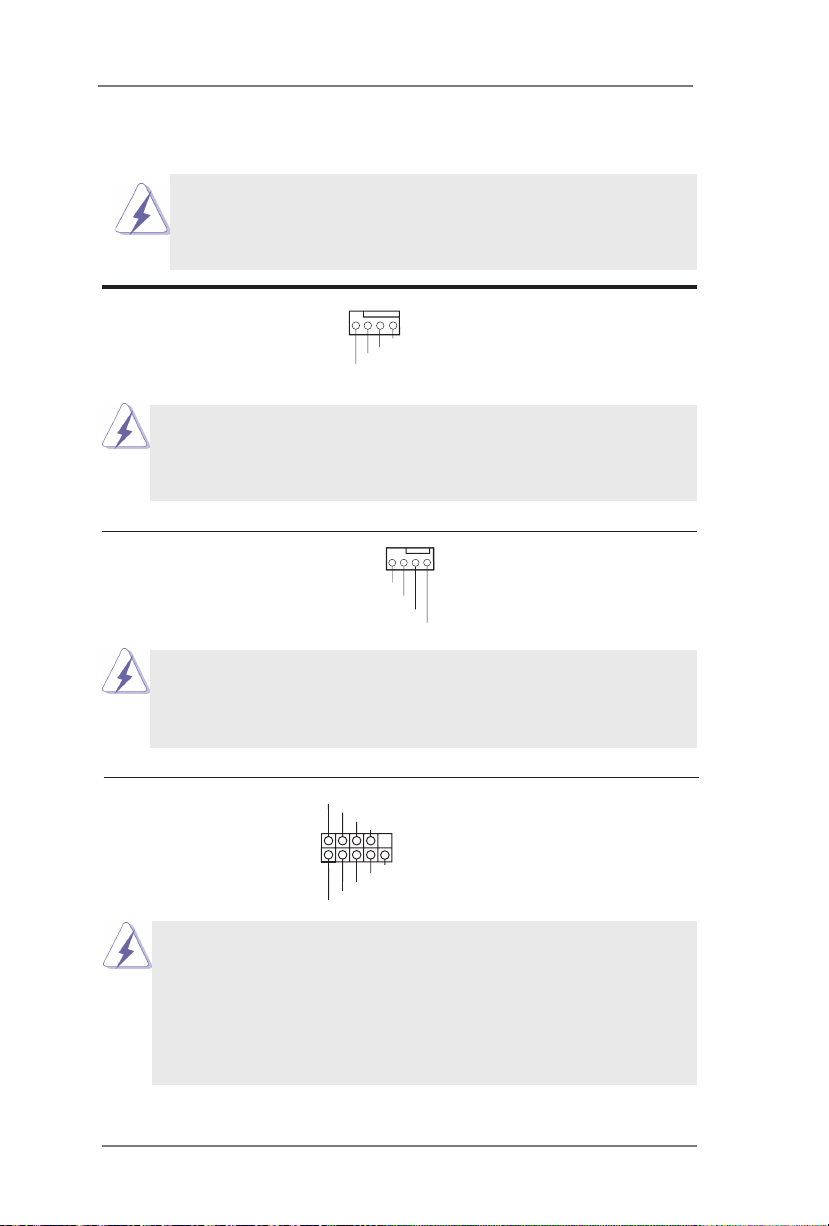

CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 26) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8, No. 24) functions.
Chassis Fan Connector Please connect the chassis fan
(4-pin CHA_FAN1) cable to the connector and
(see p.8 No. 27) match the black wire to the
ground pin.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn o󰀨 your system using the power switch.
Though this motherboard provides 4-Pin chassis fan (Quiet Fan) support, the
3-Pin chassis fan still can work successfully even with the fan speed control
function. If you plan to connect the 3-Pin chassis fan to the chassis fan
connector on this motherboard, please connect it to Pin 1-3.
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
GN D
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
Chassis Intrusion Header PIN1-2 Open : Normal
(4-pin CI1_2) PIN1-2 Short : Active Case Open
(see p.8, No. 22) PIN3-4 Open : Active Case Open
PIN3-4 Short : Normal

18
COM Port Headers (RS232)
(9-pin COM5, 4, 3: see p.8, No. 9)
COM3: COM4, 5:
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1/S3 sleep state. The LED is o󰀨 when the system is in S4 sleep
state or powered o󰀨 (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may di󰀨er by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
GPP_E7
SMBUS_TEST1
(4-pin SMBUS_TEST1)
(see p.8 No. 25)
RT S CTS
GN D
TX D
DCD
DS R
DT R
RX D
1
NC
RI
PWR
RT S CTS
GN D
TX D
DCD
DS R
DT R
RX D
1
NC
RI
N/A
SPDIF Header SPDIF header, providing
(3-pin SPDIF1) SPDIF audio output to HDMI
(see p.8, No. 32) VGA card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the SPDIF connector of
HDMI VGA card to this header.
+5V

19
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 33)

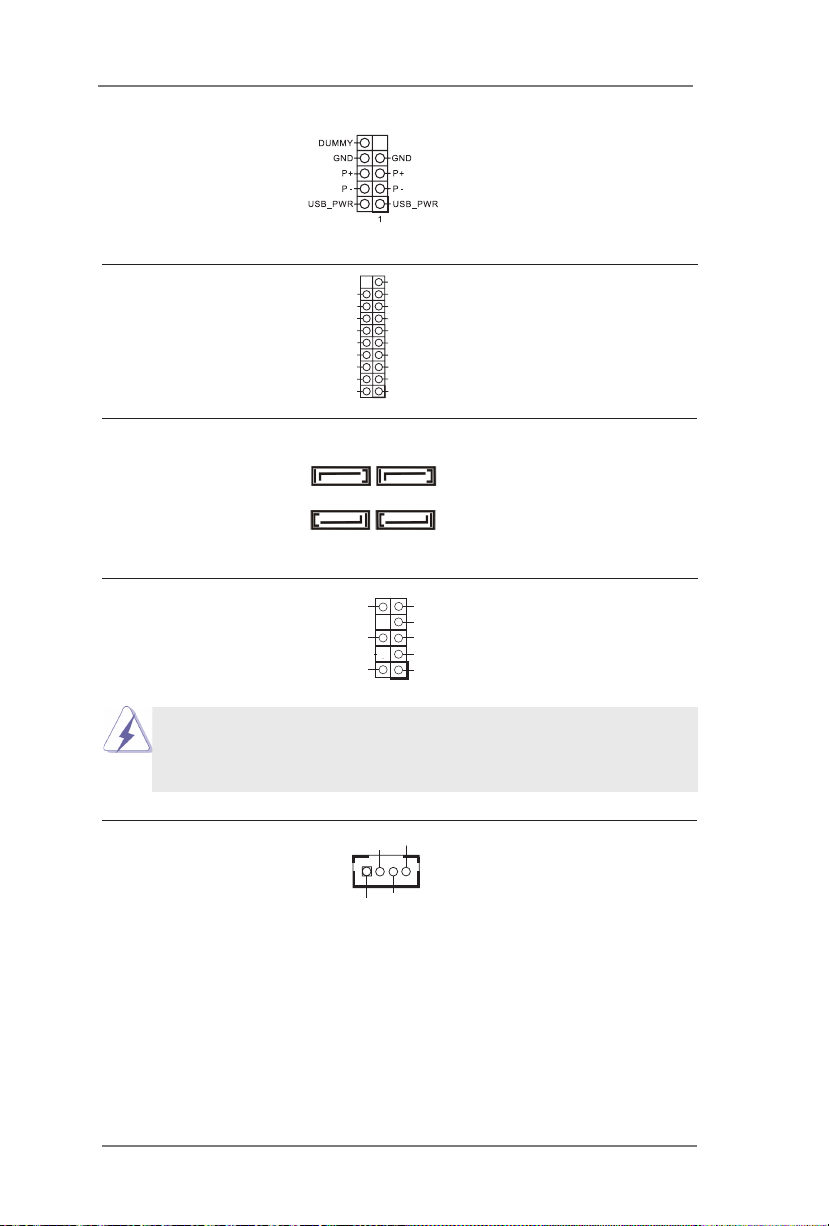

SATA3 Connectors These four Serial ATA3 (SATA3)
(SATA3_1~4: see p.8, No. 6) connectors support SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 30) convenient connection and
control of audio devices.
USB 2.0 Headers There are two headers on this
(9-pin USB2_5_6, USB2_10_11: motherboard. Each USB 2.0
see p.8, No. 34) header can support two ports.
USB 3.2 Gen1 Header There is one header on this
(19-pin USB3_4_9) motherboard. This USB 3.2
(see p.8, No. 35) Gen1 header can support two
ports.
J_SENSE
OUT2_L
MIC_RET
PRESENCE#
G N D
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX -
IntA_PA_SSRX +
GND
IntA_PA_SSTX -
IntA_PA_SSTX +
GND
IntA_PA_D-
IntA_PA_D+
1
OUTLN
OUTLP
OU T RP
OU T RN
SATA3_3 SATA3_4
SATA3_1 SATA3_2
High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.

20
LVDS Panel Connector*
(40-pin LVDS1)
(see p.8 No. 14)
*eDP by pass mode pin denition (switch by BIOS):
* PD (Panel Detection): Connect this
pin to LVDS Panel’s Ground pin to
detect Panel detection.
1
39 40
2
SATA Power Connector Please connect a SATA
(SATA_PWR1) power cable to this connector.
(see p.8 No. 8)
PIN Signal Name PIN Signal Name
39 LCD_BLT_VCC 40 LCD_BLT_VCC
37 CON_LBKLT_CTL 38 LCD_BLT_VCC
35 GND 36 CON_LBKLT_EN
33 LVDS_B_CLK# 34 LVDS_B_CLK
31 LVDS_B_DATA3 32 GND
29 DPLVDD_EN 30 LVDS_B_DATA3#
27 LVDS_B_DATA2# 28 LVDS_B_DATA2
25 LVDS_B_DATA1 26 GND
23 GND 24 LVDS_B_DATA1#
21 LVDS_B_DATA0# 22 LVDS_B_DATA0
19 LVDS_A_CLK 20 GND
17 GND 18 LVDS_A_CLK#
15 LVDS_A_DATA3# 16 LVDS_A_DATA3
13 LVDS_A_DATA2 14 GND
11 GND 12 LVDS_A_DATA2#
9 LVDS_A_DATA1# 10 LVDS_A_DATA1
7 LVDS_A_DATA0 8 GND
5 NA 6 LVDS_A_DATA0#
3 +3.3V 4 NA
1 LCD_VCC 2 LCD_VCC
PIN Signal Name PIN Signal Name
39 LCD_BLT_VCC 40 LCD_BLT_VCC
37 CON_LBKLT_CTL 38 LCD_BLT_VCC
35 GND 36 CON_LBKLT_EN
33 N/A 34 N/A
31 N/A 32 GND
29 DPLVDD_EN 30 N/A
27 N/A 28 N/A
25 N/A 26 GND
23 GND 24 N/A
21 N/A 22 N/A
19 EDP_AUXP 20 GND
17 GND 18 EDP_AUXN
15 N/A 16 N/A
13 EDP_TX0 14 GND
11 GND 12 EDP_TX0#
9 EDP_TX1# 10 EDP_TX1
7 N/A 8 GND
5 N/A 6 N/A
3 N/A 4 N/A
1 LCD_VCC 2 LCD_VCC
Battery Connector
(2-pin BAT1)
(see p.8 No. 36)
+ -
PIN Signal Name
20 GND 19 C_ESPI_ALERT# 18 N/A 17 N/A 16 +3VSB 15 GND 14 C_ESPI_IO3 13 C_ESPI_IO2 12 C_ESPI_IO1
11 C_ESPI_IO0
10 SMB_DATA_MAIN
9 SMB_CLK_MAIN 8GND 7 +3V 6GND 5DEBUG_RESET 4 C_ESPI_CS# 3GND 2 C_ESPI_CLK 1GND
ESPI Header
(20-pin ESPI1)
(see p.8 No. 3)
GND
+5V
+12V
GND
1
