1
IMB-157
User Manual
Version 1.1
Updated March 2023
Copyright©2023 ASRockInd INC. All rights reserved.

2
Version 1.0
Published May 2017
Copyright©2023 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished
for informational use only and subject to change without notice, and should
not be constructed as a commitment by ASRockInd. ASRockInd assumes no
responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockInd Website: http://www.asrockind.com

3
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction 5
1.1 Package Contents 5
1.2 Specications 6
1.3 Motherboard Layout 8
1.4 I/O Panel 10
2 Installation 11
2.1 Screw Holes 11
2.2 Pre-installation Precautions 11
2.3 Installation of Memory Modules (SO-DIMM) 12
2.4 Expansion Slots 13
2.5 Jumpers Setup 14
2.6 Onboard Headers and Connectors 17
3 UEFI SETUP UTILITY 24
3.1 Introduction 24
3.1.1 UEFI Menu Bar 24
3.1.2 Navigation Keys 25
3.2 Main Screen 25
3.3 Advanced Screen 26
3.3.1 CPU Conguration 27
3.3.2 Chipset Conguration 28
3.3.3 Storage Conguration 29
3.3.4 Super IO Conguration 30
3.3.5 ACPI Conguration 31
3.3.6 USB Conguration 32
3.3.7 Trusting Computing 33
3.4 Hardware Health Event Monitoring Screen 35
3.5 Security Screen 36
3.6 Boot Screen 37
3.7 Exit Screen 39
4 Software Support 40
4.1 Install Operating System 40

5
Chapter 1: Introduction
Thank you for purchasing ASRockInd IMB-157 motherboard, a reliable motherboard
produced under ASRockInd’s consistently stringent quality control. It delivers ex-
cellent performance with robust design conforming to ASRockInd’s commitment to
quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockInd website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRockInd website
as well. ASRockInd website http://www.asrockind.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd IMB-157 Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in x 0.84-in, 17.0 cm x 17.0 cm x 2.13 cm)
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in x 0.84-in, 17.0 cm x
17.0 cm x 2.13 cm)
Processor
System
CPU
Intel®Apollo Lake SoC Processors
IMB-157D (N4200, QC, 1.10 GHz, 6 W)
IMB-157L (N3350, DC, 1.10 GHz, 6 W)
IMB-157J (J3455, QC, 1.50 GHz, 10 W)
BIOS AMI SPI 128 Mbit
Memory
Technology Dual Channel DDR3L 1867 MHz
Capacity 16GB (8GB per DIMM)
Socket 2 x 204-pin SO-DIMM
Graphics
Controller Intel® UHD Graphics
VGA Max resolution up to 1920x1200@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
HDMI HDMI 1.4b, Max resolution up to
4096x2160@24Hz
eDP Max resolution up to 1920 x 1080@60Hz
MultiDisplay Triple Display
Expansion
Slot
PCIe 1 x PCIe x1
Mini-PCIe 1 x Full/Half size with PCIe x1 and USB 2.0
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
and CNVi for Wireless
1 x M.2 (Key M, 2242/2260) with SATA3 for SSD
Ethernet
Controller/
Speed
LAN1: Realtek RTL8111H-CG with 10/100/1000
Mbps
LAN2: Realtek RTL8111H-CG with 10/100/1000
Mbps
Connector 2 x RJ-45
Audio Interface Realtek ALC897, High Denition Audio. Line-
out, Mic-in
Storage SATA 1 x SATA3 (6Gb/s)
Rear I/O
VGA 1
HDMI 1 x HDMI1.4b
Ethernet 2 x 1 Gigabit LAN
USB 4 x USB 3.2 Gen1
Audio 2 (Mic-in, Line-out)
VGA 1

7
Internal
Connector
USB 4 x USB 2.0 (2x2.54mm header)
LVDS 1 (shared with eDP, switch by BIOS)
eDP 1 (shared with LVDS, switch by BIOS)
VGA 1 x Header (Shared with VGA Port)
COM COM1, COM2 (RS-232/422/485)
COM3, COM4, COM5, COM6 (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
SATA PWR
Output 1
Speaker
Header 1
Watchdog
Timer
Output Output from super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec/Min
Power
Requirements
Input PWR +12V or +19V~+24V DC-In (DC Jack / 4-pin
DC-in PWR Con)
Power On
AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power
input ready
Environment Temperature 0ºC – 60ºC

8
Mic In
AUDIO
CODEC
BUZZ1
BIOS
Chip
1
USB2_6_7
1
HD_AUDIO1
IMB-157
BUZZ2
SATA3_1
CPU_FAN1
1
PCIE1
DC_JACK1
mini-PCIe
1
LPC1
PS2_KB_MS1
1
VGA2
1
CLRMOS1
1
SPEAKER1
1
LAN1
VGA1
Line Out
HDMI1
1
BLT_V OL1
HDLED RESET
PLED PWRBTN
PANEL1
1
1
1
Ci1
SATA_PWR1
USB6_S_MPCIE1
1
1
BLT_PWR1
1
PNL_ PWR 1
BKT_PWR1
Industrial
SPDIF1
1
DDR3_A1 (Support DDR3L Only)
DDR3_B1 (Support DDR3L Only)
M.2 KEYM
LAN2
LVDS1
1
1
BLT_PWM2
1
LPT_GPIO1
CHA_FAN1
1
CI2
COM1
1
JGPIO_SET1
1
1
BL1
1
BL2
TO_UPS1
1
FROM_UPS1
1
1
USB3_PWR0_1
1
USB3_PWR2_3
1
USB2_PWR6_7
1
USB2_PWR4_5
1
USB2_4_5
1
PWR_JP1
13 24
12
10
9
56
7 (*Backside: EDP1)
8
15
13
14
16
17
18
1
JGPIO_PWR1
1
PWR_COM1
1
PWR_COM2
1
PWR_COM3
1
PWR_COM4
1
PWR_COM5
1
PWR_COM6
20
21
19
22
23
24
25
30
31
32
27
29 28 26
34
36
35
33
1
COM2
1
COM3
1
COM4
1
COM5
1
COM6
1
USB4_S_M2E1
1
CLRMOS2
1
M.2 KEYE
1
BLT_PWM1
11
USB 3.2 Gen1
T: USB3
B: USB2
USB 3.2 Gen1
T: USB1
B: USB0
BAT1
37
1.3 Motherboard Layout

9
1 : 2-pin UPS Module Power Input Connector
2 : USB Power Setting Jumpers
(USB3_PWR0_1 (For USB3_0_1 ))
(USB3_PWR2_3 (For USB3_2_3 ))
3 : 4-pin DC-in PWR Connector (Input +12V or +19V~+24V) & UPS Module Power
Output Connector
4 : SATA Power Output Connector
5 : SATA3 Connector (SATA3_1)
6 : BL1, BL2
7 : LVDS Panel Connector
* eDP Connector (on the Backside of PCB)
8 : CON_LBKLT_CTL Voltage Level (BLT_PWM2)
9 : Brightness Control Mode (BLT_PWM1)
10 : Backlight Volume Control (BLT_VOL1)
11 : Backlight Power Connector (BLT_PWR1)
12 : USB2.0 Connectors (USB2_4_5, USB2_6_7)
13 : Panel Power Selection (LCD_VCC) (PNL_PWR1)
14 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
15 : System Panel Header
16 : USB4_S_M2E1
17 : Internal COM Port Headers
COM1, 2 (RS232/422/485)
COM3, 4, 5, 6 (RS232)
18 : Printer Port / GPIO Header (LPT_GPIO1)
19 : Digital Input / Output Default Value Setting (JGPIO_SET1)
20 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)
21 : COM Port Pin9 PWR Setting Jumpers
PWR_COM1 ~ 6 (For COM Port1 ~ 6)
22 : 4-Pin CPU FAN Connector (+12V)
23 : 4-Pin Chassis FAN Connector (+12V)
24 : Chassis Intrusion Headers (CI1, Cl2)
25 : LPC Header
26 : ATX/AT Mode Select
27 : SPDIF Header
28 : Front Panel Audio Header
29 : 3W Audio AMP Output Wafer
30 : Clear CMOS Jumper
31 : Clear CMOS Header
32 : PS2 Keyboard/Mouse Header
33 : USB6_S_MPCIE1
34 : Buzzer
35 : VGA Header
36 : Battery Connector
37 : USB Power Setting Jumpers
(USB2_PWR4_5 (For USB2_4_5 ))
(USB2_PWR6_7 (For USB2_6_7 and PS2_KB_MS1 ))

10
1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 DC Jack
2 HDMI Port (HDMI1)
3 USB3.2 Gen1 Ports (USB3_0_1)
4 USB3.2 Gen1 Ports (USB3_2_3)
5 VGA Port (VGA1)
6 LAN RJ-45 Port (LAN1)*
7 LAN RJ-45 Port (LAN2)*
8 Line out (Green)
9 Microphone (Pink)
ACT/LINK
LED
SPEED
LED
LAN Port
6
1
24
358
7
9

11
Chapter 2: Installation
This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you
install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
IMB-157 motherboard provides two 204-pin DDR3 (Double Data Rate 3) SO-DIMM
slots, which support Dual Channel DDR3L (low voltage).
1. If you install one memory module only, please install it on DDR3_A1.
2. It is not allowed to install a DDR or DDR2 memory module into a
DDR3 slot; otherwise, this motherboard and SO-DIMM may be
damaged.
2. Please make sure to disconnect the power supply before adding or
removing SO-DIMMs or the system components.
3. The SO-DIMM only ts in one correct orientation. It will cause
permanent damage to the motherboard and the SO-DIMM if you force
the SO-DIMM into the slot at incorrect orientation.
Installing a SO-DIMM
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (mini-PCIe, PCI Express and M.2 Slots)
There is 1 mini-PCIe slot, 1 PCI Express slot and 2 M.2 slots on this motherboard.
mini-PCIe slot:
MINI_PCIE1 (mini-PCIe slot; half/full size) is used for PCI Express mini
cards.
PCIE slot: PCIE1 (PCIE x1 slot) is used for PCI Express x1 lane width cards.
M.2 slots: M2 Slot (Key M) supports type 2242/2260 M.2 SATA3 6.0 Gb/s
module.
M2_2 Slot (Key E) supports type 2230 WiFi/BT module.
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched o󰀨 or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.
1. USB2_6_7 is shared with MINI_PCIE1. If you use USB2_6_7 connector,
the USB device on MINI_PCIE1 will be disabled.
2. USB2_4_5 is shared with M2_2. If you use USB2_4_5 connector, the
USB device on M2_2 will be disabled.

14
2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper Open: Normal
(2-pin CLRMOS2)
Short: Auto Clear CMOS When AC
(see p.8, No. 30) Power On
Note: CLRMOS2 allows you to clear the data in CMOS. The data in CMOS includes
system setup parameters. To clear and reset the system parameters to de-
fault setup, please turn o󰀨 the computer and unplug the power cord, then use
a jumper cap to short the pins on CLRMOS2 for 3 seconds. Please remember
to remove the jumper cap after clearing the CMOS. If you need to clear the
CMOS when you just nish updating the BIOS, you must boot up the system
rst, and then shut it down before you do the clear-CMOS action.
Clear CMOS Jumper
(3-pin CLRMOS1)
(see p.8, No. 31)
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date and time will be cleared only if the
CMOS battery is removed.
Digital Input / Output Power Select 1-2: +12V
(5-pin JGPIO_PWR1) 2-3: +5V
(see p.8 No. 20) 4-5: GND
2-pin jumper
Clear CMOSDefault

15

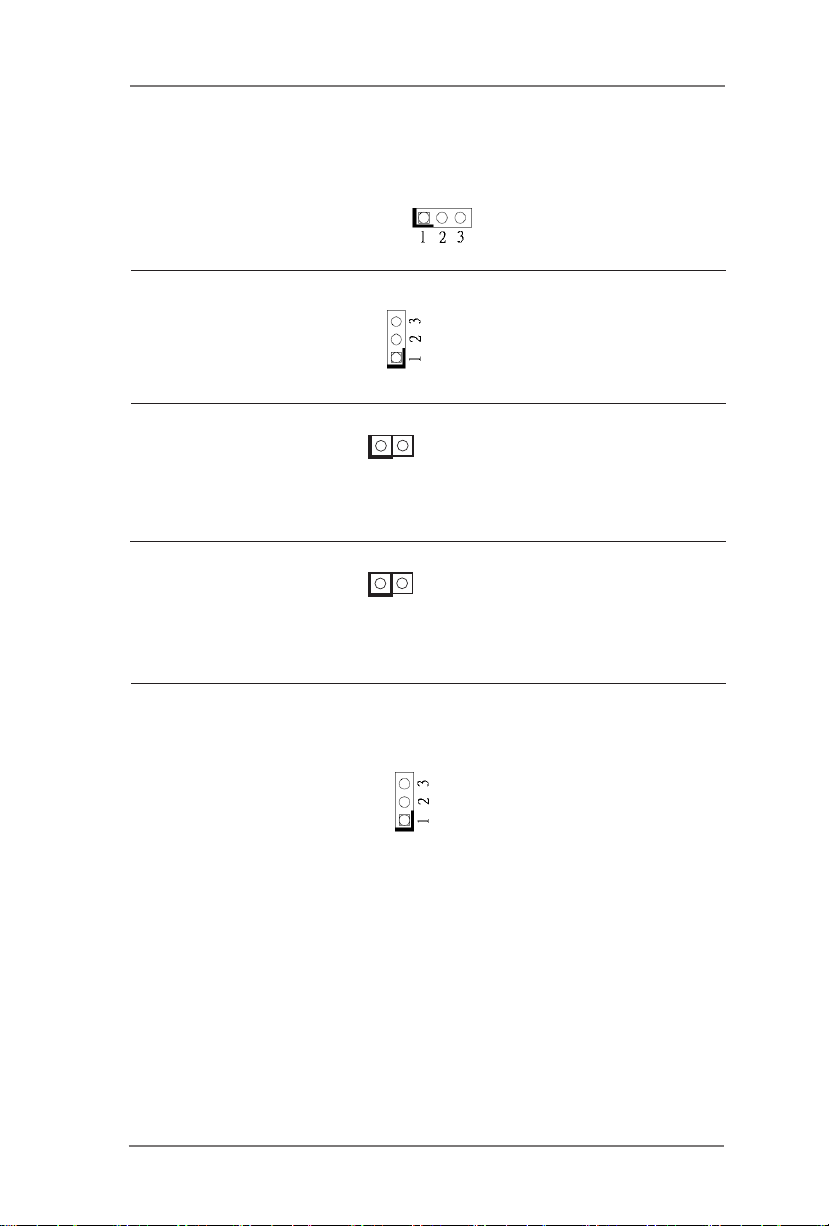

Backlight Power Select Use this to set up the backlight
(LCD_BLT_VCC) power of the LVDS connector
(5-pin BKT_PWR1) and the panel backlight power
(see p.8 No. 14) of BLT_PWM1.
1-2: LCD_BLT_VCC: +5V
2-3: LCD_BLT_VCC: +12V
4-5: LCD_BLT_VCC: DC Input
Brightness Control Mode 1-2: From eDP PWM to CON_LBKLT_CTL
(3-pin BLT_PWM1) 2-3: From LVDS PWM to CON_LBKLT_CTL
(see p.8, No. 9)
Note: Please set to 1-2 when adjusting brightness by Brightness Control bar under OS.
Please set to 2-3 when adjusting brightness by BLT_VOL1.
COM Port Pin9 PWR Setting Jumpers 1-2: +5V
(3-pin PWR_COM1, for COM Port1) 2-3: +12V
(3-pin PWR_COM2, for COM Port2)
(3-pin PWR_COM3, for COM Port3)
(3-pin PWR_COM4, for COM Port4)
(3-pin PWR_COM5, for COM Port5)
(3-pin PWR_COM6, for COM Port6)
(see p.8, No. 21)
Panel Power Select (LCD_VCC) Use this to set up the VDD
(5-pin PNL_PWR1) power of the LVDS connector.
(see p.8 No. 13) 1-2: LCD_VCC: +3V
2-3: LCD_VCC: +5V
4-5: LCD_VCC: +12V
ATX/AT Mode Select 1-2: AT Mode
(3-pin PWR_JP1) 2-3: ATX Mode
(see p.8 No. 26)
CON_LBKLT_CTL Voltage Level 1-2: 3V Level
(3-pin BLT_PWM2) 2-3: 5V Level
(see p.8, No. 8)

16
Digital Input / Output Default Value Setting 1-2: Pull-High
(3-pin JGPIO_SET1) 2-3: Pull-Low
(see p.8, No. 19)
USB6_S_MPCIE1 USB6_S_MPCIE1:
(2-pin USB6_S_MPCIE1)
Pin1 short USB2_6_7 pin3 and pin2
(see p.8, No. 33) short USB2_6_7 pin5: share USB port 6
of USB2_6_7 header to MPCIE1
1
USB4_S_M2E1 USB4_S_M2E1:
(2-pin USB4_S_M2E1)
Pin1 short USB2_4_5 pin3 and pin2
(see p.8, No. 16) short USB2_4_5 pin5: share USB port 4
of USB2_4_5 header to M.2 KEY E
1
USB Power Setting Jumpers 1-2: +5V
(3-pin USB2_PWR4_5 (For USB2_4_5)) 2-3: +5VSB
(3-pin USB2_PWR6_7 (For USB2_6_7 and PS2_KB_MS1))
(see p.8, No. 2)
USB Power Setting Jumpers
(3-pin USB2_PWR4_5 (For USB2_4_5))
1-2: +5V
(3-pin USB2_PWR6_7 (For USB2_6_7 and PS2_KB_MS1)) 2-3: +5VSB
(see p.8, No. 37)

17
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
SATA3 Connector This Serial ATA3
(SATA3_1: see p.8, No. 5) (SATA3) connector supports
SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
USB 2.0 Connectors There are two USB 2.0
(9-pin USB2_4_5, USB2_6_7) connectors on this
(see p.8 No. 12) motherboard. Each USB 2.0
connector can support two USB
ports.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8 No. 15) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn o󰀨 your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
SATA3_1
USB6_S_MPCIE1 USB6_S_MPCIE1:
(2-pin USB6_S_MPCIE1)
Pin1 short USB2_6_7 pin3 and pin2
(see p.8, No. 33) short USB2_6_7 pin5: share USB port 6
of USB2_6_7 header to MPCIE1
GNDRESET
#
PWRBTN
#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
USB4_S_M2E1 USB4_S_M2E1:
(2-pin USB4_S_M2E1)
Pin1 short USB2_4_5 pin3 and pin2
(see p.8, No. 16) short USB2_4_5 pin5: share USB port 4
of USB2_4_5 header to M.2 KEY E 1. USB2_6_7 is shared with MINI_PCIE1. If you use USB2_6_7 connector,
the USB device on MINI_PCIE1 will be disabled.
2. USB2_4_5 is shared with M2_2. If you use USB2_4_5 connector, the
USB device on M2_2 will be disabled.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1

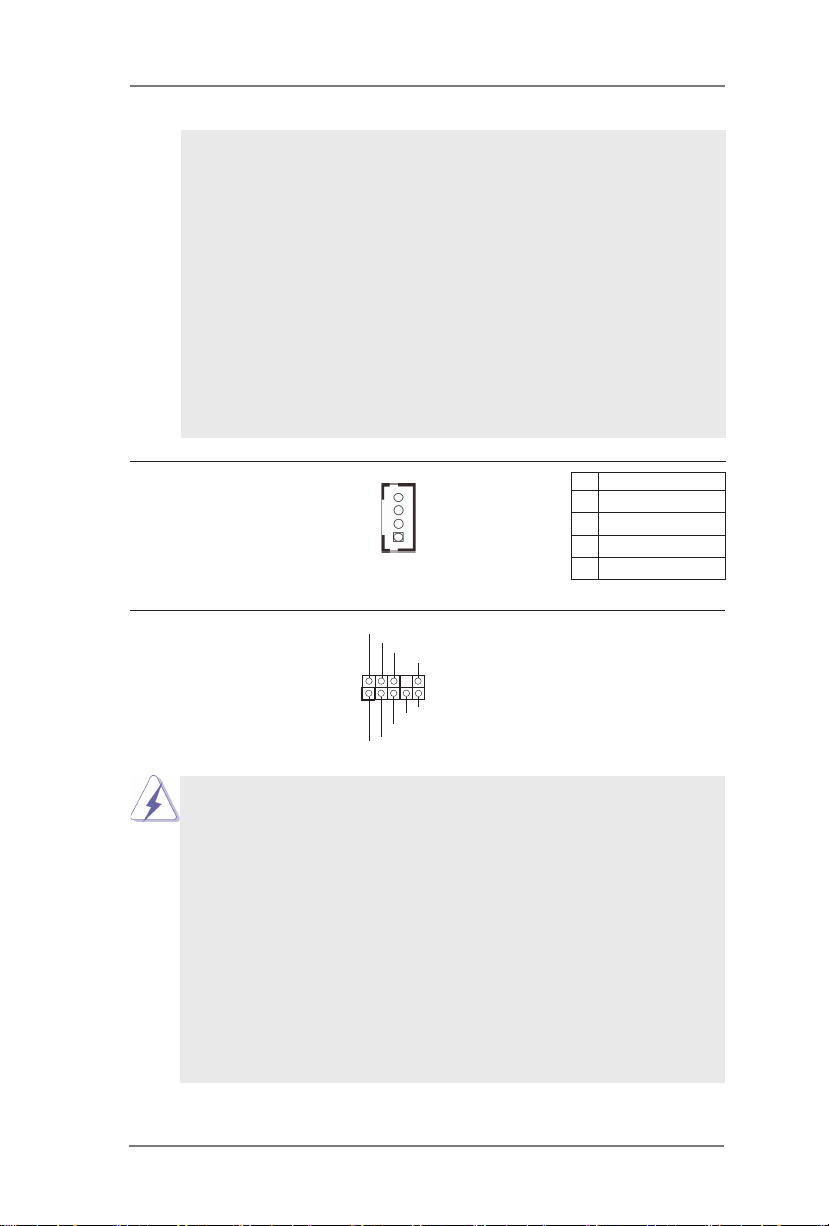

2.6 Onboard Headers and Connectors

18
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is o󰀨 when the system is in S3/S4 sleep
state or powered o󰀨 (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may di󰀨er by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 29)
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 28) convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
PIN Signal Name
4 OUTRN
3 OUTRP
2 OUTLP
1 OUTLN
1
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET

19
4-Pin Chassis Fan Connector (+12V)
(4-pin CHA_FAN1)
(see p.8 No. 23)
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
4-Pin CPU Fan Connector (+12V)
(4-pin CPU_FAN1)
(see p.8 No. 22)
Printer Port / GPIO Header
(25-pin LPT_GPIO1)
(see p.8 No. 18) Printer Port: GPIO:
FAN_SPEED
FAN_SPEED_CONTROL
GND
+12V
1234
* If you want to use the printer port function, please short pin4
and pin5 on Digital Input / Output Power Select (JGPIO_PWR1).
FAN_SPEED
FAN_SPEED_CONTROL
GND
+12V
1234
1
1
1
SPD0
STB#
SPD1
SPD2
SPD3
SPD4
SPD6
SPD7
GND
GND
SLIN#
PINIT#
E
RROR#
AFD#
GND
GND
GND
GND
GND
GND
SPD5
ACK#
BUSY
PE
SLCT PIN Signal Name PIN Signal Name
26 NC 25 NA
24 GND 23 SIO_GP30
22 GND 21 SIO_GP31
20 GND 19 SIO_GP32
18 GND 17 SIO_GP33
16 GND 15 SIO_GP34
14 GND 13 SIO_GP35
12 JGPIOPWR 11 SIO_GP36
10 JGPIOPWR 9 SIO_GP37
8SIO_GP43 7SIO_GP40
6 SIO_GP44 5SIO_GP41
4SIO_GP45 3SIO_GP42
2SIO_GP46 1SIO_GP47
1
UPS Module Power Input Connector Pin1: GND
(2-pin TO_UPS1) Pin2: DC Input
(see p.8 No. 1)
4-pin DC-in PWR Connector & UPS Please connect a DC
Module Power Output Connector +12V & +19V~+24V power
(Input +12V & +19V~+24V) supply to this connector.
(4-pin FROM_UPS1) Pin1 and Pin4: GND
(see p.8 No. 3) Pin2 and Pin3: DC Input
Please connect the fan cable
to the fan connector and
match the black wire to the
ground pin.
Please connect the CPU fan
cable to the fan connector and
match the black wire to the
ground pin.

20
LVDS Connector
(40-pin LVDS1)
(see p.8 No. 7)
PIN Signal Name PIN Signal Name
2 LCD_VCC 1 LCD_VCC
4 N/A 3 +3.3V
6LVDS_A_DATA0# 5 N/A
8GND 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9LVDS_A_DATA1#
12 LVDS_A_DATA2# 11 GND
14 GND 13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18 LVDS_A_CLK# 17 GND
20 GND 19 LVDS_A_CLK
22 LVDS_B_DATA0 21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23 GND
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29 DPLVDD_EN
32 NC 31 LVDS_B_DATA3
34 LVDS_B_CLK 33 LVDS_B_CLK#
36 CON_LBKLT_EN 35 GND
38 LCD_BLT_VCC 37 CON_LBKLT_CTL
40 LCD_BLT_VCC 39 LCD_BLT_VCC
PIN Signal Name
40 NA
39 LCD_BLT_VCC
38 LCD_BLT_VCC
37 LCD_BLT_VCC
36 LCD_BLT_VCC
35 NA
34 NA
33 CON_LBKLT_CTL
32 CON_LBKLT_EN
31 GND
30 GND
29 GND
28 GND
27 eDP_HPD_CON
26 GND
25 GND
24 GND
23 GND
22 NA
21 LCD_VCC
20 LCD_VCC
19 LCD_VCC
18 LCD_VCC
17 GND
16 eDP_AUX#_CON
15 eDP_AUX_CON
14 GND
13 eDP_TX0_CON
12 eDP_TX#0_CON
11 GND
10 eDP_TX1_CON
9eDP_TX#1_CON
8GND
7 eDP_TX2_CON
6eDP_TX#2_CON
5GND
4 eDP_TX3_CON
3 eDP_TX#3_CON
2GND
1 NA
40
1
EDP1
* eDP Connector (on the Backside of PCB)
