2.3 Installation of Memory Modules (SO-DIMM).................. 12
2.4 Expansion Slots ............................................................. 13
2.5 Jumpers Setup............................................................... 14
2.6 Onboard Headers and Connectors................................ 16
3 UEFI SETUP UTILITY......................................... 21
3.1 Introduction .................................................................... 21
3.1.1 UEFI Menu Bar ............................................................ 21
3.1.2 Navigation Keys........................................................... 22
3.2 Main Screen................................................................... 22
3.3 Advanced Screen........................................................... 23
3.3.1 CPU Conguration....................................................... 24
3.3.2 Chipset Conguration .................................................. 26
3.3.3 Storage Conguration.................................................. 28
3.3.4 Super IO Conguration ................................................ 29
3.3.5 AMT Conguration ....................................................... 30
3.3.6 ACPI Conguration ...................................................... 32
3.3.7 USB Conguration ....................................................... 33
3.3.8 Trusted Computing ...................................................... 34
3.4 Hardware Health Event Monitoring Screen ................... 35
3.5 Security Screen ............................................................. 36
3.6 Boot Screen ................................................................... 37
3.7 Exit Screen .................................................................... 39

4
4 Software Support .............................................. 40
4.1 Install Operating System................................................ 40
4.2 Support CD Information ................................................. 40
4.2.1 Running Support CD.................................................... 40
4.2.2 Drivers Menu ............................................................... 40
4.2.3 Utilities Menu ............................................................... 40
4.2.4 Contact Information ..................................................... 40

5
Chapter 1: Introduction
Thank you for purchasing ASRockInd SBC-350 motherboard, a reliable mother-
board produced under ASRockInd’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRockInd’s commitment
to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockInd website without further notice. You may
nd the latest CPU support lists on ASRockIndind website as well.
ASRockIndind website https://www.asrockind.com/
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
https://www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd SBC-350 Motherboard (3.5” SBC (6.3-in x 4.0-in))
ASRockInd SBC-350 Driver CD
ASRockInd SBC-350 Jumper Setting Instruction

6
1.2 Specications
Form
Factor Dimensions 3.5” SBC (6.3-in x 4.0-in)
Processor
System
CPU
Intel®8th Gen (Whiskey lake-U) Core™ MCP
Processors
- SBC-350P (i7-8665UE, QC, 1.7GHz, 15 W)
- SBC-350M (i5-8365UE, QC, 1.6GHz,15 W)
- SBC-350V (i3-8145UE, DC, 2.2GHz, 15W)
Chipset SoC
Expansion
Slot
PCIe N/A
Mini-PCIe N/A
mSATA N/A
M.2
- 1 x Key M (2242/2280) with PCIe x4 and
SATA3 for SSD
- 1 x Key M (2242) with SATA3 for SSD
- 1 x Key E (2230) with PCIe x1, CNVI and USB
2.0 for Wireless
Memory
Technology Dual Channel DDR4 2400 MHz
Max. 32GB
Socket 2 x SO-DIMM
Graphics
VGA N/A
LVDS 1920x1200@60Hz
DisplayPort DisplayPort++ 1.2 with max resolution up to
4096x2304@60Hz
Multi Display Yes (Triple Display)
Ethernet
Interface 10/100/1000 Mbps
Controller
SBC-350P/M(vPro):
1 x Intel®I219LM (For i7 and i5 CPUs), 1 x Intel®
I210
SBC-350V:
1 x Intel®I219V (For i3 CPU), 1 x Intel®I210
Rear I/O
VGA N/A
DVI N/A
HDMI N/A
DisplayPort 2
Ethernet 2
USB 4 x USB3.1
Audio N/A
Serial N/A
PS/2 N/A

7
Internal
Connector
USB 2 x USB 2.0, 2 x USB 3.1
LVDS/
Inverter 1
eDP 0
VGA 0
Serial 1 x COM (RS232/422/485), 3 x COM
(RS232)
SATA 1 x SATA3 (6.0 Gb/s)
Parallel 0
GPIO 4 x GPI, 4 x GPO
SATA PWR
Output Con 1
Speaker
Header 1
TPM
SBC-350P/M: 1 x TPM 2.0 IC onboard
SBC-350V: 1 x TPM 2.0 (For i3 CPU with
BIOS setting)
Watchdog
Timer
Output Output from super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec
Power
Requirements
Input PWR 9V~36V
Power On
AT/ATX Supported
AT: Directly PWR on as power input ready
ATX: Press button to PWR on after power
input ready
Environment
Temperature 0ºC – 60ºC
Storage
Temp -40ºC – 85ºC

8

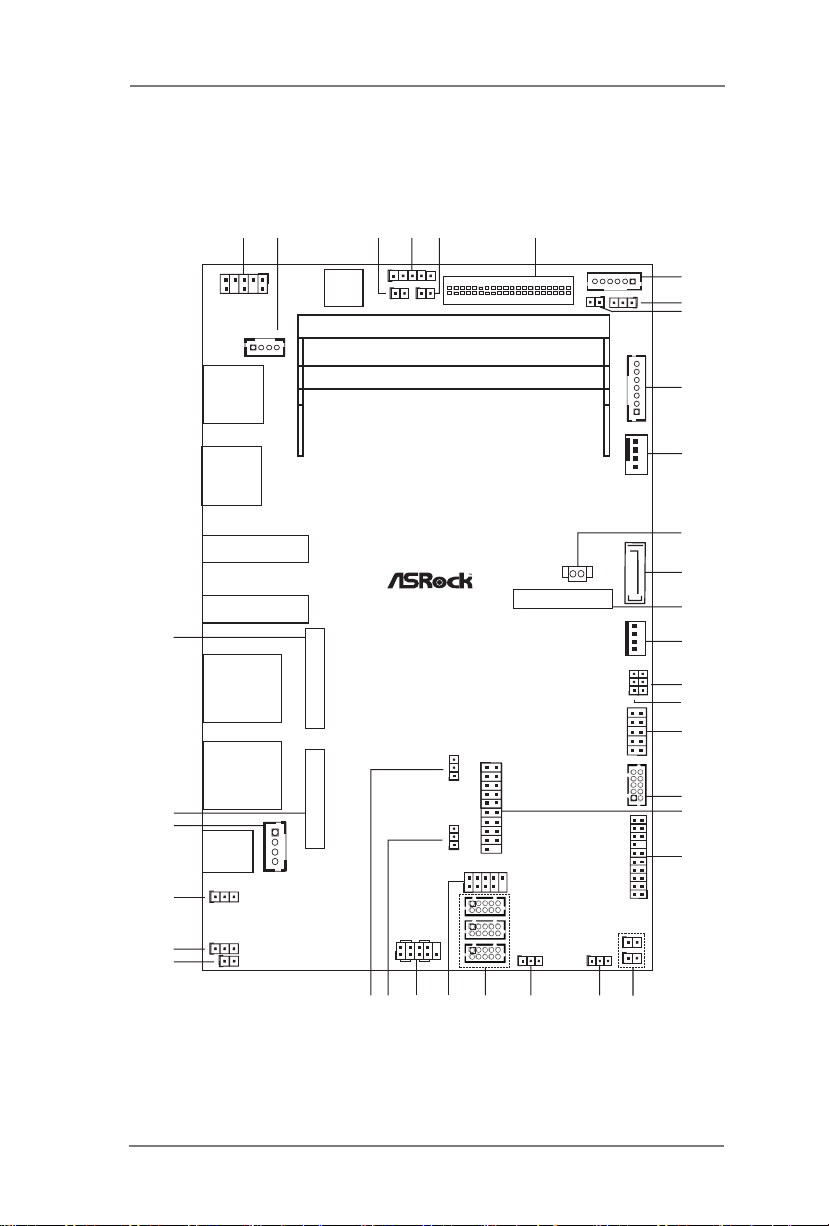

1.3 Motherboard Layout
BIOS
Chip
18
21
23
26
32
27
29
19
20
22
24
25
28
35
31
30
123456
7
8
9
10
11
12
13
14
15
16
17
1
JGPIO1
1
LPC1
SPEAKER1
1
LAN1
1
BLT_VOL1
HDLED RESET
PLED PWRBTN
PANEL1
1
SATA_PWR1
LVDS 1
1
1
BLT_PWR1
COM2
PWR_COM1
1
1
1
PNL_PWR1
SATA3_1
CI2
1
34
33
LAN2
JGPIO_SET1
1
DC_IN1
1
HD_AUDIO1
DDR4_B1 (Support DDR4 Only)
DDR4_A1 (Support DDR4 Only)
SBC-350
Industrial
M2M_2
M2E_1
M2M_1
DISPLAY1
DISPLAY2
DC_JACK1
BL2
1
BKT_PWR1
1
BUZZ2
1
BL1
1
BAT1
CLRMOS1
1
PWR_JP1
1
SIO _AT1
1
USB3_5_6
1
USB2_5_6
1
1
COM3
1
COM4
1
PWR_COM2
1
PWR_COM4
1
PWR_COM3
1
CI1
1
COM1
1
JGPIO_PWR1
1
USB 3.0
T: USB1
B: USB2
USB 3.0
T: USB3
B: USB4
CPU_FAN1

9
1 : Front Panel Audio Header
2 : 3W Audio AMP Output Wafer
3 : Buzzer
4 : Panel Power Select (LCD_VCC) (PNL_PWR1)
5 : BL1
6 : LVDS Panel Connector
7 : Inverter Power Control Wafer (BLT_PWR1)
8 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
9 : BL2
10 : Backlight & Amp Volume Control (BLT_VOL1)
11 : 4-Pin CPU FAN Connector (+12V)
12 : Battery Connector
13 : SATA3 Connector (SATA3_1)
14 : M.2 Key-M Socket (M2M_1)
1 5 : SATA Power Output Connector
16 : GPIO Default Setting (JGPIO_SET1)
17 : Digital Input / Output Power Select (JGPIO_PWR1)
18 : Digital Input / Output Pin Header (JGPIO1)
19 : COM Port Header (COM1)
20 : USB3.0 Connector (USB3_5_6)
21 : LPC Header
22 : Chassis Intrusion Headers (CI1, CI2)
23 : COM Port Pin9 PWR Setting Jumper (PWR_COM3 (For COM Port3))
24 : COM Port Pin9 PWR Setting Jumper (PWR_COM4 (For COM Port4))
25 : COM Port Headers (COM2, 3, 4)
26 : USB2.0 Connector (USB2_5_6)
27 : System Panel Header
28 : COM Port Pin9 PWR Setting Jumper (PWR_COM2 (For COM Port2))
29 : COM Port Pin9 PWR Setting Jumper (PWR_COM1 (For COM Port1))
30 : SIO_AT1
31 : Clear CMOS Header (CLRMOS1)
32 : ATX/AT Mode Select (PWR_JP1)
33 : ATX Power Connector (Input 9V-36V)
34 : M.2 Key-E Socket (M2E_1)
35 : M.2 Key-M Socket (M2M_2)

10
1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Yellow 100Mbps connection
On Link Green 1Gbps connection
1 USB 3.1 Ports (USB12)
2 USB 3.1 Ports (USB34)
3 DisplayPort 1.2 (DP1)
4 DisplayPort 1.2 (DP2)
5 LAN RJ-45 Port (LAN1)*
6 LAN RJ-45 Port (LAN2)*
7 DC Jack (DC_JACK1)
ACT/LINK
LED
SPEED
LED
LAN Port
6
12 4
357

11
Chapter 2: Installation
This is a 3.5” SBC (6.3-in x 4.0-in) form factor motherboard. Before you install the
motherboard, study the conguration of your chassis to ensure that the motherboard
ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12

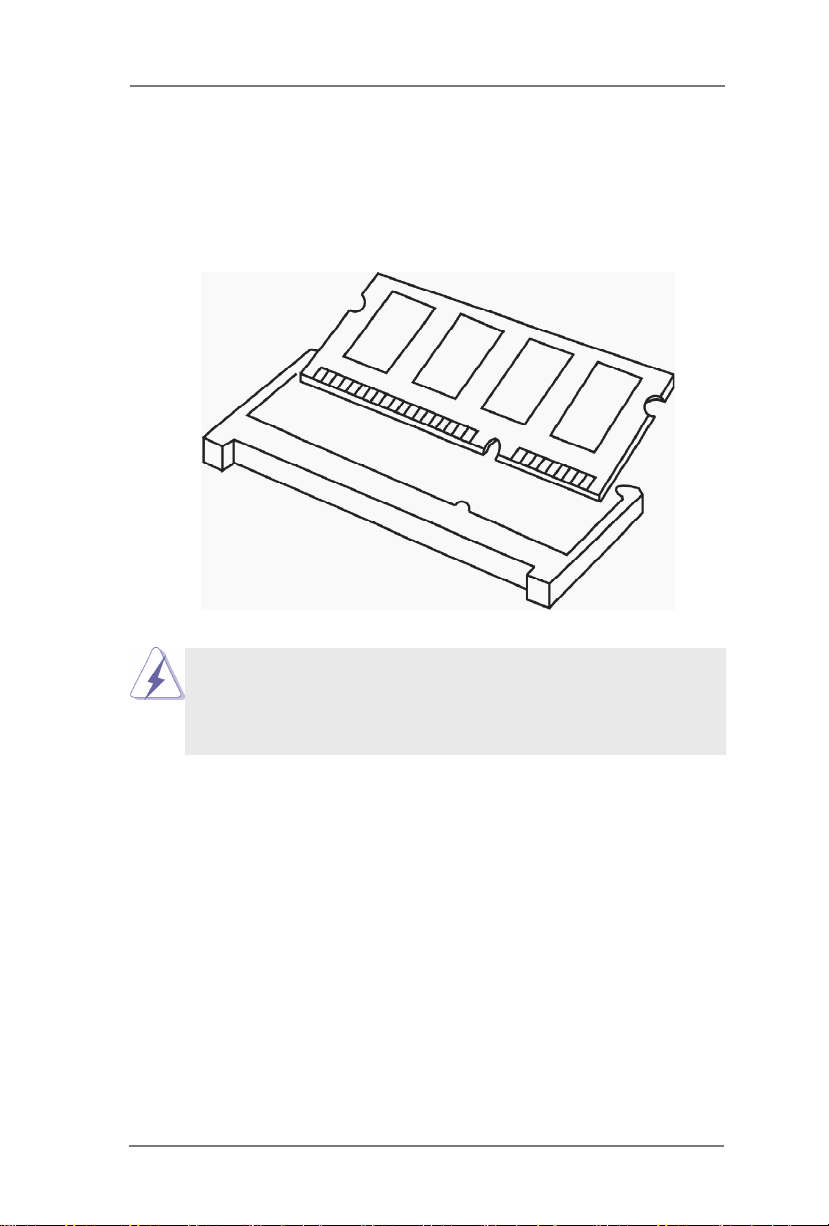

2.3 Installation of Memory Modules (SO-DIMM)
SBC-350 provides two 204-pin DDR4 (Double Data Rate 4) SO-DIMM slots.
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
1. The SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
2. Please do not intermix different voltage SO-DIMMs on this motherboard.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (M.2 Sockets)
There are 3 M.2 sockets on this motherboard.
M.2 Key-M Socket (M2M_1):
Key M (2242/2280) with PCIe x4 and SATA3 for SSD
M.2 Key-M Socket (M2M_2):
Key M (2242) with SATA3 for SSD
M.2 Key-E Socket (M2E_1):
Key E (2230) with PCIe x1, CNVI and USB 2.0 for Wireless

14

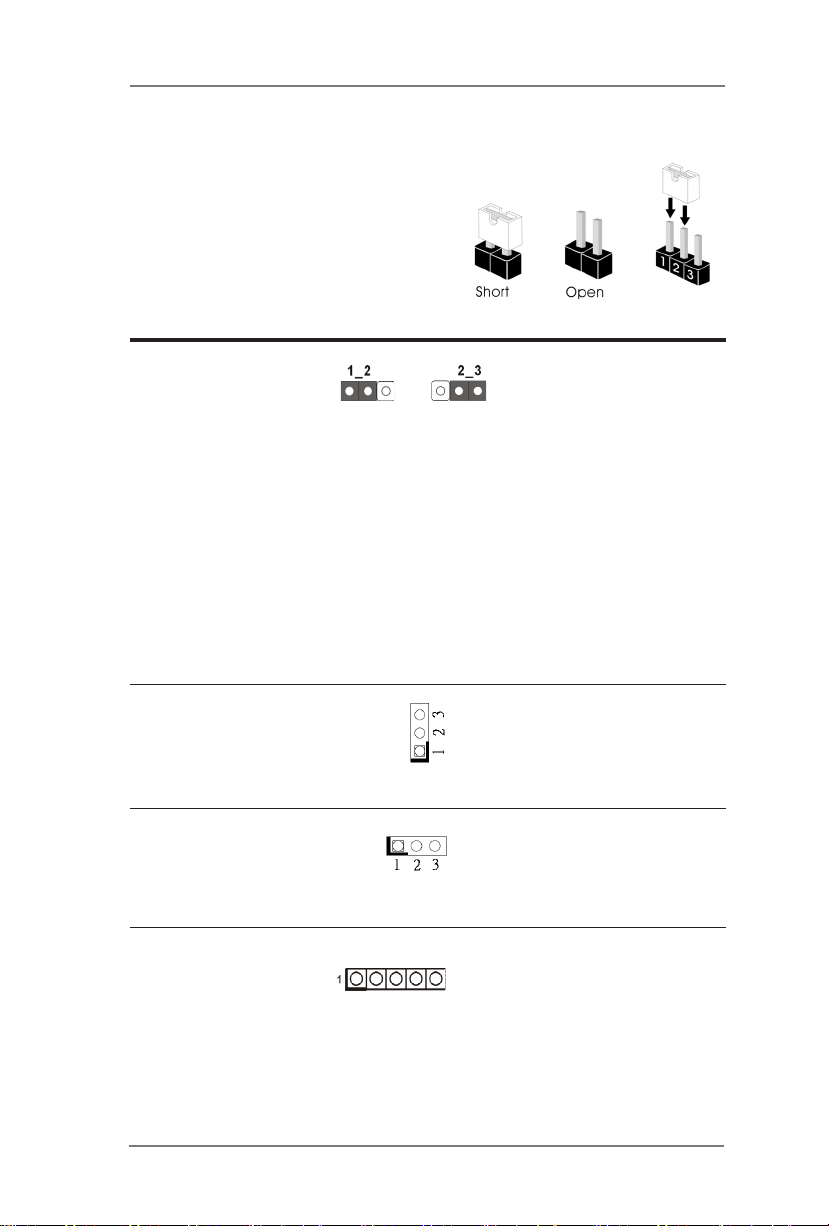

2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper
(CLRMOS1)
(see p.8, No. 31)
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault
Panel Power Select (LCD_VCC) Use this to set up the VDD
(5-pin PNL_PWR1) power of the LVDS connector.
(see p.8 No. 4) 1-2: +3V
2-3: +5V
3-4: +5V
4-5: +12V
Digital Input/Output Power Select 1-2: +12V
(3-pin JGPIO_PWR1) 2-3: +5V
(see p.8 No. 17)
ATX/AT Mode Select 1-2: AT Mode
(3-pin PWR_JP1) 2-3: ATX Mode
(see p.8 No. 32)

15
Backlight Power Select Use this to set up the backlight
(LCD_BLT_VCC) power of the LVDS connector.
(3-pin BKT_PWR1) 1-2: +5V
(see p.8 No. 8) 2-3: +12V
COM1 Pin9 PWR Setting Jumpers 1-2: +5V
(3-pin PWR_COM1: see p.8 No. 29) 2-3: +12V
(3-pin PWR_COM2: see p.8 No. 28)
(3-pin PWR_COM3: see p.8 No. 23)
(3-pin PWR_COM4: see p.8 No. 24)
GPIO Default Setting 1-2: Pull-High
(3-pin JGPIO_SET1) 2-3: Pull-Low
(see p.8 No. 16)
3 2 1
BL1, BL2
(2-pin BL1)
Open : Protect LCD_BLT_VCC
(see p.8 No. 5) Short : No Protect LCD_BLT_VCC
(2-pin BL2)
Open : Protect R_LVDD
(see p.8 No. 9) Short : No Protect R_LVDD
1
1
Signal
GND
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2: see p.8, No. 22) CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1 :
Close : Active Case Open
Open : Normal
CI2 :
Close : Normal
Open : Active Case Open
SIO_AT1 Open : ATX Mode
(2-pin SIO_AT1)
Short : AT Mode
(see p.8, No. 30)

16

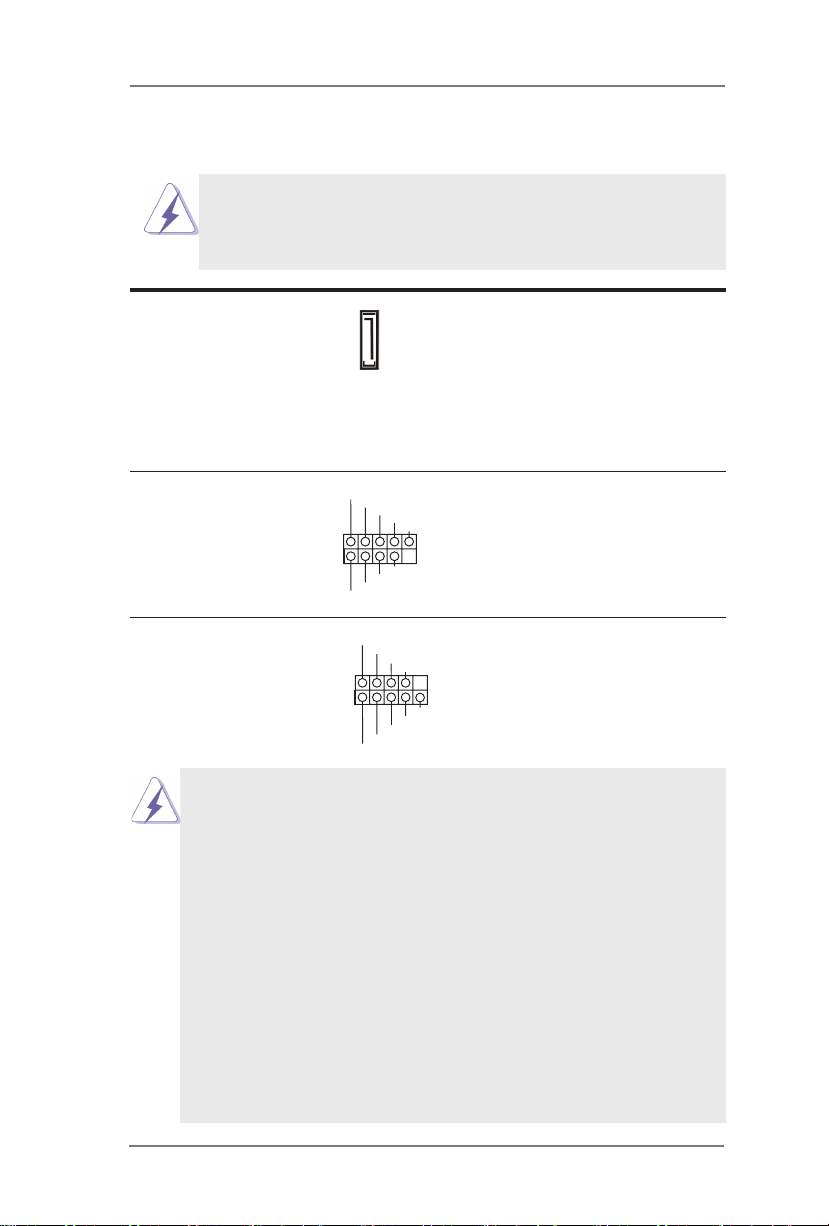

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
SATA3 Connector These two Serial ATA3
(SATA3_1: see p.8, No. 13) (SATA3) connectors support
SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
USB 2.0 Header There is one USB 2.0
(9-pin USB2_5_6) header on this motherboard.
(see p.8 No. 26)
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8 No. 27) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep
state or powered off (S5).
SATA3_1
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND

17

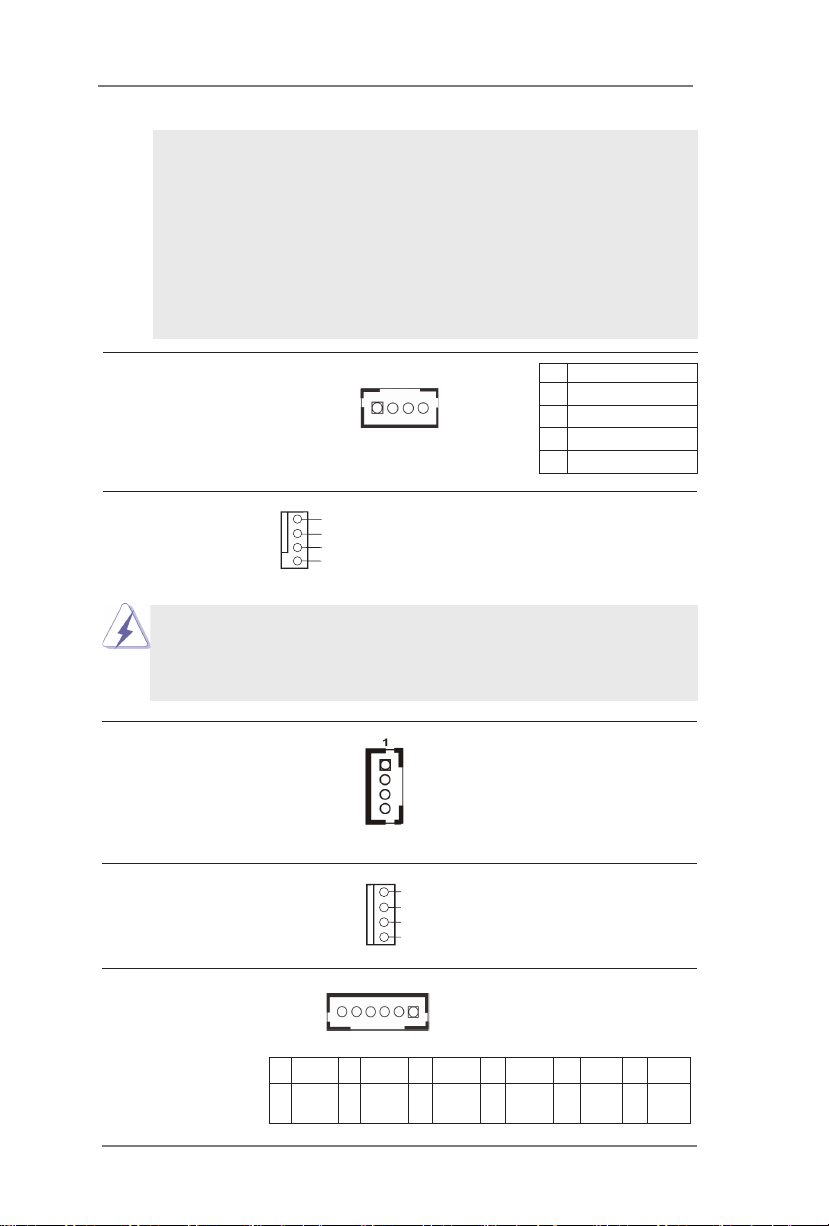

HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 2)
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the fan connector
(see p.8 No. 11) and match the black wire to the
ground pin.
ATX Power Connector Please connect a DC power
(Input 9V-36V) supply (Input 9V-36V) to this
(4-pin ATX12V1) connector.
(see p.8 No. 33) 1-4 : GND
2-3 : DC Input
SATA Power Output Connector
(4-pin SATA_PWR1)
(see p.8 No. 15)
Inverter Power Control Wafer
(6-pin BLT_PWR1)
(see p.8 No. 7)
1
PIN Signal Name
1 SPK L-
2 SPK L+
3 SPK R+
4 SPK R-
+5V
+12V
1
GND
GND
1
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name PIN Signal Name PIN Signal Name
6
LCD_
BLT_
VCC
5
LCD_
BLT_
VCC
4
CON_
LBKLT_
EN
3
CON_
LBKLT_
CTL
2GND 1GND
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even with the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4

18
COM Port Headers
(10-pin COM1)
(see p.8 No. 19)
(10-pin COM2, 3, 4)
(see p.8 No. 25)
Digital Input/Output Pin Header
(10-pin JGPIO1)
(see p.8 No. 18)
This motherboard supports RS232/422/485 on COM1 port. Please refer to
below table for the pin denition. In addition, COM1 port (RS232/422/485) can
be adjusted in BIOS setup utility > Advanced Screen > Super IO Conguration. You
may refer to page 31 for details.
COM1 Port Pin Denition
Buzzer Header
(2-pin BUZZ1)
(see p.8 No. 3)
1
+5 V
SPKR
1 2
1
2
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD RX+ N/A
3 TXD TX+ RTX+
4 DTR RX- N/A
5 GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9 NA/+5V/+12V N/A N/A
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name PIN Signal Name
1DDCD# 3TTXD 5GND 7RRTS# 9DUMMY
2RRXD 4DDTR# 6DDSR# 8CCTS# 10 DUMMY
1 2
9
10
10 9
2 1
PIN Signal Name PIN Signal Name
10 GND 9 JGPIO_PWR
8 SIO_GP83 7 SIO_GP87
6 SIO_GP82 5 SIO_GP86
4 SIO_GP81 3 SIO_GP85
2 SIO_GP80 1 SIO_GP84

19

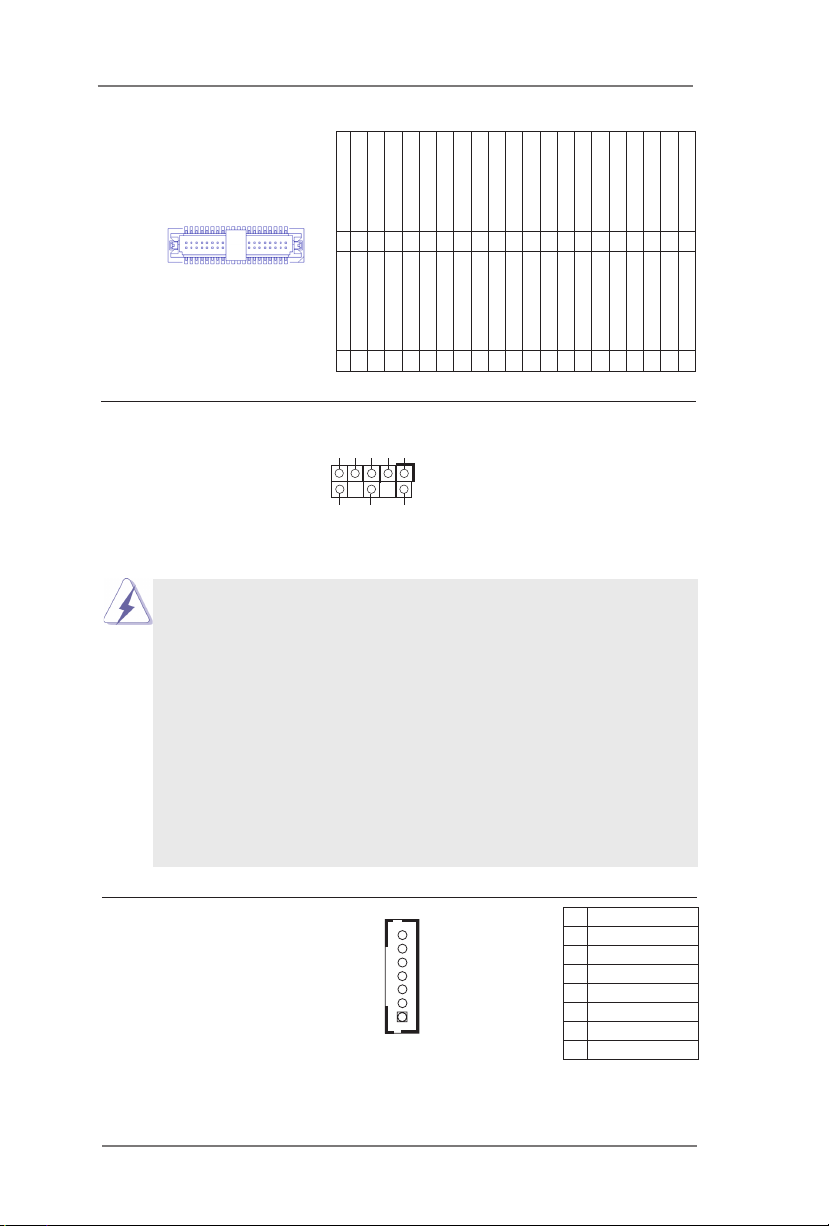

LVDS Connector
(40-pin LVDS1)
(see p.8 No. 6)
Backlight & Amp Volume Control
(7-pin BLT_VOL1)
(see p.8 No. 10)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.8 No. 1)
PIN Signal Name PIN Signal Name
2 LCD_VCC 1 LCD_VCC 4 LDDC_CLK 3 +3.3V
6 LVDS_A_DATA0# 5 LDDC_DATA 8 GND 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1# 12 LVDS_A_DATA2# 11 GND 14 GND 13 LVDS_A_DATA2 16 LVDS_A_DATA3 15 LVDS_A_DATA3# 18 LVDS_A_CLK# 17 GND 20 GND 19 LVDS_A_CLK 22 LVDS_B_DATA0 21 LVDS_B_DATA0# 24 LVDS_B_DATA1# 23 GND 26 GND 25 LVDS_B_DATA1 28 LVDS_B_DATA2 27 LVDS_B_DATA2# 30 LVDS_B_DATA3# 29 DPLVDD_EN 32 GND 31 LVDS_B_DATA3 34 LVDS_B_CLK 33 LVDS_B_CLK# 36 CON_LBKLT_EN 35 GND 38 LCD_BLT_VCC 37 CON_LBKLT_CTL 40 LCD_BLT_VCC 39 LCD_BLT_VCC
139
40
2
J_SENSE
OUT2_L
MIC_RET
PRESENCE#
GN D
OUT2_R MIC2_R MIC2_L
OUT_RET
1
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
1
PIN Signal Name
7 GND
6 GND
5 GPIO_BLT_DW
4 GPIO_BLT_UP
3 PWRDN
2 GPIO_VOL_DW
1 GPIO_VOL_UP

20

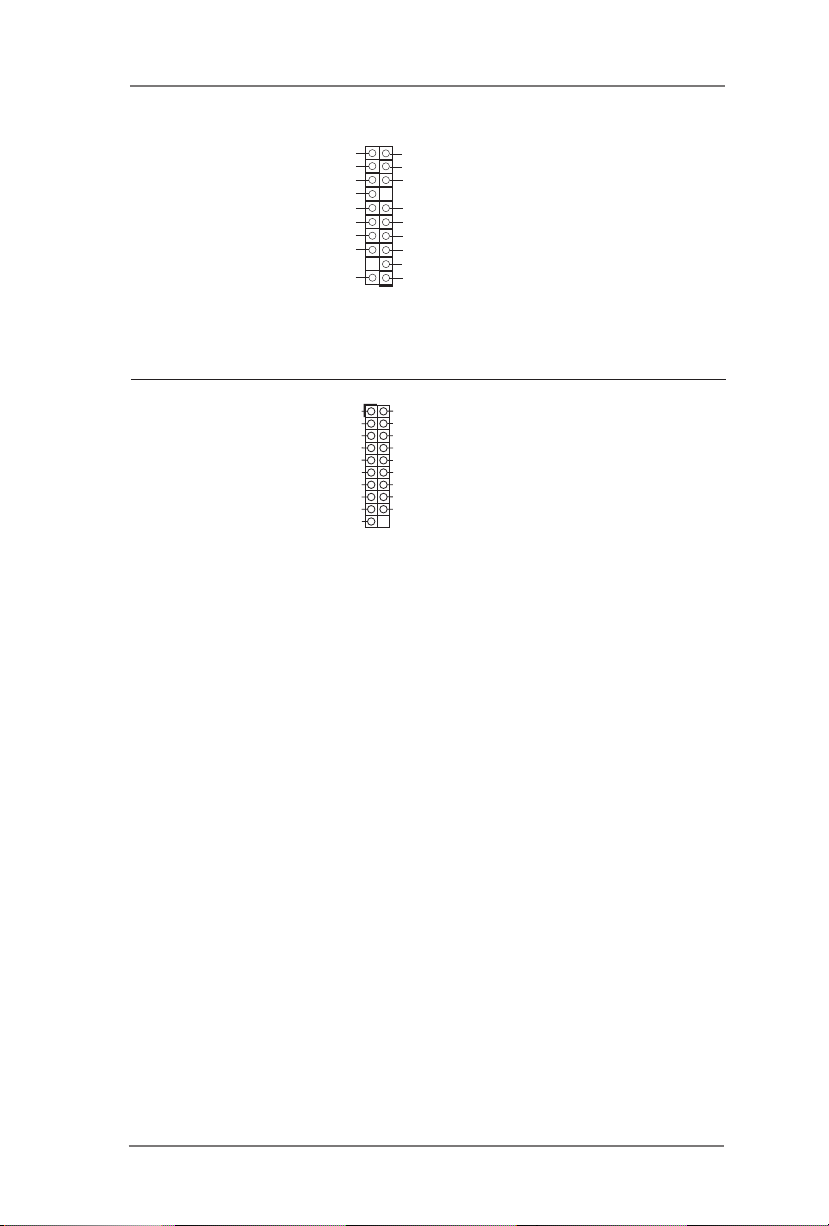

LPC Header This connector supports
(18-pin LPC1) Trusted Platform Module (TPM)
(see p.8 No. 21) system, which can securely
store keys, digital certicates,
passwords, and data. A TPM
system also helps enhance
network security, protects
digital identities, and ensures
platform integrity.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
Vbus
Vbus
IntA_ PA_SSRX-
IntA_ PA_SSRX+
GND
IntA_ PA_SSTX-
IntA_ PA_SSTX+
GND
IntA_ PA_D-
IntA_ PA_D+
1
GND
GND
NC
LAD2
PCICLK
PCIRST#
LAD3
+3 V
LAD0
F_CLKRUN#
FRAME
NC
LAD1
SERIRQ#
GND
+3 VSB
NC + 5V
USB 3.0 Header There is one USB 3.0
(19-pin USB3_5_6) header on this motherboard.
(see p.8 No. 20)
