ASRock Industrial IMB-X1712 User manual

1
IMB-X1712
User Manual
Version 1.0
Published June 2022
Copyright©2022 ASRockInd INC. All rights reserved.

2
Version 1.0
Published June 2022
Copyright©2022 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockInd Website: http://www.asrockind.com

3
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 10
2 Installation ......................................................... 12
2.1 Screw Holes................................................................... 12
2.2 Pre-installation Precautions ........................................... 12
2.3 Installation of Memory Modules (DIMM) ........................ 13
2.4 Expansion Slots ............................................................ 15
2.5 Jumpers Setup............................................................... 17
2.6 Onboard Headers and Connectors................................ 20
2.7 Installation of ROM Socket ............................................ 25
3 UEFI SETUP UTILITY......................................... 26
3.1 Introduction .................................................................... 26
3.1.1 UEFI Menu Bar .................................................... 26
3.1.2 Navigation Keys ................................................... 27
3.2 Main Screen................................................................... 27
3.3 Advanced Screen........................................................... 28
3.3.1 CPU Conguration ............................................... 29
3.3.2 Chipset Conguration........................................... 31
3.3.3 Storage Conguration .......................................... 33
3.3.4 Super IO Conguration ........................................ 34
3.3.5 AMT Conguration ............................................... 35
3.3.6 ACPI Conguration............................................... 37
3.3.7 USB Conguration ............................................... 38
3.3.8 Trusted Computing............................................... 39
3.3.9 Thunderbolt(TM) Conguration............................ 40
3.4 Hardware Health Event Monitoring Screen ................... 41
3.5 Security Screen ............................................................. 42
3.6 Boot Screen ................................................................... 43
3.7 Exit Screen .................................................................... 44
4 Software Support .............................................. 45
4.1 Install Operating System................................................ 45

5
Chapter 1: Introduction
Thank you for purchasing ASRockInd IMB-X1712 motherboard, a reliable mother-
board produced under ASRockInd’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRockInd’s commitment
to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and software support.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockInd website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRockInd website
as well. ASRockInd website http://www.asrockind.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd IMB-X1712 Motherboard (ATX (12-in x 9.6-in x 1.4-in))

6
1.2 Specications
Form
Factor Dimensions ATX (12-in x 9.6-in x 1.4-in)
Processor
System
CPU Intel®12th Gen (Alder Lake-S) Core™
Processors, up to 125W
Chipset Intel®W680
Socket LGA1700
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity 128 GB (32 GB per DIMM)
Socket 4 x 288-pin Long-DIMM
Graphics
Controller Intel® UHD Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
MultiDisplay Triple Display
Expansion
Slot
PCIe
2 x PCIe Gen4 Slots (PCIE1/PCIE3:single at
x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))
2 x PCIe x4 (Gen4)
1 x PCIe x4 (Gen3)
PCI 2 x PCI
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB
3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket 1 x SIM socket connected to M.2 Key B
Audio Interface Realtek ALC897, High Denition Audio. Line-In /
Line-Out / Mic-In
Ethernet
Controller/
Speed
LAN1: Intel®I225LM with 10/100/1000/2500
Mbps, support AMT/vPro
LAN2: Intel®I225LM with 10/100/1000/2500
Mbps
LAN3: Intel®I225LM with 10/100/1000/2500
Mbps
Connector 3 x RJ-45

7
Rear I/O
HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.4a
VGA 1
Ethernet 2 x 2.5 Gigabit LAN
USB 5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type C)
Audio 3 ( Line-In, Line-Out, Mic-In )
COM COM1, COM2 (RS-232/422/485)
Internal
Connector
USB 2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM COM3, COM4, COM5, COM6 (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
TPM TPM 2.0 onboard IC
PS/2 1 x PS2 header
Thunderbolt
Header 2 (only support by PCIE4)
Storage
M.2 1 x M.2 (Key M, up to 25110) with PCIe
Gen4 x4 for SSD
SATA 8 x SATA3 (6Gb/s)
RAID
Intel®VMD RAID 0/1/5/10
*Supported by identical interface (PCIe or
SATA)
PCIe interface: M.2 Key B + M.2 Key M
SATA interface: SATA port
Watchdog
Timer
Output From super I/O to drag RESETCON#
Interval 256 Segments, 0,1, 2…255 Sec
Power
Requirements
Input PWR ATX PWR (8+24-pin)
Power On
AT/ATX Supported
AT: Directly PWR on as Power input ready
ATX: Press Button to PWR on after Power
input ready
Environment
Operating
Temp 0ºC ~ 60ºC
Storage
Temp -40°C ~ 85°C
Operating
Humidity 5% ~ 90%
Storage
Humidity 5% ~ 90%

8

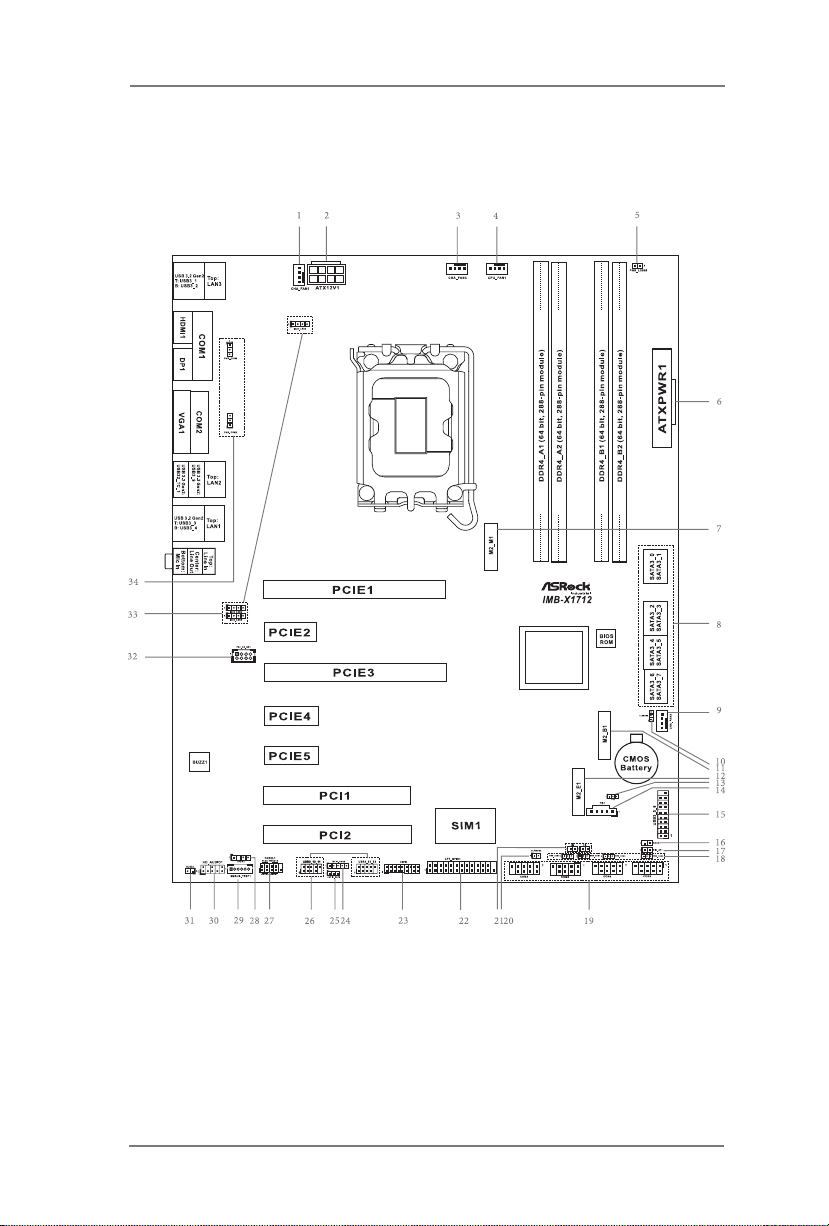

1.3 Motherboard Layout

9
1 : Chassis FAN Connector (+12V) (CHA_FAN1)
2 : ATX 12V Power Connector
3 : Chassis FAN Connector (+12V) (CHA_FAN3)
4 : CPU FAN Connector (+12V)
5 : PWR LOSS Jumper (PWR_LOSS1)
6 : 24-pin ATX Power Input Connector
7 : M.2 Key-M Socket (M2_M1)
8 : SATA3 Connectors (SATA3_0 ~ SATA3_7)
9 : Chassis FAN Connector (+12V) (CHA_FAN2)
10 : Clear CMOS Header (CLRMOS1)
11 : M.2 Key-B Socket (M2_B1)
12 : M.2 Key-E Socket (M2_E1)
13 : 3-pin Thunderbolt AIC Connector (TB2)
14 : 5-pin Thunderbolt AIC Connector (TB1)
15 : USB 3.2 Gen1 Header ( USB3_5_6)
16 : DACC1
17 : ATX/AT Mode Jumper (SIO_AT1)
18 : COM Port Pin9 PWR Setting Jumpers
PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)
PWR_COM5 (For COM Port5)
PWR_COM6 (For COM Port6)
19 : COM Port Headers (COM3~6) (RS232)
20 : Clear CMOS Header (CLRMOS2)
21 : Chassis Intrusion Headers (CI1, CI2)
22 : Printer Port / GPIO Header (LPT_GPIO1)
23 : ESPI Header
24 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)
25 : Digital Input / Output Default Value Setting (JGPIO_SET1)
26 : USB 2.0 Headers ( USB2_10_11, USB2_12_13)
27 : System Panel Header
28 : SPDIF Header
29 : SMBUS_TEST1
30 : Front Panel Audio Header
31 : Buzzer (BUZZ2)
32 : PS/2 Keyboard/Mouse Header
33 : LAN LED Headers :
I225_LED1 (For LAN1 Port)
I225_LED2 (For LAN2 Port)
I219_LED1 (For LAN3 Port)
34 : COM Port Pin9 PWR Setting Jumpers
PWR_COM1 (For COM Port1)
PWR_COM2 (For COM Port2)

10
1.4 I/O Panel
1 LAN RJ-45 Port (LAN3)*
2 COM Port (COM1) (RS232/422/485)**
3 COM Port (COM2) (RS232/422/485)**
4 LAN RJ-45 Port (LAN2)*
5 LAN RJ-45 Port (LAN1)*
6 Line In (Light Blue)
7 Line Out (Lime)
8 Microphone (Pink)
9 USB 3.2 Gen2 Ports (USB3_3_4)
10 USB 3.2 Gen2 Port (USB3_9)
11 USB 3.2 Gen2 Type-C Ports (USB32_TC_1)
12 D-Sub Port (VGA1)
13 DisplayPort (DP1)
14 HDMI Port (HDMI1)
15 USB 3.2 Gen2 Ports (USB3_1_2)

11
** This motherboard supports RS232/422/485 on COM1, 2 ports. Please refer to below table for
the pin denition. In addition, COM1, 2 ports (RS232/422/485) can be adjusted in BIOS setup
utility > Advanced Screen > Super IO Conguration. You may refer to page 33 for details.
COM1, 2 Port Pin Denition
PIN RS232 RS422 RS485
1 DCD, Data Carrier Detect TX- RTX-
2 RXD, Receive Data TX+ RTX+
3 TXD, Transmit Data RX+ N/A
4 DTR, Data Terminal Ready RX- N/A
5GND GND GND
6 DSR, Data Set Ready N/A N/A
7 RTS, Request To Send N/A N/A
8 CTS, Clear To Send N/A N/A
9 No Power/5V/12V N/A N/A
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps/100Mbps connection
Blinking Data Activity Orange 1Gbps connection
On Link Green 2.5Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port

12
Chapter 2: Installation
This is an ATX form factor (12-in x 9.6-in x 1.4-in) motherboard. Before you install
the motherboard, study the conguration of your chassis to ensure that the mother-
board ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

13
2.3 Installation of Memory Modules (DIMM)
This motherboard provides four 288-pin DDR4 (Double Data Rate 4) DIMM
slots, and supports Dual Channel Memory Technology.
The DIMM only ts in one correct orientation. It will cause permanent dam-
age to the motherboard and the DIMM if you force the DIMM into the slot at
incorrect orientation.
1. For dual channel conguration, you always need to install identical (the
same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or
three memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a
DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

14
1
2
3

15
2.4 Expansion Slots
There are 5 PCI Express slots, 2 PCI slots, 3 M.2 sockets and 1 SIM socket on this
motherboard.
PCIE slots:
PCIE1 (PCIE 4.0 x16 slot) is used for PCI Express x16 lane width cards.
PCIE2 (PCIE 4.0 x4 slot) is used for PCI Express x4 lane width cards.
PCIE3 (PCIE 4.0 x16 slot) is used for PCI Express x8 lane width cards.
PCIE4 (PCIE 4.0 x4 slot) is used for PCI Express x4 lane width cards.
PCIE5 (PCIE 3.0 x4 slot) is used for PCI Express x4 lane width cards.
PCI slots: The PCI1 and PCI2 slots are used to install expansion cards that have
32-bit PCI interface.
SIM socket:
1 x SIM socket connected to M.2 key B.
OPTIONS FOR PCIE1/PCIE3
PCIE1 x16 x8
PCIE3 0 x8

16
M.2 sockets:
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless.
1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.2 Gen1 / USB 2.0
and SIM socket for 4G / 5G.
1 x M.2 (Key M, up to 25110) with PCIe Gen4 x4 for SSD.
M.2 Key-M Socket (M2_M1) M.2 Key-E Socket (M2_E1)
M.2 Key-B Socket (M2_B1)

17

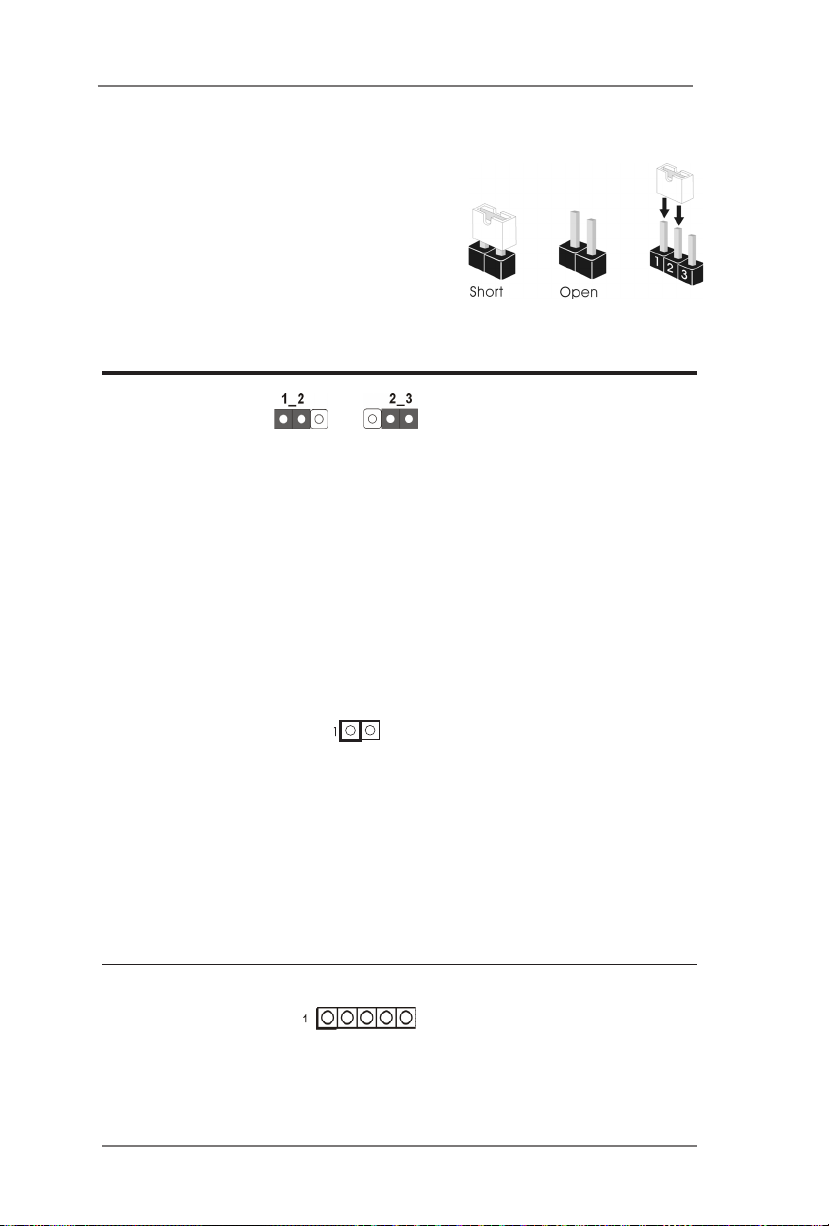

2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumpers CLRMOS1
:
(3-pin CLRMOS1)
1-2 : Normal
(see p.8, No. 10)
2-3 : Clear CMOS
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the date, time and user default prole will be cleared
only if the CMOS battery is removed.
(2-pin CLRMOS2)
CLRMOS2
:
(see p.8, No. 20)
Open : Normal
Short : Auto Clear CMOS
(Power O󰀨)
Note: CLRMOS2 allows you to clear the data in CMOS automatically when AC pow-
er on. The data in CMOS includes system setup information such as system
password, date, time, and system setup parameters. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord, then use a jumper cap to short the pins on CLRMOS2.
Digital Input / Output Power Select (JGPIOPWR) 1-2 : +12V
(5-pin JGPIO_PWR1)
2-3 : +5V
(see p.8, No. 24)
3-4 : +5V
4-5: GND
Clear CMOSDefault

18
COM Port Pin9 PWR Setting Jumpers 1-2 : +5V
(3-pin PWR_COM1 (For COM Port1))
2-3 : +12V
(see p.8, No. 34)
(3-pin PWR_COM2 (For COM Port2))
(see p.8, No. 34)
(3-pin PWR_COM3~6 (For COM Port3~6))
(see p.8, No. 18)
PWR LOSS Header Short : Power Loss
(2-pin PWR_LOSS1)
Open : No Power Loss
(see p.8, No. 5)
ATX/AT Mode Jumper Open : ATX Mode
(2-pin SIO_AT1)
Short : AT Mode
(see p.8, No. 17)
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2: see p.8, No. 21) CASE OPEN detection feature
that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1 :
Short : Active Case Open
Open : Normal
CI2 :
Short : Normal
Open : Active Case Open
1
Signal
GND
Digital Input / Output Default Value Setting 1-2 : Pull-High
(3-pin JGPIO_SET1)
2-3 : Pull-Low
(see p.8, No. 25)
DACC1 Short : ACC
(2-pin DACC1)
Open : No ACC
(see p.8, No. 16)
* Auto clear CMOS when system
boot improperly.

19
PIN Signal
Name PIN Signal Name PIN Signal Name
1
TBT_
RTD3_
RESET#
2
TBT_
RTD3_
PWR_EN
3
TBT_
RTD3_
WAKE#

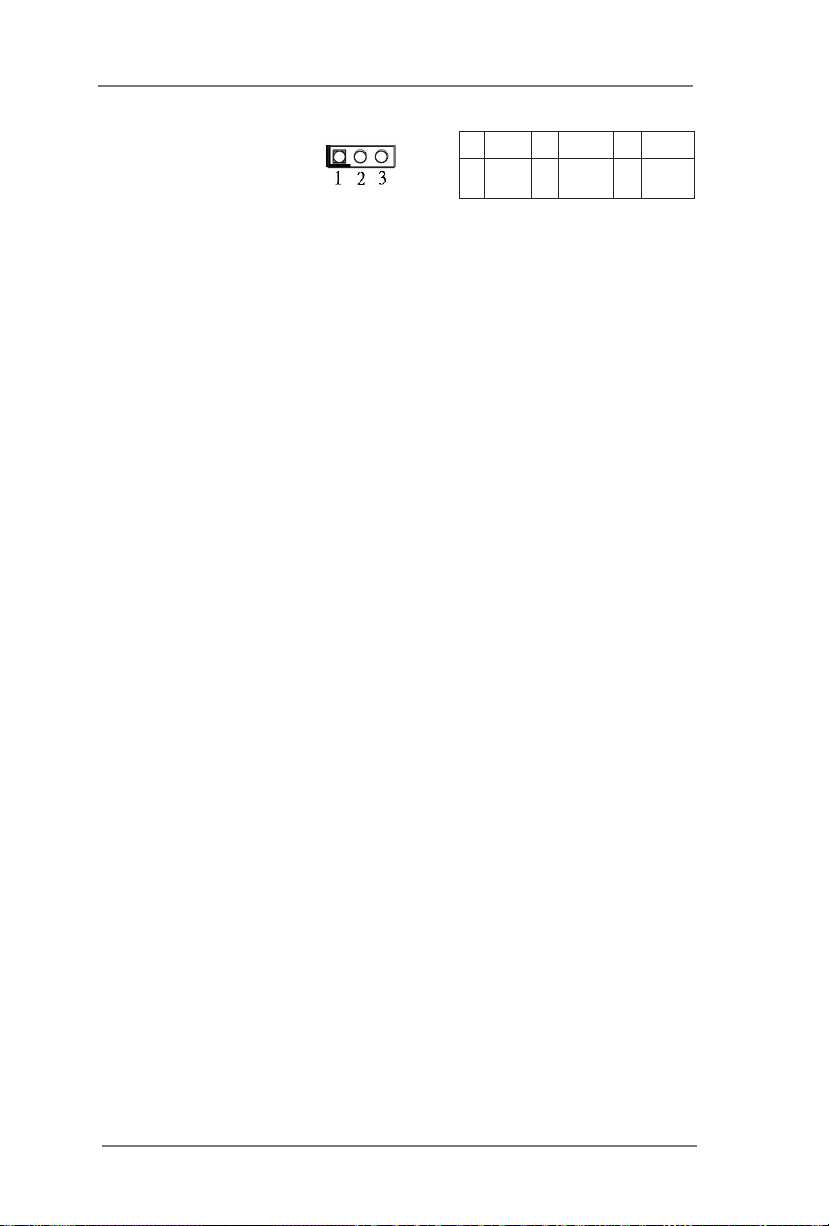

Thunderbolt AIC Connector
(3-pin TB2)
(see p.8, No. 13)

20

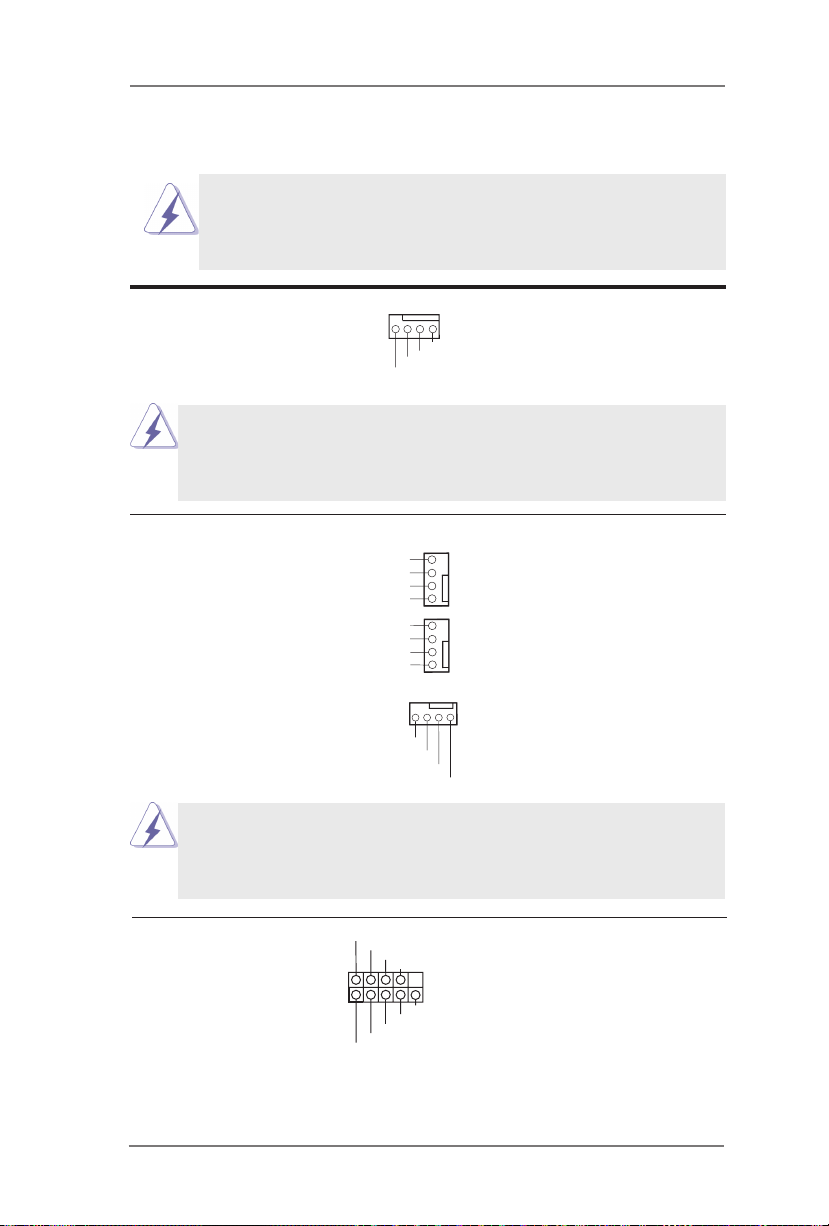

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
CPU Fan Connector (+12V) Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 4) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8, No. 27) functions.
Though this motherboard provides 4-Pin chassis fan (Quiet Fan) support,
the 3-Pin chassis fan still can work successfully even without the fan speed
control function. If you plan to connect the 3-Pin chassis fan to the chassis
fan connector on this motherboard, please connect it to Pin 1-3.
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
Chassis Fan Connectors (+12V) Please connect the fan cable
(4-pin CHA_FAN1) to the fan connector and
(see p.8 No. 1) match the black wire to the
ground pin.
(4-pin CHA_FAN2)
(see p.8 No. 9)
(4-pin CHA_FAN3)
(see p.8 No. 3)
GN D
RESET#
PWRBTN#
PLED-
PLED+
GN D
HDLED-
HDLED+
1
GN D
HLED+
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL 4
3
2
1
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
4
3
2
1
GN D
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
