ASRock Industrial IMB-1004 User manual

1
IMB-1004
User Manual
Version 1.0
Published March 2022
Copyright©2022 ASRockind INC. All rights reserved.

2
Version 1.0
Published March 2022
Copyright©2022 ASRockind INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockind Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRockind. ASRockind assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockind does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockind, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRockind has been advised of the possibility of such damages arising from
any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockind Website: http://www.ASRockind.com

3
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 10
2 Installation ......................................................... 11
2.1 Screw Holes................................................................... 11
2.2 Pre-installation Precautions ........................................... 11
2.3 Installation of Memory Modules (SO-DIMM).................. 12
2.4 Expansion Slot............................................................... 13
2.5 Jumpers Setup............................................................... 14
2.6 Onboard Headers and Connectors................................ 17
2.7 Installation of ROM Socket ............................................ 22
3 UEFI SETUP UTILITY......................................... 23
3.1 Introduction .................................................................... 23
3.1.1 UEFI Menu Bar .................................................... 23
3.1.2 Navigation Keys ................................................... 24
3.2 Main Screen................................................................... 24
3.3 Advanced Screen........................................................... 25
3.3.1 CPU Conguration ............................................... 26
3.3.2 Chipset Conguration........................................... 27
3.3.3 Storage Conguration .......................................... 29
3.3.4 Super IO Conguration ........................................ 30
3.3.5 ACPI Conguration............................................... 31
3.3.6 USB Conguration ............................................... 32
3.3.7 Trusted Computing............................................... 33
3.4 Hardware Health Event Monitoring Screen ................... 34
3.5 Security Screen ............................................................. 35
3.6 Boot Screen ................................................................... 36
3.7 Exit Screen .................................................................... 37
4 Software Support .............................................. 38
4.1 Install Operating System................................................ 38
4.2 Support CD Information ................................................. 38
4.2.1 Running Support CD............................................ 38
4.2.2 Drivers Menu........................................................ 38
4.2.3 Utilities Menu........................................................ 38
4.2.4 Contact Information.............................................. 38

5
Chapter 1: Introduction
Thank you for purchasing ASRockind IMB-1004 motherboard, a reliable mother-
board produced under ASRockind’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRockind’s commitment to
quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockind website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRockind website
as well. ASRockind website http://www.ASRockind.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.ASRockind.com/support/index.asp
1.1 Package Contents
ASRockind IMB-1004 Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
1 x I/O Panel Shield

6
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU
Intel®Elkhart Lake SoC Processors
IMB-1004J (J6412, QC, Max Speed Up to
2.6GHz, 10W)
IMB-1004D (J6426, QC, Max Speed Up to
3.0GHz, 10W)
IMB-1004L (N6210, DC, Max Speed Up to
2.6GHz, 6.5W)
IMB-1004N (N6415, QC, Max Speed Up to
3.0GHz, 6.5W)
Chipset SoC
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel DDR4 3200 MHz
Max. 32GB
Socket 2 x 260-pin SO-DIMM
Graphics
Controller Intel® Gen 11 Graphics
HDMI HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
LVDS Dual channel 24 bit up to 1920 x 1080@60Hz
(Connector shared with eDP)
MultiDisplay Triple Display
VGA Max resolution up to 1920 x 1200@60Hz
eDP Max resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS) @60Hz
Expansion
Slot
PCIe 1 x PCIe x1 (Gen3)
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
1 x M.2 (Key B, 3042/3052) with PCIe x1/USB
3.2/USB 2.0 and SIM for 4G/5G
SIM Socket 1x SIM socket connected to M.2 key B
Audio Interface Realtek ALC897 HD, High Denition Audio. Mic-
In / Line-Out
Ethernet
Controller/
Speed
LAN1: Realtek RTL8125BG with
10/100/1000/2500 Mbps
LAN2: Realtek RTL8111H-CG with 10/100/1000
Mbps
Connector 2 x RJ-45

7
Rear I/O
HDMI 1 x HDMI2.0b
VGA 1
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 2 x USB 3.2 (Gen1), 2 x USB 2.0
Audio 2 (Mic-In, Line-Out)
DC Jack 1
Internal
Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 header )
4 x USB 2.0 (2 x 2.54 pitch header)
1 x USB 2.0 (Type A)
COM 2 x COM (RS-232)
2 x COM (RS-232/422/485)
GPIO 4 x GPI, 4 x GPO (support Time-Aware
GPIO)
TPM TPM Header
LVDS 1 (Connector with LVDS/eDP signal, switch
by BIOS)
VGA 1
SATA PWR
Output 1
Speaker
Header 1
CAN Bus 2 x CAN Bus (1 x 2.00 pitch header)
Storage M.2 1 x M.2 (Key M, 2242/2260/2280) with
SATA3 and PCIex1 for SSD
SATA 2 x SATA3 (6Gb/s)
Watchdog
Timer
Output Output from super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec
Power
Requirements
Input PWR 12~28V DC-In with 4-pin wafer PWR cable
or DC Jack
Power On
AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power
input ready
Environment
Operating
Temp 0ºC ~ 60ºC
Storage
Temp -40°C ~ 85°C
Operating
Humidity 5% ~ 90%
Storage
Humidity 5% ~ 90%

8
1.3 Motherboard Layout

9

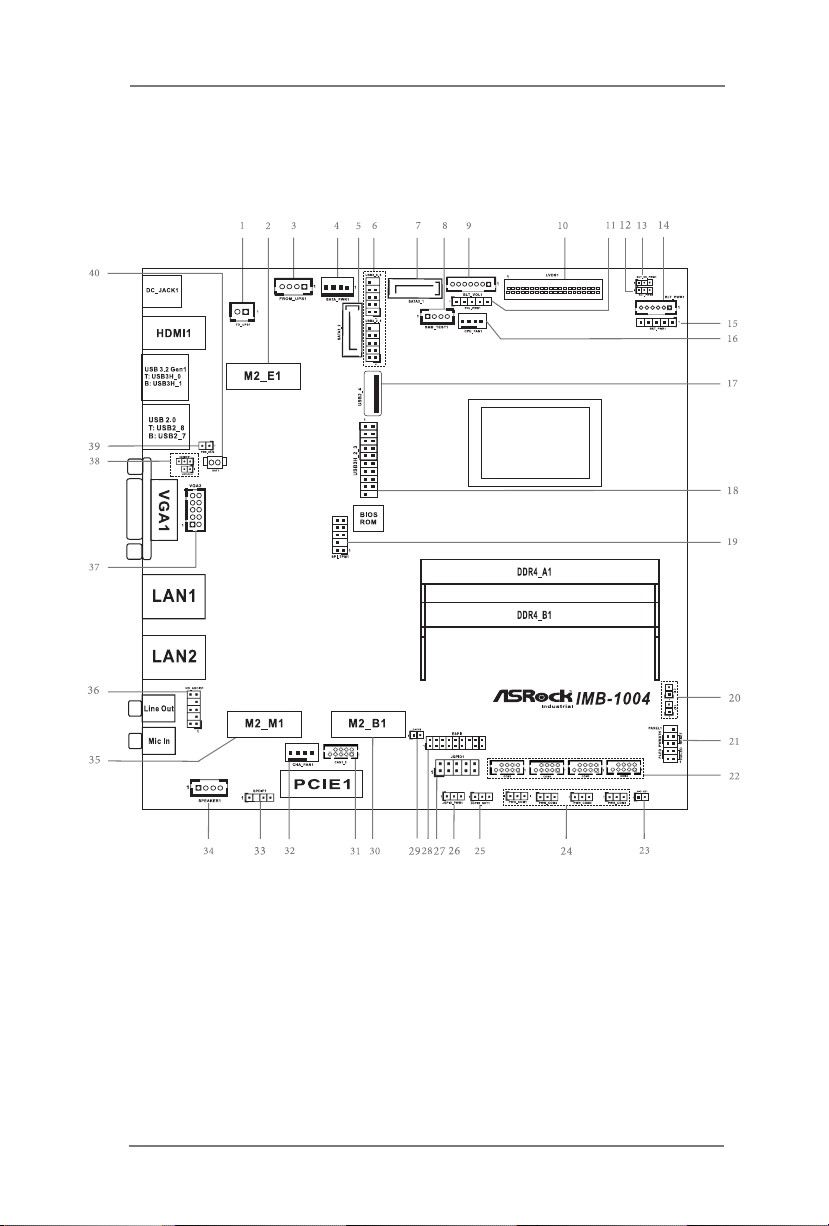

1 : 2-pin UPS Module Power Input Connector
2 : M.2 Key-E Socket (M2_E1)
3 : 4-pin DC-in PWR Connector (Input +12V ~+28V) & UPS Module Power Output Connector
4 : SATA Power Output Connector
5 : SATA3 Connector (SATA3_2)
6 : USB2.0 Connectors (USB2_2_3, USB2_5_6)
7 : SATA3 Connector (SATA3_1)
8 : SMB_TEST1
9 : Backlight Volume Control (BLT_VOL1)
10 : LVDS Panel Connector
11 : eDP and LVDS Panel Power Select (LCD_VCC) (PNL_PWR1)
12 : Brightness Control Mode (BLT_PWM1)
13 : CON_LBKLT_EN and CON_LBKLT_CTL Voltage Level (BLT_EN_PWM1)
14 : Backlight Power Connector (BLT_PWR1)
15 : eDP and LVDS Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
16 : 4-Pin CPU FAN Connector (+12V)
17 : USB2.0 Connector (USB2_4)
18 : USB3.2 Gen1 Connector (USB3H_2_3)
19 : SPI TPM Header
20 : Chassis Intrusion Headers (CI1, CI2)
21 : System Panel Header
22 : Internal COM Port Headers (COM1, 2, 3, 4)
23 : SIO_AT1
24 : COM Port PWR Setting Jumpers
PWR_COM1 (For COM Port1)
PWR_COM2 (For COM Port2)
PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)
25 : Digital Input / Output Default Value Setting (JGPIO_SET1)
26 : Digital Input / Output Power Select (JGPIO_PWR) (JGPIO_PWR1)
27 : Digital Input/Output Pin Header (JGPIO1)
28 : ESPI Header
29 : DACC Jumper (DACC1)
30 : M.2 Key-B Socket (M2_B1)
31 : CAN Connector (CAN1_2)
32 : 4-Pin Chassis FAN Connector (+12V)
33 : SPDIF Header
34 : 3W Audio AMP Output Wafer
35 : M.2 Key-M Socket (M2_M1)
36 : Front Panel Audio Header
37 : VGA Header
38 : Clear CMOS Jumpers (CLRMOS1, AUTOCLR1)
39 : PWR_BAT2
40 : Battery Connector
Back Side:
SIM Card Socket

10
1.4 I/O Panel

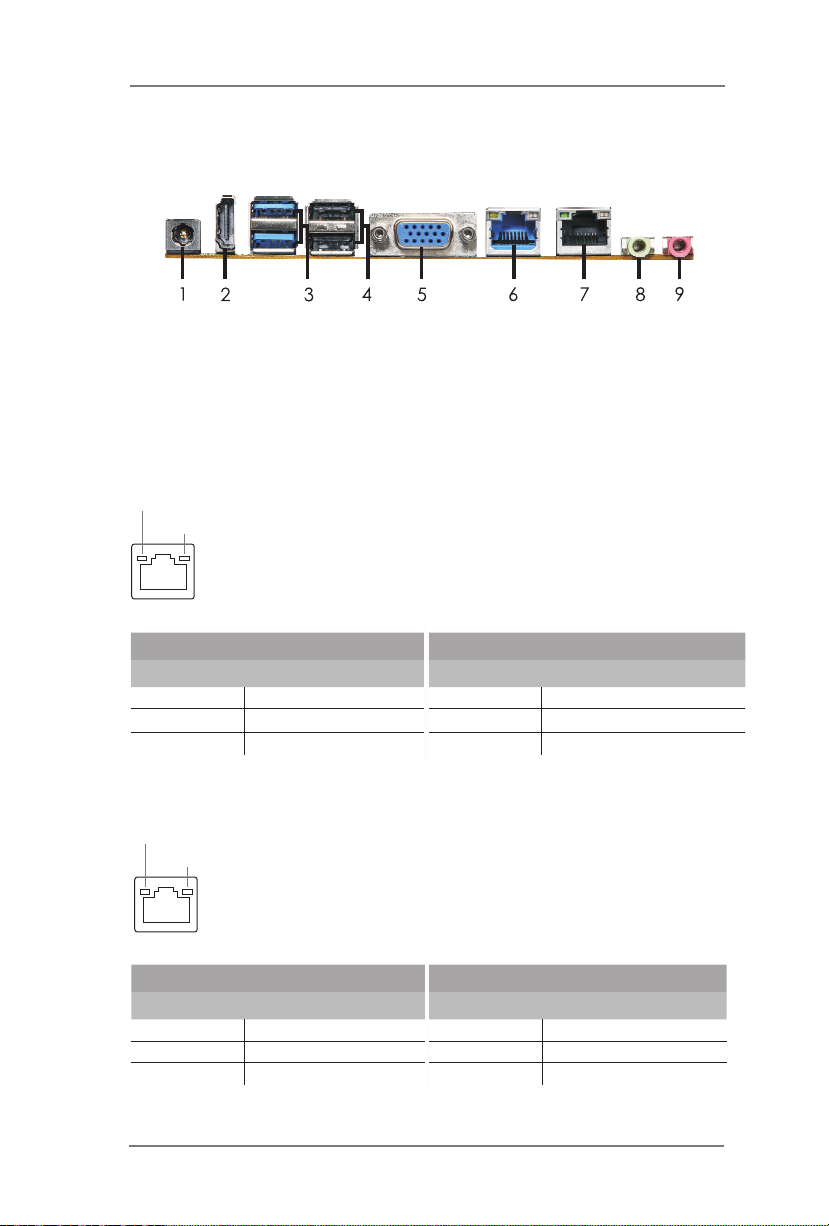

1 DC Jack
2 DisplayPort (DP1)
3 USB3.2 Gen1 Ports (USB3H_0_1)
4 USB2.0 Ports (USB2_7_8)
5 D-Sub Port (VGA1)
6 LAN RJ-45 Port (LAN1)*
7 LAN RJ-45 Port (LAN2)**
8 Line out (Green)
9 Microphone (Pink)
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

11
Chapter 2: Installation
This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you
install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
IMB-1004 motherboard provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM
slots, and supports Dual Channel Memory Technology.
1. If you install one memory module only, please install it on DDR4_A1.
2. It is not allowed to install a DDR, DDR2 or DDR3 memory module into
a DDR4 slot; otherwise, this motherboard and SO-DIMM may be
damaged.
2. Please make sure to disconnect the power supply before adding or
removing SO-DIMMs or the system components.
3. The SO-DIMM only ts in one correct orientation. It will cause
permanent damage to the motherboard and the SO-DIMM if you force
the SO-DIMM into the slot at incorrect orientation.

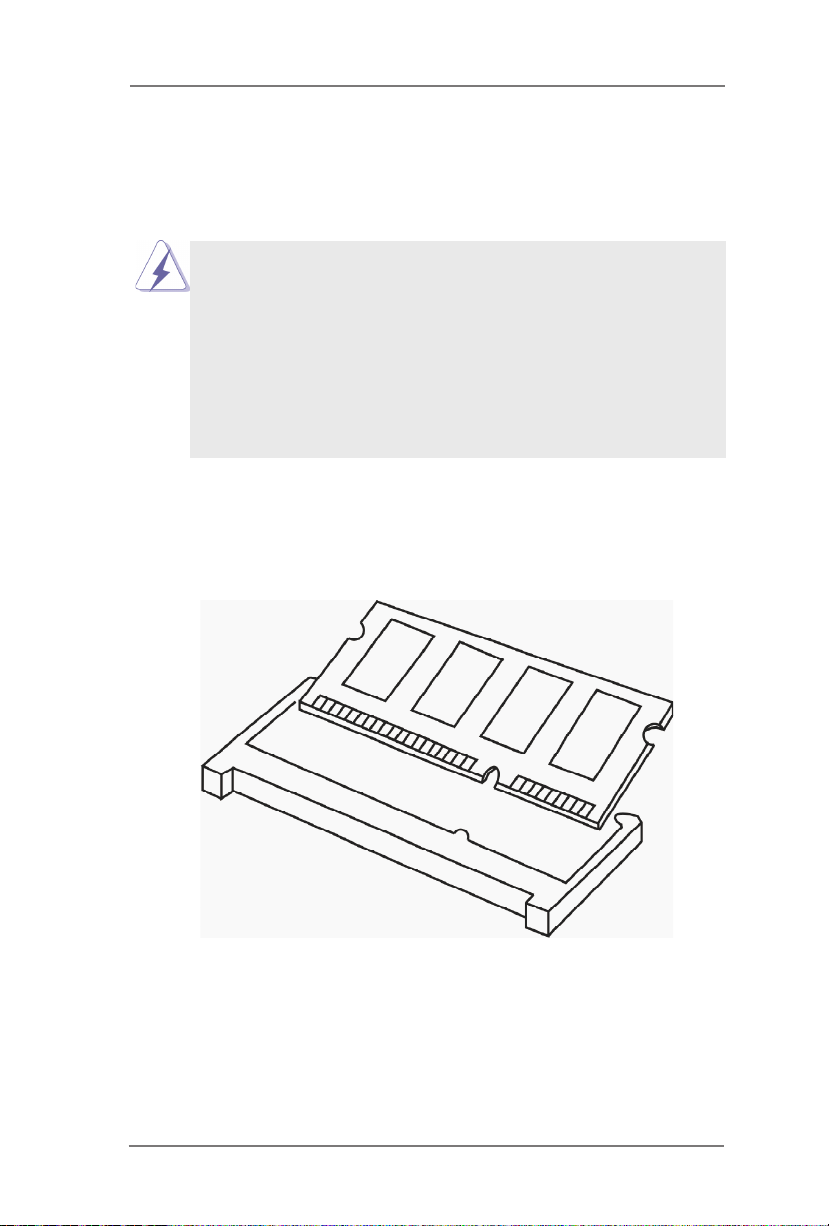

Installing a SO-DIMM
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (PCI Express, M.2 and SIM Sockets)
There is 1 PCI Express, 3 M.2 and 1 SIM sockets on this motherboard.
PCIE slot: PCIE1 (PCIe x1 slot) is used for PCIe Gen3 x1 lane width cards.
M.2 sockets:
M2_M1 Socket (Key M) supports type 2242/2260/2280 M.2 SATA3 6.0 Gb/s and
PCIe x1 for SSD.
M2_E1 Socket (Key E) supports type 2230 PCIe x1, USB 2.0.
M2_B1 Socket (Key B) supports type 3042/3052 PCIe x1/USB 3.2/USB 2.0 and
SIM for 4G/5G.
SIM socket:
Supports 1x SIM socket connected to M.2 key B.
M.2 Key-M Socket (M2_M1) M.2 Key-E Socket (M2_E1) M.2 Key-B Socket (M2_B1)
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
USB3_RX-
USB3_RX+
GND
USB3_TX-
USB3_TX+
PERn0
PERP0
PETn0
PETP0
W_DISABLE1#
W_DISABLE2#
NA
NA
PIN SIGNAL SIGNAL PIN
1GND +3.3V 2
3 USB_D+ +3.3V 4
5 USB_D- NA 6
7GND NA 8
9 NA NA 10
11 NA NA 12
13 NA NA 14
15 NA NA 16
17 NA GND 18
19 NA NA 20
21 NA NA 22
23 NA
33 GND NA 32
35 PETp NA 34
37 PETn NA 36
39 GND NA 38
41 PERp NA 40
43 PERn NA 42
45 GND NA 44
47 PEFCLKp NA 46
49 PEFCLKn NA 48
51 GND NA 50
53 CLKREQ# PERST0# 52
55 WAKE# NA 54
57 GND NA 56
59 NA SMB_DATA 58
61 NA SMB_CLK 60
63 GND NA 62
65 NA NA 64
67 NA NA 66
69 GND NA 68
71 NA NA 70
73 NA +3.3V 72
75 GND +3.3V 74

14
2.5 Jumpers Setup

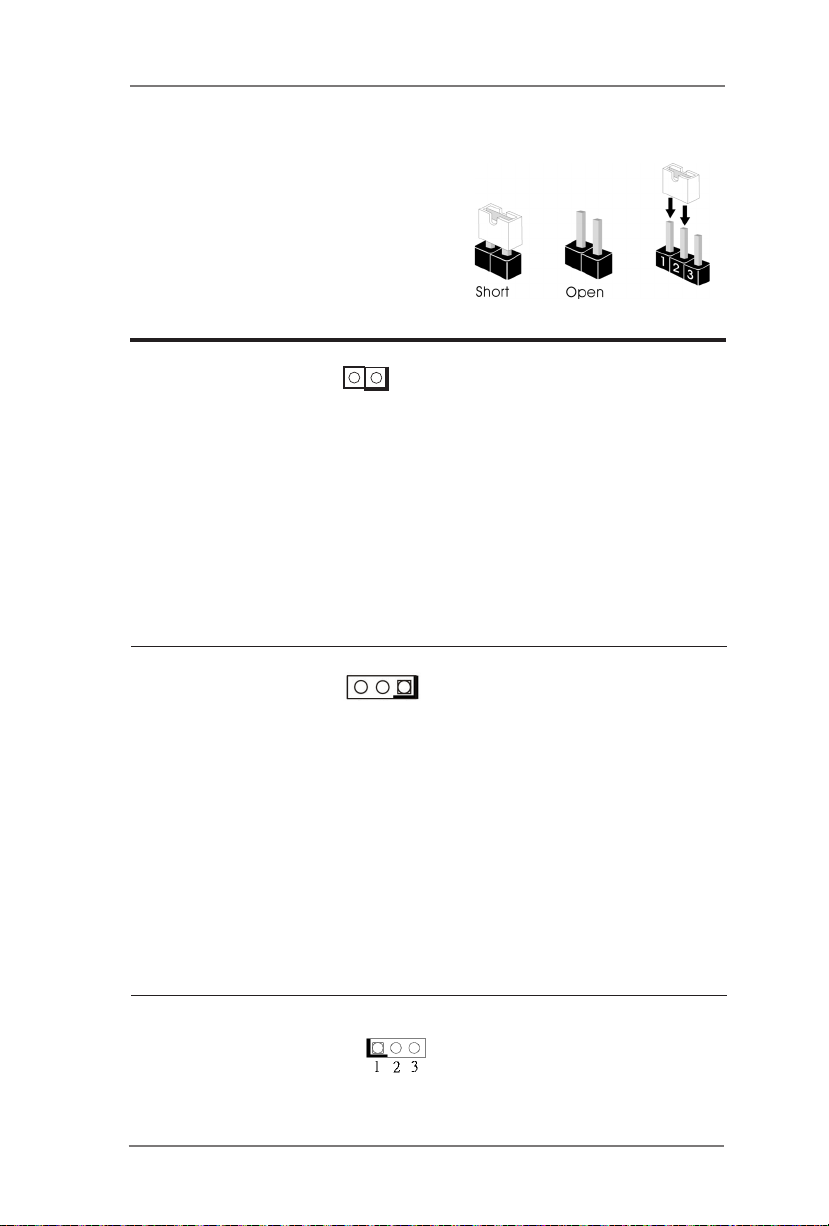

The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper Open: Normal
(2-pin AUTOCLR1)
Short: Auto Clear CMOS When AC
(see p.8, No. 38) Power On
Note: AUTOCLR1 allows you to clear the data in CMOS. The data in CMOS in-
cludes system setup information such as system password, date, time, and
system setup parameters. To clear and reset the system parameters to default
setup, please turn o󰀨 the computer and unplug the power cord, then use a
jumper cap to short the pins on AUTOCLR1 for 3 seconds. Please remember
to remove the jumper cap after clearing the CMOS. If you need to clear the
CMOS when you just nish updating the BIOS, you must boot up the system
rst, and then shut it down before you do the clear-CMOS action.
Clear CMOS Jumper 1-2: Normal
(3-pin CLRMOS1) 2-3: Clear CMOS
(see p.8, No. 38)
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.

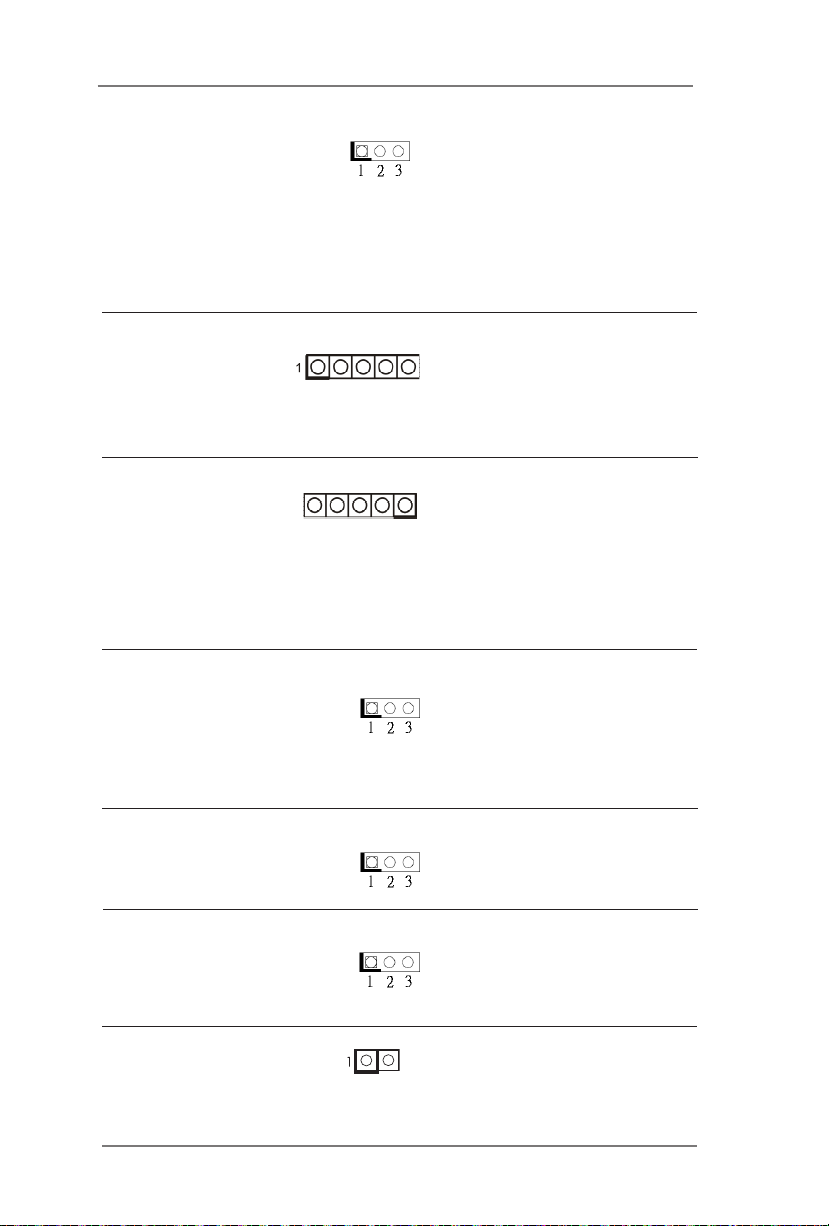

Digital Input / Output Power Select (JGPIO_PWR) 1-2: +12V
(3-pin JGPIO_PWR1) 2-3: +5V
(see p.8 No. 26)
3 2 1
1

15
Backlight Control Level 1-2: From eDP PWM to
(3-pin BLT_PWM1) CON_LBKLT_CTL
(see p.8, No. 12) 2-3: From LVDS PWM to
CON_LBKLT_CTL
Note: Please set to 1-2 when adjusting brightness by Brightness Control bar
under OS.
Please set to 2-3 when adjusting brightness by BLT_VOL1.
COM Port Pin9 PWR Setting Jumpers 1-2: +5V
(3-pin PWR_COM1, for COM Port1) 2-3: +12V
(3-pin PWR_COM2, for COM Port2)
(3-pin PWR_COM3, for COM Port3)
(3-pin PWR_COM4, for COM Port4)
(see p.8, No. 24)
eDP and LVDS Backlight Power Select Use this to set up the backlight
(LCD_BLT_VCC) power of the LVDS connector
(5-pin BKT_PWR1) and the panel backlight power
(see p.8 No. 15) of BLT_PWM1.
1-2: LCD_BLT_VCC: +5V
2-3: LCD_BLT_VCC: +12V
4-5: LCD_BLT_VCC: DC Input
eDP and LVDS Panel Power Select (LCD_VCC) Use this to set up the VDD
(5-pin PNL_PWR1) power of the LVDS connector.
(see p.8 No. 11) 1-2: LCD_VCC: +3V
2-3: LCD_VCC: +5V
4-5: LCD_VCC: +12V
1
Digital Input / Output Default Value Setting 1-2: Pull-High
(3-pin JGPIO_SET1) 2-3: Pull-Low
(see p.8, No. 25)
CON_LBKLT_EN and CON_LBKLT_CTL 1-2: 5V Level
Voltage Level 2-3: 3V Level
(3-pin BLT_EN_PWM1)
(see p.8, No. 13)
SIO_AT1 Open: ATX Mode
(2-pin SIO_AT1) Short: AT Mode
(see p.8 No. 23)

16

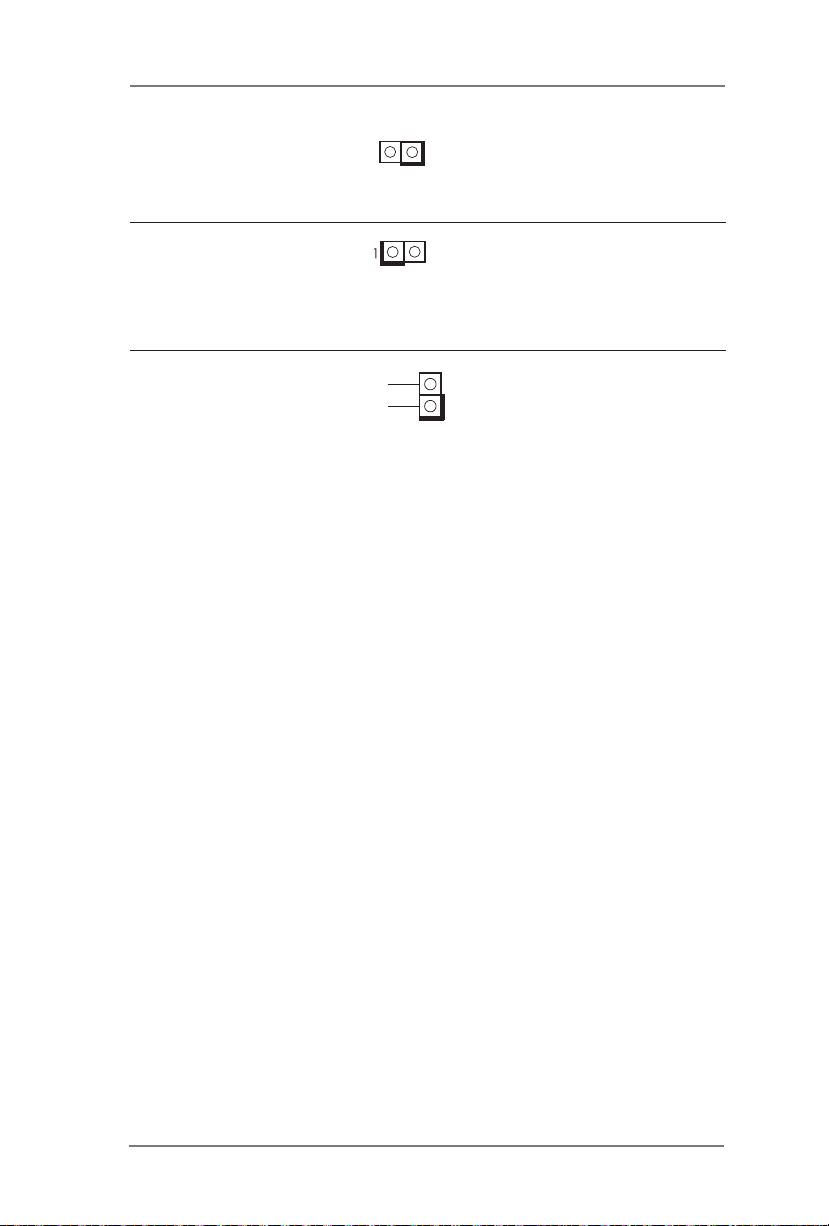

PWR_BAT2 Open: Normal
(2-pin PWR_BAT2) Short: Charge Battery
(see p.8 No. 39)
1
DACC Jumper Open: Normal
(2-pin DACC1) Short: Auto Clear CMOS
(see p.8 No. 29) (Power O󰀨)
Note: Auto clear CMOS when system boot improperly
1
Signal
GND
Chassis Intrusion Headers This motherboard supports
(2-pin CI1: see p.8, No. 20) CASE OPEN detection feature
(2-pin CI2: see p.8, No. 20) that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
CI1:
Close : Active Case Open
Open: Normal
CI2:
Close : Normal
Open: Active Case Open

17
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!

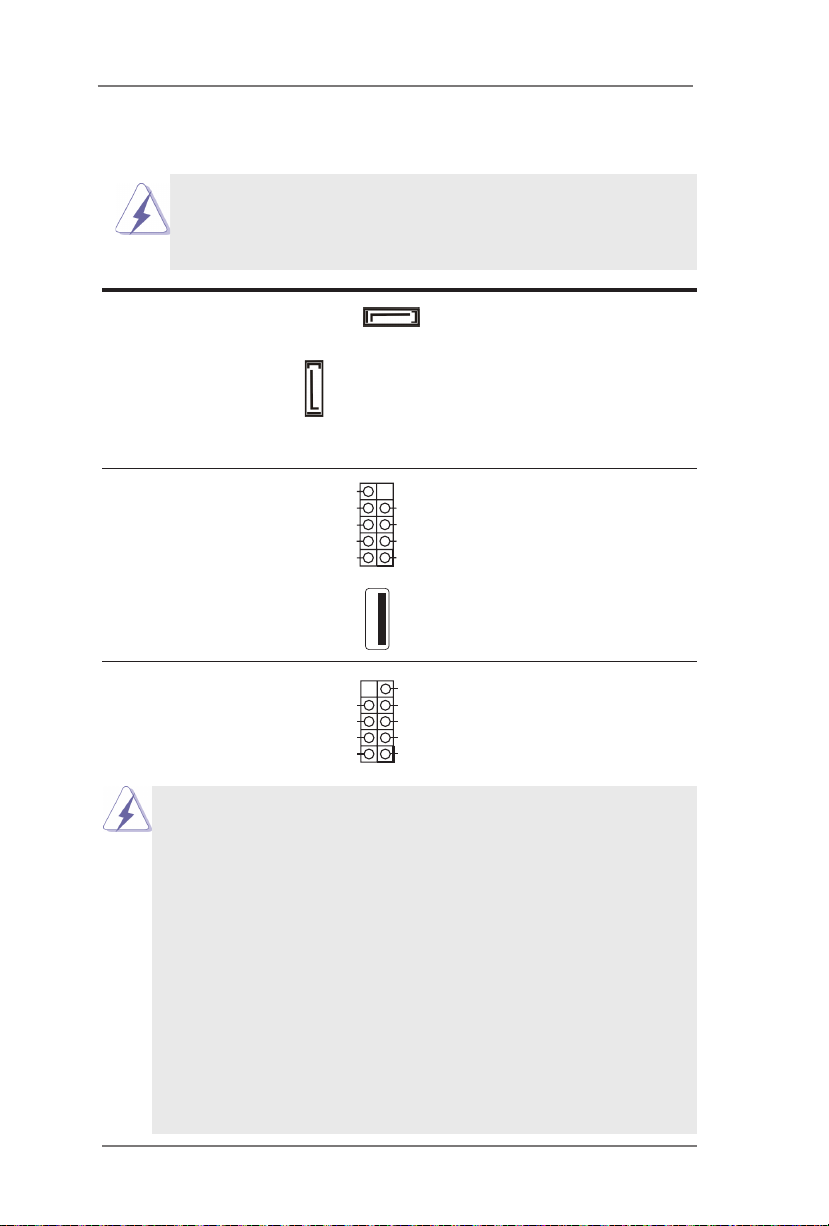

SATA3 Connectors These two Serial ATA3
(SATA3_1: see p.8, No. 7) (SATA3) connectors support
(SATA3_2: see p.8, No. 5) SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
USB 2.0 Connectors There are two USB 2.0
(9-pin USB2_2_3, USB2_5_6) connectors and one USB 2.0
(see p.8 No. 6) port on this motherboard.
USB 2.0 Port
(USB2_4)
(see p.8 No. 17)
DUMMY
GND GND
+B
-B
+A
-A
USB_PWR USB_PW
R
1
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8 No. 21) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn o󰀨 your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is o󰀨 when the system is in S3/S4 sleep
state or powered o󰀨 (S5).
GND RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
SATA3_1
SATA3_2

18
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may di󰀨er by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 34)
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 36) convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
1
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name
1OUTLN 2OUTLP 3OUTRP 4OUTRN
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GN D
OUT2_R
MIC2_R
MIC2_L
OUT_RET

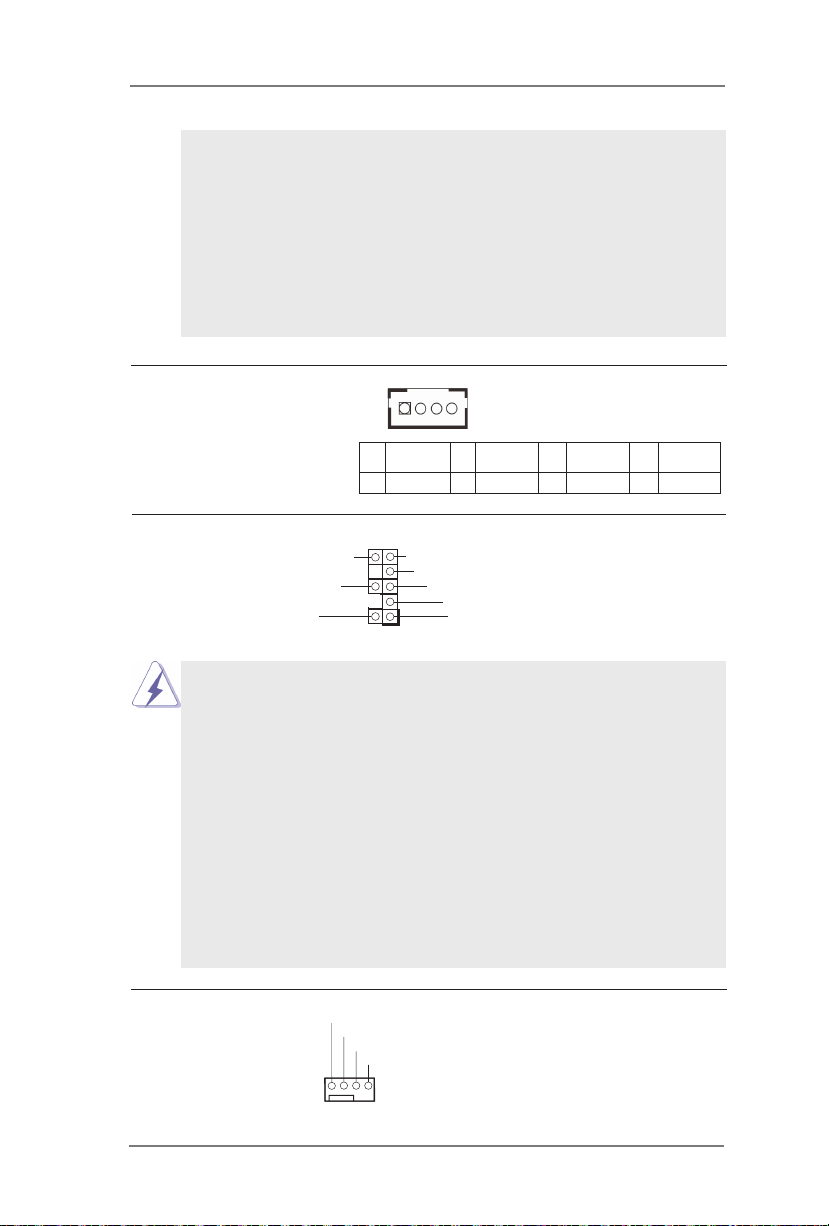

Chassis Fan Connector Please connect the fan cable
(4-pin CHA_FAN1) to the fan connector and
(see p.8 No. 32) match the black wire to the
ground pin.
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL

19
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 16) match the black wire to the
ground pin.
1
1
2-pin UPS Module Power Input Connector Pin1: GND
(2-pin TO_UPS1) Pin2: DC Input
(see p.8 No. 1) 1
4-pin DC-in PWR Connector Please connect a DC
& UPS Module Power Output Connector +12V~+28V power
(Input +12V~+28V) supply to this connector.
(4-pin FROM_UPS1) Pin1 and Pin4: GND
(see p.8 No. 3) Pin2 and Pin3: DC Input
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
SATA Power Output Connector
(4-pin SATA_PWR1)
(see p.8 No. 4)
GND
+5V
+12V
GND
1
LVDS Connector
(40-pin LVDS1)
(see p.8 No. 10)
139
40
2
PIN Signal Name PIN Signal Name
39 LCD_BLT_VCC 40 LCD_BLT_VCC 37 CON_LBKLT_CTL 38 LCD_BLT_VCC 35 GND 36 CON_LBKLT_EN 33 LVDS_B_CLK# 34 LVDS_B_CLK 31 LVDS_B_DATA3 32 GND 29 DPLVDD_EN 30 LVDS_B_DATA3# 27 LVDS_B_DATA2# 28 LVDS_B_DATA2 25 LVDS_B_DATA1 26 GND 23 GND 24 LVDS_B_DATA1# 21 LVDS_B_DATA0# 22 LVDS_B_DATA0 19 LVDS_A_CLK 20 GND 17 GND 18 LVDS_A_CLK# 15 LVDS_A_DATA3# 16 LVDS_A_DATA3 13 LVDS_A_DATA2 14 GND
11 GND 12 LVDS_A_DATA2#
9 LVDS_A_DATA1# 10 LVDS_A_DATA1 7 LVDS_A_DATA0 8 GND 5 LDDC_DATA 6 LVDS_A_DATA0# 3 +3.3V 4 LDDC_CLK 1 LCD_VCC 2 LCD_VCC
* eDP by pass mode pin denition:
PIN Signal Name PIN Signal Name
39 LCD_BLT_VCC 40 LCD_BLT_VCC 37 CON_LBKLT_CTL 38 LCD_BLT_VCC 35 GND 36 CON_LBKLT_EN 33 N/A 34 N/A 31 N/A 32 GND 29 DPLVDD_EN 30 N/A 27 N/A 28 N/A 25 N/A 26 GND 23 GND 24 N/A 21 N/A 22 N/A 19 EDP_AUXP 20 GND 17 GND 18 EDP_AUXN 15 N/A 16 N/A 13 EDP_TX0 14 GND
11 GND 12 EDP_TX0#
9 EDP_TX1# 10 EDP_TX1 7 N/A 8 GND 5 N/A 6 N/A 3 N/A 4 N/A 1 LCD_VCC 2 LCD_VCC

20
Backlight Volume Control
(7-pin BLT_VOL1)
(see p.8 No. 9)
Backlight Power Connector
(6-pin BLT_PWR1)
(see p.8 No. 14)
PIN Signal Name
1GPIO_VOL_UP
2GPIO_VOL_DW
3PWRDN
4BRIGHTNESS_UP
5BRIGHTNESS_DW
6GND
7GND
1
1
1
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name
1GPIO 2SMB_CLK 3SMB_DATA 4GND
SMB_TEST1
(4-pin SMB_TEST1: see p.8, No. 8)
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
Vbus
Vbus
IntA_ PA_S SRX-
IntA_ PA_S SRX+
GND
IntA_ PA_S STX-
IntA_ PA_S STX+
GND
IntA_ PA_D -
IntA_ PA_D +
PIN Signal Name
1GND
2GND
3 CON_LBKLT_CTL
4 CON_LBKLT_EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
1
SPI TPM Header
(9-pin SPI_TPM1)
(see p.8 No. 19)
USB 3.2 Gen1 Connector There is one USB 3.2 Gen1
(19-pin USB3H_2_3) connector on this motherboard.
(see p.8 No. 18) This USB 3.2 Gen1 connector
can support two ports.
+5V
SPDIF Header
(3-pin SPDIF1: see p.8, No. 33)
VGA Header
(10-pin VGA1: see p.8, No. 37)
1
PIN Signal Name PIN Signal Name
9 DDC_CLK 10 DDC_DATA
7 HSYNC 8 VSYNC
5BLUE 6GND
3GREEN 4GND
1 RED 2 GND
