Chapter 1 Introduction
ank you for purchasing 1U2FH-4L Series, a reliable barebone system produced
under ASRockRack’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRockRack’s commitment to
quality and endurance.
1. Because the hardware specications might be updated, the content of this documentation
will be subject to change without notice. In case any modications of this documentation
occur, the updated version will be available on ASRockRack’s website without further
notice. If you require technical support related to this product, please visit our website for
specic information about the model you are using.
ASRockRack’s Website: www.ASRockRack.com
2. e illustrations shown in this manual are examples only, the actual system may dier
slightly .

2 3
English
Item
Quantity
1U2FH-4L/C612
1U2FH-4L/C622
Series
1U2FH-4L Series Barebone (1U form factor) 1 1
System Board (MB) 1 1
Power Supply Unit 2 2
System Fan 5 6
HDD Backplane (BPB) 1 1
Front Panel Board (FPB) 1 1
Power Distribution Cage / Board (PDB) 1 1
Power Cable, ATX 8Pin, PDB to MB, 200mm 1 1
Power Cable, ATX 8Pin, PDB to MB, 700mm 1 1
Power Cable, ATX 24Pin, PDB to MB, 450mm 1 1
Power Cable, ATX 12Pin to 3*4Pin, PDB to BPB,
250/300/350mm 1 1
PMBus Cable, 1*5Pin, PDB to MB, 500mm 1 1
SMBus Cable, 1*5Pin, PDB to MB, 650mm 1 1
Front Panel Cable, 2*10Pin to 2*10Pin+1*5Pin, FPB to
MB, 840+800mm 1 1
USB 2.0 Cable, FPB to MB, 2*5PIN, 850mm 1 1
VGA Cable, 2*8Pin, 850mm 1 0
BPB Cable, MiniSAS HD to 8087(L/A), 650mm 1 1
2.5" HDD Cable, SATA 7+15 to 7Pin+1*4Pin,
800&120mm 2 3
Accessory Box 1 1
User Manual 1 1
Quick Installation Guide 1 1
Note: Type and quantity of the cables vary depending on the server board that comes with your system.
If any items are missing or appear damaged, contact your authorized dealer.
1.1 Shipping Box Contents

1U2FH-4L Series
2 3
English
1.2 Specications
1U2FH-4L Series
System
Form Factor 1U Rackmount 1U Rackmount
Chassis Model 1U2FH-4L/C612 1U2FH-4L/C622
1U2FH-4L/C622VK
Dimensions 28" x 16.9" x 17" (710 mm X
430 mm X 43.5 mm)
24.6" x 16.9" x 17" (625 mm X
430 mm X 43.5 mm)
Support MB EEB, 12''x13'' EEB, 12''x13''
Front Panel
Buttons • Power On/Standby Button
• UID Button
• Power On/Standby Button
• ID Button
• System Reset Button
• NMI Button
LEDs • POWER LED
• UID LED
• LAN LED
• HDD LED
• POWER LED
• UID LED
• LAN LED
• HDD LED
I/O Ports • 2 x USB 2.0 ports
• VGA port
• 2 x USB 2.0 ports
External Drive Bay
Front Side Drive Bay 4 Bay 3.5'' SATA HDD (6Gb/s) 4 Bay 3.5'' SATA HDD (6Gb/s)
Front Side Backplane Backplane with 4 SATA ports Backplane with 4 SATA ports
Internal Side Drive
Bay
2 Bay 2.5'' SATA HDD 1U2FH-4L/C622:
2 Bay 2.5" SATA HDD
1U2FH-4L/C622VK: N/A
Power Supply
Type 1U, Redundant 1U, Redundant
Output Watts 650W Platinum 750W Platinum
System Fan
Fan 4056 mm Fan x5 4056 mm Fan x6
Riser Card Support
Riser card Type 2 x Symmetry Riser card (x16)
support 2 x Full High PCIE
card
2 x Symmetry Riser card (x16)
support 2 x Full High PCIE
card
Other
Support MB FH-C612NM
*Supports up to 120W CPU only; for
higher Watt CPU support, please
contact our sales representatives.
EP2C622D16NM
*Please be noted that the functions are supported depending on the type of the server board.

4 5
English
Chapter 2 Server System Overview
is chapter provides diagrams showing the location of important components of
the server system.
2.1 System Components
1U2FH-4L/C612 Series
2 x Power Supply Units
4 x 3.5” HDD Carriers
2 x 2.5” HDD Carriers
5 x System Fans
Front Controls and Indicators
Top Covers
Server Board
Riser Card Assembly

1U2FH-4L Series
4 5
English
1U2FH-4L/C622 Series
2 x Power Supply Units
4 x 3.5” HDD Carriers
Front Controls and Indicators
Top Cover
Riser Card Assembly
6 x System Fans
Server Board
3 x 2.5” HDD Carriers
1U2FH-4L/C622: 2 x 2.5” HDD
1U2FH-4L/C622VK: N/A

6 7
English
2.2 Internal Features
1U2FH-4L/C612
1
2
56
78 9
34
12
13 14
15
11
10
16

1U2FH-4L Series
6 7
English
No. Item
1 Server Board (SB)
2 Riser Card Assembly
3PCIE Add-on Card 1 (on the riser card assembly)* or
Storage Mezzanine Card (on the server board)
4Top: PCIE Add-on Card 2 (on the riser card assembly)*
Bottom: LAN Mezzanine Card (on the server board)**
5 Power Supply Unit (PSU2)
6 Power Supply Unit (PSU1)
7 System Fan (FAN1)
8 System Fan (FAN2)
9 System Fan (FAN3)
10 System Fan (FAN4)
11 System Fan (FAN5)
12 HDD Backplane Board (BPB)
13 2.5” HDD Carrier (HDD4)***
14 2.5” HDD Carrier (HDD5)***
15 Front Panel Board (FPB)
16 4 x 3.5'' Hot-Swap HDD Trays (HDD0~HDD3)
*Supports Low prole and FHHL (Full High Half Length) PCIe cards
**Supports 1GbE x 2, 10GbE x2 or SFP+ (Fiber) mezzaine cards (M350R/M540R/M599R/M599RS)
***Supports 7mm 2.5-inch HDD only

8 9
English

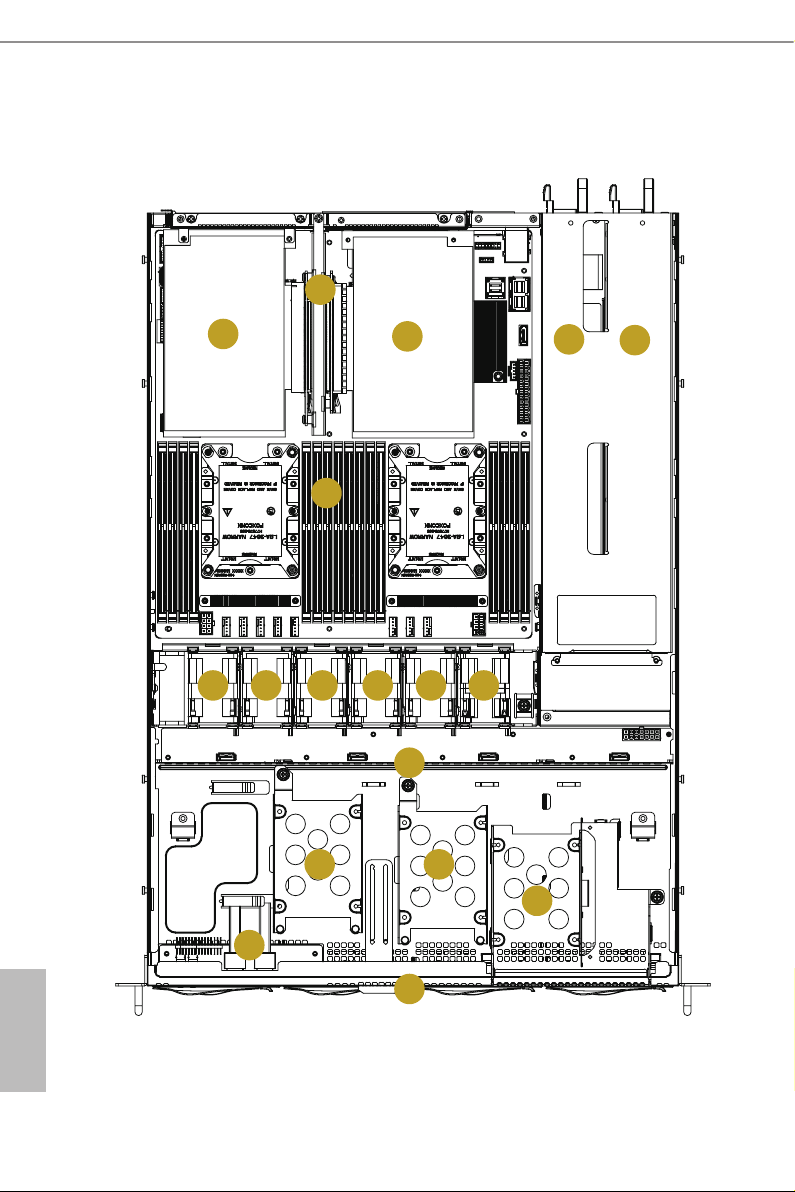

1U2FH-4L/C622
1
2
56
789
34
13
14
15
1110
16
12
17
18

1U2FH-4L Series
8 9
English
No. Item
1 Server Board (SB)
2 Riser Card Assembly
3PCIE Add-on Card 1 (on the riser card assembly)* or
Storage Mezzanine Card (on the server board)
4Top: PCIE Add-on Card 2 (on the riser card assembly)*
Bottom: LAN Mezzanine Card (on the server board)**
5 Power Supply Unit (PSU2)
6 Power Supply Unit (PSU1)
7 System Fan (FAN1)
8 System Fan (FAN2)
9 System Fan (FAN3)
10 System Fan (FAN4)
11 System Fan (FAN5)
12 System Fan (FAN6)
13 HDD Backplane Board (BPB)
14 Front Panel Board (FPB)
15 2.5” HDD Carrier (HDD4)*** (1U2FH-4L/C622VK not supported)
16 2.5” HDD Carrier (HDD5)*** (1U2FH-4L/C622VK not supported)
17 2.5” HDD Carrier (HDD6) (1U2FH-4L/C622 and 1U2FH-4L/C622VK not supported)
18 4 x 3.5'' Hot-Swap HDD Trays (HDD0~HDD3)
*Supports Low prole and FHHL (Full High Half Length) PCIe cards
**Supports 1GbE x 2, 10GbE x2 or SFP+ (Fiber) mezzaine cards (M350R/M540R/M599R/M599RS)
***Supports 7mm 2.5-inch HDD only

10 11
English
2.3 System Front Panel
1U2FH-4L/C612
24 3
1
HDD0 HDD1 HDD2 HDD3
No. Description
1 4 x 3.5" Hot-Swap HDD Trays (HDD0~HDD3)
2 2 x USB 2.0 Ports
3 Control Panel Buttons and LEDs
4VGA Port
1U2FH-4L/C622
2
13
HDD0 HDD1 HDD2 HDD3
No. Description
1 4 x 3.5" Hot-Swap HDD Trays (HDD0~HDD3)
2 2 x USB 2.0 Ports
3 Control Panel Buttons and LEDs

1U2FH-4L Series
10 11
English
2.4 System Rear Panel
1U2FH-4L/C612
5
2
1
Redundant PSU 1+1:
Only one PSU is allowed to be removed while
the server is running.
3 4 6
No. Description
1 2 x Power Supply Units (Redundant PSU 1+1)
*Server requires 1 working PSU, with 1 redundant PSU. You must have at least one active
supply, installed, functioning and connected to AC. Only one of the PSUs is allowed to be
removed while the server is running.
2 I/O Shield (depends on the specication of the server board)*
3 1 x PCI Express Slot 1 (on the riser card assembly)
*Supports Low prole and FHHL (Full High Half Length) PCIe cards
4 1 x LAN Mezzanine Card Slot
*Support for 1GbE x 2, 10GbE x2 or SFP+ (Fiber) x2
5 1 x PCI Express Slot 2 (on the riser card assembly)
*Supports Low prole and FHHL (Full High Half Length) PCIe cards
6Rear Vent*
*e locations of I/O shield and rear vent may vary depending on the system and server board models.
1U2FH-4L/C622
5
2
1
Redundant PSU 1+1:
Only one PSU is allowed to be removed while
the server is running.
3 4 6
No. Description
1 2 x Power Supply Units (Redundant PSU 1+1)
*Server requires 1 working PSU, with 1 redundant PSU. You must have at least one active
supply, installed, functioning and connected to AC. Only one of the PSUs is allowed to be
removed while the server is running.
2 I/O Shield (depends on the specication of the server board)*

12 13
English
3 1 x PCI Express Slot 1 (on the riser card assembly)
*Supports Low prole and FHHL (Full High Half Length) PCIe cards
4 1 x LAN Mezzanine Card Slot
*Support for 1GbE x 2, 10GbE x2 or SFP+ (Fiber) x2
5 1 x PCI Express Slot 2 (on the riser card assembly)
*Supports Low prole and FHHL (Full High Half Length) PCIe cards
6Rear Vent*
*e locations of I/O shield and rear vent may vary depending on the system and server board models.

1U2FH-4L Series
12 13
English
2.5 Front Control Panel Buttons and LEDs
1U2FH-4L/C612
UID
USB1 USB2 12
12
6
5
34
7
4
No. Description
1 USB 2.0 Port (USB1)
2 USB 2.0 Port (USB2)
3 Power Button and LED
4 UID Button and LED*
5 System Status LED*
6 HDD Activity LED*
7 LAN1, LAN2 Activity LED*
*Please be noted that the functions are supported depending on the type of the motherboard.
1U2FH-4L/C622 Series
NMI RST L1 L2 SYS
ID
1 2
9
8
73 4
L3 L4
56
No. Description
1 ID Button and LED
2 Power Button and LED
3 NMI (Nonmaskable Interrupt) Button
4 System Reset Button
5 USB 2.0 Port (USB1)
6 USB 2.0 Port (USB2)
7 LAN1, LAN2, LAN3, LAN4 Activity LED
(LAN3 and LAN4 are not supported for 1U2FH-4L/C622 and 1U2FH-4L/C622VK)
8 HDD Status LED
9 System Status LED
*Please be noted that the functions are supported depending on the type of the server board.
UID/ID Button
Press the UID button to toggle the front panel UID LED and the baseboard UID LED on
and o. You are able to locate the server you’re working on from behind a rack of servers.

14 15
English
Power Button
Press the power switch button to toggle the system power on and standby/sleep modes.
To remove all power from the system completely, disconnect the power cord from the
server.
NMI (Nonmaskable Interrupt) Button (for 1U2FH-4L/C622 only)
Press the NMI button with a paper clip or pin to generate a nonmaskable interrupt and to
put the server in a halt state for examination.
System Reset Button (for 1U2FH-4L/C622 only)
When the system is completely unresponsive, press the system reset button to reboot the
server without shutting it o and initialize the system.
Status LED Denitions
Power LED
Status Description
Green Power on
O Power o
UID/ID LED
Status Description
Blue System identication is active.
O System identication is disabled.
System Status LED
Status Description
Solid Red ere is a fault in the system.
O System is normally operating.
HDD Activity LED
Status Description
Blinking Green At lease one of the HDDs is accessing data.
Solid Green At lease one of the HDDs is connected.
O No HDD is present.
LAN LED
Status Description
Blinking Green Network access
Solid Green LAN is present.
O No LAN is present.
