ASRock Industrial NUC-J6412 User manual

1
NUC-J6412
User Manual
Version 1.0
Published July 2021
Copyright©2021 ASRockInd INC. All rights reserved.

2
Version 1.0
Published July 2021
Copyright©2021 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockInd Website: http://www.asrockind.com

3
e terms HDMI®and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
1.2 Specications................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 10
2 Installation ......................................................... 11
2.1 Screw Holes................................................................... 11
2.2 Pre-installation Precautions ........................................... 11
2.3 Installation of Memory Modules (SO-DIMM).................. 12
2.4 Expansion Slots ............................................................ 13
2.5 Jumpers Setup............................................................... 14
2.6 Onboard Headers and Connectors................................ 15
2.7 Installation of ROM Socket ............................................ 18
3 UEFI SETUP UTILITY......................................... 19
3.1 Introduction .................................................................... 19
3.1.1 UEFI Menu Bar .................................................... 19
3.1.2 Navigation Keys ................................................... 20
3.2 Main Screen................................................................... 20
3.3 Advanced Screen........................................................... 21
3.3.1 CPU Conguration ............................................... 22
3.3.2 Chipset Conguration........................................... 24
3.3.3 Storage Conguration .......................................... 25
3.3.4 Super IO Conguration ........................................ 26
3.3.5 ACPI Conguration............................................... 27
3.3.6 USB Conguration ............................................... 28
3.3.7 Trusted Computing............................................... 29
3.4 Hardware Health Event Monitoring Screen ................... 30
3.5 Security Screen ............................................................. 31
3.6 Boot Screen ................................................................... 32
3.7 Exit Screen .................................................................... 33
4 Software Support .............................................. 34
4.1 Install Operating System................................................ 34
4.2 Support CD Information ................................................. 34
4.2.1 Running Support CD............................................ 34
4.2.2 Drivers Menu........................................................ 34
4.2.3 Utilities Menu........................................................ 34
4.2.4 Contact Information.............................................. 34

5
Chapter 1: Introduction
Thank you for purchasing ASRockInd NUC-J6412 motherboard, a reliable mother-
board produced under ASRockInd’s consistently stringent quality control. It delivers
excellent performance with robust design conforming to ASRockInd’s commitment
to quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRockInd website without further notice. You may
nd the latest VGA cards and CPU support lists on ASRockInd website
as well. ASRockInd website http://www.asrockind.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd NUC-J6412 Motherboard
(NUC 4.09” x 4.02” (104 x 102mm))
ASRockInd NUC-J6412 Driver CD
ASRockInd NUC-J6412 Jumper setting instruction

6
1.2 Specications
Form
Factor Dimensions NUC 4.09" x 4.02" (104 x 102mm)
Processor
System
CPU
Intel®ElkHart Lake SoC Processors
NUC-J6412 (J6412, QC, Max Speed up to
2.6GHz, 10W)
Chipset SoC
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel DDR4 3200 MHz
Capacity 32GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller Intel® Gen 11 Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.2, DP++
Max resolution up to 4096x2160@60Hz
Multi Display Max 2 display
Expansion
Slot M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
Audio Interface Realtek ALC233, High Denition Audio
Ethernet
Controller/
Speed Realtek RTL8111H-CG with 10/100/1000 Mbps
Connector 2 x RJ-45
Front I/O USB
1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C)
1 x USB 2.0
Audio 1 (headphone & microphone jack)
Rear I/O
HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.2
Ethernet 2 x 1 Gigabit LAN
USB 1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
DC Jack 1

7
Internal
Connector
USB 2 x USB 2.0 (1 x 2.00 pitch header)
COM 1 x COM(RS232/422/485)
TPM Inneon SLB9670VQ2.0
Audio
Header
line in /out (share with audio Jack, by BIOS
setting)
Storage M.2
1 x M.2 (KEY M, 2242/2260/2280) with
PCIe x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power
Requirements
Input PWR 12V~19V DC-In Jack
Power On
AT/ATX Supported
AT: Directly PWR on as power input ready
ATX: Press button to PWR on after power
input ready
Environment
Operating
Temp 0ºC ~ 60ºC
Storage
Temp -40°C ~ 85°C
Operating
Humidity 5% ~ 90%
Storage
Humidity 5% ~ 90%

8
1.3 Motherboard Layout
Top View:
1 : M.2 Key-M Socket (M2_M1)
2 : M.2 Key-E Socket (M2_E1)
3 : Clear CMOS Header (CLRMOS1)
4 : Front Panel Audio Header (HD_AUDIO1)
5 : USB 2.0 Connector (USB2_6_7)
6 : COM Port Header (RS232/422/485)
7 : SATA3 Port (SATA3_1)
8 : SIO_AT1
9 : System Panel Header (PANEL1)

9
Bottom View:
10 : Power Button (PWR_BTN1)
11 : Fan Connector (FAN1)
12 : Battery Connector (BAT1)
13 : ESPI Connector (ESPI)

10
1.4 I/O Panel
Front I/O:
Rear I/O:
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O󰀨 No Link O󰀨 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 USB 3.2 Gen2 Type-C Port (USB3_TC_2)
2 USB 3.2 Gen2 Port (USB3_3)
3 USB 2.0 Port (USB_4)
4 USB 3.2 Gen2 Type-C Port (USB3_TC_1)
5 Audio Jack (AUDIO1)
6 RJ-45 LAN Port (LAN1)*
7 RJ-45 LAN Port (LAN2)*
8 HDMI Port (HDMI1)
9 DisplayPort 1.2 (DP1)
10 USB 3.2 Gen2 Port (USB3_0)
11 USB 2.0 Port (USB_1)
12 DC-In Jack (DC_IN1)

11
Chapter 2: Installation
Before you install the motherboard, study the conguration of your chassis to ensure
that the motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched o󰀨 or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
This motherboard rovides two 204-pin DDR4 (Double Data Rate 4) SO-DIMM slots.
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
1. The SO-DIMM only ts in one correct orientation. It will cause permanent damage
to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
2. Please do not intermix di󰀨erent voltage SO-DIMMs on this motherboard.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (M.2 Slots)
There are 2 M.2 slots on this motherboard.
M.2 for SSD: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x1 and SATA3 for SSD.
* M.2 Key M 2280(Supported by bracket)
M.2 for Wi-Fi: 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless.

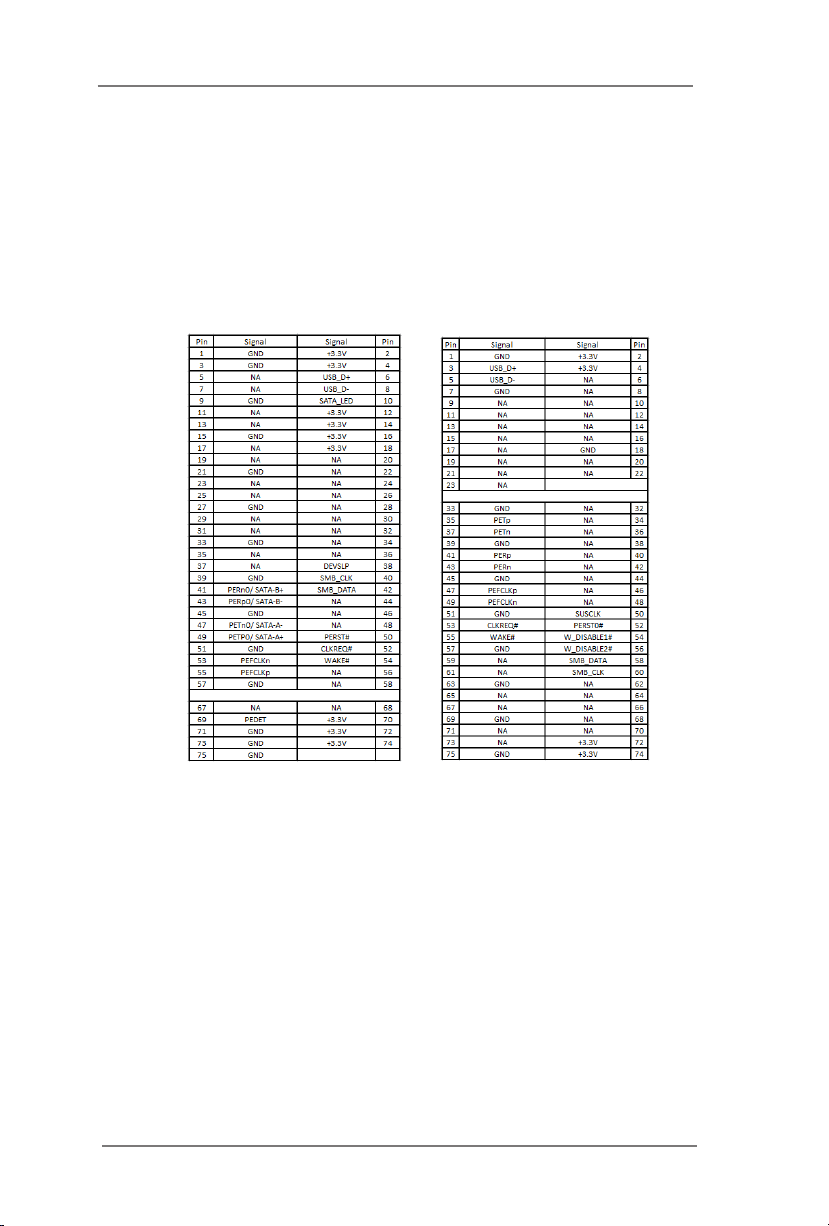

M.2 Key-M Socket (M2_M1) M.2 Key-E Socket (M2_E1)

14
2.5 Jumpers Setup

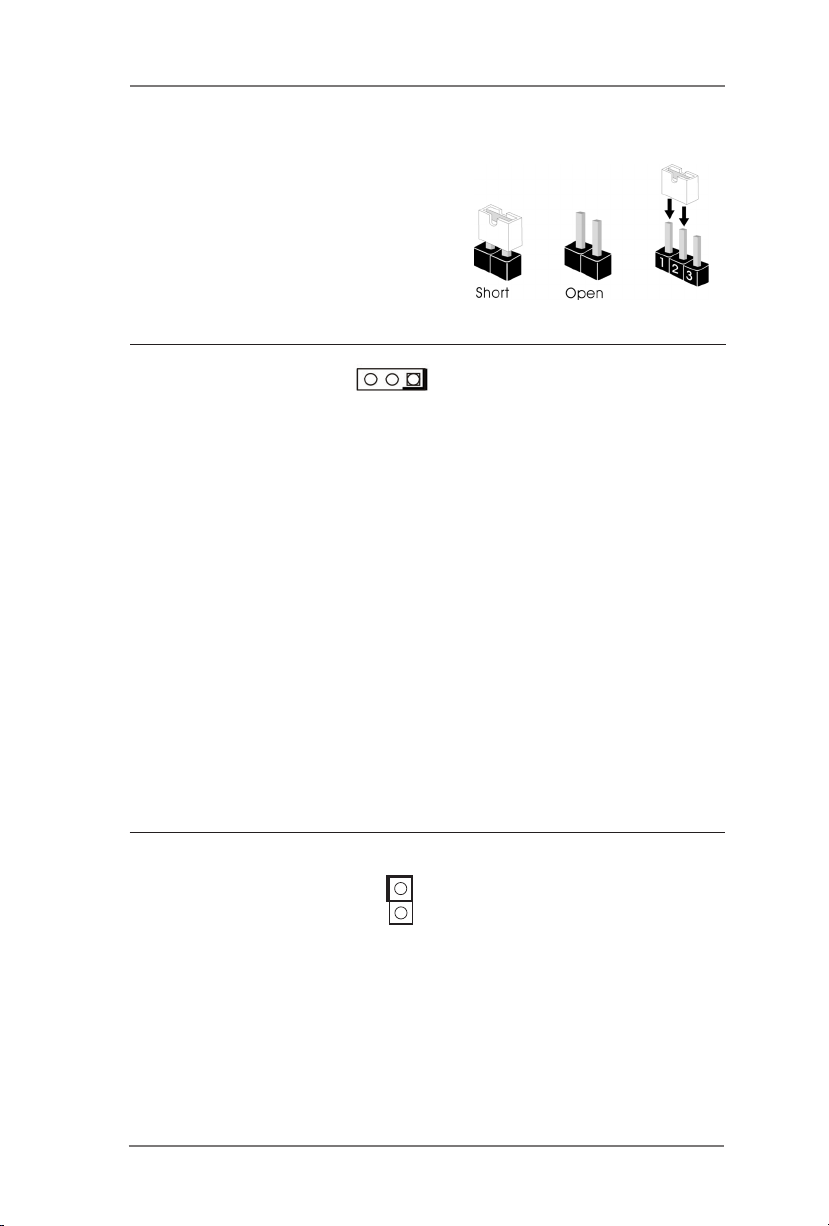

The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper 1-2: Auto Clear (PWR OFF)
(3-pin CLRMOS1) 2-3: Clear CMOS
(see p.8, No. 3)
Note: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the date, time, user default prole and MAC address will
be cleared only if the CMOS battery is removed.
CLRMOS1 allows you to clear the data in CMOS automatically when AC pow-
er on. The data in CMOS includes system setup information such as system
password, date, time, and system setup parameters. To clear and reset the
system parameters to default setup, please turn o󰀨 the computer and unplug
the power cord, then use a jumper cap to short the pins on CLRMOS1.
SIO_AT1 Open: ATX Mode
(2-pin SIO_AT1) Short: AT Mode
(see p.8, No. 8)
3 2 1
1

15
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
SATA3 Port This Serial ATA3 (SATA3)
(SATA3_1: see p.8, No. 7) connector supports SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
USB 2.0 Connector There is one USB 2.0
(9-pin USB2_6_7) connector on this
(see p.8 No. 5) motherboard.
COM Port Header (RS232/422/485)
(9-pin COM1: see p.8, No. 6)
NC
DUMMY
* This motherboard supports RS232/422/485 on COM1 port. Please
refer to below table for the pin denition. In addition, COM1 port
(RS232/422/485) can be adjusted in BIOS setup utility > Advanced
Screen > Super IO Conguration. You may refer to our user manual for
details.
PIN RS232 RS422 RS485
1 DCD, Data Carrier Detect TX- RTX-
2 RXD, Receive Data TX+ RTX+
3 TXD, Transmit Data RX+ N/A
4 DTR, Data Terminal Ready RX- N/A
5GND GND GND
6 DSR, Data Set Ready N/A N/A
7 RTS, Request To Send N/A N/A
8 CTS, Clear To Send N/A N/A
9 N/A N/A N/A
COM1 Port Pin Denition
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GN D
TTXD1
DDCD#1
1
RRI#1
N/A

16
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8, No. 9) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn o󰀨 your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is o󰀨 when the system is in S4 sleep
state or powered o󰀨 (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may di󰀨er by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
DUMMY
GND
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name PIN Signal Name
2AGND 4NC 6LIN1_JD 8LIN2_JD 10 NC
1LIN1_R_
IN 3LIN1_L_ IN 5LIN2_R_ OUT 7AGND 9LIN2_L_ OUT
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.8 No. 4) convenient connection and
control of audio devices.

17
Back Side:
Power Button
(PWR_BTN1)
(see p.9, No. 10)
Fan Connector
(FAN1)
(see p.9, No. 11)
Battery Connector
(BAT1)
(see p.9, No. 12)
ESPI Connector
(ESPI1)
(see p.9, No. 13)
1
FAN_SPEED_CONTROL
FAN_SPEED
+12V
GND
+5V

18
2.7 Installation of ROM Socket

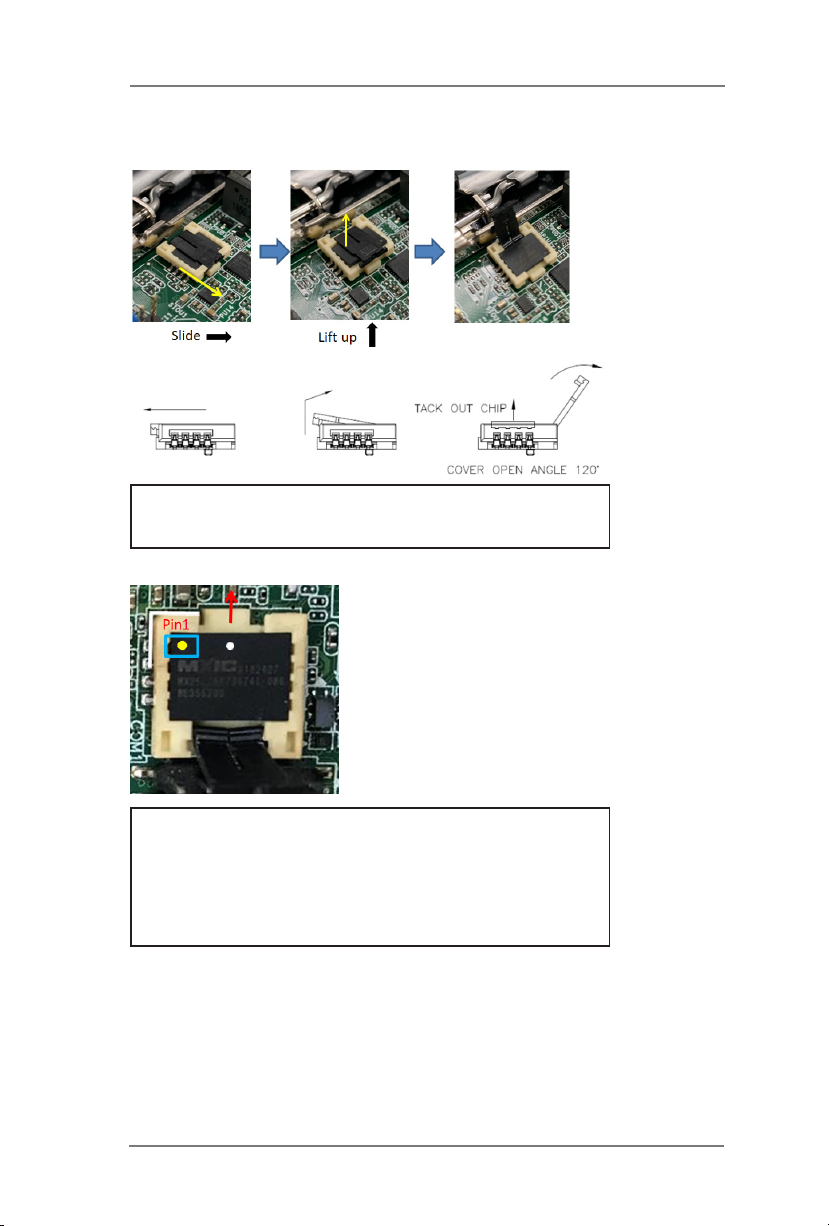

* Do not apply force to the actuator cover after ic inserted.
* Do not apply force to actuator cover when it is opening over 120
degree, Otherwise, the actuator cover may be broken.
* The yellow dot (Pin1) on the ROM must be installed at pin1 position of
the socket.
* Make sure the white dot on the ROM is installed outwards of the
socket.
* For further details of how to install ROM, please refer to ASRI website.
Warning: If the installation does not follow as the picture, then it
may cause severe damage to chipset & MB.

19
Chapter 3: UEFI SETUP UTILITY
3.1 Introduction
This section explains how to use the UEFI SETUP UTILITY to congure your
system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You
may run the UEFI SETUP UTILITY when you start up the computer. Please press
<F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP
UTILITY, otherwise, POST will continue with its test routines.
If you wish to enter the UEFI SETUP UTILITY after POST, restart the system by
pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system
chassis. You may also restart by turning the system o󰀨 and then back on.
Because the UEFI software is constantly being updated, the
following UEFI setup screens and descriptions are for reference
purpose only, and they may not exactly match what you see on
your screen.
3.1.1 UEFI Menu Bar
The top of the screen has a menu bar with the following selections:
Main To set up the system time/date information
Advanced To set up the advanced UEFI features
H/W Monitor To display current hardware status
Security To set up the security features
Boot To set up the default system device to locate and load the
Operating System
Exit To exit the current screen or the UEFI SETUP UTILITY
Use < > key or < > key to choose among the selections on the menu
bar, and then press <Enter> to get into the sub screen. You can also use the
mouse to click your required item.

20
3.1.2 Navigation Keys
Please check the following table for the function description of each navigation
key.
Navigation Key(s) Function Description
/ Moves cursor left or right to select Screens
/ Moves cursor up or down to select items
+ / - To change option for the selected items
<Enter> To bring up the selected screen
<F1> To display the General Help Screen
<F7> Discard changes
<F9> To load optimal default values for all the settings
<F10> To save changes and exit the UEFI SETUP UTILITY
<F12> Print screen
<ESC> To jump to the Exit Screen or exit the current screen
3.2 Main Screen

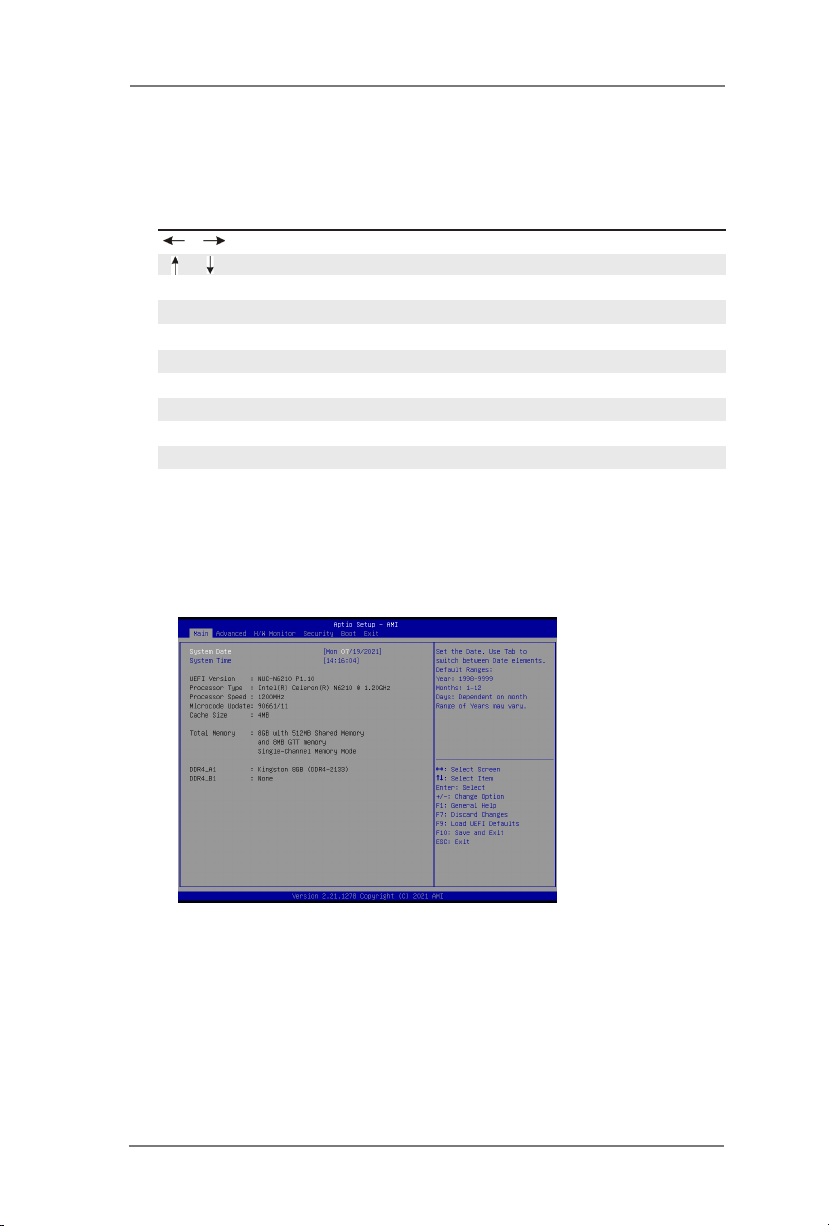

When you enter the UEFI SETUP UTILITY, the Main screen will appear and display
the system overview.
