Chapter 1 Introduction
ank you for purchasing ASRockInd SBC-370 motherboard, a reliable motherboard
produced under ASRockInd’s consistently stringent quality control. It delivers excel-
lent performance with robust design conforming to ASRockInd’s commitment to
quality and endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-
step guide to the hardware installation. Chapter 3 contains the conguration guide to
BIOS setup.
Because the motherboard specications and the BIOS soware might be updated, the
content of this manual will be subject to change without notice. In case any modica-
tions of this manual occur, the updated version will be available on ASRockInd website
without further notice. You may nd the latest CPU support lists on ASRockIndind
website as well.
ASRockIndind website https://www.asrockind.com/
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
https://www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd SBC-370 Motherboard (3.5” SBC (5.8-in x 4-in x 0.94-in))
ASRockInd SBC-370 Jumper Setting Instruction.
1 x Heat Spreader
2 x Screws
2 x COM Cables
1 x SATA Data Cable
1 x SATA Power Cable
1 x DC-in Cable

2
1.2 Specications
Form
Factor Dimensions 3.5” SBC (5.8-in x 4-in x 0.94-in, 14.7 cm x 10.2 cm x 2.40 cm)
Processor
System
CPU
Intel®Alder Lake P SoC Processors
SBC-370P (i7-1265UE, 2P+8E)
SBC-370M (i5-1245UE, 2P+8E)
SBC-370V (i3-1215UE, 2P+4E)
Chipset SoC
BIOS AMI SPI 256 Mbit
Expansion
Slot
PCIe 1 x PCIe x1 Gen3 (Supports up to 10W)
M.2
1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for
Wireless
1 x M.2 (Key B, 3042/3052) with PCIex1 or SATA3
and USB 3.2 and USB 2.0 and SIM for 4G/5G
SIM Socket 1 x SIM socket connected to M.2 key B
Memory
Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller Intel® Gen 12 Graphics
HDMI HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
DisplayPort DP 1.4a
Max resolution up to 4096 x 2160@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDP Max resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
Multi Display Quad display (Included 2 output from Type-C)
Audio Interface Realtek ALC233 HD, High Denition Audio
Ethernet
Controller/
Speed
SBC-370P/SBC-370M
LAN1: Intel® I225LM with 10/100/1000/2500 Mbps,
supports AMT/vPro
LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
SBC-370V
LAN1: Intel® I225LM with 10/100/1000/2500 Mbps
LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
Controller 2 x RJ-45

3
SBC-370
Rear I/O
HDMI 1 x HDMI2.0b
DisplayPort 1 x DP1.4++
Ethernet 2 x 2.5 Gigabit Lan
USB
2 x USB 3.2 Gen2
2 x USB 3.2 Gen2x2 (20G) (Type-C, Support
DP1.4a display output)
Internal
Connector
USB 1 x USB 3.2 Gen 2
2 x USB 2.0 (1 x 2.54 pitch header)
COM COM1, COM4, COM3 (RS-232/422/485)
GPIO 4 x GPI, 4 x GPO
TPM TPM 2.0 onboard IC
LVDS 1 (Connector with LVDS/eDP signal, switch by
BIOS)
SATA PWR
Output 1
Speaker
Header 1
Storage
M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIex4
for SSD
SATA 1 x SATA3 (6Gb/s)
RAID
Intel® VMD RAID 0/1
** supported by PCIE interface
PCIE interface: M.2 Key B+ M.2 Key M
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255 Sec
Power
Requirements
Input PWR 12~36V DC-In with 4-pin wafer PWR cable or
DC Jack
Power On
AT/ATX Supported
-AT: Directly PWR on as power input ready
-ATX: Press button to PWR on aer power input
ready
Environment
Operating
Temp 0ºC - 60ºC
Storage Temp -40ºC - 85ºC
Operating
Humidity 5% - 90%
Storage
Humidity 5% - 90%

4

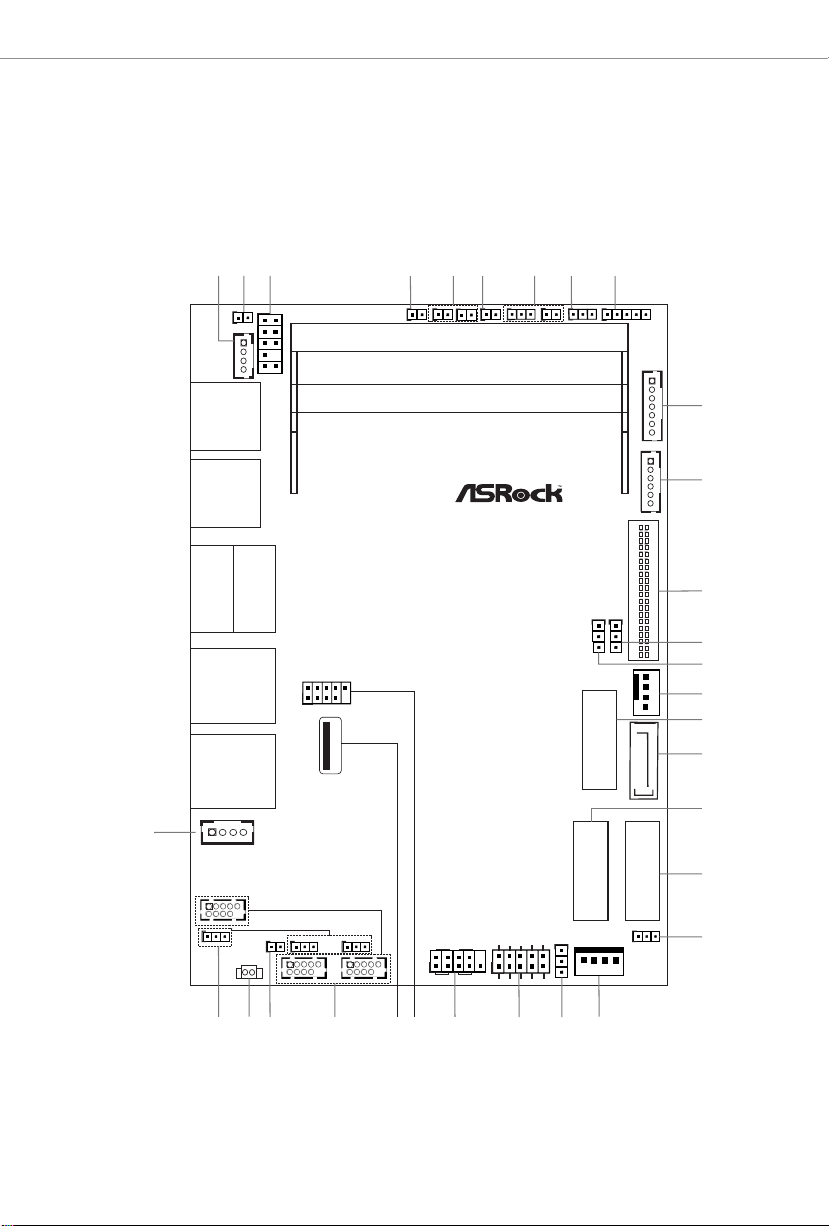

1.3 Motherboard Layout
Top:
CPU_FAN1
1
JGPIO1
SPEAKER1
1
1
BLT_VOL1
HDLED RESET
PLED PWRBTN
PANEL1
1
SATA_PWR1
LVDS 1
1
1
BLT_PWR1
JGPIO_PWR1
1
1
PNL_PWR1
USB 3.2 Gen2
T: USB3_2
B: USB3_TC_2
LAN2
1
DC_IN1
1
HD_AUDIO1
DDR4_B1 (Support DDR4 Only)
DDR4_A1 (Support DDR4 Only)
SBC-370
Industrial
M2_B1
PCIE_ISOLATION1
1
CLRMOS1
1
USB2_5_6
1
JGPIO_SET1
1
111
DACC1 CI1SIO_AT1
1
CLRMOS2
BLT_PWM2
1
RoHS
M2_M1 M2_E1
COM3
1
COM4
1
PWR_COM3
1
PWR_COM4
1
BUZZ2
1
PWR_COM1
1
COM1
1
USB3_3
LAN1
HDMI
DP1
USB 3.2 Gen2
T: USB3_1
B: USB3_TC_1
14
20
1
16
11
12
2
15
456
13
18
25 24
28 27
78
23 22
26
17
19
21
29
39
10
30
SATA3_1
BAT1
BLT_PWM1
1
BKT_PWR1
1
31
1
CI2

5
SBC-370

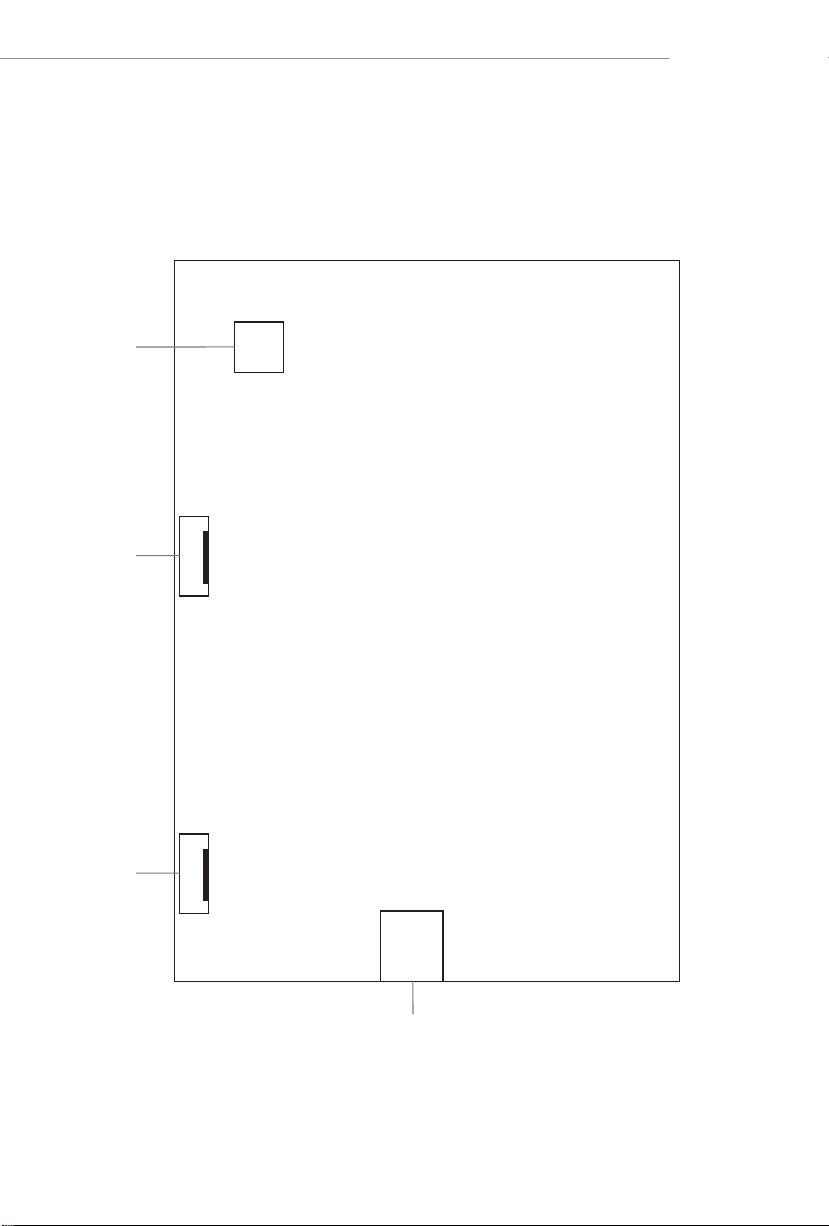

Bottom:
BIOS
ROM
PCIE1
ESPI1
SIM1
32
34
33
35
1
1

6
1 : 3W Audio AMP Output Wafer
2 : PCIE_ISOLATION1
3 : Front Panel Audio Header
4 : DACC1
5 : Chassis Intrusion Headers (CI1, CI2)
6 : SIO_AT1
7 : Clear CMOS Headers (CLRMOS1, CLRMOS2)
8 : CON_LBKLT_CTL Voltage Level (BLT_PWM2)
9 : Panel Power Select (LCD_VCC) (PNL_PWR1)
10 : Backlight & Amp Volume Control (BLT_VOL1)
11 : Inverter Power Control Wafer (BLT_PWR1)
12 : LVDS Panel Connector
13 : Brightness Control Mode (BLT_PWM1)
14 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)
15 : 4-Pin CPU FAN Connector (+12V)
16 : M.2 Key-B Socket (M2_B1)
17 : SATA3 Connector (SATA3_1)
18 : M.2 Key-E Socket (M2_E1)
19 : M.2 Key-M Socket (M2_M1)
20 : GPIO Default Setting (JGPIO_SET1)
21 : SATA Power Output Connector
22 : Digital Input / Output Power Select (JGPIO_PWR1)
23 : Digital Input / Output Pin Header (JGPIO1)
24 : System Panel Header
25 : USB2.0 Connector (USB2_5_6)
26 : USB3.2 Gen2 Port (USB3_3)
27 : COM1, 4, 3 Headers (COM1, 4, 3) (RS232/422/485)
28 : Buzzer
29 : Battery Connector
30 : COM Port Pin9 PWR Setting Jumpers
PWR_COM1 (For COM Port1)
PWR_COM4 (For COM Port4)
PWR_COM3 (For COM Port3)
31 : ATX Power Connector (Input 9V-36V (Default); 12V only (by BOM option))
Back Side:
32 : SIM Card Socket (SIM1)
33 : ESPI Connector (ESPI1)
34 : PCIE Connector (PCIE1)
35 : BIOS ROM Socket

7
SBC-370
1.4 I/O Panel
1 USB3.2 Gen2 Port (USB3_1)
2 USB3.2 Gen2 Port (USB3_2)
3 DisplayPort (DP1)
4 RJ45 LAN Port (LAN2)*
5 RJ45 LAN Port (LAN1) (Supports vPro)*
6 HDMI Port (HDMI)
7 USB3.2 Gen2 Type-C Port (USB3_TC_2)
8 USB3.2 Gen2 Type-C Port (USB3_TC_1)
* ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
LAN Port LED Indications
ACT/LINK
LED
SPEED
LED
LAN Port
13 2
4
56
7
8
Status Description
O 10Mbps/100Mbps connection
Orange 1Gbps connection
Green 2.5Gbps connection
Activity/Link LED SPEED LED
Status Description
O No Link
Blinking Data Activity
On Link

8
Chapter 2 Installation
is is a 3.5” SBC (5.8-in x 4-in x 0.94-in, 14.7 cm x 10.2 cm x 2.40 cm) form factor
motherboard. Before you install the motherboard, study the configuration of your
chassis to ensure that the motherboard ts into it.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components or
change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity, NEV-
ER place your motherboard directly on the carpet or the like. Also remember to
use a grounded wrist strap or touch a safety grounded object before you handle
components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
5. Heatsink (e thermal solution of whole system needs to be designed addition-
ally.)
Make sure to unplug the power cord before installing or removing the motherboard. Failure to
do so may cause physical injuries to you and damages to motherboard components.
Do not over-tighten the screws! Doing so may damage the motherboard.
Before you install or remove any component, ensure that the power is switched o or the
power cord is detached from the power supply. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components.

9
SBC-370
2.3 Installation of Memory Modules (SO-DIMM)
SBC-370 provides two 204-pin DDR4 (Double Data Rate 4) SO-DIMM slots.
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.
1. e SO-DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at incor-
rect orientation.
2. Please do not intermix dierent voltage SO-DIMMs on this motherboard.

10
2.4 Expansion Slots
ere are 1 PCI Express slot, 3 M.2 sockets and 1 SIM socket on this motherboard.
PCIE slot: PCIE1 (PCIE 3.0 x1 slot) is used for PCI Express x1 lane width cards.
* Supports PCIE devices up to 10W
SIM socket: 1 x SIM socket connected to M.2 key B.
PIN Signal Name
20 +12V
19 +12V
18 +12V
17 +12V
16 +12V
15 GND
14 CLKREQ#
13 GND
12 PCIE_RXN
11 PCIE_RXP
10 GND
9PCIE_TXN
8PCIE_TXP
7GND
6CLKN
5CLKP
4GND
3PLT_RST#
2+12V
1+12V

11
SBC-370
M.2 sockets:
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless.
1 x M.2 (Key B, 3042/3052) with PCIex1 or SATA3 and USB 3.2 and USB 2.0
and SIM for 4G/5G.
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 for SSD
M.2 Key-E Socket M.2 Key-B Socket M.2 Key-M Socket
(M2_E1) (M2_B1) (M2_M1)
PIN SIGNAL SIGNAL PIN
2 +3VSB GND 1
4 +3VSB LP+10 3
6 N/C LP-10 5
8 M.2_BT_PCMCLK GND 7
10 M.2_BT_PCMFRM_CRF_
RST_N CNV_WR_D1# 9
12 M.2_BT_PCMIN CNV_WR_D1 11
14 MODEM_CLKREQ_R N/C 13
16 N/C CNV_WR_D0# 15
18 GND CNV_WR_D0 17
20 VRALERT# N/C 19
22 CNV_BRI_RSP CNV_WR_CLK# 21
CNV_WR_CLK 23
32 CNV_RGI_DT
34 CNV_RGI_RSP GND 33
36 CNV_BRI_DT PCH_PE_TXP6 35
38 CL_RST# PCH_PE_TXN6 37
40 CL_DATA GND 39
42 CL_CLK PCH_PE_RXP6 41
44 CNV_PA_BLANKING PCH_PE_RXN6 43
46 CNV_MFUART2_TXD GND 45
48 CNV_MFUART2_RXD PCH_ECLK_WLAN1 47
50 SUS_CLK PCH_ECLK_WLAN1# 49
52 BUF_PLT_RST_N GND 51
54 BT_RF_KILL_N CLKREQ1_WLAN_N 53
56 WIFI_RF_KILL_N N/A 55
58 SMB_DATA_M2 GND 57
60 SMB_CLK_M2 CNV_WT_D1# 59
62 N/C CNV_WT_D1 61
64 N/C GND 63
66 N/C CNV_WT_D0# 65
68 N/C CNV_WT_D0 67
70 N/C GND 69
72 +3VSB CNV_WT_CLK# 71
74 +3VSB CNV_WT_CLK 73
76 N/C GND 75
78 N/C N/C 77
N/C 79
PIN SIGNAL SIGNAL PIN
2 +3V_M2B CONFIG_3 1
4 +3V_M2B GND 3
6 Full_Card_Power_O# GND 5
8 W_DISABLE1_B# LP+4 7
10 WWAN_LED# LP-4 9
GND 11
20 N/C
22 N/C N/C 21
24 N/C WAKE_ON_WAN# 23
26 W_DISABLE2_B# DPR 25
28 N/C GND 27
30 UIM1_RESET USB3_RX4_N 29
32 UIM1_CLK USB3_RX4_P 31
34 UIM1_DATA GND 33
36 +UIM1_PWR USB3_TX4_N 35
38 N/A USB3_TX4_P 37
40 N/A GND 39
42 N/A PERn0/SATA-B+ 41
44 N/C PERp0/SATA-B- 43
46 N/C GND 45
48 N/C PETn0/SATA-A- 47
50 BUF_PLT_RST# PETp0/SATA-A+ 49
52 PCIECLKRQ4# GND 51
54 N/A M2B_CLK4N 53
56 N/A M2B_CLK4P 55
58 N/A GND 57
60 N/C N/C 59
62 N/C N/C 61
64 N/C N/C 63
66 SIM_DETECT_1 N/C 65
68 SUS_CLK BUF_PLT_RST_N 67
70 +3V_M2B CONFIG_1 69
72 +3V_M2B GND 71
74 +3V_M2B GND 73
76 N/C N/C 75
78 N/C N/C 77
N/C 79
PIN SIGNAL SIGNAL PIN
2 +3V GND 1
4 +3V GND 3
6 N/C M2M_RXN3 5
8 N/C M2M_RXP3 7
10 M2_LED GND 9
12 +3V M2M_TXN3 11
14 +3V M2M_TXP3 13
16 +3V GND 15
18 +3V M2M_RXN2 17
20 N/C M2M_RXP2 19
22 N/C GND 21
24 N/C M2M_TXN2 23
26 N/C M2M_TXP2 25
28 N/C GND 27
30 N/C M2M_RXN1 29
32 N/C M2M_RXP1 31
34 N/C GND 33
36 N/C M2M_TXN1 35
38 N/C M2M_TXP1 37
40 SMB_CLK_M GND 39
42 SMB_DATA_M M2M_RXN0 41
44 N/C M2M_RXP0 43
46 N/C GND 45
48 N/C M2M_TXN0 47
50 BUF_PLT_RST_N M2M_TXP0 49
52 CLKREQ0_M2M GND 51
54 N/A M2M_CLK0N 53
56 N/C M2M_CLK0P 55
58 N/C GND 57
68 SUS_CLK N/C 67
70 +3V +3V 69
72 +3V GND 71
74 +3V GND 73
76 N/C GND 75
78 N/C N/C 77
N/C 79

12

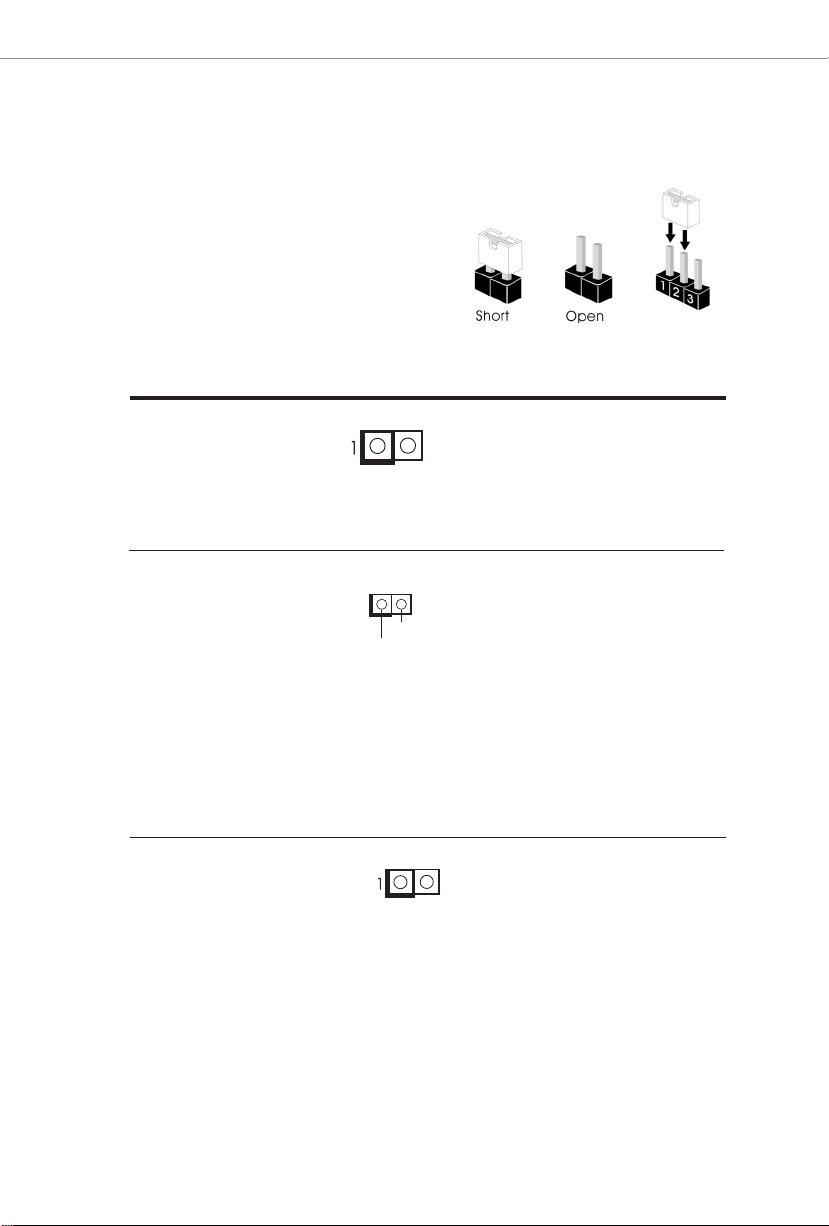

2.5 Jumpers Setup
The illustration shows how jumpers are setup.
When the jumper cap is placed on pins, the
jumper is “Short.” If no jumper cap is placed
on pins, the jumper is “Open.” The illustration
shows a 3-pin jumper whose pin1 and pin2 are
“Short” when jumper cap is placed on these 2
pins.
Jumper Setting Description
DACC1
(2-pin DACC1)
(see p. 4 No. 4)
Auto clear CMOS when system boot improperly.
Chassis Intrusion Jumpers (CI1, CI2)
(2-pin CI1, CI2)
(see p. 4 No. 5)
is motherboard supports CASE OPEN detection feature that detects if the chassis
cover has been removed. is feature requires a chassis with chassis intrusion detection
design.
Open : No ACC
ACC Short : ACC
1
Signal
GN
D
CI1 :
Open : Normal
Short : Active Case Open
CI2 :
Open : Active Case Open
Short : Normal
SIO_AT1 Open : ATX Mode
(2-pin SIO_AT1)
Short : AT Mode
(see p. 4, No. 6)

13
SBC-370

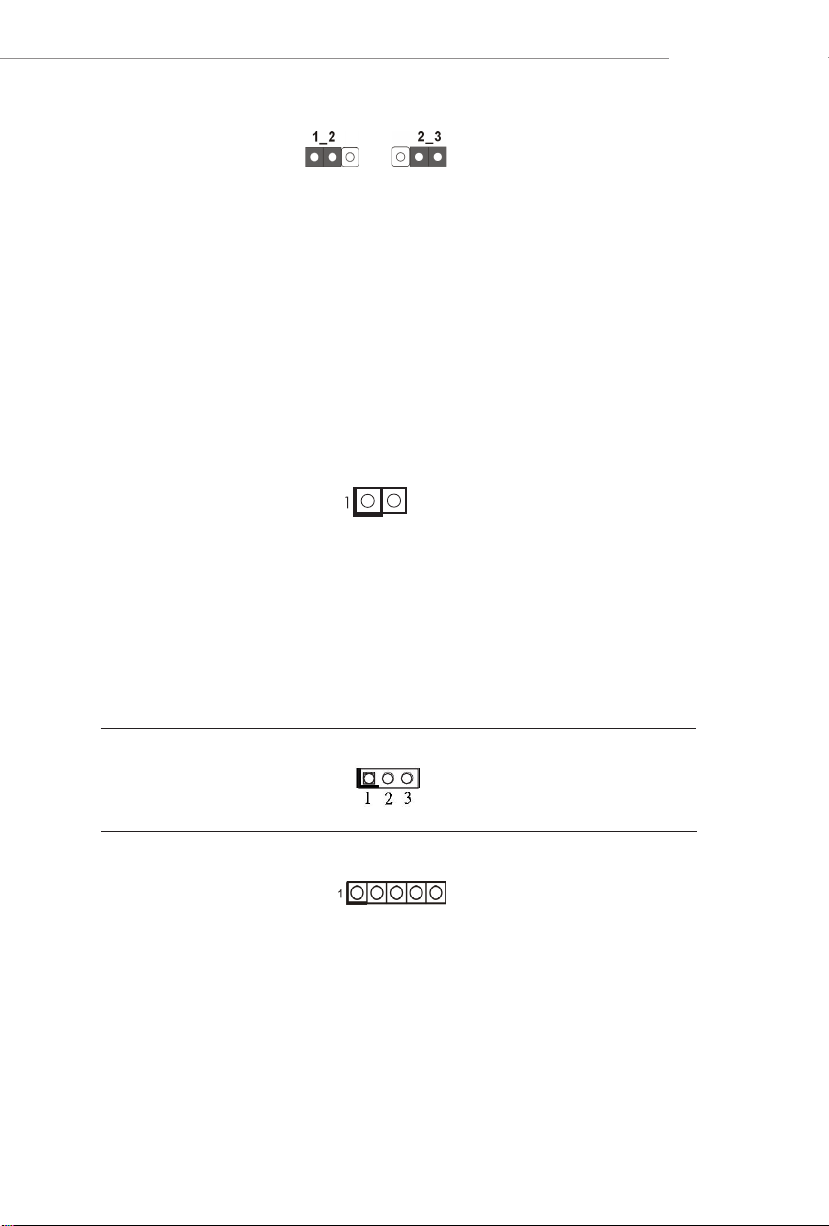

Panel Power Select (LCD_VCC) Use this to set up the VDD
(5-pin PNL_PWR1) power of the LVDS connector.
(see p. 4 No. 9) 1-2: +3V
2-3: +5V
3-4: +5V
4-5: +12V
Clear CMOS Jumpers CLRMOS1 :
(3-pin CLRMOS1) 1-2 : Normal
(see p. 4, No. 7) 2-3 : Clear CMOS
NOTE: CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power cord
from the power supply. Aer waiting for 15 seconds, use a jumper cap to short pin2
and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right af-
ter you update the BIOS. If you need to clear the CMOS when you just nish updating
the BIOS, you must boot up the system rst, and then shut it down before you do the
clear-CMOS action. Please be noted that the password, date, time, user default prole
and MAC address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault
(2-pin CLRMOS2) CLRMOS2 :
(see p. 4, No. 7) Open : Normal
Short : Auto Clear CMOS
(Power O)
NOTE: CLRMOS2 allows you to clear the data in CMOS automatically when AC pow-
er on. e data in CMOS includes system setup information such as system password,
date, time, and system setup parameters. To clear and reset the system parameters
to default setup, please turn o the computer and unplug the power cord, then use a
jumper cap to short the pins on CLRMOS2.
CON_LBKLT_CTL Voltage Level 1-2 : 3V Level
(3-pin BLT_PWM2) 2-3 : 5V Level
(see p. 4 No. 8)

14
Brightness Control Mode 1-2 : From eDP PWM to
(3-pin BLT_PWM1) CON_LBKLT_CTL
(see p. 4 No. 13) 2-3 : From LVDS PWM to
CON_LBKLT_CTL
Please set to 1-2 when adjusting brightness by Brightness Control bar under OS.
Please set to 2-3 when adjusting brightness by BLT_VOL1.
Backlight Power Select Use this to set up the backlight
(LCD_BLT_VCC) power of the LVDS connector.
(3-pin BKT_PWR1) 1-2: +5V
(see p. 4 No. 14) 2-3: +12V
GPIO Default Setting 1-2: Pull-High
(3-pin JGPIO_SET1) 2-3: Pull-Low
(see p. 4 No. 20)
Digital Input / Output Power Select 1-2 : +12V
(3-pin JGPIO_PWR1)
2-3 : +5V
(see p. 4 No. 22)
COM Port Pin9 PWR Setting Jumpers 1-2: +5V
(3-pin PWR_COM1, 4, 3) 2-3: +12V
(see p. 4 No. 30)

15
SBC-370

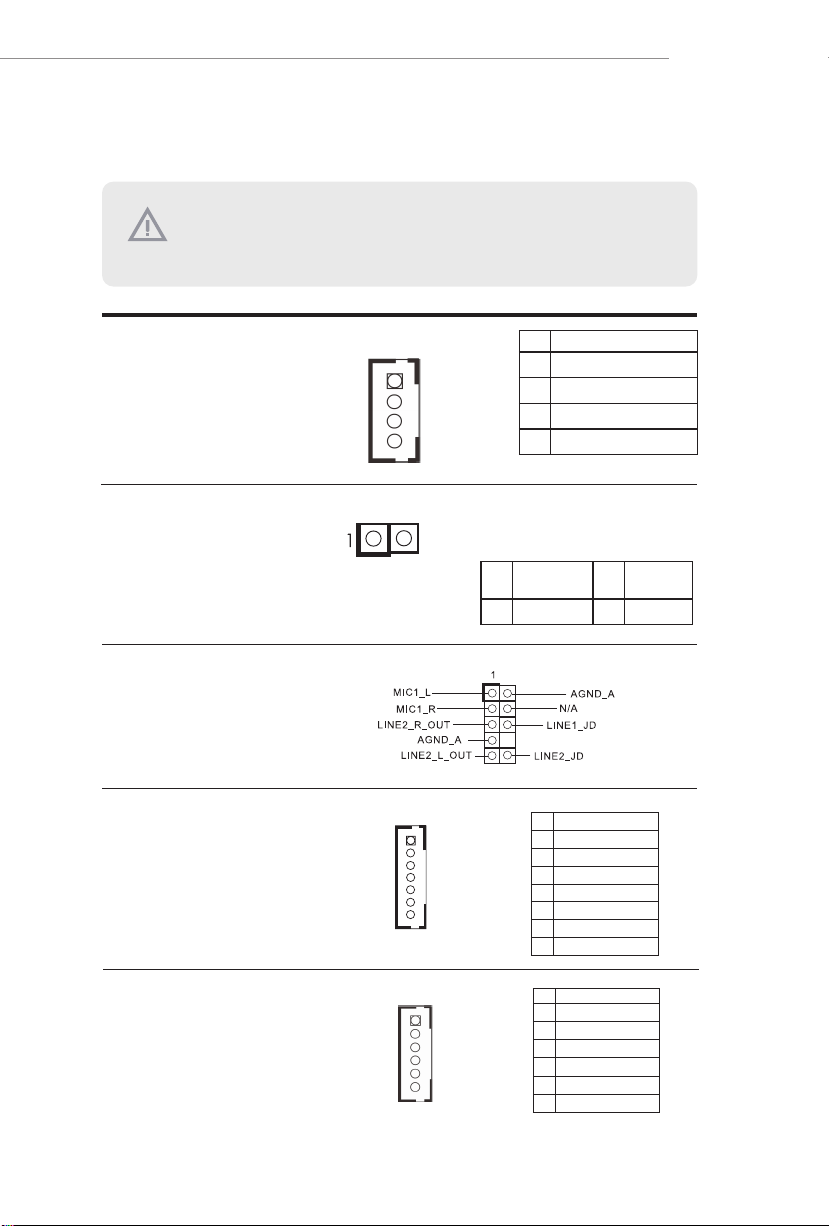

2.6 Onboard Headers and Connectors
1PIN Signal Name
1SPK L-
2 SPK L+
3 SPK R+
4SPK R-
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p. 4 No. 1)
PIN Signal Name PIN Signal
Name
1PSON# 2GND
PCIE_ISOLATION1 Connect to PCIE_ISOLATION_1
(2-pin PCIE_ISOLATION1)
header on VGA-PWR card.
(see p. 4 No. 2)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p. 4 No. 3)
Inverter Power Control Wafer
(6-pin BLT_PWR1)
(see p. 4 No. 11)
PIN Signal Name
1 GND
2 GND
3 CON_LBKLT_CTL
4 CON_LBKLT_EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
1
Backlight & Amp Volume Control
(7-pin BLT_VOL1)
(see p. 4 No. 10)
1PIN Signal Name
1 N/A
2 N/A
3 PWRDN
4 GPIO_BLT_UP
5 GPIO_BLT_DW
6 GND
7 GND
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause per-
manent damage of the motherboard!

16

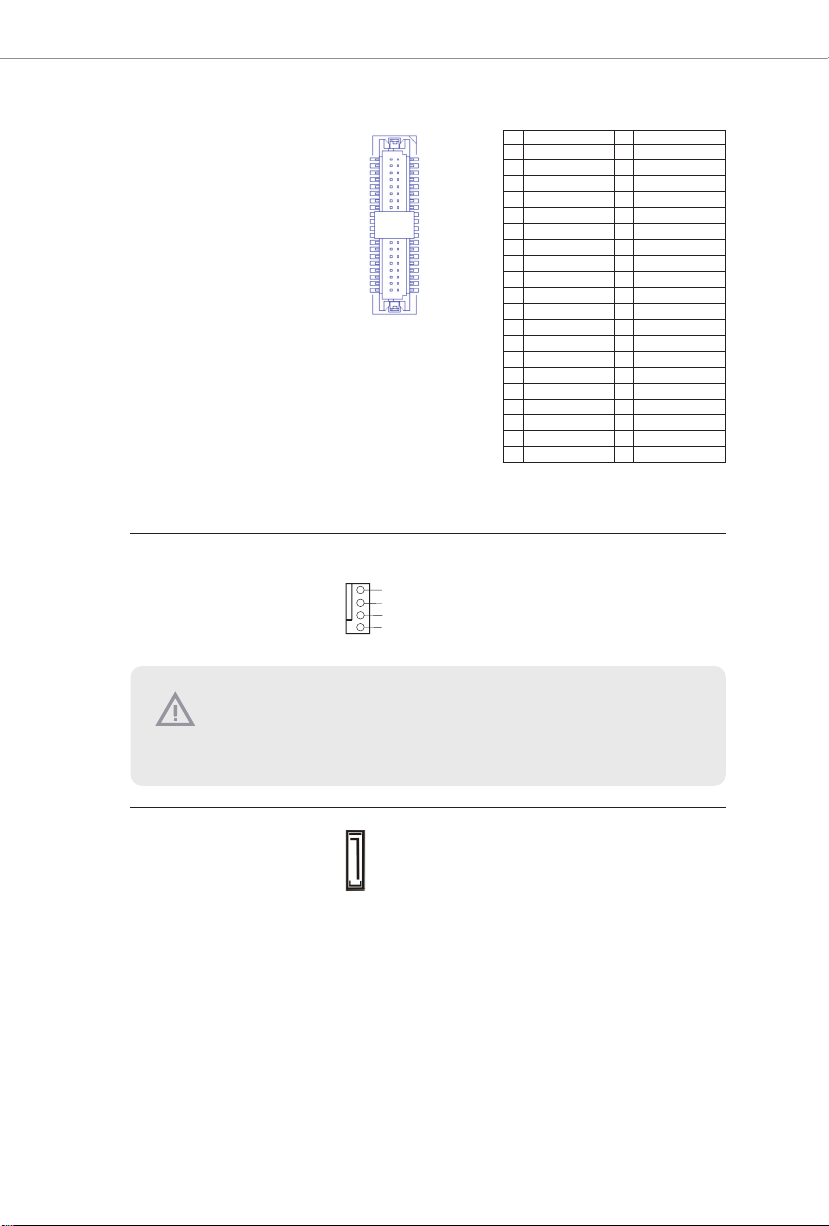

LVDS Panel Connector
(40-pin LVDS1)
(see p. 4 No. 12)
CPU Fan Connector (+12V) Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p. 4 No. 15) match the black wire to the
ground pin.
GND
+12V
CPU_FAN_SPEED
FA
N_SPEED_CONTROL
SATA3_1
SATA3 Connector
(SATA3_1)
(see p. 4 No. 17)
ough this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan
still can work successfully even without the fan speed control function. If you plan to connect
the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin
1-3.
e Serial ATA3 (SATA3)
connector supports SATA
data cables for internal storage
devices. e current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
39 40
1 2
PIN Signal Name PIN Signal Name
39 LCD_BLT_VCC 40 LCD_BLT_VCC
37 CON_LBKLT_CTL 38 LCD_BLT_VCC
35 GND 36 CON_LBKLT_EN
33 LVDS_B_CLK# 34 LVDS_B_CLK
31 LVDS_B_DATA3 32 GND
29 DPLVDD_EN 30 LVDS_B_DATA3#
27 LVDS_B_DATA2# 28 LVDS_B_DATA2
25 LVDS_B_DATA1 26 GND
23 GND 24 LVDS_B_DATA1#
21 LVDS_B_DATA0# 22 LVDS_B_DATA0
19 LVDS_A_CLK 20 GND
17 GND 18 LVDS_A_CLK#
15 LVDS_A_DATA3# 16 LVDS_A_DATA3
13 LVDS_A_DATA2 14 GND
11 GND 12 LVDS_A_DATA2#
9 LVDS_A_DATA1# 10 LVDS_A_DATA1
7 LVDS_A_DATA0 8 GND
5 N/A 6 LVDS_A_DATA0#
3 +3.3V 4 N/A
1 LCD_VCC 2 LCD_VCC
