ABOVE-GROUND AUTOMATIC POOL COVER
NARBONNE MODEL
INSTALLATION AND MAINTENANCE MANUAL
Serial N°:
Revision number: B007-2012-10-05

ENGLISH
1/17 Revision number B-007-2012-10-05
TABLE OF CONTENTS
UNLOADING.............................................................................................................. 2
TOOLS REQUIRED FOR ASSEMBLY....................................................................... 2
COMPONENTS OF THE AUTOMATIC POOL COVER............................................. 3
POSITIONING WITH SHARP CORNERS.................................................................. 4
POSITIONING WITH RAYS....................................................................................... 4
ROLLER INSTALLATION........................................................................................... 5
SLATS ASSEMBLY.................................................................................................... 7
SLATS DIRECTION.................................................................................................... 8
SLATS ASSEMBLING................................................................................................ 8
STAIR SETTING ........................................................................................................ 9
ELECTRICAL CONNECTIONS................................................................................ 10
PLAN OF WIRING.................................................................................................... 11
LIMIT SWITCH ADJUSTMENT................................................................................ 12
BRACKET AND STRAP POSITION......................................................................... 13
POSITION OF BRACKETS AND THE STRAPS FOR THE CAPCIR MODEL ......... 13
SAFETY BRACKETS POSITIONING:...................................................................... 14
The structure is an element of ornament, do not sit
down, do not climb on it, and do not use like solarium!

ENGLISH
2/17 Revision number B-007-2012-10-05

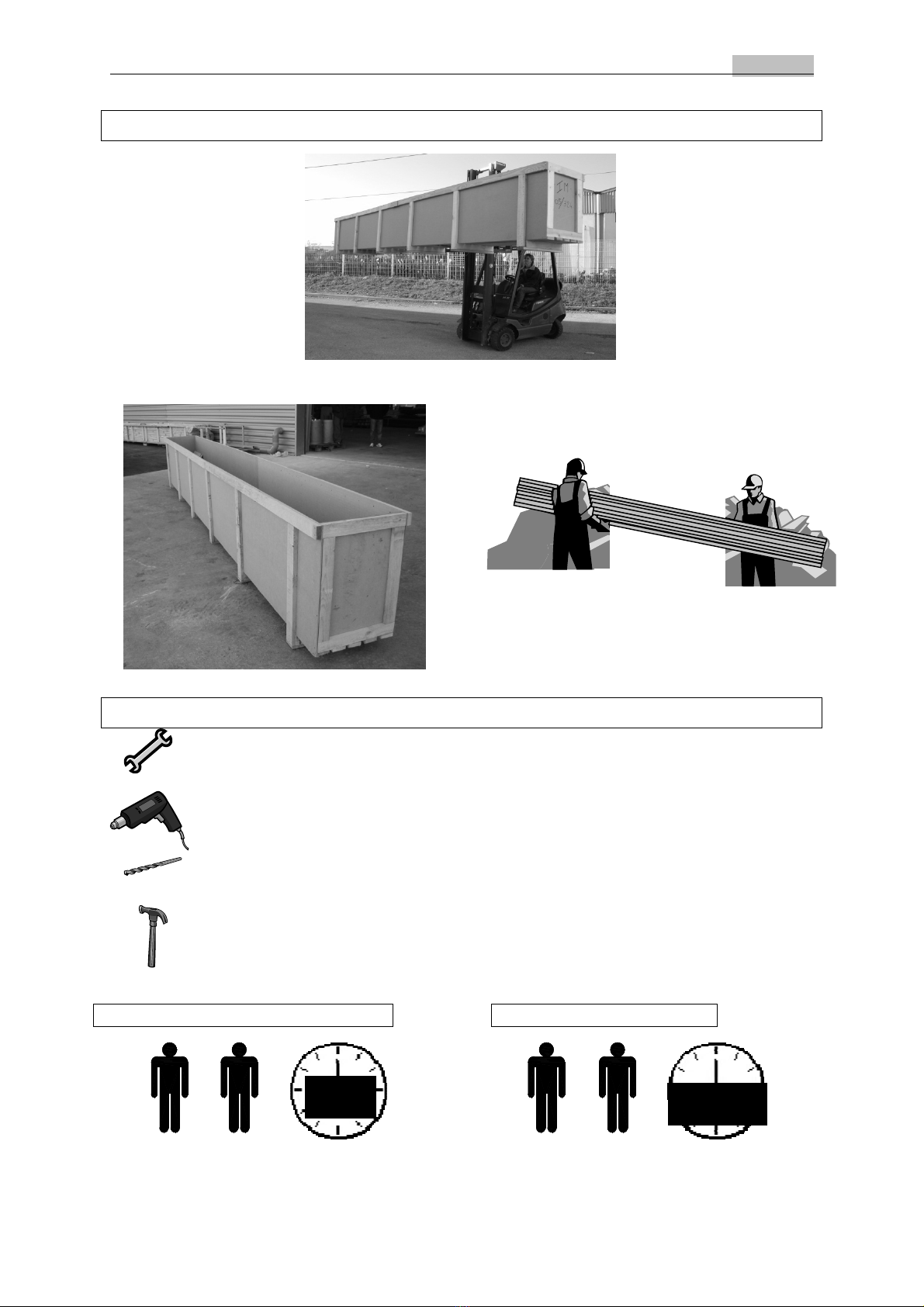

UNLOADING
OR
TOOLS REQUIRED FOR ASSEMBLY
Drill and drill bits for concrete Ø 6 and Ø10
Flat head screwdrivers
Phillips screwdrivers
Spirit level
10 - 13 – 17 wrench
Nippers
Wire strippers
5 and 6 mm Allen wrench
Hammer
Standard and long (10 m) measuring tape
Grease
Metal saw
Grinder with material disk
UNLOADING TIME
ASSEMBLY TIME
0 h
3 h
0h30 10h00

ENGLISH
3/17 Revision number B-007-2012-10-05
COMPONENTS OF THE AUTOMATIC POOL COVER
1 Structure PVC or WOOD
(Shaft assembled on the structure):
Roller Shaft
Slats and fixing Brackets assembly
Electrical box
Installation Instructions
Operation, care, winterising and maintenance instructions.

ENGLISH
4/17 Revision number B-007-2012-10-05
POSITIONING WITH SHARP CORNERS
Sharp corner
POSITIONING WITH RAYS
Coping stone rays
POOL LENGTH
Pool slats length 4 m 5 m 6 m 8 m 10 m 12 m
Dimension X in mm 250 265 285 305 335 350
Dimension X: Cut a piece of coping stone of variable length according to the diameter of slat
roller, upon the roller shaft.
"Cut"
"Cut"
"Dimension X according to table
Dimension X according to table

ENGLISH
5/17 Revision number B-007-2012-10-05
ROLLER INSTALLATION
- Position the roller as indicated in the diagram, making sure it is properly centred
with respect to the pool. It must be perfectly horizontal when installed (diagonals
dimensions).
- If there are rays, the roller should be pushed forward to the pool to enable the slats
to lower properly in its full width.
- Mark the position of the roller stand and polish or flatten the coping stone to obtain
a flat horizontal, even surface for placing the stands.
- Cut the coping stone (dimension X) to make it easier for the slats to be lowered over
the pool. Dimension X may vary according to the length of the pool; roller (roller
diameter on the roller shaft). (See page 05/18 table dim. X).
- After assembling the roller and making the adjustments, position the two roller
stands to the final position on the coping stone, using M10×75 Stainless Steel Bolts.
- Not to position it too behind swimming pool in order to avoid the friction of the
blades on the nose of curbstones when the cover is completely rolled up and this
particularly in the center of the roller
Note: If the skimmers are fixed along the length of the pool, we recommend
replacing their existing flanges with 2 mm thickness Stainless Steel flanges to easier
the slats way and avoid their blockage.
.
Dimension X

ENGLISH
6/17 Revision number B-007-2012-10-05

ENGLISH
7/17 Revision number B-007-2012-10-05
SLATS ASSEMBLY
* Immediately after taking the slats out of the packaging, they should be put into the
water to prevent any possible deformation.
*The number of slats has been determined according to the length of the pool,
though there are 4 extra slats.
* The first set of slats is easily recognisable as it has the straps to be fastening to the
roller. (Long length straps).
*Slide the strap under the fastening plates; tension it without pulling the slat out of the
water
*Centre the cover in the pool leaving enough space on both sides.
*Tighten the attachment plates with a screwdriver
* Bring closer the set of 7 slats to assemble them.
Note: Slats should go down from the front of the roller shaft.
Fixation plate
Strap
1
st
slate
1
st
set of 7 slats

ENGLISH
8/17 Revision number B-007-2012-10-05
SLATS DIRECTION
* Identify the upper side of the slats (curved side).
* Identify the slats direction:
- Wing to the stair
- Groove to the roller shaft
SLATS ASSEMBLING
Phase 1: Join the slats Phase 2: Join the wing to the groove
Phase 3: Move both slats down Phase 4: Move them up and carry on with it until
slats are perfectly engaged.
Roller shaft Side
Slat Side on the water
Stair Side

ENGLISH
9/17 Revision number B-007-2012-10-05
STAIR SETTING
1°) Put the stair slats on the water
2°) Assemble the slats until the stairs are completely assembled.
3°) Centre the big width slats in the pool (allowed dimension X: from both sides of the pool)
4°) Centre the stair using this slat.
To assemble the stair slats to the pool slats, proceed
as follows:
► Mark the position of both cap edges of the stair
slat on the wing of the long width slat.
► Make two notches of a cap and wing dimension on both
sides of the stair on the wing of the long width slat
without hurting the waterproof of the slat.
Long width slat
Wing
Notch
First stair slat
COVER
ALLOWED
DIMENSION X POOL

ENGLISH
10/17 Revision number B-007-2012-10-05

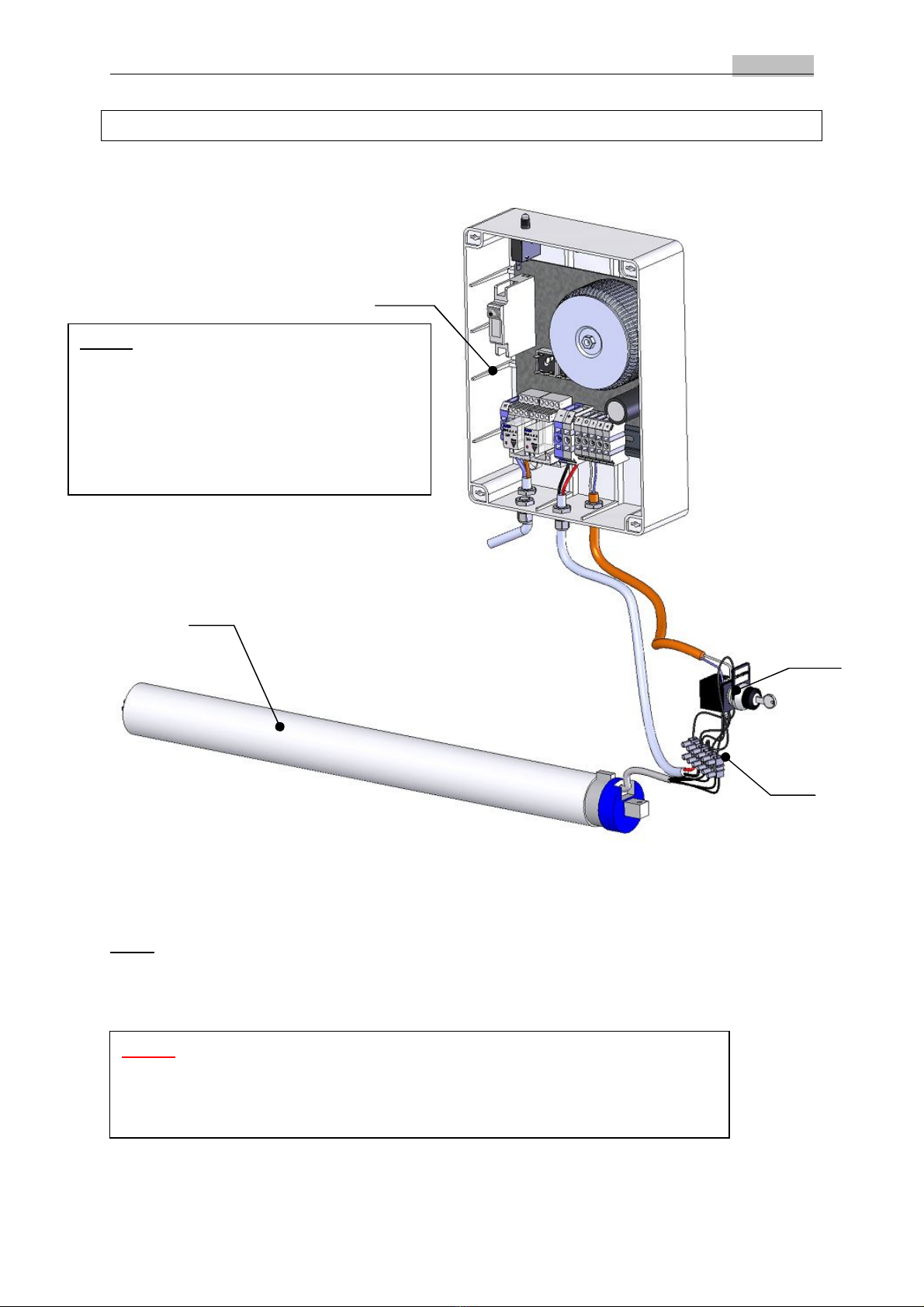

ELECTRICAL CONNECTIONS
The electric installation must be made in accordance with C15100 and P91C by a
properly trained and qualified electrician.
1: Tubular motor
2: Electrical box
3: Key switch
4: Connexions
Note: The electrical box is located in the technical room of the swimming pool. Its
power pack is carried out by a cable 3×2.5², and of a tension of 220 Volts, is
protected by a differential circuit breaker from 30mA (not included)
1
2
3
4
Note
:
in Presence
of an electrolysis in
salt the information contact 3 and 4
(contact closed = pool cover closed) will
be connected avoid up-chloration to the
water’s swimming pool (See the
electrolysis’s documentation for wiring)
Nota
:
in the case of a wiring of an electrolysis in salt.
Contact 1 = COMMUN
Contact 3 = Contact NORMALMENT CLOSED
Contact 4 = Contact NORMALMENT OPEN

ENGLISH
11/17 Revision number B-007-2012-10-05
PLAN OF WIRING
Wire n°5 = Polarity +
Wire n°6 = Polarity -
Note: The numbered reference marks from 1 to 6 are registered on black wire of the
system all the 10 to 15 mm Thing of stripping the cable of the engine well, to see the
reference marks!
NOT TO REVERSE POLARITES + AND - ENGINE!!!
Circuit breaker of
30 mA not
included
Electric cable
3× 2.5²
Tension 220 Volts
Motor cable
Power cable
Power cable
2×4² to 15m
2×6² to 15 at 25m
2×10² to 25 at 50m
Attention
!
Wiring in the case of an
electrolysis in salt !

ENGLISH
12/17 Revision number B-007-2012-10-05
LIMIT SWITCH ADJUSTMENT
Adjust the limit switch, staring with the cover completely extended over the pool.
Adjustment of cover opening:
1: Turn the switch key to rolling-up position and check the rotational direction of the
motor. If required, interchange 1 and 2 cables of the key switch.
2: Adjust the adjustment screw until to get the roller stops, in the correct position.
3: Roll up the cover and adjust the limit switch by turning the adjustment screw.
Adjustment of cover closing:
1: Turn the switch key to the cover closed position, until the pool is completely
closed.
2: Adjust the screw for the closing limit switch such as we previously described.
Note:
Screw the adjustment screw (B) in the + direction to stop it later.
Unscrew the adjustment screw (B) in the – direction to stop it earlier.
Adjustment screw
Adjustment
screwdriver

ENGLISH
13/17 Revision number B-007-2012-10-05
BRACKET AND STRAP POSITION
Warning: The position of the brackets is subject to the position of the skimmers in the pool. If these
lasts bother the positioning of the safety Brackets, the positioning of the Brackets will be done taking
into account the safety Brackets on the slats panels (If necessary move the straps)

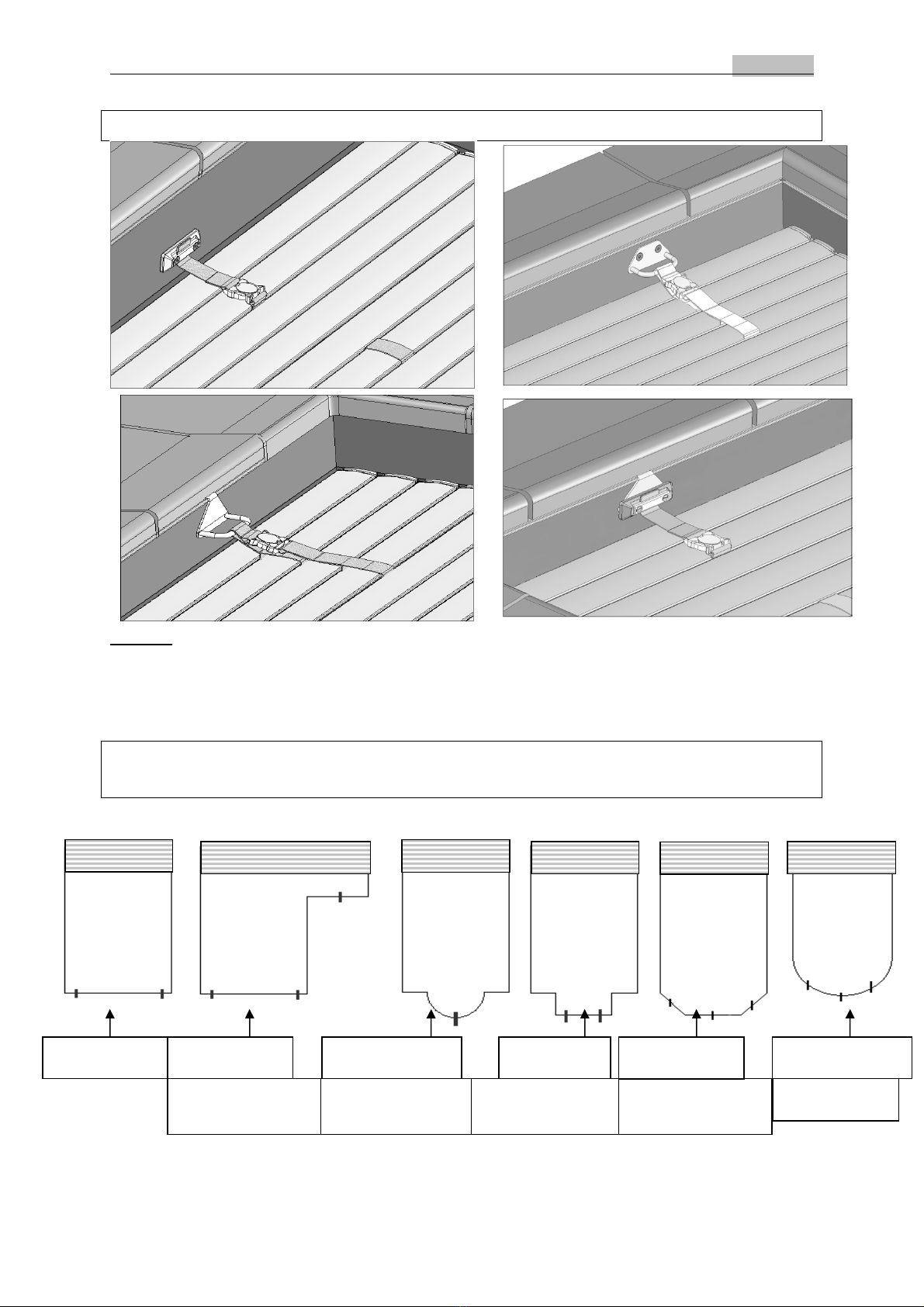

POSITION OF BRACKETS AND THE STRAPS FOR THE CAPCIR
MODEL
1 strap at 50cm from
the edge 1 strap in the middle of the stair
1 strap centred if X <1m
1 stap at 50cm if X<2m
2 Straps if X>2m
1 strap at 50cm from
the edge 1 strap at 50cm from the edge
1 strap centred if X <1m
1 stap at 50cm if X<2m
2 Straps if X>2m
1 strap at 50cm from
the edge
1 strap centred if X <1m
1 stap at 50cm if X<2m
2 Straps if X>2m
1 strap in the middle of
the stair
1 strap at 50cm from
the edge
x
x
x
x
x
x
1 strap centred if X <1m
1 stap at 50cm if X<2m
2 Straps if X>2m
x

ENGLISH
14/17 Revision number B-007-2012-10-05

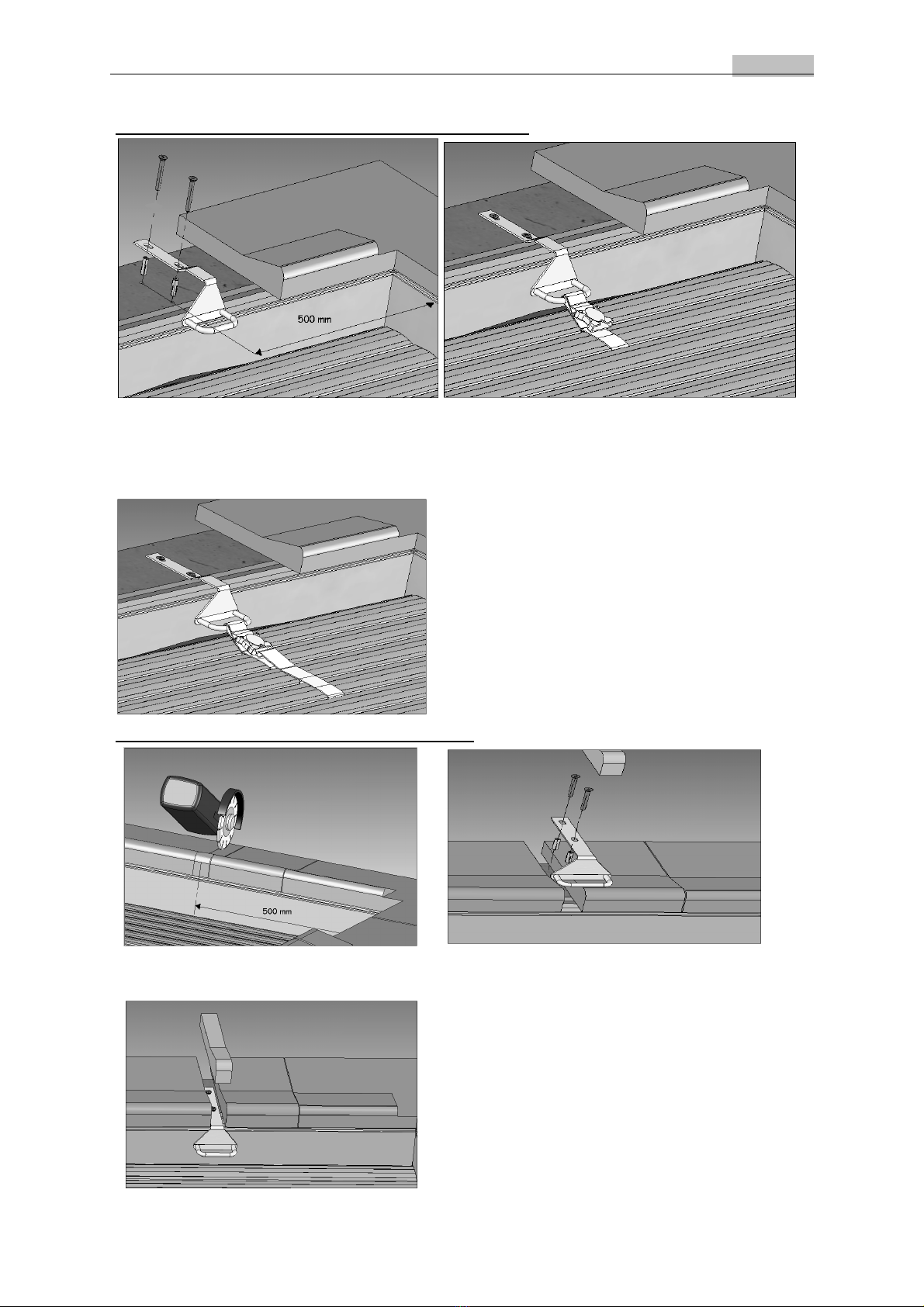

SAFETY BRACKETS POSITIONING:
ABS BRACKETS:
1) When positioning the brackets make sure the
shaft of the brackets is placed at 500 mm from 2) Pin the supports. Put the strap between the
the edge of the pool. fixation plate and the bracket and keep the
strap tense.
3) Tighten the screws until complete closing of the
brackets.
Bracket Inox to be fixed to the wall + screws:
1) When positioning the safety brackets 2) Screw the supports.
the shaft of the brackets must be return type Put the return safety strap.
placed at 500 mm from the edge of the pool.
3) Clip both sides together.

ENGLISH
15/17 Revision number B-007-2012-10-05
Inox Bracket for model under construction + screws:
1) When positioning the safety brackets, 2) Put the pin M8 in the Ø10 wholes.
The shaft of the brackets must be put at Screw until complete closing of the brackets.
500 mm from the edge of the pool. Put the return safety strap in the brackets.
3) Clip both sides together.
Inox Brackets for renovation mo
del
+ screws:
1) Cut the coping stone with a angle grinder 2) Maketwo Ø10 wholes. Place the M8 pin in the wholes. Screw until complete closing of the safety brackets.
Put the straps through as per drawings 2 and 3.
3) Replace the coping stone cut with an adequate product.
1 2
3

ENGLISH
16/17 Revision number B-007-2012-10-05
ABS brackets INOX support:
1) When placing the safety brackets,
The shaft of the brackets must be
placed at 500 mm from the edge of the
pool.
2) Screw the supports.
Put the strap through the fixation plate
and the strap.
Clip both sides of the
strap and keep it tense.
3) Tighten the screws until complete
closing of the brackets.
500mm

ENGLISH
17/17 Revision number B-007-2012-10-05

ENGLISH
18/17 Revision number B-007-2012-10-05
