Asus P535 User manual

P535
User Manual

2
E2755
First Edition
November 2006
Copyright © 2006 ASUSTeK Computers, Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUS Telecom (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or
altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2)
the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR
CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO
EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING
DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,
INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED
FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT
NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES
NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY
APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks
or copyrights of their respective companies, and are used only for identication or explanation and
to the owners’ benet, without intent to infringe.

3
Table of Contents
P535 specications ............................................................................... 8
Package contents .................................................................................. 9
Chapter 1: Getting started
Getting to know your P535 ................................................................. 12
Layout ..................................................................................................... 12
Device components description .................................................................... 14
Getting your device ready................................................................... 16
Installing the SIM card and battery................................................................ 16
Charging the battery...................................................................................... 18
Starting up............................................................................................ 19
Powering your device.................................................................................... 19
Using the stylus............................................................................................. 19
Calibrating P535............................................................................................ 20
Locking the keys and buttons........................................................................ 20
The Today screen ................................................................................ 21
Status indicators............................................................................................ 22
Screen orientation......................................................................................... 25
Start menu..................................................................................................... 26

4
Chapter 2: Entering data
Using the Input Panel......................................................................... 28
Using the Block Recognizer.......................................................................... 28
Using the On-screen keyboard ..................................................................... 29
Using the Letter Recognizer.......................................................................... 30
Using the Transcriber.................................................................................... 31
Writing and drawing on the screen.................................................... 32
Recording voice................................................................................... 33
Using ActiveSync™............................................................................. 35
Synchronizing via mini-USB.......................................................................... 37
Synchronizing with Exchange Server................................................ 38
Setting the synchronization schedule............................................................ 40
Searching information......................................................................... 41
Getting Help ......................................................................................... 42
Chapter 3: Phone features
Using phone......................................................................................... 44
Phone pad..................................................................................................... 44
Using ight mode .......................................................................................... 44
Adjusting the device volume ......................................................................... 45
Making a call ........................................................................................ 46
Using the phone pad..................................................................................... 46
Making calls from Contacts........................................................................... 48
Making calls from Call History....................................................................... 48

5
Using the Speed Dial .................................................................................... 49
Using Voice Command.................................................................................. 50
Receiving a call.................................................................................... 51
Chapter 4: Wireless features
Using the Wireless Manager............................................................... 54
Using Bluetooth®............................................................................................. 55
Overview ..................................................................................................... 55
Activating Bluetooth in your device ............................................................... 55
Conguring Bluetooth ................................................................................... 56
Using WLAN (IEEE 802.11b/g) ............................................................ 62
Introduction ................................................................................................... 62
Activating WLAN in your device.................................................................... 62
Conguring WLAN ....................................................................................... 63
Setting a GPRS connection ................................................................ 65
Connecting GPRS......................................................................................... 68
Disconnecting GPRS .................................................................................... 69
Using the GPRS Tool .................................................................................... 70
Chapter 5: My Secrets
Using My Secrets................................................................................. 72
Enabling My Secrets ..................................................................................... 72
Unlocking My Secrets ................................................................................... 74
Locking My Secrets....................................................................................... 75

6
My Secrets setting......................................................................................... 76
Disabling My Secrets .................................................................................... 79
Chapter 6: Multimedia features
Using the camera................................................................................. 84
Launching the camera................................................................................... 84
Navigation button functions in camera mode................................................ 85
Camera mode screen.................................................................................... 87
Taking photos................................................................................................ 95
Video mode screen ....................................................................................... 96
Recording videos ........................................................................................ 102
Viewing pictures and video .............................................................. 104
Viewing pictures and video ......................................................................... 104
Chapter 7: Other features
WorldCard Mobile.............................................................................. 106
Using the WorldCard Mobile ....................................................................... 107
Remote Presenter.............................................................................. 109
Using the Remote Presenter....................................................................... 109
Setting ring tone .................................................................................115
Adding ring tone to selection........................................................................115
Changing the ring tone.................................................................................116
Wake-up setting ..................................................................................117
Mode switcher.....................................................................................118

7
System information ............................................................................119
Restoring default factory settings ................................................... 120
Chapter 8: Device component status
ASUS status icon............................................................................... 122
CPU mode setting....................................................................................... 123
USB setting ................................................................................................. 123
LCD Brightness........................................................................................... 124
Battery ................................................................................................... 124
Memory ................................................................................................... 125
Storage card memory.................................................................................. 125
Programs running in memory...................................................................... 126
Settings ................................................................................................... 126
Appendix
Notices................................................................................................ 128
Contact information........................................................................... 132

8
P535 specications
Processor Intel XScale®processor, 520MHz
Operating System Microsoft®Windows Mobile™ 5.0
Pocket PC Phone Edition
Memory 256 MB NAND Flash ROM
64 MB SDRAM
Display 2.8-inch, 65, 536-color, 240 x 320-resolution, TFT touch screen LCD
Frequency band Tri-band GSM (900/1800/1900 MHz)
GPRS Class B, Multislot class 10
Camera 2.0 mega-pixel CMOS camera with Auto-Focus (AF) and built-in ash
Connectivity WLAN : 802.11b/g
Bluetooth : V2.0 + EDR
USB : USB Client 1.1
Battery capacity 1300 mAh Lithium Ion
Expansion slot MiniSD card slot
Audio 2.5 mm audio port
Built-in microphone and speaker
Weight 145g (with battery)
Dimension 109 x 59 x 19 mm
GPS Built-in SiRF III GPS chipset
Talk time* 4~5 hrs (*vary with different networking environment and scenario)
Standby time* 150~200 hrs (*vary with different networking environment and scenario)
NOTE: Specications are subject to change without notice.

9
Package contents
Check your P535 package for the following items:
PASUS P535 device
PBattery
PAC Adapter
PMini-USB cable
PHeadset
PStylus
PCar cell phone charger*
PCar Kit (PDA holder and windshield suction pedestal)*
PProtection case
PGetting Started CD
PUser Manual
PQuick Start Guide
PWarranty Card
* optional
NOTE:
If any of the above items is damaged or missing, contact your retailer.
CAUTION:
• To reduce risk of re, use only correct battery type. Refer to “Installing the SIM card and battery” section for details.
• Do not attempt to disassemble the battery pack.
• Dispose of used batteries properly. Inquire from local authorities for proper disposal of battery.

10

11
Getting started
Chapter
• Getting to know your P535
• Getting your device ready
• Starting up
• The Today screen
1

12
Getting to know your P535
Top features
Left side features
Front features
4
6
10
Components:
MiniSD slot
Power button
I Stylus
Camera button
Volume controller
Reset button
Notication LED
Earpiece receiver
LCD touch screen
Call key
Left Soft key
Mode/Task switcher button
Navigation buttons
Action button
Right Soft key
OK or Close button
End key
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Layout
12
3
5
8
9
11
17
12
13
14
16
7
15

13
Getting to know your P535
Bottom features
Right side features
Rear features
25 26
23
Components:
Camera ash light
Camera lens
GPS antenna connector
Speaker
Battery compartment
Voice recorder button
Hold button
Earphone slot
Mini-USB connector
Mic
18
19
20
21
22
23
24
25
26
18
20
21
22
24
27
19
27

14
Device components description
No. Item Description
1MiniSD slot Allows you to insert a MiniSD storage card.
2Power button Press once to set suspend mode or to wake device from sleep mode.
Press and hold to turn the power ON or OFF.
3Stylus Use the stylus to write, draw, or select items on the touch screen.
4Camera/Shutter button Press to launch the camera. In camera mode, half-press to auto-
focus then full-press to take a picture. In video mode,
full-press to start recording video and press again to stop.
5Volume controller Press the arrow buttons to adjust the volume.
6Reset button Using the stylus, press reset button to soft-reset your device.
7Notication LED This multi-color LED noties the following:
• Green - Phone fully charged.
• Flashing green - Network detected.
• Red - Phone is charging.
• Flashing red - Event notication.
• Flashing blue - Bluetooth
®
or WLAN(IEEE 802.11b/g) ON.
• Flashing blue and green - GPS is ON.
8Earpiece receiver Allows you to listen to incoming/outgoing calls.
9LCD touch screen This 2.8-inch, 65536-color, 240 x 320-resolution, touchscreen TFT
LCD allows you to write, draw, or make selections using the stylus.
10 Call key Press to receive an incoming call or make a call.
11 Left Soft key Performs the command indicated above the button.
12 Mode/Task switcher button Allows you to switch applications and tasks.
Press and hold this button to turn on/off the ashlight.
13 Navigation buttons Use to move through menus. Press the center to run an application
or in camera mode, press to take a picture.

15
Device components description
No. Item Description
14 Action button Press to carry out the task of selected item.
15 Right Soft key Performs the task indicated above the button.
16 Ok or Close button Press to conrm a command or press to close/exit an open
application.
17 End button Press to end a call.
18 Camera ashlight Allows you to capture images in a dim environment.
Press and hold the mode switcher button to turn this ashlight on/off.
19 Camera lens This 2-megapixel camera comes with Auto-Focus (AF) lens and ash
light features.
20 GPS antenna connector Allows you to install an external GPS antenna for better signal
reception.
21 Speaker Allows you to listen audio media and phone calls.
22 Battery compartment Contains the battery that supplies power to the device.
23 Voice recorder button Press to launch the record application to record voice.
24 Hold button Slide to enable or disable all keys including the LCD touch screen.
25 Earphone port Plug headset accessory to this port.
26 Mini-USB connector Use this connector to synchronize your data or to charge the battery.
27 Mic Used to make or receive phone calls, record sounds, record voice, or
say voice commands.

16
Installing the SIM card and battery
Before you can make a phone call using your P535, you need to install a Subscriber Identity
Module (SIM) card. A SIM card contains your phone number, subscriber details, phonebook,
and additional phone memory.
Your P535 comes with a rechargeable Lithium-Ion battery.
New batteries come partially discharged and should be fully charged before using them. They
generally do not reach their rated capacity until they have been charged and discharged at
least four (4) times. We recommend that new batteries be charged overnight even though
they may indicate that the charge is complete after a few hours. Sometimes charging may
stop during the initial charge and it is necessary to remove the battery for approximately
fteen (15) minutes and then put it back on charge.
Getting your device ready
1. Remove the battery compartment cover.
NOTE:
When turned on, the device automatically turns off
after you open the battery compartment to prevent
data loss.
CAUTION:
Use only an ASUS qualied battery.
To install a SIM card and battery:

17
2. Remove the battery.
3. Insert the SIM card with its gold
contacts facing down and the notched
corner oriented to the upper left corner
of the slot as shown.
4. Replace the battery into the
compartment with its copper contacts
properly aligned to the copper
conductor on the device.
5. Replace battery compartment cover.

18
Charging the battery
The bundled battery pack is shipped partially charged. Charge the battery up to four (4) hours
before using for the rst time.
To charge battery:
1. Connect the AC adapter plug to the mini-USB connector at the bottom of the device.
2. Connect the AC power plug to a grounded wall socket or power strip.
NOTE:
• The notication LED turns red and charging battery icon appears on the status bar indicating that the battery is
charging.
• If your battery gets totally discharged, you need to recharge it for at least twenty minutes before you can turn it
back on.

19
Powering your device
Make sure that your P535 is fully-charged before starting the device for the rst time.
To turn on power:
1. Press and hold the power button.
Power button
Starting up
2. Follow onscreen instructions to align screen and set the local time zone.
Using the stylus
The stylus is a pen-like device found behind the upper right corner of your P535.
• Use the stylus to write, draw, select, or drag an item on the screen.
• Single-tap an item to select it.
• Tap and hold an item to see a menu.
Stylus

20
Calibrating P535
Calibrating your device ensures that the item you tap on the screen is activated. This involves
tapping in the center of targets that appear in various coordinates on the screen.
To calibrate your screen:
Locking the keys and buttons
You can lock the keys and buttons of your device to avoid inadvertently dialing numbers or
launching any application. To lock the keys and buttons:
1. Locate the Hold button on the right side of your device.
2. Slide the hold button downward to lock.
3. To unlock, slide the hold button upward.
Hold button

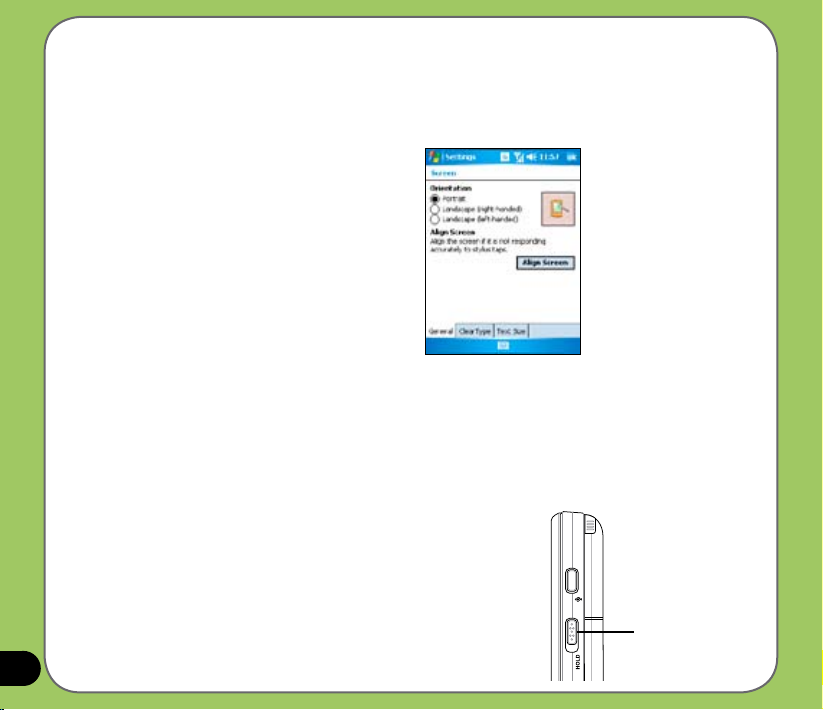

1. Tap Start > Settings > System tab
then tap Screen icon.
2. On the General tab tap Align Screen
then follow succeeding calibration
screen instructions.
You can also invoke the calibration screen by
simultaneously pressing the Mode and Clear
buttons.
